ELECTROLUX EOD33003X User Manual

user manual

Build in double oven

EOD33003

2 electrolux

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 2
Product description 3
Before first use 5
Operation 6

Subject to change without notice

Care and cleaning 13
What to do if… 18
Installation 19
Disposal 21

Safety information

These warnings are provided in the interests
of your safety. Ensure that you understand
them all before installing or using the appli­ance.
Your safety is of paramount importance. If
you are unsure about any of the meanings of
these warnings please contact customer
care.

Installation

• The appliance must be installed according
to the instructions supplied.

• The installation work must be undertaken
by a qualified electrician or competent per­son.

• The appliance should be serviced by an
authorized Service Engineer and only gen­uine approved spare parts should be used.

• The appliance must be installed in an ad­equately ventilated room.

• It is imperative that the appliance is left in
the base to protect both the appliance and
the floor.

• This appliance is heavy and care must be
taken when moving it.

• Do not attempt to lift or move this appli­ance by the handles.

• All packaging, both inside and outside the
appliance must be removed before the ap­pliance is used.

• It is dangerous to alter the specifications or
modify the appliance in any way.

Child safety

• Do not allow children to play with any part
of the packaging.

• Do not allow children to sit or climb on the
drop down doors.

• This appliance is not intended for use by
children and other persons whose physi-

cal, sensory or mental capabilities or lack
of experience and knowledge prevents
them from using the appliance safely with­out supervision or instruction by a respon­sible person to ensure that they can use
the appliance safely.

• Children should be supervised to ensure
that they do not play with the appliance.

Caution! Accessible parts may be hot.
Young children should be kept away.

During use

Warning! Never leave the appliance

unattended when the oven door is open.

• This appliance is not intended to be oper­ated by means of an external timer or sep­arate remote control system.

• This appliance has been designed for do­mestic use to cook edible foodstuffs only
and must not be used for any other pur­poses.

• Take great care when heating fats and oils
as they will ignite if they become too hot.

• Never place plastic or any other material
that may melt in or on the oven.

• Always support the grill pan when it is in
the withdrawn or partially withdrawn posi­tion.

• Always use oven gloves to remove and
place food in the oven.

• During use the appliance becomes hot.
Care should be taken to avoid touching the
heating elements inside the oven.

• Ensure that all vents are not obstructed to
ensure ventilation of the oven cavity.

• Never line any part of the appliance with
foil.

electrolux 3

• Always stand back from the appliance
when opening the oven door to allow any
build up of steam or heat to release.

• Stand clear when opening the drop down
doors. Support the doors using the han­dles until fully open.

• Do not place sealed cans or aerosols in­side the oven. They may explode if they are
heated.

• Ensure that all control knobs are in the OFF
position when not in use.

• Do not stand on the appliance or on the
open oven doors.

• Do not hang towels, dishcloths or clothes
from the appliance or its handles.

• Do not use this appliance if it is in contact
with water. Never operate it with wet
hands.

Cleaning and maintenance

Warning! For hygiene and safety

reasons this appliance should be kept
clean at all times. A build-up of fat or
other foodstuff could result in a fire
especially in the grill pan.

• Do not leave cookware containing food­stuffs, e.g. fat or oil in the appliance in case
it is inadvertently switched on.

• Always allow the appliance to cool before
switching off at the wall prior to carrying
out any cleaning/maintenance work.

• Only clean this appliance in accordance
with the instructions given in this book.

• Never use steam or high pressure steam
cleaners to clean the appliance.

Product description

General overview 1 Control panel

2 Top oven handle
3 Top oven
4 Main oven handle
5 Main oven

4 electrolux

Control Panel Overview

1 2 3 74 5 6

8

1 Top oven function knoob
2 Top oven temperature knob
3 Decrease button
4 Mode button
5 Increase button
6 Main oven function knob
7 Main oven temperature knob
8 Display

Oven accessories
3 oven shelfs

Oven grill shelf

Anti stick meat/Drip pan

Before first use

Rating plate

This is situated on the front frame of the ap­pliance and can be seen upon opening the
door. Alternatively the rating plate may also
be found on the back or top of some models
(where applicable).
The appliance must be protected by a suita­bly rated fuse or circuit breaker.
The rating of the appliance is given on the
rating plate.
Do not remove the rating plate from the ap­pliance as this may invalidate the guarantee.

Preparing to use your appliance

Wipe over the base of the oven(s) with a soft
cloth using hot soapy water. Wash the furni­ture before use.
We suggest that you run the oven(s) and grill
for 10 – 15 minutes at maximum tempera­ture, to burn off any residue from their surfa­ces. Accessible parts may become hotter
than in normal use. Children should be kept
away. During this period an odor may be
emitted, it is therefore advisable to open a
window for ventilation.

The cooling fan

The cooling fan comes on immediately when
the top or main oven is switched on. It may
run on after the oven(s) is switched off until
the appliance has cooled.
During the initial period the cooling fan may
turn on and off, this is quite normal.

Warning! Always allow the cooling fan
to cool the appliance down before
switching off at the wall prior to carrying
out any cleaning or maintenance work.

Control panel indicator neon(s)

The indicator neon will operate when the
oven(s) is switched on. The indicator neon
will glow. It may turn on and off during use to
show that the setting is being maintained. If
the neon does not operate as the instructions
indicate the controls have been incorrectly
set. Return all controls to zero and reset fol­lowing the instructions for the required set­ting.

electrolux 5

Condensation and steam

When food is heated it produces steam sim­ilar to a boiling kettle. The vents allow some
of this steam to escape. However, always
stand back from the appliance when opening
the door(s) to allow any build up of steam or
heat to release.
If the steam comes into contact with a cool
surface on the outside of the appliance, e.g.
a trim, it will condense and produce water
droplets. This is quite normal and is not
caused by a fault on the appliance.
To prevent discoloration, regularly wipe away
condensation and foodstuff from surfaces.
For your safety wall coverings at the rear of
the appliance should be securely fixed to the
wall.

Cookware

Baking trays, dishes etc., should not be
placed directly against the grid covering the
fan at the back of the oven.
Do not use baking trays larger than 30cm x
35cm (12” x 14”) as they will restrict the cir­culation of heat and may affect performance.

Setting the Time

The oven only operates when the time
has been set.

1. When the appliance is connected to the

electrical supply or when there has been
a power cut, Time

cally.

2.

Using the
time.

3. After approx. 5 seconds, the clock stops

flashing and the clock displays the time of
day set.
The appliance is now ready to use.

or button, set the current

flashes automati-

6 electrolux

Initial Cleaning

Before using the oven for the first time you
should clean it thoroughly.

Warning! Do not use any caustic,
abrasive cleaners! The surface could be
damaged.

To clean metal fronts use commercially
available cleaning agents.

1. Turn the oven function switch to oven

lighting .

2. Remove all accessories and the shelf

support rails and wash them with warm
water and washing up liquid.

3. Then wash out the oven with warm water

and washing-up liquid, and dry.

4. Wipe the front of the appliance with a

damp cloth.

Operation

The top oven

The top oven is the smaller of the two ovens.
It is heated by elements in the top and bot­tom of the oven. It is designed for cooking
smaller quantities of food. It gives especially
good results if used to cook fruitcakes,
sweets and savoury flans or quiche.
The top oven is ideal for use as a warming
compartment. It can be used to warm dishes
and keep food hot. Use the lowest setting on
the top oven temperature control.

Warning! Do not place cookware and
cooking pots with rough bases e.g. cast
iron on the oven door as damage to the
glass may occur.

Switching the Oven On and Off

1. Turn the oven functions dial to the desired
function.

Oven Functions
Top Oven

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

cleaning.

Conventional Cooking This form of cooking gives you the opportunity to cook without

the fan in operation. It is particularly suitable for dishes, which
require extra base browning such as pies, quiches and flans.
Gratin's, lasagne and hot pots which require extra top browning
also cook well in the conventional oven. For best results cook
on one level.

Top Heat This function uses the top element to give single level cooking.

This is particularly suitable for dishes which require extra top
browning.

Bottom Heat For baking cakes with crispy or crusty bases.

Economy Grill For grilling flat foodstuffs placed in the middle of the grill and for

toasting.

Full Grill For grilling flat foodstuffs in large quantities and for toasting.

2. Turn the temperature selector to the de­sired temperature.

3. To turn the oven off, turn the oven func­tions dial and the temperature selector to
the Off position.

The power indicator is lit as long as the
oven is in operation.

The temperature pilot light is lit as long
as the oven is heating up.

The fan switches on automatically in or­der to keep the appliance’s surfaces
cool. When the oven is switched off, the
fan continues to run to cool the appli­ance down, then switches itself off au­tomatically.

Bottom Oven

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

Ultra Fan The fan function is particularly suitable for cooking larger quan-

Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or

cleaning.

tities of food. Set the oven temperatures 20-40 °C lower than
when using Conventional.

other frozen foods.

Clock Functions

•

Countdown

- See appropriate chapter
on setup. A signal sounds after the time
has elapsed. This function does not affect
the functioning of the oven.

•

Cook time

- is used to set the desired

period of cooking time.

•

End time

- when set the appliance is

turned off at desired time.

•

Time

- shows the current time.

How to use the clock functions

• After a function has been selected, the
corresponding function indicator flashes
for about 5 seconds. During this period,
the desired times can be set using the in-

crease

or decrease button.

• When the desired time has been set, the
function indicator continues to flash for ap­prox. 5 seconds. After that the function in­dicator is then lit. The set time begins to
run.

• Press any of the buttons to stop the audi­ble signal.

• The desired oven function and tempera­ture can be selected before or after the

clock functions Cook time
time

are set.

and End

• When the cooking process is completed,
turn the oven function dial and the tem­perature selector back to the OFF position.

Switching Off the Time Display

Press and hold down any two buttons until
the display becomes dark.
By switching off the time display you can
save energy.

Switching On the Time Display

Hold down any button until the time reap­pears in the display.

The display can only be switched off if
none of the clock functions Cook time

electrolux 7

, End time or Countdown is

in use.

Countdown

1.

Press the Mode

button repeatedly un-

til the function indicator Countdown
flashes.

2.

Using the increase

or decrease
button set the desired Countdown (max.
2 hours 30 minutes).

3. After approx. 5 seconds the display
shows the time remaining. The function
indicator Countdown

lights up.

4. When the time has elapsed, the function
indicator flashes and an audible signal
sounds for 2 minutes. The signal can be
stopped by pressing any button.

Cook time

1.

Press the Mode

button repeatedly un-

til the function indicator Cook time
flashes.

2.

Using the increase

or decrease
button set the desired cooking time.
After approx. 5 seconds the display re­turns to showing the current time. The
function indicator Cook time

lights
up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.

3. The signal and the programme can be
stopped by pressing any button.

End time

1.

Press the Mode

button repeatedly un­til the function indicator End time
flashes.

2.

Using the increase

or decrease

button set the desired switch-off time.

8 electrolux

After approx. 5 seconds the display re­turns to showing the current time. The

function indicator End time

lights up.
When the time has elapsed, the function
indicator flashes, an audible signal
sounds for 2 minutes and the oven
switches itself off.

3. The signal and the programme can be
stopped by pressing any button.

Cook time

and End time

combined

Cook time and End time can
be used simultaneously, if the oven is to
be switched on and off automatically at
a later time.

1.

Using the Cook time

function, set the

time required for cooking the dish.

2.

Using the End time

function, set the

time at which the dish should be ready.
The function indicators Cook time
and End time light up and the current

time is shown in the display.
The oven switches on automatically at the
time calculated.
And switches itself off again when the
cooking time entered has elapsed.

Using the panel shield while grilling with
open oven door

Important! When you use the grilling

function with open oven door it is necessary
to fix the panel shield below the control panel.

It prevents control panel damage due to
heat.

Warning! The shield will be very hot
when you use it while grilling.

Warning! Wait until the shield is cold if
you want to remove it after grilling
otherwise you can get burned.

Using the panel shield

1. Open top oven door.

2. Position the shield horizontally.

3. Make sure the text 'For grilling use only'
is on top and facing towards you.

4. The shield has magnets which allow you
to fix it below the control panel.

Baking

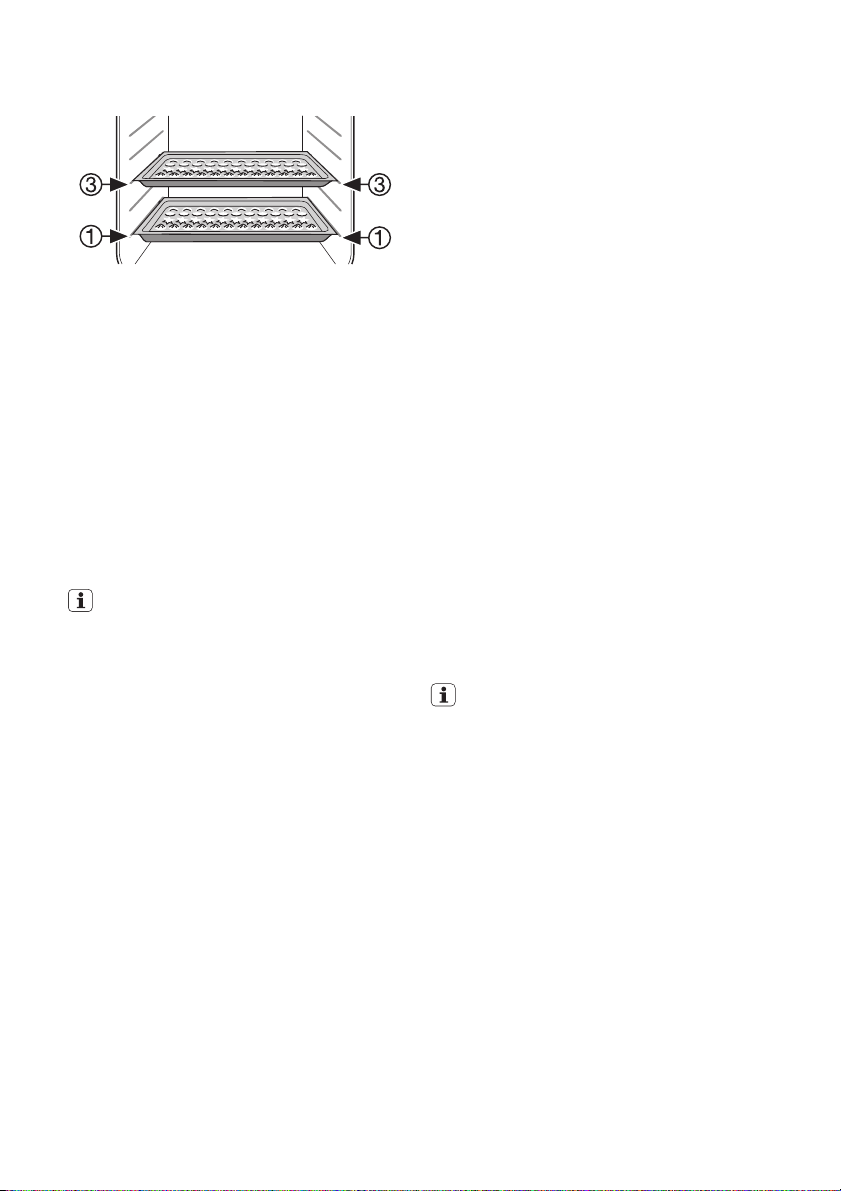

Oven levels

• Baking with Conventional Cooking is only
possible on one level.

• When baking with Fan Cooking one to two
baking trays can be put into the bottom
oven at the same time:

1 tray, e.g. oven level 3

1 cake in cake tin, e.g. oven level 1
