INSTRUCTION BOOK
Model EMS 2185
8221911-14 |
UK |
|
EMS 2185 |
UK |
Contents
For the user
Before using your microwave oven |
4 |
Safety Instructions |
5 |
Utensil safety |
5 |
Testing suitability of cookware |
5 |
Foil containers |
6 |
Food safety |
6 |
Safety instructions when cooking by Grill |
7 |
Oven utensils and accessories guide |
8 |
Description of the microwave oven and |
|
accessories |
|
The microwave oven |
9 |
Accessories |
10 |
Control panel |
11 |
Before using your microwave oven |
|
for the first time |
|
Cleaning |
12 |
Setting the clock |
12 |
General operating instructions |
13 |
How to operate your microwave oven |
15 |
Microwave cooking |
|
Microwave setting guide |
16 |
Minute timer with alarm |
16 |
Grill cooking |
17 |
Microwave and Grill cooking |
18 |
Automatic programmes |
19 |
Auto Defrost |
19 |
Automatic Cooking Programmes |
21 |
Combination cooking Microwave and Grill |
22 |
Quick Start |
22 |
Child Lock |
23 |
Microwave Hints |
23 |
Charts |
|
Defrosting |
24 |
Cooking vegetables |
26 |
Cooking fish |
26 |
Grilling table |
27 |
Combined Microwave and Grilling table |
27 |
Care and cleaning |
28 |
Care and cleaning (grill) |
28 |
Cleaning the accessories (turntable, support |
|
and rack) |
28 |
Cleaning the interior |
28 |
Cleaning the exterior |
28 |
Service and spare parts |
29 |
Guarantee conditions |
|
Standard guarantee conditions |
30 |
Exclusions |
30 |
For the installer
Installation |
|

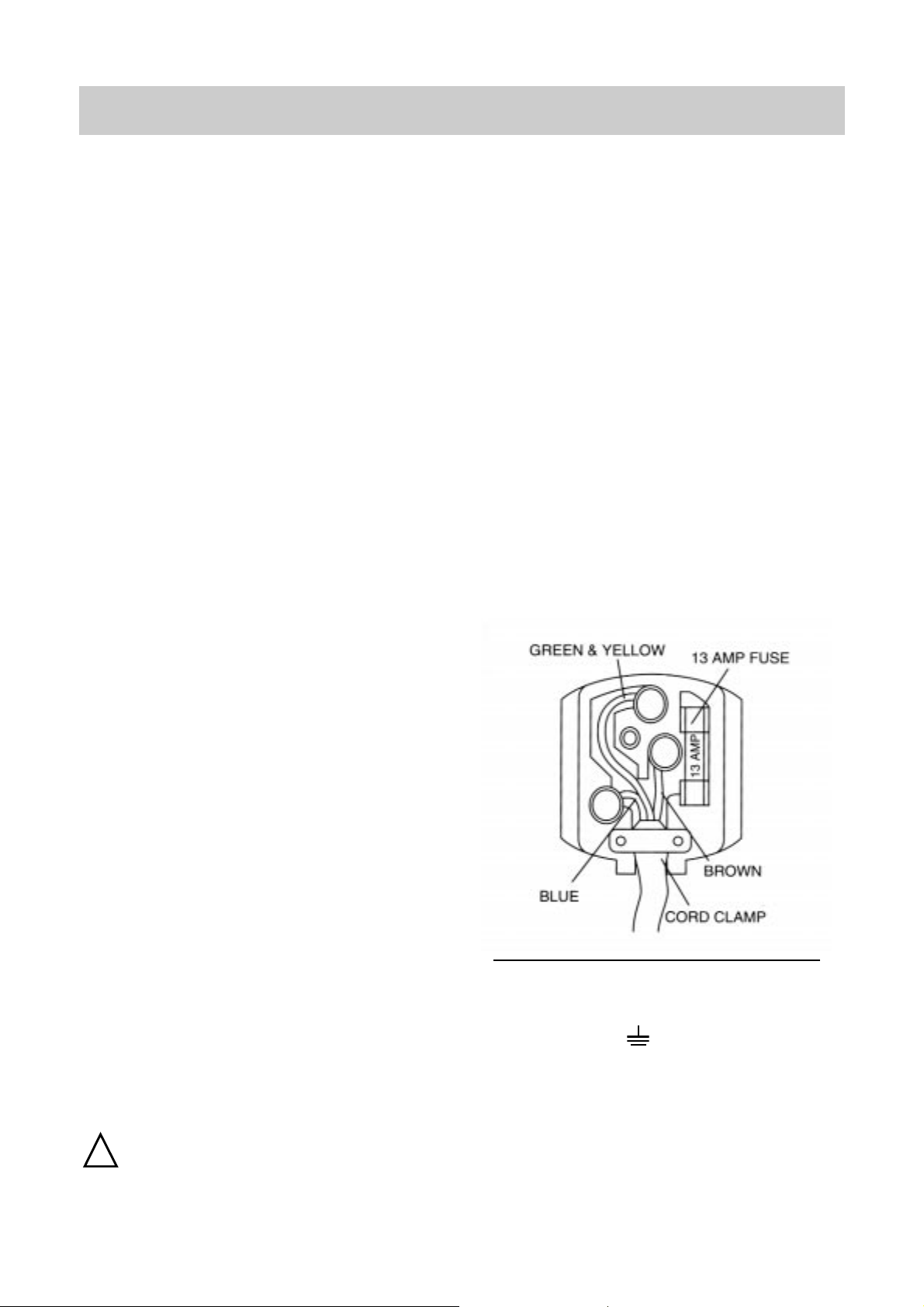

Electrical connections |
31 |
Connecting to the mains |
32 |
Build-In model |
32 |
Technical data |
32 |
Electrolux Service Force |
33 |
3
EMS 2185 |
UK |
Before using your microwave oven
Read through the instruction manual carefully. In order that you can get the best from your new Electrolux microwave oven, the following instructions have been prepared. Please make sure you read them carefully.
It is important that this instruction book is retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or if you move house and leave the appliance, always ensure that the book is supplied with the appliance so that the new owner can become acquainted with the
functioning of the appliance and the relevant warnings. Please ensure you have read the whole instruction book before using the appliance and that you follow the recommendations given.
Unpacking
N.B. When you unpack the oven, check that the product is free from damage. Damage or any missing parts must be reported immediately to the retailer. The oven, parts of the oven or the accessories may be
wrapped by a protection foil. If so, you must remove this foil before using the oven. Do not leave packing material so that small children can play with it. This can be hazardous.
4
EMS 2185 |
UK |
Safety instructions
•The built-in safety interlock switches prevent the microwave oven from operating when the door is open.
•Do not tamper with them, or attempt to operate the oven with the door open as open door operation can result in exposure to microwave energy.
•Do not allow food spills or cleaner residue to accumulate on door sealing surfaces. See the Cleaning and Care section for cleaning instructions.
•It is particularly important that the oven door closes
properly and that |
there is no damage to the: |
(1) door (warped), |
(2) hinges and latches (broken |
or insecure), (3) door seals and sealing surface.
If the door, hinges/latches or door seals are
!damaged, the microwave must not be operated until it has been repaired by an authorized service engineer.
If smoke is observed, switch off or unplug the
!appliance and keep the door closed in order to stifle any flames. Never use water.
Only allow children to use the microwave
!without supervision when adequate instructions have been given so that the child is able to use the microwave in a safe way and understands the hazards of improper use.
Utensil safety
•Most glass, glass ceramic and heat-resistant glassware utensils are excellent for use in the microwave oven. Although microwave energy will not heat most glass and ceramic items, these utensils can become hot as heat transfers from the food to the container. Use oven gloves to remove dishes.
It is hazardous for anyone except factory trai-
!ned service personnel to service or make adjustments to this oven. Contact your local Electrolux Service Force Center if service should be required.
•Do not remove the outer case, door or control panel at any time. Doing so may cause exposure to extremely high voltage.
•Install or locate this oven only in accordance with ‘installation instructions’ found in this manual.
•Use the appliance for its intended use as described in this manual. Do not use corrosive chemicals in this appliance. This type of oven is specifically designed to heat, cook, or defrost food. It is not designed for industrial or laboratory use neither for commercial use as this will invalidate the guarantee.
•Do not operate the oven empty. If food or water is not present to absorb the microwave energy, the magnetron tube can be damaged.
•Do not store this appliance outdoors. Do not use this product near water.
•Do not attempt to dry clothing or newspapers in the microwave oven. These items can ignite.
•Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
Testing suitability of cookware
•Place the cookware in the microwave along with a glass half full of water. Heat on 850W (100%) for one minute. If the cookware feels hot, you should not use it. If it is just slightly warm, you can use it for reheating but not for cooking. If the dish is room temperature, it is suitable for microwave cooking.
•Paper napkins, wax paper, paper towels, plates, cups, cartons, freezer wrap and cardboard are great convenience utensils. Always be sure containers are filled with food to absorb energy and thus avoid the possibility of overheating.
•Many plastic dishes, cups, freezer containers and plastic wraps may be used in the microwave oven. Follow manufacturer’s instructions when using plastics in the oven. Avoid using plastic utensils with foods that have high fat or sugar content since these foods reach high temperatures and could melt some plastics.
•Do not leave the oven unattended, heating or cooking food in plastic, paper or other combustible containers. If smoke is observed, keep door closed, switch the oven off or disconnect oven until smoke stops.
5
EMS 2185
•Metal containers and containers with metallic trim should not be used in the microwave oven, unless specifically recommended for microwave use.
•Containers with restricted openings, such as bottles, should not be used for microwave cooking.
•Use caution when removing a lid or cover from a dish to avoid steam burns.
Foil containers
Shallow foil containers may safely be used to reheat foods in your microwave oven providing the following rules are observed:
1.Foil containers should not be more than 3 cms (1 1/4”) deep.
2.Foil lids must not be used.
3.The foil containers must be at least two-thirds full of food. Empty containers must never be used.
4.Foil containers should be used singly in the microwave oven and should not be allowed to touch the sides. If your oven has a metal turntable or cooking rack, the foil container should be placed on an upturned ovenproof plate.
5.Foil containers should never be re-used in the microwave oven.
6. If the microwave oven has been in use for 15 minutes or more, allow it to cool before using it again.
7.The container and turntable may become hot during use, take great care when removing either from the oven. It is advisable to use an oven cloth or glove when doing so.
8.Remember when using an aluminium foil container that the reheating or cooking times may be longer than you are used to, always ensure that the food is piping hot before serving.
UK
Food safety
•Do not heat food in a can in the microwave oven. Always remove the food to a suitable container.
•Deep fat frying should not be done in the microwave oven, because the fat temperature cannot be controlled, hazardous situations can result.
•Popcorn may be prepared in the microwave oven, but only in special packages or utensils designed specifically for this purpose. This cooking operation should never be unattended.
•Pierce foods with non-porous skins or membranes to prevent steam build-up and bursting. Apples, potatoes, chicken livers, and egg yolks are examples of items that should be pierced.
•The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
When heating liquids, e.g. soups, sauces and ! beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps
should be taken:
1. Avoid using straight-sided containers with narrow necks.
2. Do not overheat.
3. Stir the liquid before placing the container in the oven and again halfway through the heating time.
4. After heating, allow to stand in the oven for a short time, stirring again before carefully removing the container.
Some products such as whole eggs and sealed
!containers – for example, closed glass jars – may explode and should not be heated in this oven. Occasionally, poached eggs may explode during cooking. Always pierce the yolk, then cover and allow the standing time of one minute before removing cover.
Keep these instructions!
6
EMS 2185
Safety instructions when cooking
! by grill
1.The glass viewing window may break if water is spilled on it during grilling.
2.Be sure to use an oven glove when loading and unloading the oven. Containers get very hot in the oven, so be careful not to burn yourself. The turntable and metal rack also get very hot so be sure to use an oven glove when handling them.
3.Do not touch the inner or outer viewing window with metal components when loading or unloading the oven. The inside of the door and oven get very hot so take care when attending food in the oven.
4.Do not put the turntable or containers in cold water or try to cool them quickly after use.
5.Do not place items on top of the cabinet. The top of the cabinet gets very hot, so anything placed on it may be damaged by the heat.
UK
It is quite normal for steam to be emitted i around the door, or for misting to occur on the door, or even for water droplets to appear below the door during the cooking cycle. This is merely condensation from the heat of the food and does not affect the safety of your oven. The door is not intended to seal the
oven cavity completely.
•Do not force the turntable to rotate by hand.
iThis may cause malfunctioning.
•Arcing in the oven during microwave operation usually occurs from use of metallic utensils. Continuous arcing, however, can damage the unit. Stop the programme and check the utensil.
•Care should be taken not to obstruct any air vents located on the top, rear, side and bottom of the oven.
Do not use this oven for commercial purposes. This oven is made for domestic use only.
7
EMS 2185 |
UK |
Oven utensils and accessories guide
A variety of utensils and materials may be used for cooking in your microwave oven. For your safety and to prevent damaging utensils and your oven
choose appropriate utensils and materials for each cooking method. The list below is a general guide.
Material |
Utensils |
Microwave |
Grill |
Microwave and |
|
|
Cooking |
Cooking |
Grill cooking |
Ceramic & Glass |
Corning ware |
YES |
YES |
YES |
Heat resistant |
|
|
|
|
glass ware |
|
YES |
YES |
YES |
Glass ware with |
|
|
|
|
metal decoration |
|
NO |
NO |
NO |
Lead crystal glass |
|
NO |
NO |
NO |
China |
Without metal |
|
|
|
|
decoration |
YES |
YES |
YES |
Pottery |
|
YES |
YES |
YES |
Plastic |
Microwave oven |
|
|
|
|
heat-proof wear |
YES |
NO |
NO |
|
Plastic wrap |
YES |
NO |
NO |
Metal |
Metal baking pan |
NO |
YES |
NO |
|
Aluminium foil* |
YES |
YES |
YES |
Paper |
Cups, plates, towels |
YES |
NO |
NO |
Waxed paper |
|
YES |
NO |
NO |
Wood |
|
NO |
NO |
NO |
Accessories |
Grill rack |
NO |
YES |
YES |
|
Turntable |
YES |
YES |
YES |
|
Turntable support |
YES |
YES |
YES |
|
|
|||
YES: Utensils and accessories to use |
NO: Utensils and accessories to avoid |
*NOTE: Use aluminium foil only for shielding purposes, overuse may cause arcing.
8
EMS 2185 |
UK |
Description of the microwave oven and accessories
8888
The microwave oven
1Cooking compartment.
2Viewing window.
3Oven door.
4Door catch.
5Safety interlock system.
6Control panel.
7Grill element.
8Door open button.
9Drive shaft for turntable.
9
EMS 2185 |
UK |
Accessories
Turntable and turntable support
The turntable and turntable support should be installed as shown in the diagram. Take care to ensure the turntable support is properly in place.
The turntable may turn clockwise or counterclockwise during operation. Do not rotate the turntable manually, as you could damage the drive system.
Rack
For the use with the grill function, to brown shallow dishes. It has to be postioned on the center of the turntable.
W 13
10
EMS 2185
1 |
8 8 8 8 |
|
850 W
2
3
4 |
|
5 |
7 |
6 |
8 |
9
UK
Control panel
1.Display window – showing time of day, cooking time and weight.
2.Power knob – for desired microwave power level.
3.Timer knob – to select cooking time or weight.
4.Grill.
5.Auto – for Automatic cooking programmes.
6.Auto Defrost by weight.
7.Stop/Clear – to cancel or interrupt a cooking programme.
8.Start – to start desired programme and to start the Quick start programme.
9.Door open.
11
EMS 2185 |
UK |
Before using your microwave oven for the first time
Cleaning
Wipe over the front of the appliance with a damp cloth. Do not use abrasive cleaning agents (these can damage the surface). For stainless steel fronts use a suitable stainless steel cleaning agent that leaves a protective film against fingerprints.
Setting the clock
Plug the appliance into the mains. The display starts to flash "00:00"
The dots between the digits will flash rapidly.
Example: To set 12:15:
Set the time of day with the Timer knob.
Confirm by pressing either the Start-button or the Clear button.
The time of the day is displayed.
Before you first use the appliance, remove all the accessories (including the turntable and turntable support) from the cooking area. Wash the accessories in warm water and washing up liquid. Wipe the cooking space with a soft, damp cloth.
The dots between the digits flash slowly.
1 2 : 1 5 The appliance is now ready for use.
To reset the time of day, once the microwave is operational;
i Press and hold the Clear key for 5 seconds, the dots between the digits will flash rapidly. Set the time of day with the Timer knob and press the Clear or Start key to confirm. The dots between the digits stop flashing.
The time of day has been reset.
12
