Tumble Dryer

Séchoir à condensation

EDC 77150W

Welcome to the world of Electrolux

Thank you for choosing a first class product from
Electrolux, which hopefully will provide you with lots of
pleasure in the future. The Electrolux ambition is to
offer a wide variety of quality products that make your
life more comfortable. You find some examples on
the cover in this manual. Please take a few minutes
to study this manual so that you can take advantage
of the benefits of your new machine. We promise that
it will provide a superior User Experience delivering
Ease-of-Mind. Good luck!

electrolux 3

GB

4 contents electrolux

Contents

Safety information..............................5

Product description ...........................8

Control panel.....................................8

Use....................................................9

Drying hints ................................13-14

Drying programme .....................15-16

Programme information ...................17

Care and cleaning ...........................18

Something not working ..............21-23

Technical data .................................24

Consumption values........................25

Installation ..................................26-27

Environment concerns.....................28

Guarantee conditions ......................29

Customer service centres................30

The following symbols are used in this manual:

Important information concerning your personal safety and information on how
to avoid damaging the appliance.

General information and tips

onmental information

Envir

safety information electrolux 5

Safety Information

In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mistakes and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions
and make sure that they remain
with the appliance if it is moved or
sold, so that everyone using it
through its life will be properly
informed on appliance use and safety.

General safety

• It is dangerous to alter the specifica­tions or attempt to modify this prod­uct in any way.

• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for
their safety.

• Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
using.

• Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.

• In order to avoid danger of fires
caused by excessive drying, do not

use appliance to dry the following
items: Cushions, quilts and the like
(these items accumulate heat).

• Items such as foam rubber (latex
foam), shower caps, waterproof tex­tiles, rubber backed articles and
clothes or pillows fitted with foam
rubber pads should not be dried in
the tumble dryer.

• Always unplug the appliance after
use, clean and maintenance.

• Under no circumstances should you
attempt to repair the machine your­self. Repairs carried out by inexperi­enced persons may cause injury or
serious malfunctioning. Contact your
local Service Centre. Always insist on
genuine spare parts.

• Items that have been soiled with sub­stances such as cooking oil acetone,
petrol, kerosene, spot removers, tur­pentine, waxes and wax removers
should be washed in hot water with
an extra amount of detergent before
being dried in the tumble dryer.

DDaannggeerr ooff eexxpplloossiioon

•

n

: Never tumble
dry items that have been in contact
with inflammable solvents (petrol,
methylated spirits, dry cleaning fluid
and the like). As these substance are
volatile, they could cause an explo­sion. Only tumble dry items washed
with water.

RRiisskk ooff ffiirre

•

e

: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard
and should not be placed in the tum­ble dryer.

• If you have washed your laundry with
stain remover you must execute an
extra rinse cycle before loading your
tumble dryer.

• Please make sure that no gas lighters

GB

6 electrolux safety information

or matches have accidentally been
left in pockets of garments to be
loaded into appliance

WWAARRNNIINNGG!
NNeevveerr ssttoopp aa ttuummbbllee ddrryy bbeeffoorree tthhe

!

e

eenndd ooff tthhee ddrryyiinngg ccyyccllee uunnlleessss aallll iitteemms
aarree qquuiicckkllyy rreemmoovveedd aanndd sspprreeaadd oouutt sso
tthhaatt tthhee hheeaatt iiss ddiissssiippaatteedd.
RRIISSKK OOFF FFIIRREE!

IInnssttaallllaattiioon

!

n

.

• This appliance is heavy. Care should

be taken when moving it.

• When unpacking the appliance,

check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.

• All packing and transit bolts must be

removed before use. Serious damage
can occur to the product and to
property if this is not adhered to. See
relevant section in the user manual.

• The final part of a tumble dryer cycle

occurs without heat ( cool down cycle
) to ensure that the items are left at a
temperature that ensures that items
will not be damaged.

• Any electrical work required to install

this appliance should be carried out
by a qualified electrician or competent
person.

• Care must be taken to ensure that

the appliance does not stand on the
electrical supply cable.

• If the machine is situated on a car-

peted floor, please adjust the feet in
order to allow air to circulate freely.

• After having installed the appliance,

check that it is not pressing or stand­ing on its electrical supply cable.

• If the tumble dryer is placed on top

of a washing machine, it is compulso­ry touse the stacking kit (optional
accessory).

e

UUsse

• This appliance is designed for

s

domestic use. It must not be used for

o

purposes other than those for which it
was designed.

• Only wash fabrics which are
designed to be machine dried. Follow
the instructions on each garment
label.

• Do not dry unwashed items in the
tumble dryer.

• Do not overload the appliance. See
the relevant section in the user manu­al.

• Clothes which are dripping wet
should not be placed in the dryer.

• Garments which have been in con­tact with volatile petroleum products
should not be machine dried. If
volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the machine.

• Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.

• Never use the tumble dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the tumble dryer is accessible.

• Fabric softeners, or similar products
should be used as specified by the
fabric softener instructions.

CChhiilldd ssaaffeetty

y

• This machine is not intended for use
by young children or infirm persons
without supervision.

• Children should be supervised to
ensure that they do not play with the
appliance.

• The packaging components (e.g.
plastic film, polystyrene) can be dan­gerous to children - danger of suffo­cation! Keep them out of children’s
reach.

• Keep all detergents in a safe place
out of children’s reach.

• Make sure that children or pets do
not climb into the drum.

safety information electrolux 7

GB

8 electrolux product description/control panel

1 3 4 5 7 8 96

2

Product description

1

Control panel

2

Fluff filters

3

Rating Plate

4

Condenser unit

5

Water reservoir

6

Adjustable feet

7

Drum Light

Control panel

1

Programme selector dial

2

Delicate button

3

Buzzer button

4

Dryness button

5

Long -Anti Cr

ease button

6

Display

7

Start/Pause button

8

Delay button

9

Indicator lights

use electrolux 9

Use

First Use

●

Ensure that the electrical connections
comply with the installation instructions.

● Remove the polystryrene block and

any material from the drum.

● Before using your tumble dryer for

the first time, werecommend that you
to place a few damp clothsinside the
appliance and dry for 30 minutes.
There may be dust inside a brand
new tumble dryer.

Daily Use

Load the laundry

Connect the appliance.

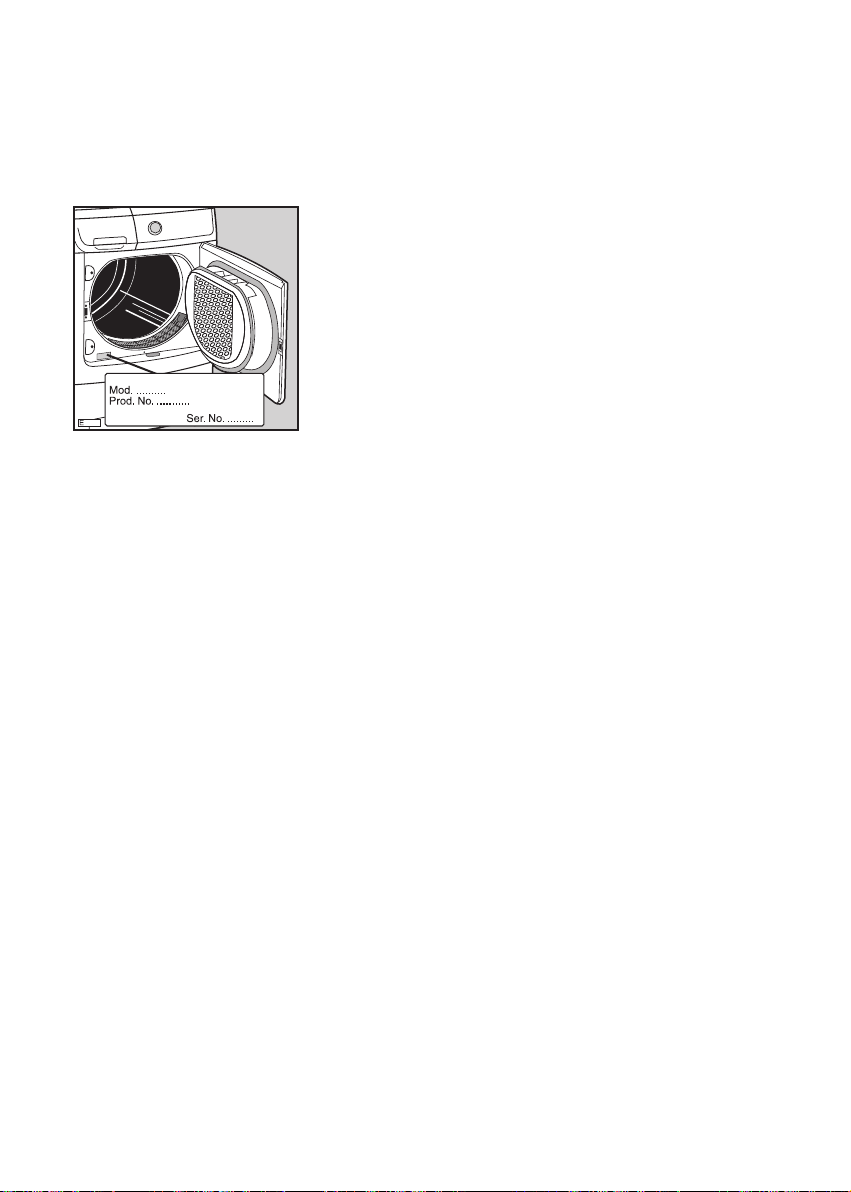

Open the door (see picture).

Place the laundry in the drum, one item at a
time, shaking them out as much as possible.

Select the required programme

Turn the programme selector dial to the
required programme.
The light Start/Pause starts to flash.

The selector dial is divided into following
sections:
 Cottons

 Synthetics
 Time
 Special

Allows you to select electronically
controlled or time controlled drying. Turn
the dial to the required programme or time.

EElleeccttrroonniiccaallllyy ccoonnttrroolllleedd ddrryyiinngg ((aauuttoommaattiicc))
The appliance runs these programmes with

the help of probes which detect the degree
of dampness of the laundry. Simply select
the programme according to the type of
laundry and degree of drying required. The
selector dial can be turned either clockwise
or anticlockwise.

At the end of the programme the
selector dial must be turned to
position O, to switch the machine off.

Attention!

If you turn the programme selector dial
to another programme when the machine is
working, the lights of the programme progress
display start to flash. The machine will
not perform the new selected programme.

GB

Programme Option buttons

ent

Depending on the pr

ogramme, dif

fer
functions can be combined. These must
be selected after choosing the desired

essing the

ogramme and befor

pr

e depr
Start/Pause button. When these buttons
are pressed, the corresponding pilot lights

10 electrolux use

come on. When they are pressed again, the
pilot lights go out.

Select Delicate

Pressing this button allows drying to be
performed at a lower temperature, for
delicate items.

The corresponding pilot light comes on. This
option can also be used for time controlled
drying. DELICATE is only suitable for use
with loads of up to 3kg!

Select the Buzzer

When the drying cycle has finished, an
intermittent audible signal will sound.

By depressing button the acoustic
signal is switched off in the following cases:

• when selecting the programme

• when depressing the buttons

• when the programme selector dial is
turned to another position during the
programme or when you depress an
option button during the cycle

• at the end of the programme.

The corresponding light comes on

Select the Dryness

Press the Dryness button repeatedly, to
select the desired option. The relevant
light will light up. Laundry becomes
dryer from MIN to MAX.

When the programme has finished the
pilot lights End is on.

Select the Long-Anticrease button

The drying cycle is automatically followed by
a anti-crease phase which lasts around
90 minutes.

Select the Start/Pause

Press this button to start the dryer after
having selected the programme and
the options. The relevant light will stop
flashing. If the programme selector dial
is turned to another position, when the
machine is running, the buzzer will
sound and the programme phase indicator
lights will flash. The drum turns alternately
in both directions during drying.

All drying programmes end with a 10 minute
cooling phase (light Cooling is on). You may
remove the laundry after this phase.

The display will show the symbol Long
Anticrease, and lights and illumi­nate and the buzzer sounds
IIff tthhee ddoooorr ooff tthhee aapppplliiaannccee oorr tthhee ssmmaalll

ddoooorr aatt tthhee bboottttoomm iiss ooppeenneedd wwhhiillee tthhe
pprrooggrraammmmee iiss rruunnnniinngg,, tthhiiss bbuuttttoonn mmuusst
bbee pprreesssseedd aaggaaiinn aafftteerr cclloossiinngg tthhee ddoooor
iinn oorrddeerr ttoo rreessttaarrtt tthhee pprrooggrraammmmee ffrroom
tthhee ppooiinntt aatt wwhhiicchh iitt wwaass iinntteerrrruupptteedd.
TThhiiss bbuuttttoonn mmuusstt bbee ddeepprreesssseedd aallssoo aafftteer
aa ppoowweerr ffaaiilluurree aanndd aafftteerr hhaavviinngg rreeiinnsseerrtteed

tthhee wwaatteerr rreesseerrvvooiirr,, iiff iitt hhaass bbeeeenn eemmpp­ttiieedd iinn tthhee mmiiddddllee ooff aa pprrooggrraammmmee aafftteer
lliigghhttiinngg uupp ooff lliigghhtt

.

.

l

e

t

r

m

.

r

d

­r

In both cases the light of the Start/Pause
button flashes to remind you that the
start button needs to be pressed again.

Delay

3

1.20

use electrolux 11

Select the Delay Start

With the DELAY button, you can delay the start of
a programme by between 30 minutes (30' and a
maximum of 20 hours (20H).

1.Select the programme

2.Press the DELAY button as many times
as necessary until the required start delay appears
on the multi display, e.g. 12H if the programme is
to be started in 12 hours.

If 20H is displayed and you press the button again,
the time delay will be cancelled. The display will show
0' and then the duration of the selected pro­gramme.

3.To activate the delay timer, press the START/PAUSE
button. The amount of time remaining until the
programme is set to start is continuously dis­played (e.g. 12H, 11H, 10H, … 30' e+tc).

If you wish to add some laundry while the
machine is performing the countdown, after
having done so and having closed the door,
press START/PAUSE again, in order to allow
the machine to complete the remaining
countdown time.

CChhiilldd ssaaffeettyy ddeevviicce
The child lock can be set to prevent a

programme being accidentally started
or a programme in operation being
accidentally changed. The child safety
device locks all buttons and the pro­gramme knob. The child safety device
can be activated or deactivated by
holding down the

“Dryness” and “Long anticrease” (long
anti-crease) buttons simultaneously for
5 seconds.

• Before programme is started:
Appliance cannot be used

After pr

•
Programme in operation cannot be

changed
The symbol

ogramme is started:

e

appears in the display to indicate that
the child safety device is activated.

The child safety device is not deactivat­ed once the programme comes to an
end.

If you want to set a new programme,
you must first deactivate the child safe­ty device.

Display

The display shows the following information:

DDuurraattiioonn ooff sseelleecctteedd pprrooggrraammmme
After you have selected the programme,

its duration (in hours and minutes) appears
on the display. It is calculated automatically
on the basis of the maximum load
accepted for each type of fabric and of the
required degree of drying.

When the programme starts, the remaining
time is displayed every 5 minutes.

DDeellaayyeedd ssttaarrt
If you have selected a delay time by means of
the relevant button, the display shows it for 3
seconds; then it shows the duration of the
previously selected programme. The
countdown is displayed every 30 minutes
until it displays “90 minutes” and then hour by
hour.

EEnndd ooff pprrooggrraammmme
A flashing zero indicates the end of the

programme and it is displayed after the
“anticr

t

e

easing” phase.

e

GB

12 electrolux use

E.27

0.00

IInnccoorrrreecctt ooppttiioonn sseelleeccttiioon
If you select an option that is not compatible

with the programme you have selected,
the display shows Err (error).

This code will reappear during the execution of
the programme if you press one of the option
buttons or turn the programme selector.

AAllaarrmm ccoodde
In case of a functional anomaly, the display
shows an alarm code (e.g. E21).

““DDrryyiinngg””
This symbol appears on the dispay that

the appliance is in the drying phase.
““CCoooolliinngg””
This symbol appears on the dispay that

the appliance is in the cooling phase.
At the end of drying, there is a 10 minute
cooling phase to cool the laundry.

““LLoonngg AAnnttiiccrreeaassee””
This symbol appears on the dispay at

the end of the cooling phase, during
the anti-creasing phase and at the end
of the programme.

IInnddiiccaattoorr lliigghhtts
These lights indicate the following functions:

““WWaatteerr rreesseerrvvooiirr ffuullll”” lliigghhtt
This light comes on at the end of the

e

s

n

programme to remind you that the water
reservoir must be emptied out. If this light
illuminates during a programme this means
that the water reservoir is full. The buzzer
sounds, the programme stops, the light of
the Start/Pause button flashes.

““FFiilltteerr cclleeaanniinngg”” lliigghhtt
It comes on every 80 cycles to remind you

that the condenser must be cleaned.
““CCoonnddeennsseerr cclleeaanniinngg”” lliigghhtt
This light illuminates at the end of the

programme to remind you that the
filters must be cleaned.

At the end of the programme

All drying programmes end with a 10
minute cooling phase.

You may remove the laundry after this
phase. The lights and , and illu­minate.

The display shows a static zero.
If the laundry is not removed at the end

of the cycle, the dryer performs an

g

ccrreeaassiinng
maximum). If you do not remove the
laundry, the dryer will stop automatically
at the end of the anti-creasing phase.
Lights and remain lit and the

If you do not intend to carry out another
wash, close the water tap. Leave the
door open to prevent the formation of
mildew and unpleasant smells.

Turn the programme selector dial to
to switch the machine off. Remove the
laundry from the drum and carefully
check that the drum is empty. The appli­ance is switched off.

Remove the laundry.
IIff yyoouu ooppeenn aanndd tthheenn cclloossee tthhee ddoooorr bbeeffoorre

ttuurrnniinngg tthhee sseelleeccttoorr ddiiaall ttoo ““OO”” aallll tthhee lliigghhtts
ccoorrrreessppoonnddiinngg ttoo tthhee pphhaasseess mmaakkiinngg uup
tthhee ppeerrffoorrmmeedd pprrooggrraammmmee ccoommee oonn.

AAfftteerr eeaacchh uusse

phase (duration: 30 minutes

buzzer sounds for 2 minutes.

e

aannttii-

““OO”

e

s

.

-

”

p

drying hints electrolux 13

• Clean the filters.

• Empty the water reservoir.
IImmppoorrttaanntt!
If the drying programme has to be stopped

before it reaches the end, we recommend
that you turn the programme selector dial to
position Cooling and wait until the end of
this cooling phase before removing the laun­dry. This will avoid a build-up of heat inside
the appliance.To do this first turn the dial to

OOfff

“
Start button.

MMooddiiffyyiinngg tthhee pprrooggrraammmme
To change a programme which is running,

first cancel it by turning the programme
selector dial to “
gramme and press the Start button .

!

f

” and then to Cooling and depress

e

O

O

”. Select the new pro-

Drying hints

GB

Before loading the laundry

Never tumble dry the following:
Particularly delicate items such as
net curtains, woollen, silk, fabrics
with metal trim, nylon tights, bulky
materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather
quilts and any items containing rub­ber foam or materials similar to rub­ber foam.

• Always follow the instructions on gar­ment labels:

may be tumble dried

normal drying (high tempera-

ture)

delicate drying (low tempera-

ture)

do not tumble dry

• Close pillowcases and covers with
fasteners to prevent small laundry
items getting tangled inside them.
Close press studs, zips and hooks
and tie belts and apron strings.

• Sort laundry according to type and
degree of drying required.

• Do not over-dry laundry, this avoids
creasing and saves energy.

• Avoid drying dark clothes with light
coloured fluffy items such as towels
as they could attract the fluff.

• The laundry must be thoroughly spun
before tumble drying.

14 electrolux drying hints

EEaassyy--ccaarree iitteemms

•

s

, too, e.g. shirts,
should be briefly pre-spun before
drying (depending on crease resist­ance approx. 30 seconds or using
the special brief spin programme of
your washing machine).

• Knitted textiles (knitted underwear)
may shrink a little during drying.
Please do not overdry items of this
type. It is advisable to allow for
shrinkage when choosing the size of
new purchases.

• You can also put starched items into
your dryer. However, to achieve the
desired starched effect, choose the
programme “iron dry”. To remove any
starch residues, wipe out the internal
drum after drying with a moist cloth
and then rub it dry.

• To avoid a static charge when drying

1200 gbathrobe

100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants

drying, set a brief post-drying time,

aatt lleeaasstt 3300 mmiinnuuttees

but

s

. This will be
necessary particularly for multilayered
items (e.g. collars, pockets, etc.).

Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).

Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.

Remove persistent stains before
washing.

Rub particularly soiled areas with a
special detergent or detergent paste.

Treat curtains with special care. Remove
hooks or tie them up in a bag or net.

Maximum loads

Recommended loads are indicated in
the programme charts.

General rules:
Cotton, linen: drum full but not too

tightly packed;

Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum

no more than one third full.

Try to load to the maximum capacity
of the machine as small loads are
uneconomical.

Laundry weights

The following weights are indicative:

is completed, use either a fabric sof­tener when you are washing the
laundry or a fabric conditioner specif­ically for tumble dryers.

• Remove the laundry when the dryer
has finished drying.

• If individual items ar

e still damp after

Drying programmes

drying programmes electrolux 15

Programme

Extra

Strong

Cupboard

Damp

Iron

Extra

Type of
laundry

Cotton and
linen

Cotton and
linen

Cotton and
linen

Cotton and
linen

Cotton and
linen

Synthetics

Options

Dryness

Dryness

Dryness

Dryness

Dryness

Dryness

Description of programme

Drying thick or multi-layered textiles,
e.g. terry towelling items

Drying thick textiles, e.g. terry towelling
items, towels.

Drying textiles of even thicknesses,
e.g. terry towelling items, knitted
items, towels.

For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.

For cotton or linen laundry which are
still to be put through a machine, e.g.
bedding, table linen.

Drying thick or multi-layered textiles,
e.g. pullovers, bedding, table linen.

GB

Cupboard

Iron

Time
30 min
60 min

Synthetics

Synthetics

Synthetics
Cotton

Dryness

Dryness

For thin textiles which are not ironed,
e.g. easy care shirts, table linen,
baby’s clothes, socks, underwear.

For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.

Drying thick or multi-layered textiles,
e.g. terry towelling items.
For drying individual items of laundry
or for small volumes of less than 1kg.

16 electrolux drying programmes

Drying programmes

Programme

Special

Mix

Special

Easy

Special

Jeans

Special

Cooling

Type of
laundry

Cotton
Cupboard dry
Synthetics

Synthetics

Cotton
Cupboard dry

Cotton and
linen

Synthetics

Options Description of programme

Dryness

Dryness

Special programme for cotton and
easy care, which can drying together
in the same time.

Special programme with anti-crease
mechanism for easy care textiles such
shirts and blouses; for minimum
ironing effort. The result depends on
the type and quality of textiles. (The
loading volume corresponds to
approx. 4 to 5 shirts.)
Recommendation: Place textiles in the
dryer straight after spinning. Once
dried, immediately remove textiles and
place on clothes hanger.

Special programme for leisure
clothing, such as jeans, sweat-shirts,
etc., of different material thicknesses
(e.g. at the cuffs and seams).

Special programme, lasting around 10
minutes, for refreshing or gently
cleaning textiles with commercially
available dry cleaning sets.
(Only use those products which are
declared as suitable for the drier by
the manufacturer; please observe the
manufacturer’s instructions for use.)

Max Cottons load: 7 kg
Max Synthetics load: 3 kg
Max Time load: 1 kg
Max Special Mix load: 3 kg
Max Special Jeans load: 7 kg

Programme information

programme information electrolux 17

GB

Objective

Adjusting the level
of conductivity

Implementation

Water contains, a variable quantity of limestone and mineral salts
of which quantities vary according to geographical locations thus
varying its conductivity values.

Relevant variations of the conductivity of the water compared to
those prefixed by the factory could slightly influence the residual
humidity of the laundry at the end of the cycle. Your dryer allows
you to regulate the sensitivity of the drying sensor based on
conductivity values of the water by using the following procedure.

TToo aacccceessss aaddjjuussttmmeenntt mmooddee:

1. Turn the programme selector dial to switch on the appliance.

2. In selection mode,press simultaneously the buttons

s

DDrryynneesss
Press the buttons down until until «C0» appears on the digits.
AAddjjuussttiinngg tthhee lleevveell ooff ccoonndduuccttiivviitty
Press the

conductivity is indicated by the lighting of the horizontal
hyphens.

Display Conductivity Approximate value µS/cm

O

CCO

O

CCO

O

CCO

SSttaarrtt//PPaauussa

and

SSttaarrtt//PPaauussa

Low < 300
Medium 300-600
High >600

a

:

a

.

y

:

button sequentially: the level of

O = Cancelling/OFF

Normally, the appliance is factory-set to the highest level;
however, certain models may be configured differently.

MMeemmoorriizziinngg tthhee nneeww sseettttiinngg:
Simultaneously press the buttons

Press the buttons down until the previous drying cycle time
appears again on the display and the buzzer sounds.

eset a pr

o r

T
the selector dial to O. Now can a new programme be
selected.

ogramme and to switch of

:

s

DDrryynneesss

f the machine tur

SSttaarrtt//PPaauussa

and

n

a

.

18 electrolux care and cleaning

Care and cleaning

You must DISCONNECT the appliance
from the electricity supply, before you
can carry out any cleaning or
maintenance work.

External cleaning

Use only soap and water and then dry

thoroughly.
IImmppoorrttaanntt:

diluents or similar products..

:

do not use methylated spirit,

Cleaning the door

Clean periodically the interior part of
the door to remove any fluff from the
seals around the filter. Accurate clean­ing ensures correct drying.

Cleaning the filters

Your dryer will only function well if the fil­ters are clean.

The filters collect all the fluff which
accumulates during drying and they
must therefore be cleaned
ooff eeaacchh pprrooggrraammmme
the laundry, with a damp cloth.
The light is on to remind you this
operation.

e

, before removing

aatt tthhee eennd

d

The filter in the inner door must be
removed for cleaning.

Do not be alarmed by the amount of fluff. It
is not due to excessive wear caused by the
dryer.

All fabric loses fluff when drying but it
goes un-noticed in the air. In a tumble
dryer it simply collects in the filter.

After a while, a withish patina due to
detergent residue on laundry forms on
the filters. When this occurs, clean the
filters with warm water using a brush.
Remove the filter in the door opening
as per picture (it can be positioned with
the tooth facing to the left or to the
right).

care and cleaning electrolux 19

DDoo nnoott uussee tthhee aapppplliiaannccee wwiitthhoouutt ffiilltteerrss.

.

Cleaning the condenser unit

Clean the condenser when light comes
on.

The condenser is situated at the lower part
of the cabinet behind a small door. To open
the door, push the catch as per picture.
During the drying cycle or at the end, it is normal
for water to be present on the surface of the
condenser insertion.

Clean it with a brush and rinse it under the
shower if necessary.

Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser

cabinet and in the inner part of the small
door with a damp cloth.

IImmppoorrttaanntt!
or utensils to clean the spaces
between the plates, as this could dam­age the condenser and make it perme­able.

Re-fit the condenser, turn the red stops
upwards and close the door.

!

Do not use pointed objects

GB

To pull out the condenser, first turn the two
red stops downwards and then remove the
condenser unit holding it at the handle.

DDoo nnoott uussee tthhiiss aapppplliiaannccee iiff tthhee ccoonnddeennsseer
hhaass nnoott bbeeeenn ffiitttteedd.

.

Emptying the water reservoir

Water extracted from the laundry condens­es inside the machine and is collected in a
reservoir.
The reservoir must be emptied after each
drying cycle to ensure efficient operation
when the machine is next used. The pilot

r
