Electrolux EDC804BEWA User Manual

EDC804BEWA

EN

Tumble Dryer

User Manual

2www.electrolux.com

CONTENTS

1.	SAFETY INFORMATION....................................................................................		3
2.	CONDITIONS OF USE.......................................................................................		5
3.	SAFETY INSTRUCTIONS..................................................................................		5
4.	PRODUCT DESCRIPTION................................................................................		7
5.	CONTROL PANEL.............................................................................................		7
6.	PROGRAMME TABLE.......................................................................................		9
7.	OPTIONS..........................................................................................................		10
8.	SETTINGS........................................................................................................		11
9.	BEFORE FIRST USE.......................................................................................		13
10.		DAILY USE.....................................................................................................	13
11.		HINTS AND TIPS...........................................................................................	14
12.		CARE AND CLEANING..................................................................................	15
13.		TROUBLESHOOTING....................................................................................	17
14.		TECHNICAL DATA.........................................................................................	18
15.		WARRANTY ..................................................................................................	19

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER'S WARRANTY

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Electrolux manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Electrolux manufacturer’s warranty in the event that your product fault is due to failure to adhere to this manual.

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate. Warning / Caution-Safety information

ENGLISH 3

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

- Read the supplied instructions.

- Warning; Risk of fire / Flammable materials

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.

•Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of it appropriately.

•Keep detergents away from children.

4www.electrolux.com

•Keep children and pets away from the appliance when the door is open.

•If the appliance has a child safety device, it should be activated.

•Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory. Read it carefully before installation (refer to the Installation leaflet).

•The appliance can be installed as freestanding or below a kitchen counter with correct space (refer to the Installation leaflet).

•Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, that would prevent the appliance door from being fully open.

•The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

•Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation.

•If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

•Do not exceed the maximum load of 8 kg (refer to the "Programme chart" chapter).

ENGLISH 5

•Do not use the appliance if items have been soiled with industrial chemicals.

•Wipe away lint or packaging debris that has accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

•Fabric softeners, or similar products, should only be used as specified by the product manufacturer’s instructions.

•Remove all objects from items that could be a source of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

•Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

2.CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

•Farm houses

3.SAFETY INSTRUCTIONS

3.1 Installation

•Remove all the packaging.

•Do not install or use a damaged appliance.

•By clients in serviced apartments, holiday apartments and other residential type environments.

•Follow the installation instructions supplied with the appliance.

•Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

6www.electrolux.com

•Do not install or use the appliance where the temperature can be lower than 5°C or higher than 35°C.

•The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

•Make sure that there is air circulation between the appliance and the floor.

•Always keep the appliance vertical when it is being moved.

•The rear surface of the appliance must be put against a wall.

•When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

3.2 Electrical connection

WARNING!

Risk of fire and electric shock.

•The appliance must be earthed.

•Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

•Always use a correctly installed shockproof socket.

•Do not use multi-plug adapters and extension cables.

•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

•Do not touch the mains cable or the mains plug with wet hands.

•This appliance complies with the E.E.C. Directives.

3.3 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

•Do not dry the damaged items which contain padding or fillings.

•Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on the fabric label.

•If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer.

•Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.

•Do not sit or stand on the open door.

•Do not dry dripping wet clothes in the tumble dryer.

•Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and create a fire hazard.

•If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent -this will reduce, but not eliminate, the hazard.

3.4 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

•Do not use water spray and steam to clean the appliance.

•Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.

3.5 Service

•To repair the appliance contact the Authorised Service Centre.

•Use original spare parts only.

3.6 Disposal

WARNING!

Risk of injury or suffocation.

•Disconnect the appliance from the mains electrical and water supplies.

•Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with local requirements

4. PRODUCT DESCRIPTION

1	2
	3
	4
	5
9	6
	7
	8

ENGLISH 7

for the disposal of Waste Electrical and Electronic Equipment (WEEE).

Water container

Control panel

Appliance door

Filter

Rating plate

Airflow slots

Heat Exchanger lid

Heat Exchanger cover

Adjustable feet

For ease of loading laundry or ease of installation the door is reversible. (see separate leaflet).

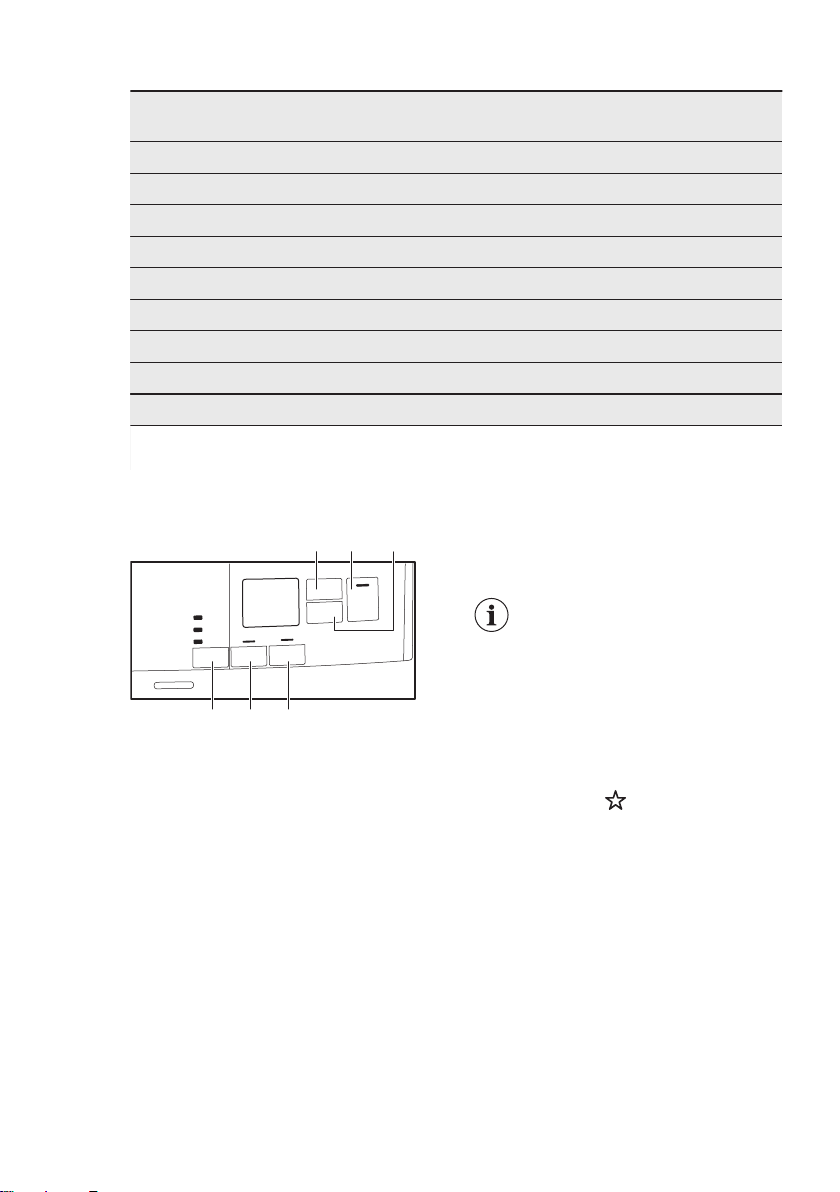

5. CONTROL PANEL

1		2

3

4

5

		9		8		7		6
	Programme knob				Delay Start touch button
	Display				Extra Anticrease touch button
	Time Dry touch button				Gentle Dry touch button
	Start/Pause touch button				Dryness Level touch button

8www.electrolux.com

On/Off button

Press the touch buttons with your finger in the area with the symbol or name of the option. Do not wear gloves when you operate the control panel. Make sure that the control panel is always clean and dry.

5.1 Display

Symbol on the display	Symbol description
	time drying option on
	delay start option on
	indicator: check Heat Exchanger
	indicator: clean filter
	indicator: drain the water container
	indicator: drying phase
	indicator: cooling phase
	indicator: anti-crease phase
	child lock on
	wrong selection
	programme duration
-	time Drying duration
-	delay start duration
