Electrolux EDB705 User Manual
Model EDB705
33
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using the appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings of these warnings contact the Customer Care Department. The address is
on the back page of this book.
INSTALLATION
The appliance must be installed according to the
instructions supplied. The installation work must be
undertaken by a qualified electrician/competent
person.
The appliance must be installed in an adequately
ventilated room.

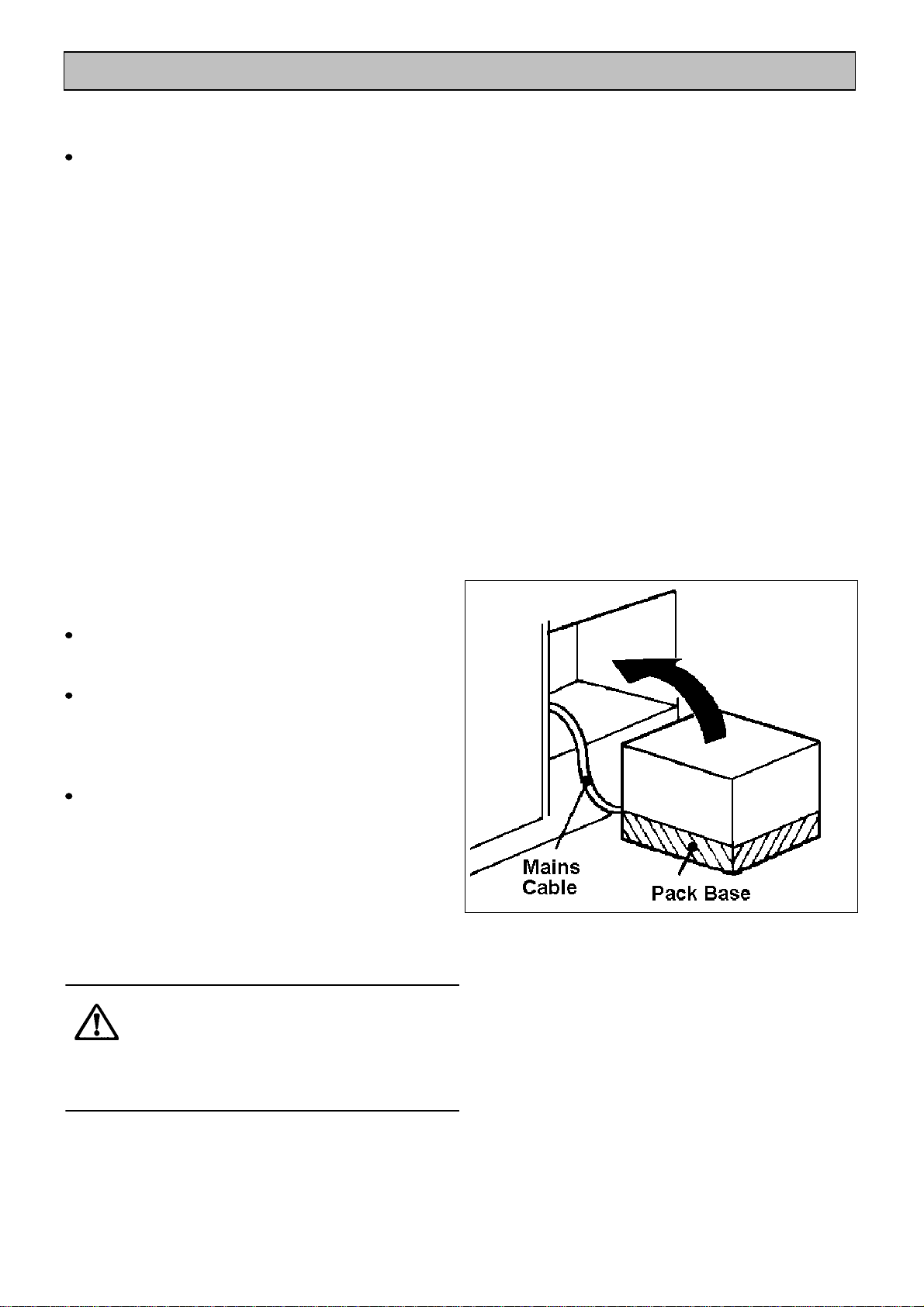

NOTE: It is imperative that the appliance is left in
the base to protect both the appliance and the floor.
This appliance is heavy and care must be taken
when moving it. Do not try to move the appliance
by pulling the door handles.
Warning: Do Not attempt to lift this appliance by the
handles.
All packaging, both inside and outside the appliance
must be removed before the appliance is used.
It is dangerous to alter the specifications or modify
the appliance in any way.
After installation please dispose of the packaging
with due regard for safety and the environment.
Your local authority can arrange this.
CHILD SAFETY
Do not allow young children to play with any part of
the packaging.
This appliance is designed to be operated by adults.
Young children must not be allowed to tamper with
the controls or play near or with the appliance.
During use the appliance becomes hot, care should
be taken to avoid touching heating elements inside
the oven.
CAUTION: Accessible parts may be hot when
the grill is in use. Young children should be
kept away
.
DURING USE
This appliance has been designed for domestic use
to cook edible foodstuffs only, and must not be used
for any other purpose.
Take great care when heating fats and oils as they
will ignite if they become too hot.
Never place plastic or any other material which may
melt in or on the oven.
Do not stand too close to the oven or grill while in
use as warm air will exhaust from the grill cavity and
the vents on the front frame of the appliance.
Do not leave the grill pan handle in position when
grilling and ensure oven gloves are used to remove
and replace the handle, as it will become hot.
Always use oven gloves to remove and place food
in the oven.
Ensure that all vents are left unobstructed to ensure
ventilation of the oven cavity.
Never line any part of the appliance with aluminium
foil.
Stand clear when opening the drop down oven
doors. Support the doors using the handles until
fully open.
Never leave the appliance unattended when the
oven door is open.
Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
Ensure that all control knobs are in the OFF position
when not in use.
Do not stand on the appliance or on the open oven
doors.
Do not hang towels, dishcloths or clothes from the
appliance or its handles. They are a safety hazard.
CLEANING AND MAINTENANCE
The appliance is heavy and care must be taken
when moving it.
For Hygiene and safety reasons this appliance
should be kept clean at all times. A build-up of
fats or other foodstuffs could result in a fire
especially in the grill pan.
Do not leave cookware containing foodstuffs, e.g.
fat or oil in the appliance in case it is inadvertently
switched on.
Always allow the cooling fan to cool the appliance
down before switching off at the wall prior to
carrying out any cleaning / maintenance work.
Only clean this appliance in accordance with the
instructions given in this book.
SERVICE
Repairs should not be carried out by inexperienced
persons as this may cause injury or serious
malfunction. This appliance should be serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used. Details of
servicing and repair arrangements are supplied on
page 31
of this book.
AT THE END OF THE APPLIANCE LIFE
When the time comes to dispose of your appliance
please contact your local Council Authority. They
can arrange to dispose of the appliance in a safe
and controlled manner.
The number will be in the telephone book.
Please read this
instruction book carefully
before use and retain
for future reference.
2
CONTENTS
FOR THE USER
Important Safety Information 2
Description of the appliance 4
Getting to Know Your Oven 5
The Cooling Fan for the Controls 6
Control Panel Indicator Neon 6
Before Using The Appliance 7
When First Switching On 7
Rating Plate 7
Preparing to use your appliance 7
Condensation and Steam 7
Cookware 8
Grill and Oven Furniture 9
The Electronic Timer 10
The Grill 13
Uses of the Grill 13
How to use the grill
Things To Note 13
To Fit the Grill Shelf 13
The Grill Pan and Handle 1 4
Hints and Tips 14
Grilling Chart 16
The Fan Oven 17
Uses of the Oven 17
Preheating 17
Cooking Temperatures
How to use the Fan oven
Things to Note 17

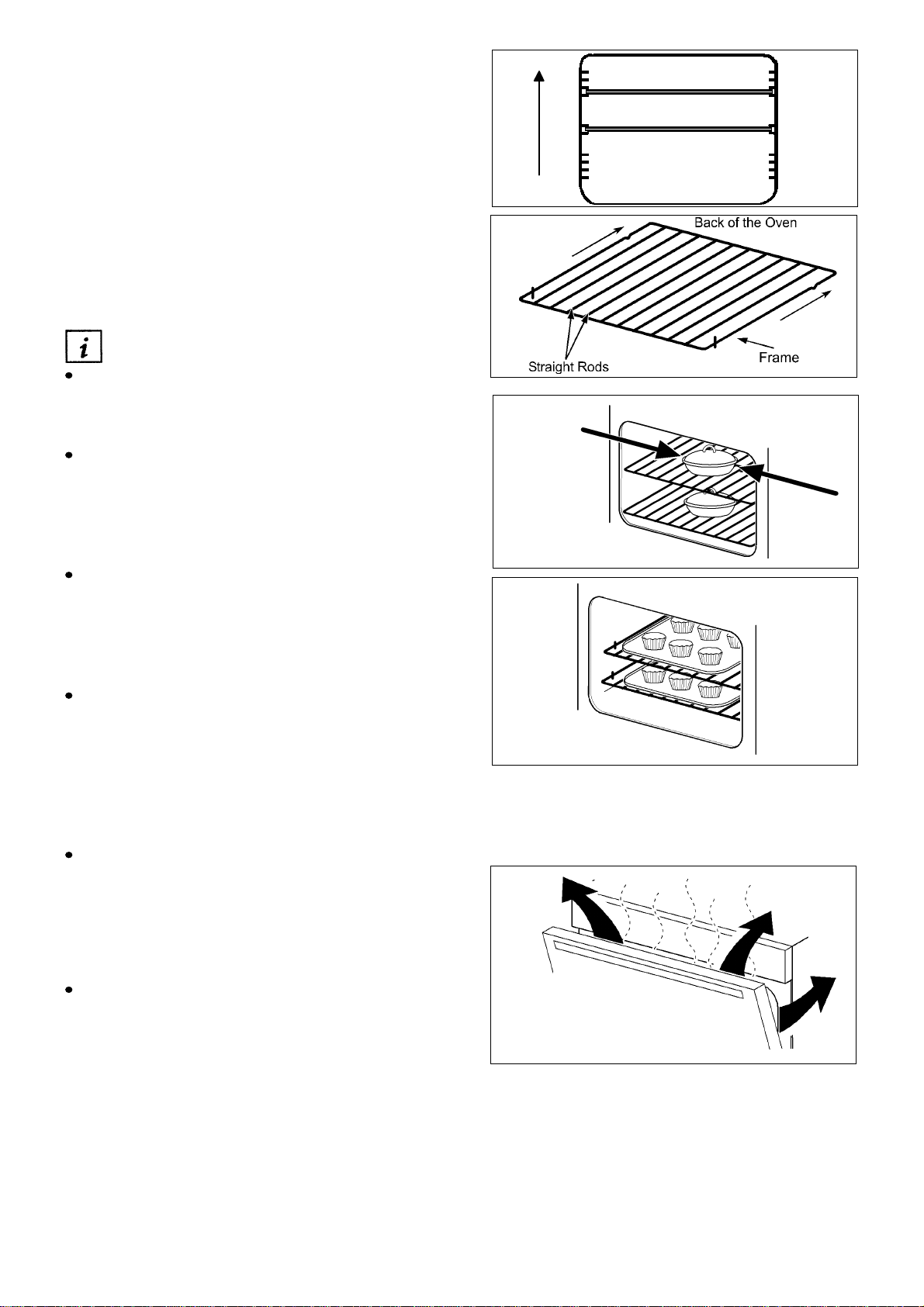

To Fit the Oven Shelves 18
Hints and Tips 18
Oven Cooking Chart 19
13
17
17

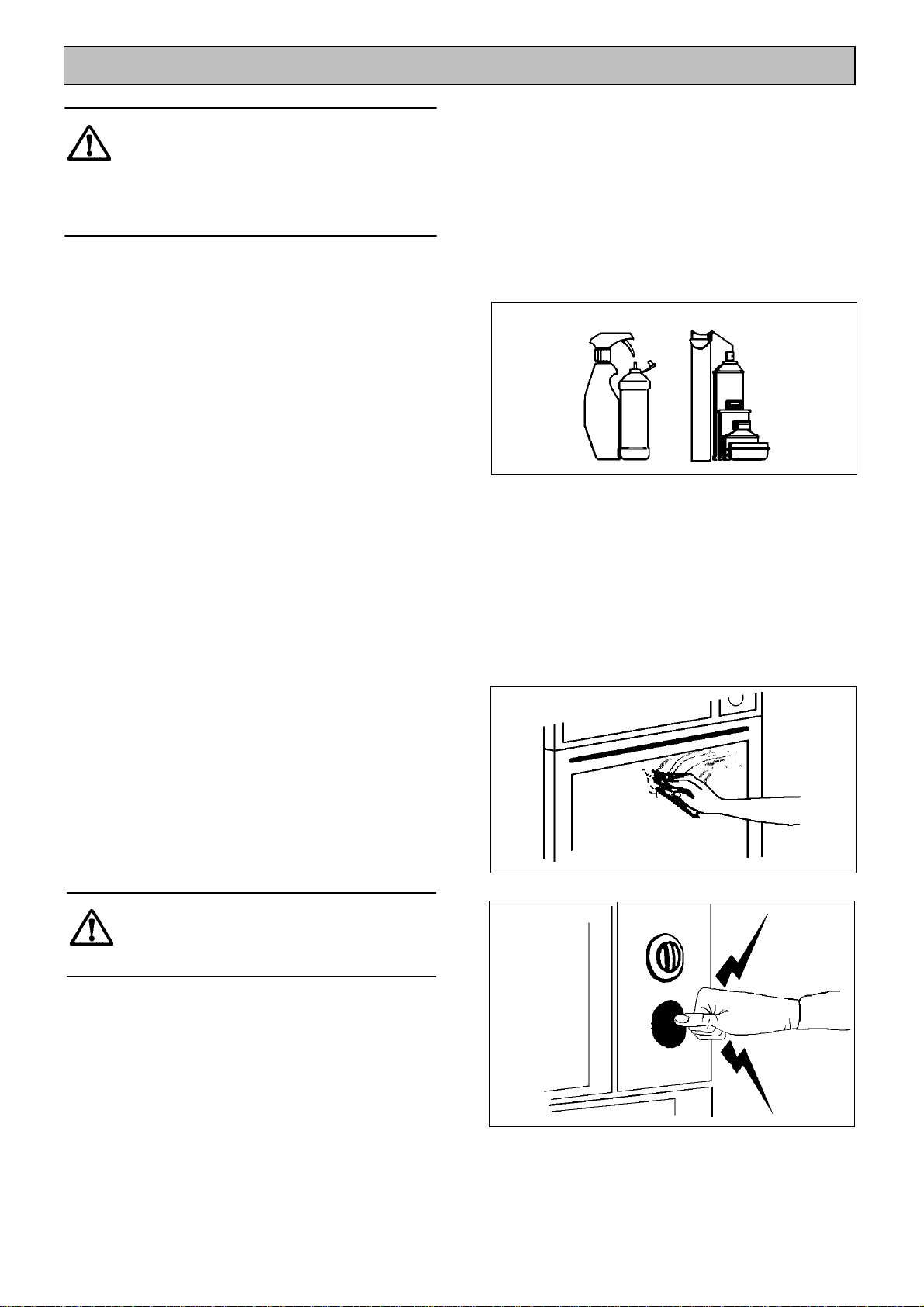

Care and Cleaning 23
Cleaning Materials 23
Cleaning the Outside of the Appliance 23

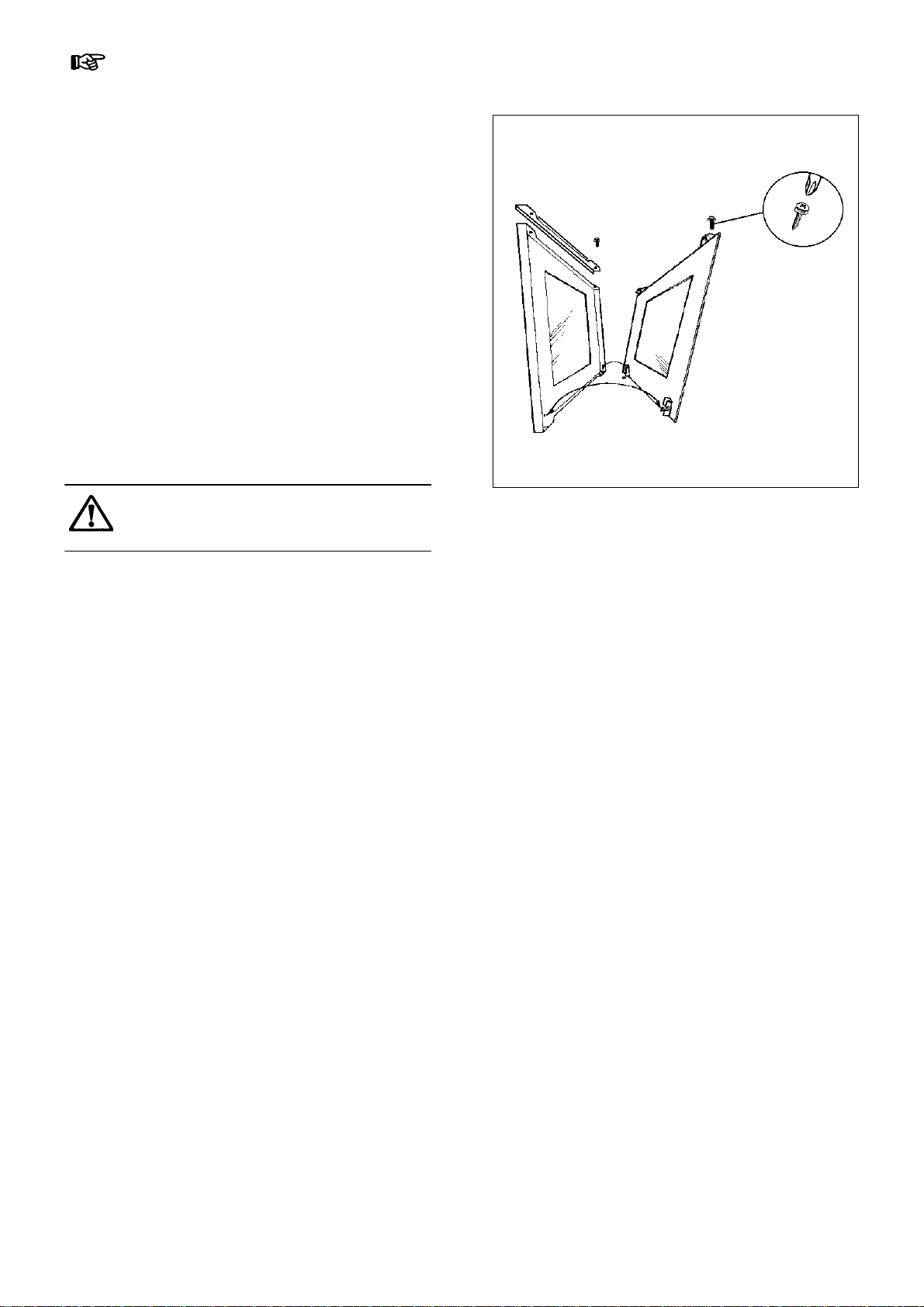

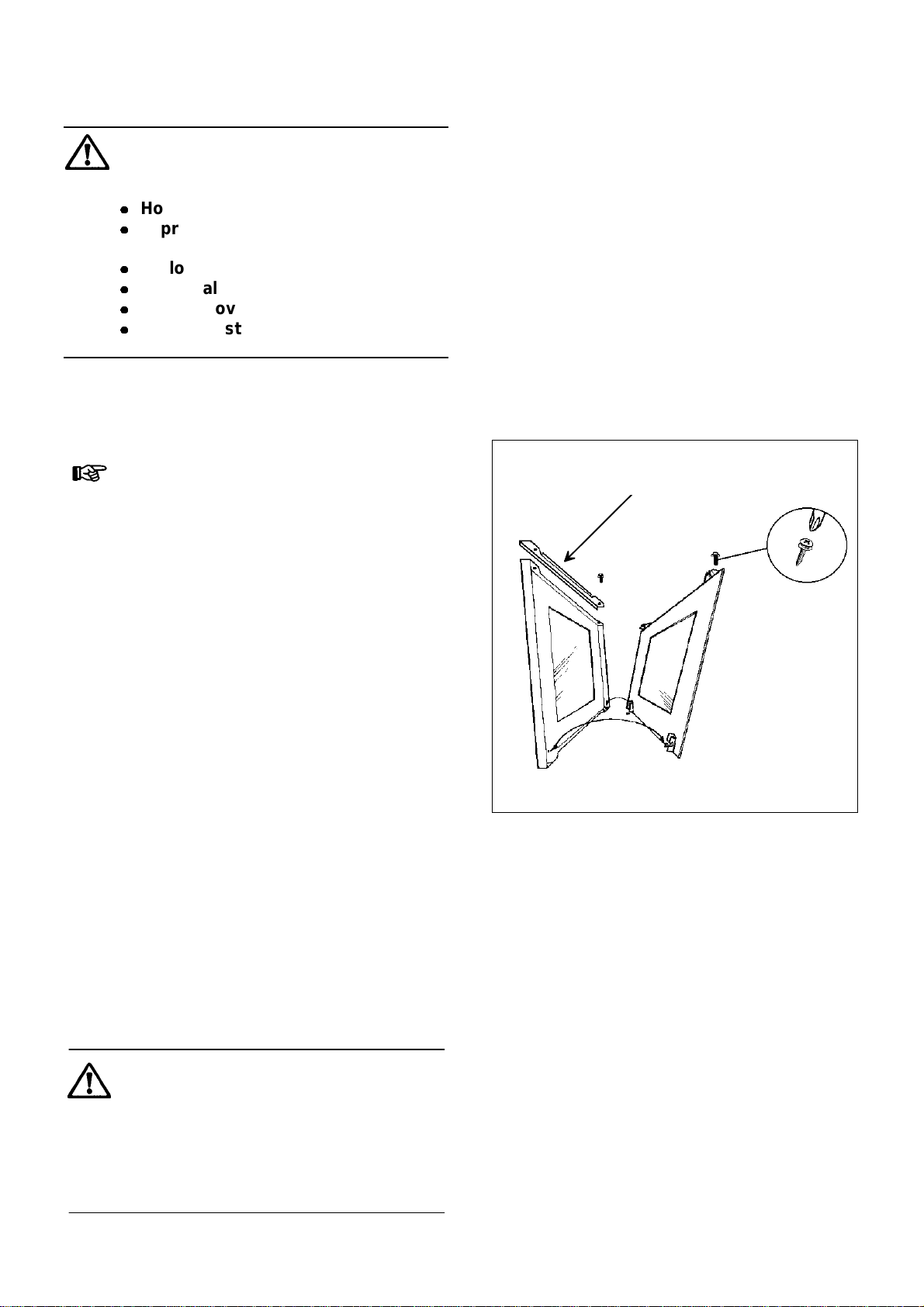

Cleaning the Outer and Inner Door
Glass Panels 24
Cleaning the Oven 25
Cleaning the Grill Compartment 25
Care of Stayclean Surfaces 26
To Remove the Wirework Runners 26
Cleaning the Shelves, Wirework Runners
and Oven Furniture 26
Cooking to Reduce Soilage

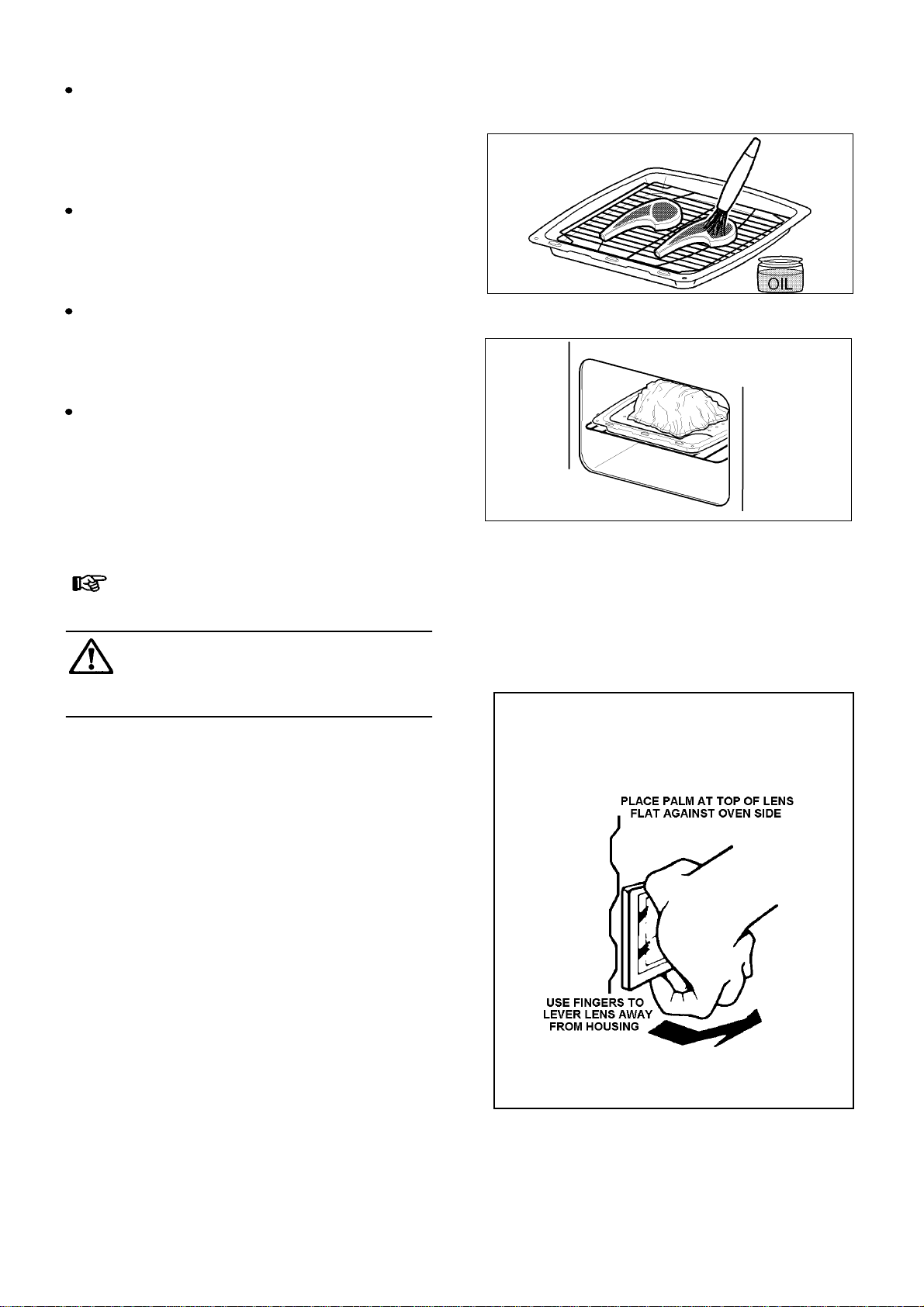

Replacing an Oven Light Bulb 27
If Something Doesn't Work 28
Service and Spare Parts 30
Guarantee Conditions 31
27
FOR THE INSTALLER
Technical Details 32
Installation Instruction 33
Choice of Electrical Connection 33
Things to Note 34

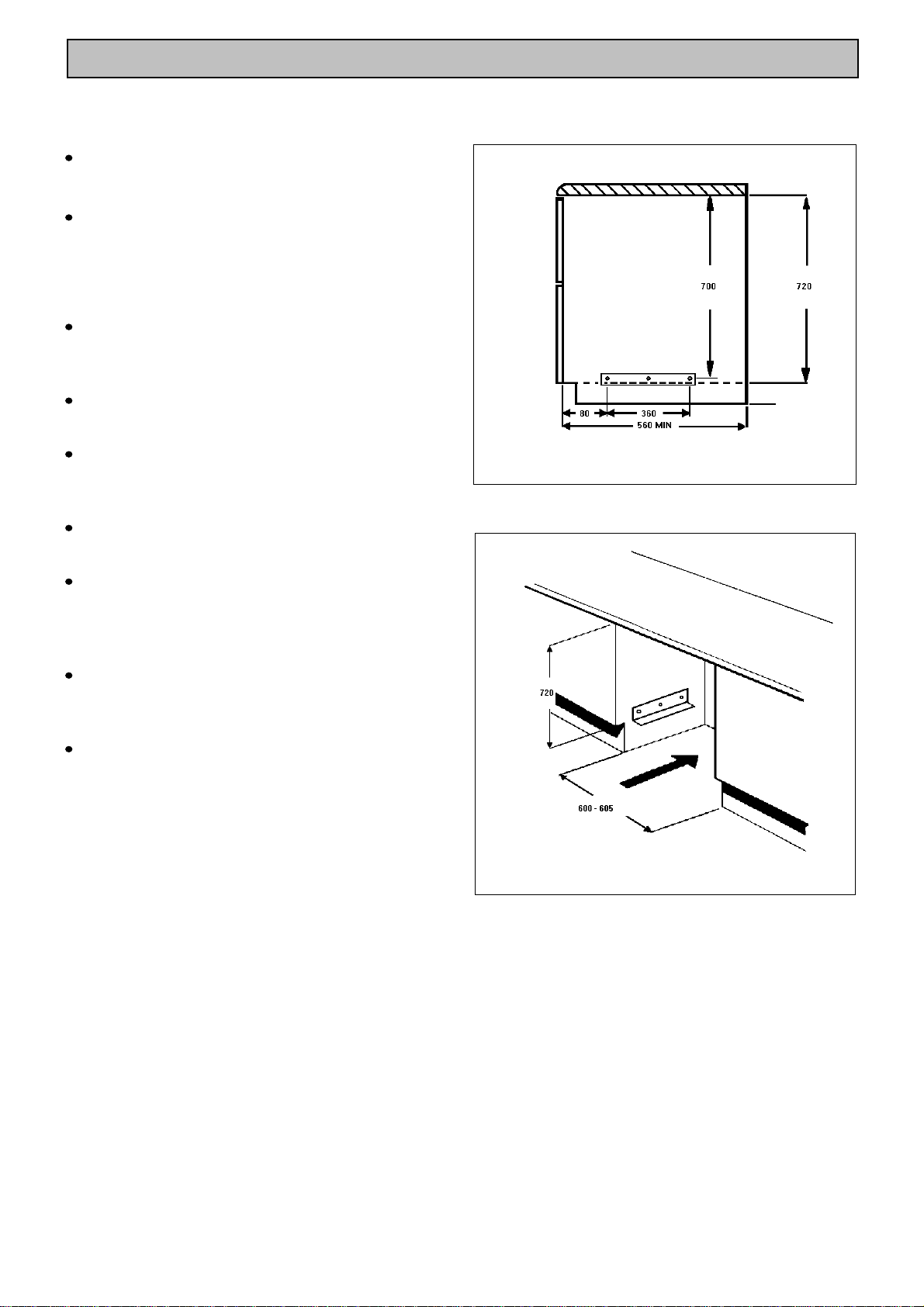

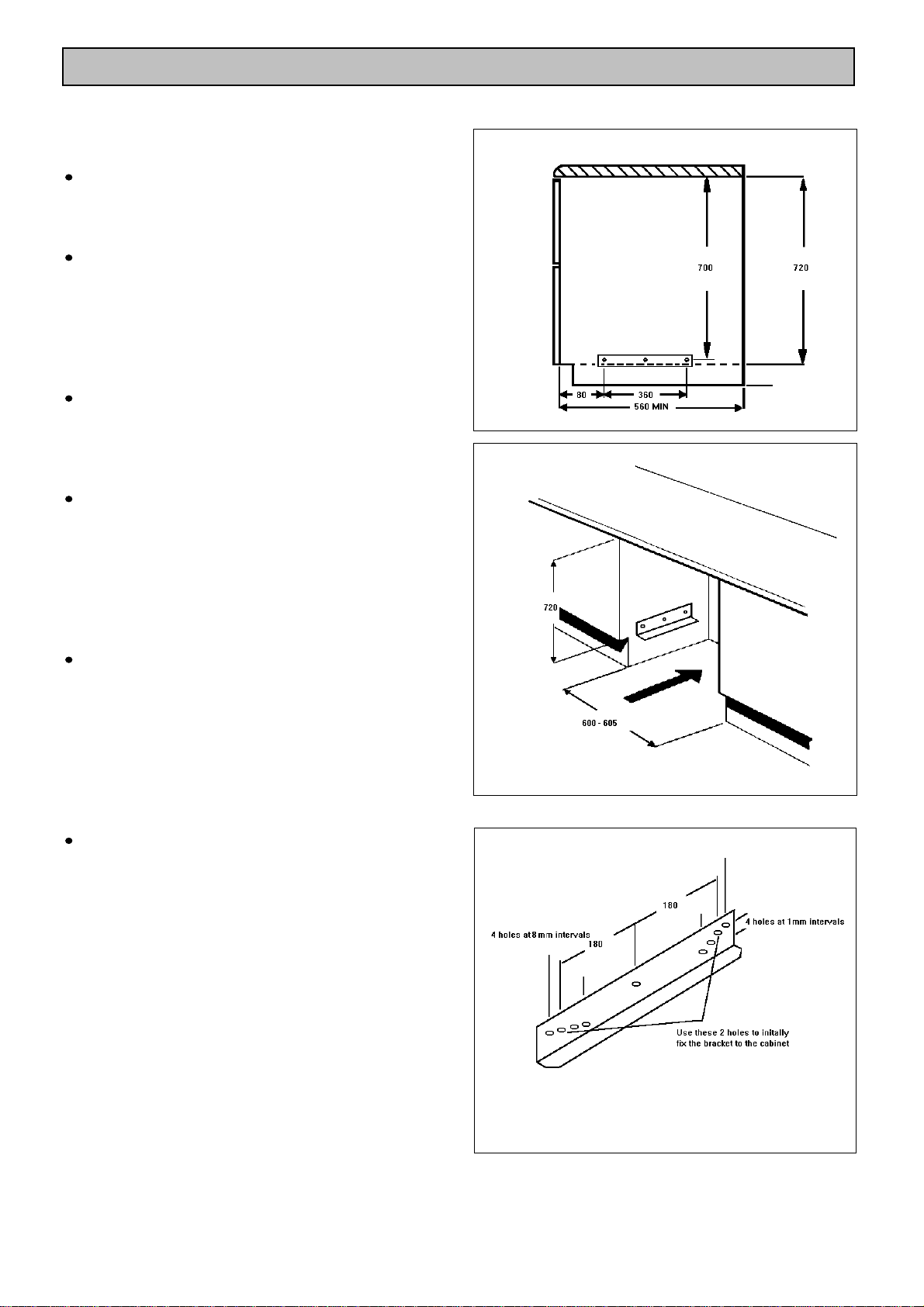

Preparing Cabinet for Fitting Oven 35

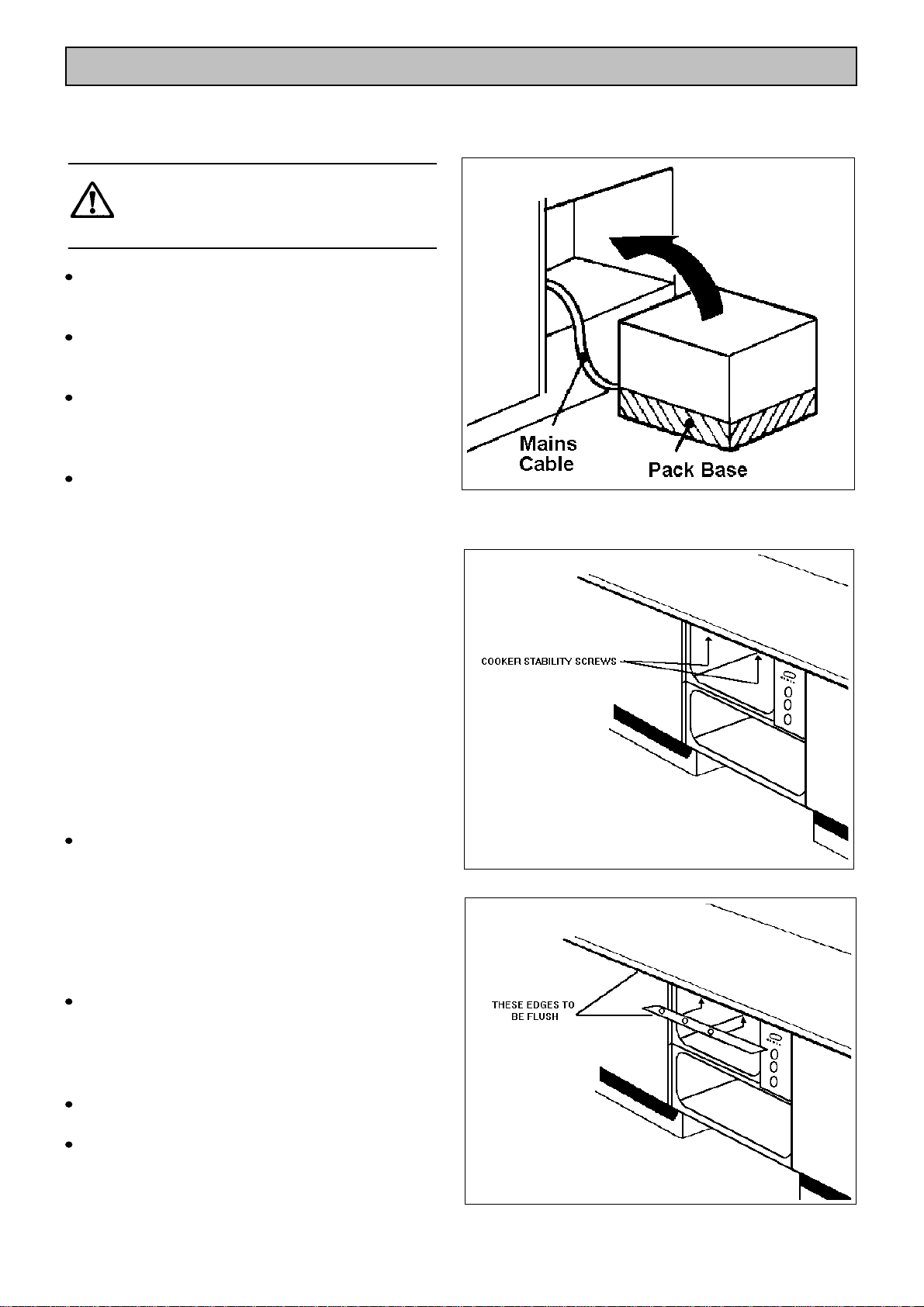

How to Finish Unpacking 36
Making the Electrical Connections 37

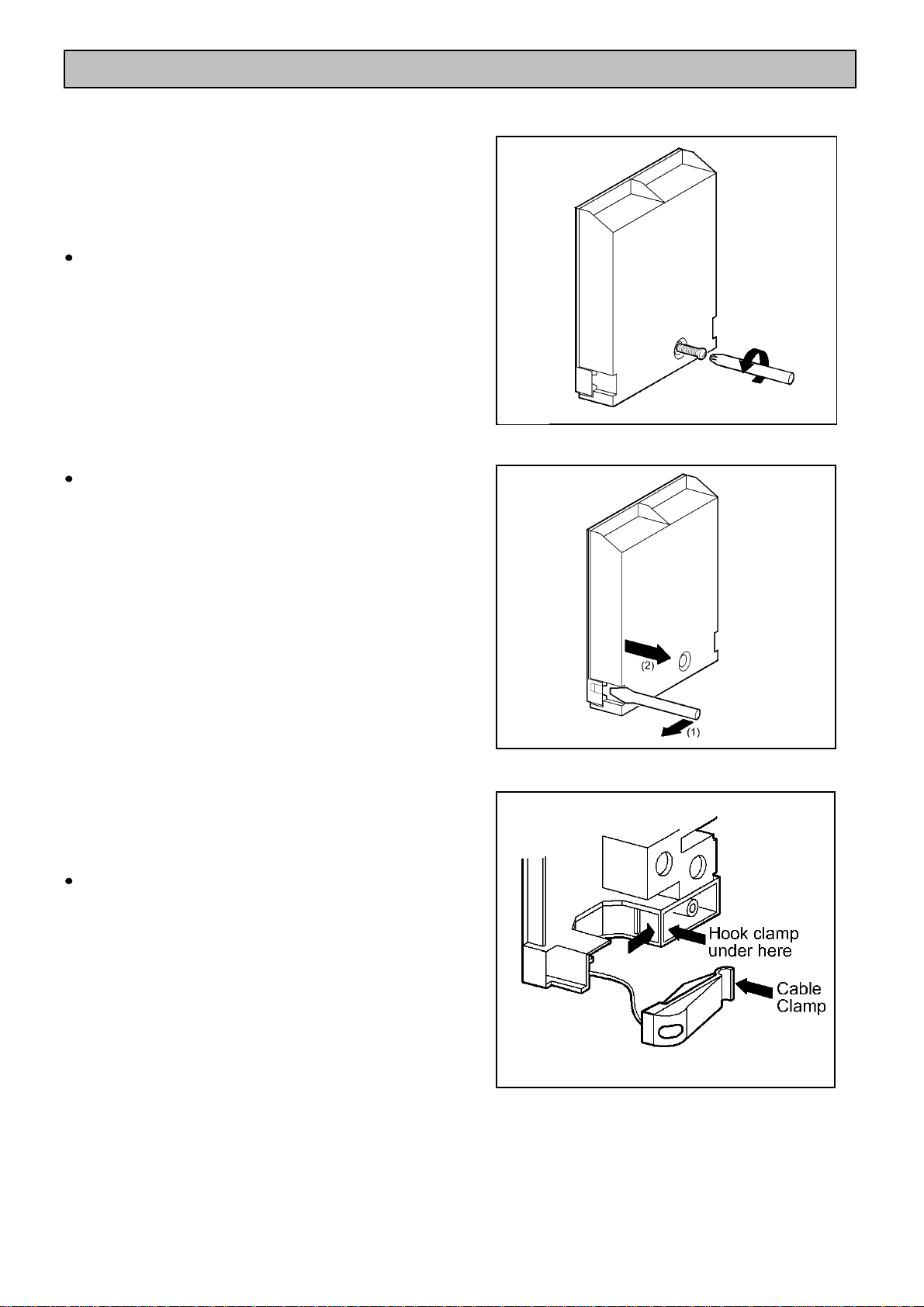

To Remove of Mains Terminal 37

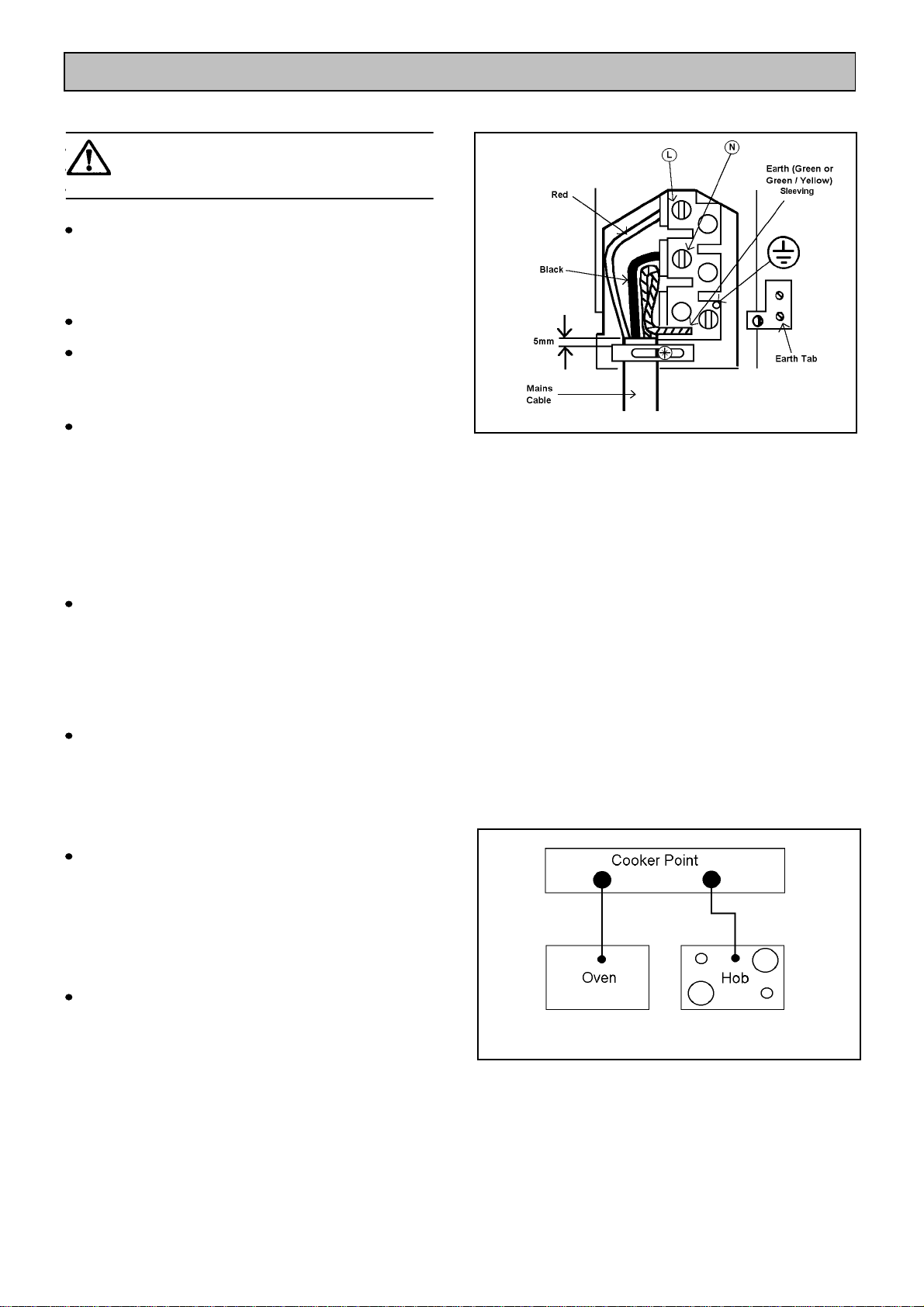

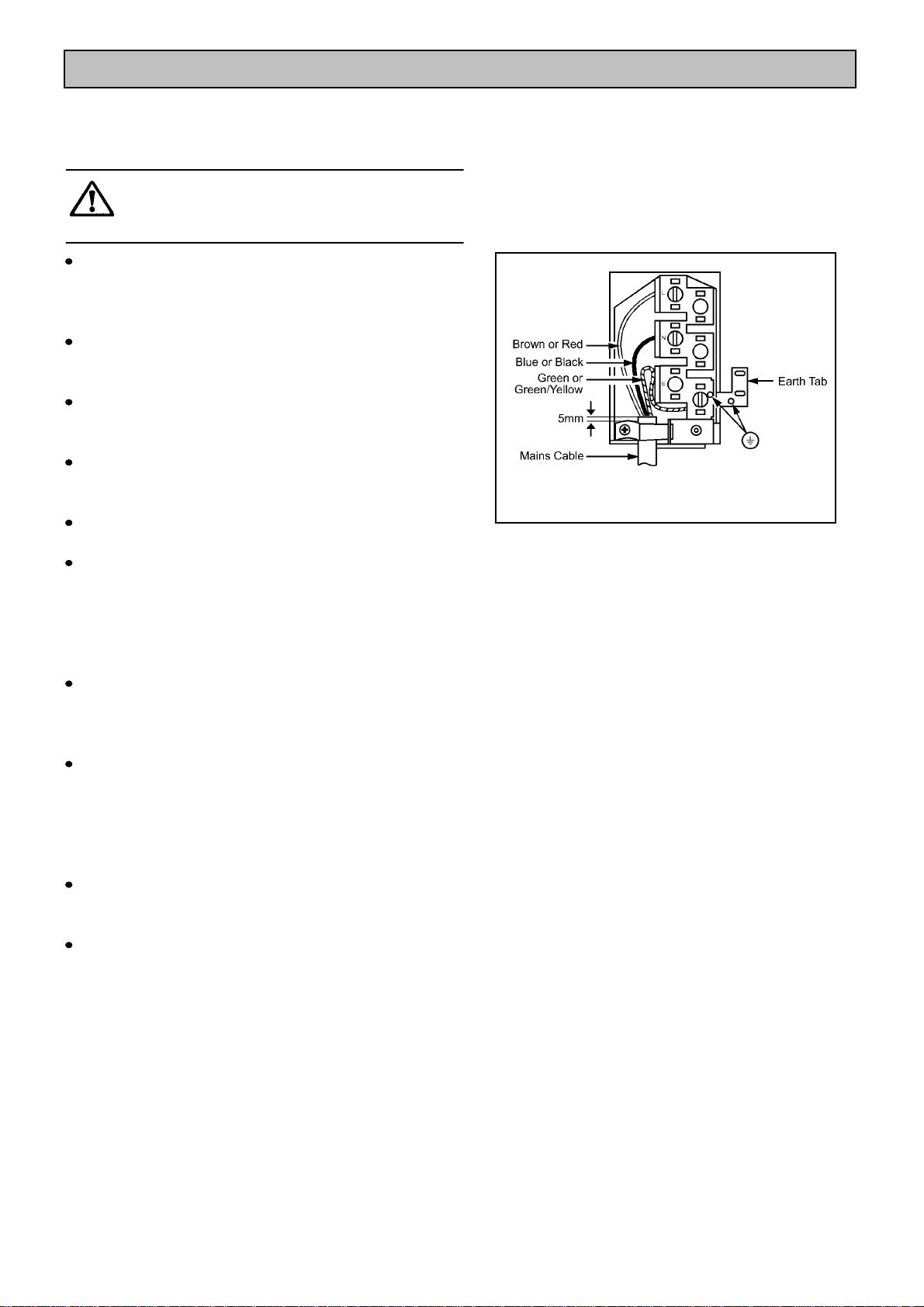

Connecting to the Mains Terminal 38
Checking Electrical Connections 39
Connecting to a Hob or Cooker Point 39
Fitting into the space between Cabinets 40
Roasting Chart 20

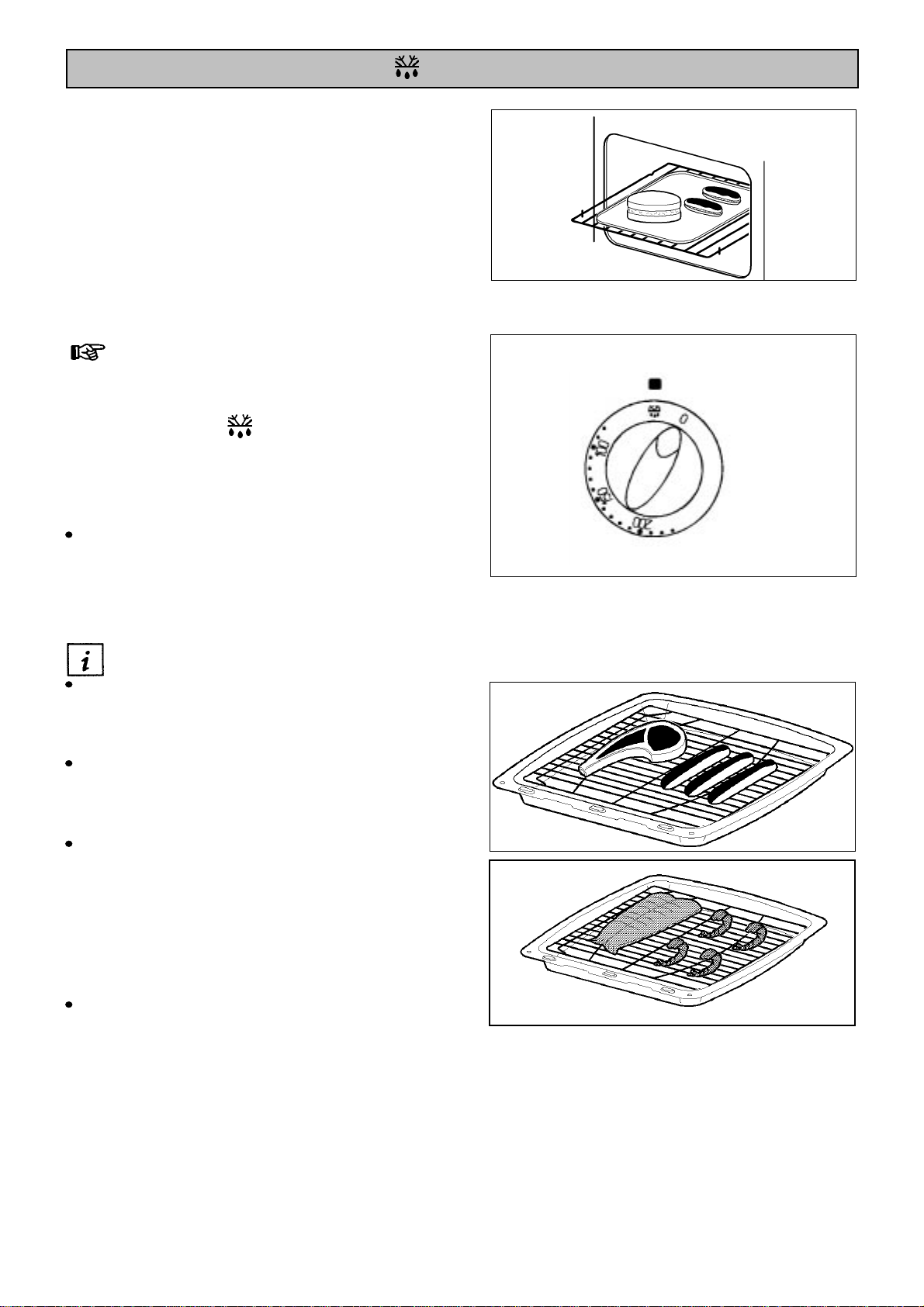

Defrost Feature 21
Uses of Defrost Feature 21
How To Defrost 21
Things to Note 21
Hints and Tips 21
Please read the whole instruction book before
using the appliance. To help you the following
symbols will be found in the text.
Safety Instructions
Step by Step Instructions
Hints and Tips
3
DESCRIPTION OF THE APPLIANCE
Built in electric oven and grill
WARNING: THIS APPLIANCE MUST BE EARTHED
Grill
Electronic
Timer
Control
Knob
Control
Panel
Oven
Please note: EDB705GR control knobs and handles will differ in type and shape from that shown
in the diagram.
Your built in appliance comprises of a electric oven and grill.
The oven can be automatically controlled by the electronic timer.
4
GETTING TO KNOW YOUR OVEN
The Control Panel
Electronic Timer
Oven Control
Grill Control
Fan oven neon
Please note: EDB705GR control knobs will differ in type and shape from that shown in the
diagram.
5
THE COOLING FAN FOR THE CONTROLS
Your appliance has a cooling fan fitted behind
the controls to prevent them from overheating.
The cooling fan will come on immediately when
the grill is switched on and after a short time
when the oven is in use.
The cooling fan may run on after the oven or
grill is turned off for a period of time to cool the
appliance down. It may continue to switch on
and off until the appliance is cool.
Always allow the cooling fan to cool
the appliance down before
switching off at the wall prior to
carrying out any cleaning or
maintenance work.
NOTE
The action of the cooling fan will depend on
how long the oven or grill has been used and at
what temperature. It may not run on where the
grill or oven has only been used for a short
time.
Do not stand too close to the grill or
oven when in use as warm air will
exhaust from the grill cavity and
oven vents.
CONTROL PANEL INDICATOR
NEON
The light indicates whether the oven is switched
on. This will turn on and off during use to show
that the temperature is being maintained.
The Fan oven neon does not operate with the
Defrost setting.
If the neon does not operate as the instructions
indicate the control have been incorrectly set.
Return the control to zero and re-set following
the instructions for the required setting.
6
BEFORE USING THE APPLIANCE
WHEN FIRST SWITCHING ON
The timer must be set to manual operation
before the fan oven can be operated. This must
be done whenever the appliance is switched off
at the wall or when there has been a power
failure. For instructions on how to set the timer
see page 10.
If the fan oven indicator neon does not glow
when the oven is switched on, it is most likely
that the timer is set for automatic cooking.
The Grill is not controlled by the electronic
timer.
RATING PLATE
This is situated on the lower front frame of the
appliance upon opening the grill cavity door.
Alternatively the rating plate may also be found
on the back or top of some models (where
applicable).
The appliance must be protected by a suitably
rated fuse or circuit breaker. The rating of the
appliance is given on the rating plate.
Do not remove the rating plate from the
appliance as this may invalidate the
guarantee.
PREPARING TO USE YOUR
APPLIANCE
Wipe over the base of the oven with a soft cloth
and hot soapy water and wash the grill and
oven furniture before use.
We suggest that you run the oven elements for
10 - 15 minutes at 220°C to burn off any
residue from their surfaces.
The procedure should be repeated with the grill
for approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for
ventilation.
CONDENSATION AND STEAM
When food is heated it produces steam in the
same way as a boiling kettle does. The ovens
are vented to allow some of this steam to
escape. However, always stand back from the
appliance when opening the oven and grill
doors to allow any build up of steam or heat to
release. If the steam comes into contact with a
cool surface on the outside of the appliance,
e.g. a trim, it will condense and produce water
droplets. This is quite normal and is not caused
by a fault on the appliance.
To prevent discolouration occurring, regularly
wipe away condensation and any soilage from
the appliance surfaces.
7
COOKWARE
Baking trays, dishes etc., should not be placed
directly against the grid covering the fan at the
back of the oven.
Do not use baking trays larger than 30cm x
35cm (12" x 14") as they will restrict the
circulation of heat and may affect performance.
Advice on the effect of different materials and
finishes of bakeware is given in 'Hints and Tips'
in the appropriate oven section.
8
GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the appliance.
1 grill pan
1 grill pan handle
1 grill pan grid
2 shelves for
oven cooking
1 shelf for grilling
9
THE ELECTRONIC TIMER
The electronic timer can indicate the time of
day, operate as a minute minder and
automatically time the oven.
A Auto Symbol ( automatic cooking)
Bell Symbol ( minute minder)
Cookpot Symbol ( manual cooking)
Please note that this is a 24 hour clock, for
example 2pm is shown as 14.00.
If the oven is switched off on the wall or there is
loss of power the clock will stop and you will not
be able to use the appliance. When you first
switch the electricity supply on, the timer display
will flash.
Auto
Cookpot Symbol
Symbol
Bell
Symbol
TO SET THE TIME OF DAY
1.Press buttons and together.
Release the buttons.
2. Within 5 seconds press the button until
the time of day shows in the display.
The cookpot symbol ( ) will be showing.
THE MINUTE MINDER
1.Press and release the button.
2. Within 5 seconds press the button until
the display shows the time you want.
Our diagram shows the timer set to 5 minutes.
After a few seconds the time of day will show in
the display.
When you are using the minute minder you can
check the number of minutes remaining by
pressing the button.
At the end of the timed period an alarm will
sound. Switch off the alarm by pressing the
button.
After a few seconds the time of day shows in
the display.
10
AUTOMATIC TIMER CONTROL
The automatic timer can be used with the oven
only.
TO SWITCH THE OVEN ON
AND OFF AUTOMATICALLY
1. Ensure the clock is showing the correct time
of day.
2.Place food in the oven.
3. Set the length of time you want the food to
cook for by pressing and releasing the
button and then pressing the button until
the correct cooking time is displayed.
This must be completed within 5 seconds of
pressing the button.
The maximum cooking time is 23 hours 59
minutes.
The Cookpot and Auto symbols will show in the
display. Our diagram shows the cooking time
set for 2 hours 30 minutes.
After a few seconds the time of day shows in
the display.
4.To set the time you want the food to be
cooked by, press and release the button.
This will show you the earliest possible stop
time.
If this is different to the time you want the food
to be cooked by, press the button within 5
seconds until the correct stop time shows in the
display. Our diagram shows the food is to be
cooked by 18.00 (6pm).
After a few seconds the time of day shows in
the display and the Cookpot symbol goes out.
The 'Stop' time must not be more than 23 hours
59 minutes from the time of day. For
example, if the time of day is 09.00 hours
(9.00am) the latest 'Stop' time will be 08.59
(8.59am) the next day.
5. Turn the oven control to the required setting.
The clock will work out what time the oven will
switch itself on and will switch the oven off at
the end. An audible signal will sound when
cooking is complete. To cancel the alarm, see
over page.
11
RETURNING THE APPLIANCE
TO MANUAL OR TO CANCEL AN
AUTOMATIC PROGRAMME
Once automatic cooking is complete an alarm
will sound and the Auto symbol will flash to
remind you that the oven needs to be set for
manual operation.
1.To do this press buttons and together.
After a few seconds the timer will show the
time of day. The cookpot will show in the
display and the oven will switch on again.
2.Turn off the oven control.
TO SET THE TIMER TO
SWITCH OFF ONLY
This is useful if you want to begin cooking
immediately but have the oven switch off whilst
you are out.
1. Ensure the clock is showing the correct time
of day.
2.Place food in the oven.
3. Set the length of time you want the food to
cook for. Press and release the button
and then within 5 seconds press the
button until the correct cook time is showing.
Our diagram shows the timer set for 2 hours 30
minutes.
After a few seconds the time of day shows in
the display.
4.Turn the control to the required setting.
If you want to check the time the oven will
switch off simply press the button and the
'Stop' time will be displayed.
At the end of the cooktime the oven will switch
off, the alarm will sound and the auto symbol
will flash.
5.To cancel and return to manual operation
press buttons and together.
6.Turn off the oven control.
12
THE GRILL
WARNING - Accessible parts become
hot when the grill is in use. Keep
children away.
USES OF THE GRILL
The grill is situated in the top compartment.
The grill gives variable heat settings. Use the
high numbers for foods that cook quickly such
as toast and the lower numbers to cook thicker
foods such as chicken after it has been
browned on the high number.
HOW TO USE THE GRILL
1.To operate the grill open the grill door and
turn the grill control in either direction.
2.The highest number represents the hottest
setting and the lowest the coolest setting.
3. Setting 5 represents the grill on Full.
At lower settings the grill may turn on and off
over time and you may prefer to use these
settings for keeping food warm. The food will
however continue to cook gently if the grill is
used for this purpose.
GRILL
OVEN
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT OPEN
DURING GRILLING.
Some smoke from fat splashes may be evident
as the grill cleans itself.
TO FIT THE GRILL SHELF
There are 5 shelf positions in the Grill. Shelf
positions are counted from the bottom upwards.
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards
the back of the oven.
If not fitted correctly the anti-tilt and safety stop
mechanism will be affected
.
Please note: EDB705GR control knobs will differ
in type and shape from that shown in the
diagram.
5
4
3
2
1
13
THE GRILL PAN AND HANDLE
The grill pan has a removable handle.
To insert the handle, press the button on the
handle with the thumb and pivot the handle
slightly upwards inserting the lip into widest part
of the bracket. Move the handle towards the
left, lower into position and release the button.
Ensure the handle is positively located.
To remove the handle, press the button on the
handle with the thumb and pivot the handle
slightly upwards and towards the right to
remove from the bracket.
Protect your hands when removing
the grill pan handle.
Always remove the grill pan handle
during grilling.
To correctly locate the grill pan on the shelf,
ensure that the cut out on the underside of the
handle bracket locates over the front bar of the
shelf.
The Grill Pan must not be located in
the shelf runners.
To check the progress of the food being grilled,
the grill pan should be withdrawn on the shelf to
attend to food during cooking.
Ensure that the grill pan is supported
when it is withdrawn.

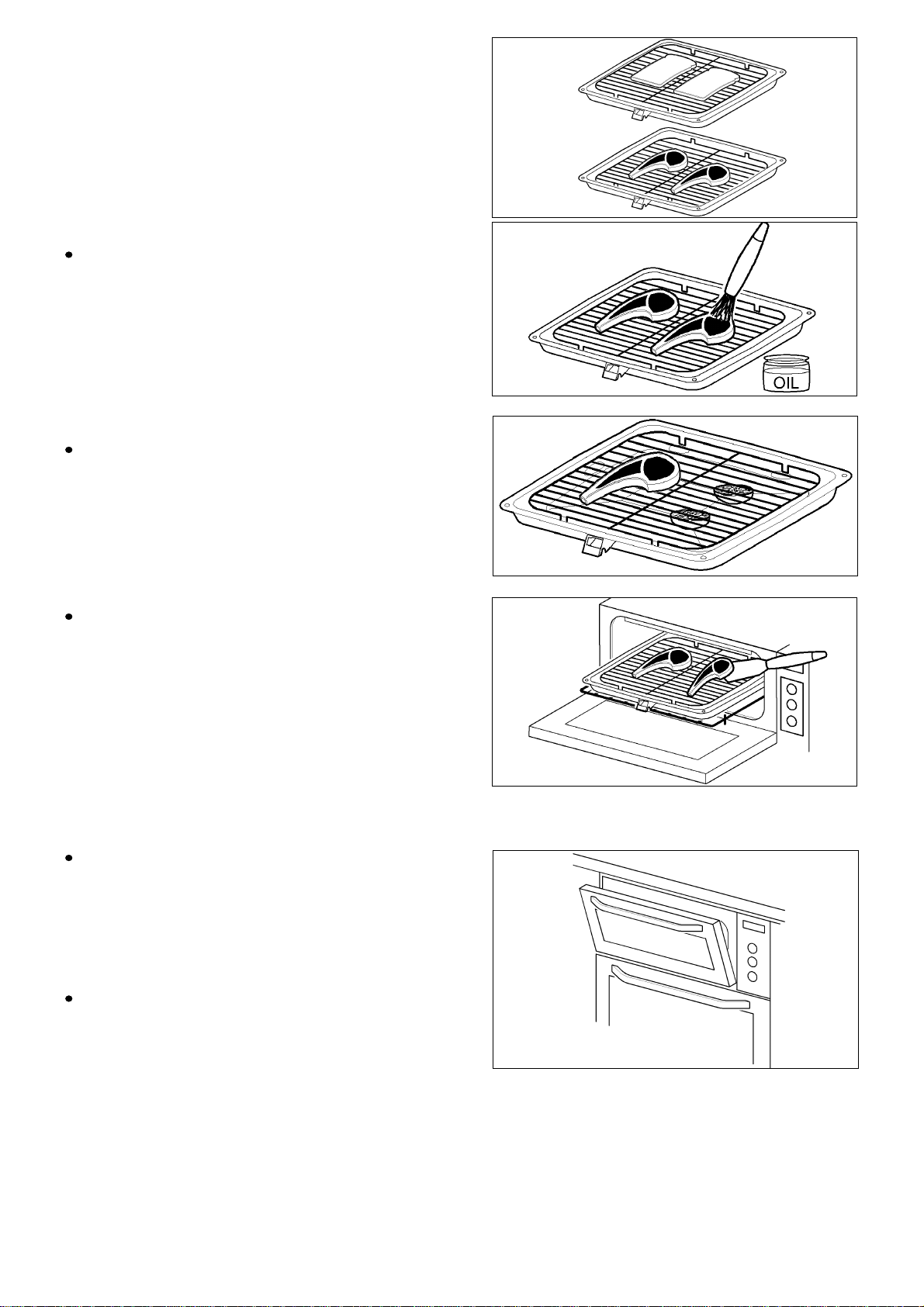

HINTS AND TIPS
Most foods should be placed on the grilling
grid in the grill pan. This allows maximum
circulation of air by raising the food out of fats
and juices.
Adjust the grid and grill pan runner position to
allow for different thicknesses of food.
Position the food close to the element for
faster cooking and further away for more
gentle cooking.
14
Loading...
