Electrolux EDB876WL, EDB876WN, EDB876GRN, EDB876GRL, EDB876BUN User Manual

Model EDB 876

IMPORTANT SAFETY INFORMATIONEnsure that all vents are left unobstructed to ensure ventilation of the oven cavity.

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department. The address is on the back page of this book.

INSTALLATION

The appliance must be installed according to the instructions supplied. The installation work must be undertaken by a competent person as stated in the Gas Safety (Installation & Use) regulations current edition.

The installer should check that the appliance is suitable for the gas supply by checking the rating plate.

The appliance must be installed in an adequately ventilated room.

NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor.

This appliance is heavy and care must be taken when moving it. Do not try to move the appliance by pulling the door handles.

Warning: Do Not attempt to lift this appliance by the handles.

All packaging, both inside and outside the appliance must be removed before the appliance is used.

It is dangerous to alter the specifications or modify the appliance in any way.

After installation please dispose of the packaging with due regard for safety and the environment. Your local authority can arrange this.

CHILD SAFETY

Do not allow young children to play with any part of the packaging.

This appliance is designed to be operated by adults. Young children must not be allowed to tamper with the controls or play near or with the appliance.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

DURING USE

This appliance has been designed for domestic use to cook edible foodstuffs only, and must not be used for any other purpose.

Take great care when heating fats and oils as they will ignite if they become too hot.

Never place plastic or any other material which may melt in or on the oven.

Do not stand too close to the oven or grill while in use as warm air will exhaust from the grill cavity and the vents on the front frame of the appliance.

When lighting any burner check that it is lit before leaving the appliance.

When turning off any burner do not leave the appliance until the flame has gone out.

Do not leave the grill pan handle in position when grilling and ensure oven gloves are used to remove and replace the handle, as it will become hot.

Always use oven gloves to remove and place food in the oven.

Never line any part of the appliance with foil.

Stand clear when opening the drop down oven doors. Support the doors using the handles until fully open.

Never leave the appliance unattended when the oven door is open.

Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.

Ensure that all control knobs are in the OFF position when not in use.

Do not stand on the appliance or on the open oven doors.

Do not hang towels, dishcloths or clothes from the appliance or its handles. They are a safety hazard.

CLEANING AND MAINTENANCE

The appliance is heavy and care must be taken when moving it.

For Hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire especially in the grill pan.

This appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.

Do not leave cookware containing foodstuffs, e.g. fat or oil in the appliance in case it is inadvertently switched on.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning / maintenance work.

Only clean this appliance in accordance with the instructions given in this book.

SERVICE

Repairs should not be carried out by inexperienced persons as this may cause injury or serious malfunction. This appliance should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used. Details of servicing and repair arrangements are supplied on page 35 of this book.

AT THE END OF THE COOKERS LIFE

When the time comes to dispose of your appliance please contact your local Council Authority. They can arrange to dispose of the appliance in a safe and controlled manner.

The number will be in the telephone book.

Please read this instruction book carefully before use and retain for future reference.

2

CONTENTS

FOR THE USER

Important Safety Information Description of the appliance

Getting to Know Your Oven

The Cooling Fan for the Controls Location

Before Using The Appliance

Rating Plate

Connecting to the Electricity Supply When First Switching On Condensation and Steam Cookware

Grill and Oven Furniture

The Electronic Timer

The Grill

Uses of the Grill

How To Light the Grill

Things To Note

The Grill Shelf

The Grill Pan and Handle

Hints and Tips

Grilling Chart

The Top Oven

Uses of the Top Oven

Preheating

How To Light the Top Oven

Things To Note

To Fit the Top Oven Shelf

Hints and Tips

Top Oven Cooking Chart

The Main Oven

Uses of the Main Oven Preheating

How To Light the Main Oven Things to Note

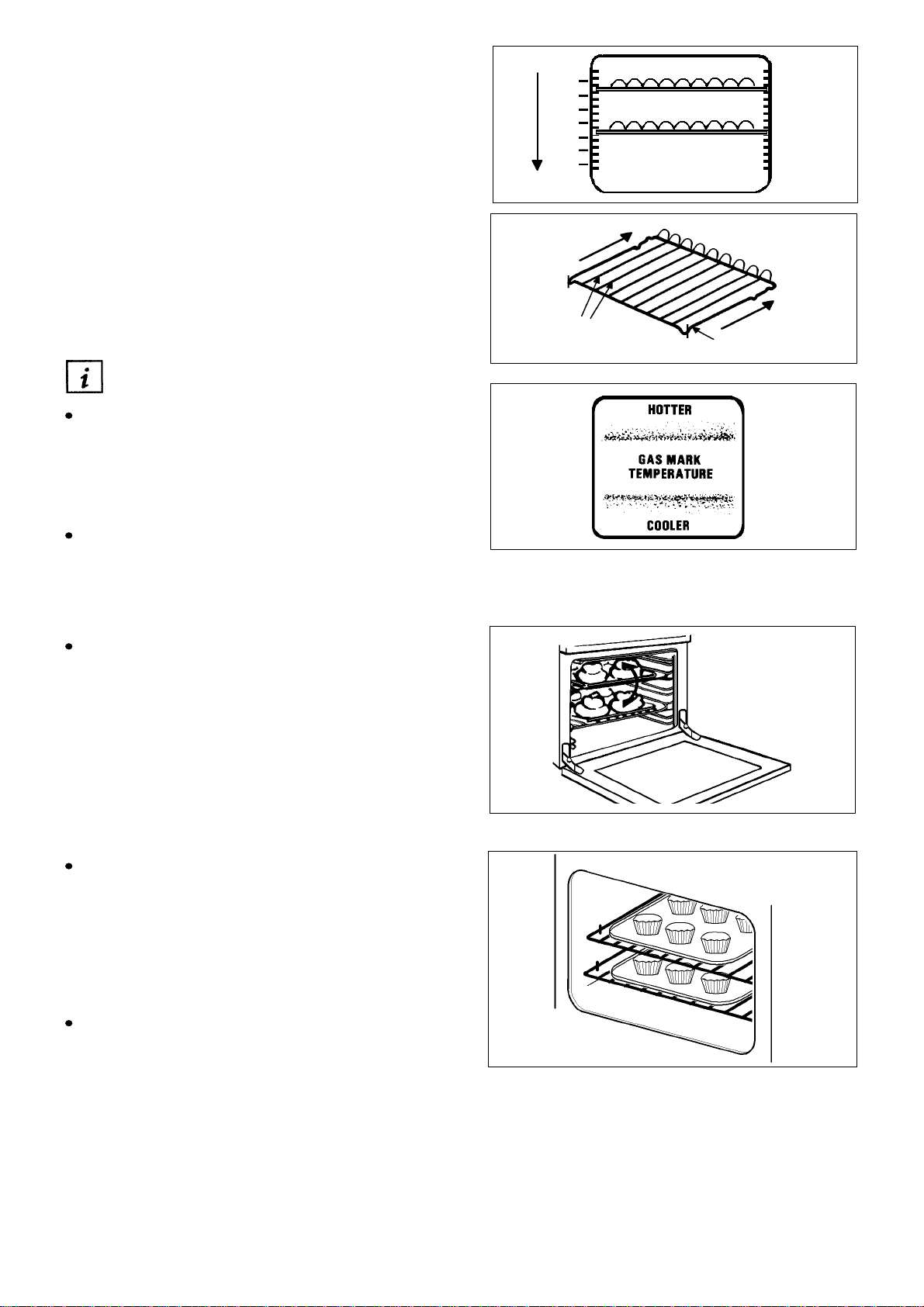

To Fit the Main Oven Shelves Hints and Tips

Main Oven Cooking Chart

Slowcook Feature

Uses of Slowcook

How To Use Slowcook

Things to Note

Hints and Tips

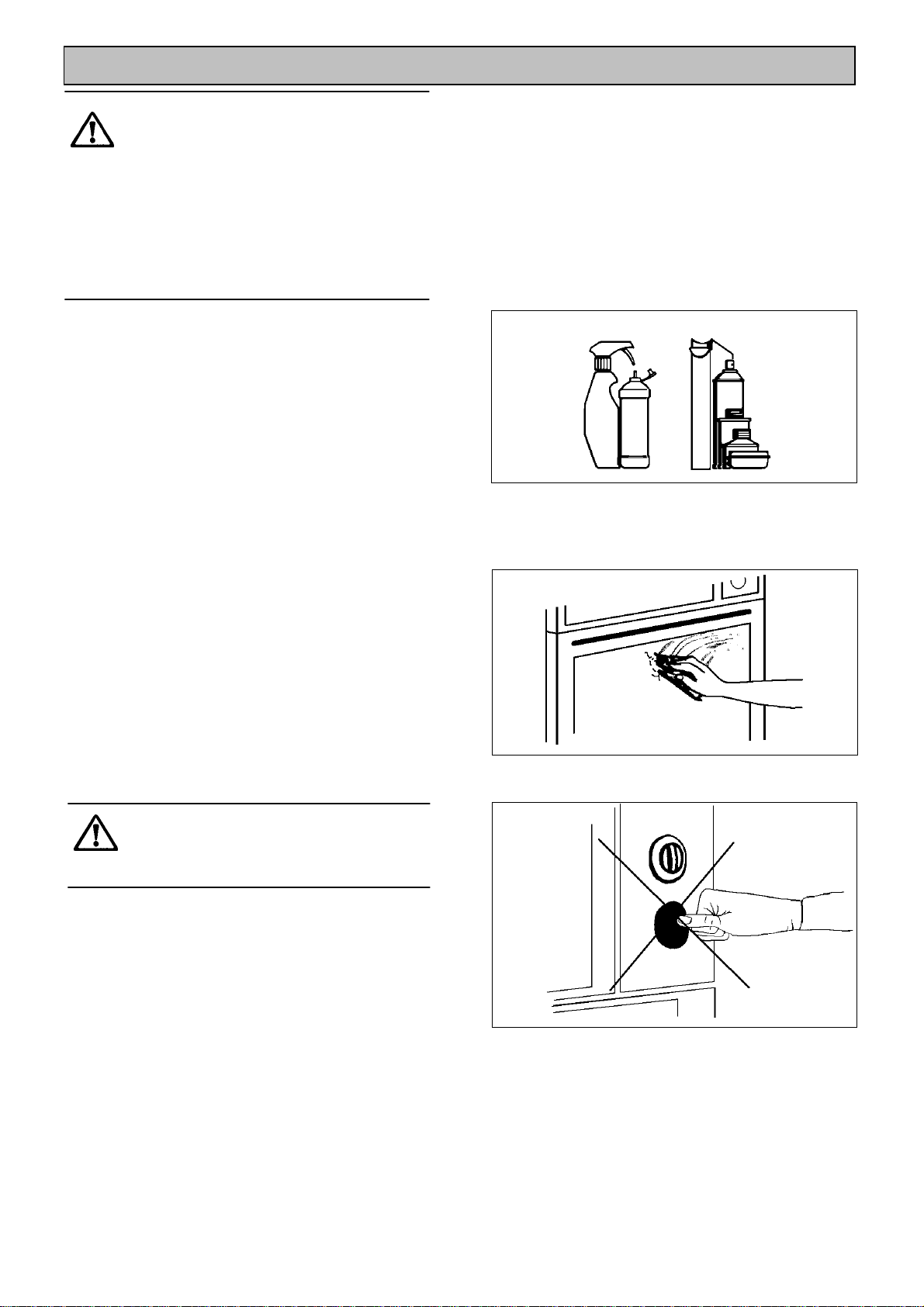

	2	Care and Cleaning	27
	4	Cleaning Materials	27
	5	Cleaning the Outside of the Appliance	27

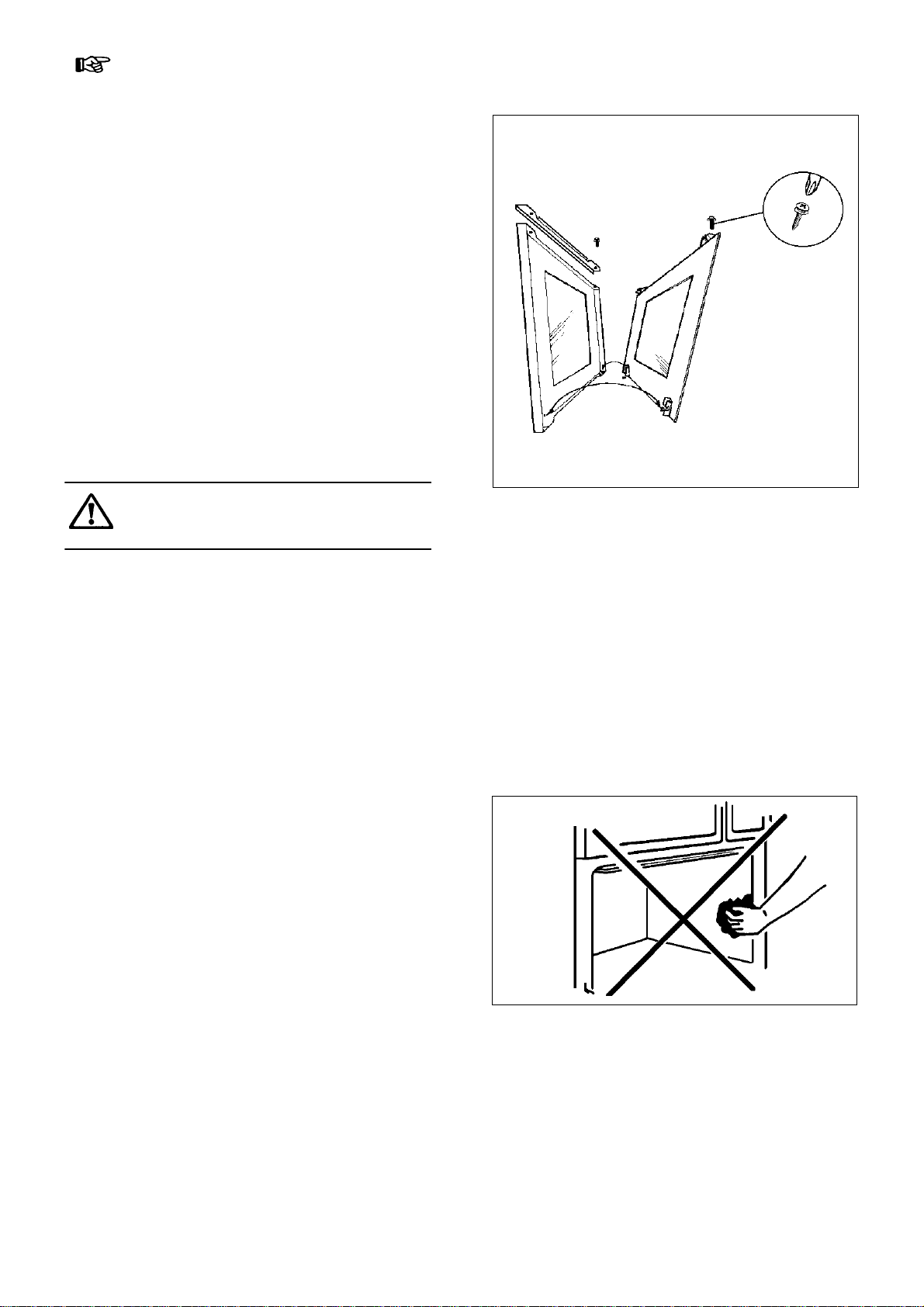

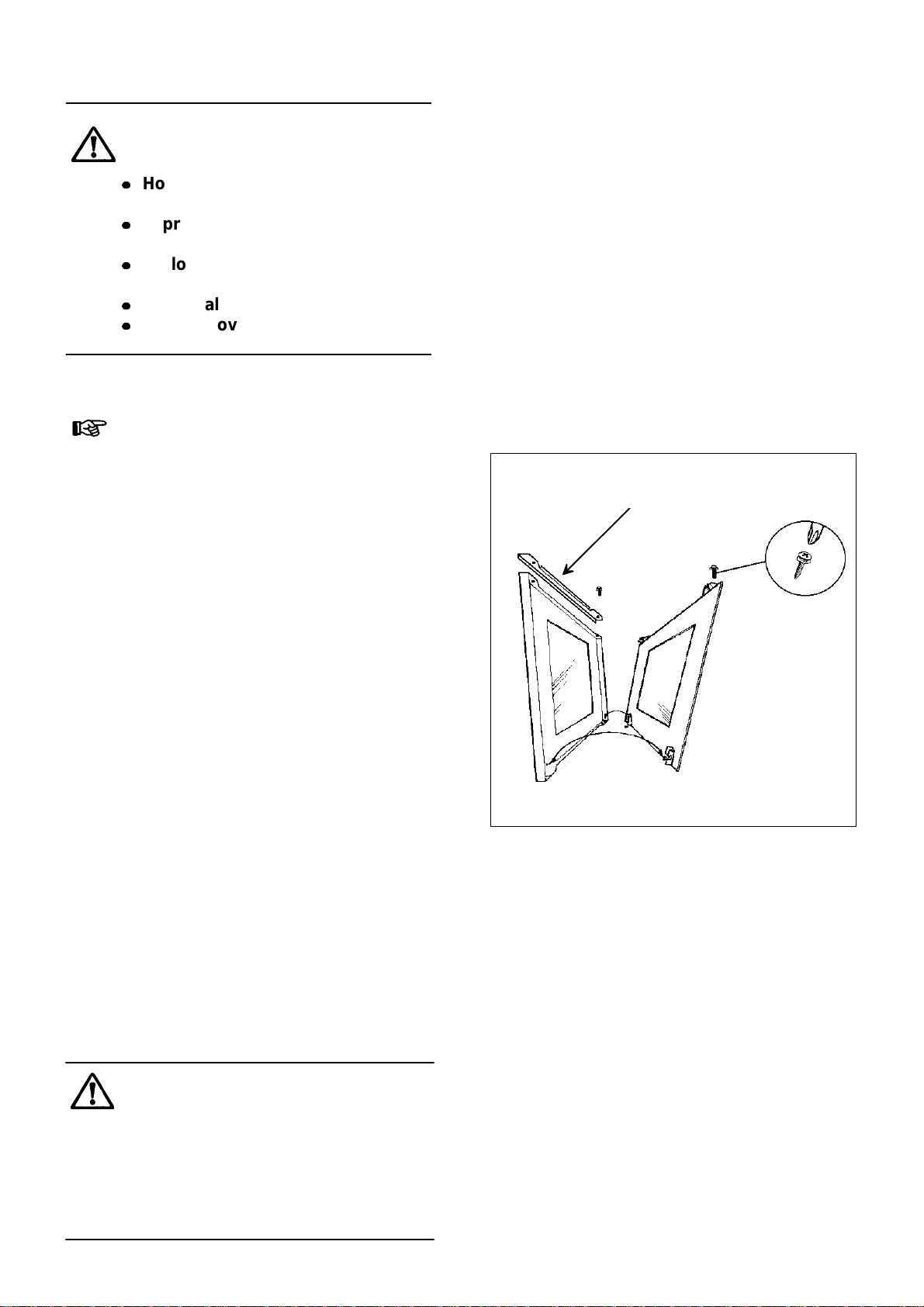

	6	Cleaning the Outer and Inner Door
	6	Glass Panels	28
	7	Cleaning Inside the Ovens	29
		To Remove the Wirework Runners	30
	7	Cleaning the Shelves, Wirework Runners
	7	and Oven Furniture	30
	7
		Care of Stayclean Surfaces	30
	8

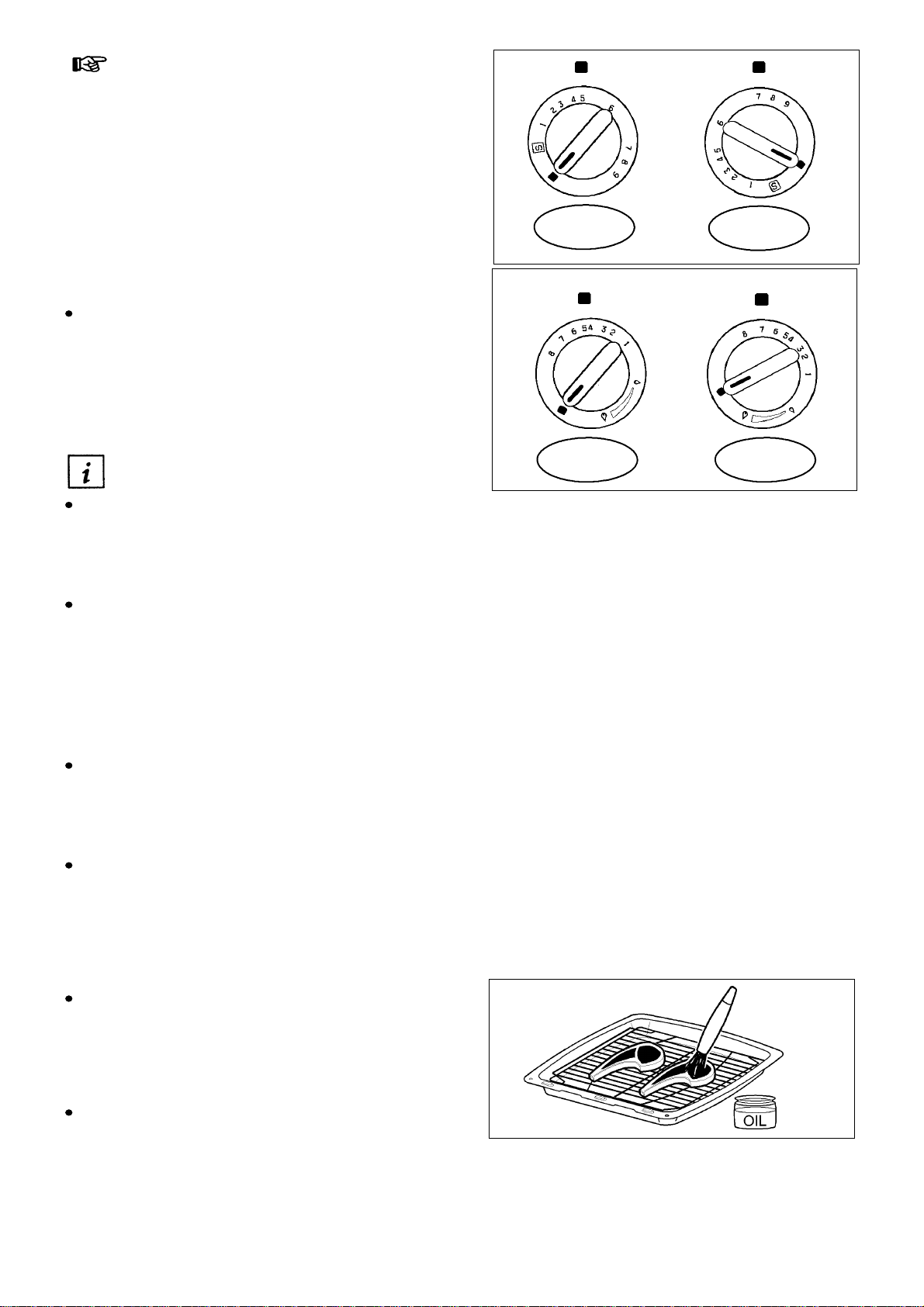

		The Oven Cleaning Cycle	31
	8
		Things to Note	31
	9
		Hints and Tips	31

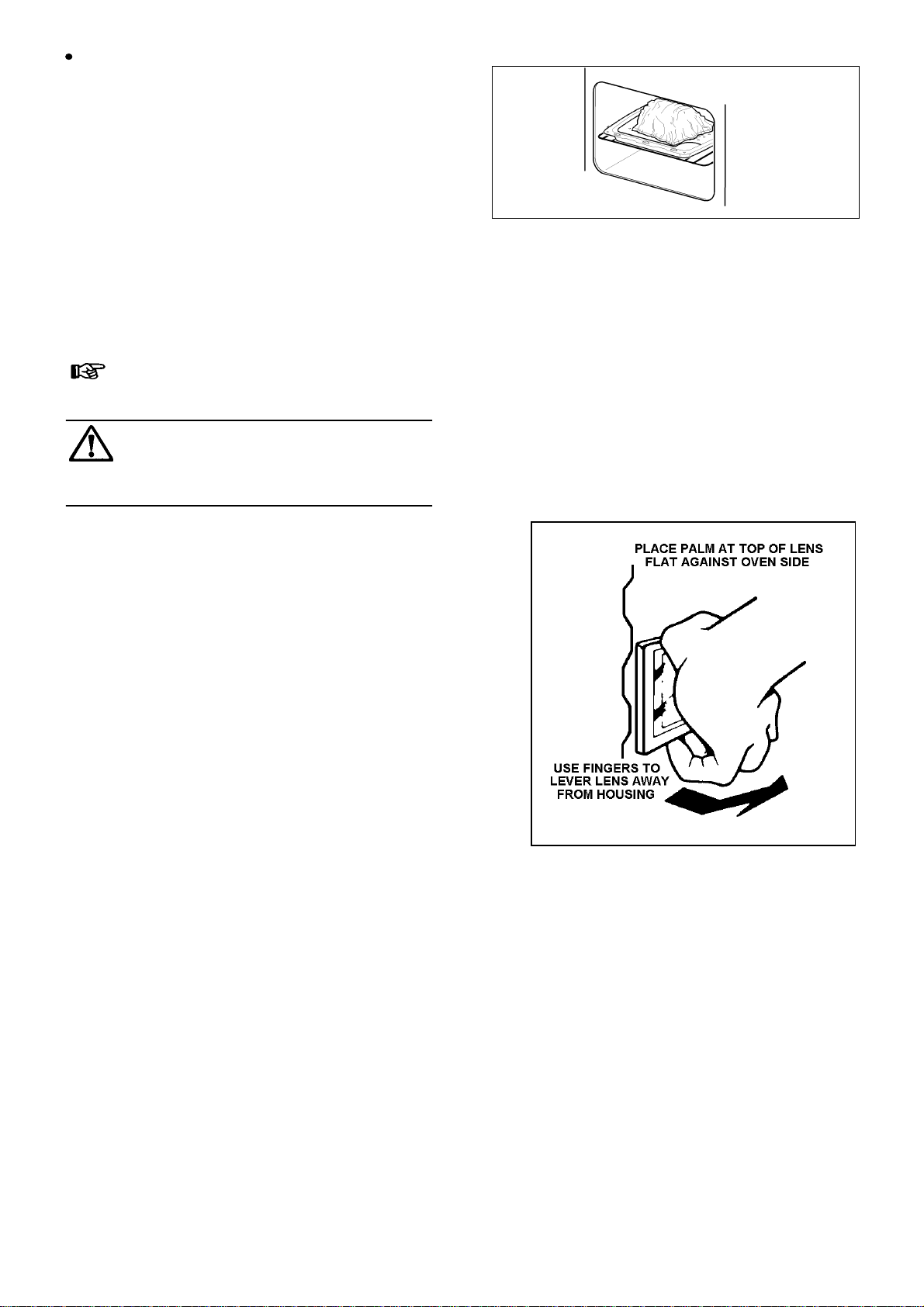

	10	Replacing an Oven Light Bulb	32
	13	Something Not Working	33
	13	Service and Spare Parts	35
	13	Guarantee Conditions	36
	13
	14
	14
	15	FOR THE INSTALLER
	16
	17	Technical Details	37
		Things You Need to Know	38
	17	Warnings	38
	17	Things to Note	38
	17	Getting Things Ready	39
	17

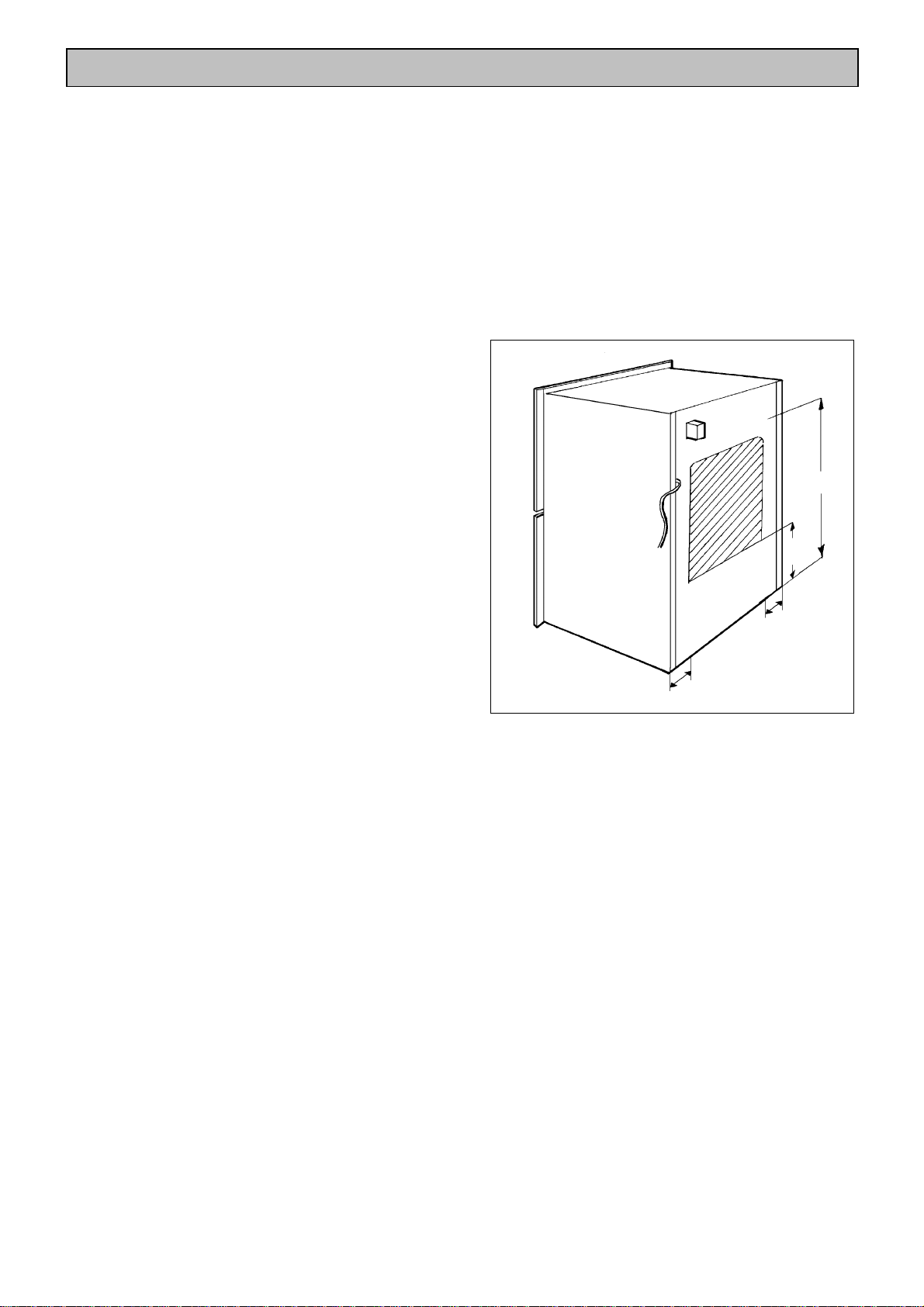

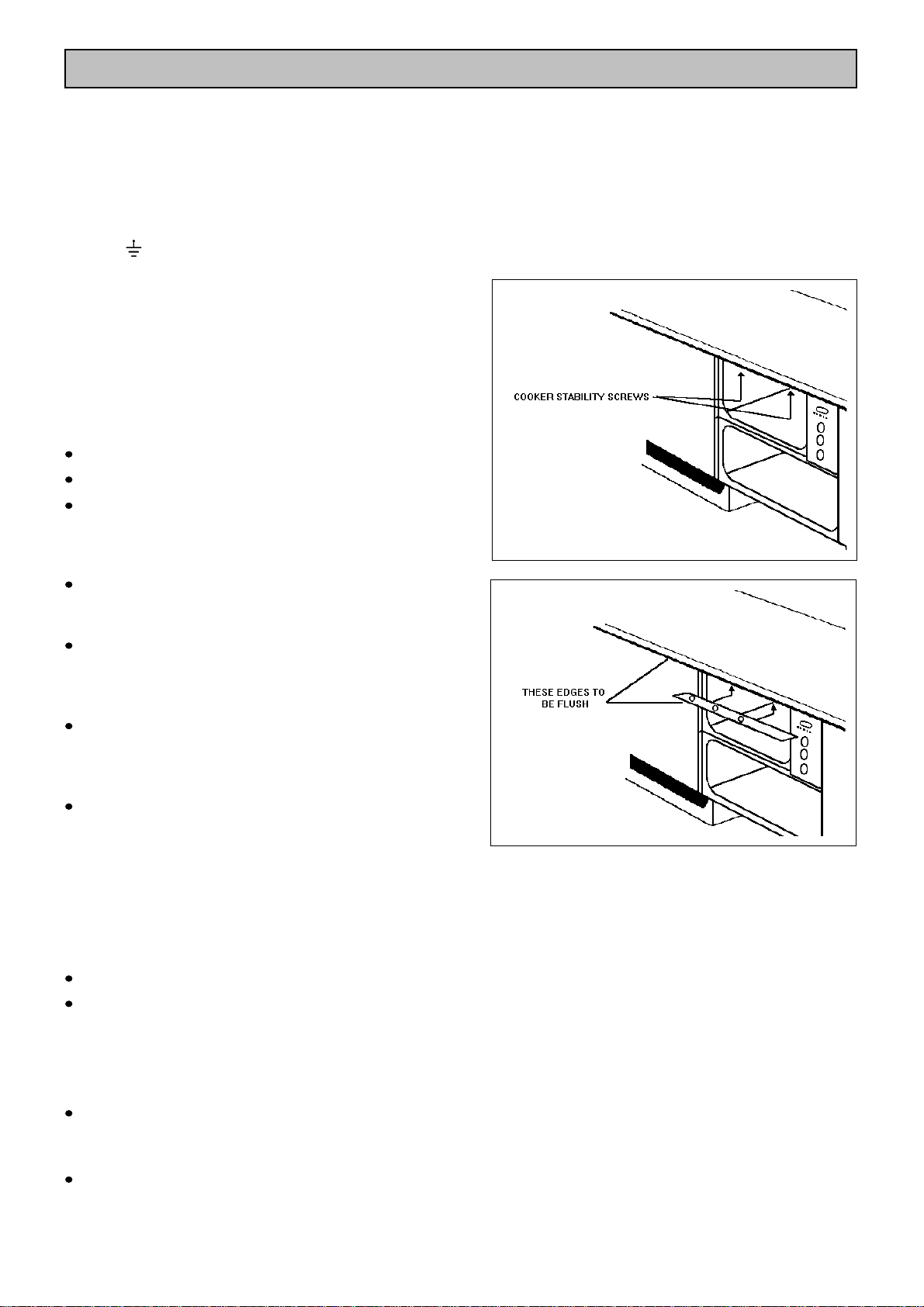

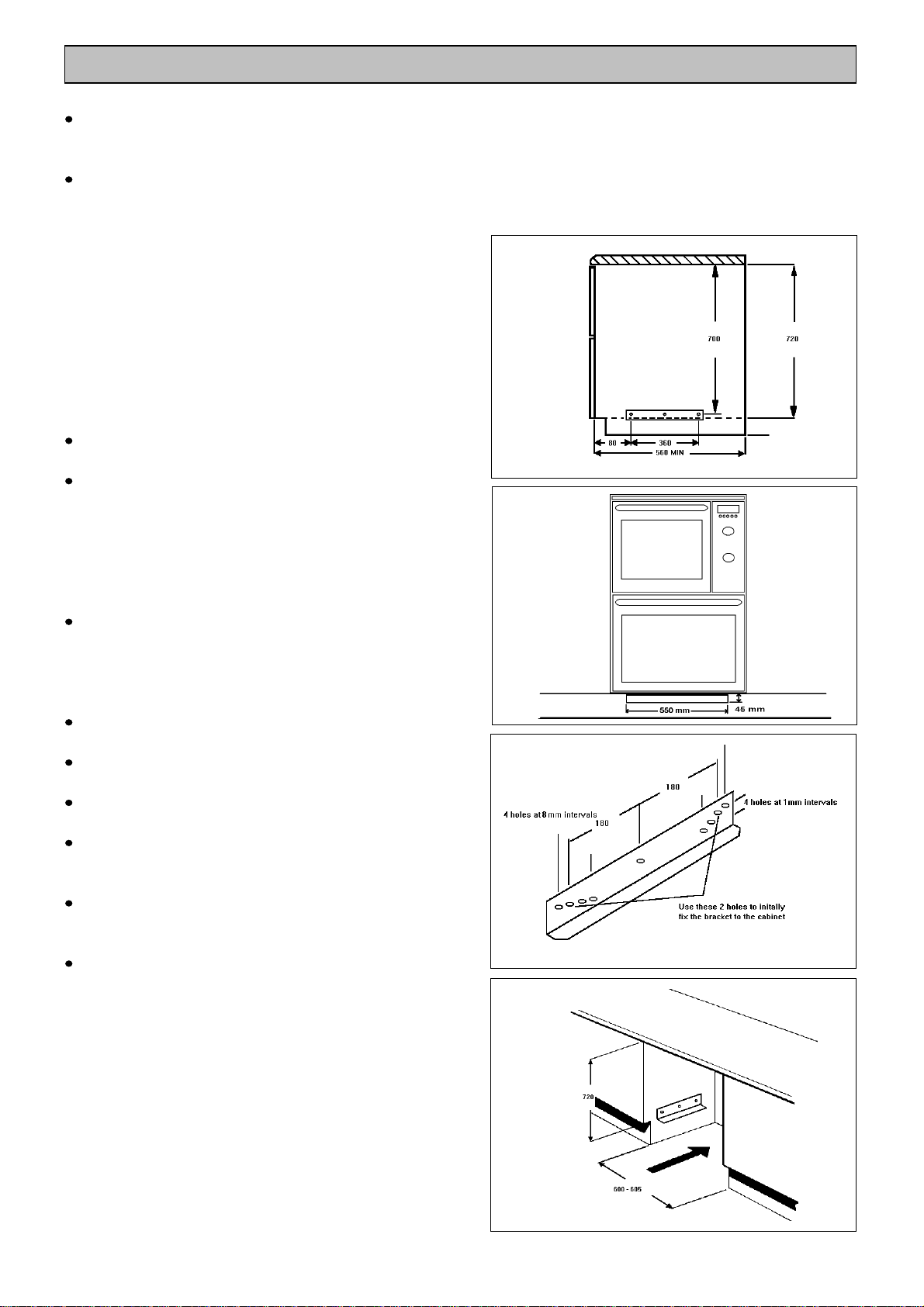

	18	Preparing Cabinet for Fitting Oven	39
	18	Flexible Pipe Installation	39

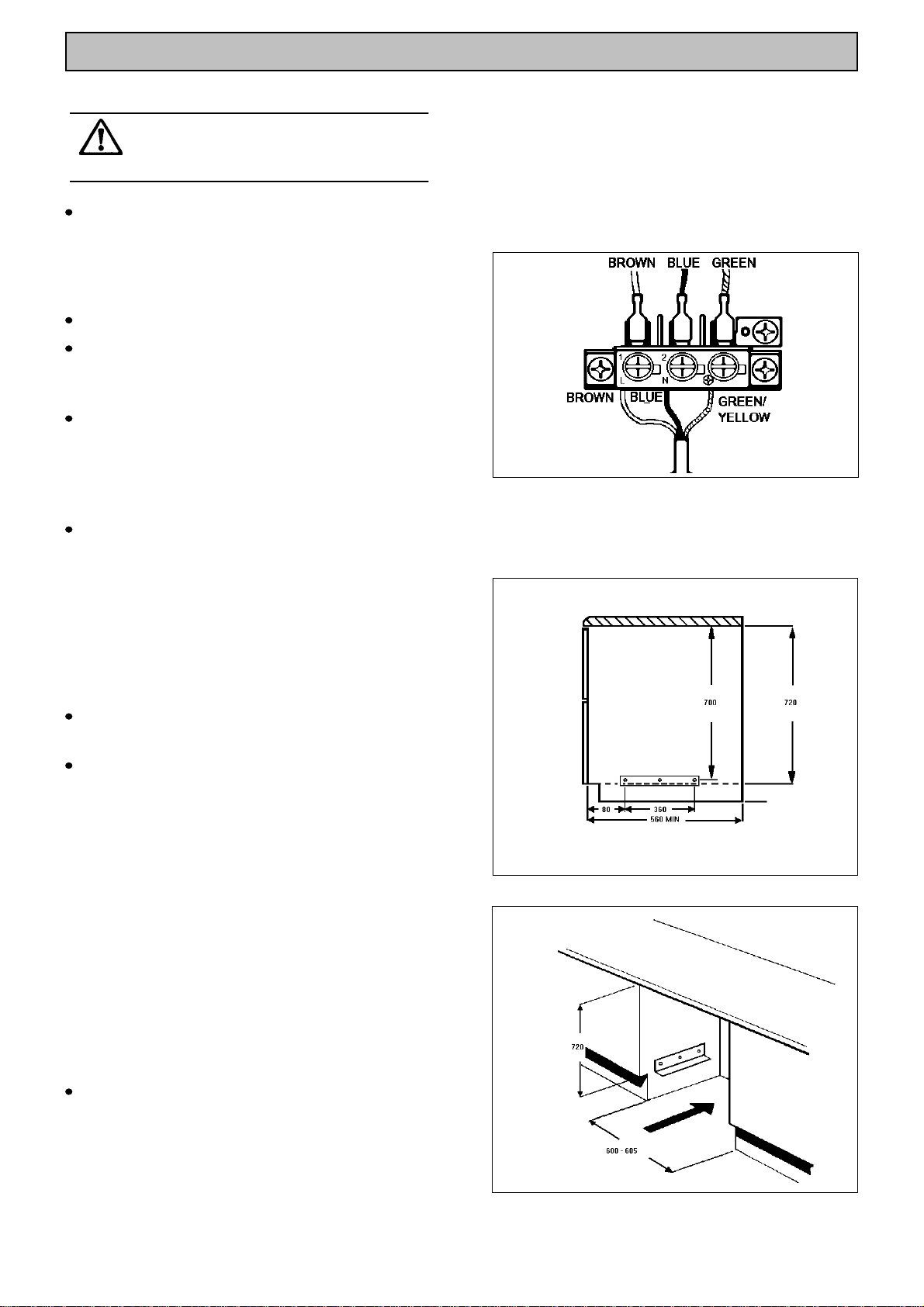

	19	Making the Electrical Connections	41
	20	Connection to Electricity Supply	41
		Checking Electrical Connections	42
	20
		Pressure Testing	43
	20
	20

20Please read the whole instruction book before

21using the appliance. To help you the following

	21	symbols will be found in the text.
	23
	24
		Safety Instructions
	24
	24
	24
	24	Step by Step Instructions

Hints and Tips

3

DESCRIPTION OF THE APPLIANCE

Built in gas double oven

WARNING: THIS APPLIANCE MUST BE EARTHED AND PROTECTED BY A 3 AMP FUSE

Top Oven / Grill

Electronic

Timer

Control

Knob

Control

Panel

Main Oven

Your built in appliance comprises of a gas oven and grill in the top compartment. The top oven is convenient and economical for mid-week use because of its size.

The main oven is the larger of the two ovens. It is particularly suitable for cooking larger quantities of food. In addition, the Slowcook feature allows you to cook a range of foods over a long period of time at a low temperature.

The Main oven can be automatically controlled by the electronic timer.

4

GETTING TO KNOW YOUR OVEN

The Control Panel

Electronic Timer

Grill / Top Oven Control

Main Oven Control

5

THE COOLING FAN FOR THE CONTROLS

Your appliance has a cooling fan fitted behind the controls to prevent them from overheating. The cooling fan will come on immediately when the top oven or grill is switched on and after a short time when the main oven is in use.

The cooling fan may run on after the ovens or grill are turned off for a period of time to cool the appliance down. It may continue to switch on and off until the appliance is cool.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning or maintenance work.

NOTE

The action of the cooling fan will depend on how long the ovens or grill have been used and at what temperature. It may not run on where the grill or oven has only been used for a short time.

Do not stand too close to the grill or oven when in use as warm air will exhaust from the grill cavity and oven vents.

LOCATION

All gas ovens require adequate ventilation. The room the oven is fitted in must have a good air supply that meets the standard BS 5440 Part 2 (current edition). Your installer will tell you if you are not sure.

The oven may be placed in a kitchen, kitchen/diner or bedsit but not in a bathroom or shower room. It should not be installed in a bedsit smaller than 20m3.

L.P.G. cookers MUST NOT be installed below ground level, i.e. in a basement, or aboard any boat, yacht or other vessel.

The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

6

BEFORE USING THE APPLIANCE

RATING PLATE

This is situated on the lower front frame of the appliance and can be seen upon opening the top cavity door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).

The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

This appliance must be earthed and protected by a 3 amp fuse.

CONNECTING TO THE

ELECTRICITY SUPPLY

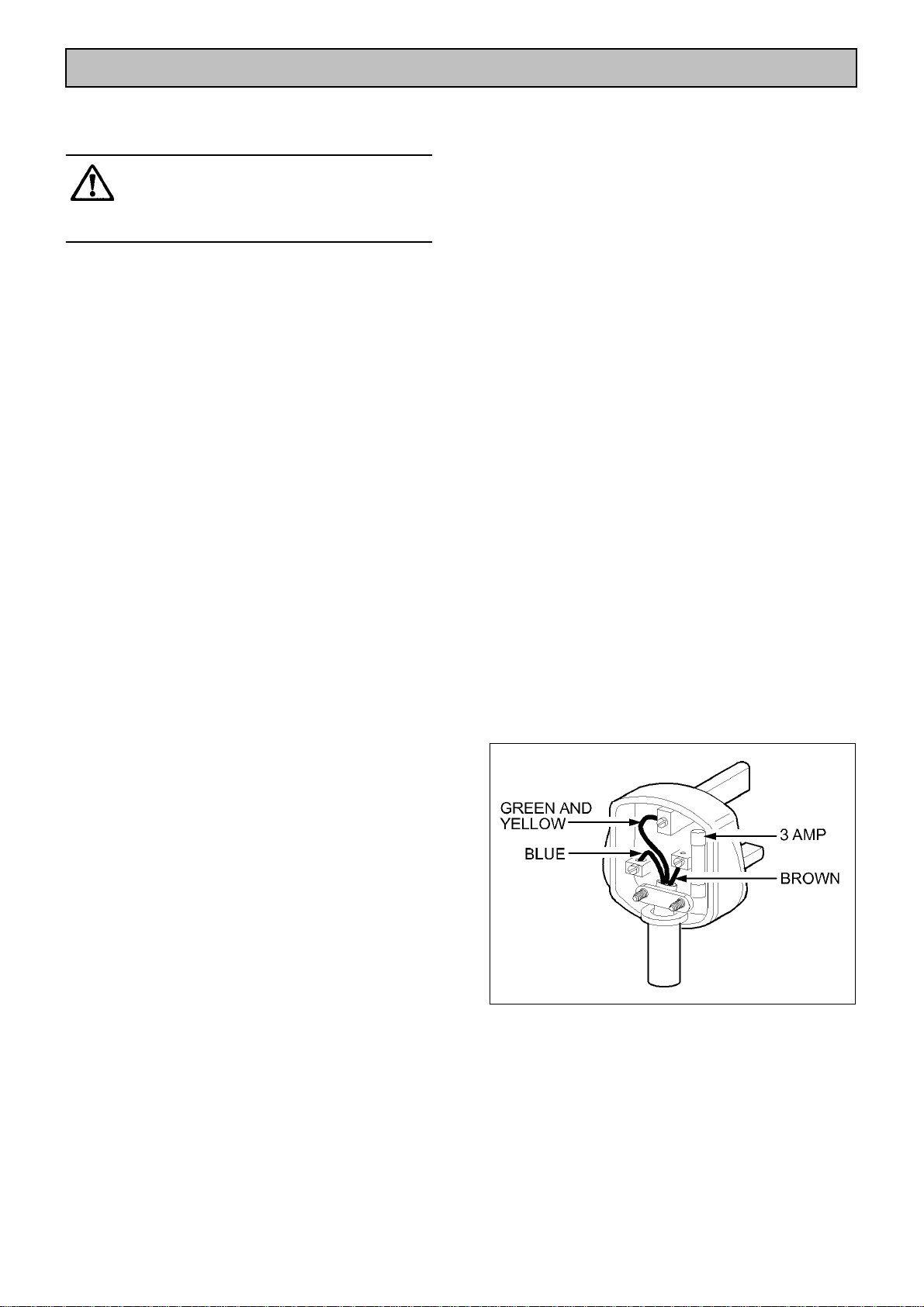

The plug supplied with the oven can be fitted directly to a suitable three pin earthed socket.

If you have to change the fuse replace it with a 3 amp fuse which has been ASTA approved to BS 1362.

Do not use the plug until you have put the fuse cover back on. If you cut the plug off dispose of it safely as it will be a shock hazard if it is inserted into a 13 amp socket elsewhere in the house.

If the ignition system doesn't work there may be a fault with the electrical supply. First, check the socket by trying out another piece of electrical equipment in it, if that works correctly renew the fuse in the plug.

If the fuse keeps failing there is a fault in the oven which must be put right. Do not use a fuse with a rating higher than 3 amps. Do not carry out other electrical work. Unplug the oven and tell your installer.

WHEN FIRST SWITCHING ON

The timer must be set to manual operation before the main oven can be operated. This must be done whenever the appliance is switched off at the wall or when there has been a power failure. For instructions on how to set the timer see page 10.

The Top Oven and the Grill are not controlled by the electronic timer.

7

PREPARING TO USE YOUR APPLIANCE

Wipe the base of the ovens with a soft cloth and some hot soapy water and wash the grill and oven furniture before use. The grill and ovens should be heated without food to burn off any residue from the grill and oven surfaces. To do this run the oven at Gas Mark 7 for approximately 10 - 15 minutes. The procedure should be repeated with the grill for approximately 5 - 10 minutes.

During this period an unpleasant odour may be emitted, it is therefore advisable to open a window for ventilation.

CONDENSATION AND STEAM

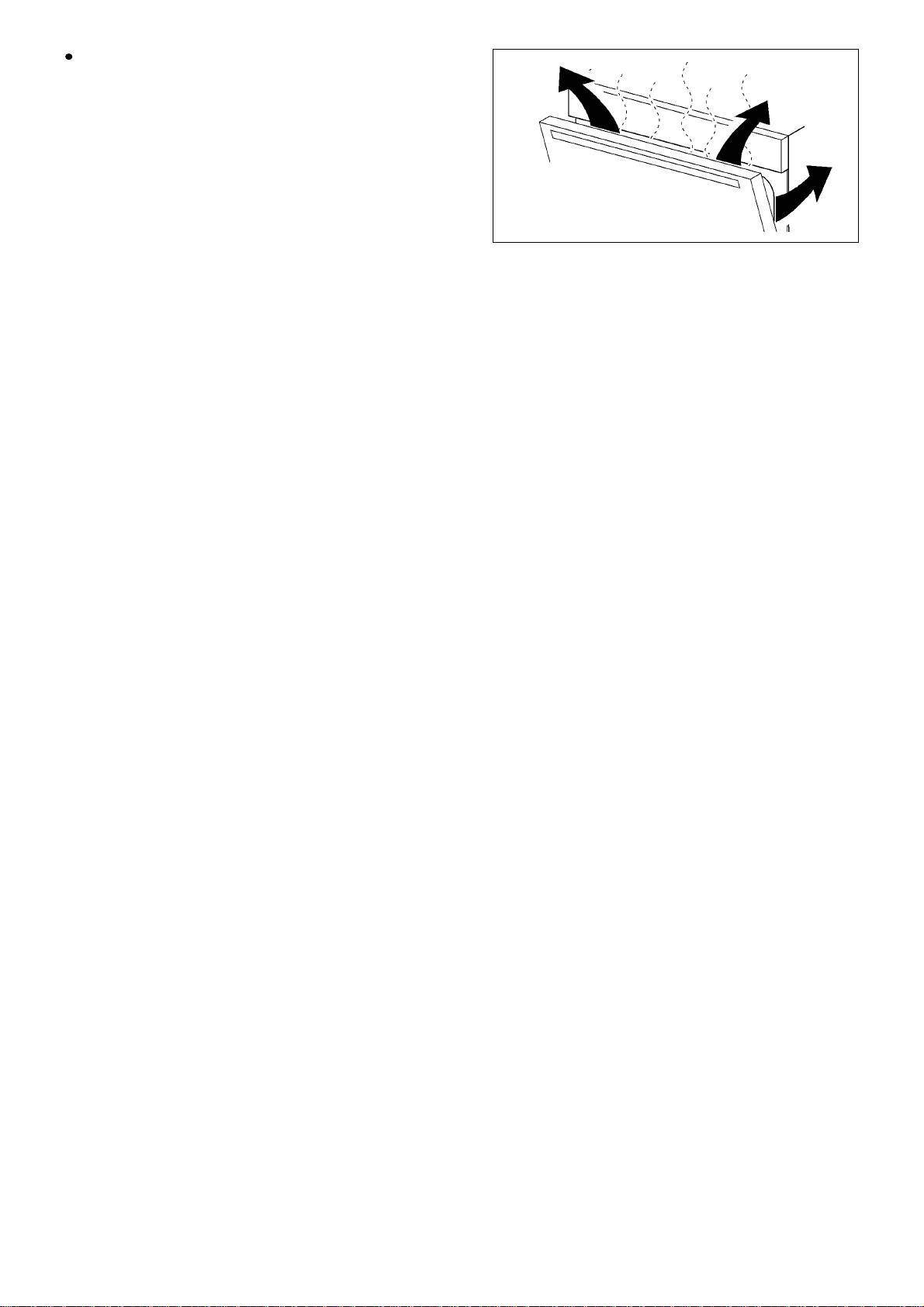

When food is heated it produces steam in the same way as a boiling kettle does. The ovens are vented to allow some of this steam to escape. However, always stand back from the appliance when opening the oven doors to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance.

To prevent discolouration occurring, regularly wipe away condensation and any soilage from the appliance surfaces.

COOKWARE

Baking trays, dishes etc., should not be placed over the oven burner. This will damage the oven as well as the ovenware.

Do not use baking trays larger than 30cm x 30cm (12" x 12") as they will restrict the circulation of heat and may affect performance. Advice on the effect of different materials and finishes of bakeware is given in 'Hints and Tips' in the appropriate oven section.

If using a baking tray larger than 30cm x 25cm (12" x 9") in the top oven you may need to turn it round during cooking.

8

GRILL AND OVEN FURNITURE

The following items of oven furniture have been supplied with the appliance.

1 grill pan

1 grill pan handle

1 grill pan grid

1 meat tin

2 shelves for main oven cooking

1 shelf for grilling and top oven cooking

Scuffing of the Stayclean panel/s by the oven furniture pack may occur during transit.

These marks will disappear after the oven has been used for the first time.

9

THE ELECTRONIC TIMER

The electronic timer can indicate the time of day, operate as a minute minder and automatically time the main oven.

A - Auto Symbol ( automatic cooking) - Bell Symbol ( minute minder)

- Cookpot Symbol ( manual cooking)

Please note that this is a 24 hour clock, for example 2pm is shown as 14.00.

If the oven is switched off on the wall or there is loss of power the clock will stop and you will not be able to use the appliance. When you first switch the electricity supply on, the timer display will flash.

Cookpot Symbol

Auto

Symbol

Bell

Symbol

TO SET THE TIME OF DAY

1.Press buttons and together. Release the buttons.

2.Within 5 seconds press the button until the time of day shows in the display.

The cookpot symbol ( ) will be showing.

THE MINUTE MINDER

1.Press and release the button.

2.Within 5 seconds press the button until the display shows the time you want.

Our diagram shows the timer set to 5 minutes. After a few seconds the time of day will show in the display.

When you are using the minute minder you can check the number of minutes remaining by pressing the button.

At the end of the timed period an alarm will sound. Switch off the alarm by pressing the button.

After a few seconds the time of day shows in the display.

10

AUTOMATIC TIMER CONTROL

The automatic timer can be used with the main oven only.

TO SWITCH THE MAIN OVEN ON AND OFF AUTOMATICALLY

1.Ensure the clock is showing the correct time of day.

2.Place food in the main oven.

3.Set the length of time you want the food to cook for by pressing and releasing the

button and then pressing the button until the correct cooking time is displayed.

This must be completed within 5 seconds of pressing the button.

The maximum cooking time is 23 hours 59 minutes.

The Cookpot and Auto symbols will show in the display. Our diagram shows the cooking time set for 2 hours 30 minutes.

After a few seconds the time of day shows in the display.

4.To set the time you want the food to be

cooked by, press and release the button. This will show you the earliest possible stop time.

If this is different to the time you want the food to be cooked by, press the button within 5 seconds until the correct stop time shows in the display. Our diagram shows the food is to be cooked by 18.00 (6pm).

After a few seconds the time of day shows in the display and the Cookpot symbol goes out.

The 'Stop' time must not be more than 23 hours 59 minutes from the time of day. For example, if the time of day is 09.00 hours (9.00am) the latest 'Stop' time will be 08.59 (8.59am) the next day.

5.Turn the oven control to mark 9 then to the required setting.

The clock will work out what time the oven will switch itself on and will switch the oven off at the end. An audible signal will sound when cooking is complete. To cancel the alarm, see below.

11

RETURNING THE APPLIANCE TO MANUAL OR TO CANCEL AN AUTOMATIC PROGRAMME

Once automatic cooking is complete an alarm will sound and the Auto symbol will flash to remind you that the oven needs to be set for manual operation.

1.To do this press buttons and together. After a few seconds the timer will show the time of day. The cookpot will show in the display and the oven will switch on again.

2.Turn off the oven control.

TO SET THE TIMER TO SWITCH OFF ONLY

This is useful if you want to begin cooking immediately but have the Main oven switch off whilst you are out.

1.Ensure the clock is showing the correct time of day.

2.Place food in the oven.

3.Set the length of time you want the food to

cook for. Press and release the button and then press the button within 5 seconds until the correct cook time is showing.

Our diagram shows the timer set for 2 hours 30 minutes.

After a few seconds the time of day shows in the display.

4.Turn the control to mark 9 then to the required setting.

If you want to check the time the oven will switch off simply press the button and the 'Stop' time will be displayed.

At the end of the cooktime the oven will switch off, the alarm will sound and the auto symbol will flash.

5.To cancel and return to manual operation press buttons and together.

6.Turn off the oven temperature control.

12

THE GRILL

WARNING - Accessible parts become hot when the grill is in use. Keep children away.

USES OF THE GRILL

The grill is situated in the Top oven compartment.

The grill gives variable heat settings. Use the high setting for foods that cook quickly such as toast and the lower setting to cook thicker foods such as chicken after it has been browned on the high setting.

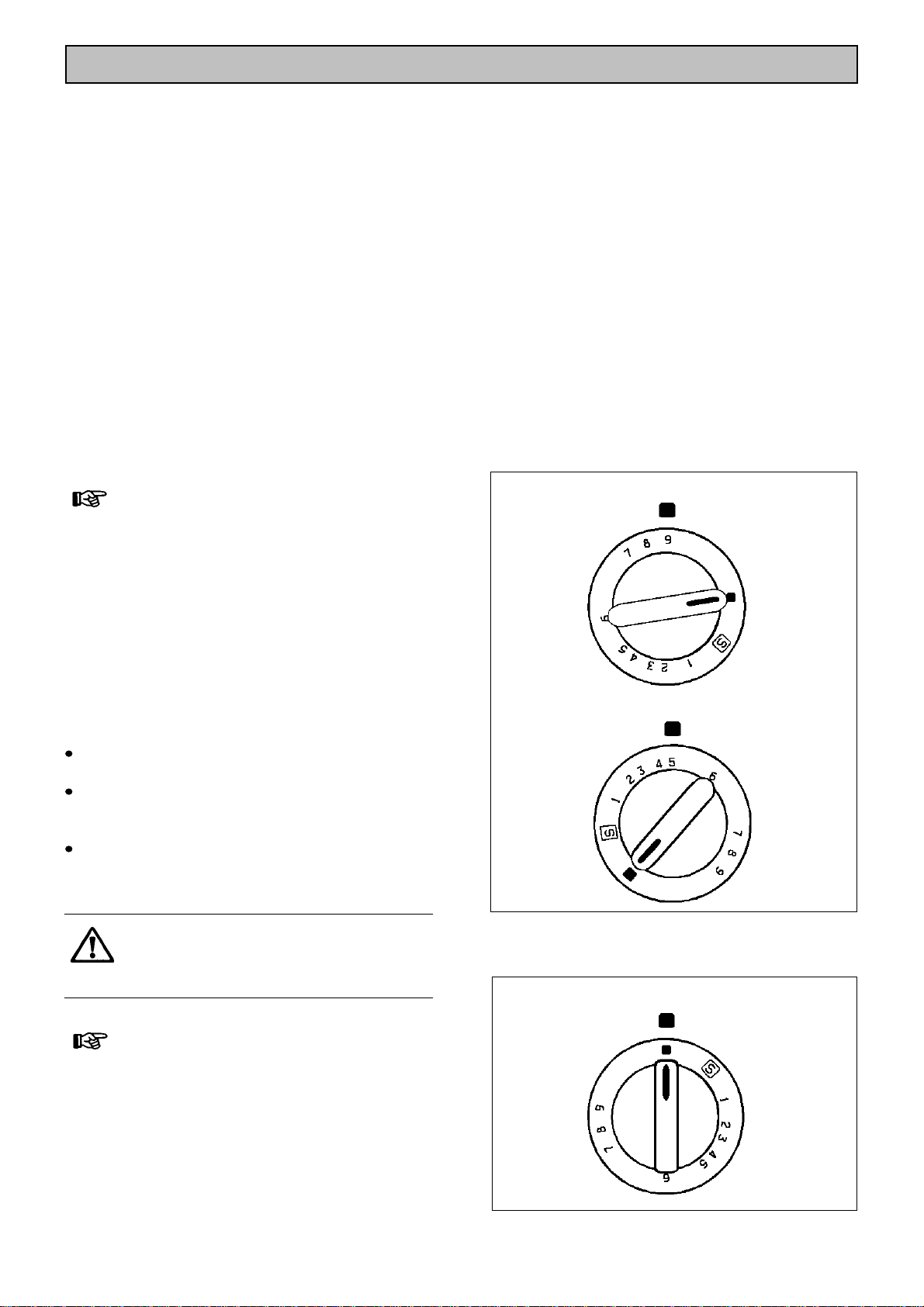

HOW TO LIGHT THE GRILL

1.Open the Grill / Top Oven door.

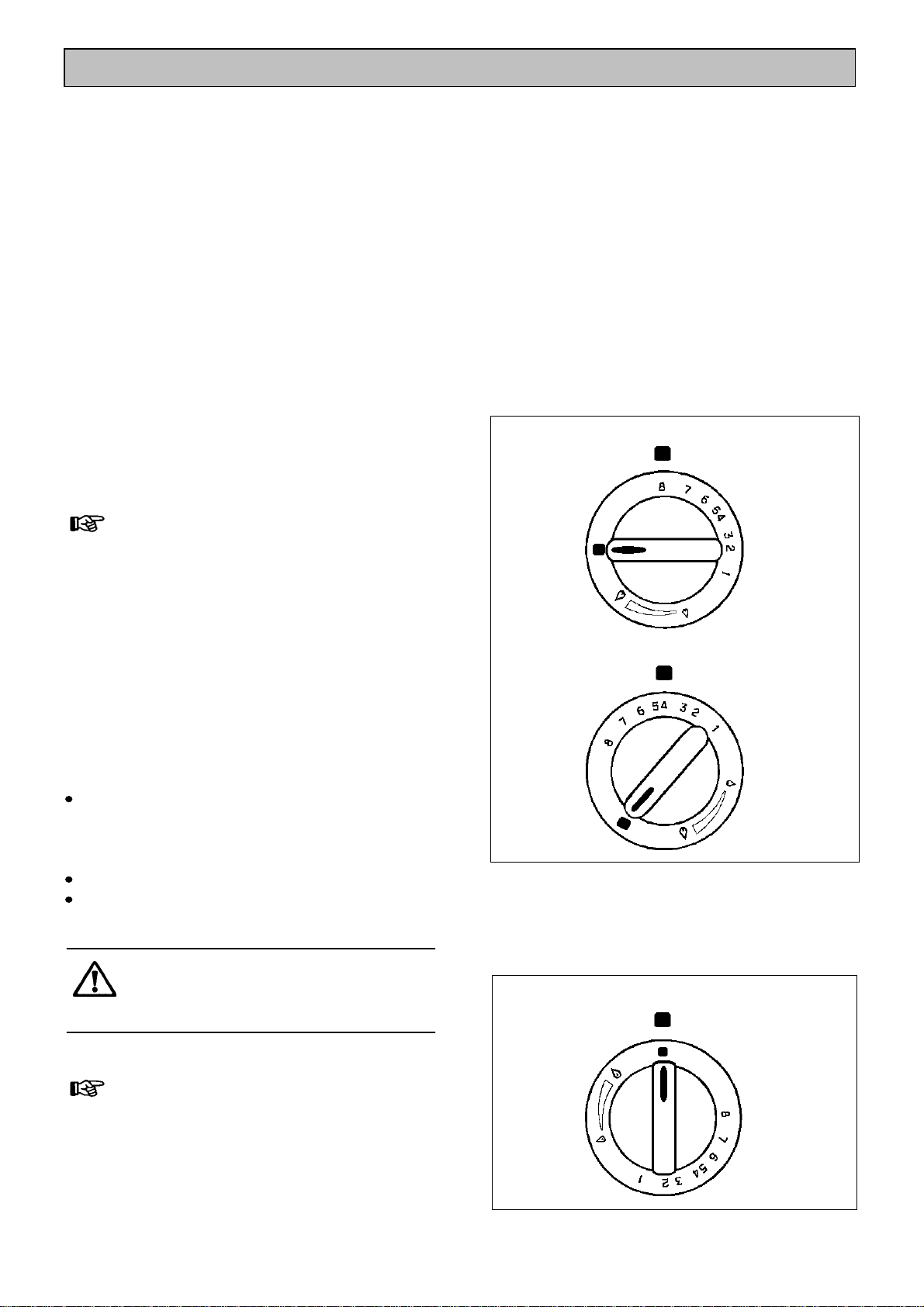

2.Push in the grill / top oven control and turn it clockwise to the highest setting. This is shown by a large flame symbol.

3.Adjust the setting as required.

4.Place grill pan with food under the grill.

The grill door must be left open when grilling.

Check that the grill burner is lit before you leave the appliance.

Never cover the grill pan or grid with foil as this can lead to grill fires.

TO TURN OFF THE GRILL

BURNER

1.Push in the control knob and turn it to the Off position. This is shown by a large dot.

THINGS TO NOTE

The cooling fan for the controls will operate as soon as the grill control is turned. For more information on the operation of the cooling fan turn to page 6.

The oven light will illuminate.

If the oven door is closed whilst the grill burner is lit, it will go out. The burner will automatically re-light when the door is opened.

Always light the burner before placing food under the grill.

GRILL / TOP OVEN

GRILL / TOP OVEN

13

THE GRILL SHELF

The grill shelf can be used in one of three positions. Shelf positions are counted from the top downwards.

The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.

When using the grill pan in positions 2 and 3 the shelf must be withdrawn before the pan can be located or removed.

Ensure the pan is properly located.

THE GRILL PAN AND HANDLE

The grill pan has a removable handle.

To insert the handle, press the button on the handle with the thumb and pivot the handle slightly upwards inserting the lip into widest part of the bracket. Move the handle towards the left, lower into position and release the button.

Ensure the handle is positively located.

To remove the handle, press the button on the handle with the thumb and pivot the handle slightly upwards and towards the right to remove from the bracket.

Protect your hands when removing the grill pan handle.

Always remove the grill pan handle during grilling.

To correctly locate the grill pan on the shelf, ensure that the cut out on the underside of the handle bracket locates over the front bar of the

shelf.

The Grill Pan must not be located in the shelf runners.

To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to attend to food during cooking.

Ensure that the grill pan is supported when it is withdrawn.

1

2

3

Back of the oven

Straight Rods

Frame

14

HINTS AND TIPS

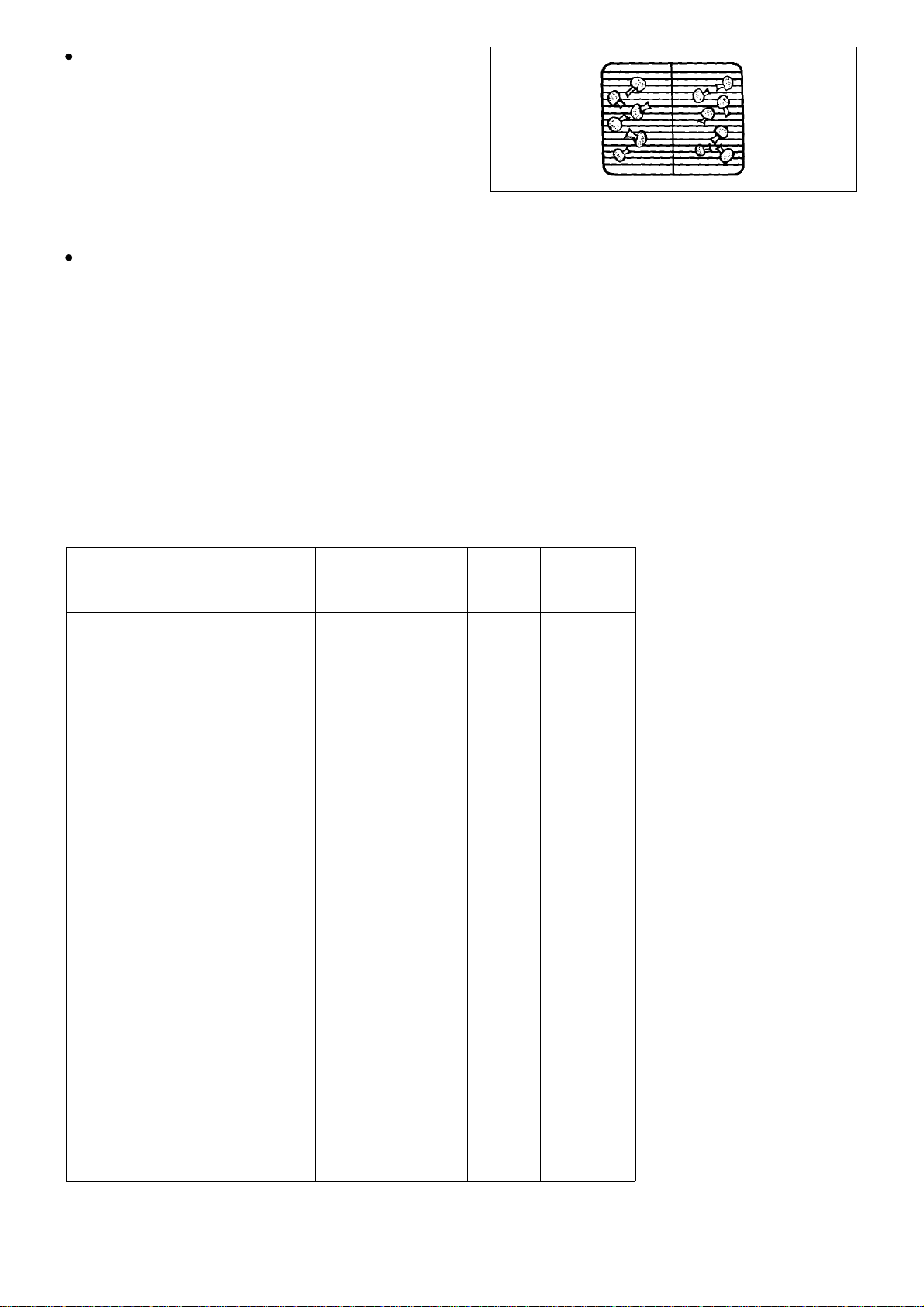

Most foods should be placed on the grilling grid in the grill pan. This allows maximum circulation of air by raising the food out of fats and juices.

The grilling grid is reversible. Adjust the grid height and grill pan runner position to allow for different thicknesses of food. Position the food close to the burner for faster cooking and further away for more gentle cooking.

Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

The food should be turned over during cooking as required. Do not use the grill to keep food warm as it will continue to cook the food.

The grill door must be left open when grilling. For convenience the grill door can be left ajar.

You may wish to preheat the grill on full setting for a few minutes before sealing steaks or browning food.

The grill compartment can be used to warm plates when the main oven is on.

Do not place plates to warm under the grill when it is lit as this may damage the plates.

15
