Contents
Safety warnings .............................................................................. 62
For the User ...................................................................................... 62
For the Installer ................................................................................. 63
Description of the Appliance ......................................................... 65
Extraction ......................................................................................... 65
Recirculation ..................................................................................... 65
Control Panel .................................................................................. 66
Control device for grease and charcoal filters ..................................... 67
Grease filter LED (D) ......................................................................... 67
Charcoal filter LED (E)....................................................................... 67
Resetting the saturation indicator ...................................................... 67
Maintenance and care ................................................................... 68
Cleaning the hood ............................................................................. 68
Metal grease filter ............................................................................. 68

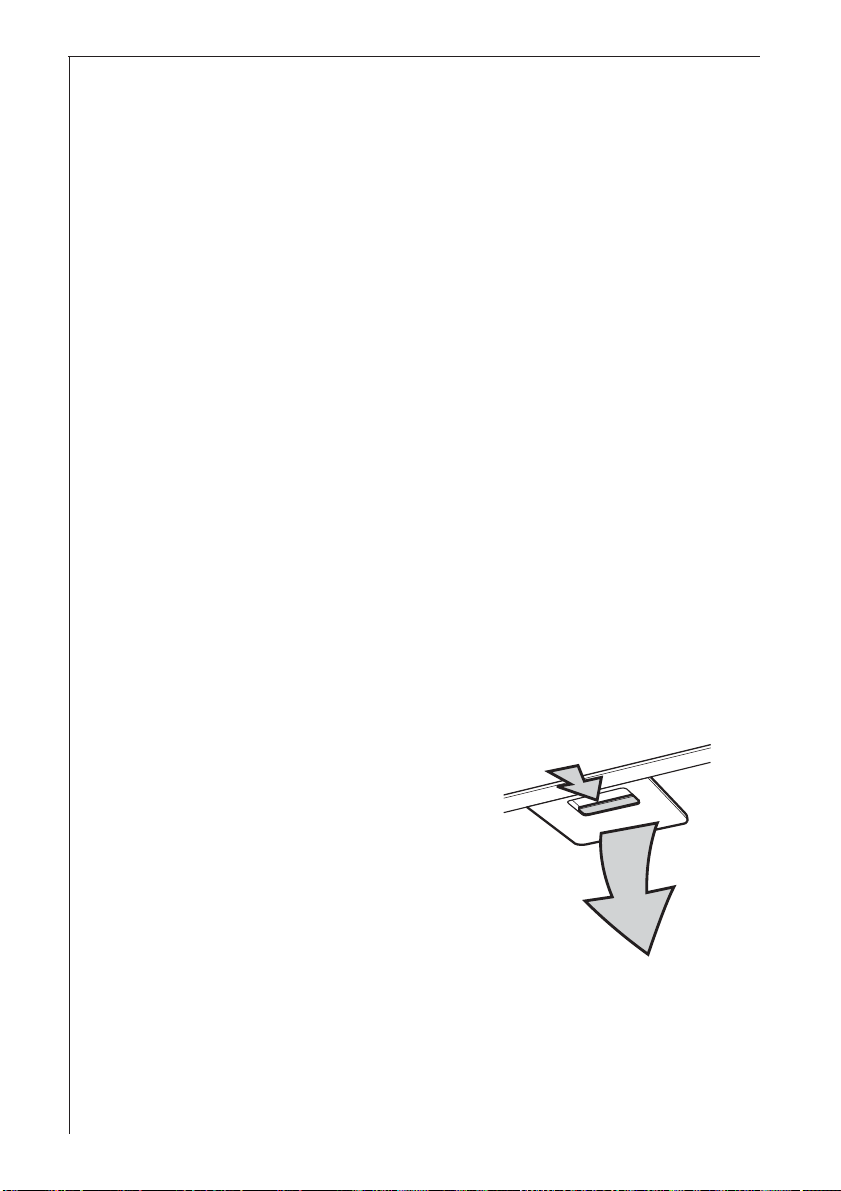

Removing the metal grease filter........................................................ 68
Charcoal filter .................................................................................... 69

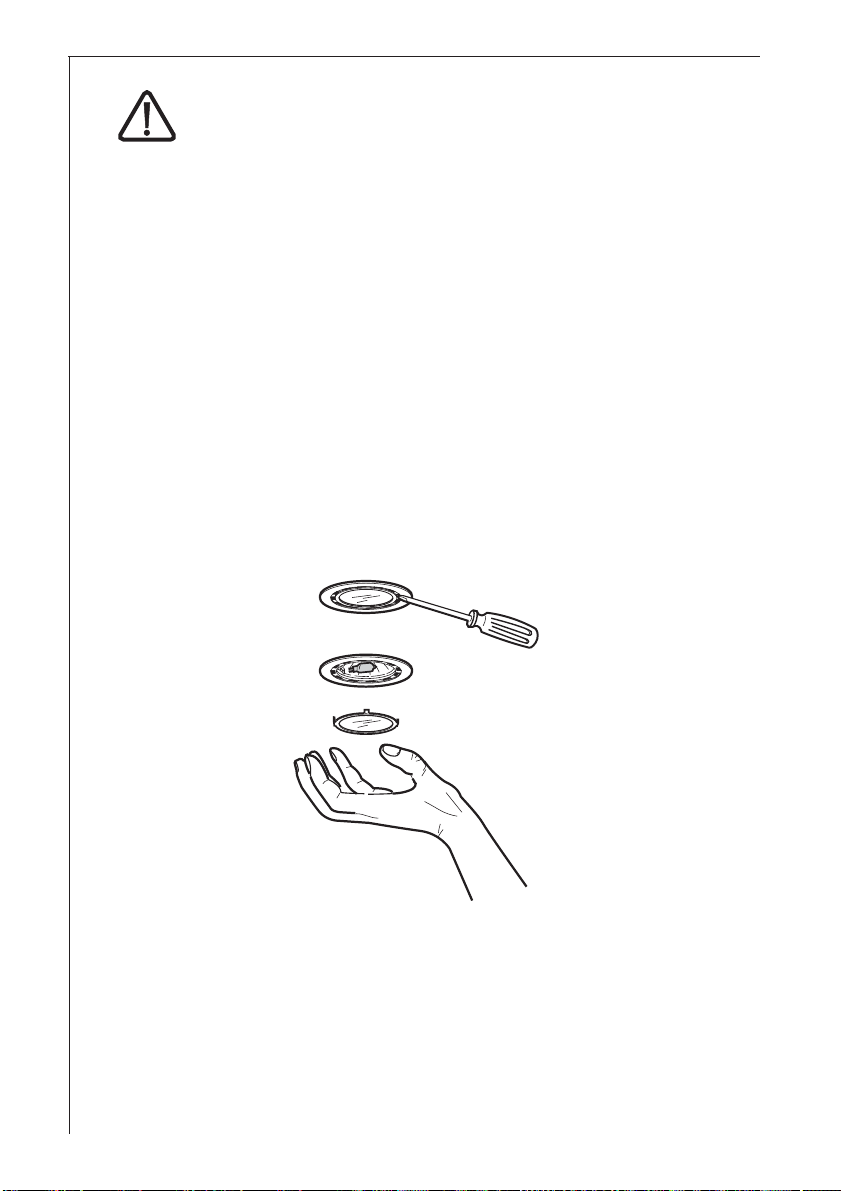

Changing the light bulb ...................................................................... 70
What to do if ..................................................................................... 71
Special accessories .......................................................................... 71
Technical assistance service ............................................................. 72
Technical Specifications ................................................................ 73
Mounting accessories included ......................................................... 74
Electrical connection ..................................................................... 74
Safety warnings for the electrician..................................................... 74
Installation ........................................................................................ 75
61
Safety warnings
For the user
The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
The hot oil in the frying pan might ignite due to overheating.
The risk of self-ignition increases when the oil being used is dirty.
It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
The appliance is not intended for use by young children or infirm
persons without supervision.
Older children must be supervised if using the appliance.
Young children should be supervised to ensure that they do not play
with the appliance.
WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
62
For the installer
When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
Should there already be a pipe of diameter 125 or 120 mm that ducts
to the outside through the walls, it is possible to use the 150/125120 mm reduction flange provided.
In this case the hood will be slightly noisier.
When installing the hood, make sure you observe the follow-
ing minimum distance from the top edge of the cooking hob/
ring surfaces:
electric cookers 500 mm
gas cookers 650 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.
National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
If you have any doubts, contact the relevant controlling authority or
building inspectors office.
Since the rule for rooms with fuel burning appliances is outlet hole of
the same size as the ventilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
If the hood is used in its recirculation mode, it will operate simply
and safely in the above conditions without the need for any of the
aforementioned measures.
63
When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
64
Description of the Appliance
F
The cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
You will need an original charcoal filter for this function (Available
from your local Service Force Centre).
Only for HI 8820: The cooker hood is
supplied ready for use as a recirculation
hood and may be used for extraction by
removing the charcoal filter which has
been fitted inside the cooker hood.
Extraction mode
In this mode fumes are extracted to the
outside via a hose connected to the
coupling ring A. Fig. 1.
In order to obtain the best performance
the hose should have a diameter equal
to the outlet hole.
Should there already be a pipe of
diameter 125 or 120 mm that ducts to
the outside through the walls, it is possible to use the 150/125-120
mm reduction flange provided. In this case the hood will be slightly
noisier.
Fig. 1
A
Recirculation mode
The air is filtered
through a charcoal
filter and returned to
the kitchen.
You will need an
original charcoal
filter for the
recirculation mode.
(See Special
Accessories).
Fix the deflector
using 4 screws Ø
3.5x6.5 mm. Fig. 2.
Fig. 2
65
Control Panel
Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until
all the odours have disappeared. The control switches are located
on the hoods front panel:
a
b
123 456
Fig. 3
1 - Mains switch, ON/OFF
Press for less than 1 1/2 seconds and the cooker hood goes into the "stand by"
position (point "b" is illuminated).
Press for more than 1 1/2 seconds and the cooker hood turns off, ALL the controls
(except the light push button) are disabled (the display is off).
Press again for more than 1 1/2 seconds to reset the cooker hood to "stand by".
2 - Light ON/OFF
3 - Display
4 - Start and choice of motor speed 1-2-3-1-2.........
5 - Intensive speed on/off. The Intensive speed runs for 5 minutes:
If the hood is on when the Intensive speed is activated, the hood will revert to
previous speed after 5 minutes.
If the hood is off when the Intensive speed is activated, the hood will automatically
turn off after 5 minutes.
To interrupt the Intensive speed, press button 1 or 5.
The letter P appears on the display and the remaining time (the point a is
flashing), if interrupted an acoustic signal is heard.
6 - Self-Timer: times all the speed levels (the point b is flashing), and then the
cooker hood switches off:
The self-timer is set as follows: 1st speed level 20 minutes
2nd speed level 15 minutes
3rd speed level 10 minutes
The display shows the remaining operation time, at the end of the time an acoustic
signal is heard. Depressing the push-button again exits the function.
Should the hood or the controls fail to operate: disconnect the power supply for at least 5
seconds. After reconnecting the power supply wait 15 seconds and then check that the
cooker hood is now operating
correctly.
