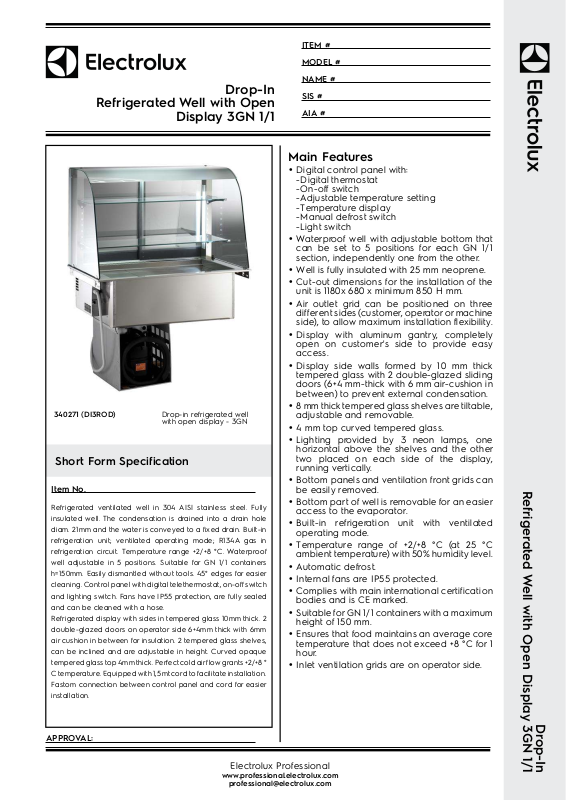

Drop-In
Refrigerated Well with Open
Display 3GN 1/1
340271 (DI3ROD)Drop-in refrigerated well
Short Form Specification
Item No.
Refrigerated ventilated well in 304 AISI stainless steel. Fully
insulated well. The condensation is drained into a drain hole
diam. 21mm and the water is conveyed to a fixed drain. Built-in
refrigeration unit; ventilated operating mode; R134A gas in
refrigeration circuit. Temperature range +2/+8 °C. Waterproof
well adjustable in 5 positions. Suitable for GN 1/1 containers
h=150mm. Easily dismantled without tools. 45° edges for easier
cleaning. Control panel with digital telethermostat, on-off switch
and lighting switch. Fans have IP55 protection, are fully sealed
and can be cleaned with a hose.
Refrigerated display with sides in tempered glass 10mm thick. 2
double-glazed doors on operator side 6+4mm thick with 6mm
air cushion in between for insulation. 2 tempered glass shelves,
can be inclined and are adjustable in height. Curved opaque
tempered glass top 4mm thick. Perfect cold air flow grants +2/+8 °
C temperature. Equipped with 1,5mt cord to facilitate installation.
Fastom connection between control panel and cord for easier
installation.
with open display - 3GN
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Digital control panel with:
-Digital thermostat
-On-off switch
-Adjustable temperature setting
-Temperature display
-Manual defrost switch
-Light switch
•Waterproof well with adjustable bottom that
can be set to 5 positions for each GN 1/1
section, independently one from the other.
•Well is fully insulated with 25 mm neoprene.
•Cut-out dimensions for the installation of the
unit is 1180x 680 x minimum 850 H mm.
•Air outlet grid can be positioned on three
different sides (customer, operator or machine
side), to allow maximum installation flexibility .
•Display with aluminum gantry, completely
open on customer's side to provide easy
access.
•Display side walls formed by 10 mm thick
tempered glass with 2 double-glazed sliding
doors (6+4 mm-thick with 6 mm air-cushion in
between) to prevent external condensation.
•8 mm thick tempered glass shelves are tiltable,
adjustable and removable.
•4 mm top curved tempered glass.
•Lighting provided by 3 neon lamps, one
horizontal above the shelves and the other
two placed on each side of the display,
running vertically.
•Bottom panels and ventilation front grids can
be easily removed.
•Bottom part of well is removable for an easier
access to the evaporator.
•Built-in refrigeration unit with ventilated
operating mode.
•Temperature range of +2/+8 °C (at 25 °C
ambient temperature) with 50% humidity level.
•Automatic defrost.
•Internal fans are IP55 protected.
•Complies with main international certification
bodies and is CE marked.
•Suitable for GN 1/1 containers with a maximum
height of 150 mm.
•Ensures that food maintains an average core
temperature that does not exceed +8 °C for 1
hour.
•Inlet ventilation grids are on operator side.
Refrigerated Well with Open Display 3GN 1/1
APPROV AL:
Drop-In
Electrolux Professional
www.professional.electrolux.com
Page 2
Construction
•Manufactured in 304 AISI stainless steel.
•Easy to install thanks to the fastom connection (1.5 m
long) between the cable and the digital thermostat.
•Developed and produced in ISO 9001 and ISO 14001
certified factory.
•Refrigerant type: R134a.
Optional Accessories
•Tempered front glass for refrigerated
open display - 3GN
PNC 857019
❑
Drop-In
Refrigerated Well with Open
Display 3GN 1/1
Page 3
Refrigerated Well with Open
Display 3GN 1/1
Drop-In
Front
Electric
Supply voltage:
340271 (DI3ROD)230 V /1 ph/50 Hz
Electrical power max.:1.2 kW
Water:
Water drain outlet size:1/2"
Key Information:
External dimensions, Width:1200 mm
External dimensions, Height:1565 mm
External dimensions, Depth:700 mm
Net weight:162 kg
Top temperature:2/8
Well number:1
Well width:980 mm
Well depth:510 mm
Well height:195 mm
Side
Well capacity - plates:
Well capacity - Ø 65 mm
cans:135
Display capacity - plates:
Display capacity - 130x90
mm plates:48
Display capacity - Ø 65 mm
cans:144
18x Ø150 mm; 8x Ø200 mm
21x Ø150 mm; 10x Ø200
mm
D=Drain
ED=Remote electrical connection
EI=Electrical inlet (power )
RI=Refrigerant Inlet
Top
Page 4

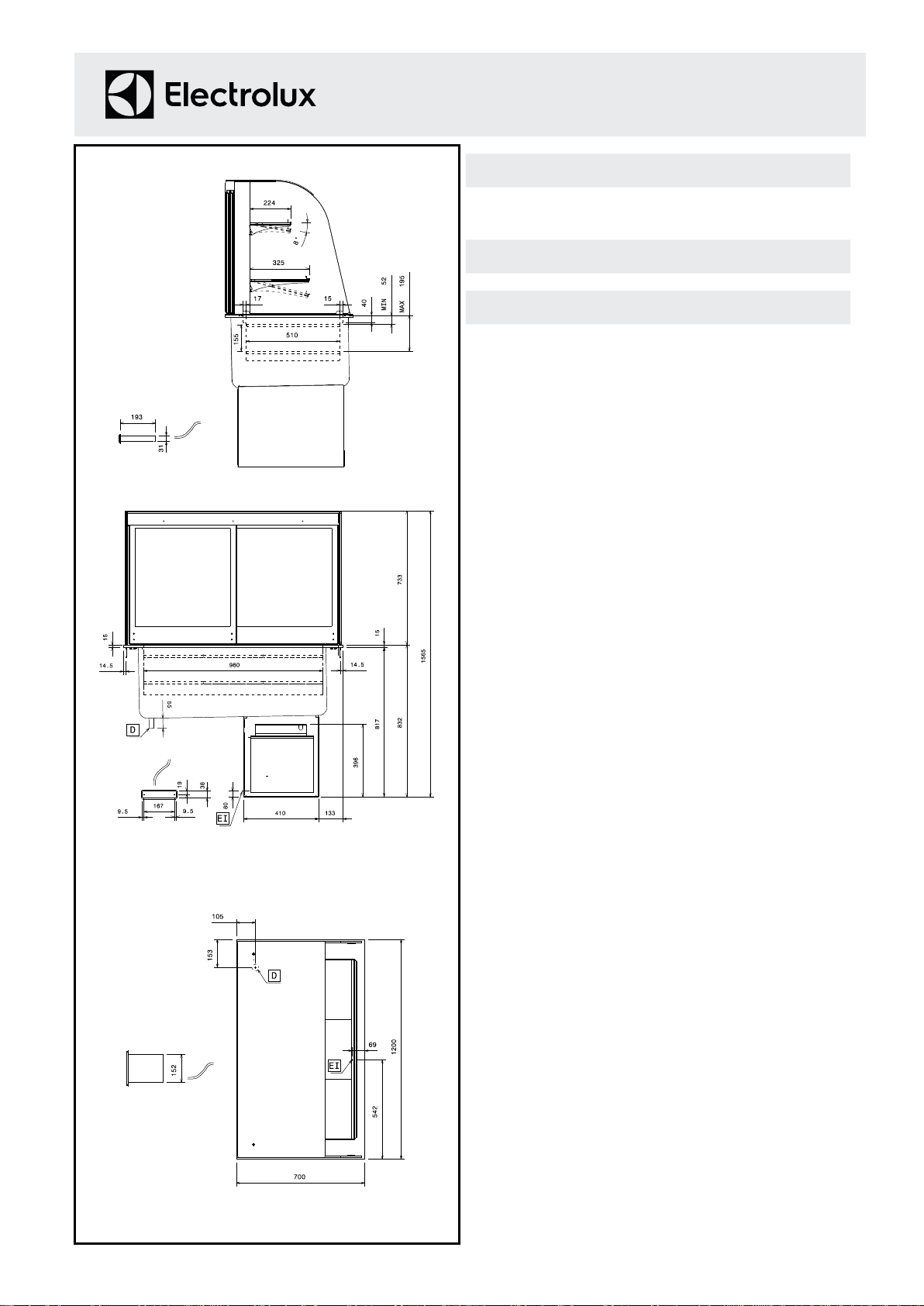

Refrigerated Well with Open
680
1180
min.850
35
158
min.500
min.170
115
400
430
430
Doc. Nr. IDS-340271
REMOVABLE PANEL SUGGESTED
ON THIS SIDE
Display 3GN 1/1
Drop-In
Refrigerated Well with Open Display 3GN 1/1
The company reserves the right to make modifications to the pr oducts
without prior notice. All information correct at time of printing.
Drop-In
2018.10.17
