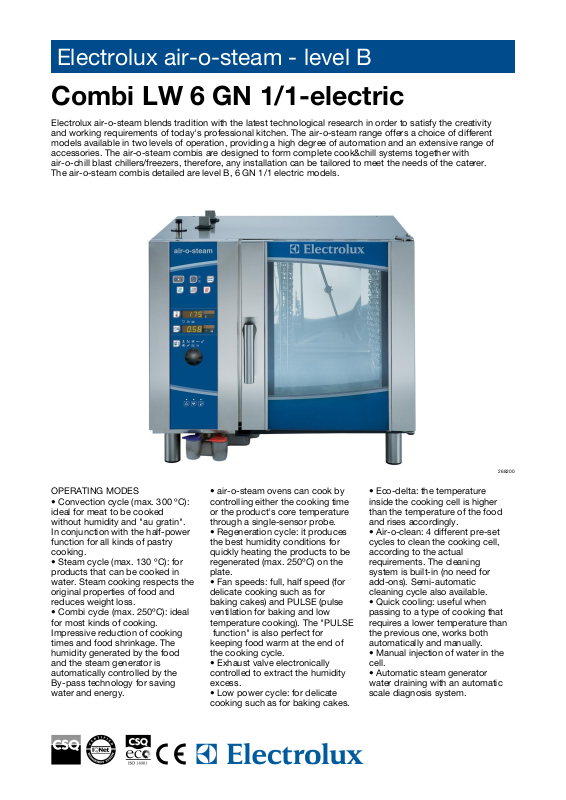

Electrolux air-o-steam - level B

Combi LW 6 GN 1/1-electric

Electrolux air-o-steam blends tradition with the latest technological research in order to satisfy the creativity
and working requirements of today's professional kitchen. The air-o-steam range offers a choice of different
models available in two levels of operation, providing a high degree of automation and an extensive range of
accessories. The air-o-steam combis are designed to form complete cook&chill systems together with
air-o-chill blast chillers/freezers, therefore, any installation can be tailored to meet the needs of the caterer.
The air-o-steam combis detailed are level B, 6 GN 1/1 electric models.

OPERATING MODES

• Convection cycle (max. 300 ºC):
ideal for meat to be cooked
without humidity and "au gratin".
In conjunction with the half-power
function for all kinds of pastry
cooking.

• Steam cycle (max. 130 ºC): for
products that can be cooked in
water. Steam cooking respects the
original properties of food and
reduces weight loss.

• Combi cycle (max. 250ºC): ideal
for most kinds of cooking.
Impressive reduction of cooking
times and food shrinkage. The
humidity generated by the food
and the steam generator is
automatically controlled by the
By-pass technology for saving
water and energy.

• air-o-steam ovens can cook by
controlling either the cooking time
or the product's core temperature
through a single-sensor probe.

• Regeneration cycle: it produces
the best humidity conditions for
quickly heating the products to be
regenerated (max. 250ºC) on the
plate.

• Fan speeds: full, half speed (for
delicate cooking such as for
baking cakes) and PULSE (pulse
ventilation for baking and low
temperature cooking). The "PULSE
function" is also perfect for
keeping food warm at the end of
the cooking cycle.

• Exhaust valve electronically
controlled to extract the humidity
excess.

• Low power cycle: for delicate
cooking such as for baking cakes.

268200

• Eco-delta: the temperature
inside the cooking cell is higher
than the temperature of the food
and rises accordingly.

• Air-o-clean: 4 different pre-set
cycles to clean the cooking cell,
according to the actual
requirements. The cleaning
system is built-in (no need for
add-ons). Semi-automatic
cleaning cycle also available.

• Quick cooling: useful when
passing to a type of cooking that
requires a lower temperature than
the previous one, works both
automatically and manually.

• Manual injection of water in the
cell.

• Automatic steam generator
water draining with an automatic
scale diagnosis system.

Electrolux air-o-steam - level B

Combi LW 6 GN 1/1-electric

PERFORMANCE

• By-pass technology: controls the
humidity degree of the oven
atmosphere in combi and
regeneration cycles. It prevents
water and energy waste.

• air-o-flow: blows fresh air from
outside through the bi-functional
fan, which pulls the air in from the
backside of the oven after it is
pre-heated, thus guaranteeing an
even cooking process.

• Single-sensor food probe.

CONSTRUCTION

• Stainless steel 304 throughout,
with seamless joints in the cooking
cell.

• Double thermo-glazed door
equipped with drip pans to catch
condensate and prevent slippery
floor for maximum security and
four holding positions allowing
easier loading and unloading.

• Halogen lighting in the cooking
cell.

• Access to main components
from the front panel.

• Automatic scale diagnosis
system in the steam generator to
detect the presence of scale
build-up.

• IPX5 water protection.

• air-o-steam ovens meet IMQ
safety requirements.

AOS061EBA2

TECHNICAL DATA

Power supply Electric Electric Electric
Number of grids 6 5 6
Runners pitch - mm 65 80 65
Cooking cycles - °C
air-convection 300 300 300
steam 130 130 130
combi 250 250 250
Convection ● ● ●
Steaming ● ● ●
Convection/steaming ● ● ●
Regeneration ● ● ●
Low temp steaming ● ● ●
Two-speed fan ● ● ●
Meat probe ● ● ●
Automatic cleaning system ● ● ●
External dimensions - mm
width 898 898 898
depth 915 915 915
height 808 808 808
Internal dimensions - mm
width 460 460 460
depth 715 715 715
height 486 486 486
Power - kW
boiler 9 9 9
cooking chamber 9.6 9.6 9.6
electric 10.1 10.1 10.1
auxiliary 0.5 0.5 0.5
Net weight - kg. 132 132 132
Supply voltage 400 V, 3N, 50/60 400 V, 3N, 50/60 230 V, 3, 50/60

268200

AOS061EBH2

268210

AOS061EBN2

268220

ECAB0102011-06-10Subject to change without notice
