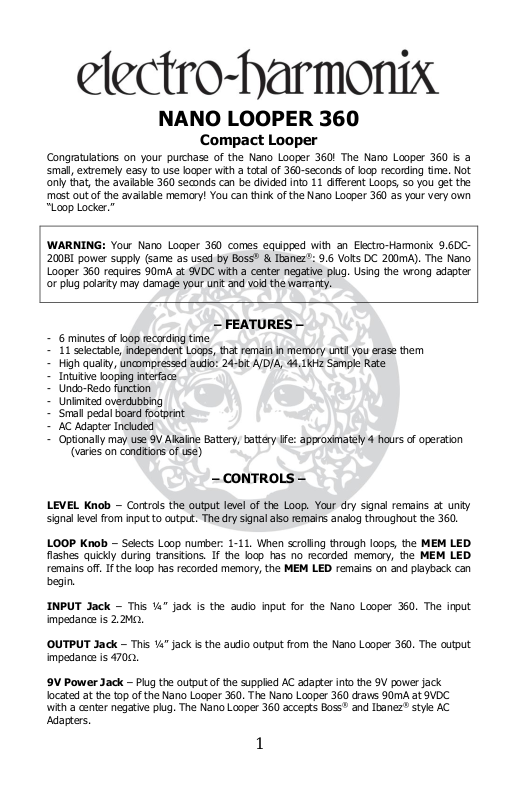

NANO LOOPER 360
Compact Looper
Congratulations on your purchase of the Nano Looper 360! The Nano Looper 360 is a small, extremely easy to use looper with a total of 360-seconds of loop recording time. Not only that, the available 360 seconds can be divided into 11 different Loops, so you get the most out of the available memory! You can think of the Nano Looper 360 as your very own “Loop Locker.”
WARNING: Your Nano Looper 360 comes equipped with an Electro-Harmonix 9.6DC200BI power supply (same as used by Boss® & Ibanez®: 9.6 Volts DC 200mA). The Nano Looper 360 requires 90mA at 9VDC with a center negative plug. Using the wrong adapter or plug polarity may damage your unit and void the warranty.
– FEATURES –
-6 minutes of loop recording time
-11 selectable, independent Loops, that remain in memory until you erase them
-High quality, uncompressed audio: 24-bit A/D/A, 44.1kHz Sample Rate
-Intuitive looping interface
-Undo-Redo function
-Unlimited overdubbing
-Small pedal board footprint
-AC Adapter Included
-Optionally may use 9V Alkaline Battery, battery life: approximately 4 hours of operation (varies on conditions of use)
– CONTROLS –
LEVEL Knob – Controls the output level of the Loop. Your dry signal remains at unity signal level from input to output. The dry signal also remains analog throughout the 360.
LOOP Knob – Selects Loop number: 1-11. When scrolling through loops, the MEM LED flashes quickly during transitions. If the loop has no recorded memory, the MEM LED remains off. If the loop has recorded memory, the MEM LED remains on and playback can begin.
INPUT Jack – This ¼” jack is the audio input for the Nano Looper 360. The input impedance is 2.2M .
OUTPUT Jack – This ¼” jack is the audio output from the Nano Looper 360. The output impedance is 470 .
9V Power Jack – Plug the output of the supplied AC adapter into the 9V power jack located at the top of the Nano Looper 360. The Nano Looper 360 draws 90mA at 9VDC with a center negative plug. The Nano Looper 360 accepts Boss® and Ibanez® style AC Adapters.
1
– QUICK START GUIDE –
RECORDING A LOOP
1.To record a Loop; simply select an empty bank and press the Footswitch once. The REC LED will light solid and recording begins immediately.
2.To stop recording the loop, press the Footswitch again once. The REC LED will turn off, the PLAY LED will turn on, and the loop will begin playing immediately. The MEM LED will also light solid, indicating the presence of recorded loop memory.
3.All Loops play indefinitely. Each time the loop repeats, the PLAY LED will turn off briefly.
4.After a loop is recorded, the length is subtracted from the total loop recording time.
5.Note: if the full 360 seconds of Loop Recording time is reached, recording will stop automatically. The REC LED will turn off, the PLAY LED will turn on, and the Loop will begin playing immediately. The MEM LED will also light solid, indicating the presence of recorded loop memory.
STOPPING & STARTING LOOP PLAYBACK
1.To stop loop playback, press the Footswitch two times quickly.
2.Note: the REC LED will turn on together with the PLAY LED during the first press. Both LEDs turn off during the second press and playback stops immediately.
3.While stopped, press and release the Footswitch once to start playback. The PLAY LED will light indicating the loop is playing.
RECORDING AN OVERDUB
1.To record an overdub, make sure a Loop is playing back. If a loop is not playing, press the Footswitch once to begin playback. The PLAY LED will turn on and the loop will begin playing immediately.
2.To start recording an overdub, press the Footswitch once. The REC LED will turn on, together with the PLAY LED, and audio will be recorded on top of the original loop. No volume loss will occur to the previously recorded portion of the loop.
3.To stop overdubbing the loop; press the Footswitch again once. The REC LED will turn off, and the loop will continue playing along with the overdubbed audio.
4.Overdubbing will never change the length of the loop.
5.If the loop repeats during overdubbing, the REC LED and PLAY LED will both turn off briefly. The Nano Looper 360 can overdub indefinitely, allowing you to continuously overdub new audio onto your loop.
6.After finishing an Overdub, the UNDO-REDO function is enabled. You may undo, then redo the last Overdub as many times as you like.
UNDO-REDO FUNCTION
1.The Undo/Redo function can only be initiated while a loop is playing back. Undo/Redo cannot be performed during Overdub, Record or Stop modes.
2.To undo an overdub (remove the last take) during loop playback, press and hold the Footswitch for 1-second. The PLAY LED will blink twice and the previous overdub will be removed.
3.To redo an overdub (restore the last take) during loop playback, press and hold the Footswitch for 1-second. The PLAY LED will blink twice and the previous overdub will be restored.
2
