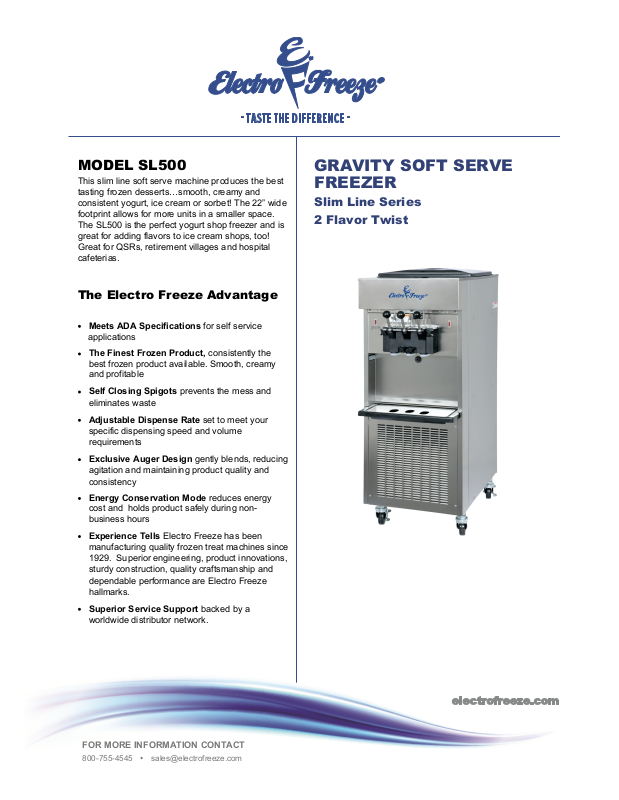

Electro Freeze SL500 User Manual

MODEL SL500

This slim line soft serve machine produces the best

tasting frozen desserts…smooth, creamy and
consistent yogurt, ice cream or sorbet! The 22” wide

footprint allows for more units in a smaller space.
The SL500 is the perfect yogurt shop freezer and is
great for adding flavors to ice cream shops, too!
Great for QSRs, retirement villages and hospital
cafeterias.

The Electro Freeze Advantage

Meets ADA Specifications for self service

applications

The Finest Frozen Product, consistently the
best frozen product available. Smooth, creamy
and profitable

Self Closing Spigots prevents the mess and
eliminates waste

Adjustable Dispense Rate set to meet your
specific dispensing speed and volume
requirements

Exclusive Auger Design gently blends, reducing
agitation and maintaining product quality and
consistency

Energy Conservation Mode reduces energy
cost and holds product safely during non­business hours

Experience Tells Electro Freeze has been
manufacturing quality frozen treat machines since

1929. Superior engineering, product innovations,
sturdy construction, quality craftsmanship and
dependable performance are Electro Freeze
hallmarks.

Superior Service Support backed by a
worldwide distributor network.

GRAVITY SOFT SERVE
FREEZER

Slim Line Series

2 Flavor Twist

FOR MORE INFORMATION CONTACT

800-755-4545 • [e-mail]

SL500 Soft Serve Freezer

MODEL SL500 SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights lbs. kgs.

Net 550 249

Crated 671 304

cu.ft. cu.m.

Volume 58.42 1.65

Dimensions in. cm.

Width 22-1/8 56.20

Depth 29-15/16 76.04

Height 59-11/16 151.61

Electrical Maximum Minimum Poles (P)

Fuse Size Circuit Ampacity Wires (W)

208-230/60/1 Air 35 28 2P 2W

208-230/60/1 Water 35 27.5 2P 2W

208-230/60/3 Air 25 20 3P 3W

208-230/60/3 Water 25 20 3P 3W

Total Poles (P)

Amps Wires (W)

230/50/1 Air 29.6 2P 2W

400/50/3 Air 11.8 3P 4W

Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.

Bidding Spec

Electrical: Volt_______________________ Hz________ Ph_______
Cooling: ________________________ Neutral _____Yes_____No
Options:________________________________________________

Electrical

One dedicated electrical connection is required. Manu­factured to be permanently connected. See electrical
chart for the proper requirement. Consult your local
electrical codes for cord and receptacle specifications.

Beater Motor
Two, 2 hp.

Refrigeration Systems

One, 11,000 Btuh. R404a.
Separate Hopper Refrigeration, One, 500 Btuh, R134a.
Btuh may vary depending on compressor used.

Air and Water Cooled

6" (15.2 cm) air space required on all louvered panels
for proper air circulation.

Mix Hopper Capacity: two - 16 quarts (15 liters) each
Freezing Cylinder Capacity: two - 3.7 quarts (3.5 liters) each

Certified and/or listed by:

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under

*

**Select Voltages @ 50HZ

**

Electro Freeze div. of H.C. Duke & Son, LLC

2116-8th Avenue, East Moline, Illinois 61244
Phone [phone] • [phone]
FAX [phone]
E-mail: [e-mail] • www. electrofreeze.corn

HC184273 Printed in U.S.A. 2/13
