Electro Freeze 88TNCMT User Manual

2345678901234567

8

2345678901234567

H.C. Duke & Son, Inc. P/N 184833 February 2003 Printed In U.S.A.

Operator’s Manual

with Illustrated Parts List

FREEDOM

Series

Soft Serve Twist Freezer

Model 88TN-CMT

P/N 184833 2/03

360

º

Operator’s Manual

for

Electro Freeze Freedom 360° Series

Soft Serve Twist Freezer

Model 88TN-CMT

i

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

Follow these four steps to safety ....

2345678901234

1. Recognize Safety Information ....Look for this

safety alert symbol throughout this manual.

2. Understand Signal Words ....

DANGER

WARNING

CAUTION

SAFETY FIRST!

When you see this symbol on your freezer or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices.

The signal words — DANGER, WARNING and CAUTION — are used with the safety alert symbol (DANGER decals on the freezer may or may not have the safety alert symbol, but the message is the same). Decals with the words DANGER, WARNING or CAUTION appear on the freezer. DANGER identifies the most serious hazard. Decals with the words DANGER or WARNING are typically near specific hazards on the freezer. General precautions are listed on CAUTION safety decals. In this manual, CAUTION messages with the safety alert sym-

bol call attention to safety messages.

ii

5

2345678901234

3. Follow Safety Instructions ....

4. Operate Safely ....

ELECTRO FREEZE Soft Serve Model 88TN-CMT

SAFETY FIRST!

Read and understand all safety messages in this

Safety

First!

manual. Read and understand the decal safety messages on your freezer. Take notice of the location of all decals on the freezer and keep the safety decals in good condition. Check them periodically and replace missing, damaged or illegible safety decals. The safety decals must remain in place and legible for the life of the freezer. If you need new decals, use the information and illustrations on pages iv and v of this manual to identify the decal and call or write your local Electro Freeze Distributor or H.C. Duke & Son, Inc.

DO NOT attempt to operate the freezer until you read and understand all safety messages and the operating instructions in this manual.

DO NOT allow untrained personnel to maintain or service this machine. Failure to follow this instruction may result in severe personal injury. DO NOT operate the freezer unless all service panels and access doors are secured with screws. DO NOT attempt to repair the freezer until the main power supply has been disconnected. Some freezers have more than one disconnect switch. Contact your local Electro Freeze Distributor for authorized service.

iii

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

Safety Decal Locations

2345678901234

Do not attempt to operate the freezer until all safety precautions and operating instructions in this manual are read and understood.

Take notice of all warning, caution, instruction and information decals (or labels) on the freezer as shown in the figure to the right. The labels have been put there to help maintain a safe working environment.

The labels have been designed to withstand washing and cleaning. All labels must remain legible for the life of the freezer. Check labels periodically to be sure they can be recognized as warning labels.

If it is necessary to replace any label, please contact your local authorized Electro Freeze Distributor or H. C. Duke & Son, Inc. When ready to order, you will need to determine the (1) part number, (2) type of label, (3) location of label, and (4) quantity required, and include a return shipping address.

No. Part No. Description (Qty)

1 P/N 165025 Decal — Beater Warning (1) 2 P/N 165126 Decal — Panel Removal Warning (3) 3 P/N 165246 Decal — Pressurized System Warning (2)

iv

You may contact your local authorized Electro Freeze Distributor, as follows

Name:

Address:

Phone:

or — for factory service assistance — contact H. C. Duke & Son, Inc., Electro Freeze Service Department by phone or FAX:

Phone: (309) 755-4553



FAX: (309) 755-9858

(The decals on the next page are numbered 1, 2, and 3. Those numbers correspond to the numbers in the table below. The table provides the part number, description, and quantity for each decal.)

:

5

2345678901234

Safety Decal Locations

2345678901234

INSIDE CABINET

3

Hazardous rotating beater shaft. Do not operate unit with dispense head removed

Before removing dispense head:

1. Turn all control switches to "OFF", and

2. Disconnect main power supply. Unit may have more than one power supply.

Pressurized system. Depressurize unit before dismantling mix transfer system.

ELECTRO FREEZE Soft Serve Model 88TN-CMT

.

1

!

WARNING

Hazardous moving parts. Machine starts automatically. Do not operate with panel removed.

2

v

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

Safety First .................................................................................... ii

2345678901234

Safety Decal Locations .................................................................. iv

2345678901234

1 Introduction ..................................................................... 1

2345678901234

2 Note to Installer ............................................................... 1

2345678901234

3 Specifications .................................................................. 4

2345678901234

4 Part Names and Functions ............................................ 6

2345678901234

5 Operator Controls and Indicators ................................. 9

2345678901234

2.1 Uncrating and Inspection ............................................. 2

2.2 Installation ................................................................... 2

2.3 Electrical Requirements ............................................... 3

2.4 Electrical Connections ................................................. 3

3.1 Particulars ................................................................... 4

3.2 Data Plate .................................................................... 4

3.3 Reference Information.................................................. 5

3.4 Installation Date ........................................................... 5

3.5 Dimensions .................................................................. 5

5.1 Selector Switch............................................................ 9

5.2 Day–Night Switch ......................................................... 10

5.3 Mix Transfer System (MTS) Switch ................................ 10

5.4 Cabinet Switch............................................................. 10

5.5 Timer ........................................................................... 10

5.6 Reset — Overload ........................................................ 11

5.7 Indicator Light — “ADD MIX” ........................................ 11

5.8 Probe — “ADD MIX” ...................................................... 11

2 Note to Installer

23456789012345

184833

The Model 88TN-CMT Freezer is designed to produce soft serve ice cream, ice milk, yogurt, and similar frozen dairy products, with a product serving temperature range of 15 to 25°F (-9 to -4°C). If such products are prepared from powdered concentrate, they should be precooled to 40ºF (4°C) prior to introduction to the freezer. Use of other products in this machine is considered misuse (see Warranty).

This manual has been prepared to assist

Make sure all personnel responsible for equipment operation completely read and understand this manual before operating the freezer. When properly operated and maintained, the freezer will produce a consistent quality product.

If you require technical assistance, please contact your local authorized Electro Freeze Distributor as follows:

Name __________________________

Address: _______________________

you in the proper operation and general maintenance of the Electro Freeze Soft Serve Model 88TN-CMT.

Your freezer will not compensate for or correct any assembly or priming errors made during the initial start-up; therefore, it is important to follow the assembly and priming procedures detailed in this manual.

_________________________

Phone: _________________________

For factory service assistance — contact H. C. Duke & Son, Inc., Electro Freeze Service Department as follows:

Phone: (309) 755-4553



FAX: (309) 755-9858

This freezer must be installed and serviced by an Electro Freeze Distributor or authorized service technician in accordance with the installation instructions.

After installation, the warranty registration card must be completed and returned to validate the warranty.

1

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

2

2.1 Uncrating and Inspection

2.2 Installation

When the unit is received and while the carrier is still present, inspect the shipping carton for any damage that may have occurred in transit. If the carton is broken, torn, or punctured,

Figure 2-1 Machine bolted to Shipping Base

Figure 2-2 Installing Mounting Legs or Casters

CAUTION Be sure to properly support the machine when removing bolts and installing legs or casters.

CAUTION

All materials and connections must conform to local requirements and be in compliance with the National Electrical Code (NEC).

note the damage on the carrier’s freight bill and notify the carrier’s local agent immediately.

1. Remove the carton from the pallet, and move the machine as close as possible to the permanent location.

2. Remove the shipping bolts on the bottom of the freezer (figure 2-1) and install either the legs or casters (figure 2-

2).

NOTE: Screw

casters or legs all the way in coupling, then adjust out to level.

1. This freezer is designed for indoor use and must be protected from outdoor weather conditions.

– continued

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

2.2 Installation – continued

23456789012345

2.3 Electrical Requirements

23456789012345

2.4 Electrical Connections

23456789012345

184833

2. Where codes permit, we recommend that the freezer be installed on casters and have flexible water and electrical connections for service and cleaning ability.

3. Air cooled models require a minimum 6 inch (15 cm) clearance on either the side panels or the rear panel for adequate ventilation. Freezers designed with top air discharge require at least 18 inches (45 cm) above the top panel be free of obstructions. Anything blocking ventilation of the freezer (including cone dispensers) will reduce the efficiency of the freezer.

CAUTION To prevent accidental electrical shock, a positive earth ground is required.

1. Always verify electrical specifications on the data plate of each freezer. Data plate specifications will always supersede the information in this manual.

CAUTION To prevent accidental electrical shock, a positive earth ground is required.

1. Check the data plate for fuse size, wire ampacity, and electrical specifications.

2. Refer to the wiring diagram provided for proper power connections.

4. Water cooled models will require a 3/8 inch MPT water inlet and water waste connection. The connections are found on the bottom under the compressor mounting area and are clearly tagged “Water Inlet” and “Water Waste.” A manual shut-off valve should be installed in the water inlet line at the time of installation. The water pressure must be between 35-140 psig (241-965 kPa) for proper operation.

5. Place the freezer in the final location and level by adjusting the legs or casters so that it is level side-to-side and the front is approximately ¼ inch (6 mm) lower than the rear to allow proper drainage of the freezing cylinder.

2. Supply voltage must be within +

10% of voltage indicated on the nameplate. Also, on three-phase systems, voltage between phases must be balanced within 2%. (More than a 6 volt difference between any two voltage measurements at 208-230 volts indicates a possible imbalance.) Request your local power company to correct any voltage problem.

3. An easily accessible main power

disconnect must be provided for all poles of the wiring to the freezer.

3. Electrical connections are made in the junction boxes located mid-level behind the left side panel.

4. Use a flexible connection when permissible. All materials and connections must conform to local codes and the National Electrical Code.

5. For 3 phase freezers, beater shaft rotation must be clockwise as viewed from the front of the freezer.

3

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

4

3 Specifications

3.1 Particulars

3.2 Data Plate

Always check and verify voltage and amperage on the data plate located on the back panel of each freezer.

88TN-CMT

Width (in/cm) 24/61

Height (in/cm) 68/173

Depth (in/cm) 30.5/77.5

Weight (lbs/kg) 680/308

Compressor* 2 HP/13000 BTUH

Beater Motor 2 HP/1.5 kw

Refrigerant 404a

Charge 3.75 lb/1.7 kg

Mix Container (2) 24 Qts/22.7 Liters

Cylinder (2) 3 Qts/2.8 Liters

*Contact factory for other voltages

Figure 3-1

1.5 kw (Motor)

3.8 kw (Cooling)

The data plate provides important information that the operator should record and have available for parts ordering, warranty and service requests.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

3.3 Reference Information

23456789012345

3.4 Installation Date

23456789012345

3.5 Dimensions

23456789012345

184833

Write in Reference Informa-

1 Model Number: ________________

tion HERE!



Fill in this information as soon as you receive the Electro Freeze 88TN-CMT Soft Serve Twist Freezer. The item numbers, encircled, correspond with the callout numbers in figure 3-1.

Fill in the date of installation, and the name, address, and phone number of the installer in the space provided below. This information will be needed when ordering parts or service for the 88TN-CMT Freezer.

Date of installation: __________________________________

Installed by: __________________________________

Address: __________________________________

__________________________________

Phone: __________________________________

Figure 3-2

2 Serial Number: ________________

3 Electrical Spec: Voltage _________

Phase _______ Hertz __________

4 Maximum Fuse Size: ____________

5 Minimum Circuit Ampacity: _______

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

6

4 Part Names and Functions

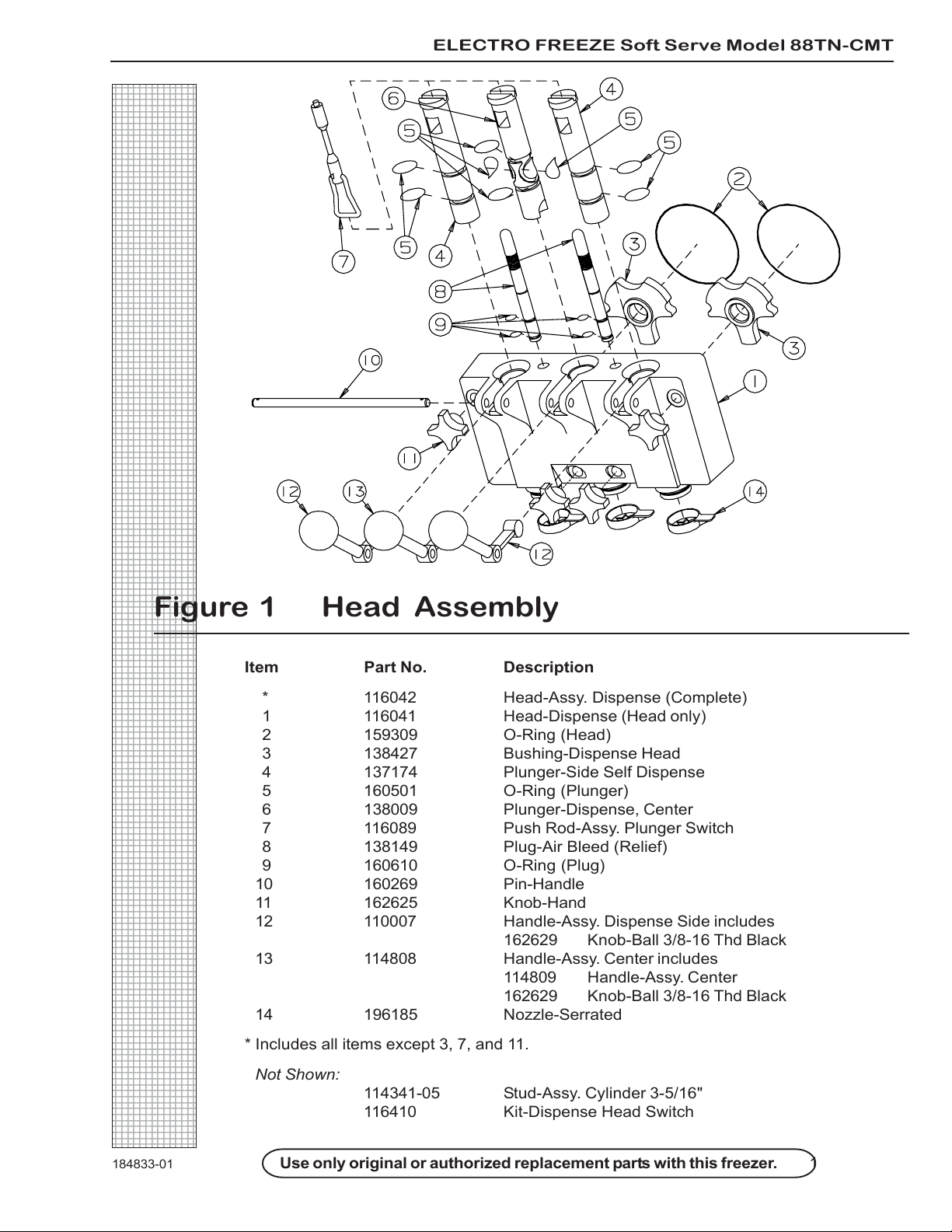

Figure 4-1 Head Assembly

1 HEAD Encloses the freezing

cylinder and provides an opening for product to be dispensed.

2 BUSHING - HEAD Holds the

beater in place at the front of the cylinder.

3 O-RING - HEAD Seals the head to

the freezing cylinder. Must be lubricated.

4 PLUNGER Seals the product

opening in the dispense head when closed. Allows product to flow when open.

5 O-RING - PLUNGER Seals the

plunger in the head. Must be lubricated to seal and slide properly.

6 ROD - PLUNGER Starts the

freezer when dispensing. Must be in place before freezer will operate.

BLEED

7 PLUG - AIR BLEED Seals the

air bleed opening in the dispense head when closed. Allows excess air to be removed from the cylinder in the filling process.

8 O-RING - PLUG Seals the air

bleed plug in the dispense head.

9 PIN - HANDLE Secures the

handle to the dispense head.

10 KNOB - HAND Secures the

dispense head to the freezing cylinder.

11 HANDLE - DISPENSE Opens

and closes the plunger to start and stop the flow of product from the freezer.

12 NOZZLE Forms the frozen

product as it is dispensed.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

4 Part Names and Functions (continued)

23456789012345

184833

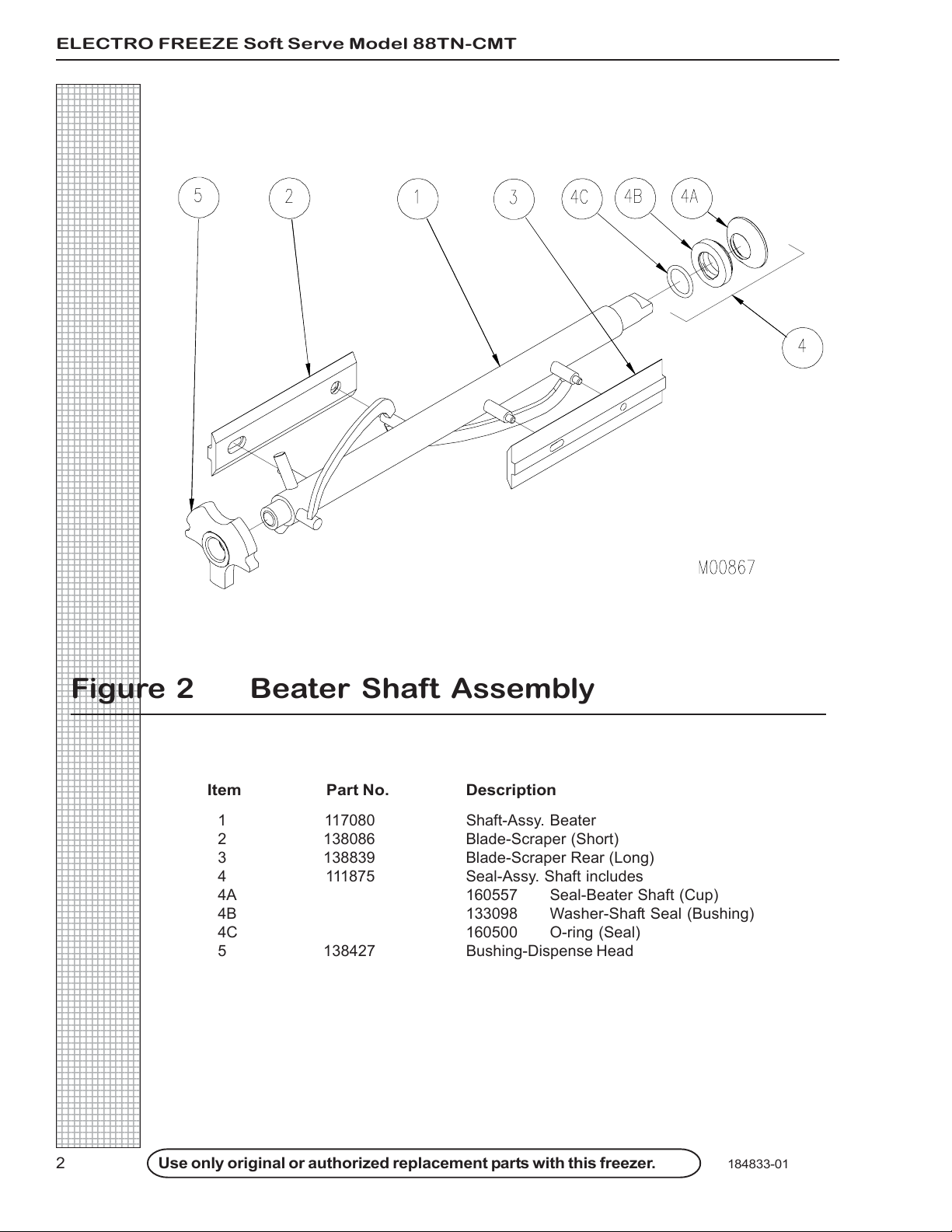

Figure 4-2 Beater Shaft Assembly

1 SHAFT - BEATER

Rotates in the freezing cylinder, blending air and ejecting product.

2 BLADE - SCRAPER FRONT

Scrapes the frozen product from the freezing cylinder.

3 BLADE - SCRAPER REAR

Scrapes the frozen product from the freezing cylinder.

4 SEAL - ASSY. SHAFT

Seals the opening between the freezing cylinder and the beater shaft. Consists of the following 4A, 4B, and 4C.

4A SEAL - BEATER SHAFT

(CUP SEAL)

4B WASHER - SHAFT SEAL

(BUSHING)

4C O-RING - SEAL

5 BUSHING - DISPENSE HEAD

Holds the beater in place at the front of the cylinder.

7

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

8

4 Part Names and Functions

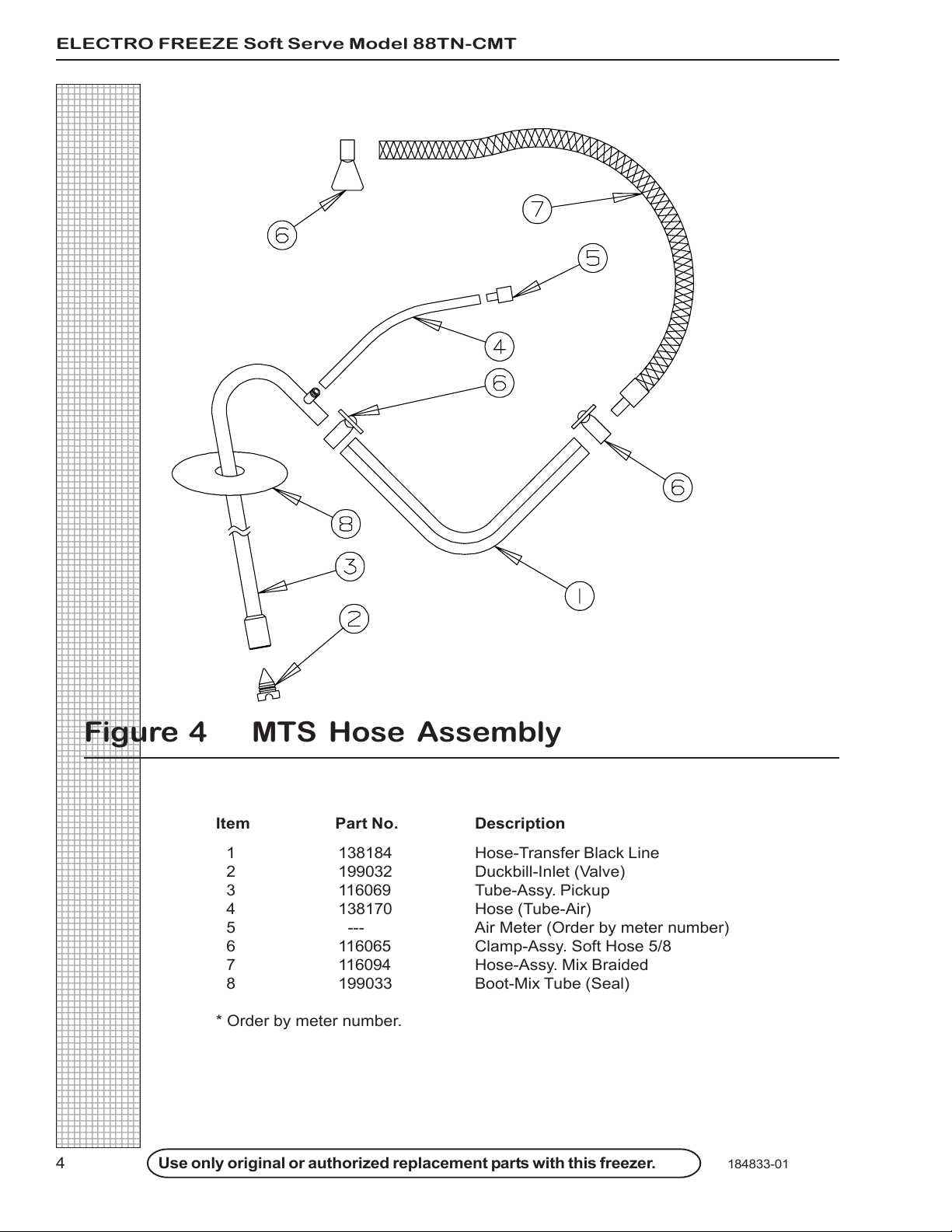

Figure 4-3 Mix Transfer System (MTS)

1 MIX TRANSFER SYSTEM

Transfers mix and air from the storage cabinet to the freezing cylinder.

2 MTS HANDLE Moves the MTS

Slide up and down to engage the transfer hose with MTS rollers. Allows access to transfer hose.

3 MTS SWING CLAMP Secures

the MTS Slide in position, ensuring contact with rollers. MTS will operate only when swing clamp is secured.

4 MTS SLIDE Sets the transfer

hose in proper position under rollers.

5 PICKUP TUBE Carries mix

from mix container to MTS. Duckbill check valve prevents mix from returning to mix container.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

5 Operator Controls and Indicators

23456789012345

5.1 Selector Switch 1

23456789012345

184833

Figure 5-1

The following paragraphs describe the operator controls and indicators. Refer to figure 5-1 for location of these controls and indicators on the freezer.

NOTE: The head must be in place before the beater will operate.

This three-position switch controls the operating mode of your freezer.

a. “CLEAN” (left) — This position operates the beater only (no refrigeration). Always use this mode when performing cleaning and sanitizing operations.

b. “OFF” (center) — In this position the beater motor and no refrigeration will be provided to the cylinder

CAUTION Test operation of the head switch prior to placing the freezer in service. See Section 11, Routine Maintenance, Monthly.

Important: Do not use the “AUTO” position with water or sanitizer in the cylinder — the freezer will be damaged.

c. “AUTO” (right) — This position activates both the beater motor and refrigeration unit. This is the normal operating position.

9

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

10

5 Operator Controls and Indicators (continued)

5.2 DAY-NIGHT Switch 2

5.3 Mix Transfer System (MTS) Switch 3

5.4 Cabinet Switch 4

5.5 Timer 5

This two-position switch controls the day and night refrigeration modes.

a. “DAY” (left) — The low tempera- ture thermostat controls the system refrigeration to maintain the product serving temperature between 18 to 21°F (-8 to -6°C). This is the normal operating position.

This two-position switch controls the operation of the MTS located in the refrigerated mix storage cabinet.

a. "MIX ON" (left) — This position is the normal operating mode. This position is for priming the cylinder, cleaning, and day mode operation.

This two-position switch controls the cabinet refrigeration.

NOTE: Cabinet door must be closed for cabinet refrigeration to operate.

a. “ON” (left) — The cabinet thermostat controls the system refrigeration to maintain a mix temperature of 36 to 41°F (2 to 5°C) in the storage cabinet. Use this position when mix is in the storage cabinet but not in the cylinder.

This control will bypass the thermostat, forcing the compressor and beater motor to run up to 3 minutes. Use the timer for for quick start-ups or fast recovery when dispensing large portions.

b. “NIGHT” (right) — The mediumtemperature thermostat controls the system refrigeration to maintain a mix holding temperature of 40°F (4ºC) or below.

b. "OFF" (right) — In this position the MTS will not operate. Use this position for night mode operation.

b. “OFF” (right) — The cabinet will not be refrigerated if the SELECTOR switch is also in the “OFF” position.

NOTE: The cabinet is automatically “ON” when the SELECTOR switch is in the “AUTO” position.

Important: Excessive use of the timer causes freeze-up and damage to the freezer.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

5 Operator Controls and Indicators (continued)

23456789012345

5.6 Reset — Overload 6

23456789012345

5.7 Indicator Light — “ADD MIX” 7

23456789012345

5.8 Probe — “ADD MIX” 8 (not shown)

23456789012345

184833

Figure 5-1

This control protects the beater motor against failure from an overload condition by automatically shutting down the freezer. To restart the freezer properly, turn the SELECTOR switch to “OFF” and wait 2-3 minutes. Then depress the red reset button and turn the SELECTOR switch back to the “AUTO” or “CLEAN” position.

When flashing, this light indicates the mix in the mix container is at a low level and should be refilled as soon as possible. Always maintain at least 2 inches (5 cm) of mix in the container. For best operating results keep container full.

For the “ADD MIX” indicator lights to work, the probes must be installed in the mix container, with cords attached and plugged

Important: If the overload trips frequently, your freezer should be checked for proper product temperature, overrun and voltage. Contact your Electro Freeze Distributor.

Important: If proper mix level is not maintained, a freeze-up may occur and cause damage to the freezer.

into the receptacles located in the back of the cabinet.

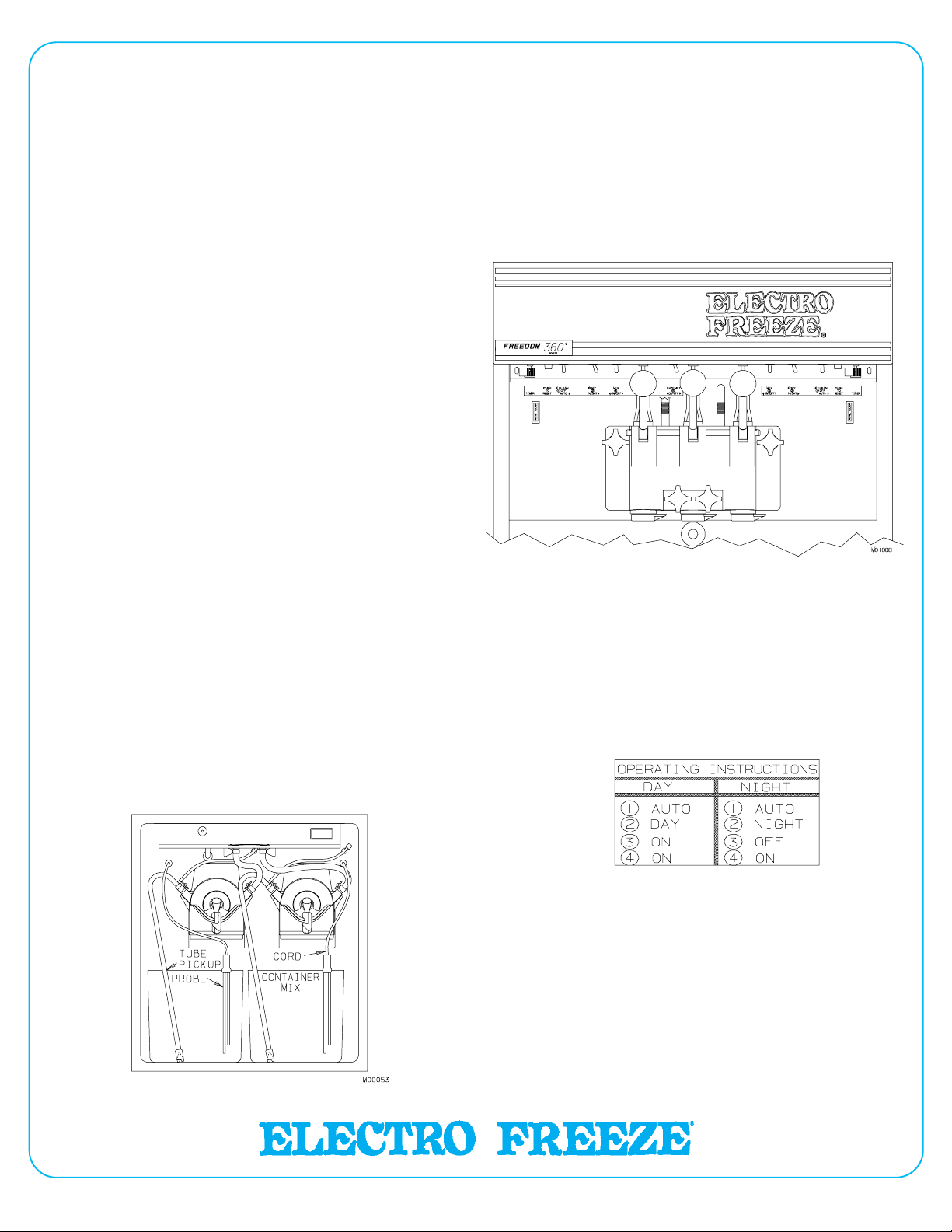

This chart shows the correct positions of the switches for day and night operations.

To turn the entire machine off, switches numbered 1, 3, and 4 must be in the “OFF” position.

11

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

12

6 Disassembly and Cleaning

Safety Information

This freezer uses pressure to assure consistent product quality. It is important for your safety that the freezer is depressurized slowly and completely whenever the freezer is to be drained, disassembled, cleaned, or serviced. The safety instructions in this manual will remind you when to check to make sure the freezer is depressurized. When you see this CAUTION statement

CAUTION Make sure freezer is depressurized before proceeding.

the following steps should be taken:

1. Make sure both MTS switches and both selector switches are in the “OFF” position.

2. Place a clean bucket under the dispense head.

3. Slowly open the plungers by pulling down on each of the dispense handles, allowing any pressurized product, cleaning solution, or air to escape.

4. Remove the plunger rods and open the plungers completely.

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

5. Open the swing clamps on both mix transfer systems and pull the MTS handle down.

Following these steps will assure that the system is depressurized.

It is important that the freezer be disassembled, washed, lubricated and sanitized before operation.

The cleaning and sanitizing instructions explained in this manual are required to maintain a clean, sanitary freezer. The freezer should be disassembled, cleaned, reassembled, lubricated and sanitized daily to ensure the best possible product quality and freezer operation.

Persons assembling, cleaning or sanitizing the freezer must first wash and sanitize hands and forearms with an approved sanitizer.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

6.1 Cleaning Accessories

23456789012345

184833

The following accessories shipped with the freezer are necessary for cleaning, sanitizing, and disassembly/assembly:

1. Bottle, Wash: used to flush the hose cavity, roller assembly and plunger.

2. Brush, Cylinder: used to clean the cylinder.

3. Brush, 7/16 inch diameter with an overall length of 12 inches: used to transfer hose, air meter hose, and air relief opening in the dispense head.

4. Brush, 9/16 inch diameter with and overall length of 30 inches: used to clean drain tube, mix feed tube in the ceiling of the cabinet, and the pickup

5. Brush, 1 inch diameter 12 inches long: used to clean plunger openings in the dispense head, head bushing and serrated nozzle. Also used to clean disassembled shaft seal.

6. Kit, O-ring: contains all O-rings and seals needing replacement on a regular basis.

7. Lubricant, Petrol Gel: approved lubricant for moving parts and O-rings.

8. Sanitizer, Sample: approved sanitizer, Stera-Sheen, also available in 4 lb. jar.

tube.

WASH BOTTLE

500 ML

Figure 6-1 Cleaning Accessories

13

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

14

6.2 Disassembly Instructions

Figure 6-2 Head Assembly

BLEED

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

6.2 Disassembly Instructions - continued

23456789012345

184833

Figure 6-3 Shaft Seal

Figure 6-4 MTS

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

CAUTION Make sure freezer is depressurized before proceeding.

CAUTION To prevent bacteria growth, remove ALL O-rings when disassembling for cleaning. Failure to do so could create a health hazard.

SEAL (CUP)

WASHER

O-RING

1. If there is product in the freezer,

refer to Section 9, Closing Procedures,

9.2 Draining Product.

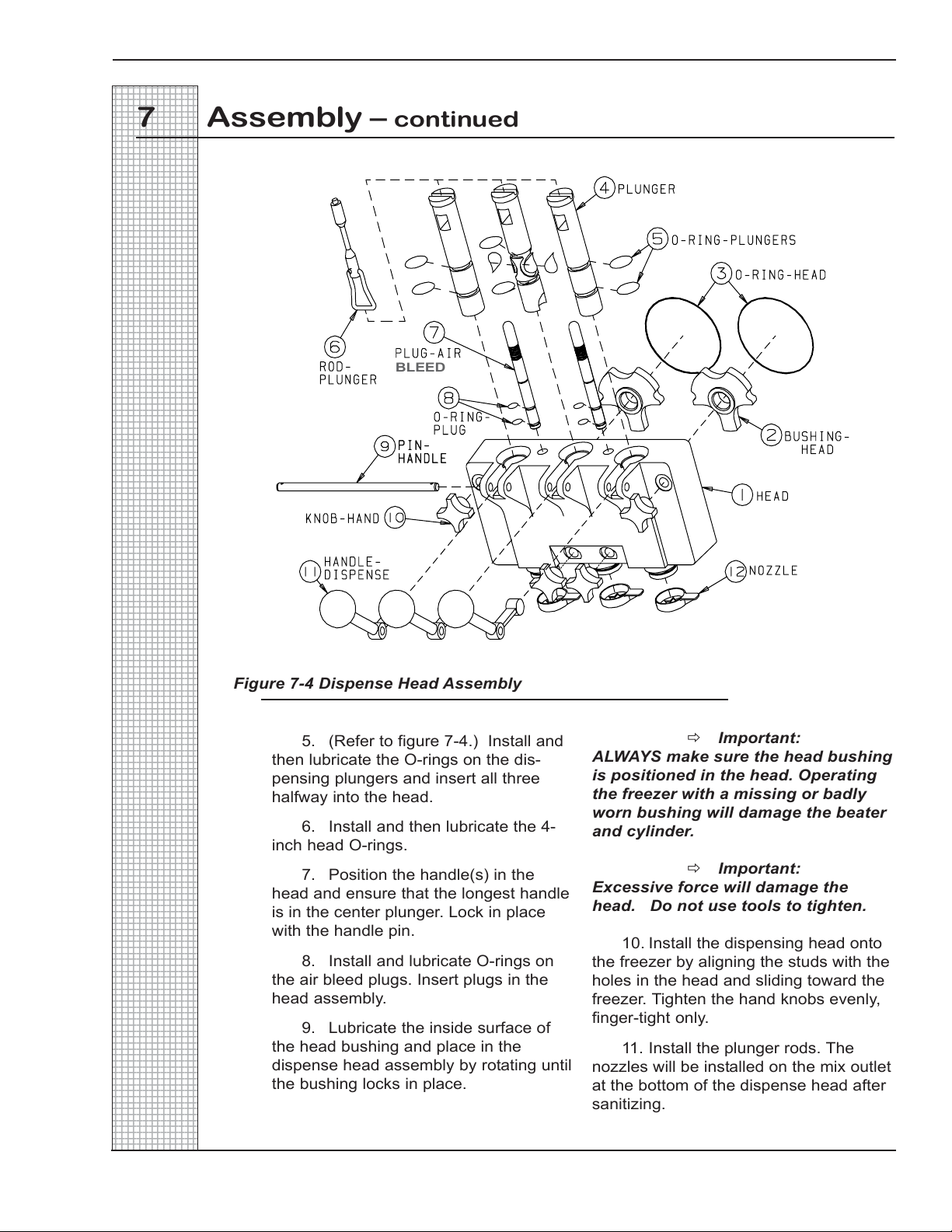

2. Remove the plunger rods (6, figure 6-2) by lifting up and swinging the bottom out and down. Remove hand knobs (10) and pull the dispensing head (1) straight out.

3. Remove the head bushings and beater shafts from the cylinders.

4. Remove scraper blades and shaft seals from the beater shafts.

5. Remove the drip tray (see Replacement Parts Manual, figure 6 - Panel Assembly) and drip tray insert from the front of the freezer.

6. Remove the air bleed plugs (7) and remove the two O-rings (8) on each one, Figure 6-2.

7. Remove the handle pin (9), handles (11), plungers (4) and nozzles (12) from the dispense head.

8. Remove O-rings (3) from the dispense head and O-rings (5) from the plungers (4).

9. Remove the cup seals (figure 6-

3) and O-rings from the washers on the shaft seal assemblies.

10. Remove mix containers, covers and low mix probes.

11. Remove MTS hose assemblies from the Mix Transfer Systems by unlocking the swing clamps and pulling the MTS handles down (figure 6-4). Loosen the three clamps and separate the parts as shown in figure 7-5.

15

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

16

6.3 Cleaning Instructions

NOTE: It is your responsibility to be aware of, and conform to, the requirements for meeting all federal, state, and local laws concerning the frequency of cleaning and sanitizing the freezer.

1. Prepare a three-compartment sink for cleaning, rinsing, and sanitizing parts removed from the freezer, per applicable local health codes. Also prepare a clean surface to air-dry all parts.

Do not use unapproved sanitizer or laundry bleach. These materials may contain high concentrations of chlorine and will chemically attack freezer components.

Figure 6-5 Clean head ports and openings with brush.

CAUTION To prevent bacteria growth, remove all O-rings when cleaning. Failure to do so could create a health hazard.

 Important:

CAUTION Electrical shock hazard. Do not splash water on switches or allow water to flow onto electrical components inside the machine.

NOTE: The sanitizer should be mixed

according to the manufacturer’s instructions to yield 100PPM available chlorine solution (example: Stera-Sheen Green Label.) Use warm water (100° to 110°F or 38° to 43°C) to wash, rinse, and sanitize.

2. Wash all parts removed from the freezer thoroughly with dish detergent. Clean the following parts with the appropriate supplied brush:

a. The mix container, pickup

tube assemblies, hoses, and probes.

b. The head plunger openings, center plunger ports, O-ring grooves, dispense nozzle mounting rings, and mix ports, as shown in figure 6-5.

— continued

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

6.3 Cleaning Instructions — continued

23456789012345

184833

and O-rings, plunger O-ring grooves and nozzles, as shown in figure 6-6.

grooves.

scraper blade pin holes as shown in figure 6-7.

Do not leave parts in sanitizer for more than 15 minutes.

and then place them in the sanitizer solution. For proper sanitizing, the parts must remain fully immersed in the sanitizer for 5 minutes. Allow parts to airdry after sanitizing.

thoroughly brush the mix feed tubes from the refrigerated cabinet to the cylinders.

with sanitizer and brush, making certain to clean back walls.

tube, as shown in figure 6-8.

Use only Electro Freeze

replacement parts. See

Accessories parts list in

c. The shaft cup seals, washers,

d. The air bleed plug O-ring

e. The beater shaft and the

Important:

3. After all parts are washed, rinse

4. Use the sanitizing solution to

5. Brush the inside of the cylinders

6. Brush the inside of the drain

Replace worn brushes.

original or authorized

Part II of this Manual to

order new brushes.

Figure 6-6 Clean O-ring grooves,

seal and nozzle with brush.

Figure 6-7 Clean scraper blade holes.

Figure 6-8 Brush inside of drain tube

17

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

BLADE-SCRAPER

2345678901234

FRONT

2345678901234

18

7 Assembly

WASHER(BUSHING)-SHAFT SEAL

Figure 7-1 Shaft Seal Assembly

SEAL-BEATER SHAFT

O-RING-SHAFT SEAL

BLADE-SCRAPER REAR

SHAFT-BEATER

BUSHING-DISPENSE HEAD

Figure 7-2 Beater Shaft Assembly

Figure 7-3 Scraper Blade Installation

WASHER

SEAL-ASSY SHAFT

Correct assembly of the freezer is essential to prevent leakage of the product and damage to the freezer. To assemble the freezer you will need an approved lubricant (such as Petrol-Gel). Make sure all parts of the assemblies have been washed and sanitized before assembling. Persons assembling the freezer must first wash and sanitize their hands and forearms with an approved sanitizer. Follow these directions for each cylinder of the freezer.

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

1. To assemble the shaft seal, install the cup seal and O-ring on the washer (see figure 7-1). Apply a light amount of approved sanitary lubricant (such as Petrol-Gel) to the O-ring and the face of the plastic washer opposite the bell portion of the seal. Do not allow any lubricant to come into contact with the bell-shaped rubber portion of the seals.

2. Install the shaft seal over the rear of the beater shaft, with the bellshaped portion facing the rear, as shown in figure 7-2.

3. Place the scraper blades on the beater shaft, making sure the blades are installed properly (see figure 7-3).

4. Insert the assembled beater shaft into the cylinder by placing the rear blade on the bottom of the cylinder. This will center the beater and allow alignment with the drive coupling. Rotate the beater assembly while pushing, until the shank has engaged the coupling. Repeat for second cylinder assembly.

-continued

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

7 Assembly – continued

23456789012345

184833

Figure 7-4 Dispense Head Assembly

5. (Refer to figure 7-4.) Install and then lubricate the O-rings on the dispensing plungers and insert all three halfway into the head.

6. Install and then lubricate the 4inch head O-rings.

7. Position the handle(s) in the head and ensure that the longest handle is in the center plunger. Lock in place with the handle pin.

8. Install and lubricate O-rings on the air bleed plugs. Insert plugs in the head assembly.

9. Lubricate the inside surface of the head bushing and place in the dispense head assembly by rotating until the bushing locks in place.

BLEED

 Important:

ALWAYS make sure the head bushing is positioned in the head. Operating the freezer with a missing or badly worn bushing will damage the beater and cylinder.

 Important:

Excessive force will damage the head. Do not use tools to tighten.

10. Install the dispensing head onto the freezer by aligning the studs with the holes in the head and sliding toward the freezer. Tighten the hand knobs evenly, finger-tight only.

11. Install the plunger rods. The nozzles will be installed on the mix outlet at the bottom of the dispense head after sanitizing.

19

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

20

7 Assembly – continued

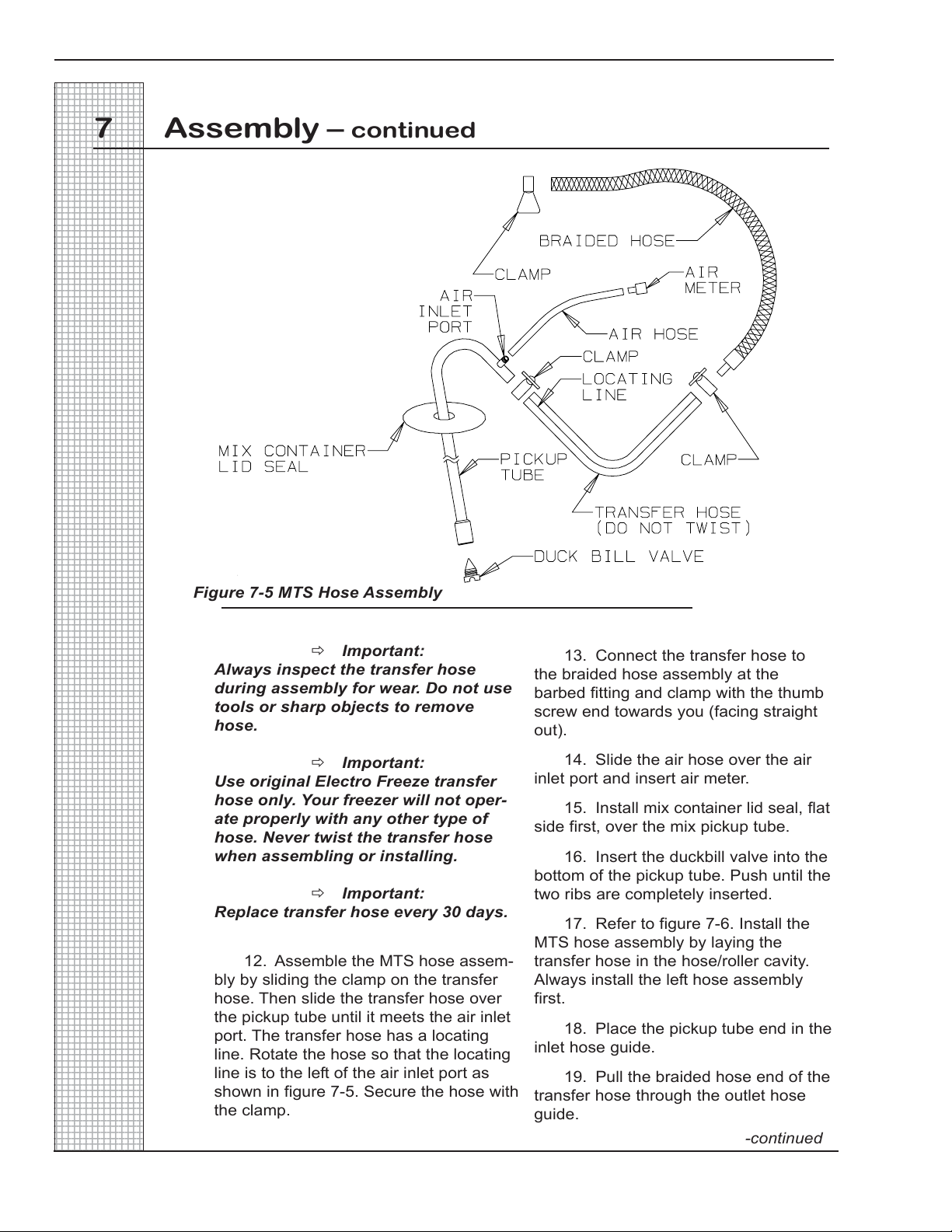

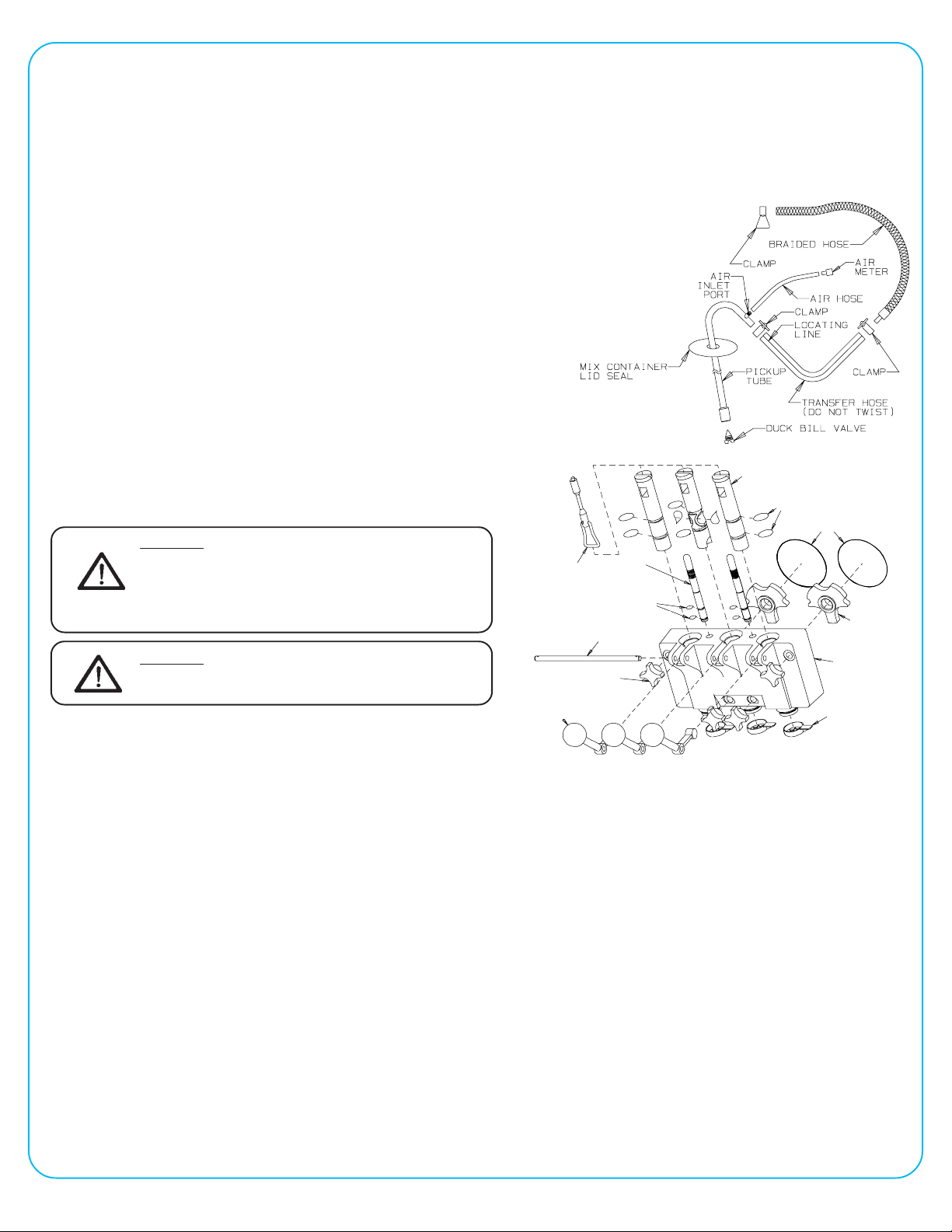

Figure 7-5 MTS Hose Assembly

 Important:

Always inspect the transfer hose during assembly for wear. Do not use tools or sharp objects to remove hose.

 Important:

Use original Electro Freeze transfer hose only. Your freezer will not operate properly with any other type of hose. Never twist the transfer hose when assembling or installing.

 Important:

Replace transfer hose every 30 days.

12. Assemble the MTS hose assembly by sliding the clamp on the transfer hose. Then slide the transfer hose over the pickup tube until it meets the air inlet port. The transfer hose has a locating line. Rotate the hose so that the locating line is to the left of the air inlet port as shown in figure 7-5. Secure the hose with the clamp.

13. Connect the transfer hose to the braided hose assembly at the barbed fitting and clamp with the thumb screw end towards you (facing straight out).

14. Slide the air hose over the air inlet port and insert air meter.

15. Install mix container lid seal, flat side first, over the mix pickup tube.

16. Insert the duckbill valve into the bottom of the pickup tube. Push until the two ribs are completely inserted.

17. Refer to figure 7-6. Install the MTS hose assembly by laying the transfer hose in the hose/roller cavity. Always install the left hose assembly first.

18. Place the pickup tube end in the inlet hose guide.

19. Pull the braided hose end of the transfer hose through the outlet hose guide.

-continued

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

7 Assembly – continued

23456789012345

184833

Do not twist the hose assembly while installing.

20. Make sure the pickup tube is completely outside of the inlet hose guide.

21. Check to ensure the transfer hose is straight and centered on the roller assembly by observing the locating line. The line should be in the same position at the inlet and outlet guides, as shown in figure 7-6.

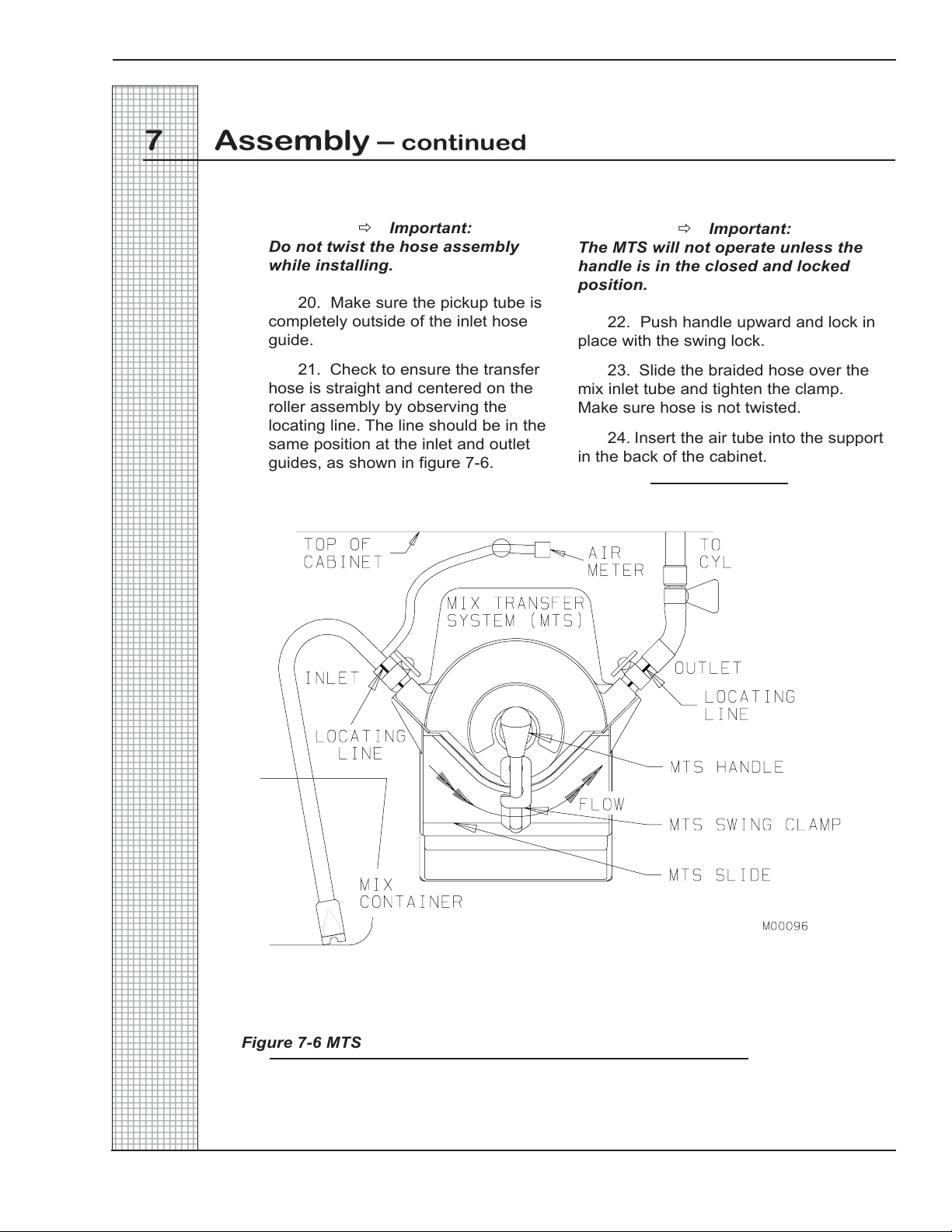

Figure 7-6 MTS

 Important:

The MTS will not operate unless the handle is in the closed and locked position.

22. Push handle upward and lock in

place with the swing lock.

23. Slide the braided hose over the mix inlet tube and tighten the clamp. Make sure hose is not twisted.

24. Insert the air tube into the support in the back of the cabinet.

21

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

8.1 Sanitizing Instructions

2345678901234

22

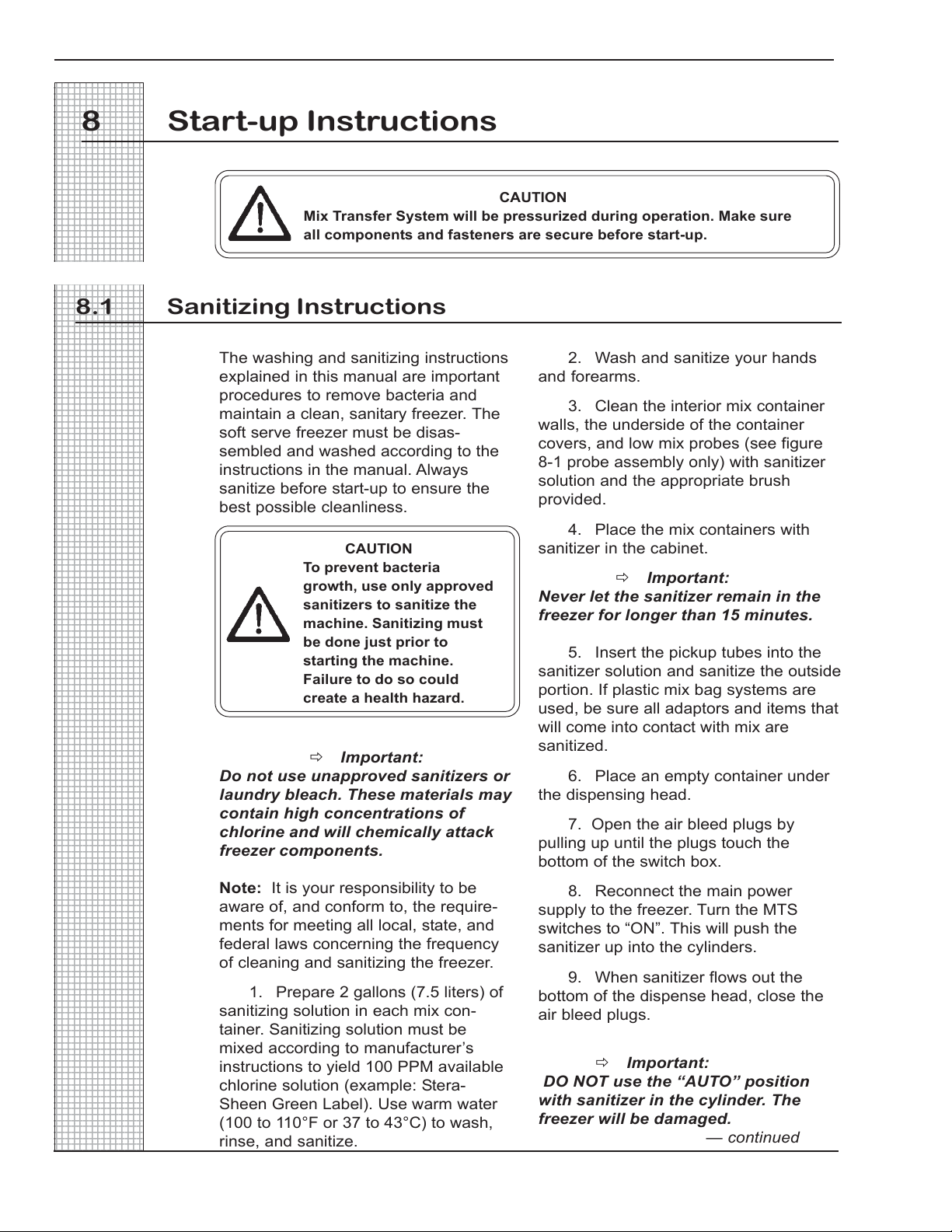

8 Start-up Instructions

The washing and sanitizing instructions explained in this manual are important procedures to remove bacteria and maintain a clean, sanitary freezer. The soft serve freezer must be disassembled and washed according to the instructions in the manual. Always sanitize before start-up to ensure the best possible cleanliness.

Do not use unapproved sanitizers or laundry bleach. These materials may contain high concentrations of chlorine and will chemically attack freezer components.

Note: It is your responsibility to be aware of, and conform to, the requirements for meeting all local, state, and federal laws concerning the frequency of cleaning and sanitizing the freezer.

1. Prepare 2 gallons (7.5 liters) of sanitizing solution in each mix container. Sanitizing solution must be mixed according to manufacturer’s instructions to yield 100 PPM available chlorine solution (example: SteraSheen Green Label). Use warm water (100 to 110°F or 37 to 43°C) to wash, rinse, and sanitize.

Mix Transfer System will be pressurized during operation. Make sure all components and fasteners are secure before start-up.

CAUTION To prevent bacteria growth, use only approved sanitizers to sanitize the machine. Sanitizing must be done just prior to starting the machine. Failure to do so could create a health hazard.

 Important:

CAUTION

2. Wash and sanitize your hands

and forearms.

3. Clean the interior mix container walls, the underside of the container covers, and low mix probes (see figure 8-1 probe assembly only) with sanitizer solution and the appropriate brush provided.

4. Place the mix containers with sanitizer in the cabinet.

 Important:

Never let the sanitizer remain in the freezer for longer than 15 minutes.

5. Insert the pickup tubes into the sanitizer solution and sanitize the outside portion. If plastic mix bag systems are used, be sure all adaptors and items that will come into contact with mix are sanitized.

6. Place an empty container under the dispensing head.

7. Open the air bleed plugs by pulling up until the plugs touch the bottom of the switch box.

8. Reconnect the main power supply to the freezer. Turn the MTS switches to “ON”. This will push the sanitizer up into the cylinders.

9. When sanitizer flows out the bottom of the dispense head, close the air bleed plugs.

 Important:

DO NOT use the “AUTO” position with sanitizer in the cylinder. The freezer will be damaged.

— continued

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

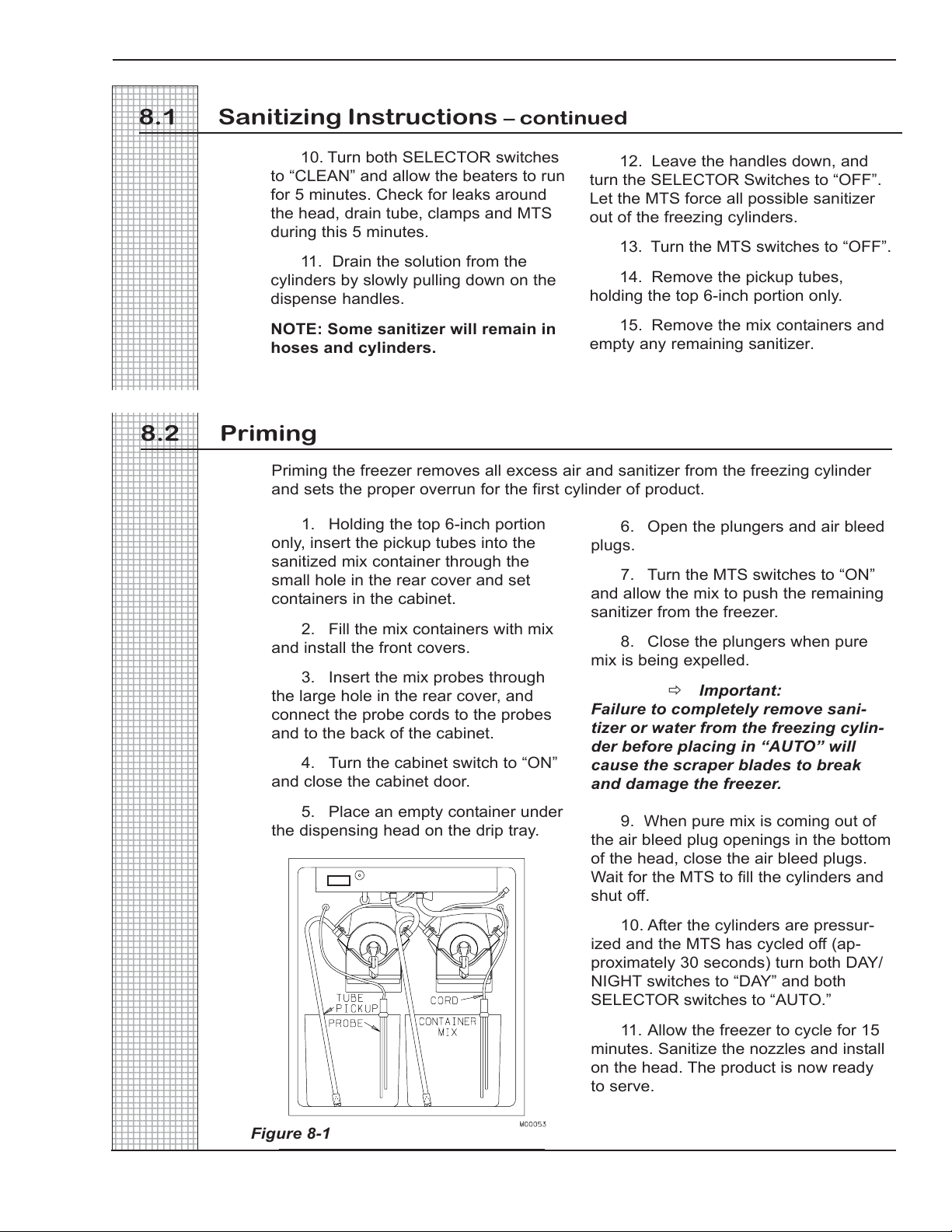

8.1 Sanitizing Instructions – continued

23456789012345

8.2 Priming

23456789012345

Figure 8-1

184833

10. Turn both SELECTOR switches to “CLEAN” and allow the beaters to run for 5 minutes. Check for leaks around the head, drain tube, clamps and MTS

12. Leave the handles down, and turn the SELECTOR Switches to “OFF”. Let the MTS force all possible sanitizer out of the freezing cylinders.

during this 5 minutes.

13. Turn the MTS switches to “OFF”.

11. Drain the solution from the cylinders by slowly pulling down on the dispense handles.

NOTE: Some sanitizer will remain in hoses and cylinders.

14. Remove the pickup tubes,

holding the top 6-inch portion only.

15. Remove the mix containers and

empty any remaining sanitizer.

Priming the freezer removes all excess air and sanitizer from the freezing cylinder and sets the proper overrun for the first cylinder of product.

1. Holding the top 6-inch portion

only, insert the pickup tubes into the

6. Open the plungers and air bleed

plugs.

sanitized mix container through the small hole in the rear cover and set containers in the cabinet.

7. Turn the MTS switches to “ON” and allow the mix to push the remaining sanitizer from the freezer.

2. Fill the mix containers with mix

and install the front covers.

8. Close the plungers when pure mix is being expelled.

3. Insert the mix probes through the large hole in the rear cover, and connect the probe cords to the probes and to the back of the cabinet.

Failure to completely remove sanitizer or water from the freezing cylin-

 Important:

der before placing in “AUTO” will

4. Turn the cabinet switch to “ON” and close the cabinet door.

5. Place an empty container under the dispensing head on the drip tray.

cause the scraper blades to break and damage the freezer.

9. When pure mix is coming out of the air bleed plug openings in the bottom of the head, close the air bleed plugs. Wait for the MTS to fill the cylinders and shut off.

10. After the cylinders are pressurized and the MTS has cycled off (approximately 30 seconds) turn both DAY/ NIGHT switches to “DAY” and both SELECTOR switches to “AUTO.”

11. Allow the freezer to cycle for 15 minutes. Sanitize the nozzles and install on the head. The product is now ready to serve.

23

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

24

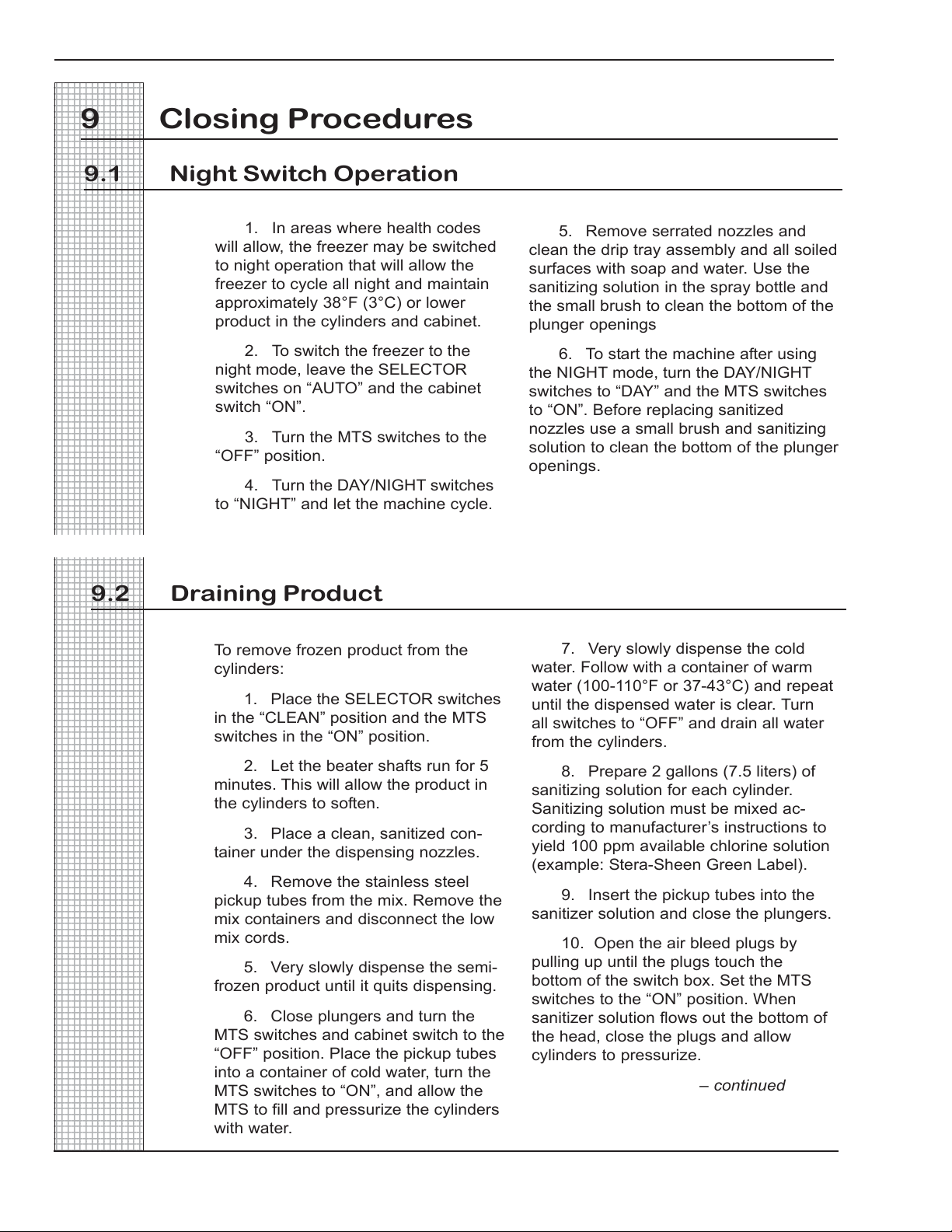

9 Closing Procedures

9.1 Night Switch Operation

9.2 Draining Product

1. In areas where health codes will allow, the freezer may be switched to night operation that will allow the freezer to cycle all night and maintain approximately 38°F (3°C) or lower product in the cylinders and cabinet.

2. To switch the freezer to the night mode, leave the SELECTOR switches on “AUTO” and the cabinet switch “ON”.

3. Turn the MTS switches to the “OFF” position.

4. Turn the DAY/NIGHT switches to “NIGHT” and let the machine cycle.

To remove frozen product from the cylinders:

1. Place the SELECTOR switches

in the “CLEAN” position and the MTS switches in the “ON” position.

2. Let the beater shafts run for 5

minutes. This will allow the product in the cylinders to soften.

3. Place a clean, sanitized con-

tainer under the dispensing nozzles.

4. Remove the stainless steel

pickup tubes from the mix. Remove the mix containers and disconnect the low mix cords.

5. Very slowly dispense the semi-

frozen product until it quits dispensing.

6. Close plungers and turn the

MTS switches and cabinet switch to the “OFF” position. Place the pickup tubes into a container of cold water, turn the MTS switches to “ON”, and allow the MTS to fill and pressurize the cylinders with water.

5. Remove serrated nozzles and clean the drip tray assembly and all soiled surfaces with soap and water. Use the sanitizing solution in the spray bottle and the small brush to clean the bottom of the plunger openings

6. To start the machine after using the NIGHT mode, turn the DAY/NIGHT switches to “DAY” and the MTS switches to “ON”. Before replacing sanitized nozzles use a small brush and sanitizing solution to clean the bottom of the plunger openings.

7. Very slowly dispense the cold water. Follow with a container of warm water (100-110°F or 37-43°C) and repeat until the dispensed water is clear. Turn all switches to “OFF” and drain all water from the cylinders.

8. Prepare 2 gallons (7.5 liters) of sanitizing solution for each cylinder. Sanitizing solution must be mixed according to manufacturer’s instructions to yield 100 ppm available chlorine solution (example: Stera-Sheen Green Label).

9. Insert the pickup tubes into the sanitizer solution and close the plungers.

10. Open the air bleed plugs by pulling up until the plugs touch the bottom of the switch box. Set the MTS switches to the “ON” position. When sanitizer solution flows out the bottom of the head, close the plugs and allow cylinders to pressurize.

– continued

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

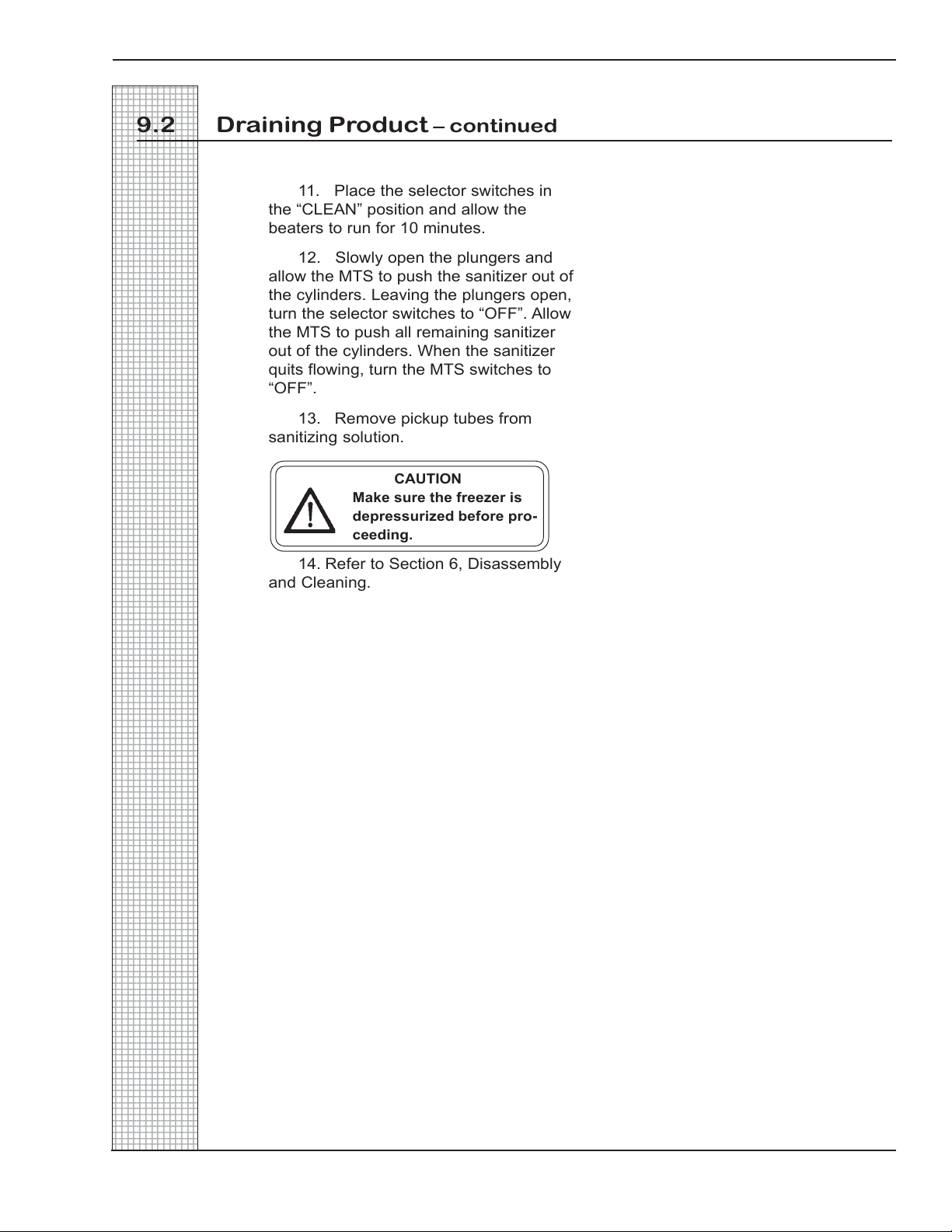

9.2 Draining Product – continued

23456789012345

184833

11. Place the selector switches in the “CLEAN” position and allow the beaters to run for 10 minutes.

12. Slowly open the plungers and allow the MTS to push the sanitizer out of the cylinders. Leaving the plungers open, turn the selector switches to “OFF”. Allow the MTS to push all remaining sanitizer out of the cylinders. When the sanitizer quits flowing, turn the MTS switches to “OFF”.

13. Remove pickup tubes from sanitizing solution.

CAUTION Make sure the freezer is depressurized before proceeding.

14. Refer to Section 6, Disassembly

and Cleaning.

25

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

26

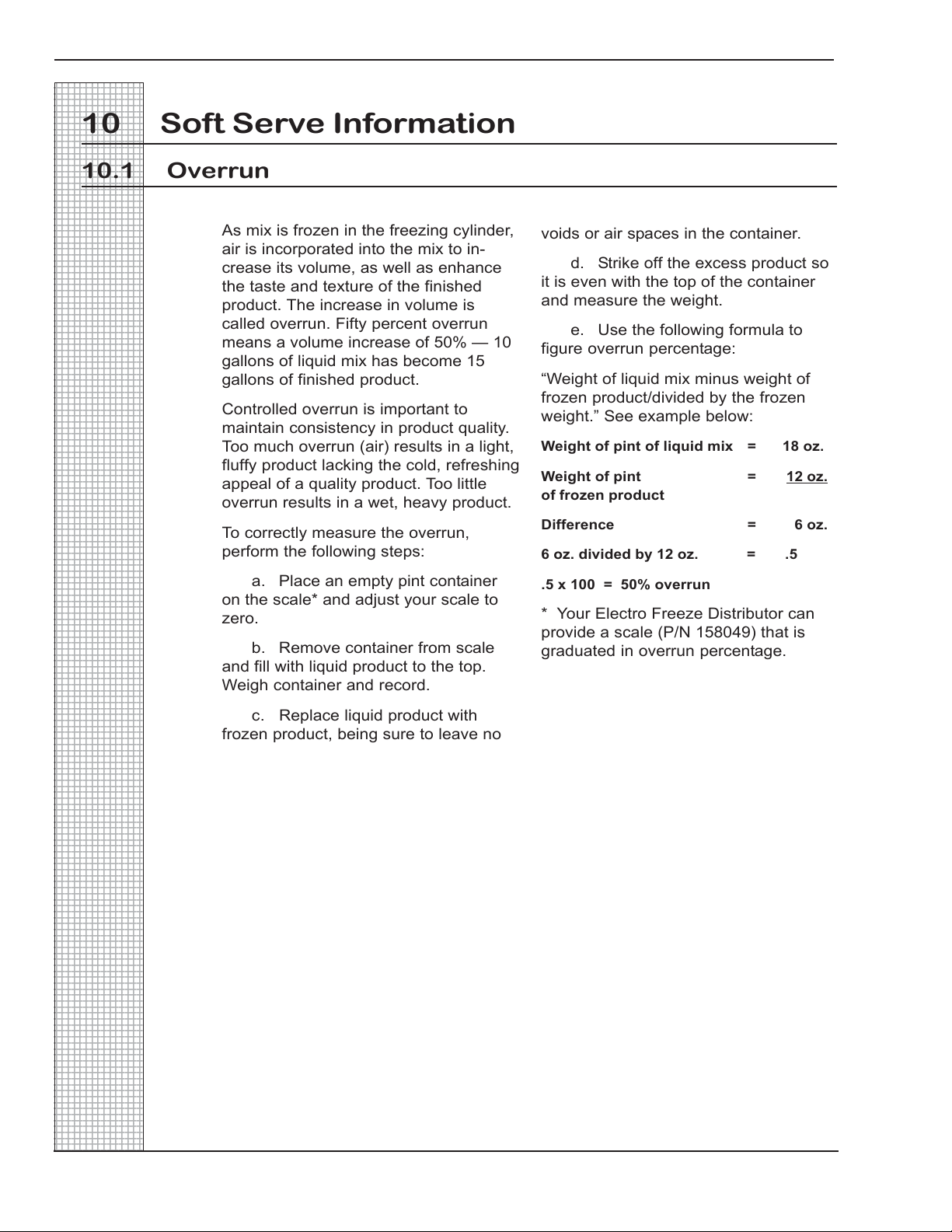

10 Soft Serve Information

10.1 Overrun

As mix is frozen in the freezing cylinder, air is incorporated into the mix to increase its volume, as well as enhance the taste and texture of the finished product. The increase in volume is called overrun. Fifty percent overrun means a volume increase of 50% — 10 gallons of liquid mix has become 15 gallons of finished product.

Controlled overrun is important to maintain consistency in product quality. Too much overrun (air) results in a light, fluffy product lacking the cold, refreshing appeal of a quality product. Too little overrun results in a wet, heavy product.

To correctly measure the overrun, perform the following steps:

a. Place an empty pint container on the scale* and adjust your scale to zero.

b. Remove container from scale and fill with liquid product to the top. Weigh container and record.

c. Replace liquid product with frozen product, being sure to leave no

voids or air spaces in the container.

d. Strike off the excess product so it is even with the top of the container and measure the weight.

e. Use the following formula to figure overrun percentage:

“Weight of liquid mix minus weight of frozen product/divided by the frozen weight.” See example below:

Weight of pint of liquid mix = 18 oz.

Weight of pint =

12 oz.

of frozen product

Difference = 6 oz.

6 oz. divided by 12 oz. = .5

.5 x 100 = 50% overrun

* Your Electro Freeze Distributor can provide a scale (P/N 158049) that is graduated in overrun percentage.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

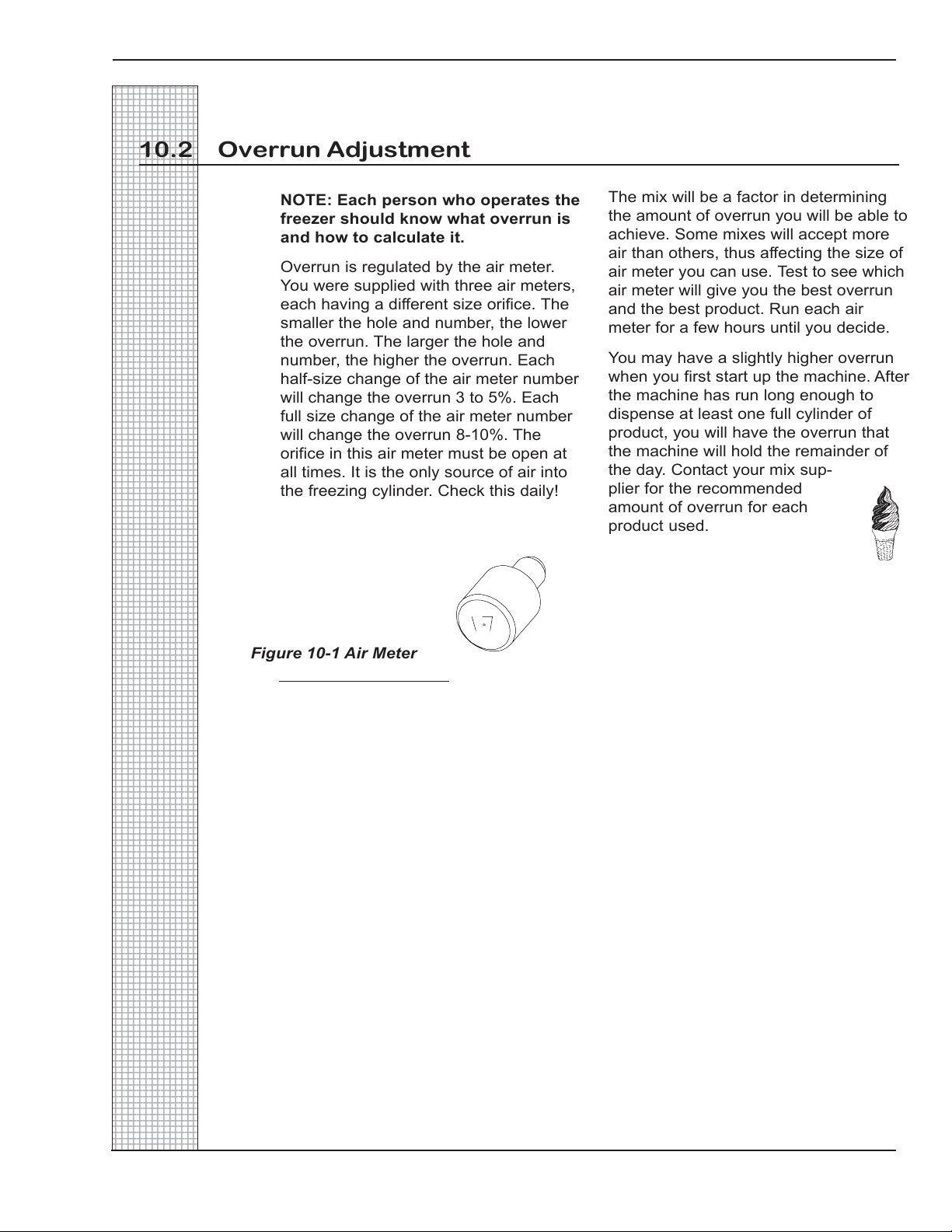

10.2 Overrun Adjustment

23456789012345

184833

NOTE: Each person who operates the freezer should know what overrun is and how to calculate it.

Overrun is regulated by the air meter. You were supplied with three air meters, each having a different size orifice. The smaller the hole and number, the lower the overrun. The larger the hole and number, the higher the overrun. Each half-size change of the air meter number will change the overrun 3 to 5%. Each full size change of the air meter number will change the overrun 8-10%. The orifice in this air meter must be open at all times. It is the only source of air into the freezing cylinder. Check this daily!

Figure 10-1 Air Meter

The mix will be a factor in determining the amount of overrun you will be able to achieve. Some mixes will accept more air than others, thus affecting the size of air meter you can use. Test to see which air meter will give you the best overrun and the best product. Run each air meter for a few hours until you decide.

You may have a slightly higher overrun when you first start up the machine. After the machine has run long enough to dispense at least one full cylinder of product, you will have the overrun that the machine will hold the remainder of the day. Contact your mix supplier for the recommended amount of overrun for each product used.

27

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

28

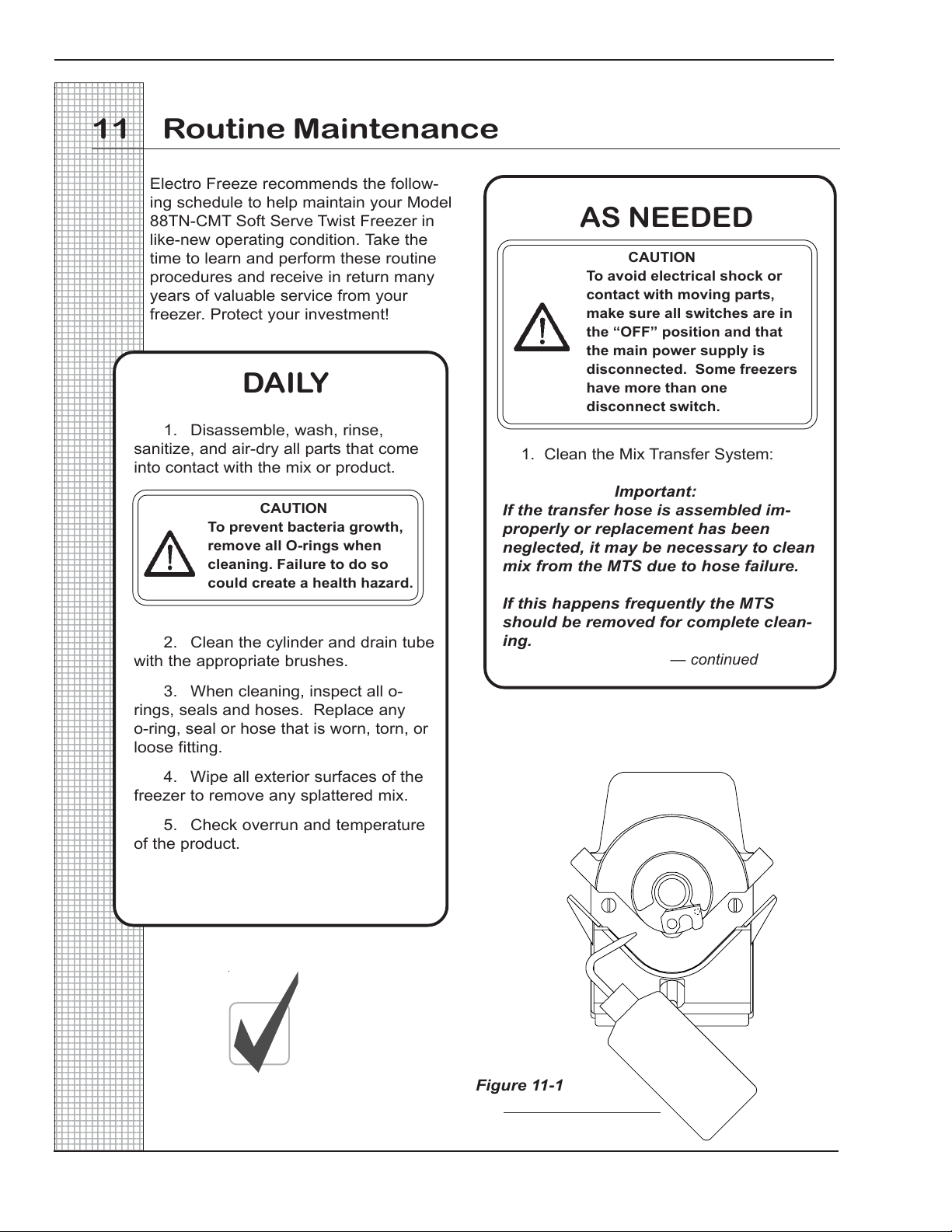

11 Routine Maintenance

Electro Freeze recommends the following schedule to help maintain your Model 88TN-CMT Soft Serve Twist Freezer in like-new operating condition. Take the time to learn and perform these routine procedures and receive in return many years of valuable service from your freezer. Protect your investment!

DAILY

1. Disassemble, wash, rinse, sanitize, and air-dry all parts that come into contact with the mix or product.

CAUTION To prevent bacteria growth, remove all O-rings when cleaning. Failure to do so could create a health hazard.

2. Clean the cylinder and drain tube

with the appropriate brushes.

3. When cleaning, inspect all orings, seals and hoses. Replace any o-ring, seal or hose that is worn, torn, or loose fitting.

4. Wipe all exterior surfaces of the freezer to remove any splattered mix.

5. Check overrun and temperature of the product.

AS NEEDED

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

1. Clean the Mix Transfer System:

Important: If the transfer hose is assembled improperly or replacement has been neglected, it may be necessary to clean mix from the MTS due to hose failure.

If this happens frequently the MTS should be removed for complete cleaning.

— continued

Figure 11-1

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

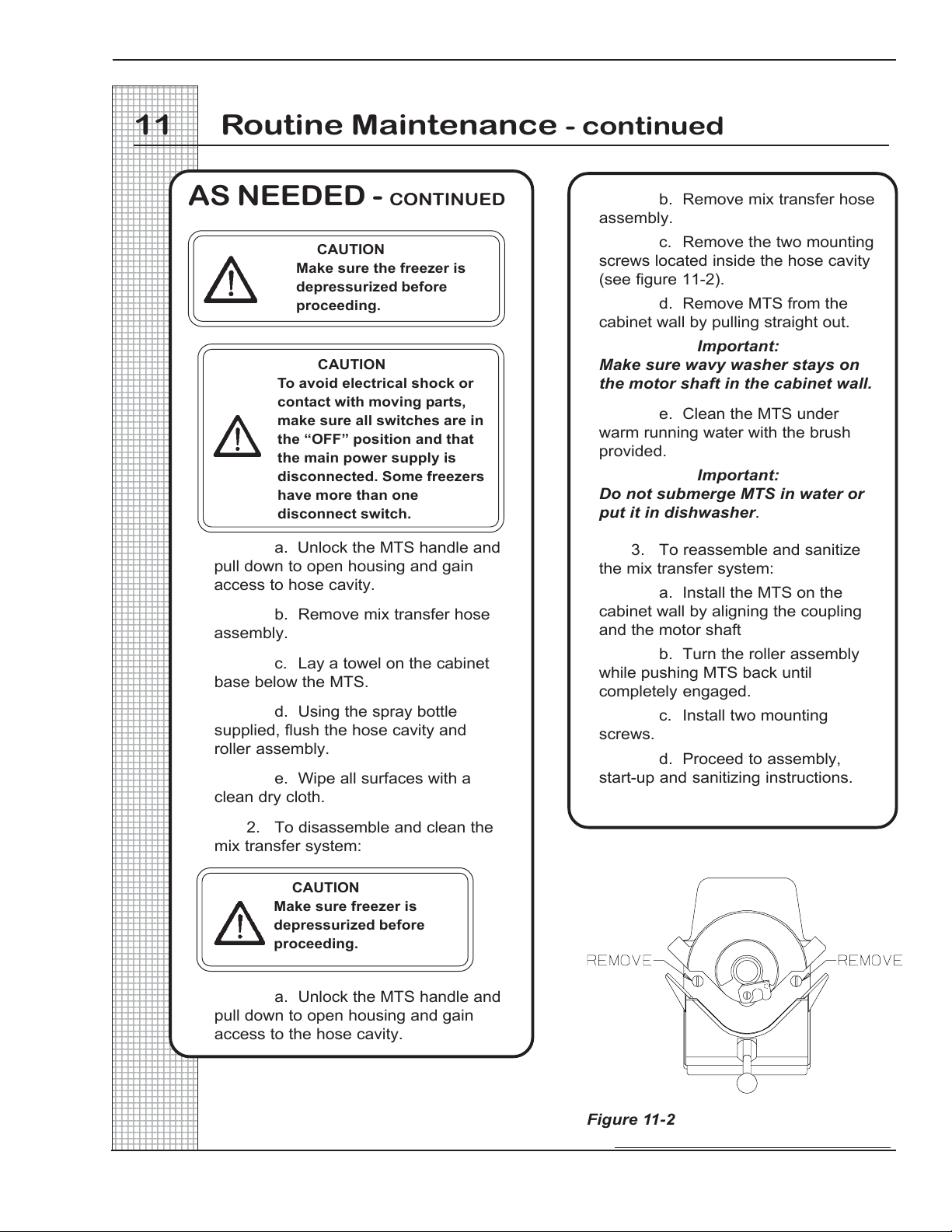

11 Routine Maintenance - continued

23456789012345

184833

AS NEEDED - CONTINUED

CAUTION Make sure the freezer is depressurized before proceeding.

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

a. Unlock the MTS handle and pull down to open housing and gain access to hose cavity.

b. Remove mix transfer hose assembly.

c. Lay a towel on the cabinet base below the MTS.

d. Using the spray bottle supplied, flush the hose cavity and roller assembly.

e. Wipe all surfaces with a clean dry cloth.

2. To disassemble and clean the

mix transfer system:

CAUTION Make sure freezer is depressurized before proceeding.

a. Unlock the MTS handle and

pull down to open housing and gain access to the hose cavity.

assembly.

screws located inside the hose cavity (see figure 11-2).

cabinet wall by pulling straight out.

Make sure wavy washer stays on the motor shaft in the cabinet wall.

warm running water with the brush provided.

Do not submerge MTS in water or put it in dishwasher.

the mix transfer system:

cabinet wall by aligning the coupling and the motor shaft

while pushing MTS back until completely engaged.

screws.

start-up and sanitizing instructions.

Figure 11-2

b. Remove mix transfer hose

c. Remove the two mounting

d. Remove MTS from the

Important:

e. Clean the MTS under

Important:

3. To reassemble and sanitize

a. Install the MTS on the

b. Turn the roller assembly

c. Install two mounting

d. Proceed to assembly,

29

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

30

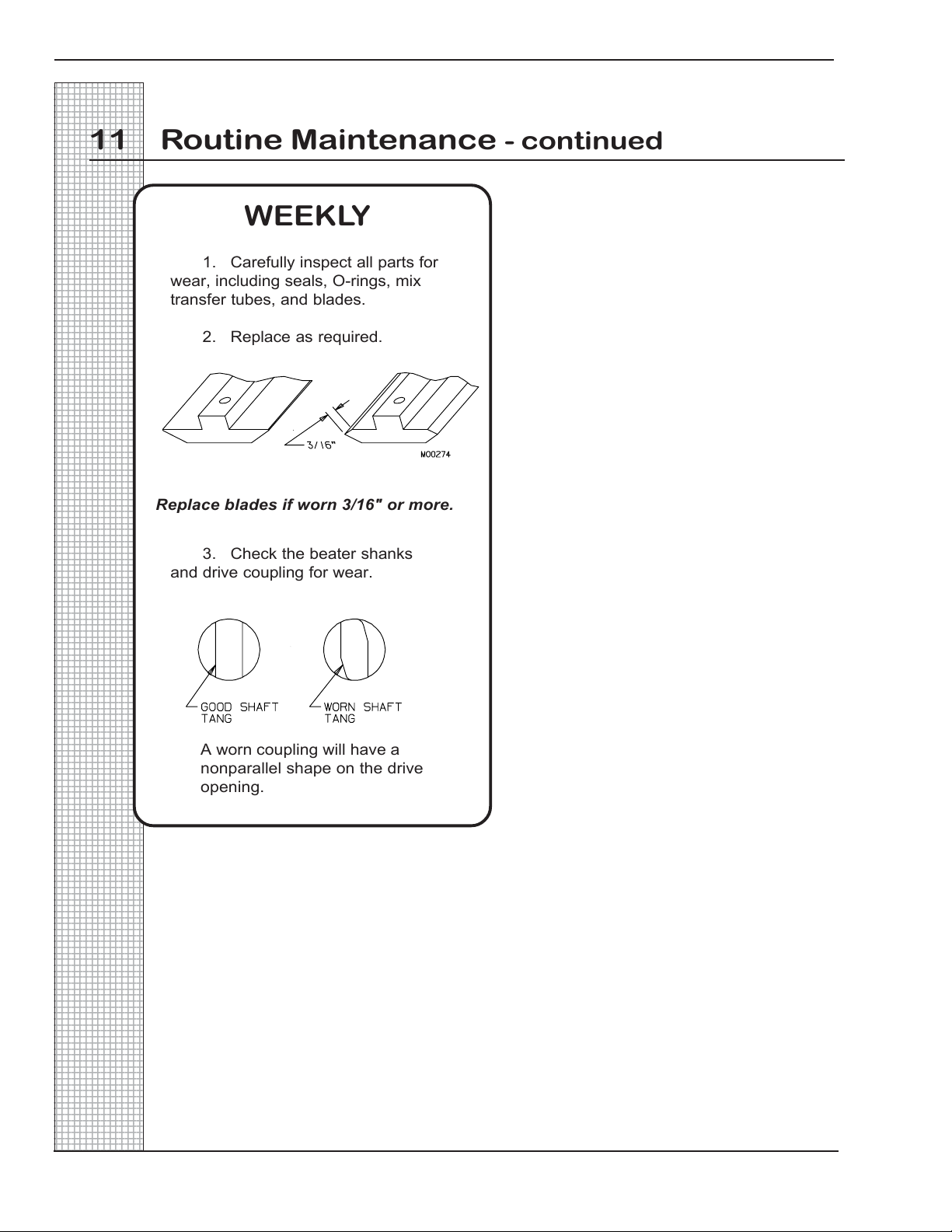

11 Routine Maintenance - continued

wear, including seals, O-rings, mix transfer tubes, and blades.

Replace blades if worn 3/16" or more.

and drive coupling for wear.

WEEKLY

1. Carefully inspect all parts for

2. Replace as required.

3. Check the beater shanks

A worn coupling will have a nonparallel shape on the drive opening.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

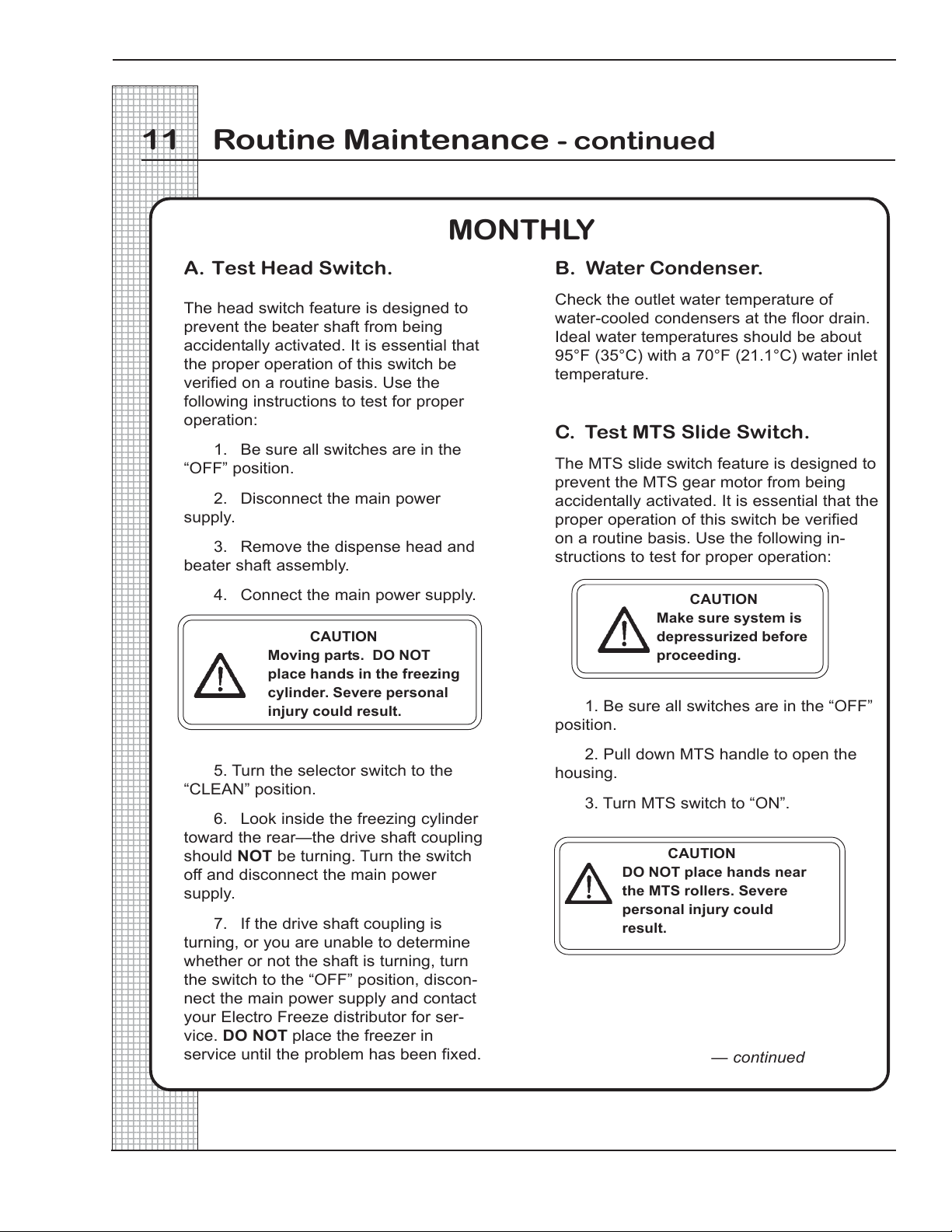

11 Routine Maintenance - continued

23456789012345

184833

A. Test Head Switch.

The head switch feature is designed to prevent the beater shaft from being accidentally activated. It is essential that the proper operation of this switch be verified on a routine basis. Use the following instructions to test for proper operation:

1. Be sure all switches are in the

“OFF” position.

2. Disconnect the main power

supply.

3. Remove the dispense head and

beater shaft assembly.

4. Connect the main power supply.

CAUTION Moving parts. DO NOT place hands in the freezing cylinder. Severe personal injury could result.

5. Turn the selector switch to the

“CLEAN” position.

6. Look inside the freezing cylinder toward the rear—the drive shaft coupling should NOT be turning. Turn the switch off and disconnect the main power supply.

7. If the drive shaft coupling is turning, or you are unable to determine whether or not the shaft is turning, turn the switch to the “OFF” position, disconnect the main power supply and contact your Electro Freeze distributor for service. DO NOT place the freezer in service until the problem has been fixed.

MONTHLY

B. Water Condenser.

Check the outlet water temperature of water-cooled condensers at the floor drain. Ideal water temperatures should be about 95°F (35°C) with a 70°F (21.1°C) water inlet temperature.

C. Test MTS Slide Switch.

The MTS slide switch feature is designed to prevent the MTS gear motor from being accidentally activated. It is essential that the proper operation of this switch be verified on a routine basis. Use the following instructions to test for proper operation:

CAUTION Make sure system is depressurized before proceeding.

1. Be sure all switches are in the “OFF”

position.

2. Pull down MTS handle to open the

housing.

3. Turn MTS switch to “ON”.

CAUTION DO NOT place hands near the MTS rollers. Severe personal injury could result.

— continued

31

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

32

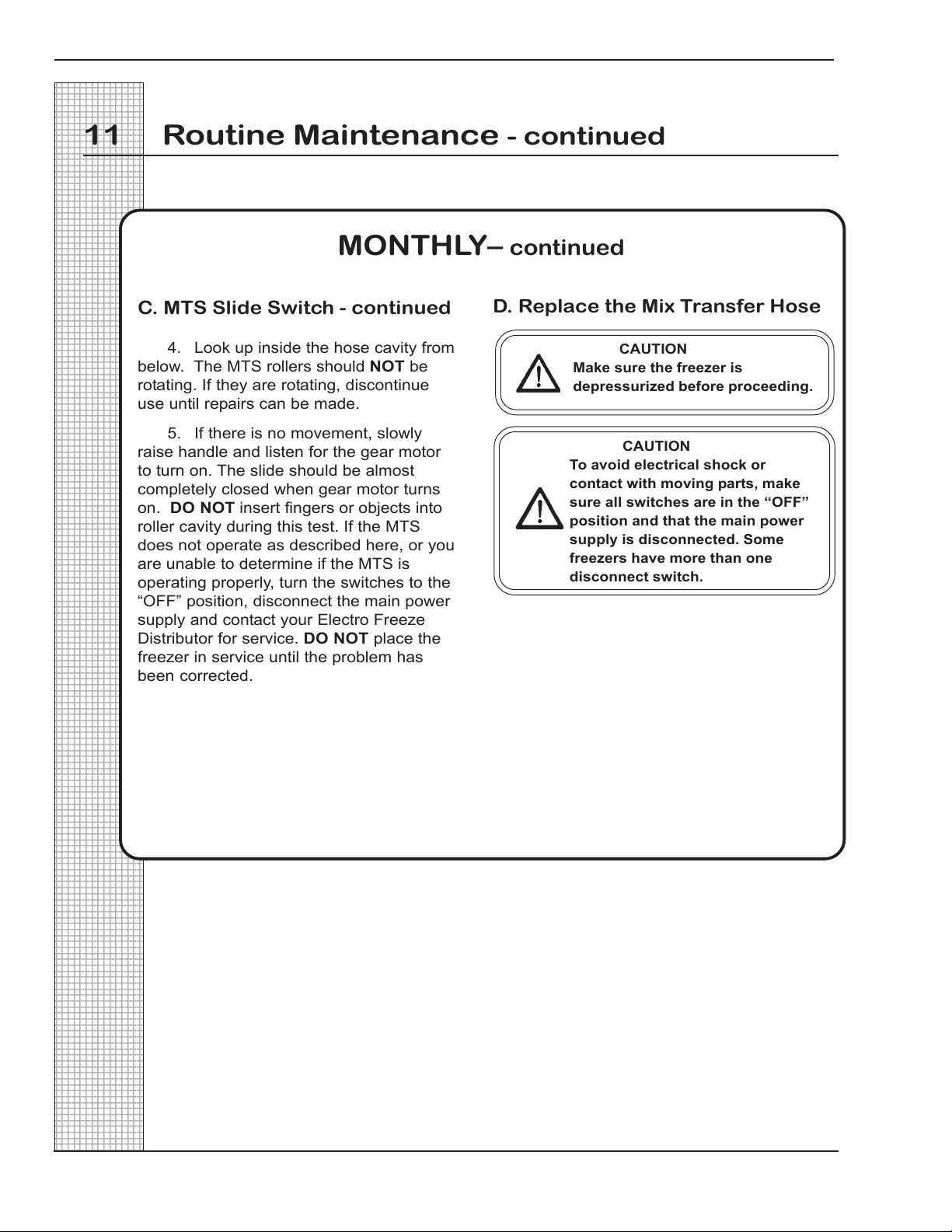

11 Routine Maintenance - continued

C. MTS Slide Switch - continued

4. Look up inside the hose cavity from below. The MTS rollers should NOT be rotating. If they are rotating, discontinue use until repairs can be made.

5. If there is no movement, slowly raise handle and listen for the gear motor to turn on. The slide should be almost completely closed when gear motor turns on. DO NOT insert fingers or objects into roller cavity during this test. If the MTS does not operate as described here, or you are unable to determine if the MTS is operating properly, turn the switches to the “OFF” position, disconnect the main power supply and contact your Electro Freeze Distributor for service. DO NOT place the freezer in service until the problem has been corrected.

MONTHLY– continued

D. Replace the Mix Transfer Hose

CAUTION Make sure the freezer is depressurized before proceeding.

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

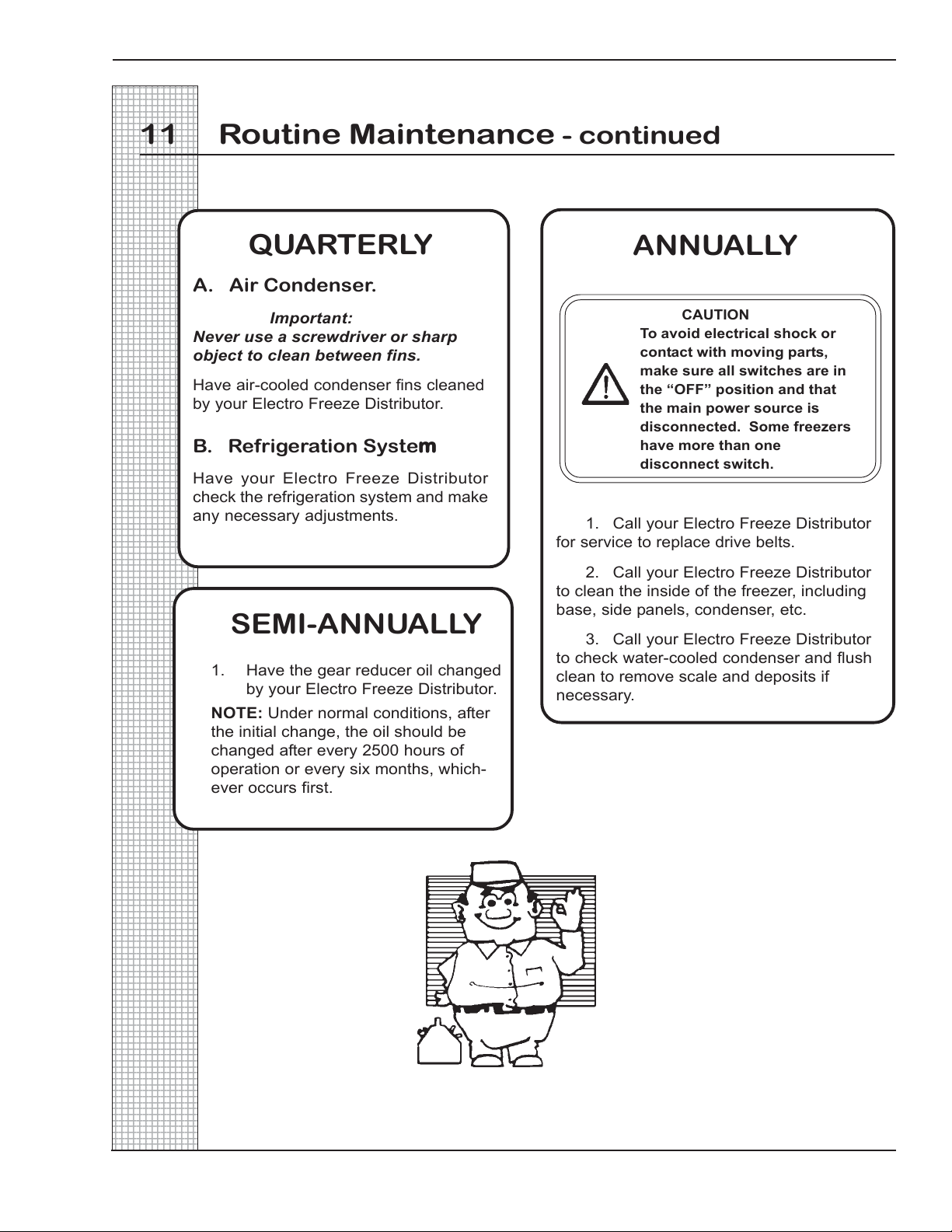

11 Routine Maintenance - continued

23456789012345

184833

A. Air Condenser.

Never use a screwdriver or sharp object to clean between fins.

Have air-cooled condenser fins cleaned by your Electro Freeze Distributor.

B. Refrigeration Syste

Have your Electro Freeze Distributor check the refrigeration system and make any necessary adjustments.

QUARTERLY

Important:

mm

m

mm

SEMI-ANNUALLY

1. Have the gear reducer oil changed by your Electro Freeze Distributor.

NOTE: Under normal conditions, after the initial change, the oil should be changed after every 2500 hours of operation or every six months, whichever occurs first.

ANNUALLY

CAUTION To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power source is disconnected. Some freezers have more than one disconnect switch.

1. Call your Electro Freeze Distributor

for service to replace drive belts.

2. Call your Electro Freeze Distributor to clean the inside of the freezer, including base, side panels, condenser, etc.

3. Call your Electro Freeze Distributor to check water-cooled condenser and flush clean to remove scale and deposits if necessary.

33

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

34

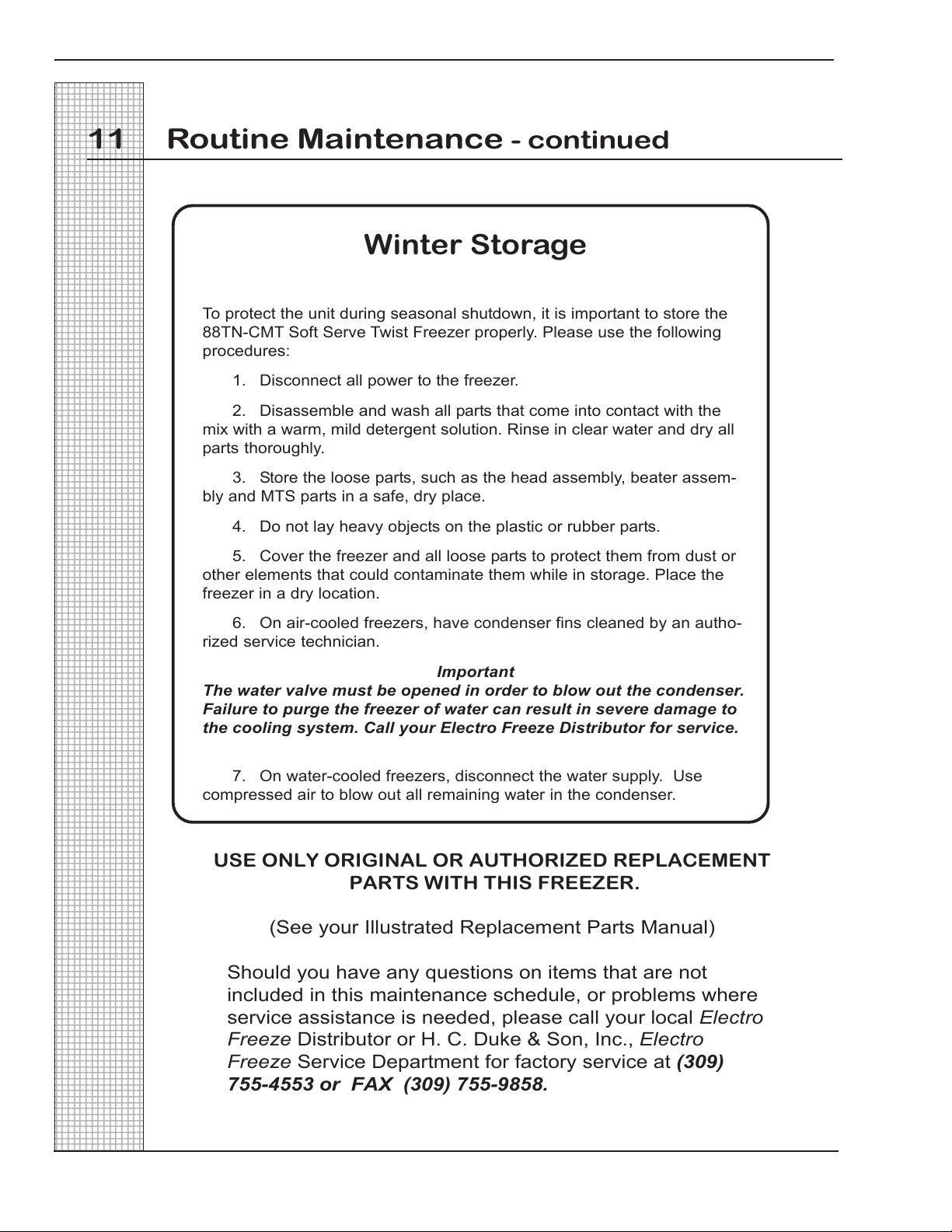

11 Routine Maintenance - continued

To protect the unit during seasonal shutdown, it is important to store the 88TN-CMT Soft Serve Twist Freezer properly. Please use the following procedures:

1. Disconnect all power to the freezer.

2. Disassemble and wash all parts that come into contact with the mix with a warm, mild detergent solution. Rinse in clear water and dry all parts thoroughly.

3. Store the loose parts, such as the head assembly, beater assembly and MTS parts in a safe, dry place.

4. Do not lay heavy objects on the plastic or rubber parts.

5. Cover the freezer and all loose parts to protect them from dust or other elements that could contaminate them while in storage. Place the freezer in a dry location.

6. On air-cooled freezers, have condenser fins cleaned by an authorized service technician.

The water valve must be opened in order to blow out the condenser. Failure to purge the freezer of water can result in severe damage to the cooling system. Call your Electro Freeze Distributor for service.

7. On water-cooled freezers, disconnect the water supply. Use compressed air to blow out all remaining water in the condenser.

USE ONLY ORIGINAL OR AUTHORIZED REPLACEMENT

(See your Illustrated Replacement Parts Manual)

Should you have any questions on items that are not included in this maintenance schedule, or problems where service assistance is needed, please call your local Electro

Freeze Distributor or H. C. Duke & Son, Inc., Electro Freeze Service Department for factory service at (309)

755-4553 or FAX (309) 755-9858.

Winter Storage

Important

PARTS WITH THIS FREEZER.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

12 Troubleshooting Tables

23456789012345

184833

THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT PERSONAL SAFETY MESSAGES IN THIS MANUAL. WHEN YOU SEE THIS SYMBOL, BE ALERT TO THE POSSIBILITY OF PERSONAL INJURY. DO NOT ATTEMPT TO CONTINUE UNTIL THE SAFETY PRECAUTIONS ARE THOROUGHLY UNDERSTOOD.

To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

Some refrigerants are hazardous to the earth’s atmosphere. To protect our environment, use a refrigerant recovery/recycling unit when removing refrigerant from the system.

All maintenance adjustments must be done by an Electro Freeze Distributor or authorized service technician.

SAFETY SAFETY

SAFETY

SAFETY SAFETY

CAUTION

Important:

35

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

PROBLEM PROBABLE CAUSE REMEDY

2345678901234

Leakage of mix

2345678901234

or water from

2345678901234

drain tube to drip

2345678901234

tray.

2345678901234

Mix leaking at

2345678901234

dispensing

2345678901234

head.

2345678901234

36

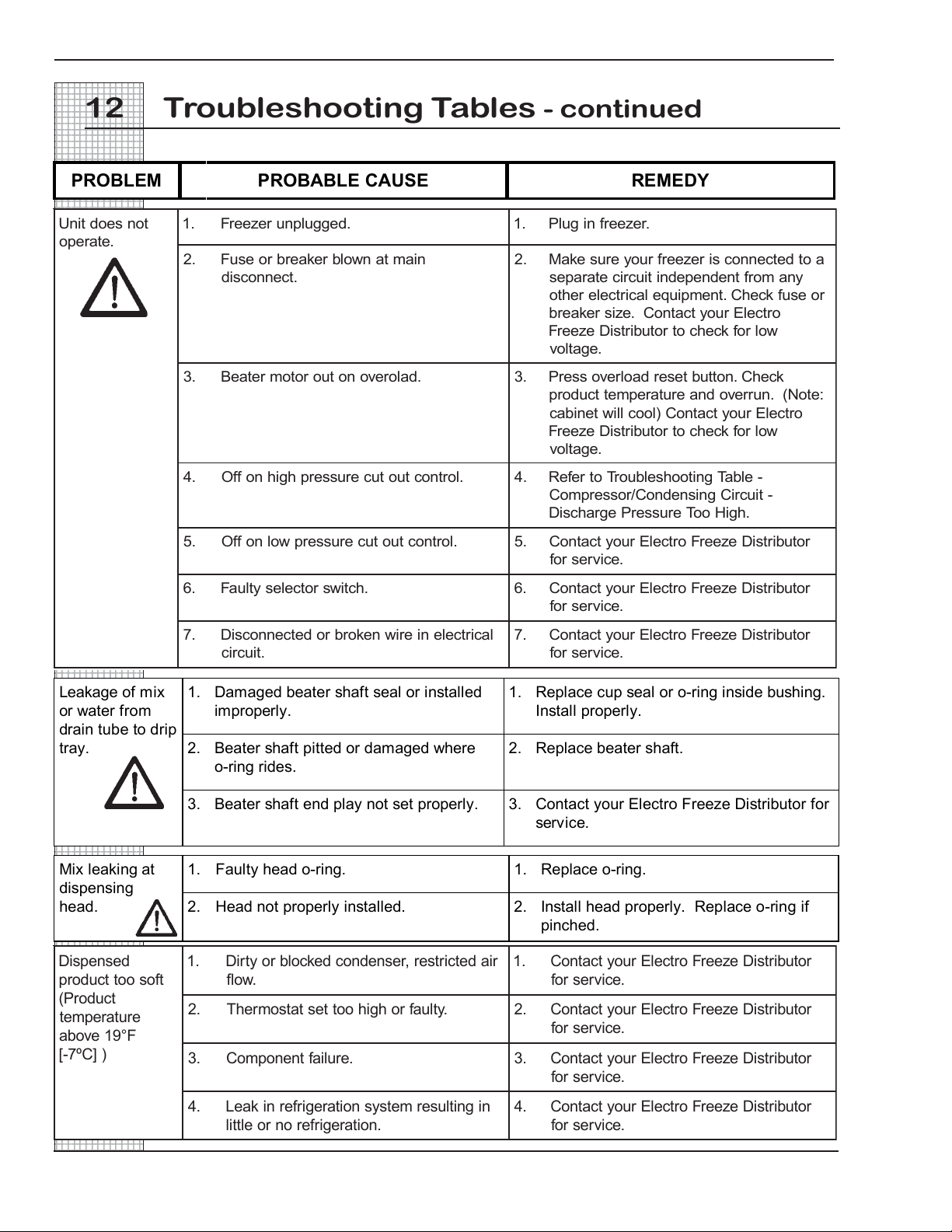

12 Troubleshooting Tables - continued

tonseodtinU

.1.deggulpnurezeerF.1.rezeerfnigulP

.etarepo

.2niamtanwolbrekaerbroesuF

.2aotdetcennocsirezeerfruoyerusekaM

.tcennocsid

.egatlov

.3.dalorevonotuorotomretaeB.3kcehC.nottubteserdaolrevosserP

.egatlov

.4.lortnoctuotucerusserphgihnoffO.4-elbaTgnitoohselbuorTotrefeR

.5.lortnoctuotucerusserpwolnoffO.5rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.6.hctiwsrotcelesytluaF.6rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.7lacirtcelenieriwnekorbrodetcennocsiD

.tiucric

1. Damaged beater shaft seal or installed improperly.

2. Beater shaft pitted or damaged where

.7rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

1. Replace cup seal or o-ring inside bushing. Install properly.

2. Replace beater shaft.

o-ring rides.

3. Beater shaft end play not set properly. 3. Contact your Electro Freeze Distributor for service.

1. Faulty head o-ring. 1. Replace o-ring.

2. Head not properly installed. 2. Install head properly. Replace o-ring if

pinched.

desnepsiD

tcudorP(

erutarepmet

F°91evoba

)]Cº7-[

.1riadetcirtser,resnednocdekcolbroytriD

tfosoottcudorp

.wolf

.2.ytluafrohgihoottestatsomrehT.2rotubirtsiDezeerFortcelEruoytcatnoC

.3.eruliaftnenopmoC.3rotubirtsiDezeerFortcelEruoytcatnoC

.1rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.4nignitlusermetsysnoitaregirfernikaeL

.noitaregirferonroelttil

.4rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

ynamorftnednepednitiucricetarapes

roesufkcehC.tnempiuqelacirtcelerehto

ortcelEruoytcatnoC.ezisrekaerb

wolrofkcehcotrotubirtsiDezeerF

:etoN(.nurrevodnaerutarepmettcudorp

ortcelEruoytcatnoC)looclliwtenibac

wolrofkcehcotrotubirtsiDezeerF

-tiucriCgnisnednoC/rosserpmoC

.hgiHooTerusserPegrahcsiD

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

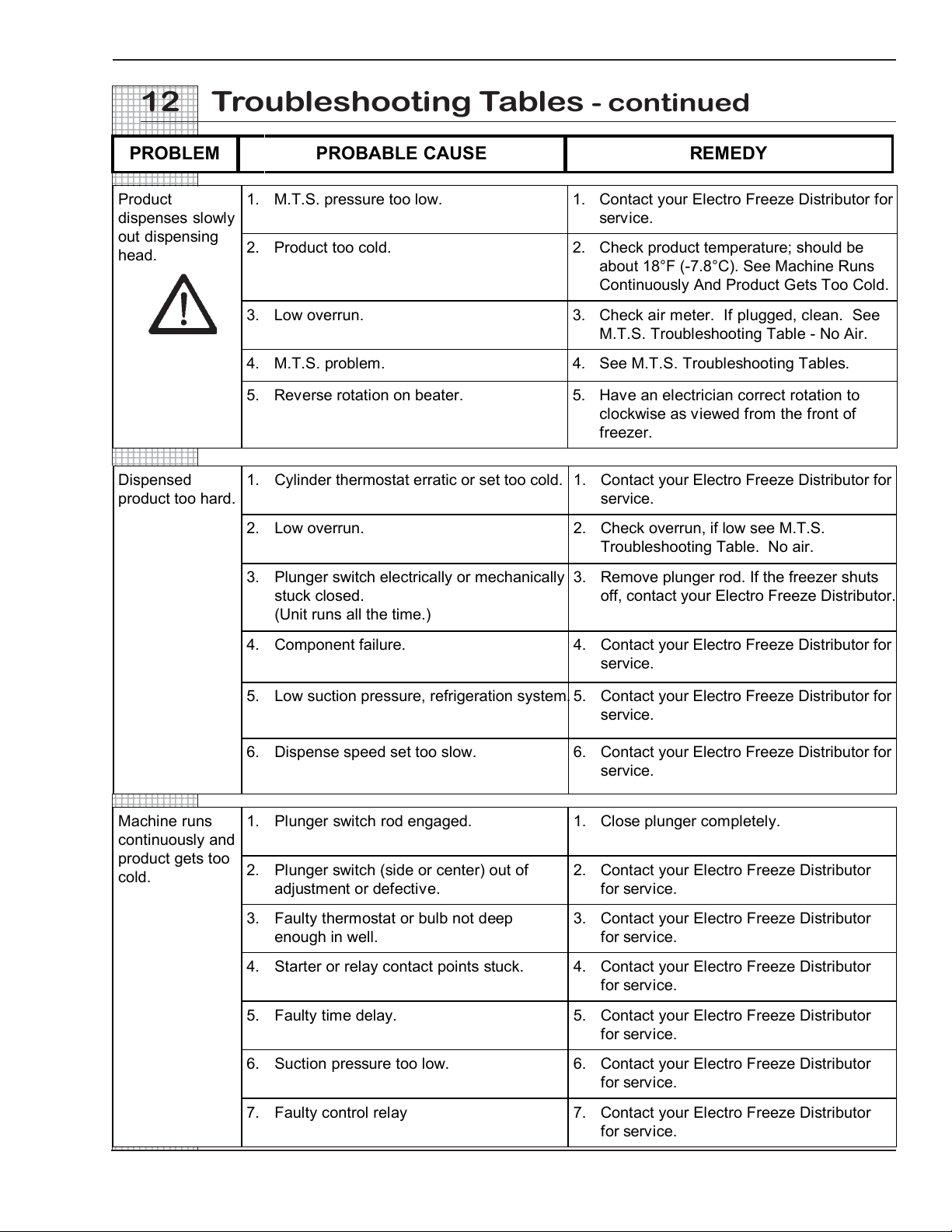

12 Troubleshooting Tables - continued

23456789012345

PROBLEM PROBABLE CAUSE REMEDY

23456789012345

Product

23456789012345

dispenses slowly

23456789012345

out dispensing

23456789012345

head.

23456789012345

Dispensed

23456789012345

product too hard.

23456789012345

Machine runs

23456789012345

continuously and

23456789012345

product gets too

23456789012345

cold.

23456789012345

184833

1. M.T.S. pressure too low. 1. Contact your Electro Freeze Distributor for service.

2. Product too cold. 2. Check product temperature; should be about 18°F (-7.8°C). See Machine Runs Continuously And Product Gets Too Cold.

3. Low overrun. 3. Check air meter. If plugged, clean. See M.T.S. Troubleshooting Table - No Air.

4. M.T.S. problem. 4. See M.T.S. Troubleshooting Tables.

5. Reverse rotation on beater. 5. Have an electrician correct rotation to clockwise as viewed from the front of freezer.

1. Cylinder thermostat erratic or set too cold. 1. Contact your Electro Freeze Distributor for service.

2. Low overrun. 2. Check overrun, if low see M.T.S. Troubleshooting Table. No air.

3. Plunger switch electrically or mechanically

stuck closed.

3. Remove plunger rod. If the freezer shuts off, contact your Electro Freeze Distributor.

(Unit runs all the time.)

4. Component failure. 4. Contact your Electro Freeze Distributor for service.

5. Low suction pressure, refrigeration system. 5. Contact your Electro Freeze Distributor for service.

6. Dispense speed set too slow. 6. Contact your Electro Freeze Distributor for service.

1. Plunger switch rod engaged. 1. Close plunger completely.

2. Plunger switch (side or center) out of

adjustment or defectiv e.

3. Faulty thermostat or bulb not deep

enough in well.

2. Contact your Electro Freeze Distributor for service.

3. Contact your Electro Freeze Distributor for service.

4. Starter or relay contact points stuck. 4. Contact your Electro Freeze Distributor for service.

5. Faulty time delay. 5. Contact your Electro Freeze Distributor for service.

6. Suction pressure too low. 6. Contact your Electro Freeze Distributor for service.

7. Faulty control relay 7. Contact your Electro Freeze Distributor for service.

37

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

PROBLEM PROBABLE CAUSE REMEDY

2345678901234

Poor or slow

2345678901234

product recovery.

2345678901234

Beater motor

2345678901234

does not

2345678901234

operate.

2345678901234

Compressor and

2345678901234

beater motor

2345678901234

operates only

2345678901234

when

2345678901234

dispensing.

2345678901234

38

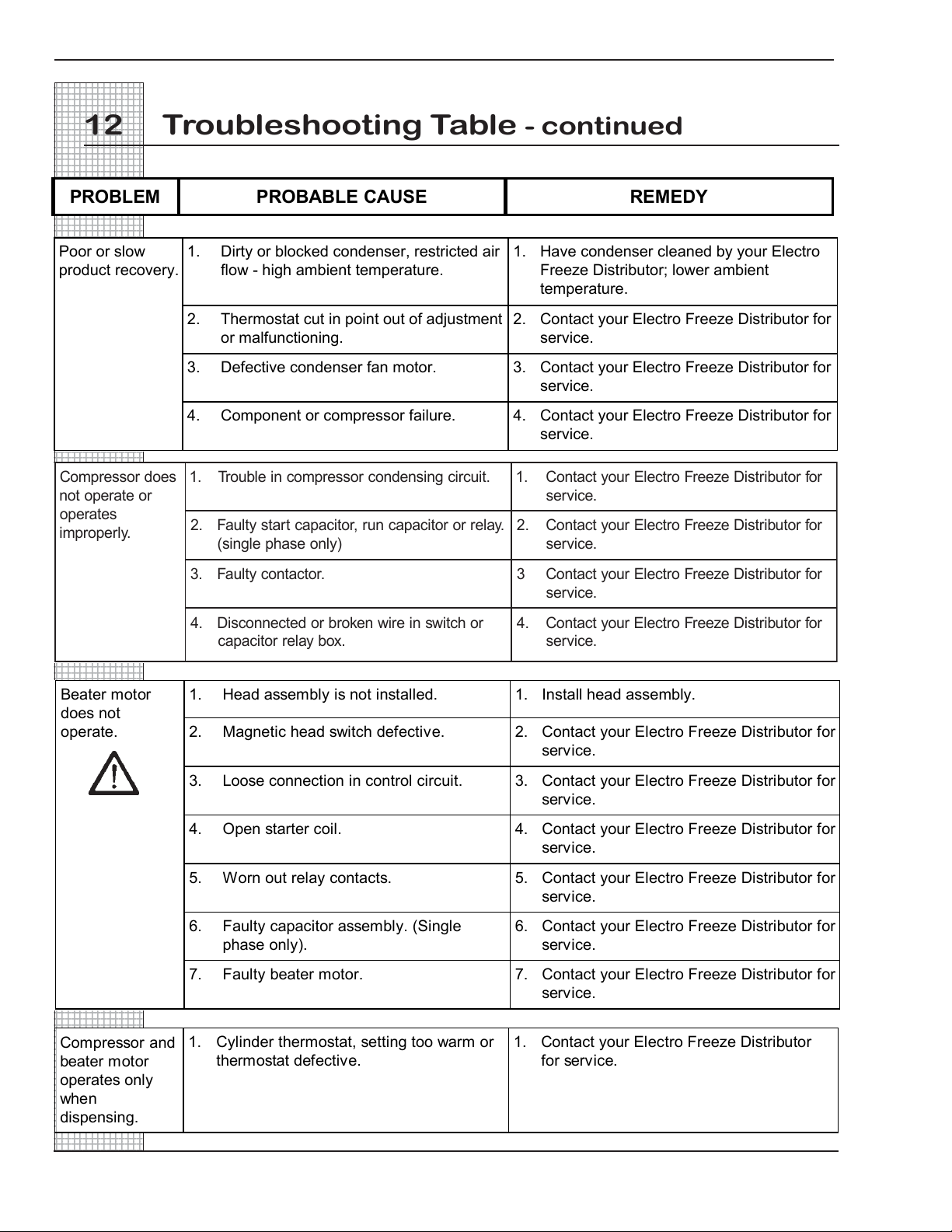

12 Troubleshooting Table - continued

setarepo

.ylreporpmi

1. Dirty or blocked condenser, restricted air flow - high ambient temperature.

1. Have condenser cleaned by your Electro Freeze Distributor; lower ambient temperature.

2. Thermostat cut in point out of adjustment or malfunctioning.

2. Contact your Electro Freeze Distributor for service.

3. Defective condenser fan motor. 3. Contact your Electro Freeze Distributor for service.

4. Component or compressor failure. 4. Contact your Electro Freeze Distributor for service.

seodrosserpmoC

.1.tiucricgnisnednocrosserpmocnielbuorT.1rofrotubirtsiDezeerFortcelEruoytcatnoC

roetarepoton

.2.yalerroroticapacnur,roticapactratsytluaF

.2rofrotubirtsiDezeerFortcelEruoytcatnoC

)ylnoesahpelgnis(

.ecivres

.3.rotcatnocytluaF3rofrotubirtsiDezeerFortcelEruoytcatnoC

.ecivres

.4rohctiwsnieriwnekorbrodetcennocsiD

.xobyalerroticapac

.4rofrotubirtsiDezeerFortcelEruoytcatnoC

.ecivres

1. Head assembly is not installed. 1. Install head assembly.

2. Magnetic head switch defective. 2. Contact your Electro Freeze Distributor for service.

3. Loose connection in control circuit. 3. Contact your Electro Freeze Distributor for service.

4. Open starter coil. 4. Contact your Electro Freeze Distributor for service.

5. Worn out relay contacts. 5. Contact your Electro Freeze Distributor for service.

6. Faulty capacitor assembly. (Single

phase only).

6. Contact your Electro Freeze Distributor for service.

7. Faulty beater motor. 7. Contact your Electro Freeze Distributor for service.

1. Cylinder thermostat, setting too warm or thermostat defectiv e.

1. Contact your Electro Freeze Distributor for service.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

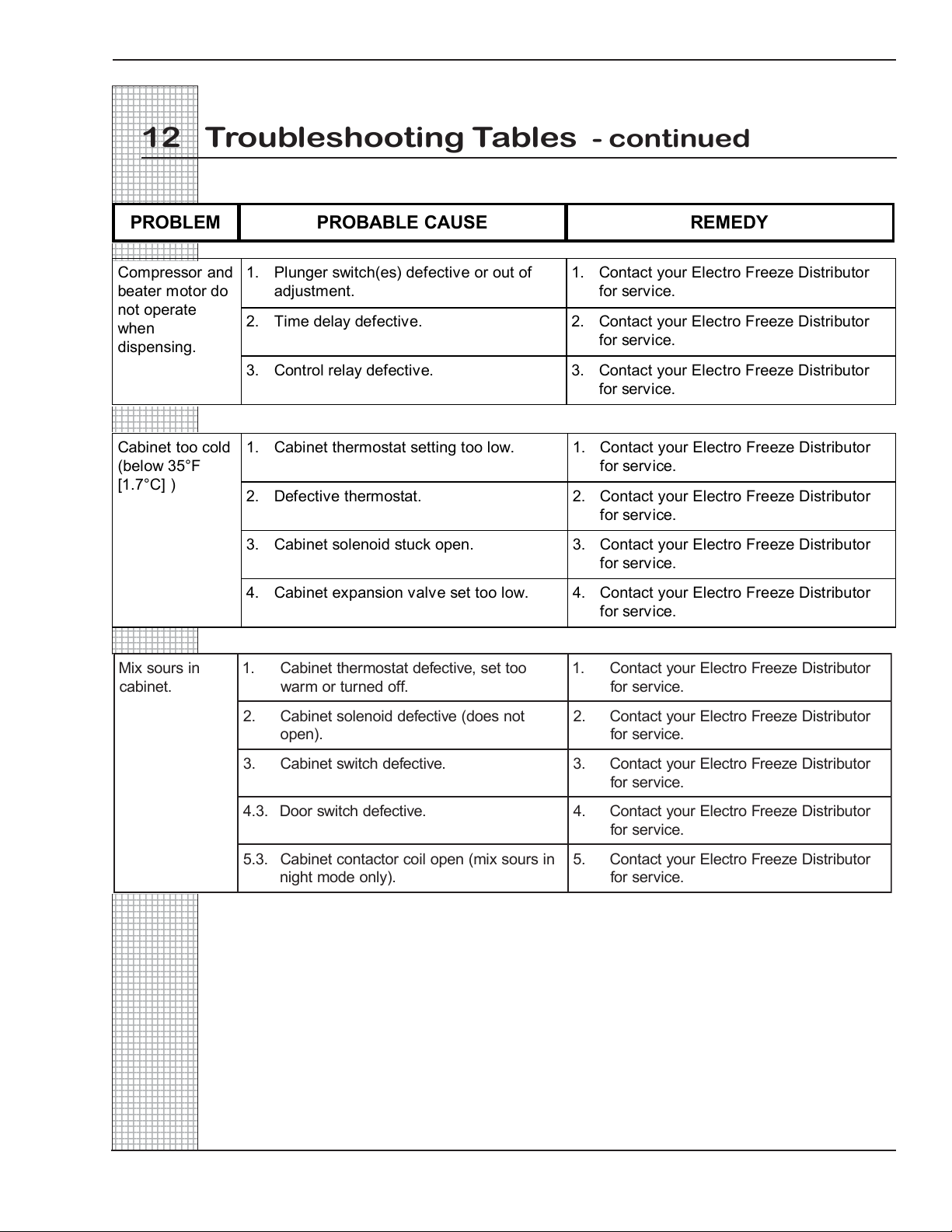

12 Troubleshooting Tables - continued

23456789012345

PROBLEM PROBABLE CAUSE REMEDY

23456789012345

Compressor and

23456789012345

beater motor do

23456789012345

not operate

23456789012345

when

23456789012345

dispensing.

23456789012345

Cabinet too cold

23456789012345

(below 35°F

23456789012345

[1.7°C] )

23456789012345

184833

nisruosxiM

.tenibac

1. Plunger switch(es) defective or out of adjustment.

1. Contact your Electro Freeze Distributor for service.

2. Time delay defective. 2. Contact your Electro Freeze Distributor for service.

3. Control relay defectiv e. 3. Contact your Electro Freeze Distributor for service.

1. Cabinet thermostat setting too low. 1. Contact your Electro Freeze Distributor for service.

2. Defective thermostat. 2. Contact your Electro Freeze Distributor for service.

3. Cabinet solenoid stuck open. 3. Contact your Electro Freeze Distributor for service.

4. Cabinet expansion valve set too low. 4. Contact your Electro Freeze Distributor for service.

.1oottes,evitcefedtatsomrehttenibaC

.ffodenrutromraw

.2tonseod(evitcefeddionelostenibaC

.)nepo

.1rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.2rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.3.evitcefedhctiwstenibaC.3rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.3.4.evitcefedhctiwsrooD.4rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.3.5nisruosxim(nepoliocrotcatnoctenibaC

.)ylnoedomthgin

.5rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

39

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

PROBLEM PROBABLE CAUSE REMEDY

2345678901234

40

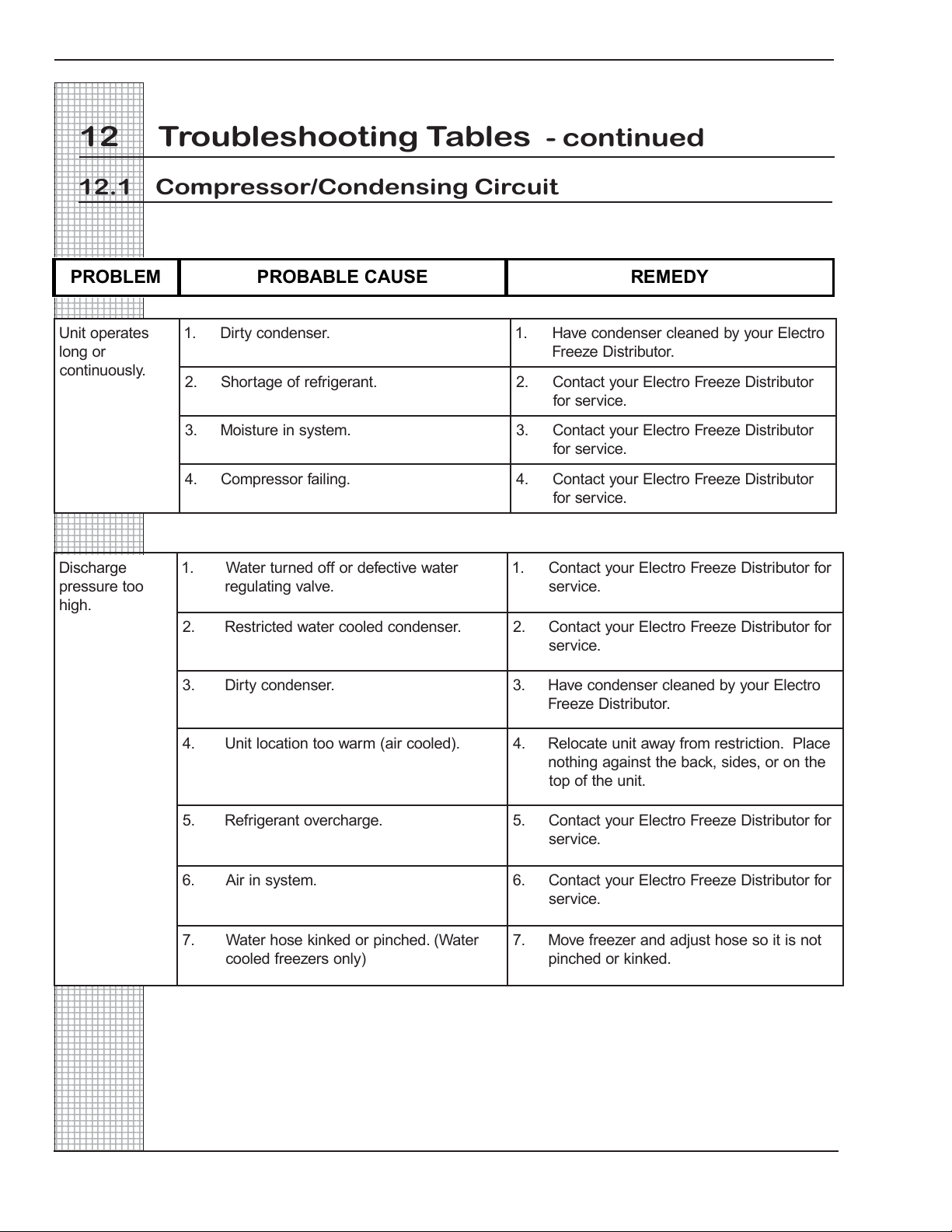

12 Troubleshooting Tables - continued

12.1 Compressor/Condensing Circuit

.hgih

setarepotinU

.1.resnednocytriD.1ortcelEruoyybdenaelcresnednocevaH

rognol

.ylsuounitnoc

.2.tnaregirferfoegatrohS.2rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.3.metsysnierutsioM.3rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.4.gniliafrosserpmoC.4rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

egrahcsiD

ooterusserp

.1retawevitcefedroffodenrutretaW

.1rofrotubirtsiDezeerFortcelEruoytcatnoC

.evlavgnitaluger

.ecivres

.2.resnednocdeloocretawdetcirtseR.2rofrotubirtsiDezeerFortcelEruoytcatnoC

.ecivres

.3.resnednocytriD.3ortcelEruoyybdenaelcresnednocevaH

.4.)deloocria(mrawootnoitacoltinU.4ecalP.noitcirtsermorfyawatinuetacoleR

.tinuehtfopot

.5.egrahcrevotnaregirfeR.5rofrotubirtsiDezeerFortcelEruoytcatnoC

.ecivres

.6.metsysniriA.6rofrotubirtsiDezeerFortcelEruoytcatnoC

.ecivres

.7retaW(.dehcniprodeknikesohretaW

.7tonsitiosesohtsujdadnarezeerfevoM

)ylnosrezeerfdelooc

.rotubirtsiDezeerF

ehtnoro,sedis,kcabehttsniagagnihton

.deknikrodehcnip

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

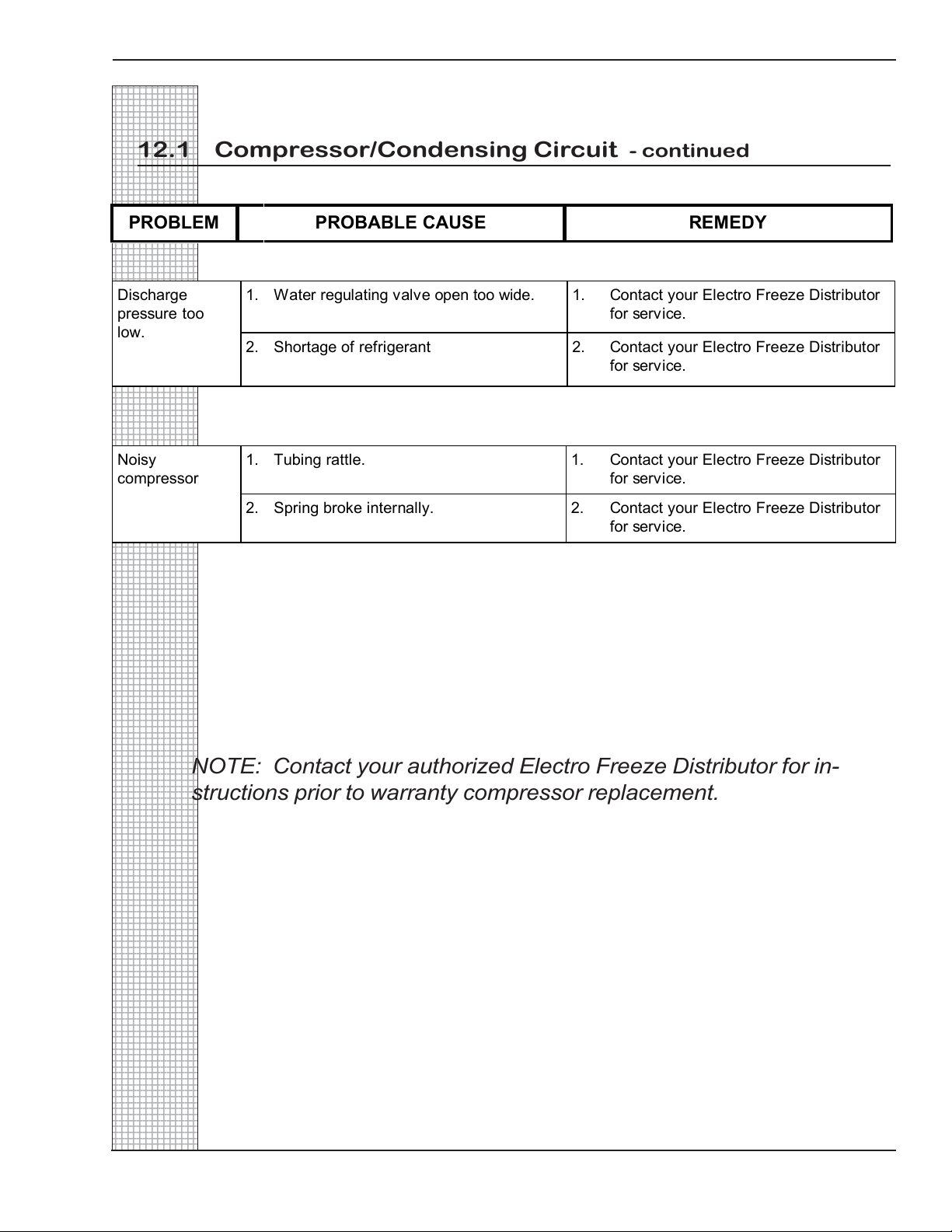

12.1 Compressor/Condensing Circuit - continued

23456789012345

PROBLEM PROBABLE CAUSE REMEDY

23456789012345

Discharge

23456789012345

pressure too

23456789012345

low.

23456789012345

Noisy

23456789012345

compressor

23456789012345

184833

NOTE: Contact your authorized Electro Freeze Distributor for instructions prior to warranty compressor replacement.

1. Water regulating valve open too wide. 1. Contact your Electro Freeze Distributor

for service.

2. Shortage of refrigerant 2. Contact your Electro Freeze Distributor

for service.

1. Tubing rattle. 1. Contact your Electro Freeze Distributor

for service.

2. Spring broke internally. 2. Contact your Electro Freeze Distributor

for service.

41

ELECTRO FREEZE Soft Serve Model 88TN-CMT

123456789012345

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

1

5

123456789012345

2345678901234

PROBLEM PROBABLE CAUSE REMEDY

2345678901234

Mix leaks out of

2345678901234

M.T.S.

2345678901234

M.T.S. cycles on

2345678901234

and off with out

2345678901234

dispensing.

2345678901234

M.T.S. will not

2345678901234

prime.

2345678901234

Mix pick up tube

2345678901234

losses prime.

2345678901234

No Air

2345678901234

(Overrun).

2345678901234

42

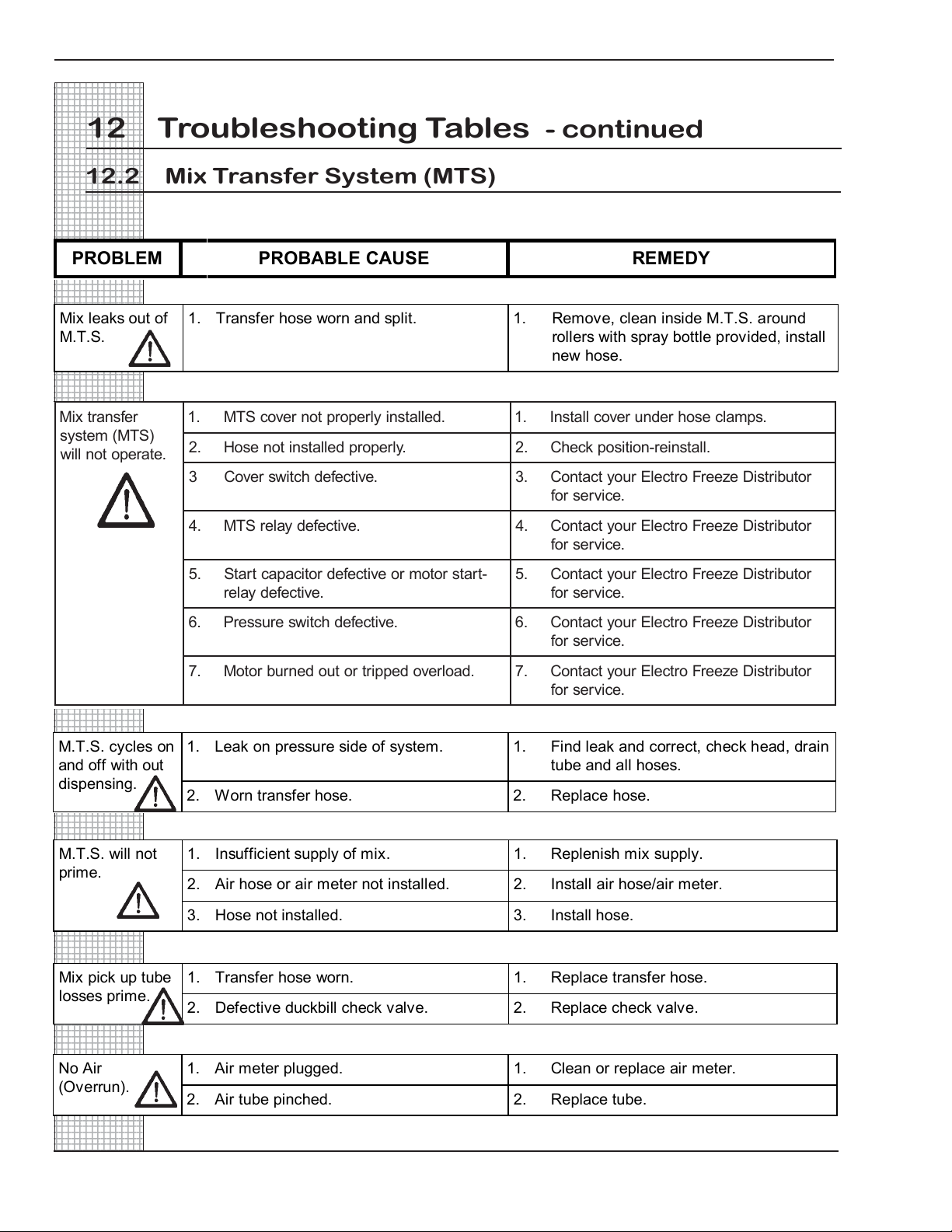

12 Troubleshooting Tables - continued

12.2 Mix Transfer System (MTS)

refsnartxiM

1. Transfer hose worn and split. 1. Remove, clean inside M.T.S. around rollers with spray bottle provided, install new hose.

.1.dellatsniylreporptonrevocSTM.1.spmalcesohrednurevocllatsnI

)STM(metsys

.2.ylreporpdellatsnitonesoH.2.llatsnier-noitisopkcehC

.etarepotonlliw

3.evitcefedhctiwsrevoC.3rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.4.evitcefedyalerSTM.4rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.5-tratsrotomroevitcefedroticapactratS

.evitcefedyaler

.5rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.6.evitcefedhctiwserusserP.6rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.7.daolrevodeppirtrotuodenrubrotoM.7rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

1. Leak on pressure side of system. 1. Find leak and correct, check head, drain tube and all hoses.

2. Worn transfer hose. 2. Replace hose.

1. Insufficient supply of mix. 1. Replenish mix supply.

2. Air hose or air meter not installed. 2. Install air hose/air meter.

3. Hose not installed. 3. Install hose.

1. Transfer hose worn. 1. Replace transfer hose.

2. Defective duckbill check valve. 2. Replace check valve.

1. Air meter plugged. 1. Clean or replace air meter.

2. Air tube pinched. 2. Replace tube.

184833

ELECTRO FREEZE Soft Serve Model 88TN-CMT

6

23456789012345

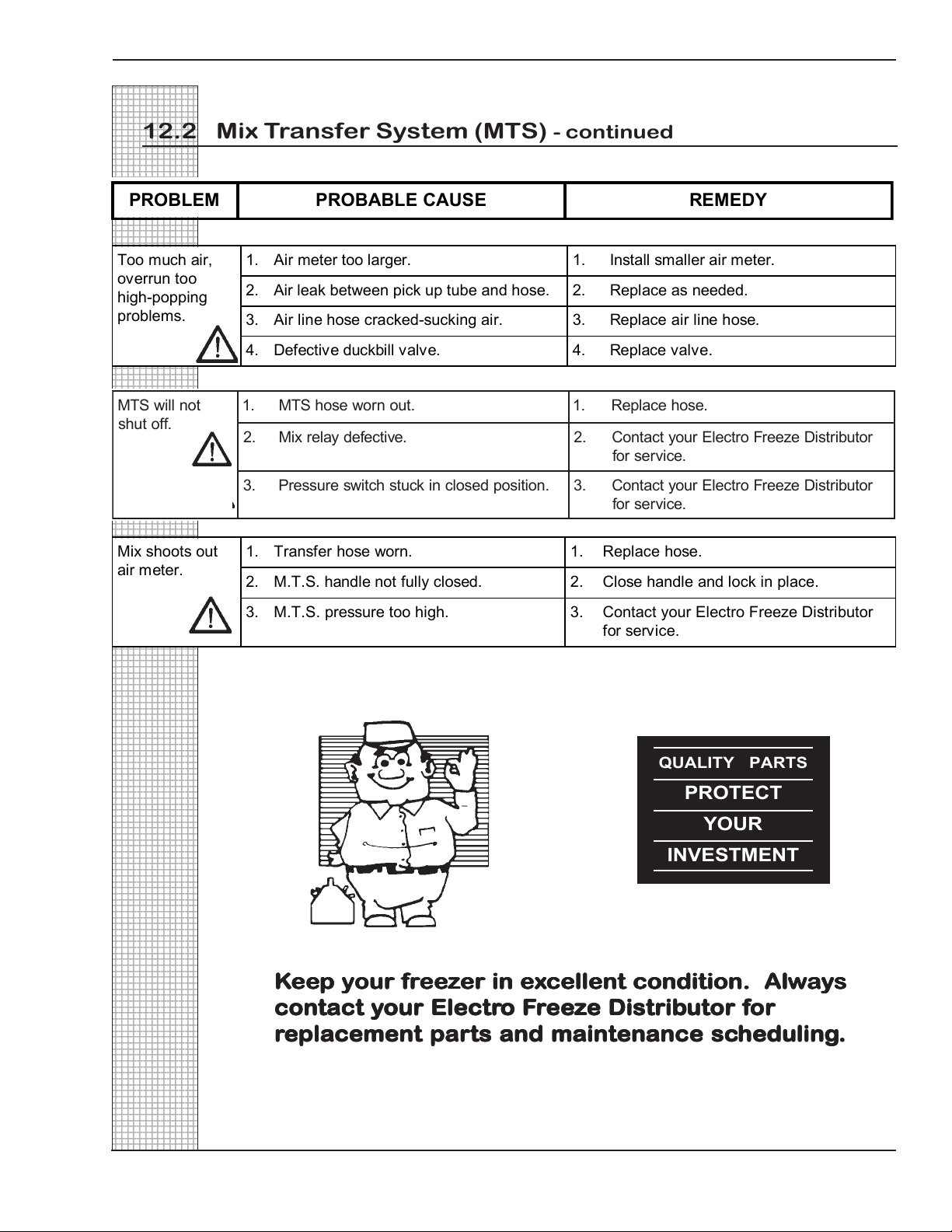

12.2 Mix Transfer System (MTS) - continued

23456789012345

PROBLEM PROBABLE CAUSE REMEDY

23456789012345

Too much air,

23456789012345

overrun too

23456789012345

high-popping

23456789012345

problems.

23456789012345

Mix shoots out

23456789012345

air meter.

23456789012345

184833

tonlliwSTM

.ffotuhs

1. Air meter too larger. 1. Install smaller air meter.

2. Air leak between pick up tube and hose. 2. Replace as needed.

3. Air line hose cracked-sucking air. 3. Replace air line hose.

4. Defective duckbill valve. 4. Replace valve.

.1.tuonrowesohSTM.1.esohecalpeR

.2.evitcefedyalerxiM.2rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

.3.noitisopdesolcnikcutshctiwserusserP.3rotubirtsiDezeerFortcelEruoytcatnoC

.ecivresrof

1. Transfer hose worn. 1. Replace hose.

2. M.T.S. handle not fully closed. 2. Close handle and lock in place.

3. M.T.S. pressure too high. 3. Contact your Electro Freeze Distributor for service.

QUALITY PARTS

PROTECT

YOUR

INVESTMENT

KK

eeee

p yp y

p y

p yp y

our frour fr

our fr

our frour fr

K

ee

KK

eeee

contact ycontact y

contact y

contact ycontact y rr

ee

placement parplacement par

r

e

placement par

rr

ee

placement parplacement par

eeee

zz

er in eer in e

ee

z

er in e

eeee

zz

er in eer in e

our Electrour Electr

our Electr

our Electrour Electr

ts and maintenance scts and maintenance sc

ts and maintenance sc

ts and maintenance scts and maintenance sc

o Fo F

o F

o Fo F

xx

cellent condition. Alcellent condition. Al

x

cellent condition. Al

xx

cellent condition. Alcellent condition. Al

rr

eeee

zz

r

rr

ee

eeee

z

zz

e Distribe Distrib

e Distrib

e Distribe Distrib

utor futor f

utor f

utor futor f

ww

w

ww

oror

or

oror

hedulingheduling

heduling

hedulingheduling

aa

a

aa

yy

ss

y

s

yy

ss

..

.

..

43

234567890123456

7

234567890123456

H.C. Duke & Son, Inc. P/N 184833-01 February 2003 Printed in U.S.A.

Replacement Parts Manual with Illustrations

FREEDOM

Series

Soft Serve Twist Freezer

Model 88TN-CMT

184833-01 2/03

360

°

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

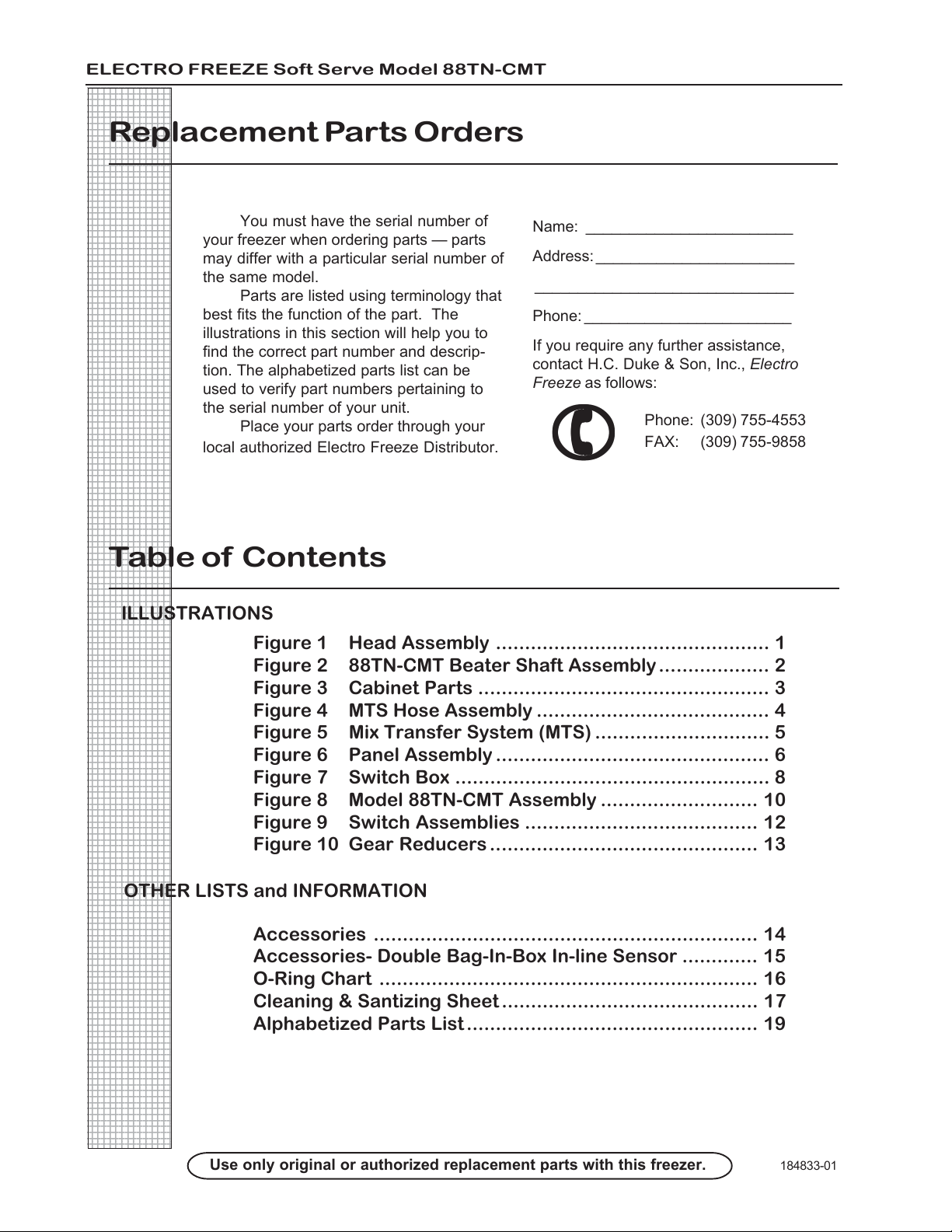

Replacement Parts Orders

2345678901234

Figure 1 Head Assembly

2345678901234

184833-01

Item Part No. Description

* 116042 Head-Assy. Dispense (Complete) 1 116041 Head-Dispense (Head only) 2 159309 O-Ring (Head) 3 138427 Bushing-Dispense Head 4 137174 Plunger-Side Self Dispense 5 160501 O-Ring (Plunger) 6 138009 Plunger-Dispense, Center 7 116089 Push Rod-Assy. Plunger Switch 8 138149 Plug-Air Bleed (Relief)

9 160610 O-Ring (Plug) 10 160269 Pin-Handle 11 162625 Knob-Hand 12 110007 Handle-Assy. Dispense Side includes

13 114808 Handle-Assy. Center includes

14 196185 Nozzle-Serrated

* Includes all items except 3, 7, and 11.

Not Shown:

114341-05 Stud-Assy. Cylinder 3-5/16" 116410 Kit-Dispense Head Switch

Use only original or authorized replacement parts with this freezer. 1

162629 Knob-Ball 3/8-16 Thd Black

114809 Handle-Assy. Center 162629 Knob-Ball 3/8-16 Thd Black

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

Figure 2 Beater Shaft Assembly

2345678901234

2 Use only original or authorized replacement parts with this freezer.

Item Part No. Description

1 117080 Shaft-Assy. Beater 2 138086 Blade-Scraper (Short) 3 138839 Blade-Scraper Rear (Long) 4 111875 Seal-Assy. Shaft includes 4A 160557 Seal-Beater Shaft (Cup) 4B 133098 Washer-Shaft Seal (Bushing) 4C 160500 O-ring (Seal) 5 138427 Bushing-Dispense Head

184833-01

2345678901234

5

2345678901234

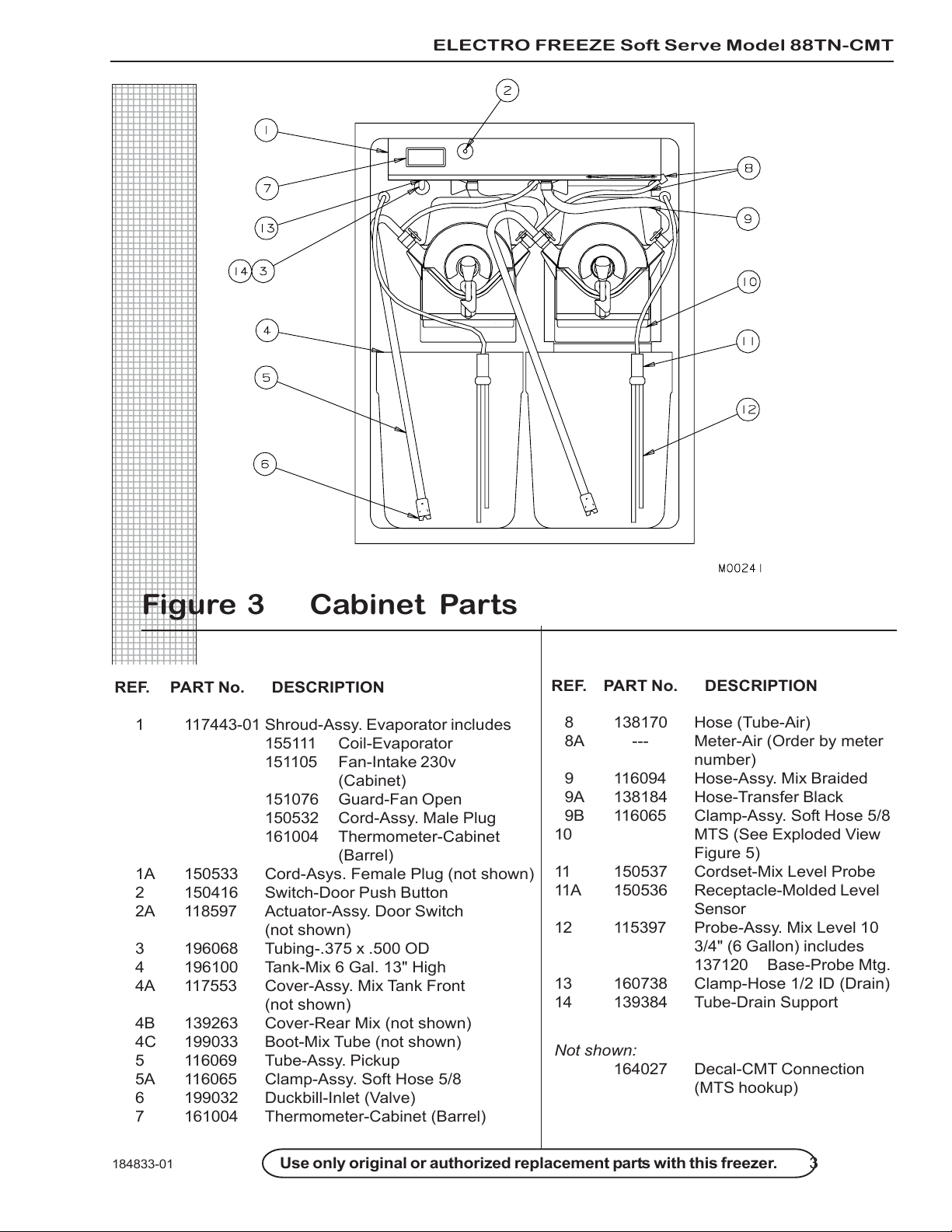

Figure 3 Cabinet Parts

2345678901234

REF. PART No. DESCRIPTION

2345678901234

1 117443-01 Shroud-Assy. Evaporator includes

2345678901234

1A 150533 Cord-Asys. Female Plug (not shown)

2345678901234

2 150416 Switch-Door Push Button

2345678901234

2A 118597 Actuator-Assy. Door Switch

2345678901234

3 196068 Tubing-.375 x .500 OD

2345678901234

4 196100 Tank-Mix 6 Gal. 13" High

2345678901234

4A 117553 Cover-Assy. Mix Tank Front

2345678901234

4B 139263 Cover-Rear Mix (not shown)

2345678901234

4C 199033 Boot-Mix Tube (not shown)

2345678901234

5 116069 Tube-Assy. Pickup

2345678901234

5A 116065 Clamp-Assy. Soft Hose 5/8

2345678901234

6 199032 Duckbill-Inlet (Valve)

2345678901234

7 161004 Thermometer-Cabinet (Barrel)

2345678901234

184833-01

155111 Coil-Evaporator 151105 Fan-Intake 230v

151076 Guard-Fan Open 150532 Cord-Assy. Male Plug 161004 Thermometer-Cabinet

(not shown)

Use only original or authorized replacement parts with this freezer. 3

(Cabinet)

(Barrel)

ELECTRO FREEZE Soft Serve Model 88TN-CMT

REF. PART No. DESCRIPTION

8 138170 Hose (Tube-Air) 8A --- Meter-Air (Order by meter

number) 9 116094 Hose-Assy. Mix Braided 9A 138184 Hose-Transfer Black 9B 116065 Clamp-Assy. Soft Hose 5/8

10 MTS (See Exploded View

Figure 5)

11 150537 Cordset-Mix Level Probe 11A 150536 Receptacle-Molded Level

Sensor

12 115397 Probe-Assy. Mix Level 10

3/4" (6 Gallon) includes

137120 Base-Probe Mtg.

13 160738 Clamp-Hose 1/2 ID (Drain) 14 139384 Tube-Drain Support

Not shown:

164027 Decal-CMT Connection

(MTS hookup)

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

Figure 4 MTS Hose Assembly

2345678901234

4 Use only original or authorized replacement parts with this freezer.

Item Part No. Description

1 138184 Hose-Transfer Black Line 2 199032 Duckbill-Inlet (Valve) 3 116069 Tube-Assy. Pickup 4 138170 Hose (Tube-Air) 5 --- Air Meter (Order by meter number) 6 116065 Clamp-Assy. Soft Hose 5/8 7 116094 Hose-Assy. Mix Braided 8 199033 Boot-Mix Tube (Seal)

* Order by meter number.

184833-01

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

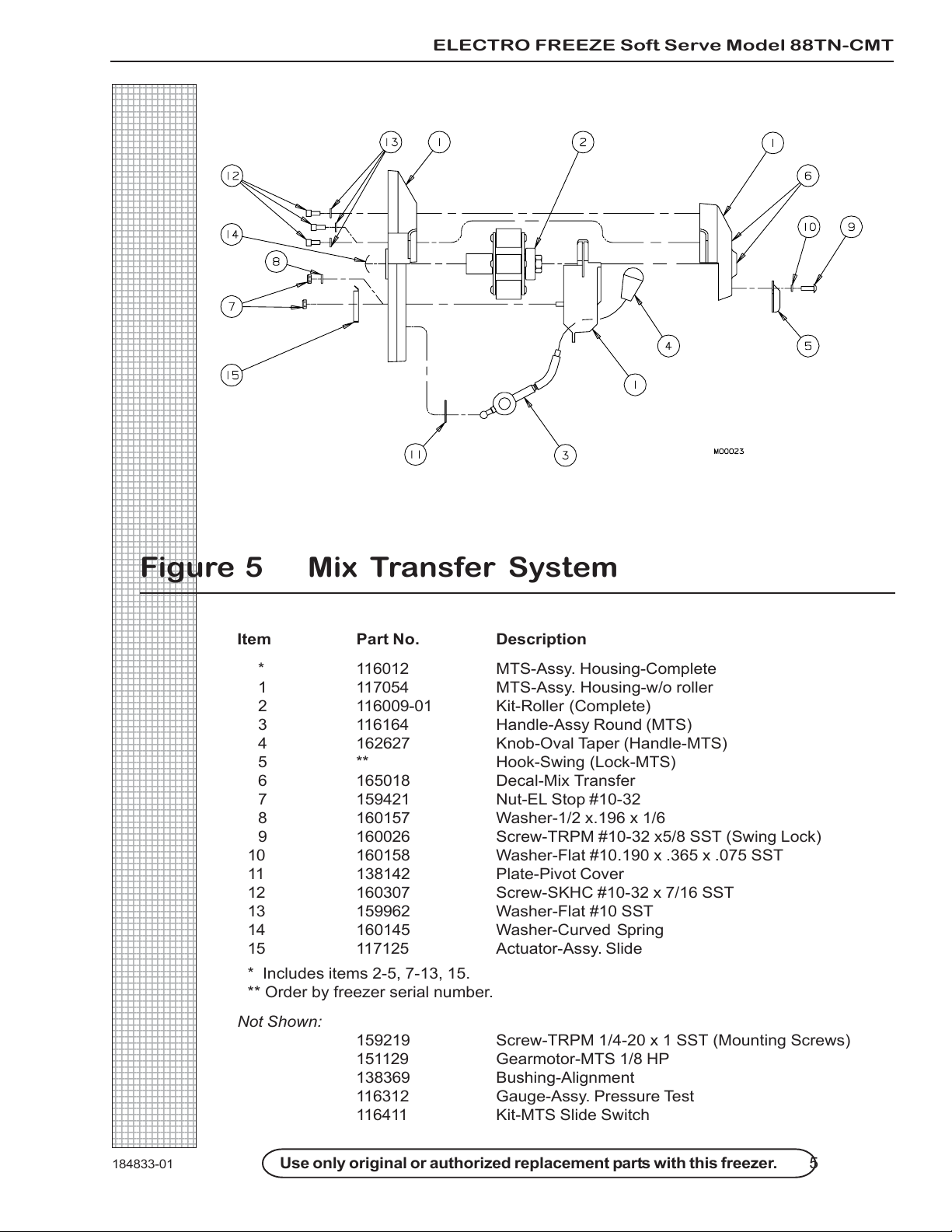

Figure 5 Mix Transfer System

2345678901234

184833-01

Item Part No. Description

* 116012 MTS-Assy. Housing-Complete 1 117054 MTS-Assy. Housing-w/o roller 2 116009-01 Kit-Roller (Complete) 3 116164 Handle-Assy Round (MTS) 4 162627 Knob-Oval Taper (Handle-MTS) 5 ** Hook-Swing (Lock-MTS) 6 165018 Decal-Mix Transfer 7 159421 Nut-EL Stop #10-32 8 160157 Washer-1/2 x.196 x 1/6

9 160026 Screw-TRPM #10-32 x5/8 SST (Swing Lock) 10 160158 Washer-Flat #10.190 x .365 x .075 SST 11 138142 Plate-Pivot Cover 12 160307 Screw-SKHC #10-32 x 7/16 SST 13 159962 Washer-Flat #10 SST 14 160145 Washer-Curved Spring 15 117125 Actuator-Assy. Slide

* Includes items 2-5, 7-13, 15. ** Order by freezer serial number.

Not Shown:

159219 Screw-TRPM 1/4-20 x 1 SST (Mounting Screws) 151129 Gearmotor-MTS 1/8 HP 138369 Bushing-Alignment 116312 Gauge-Assy. Pressure Test 116411 Kit-MTS Slide Switch

Use only original or authorized replacement parts with this freezer. 5

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

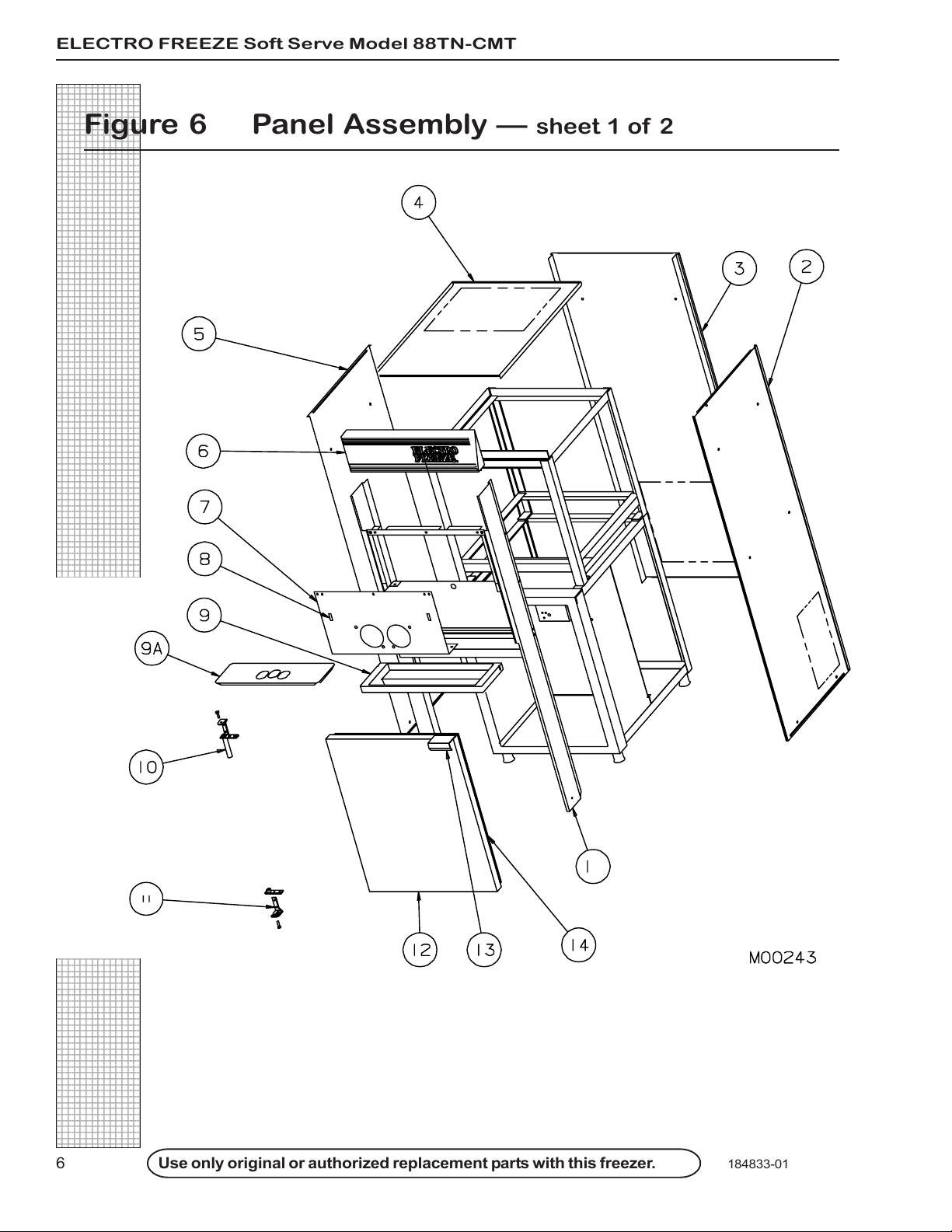

Figure 6 Panel Assembly — sheet 1 of 2

2345678901234

6 Use only original or authorized replacement parts with this freezer.

184833-01

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

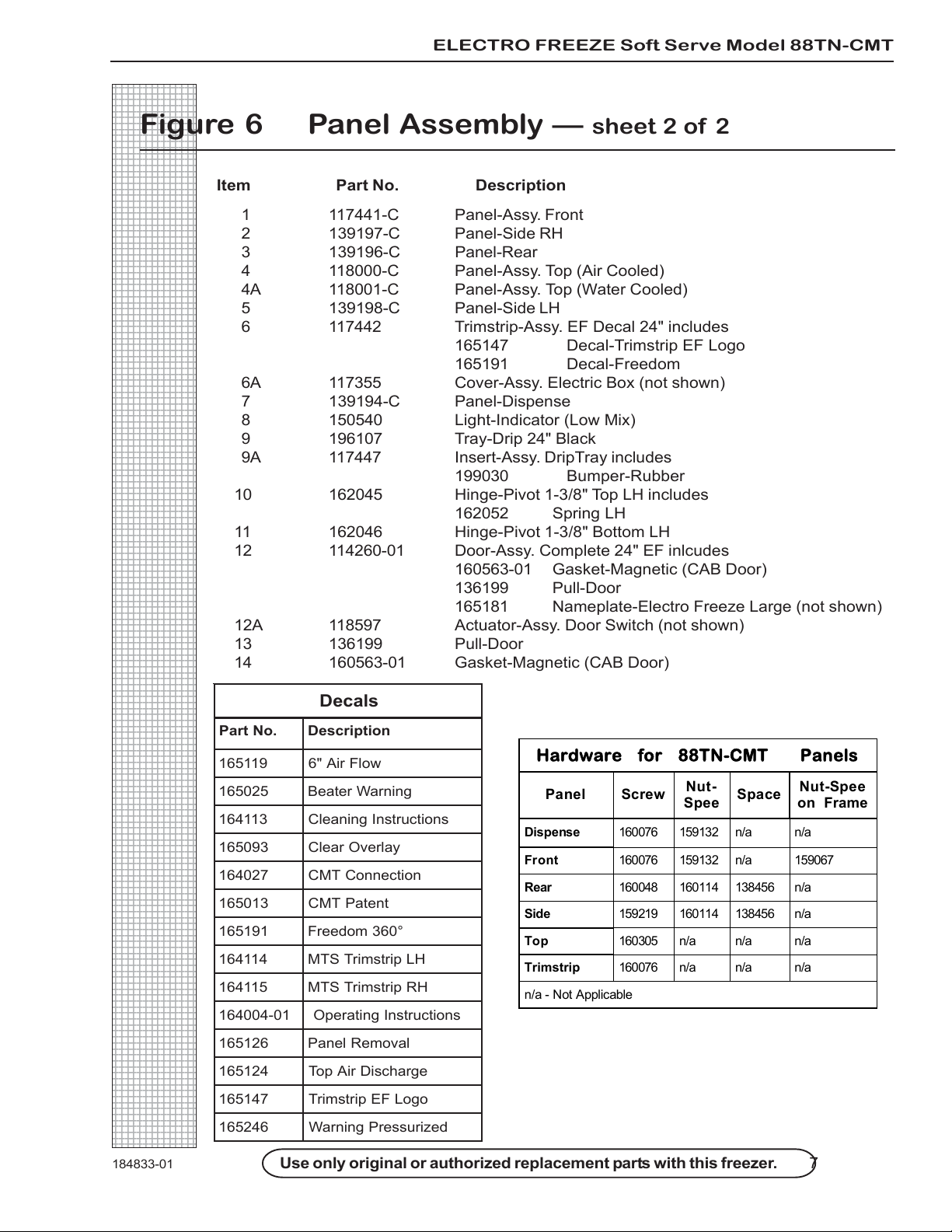

Figure 6 Panel Assembly — sheet 2 of 2

2345678901234

184833-01

Item Part No. Description

1 117441-C Panel-Assy. Front 2 139197-C Panel-Side RH 3 139196-C Panel-Rear 4 118000-C Panel-Assy. Top (Air Cooled) 4A 118001-C Panel-Assy. Top (Water Cooled) 5 139198-C Panel-Side LH 6 117442 Trimstrip-Assy. EF Decal 24" includes

165147 Decal-Trimstrip EF Logo

165191 Decal-Freedom 6A 117355 Cover-Assy. Electric Box (not shown) 7 139194-C Panel-Dispense 8 150540 Light-Indicator (Low Mix) 9 196107 Tray-Drip 24" Black 9A 117447 Insert-Assy. DripTray includes

199030 Bumper-Rubber

10 162045 Hinge-Pivot 1-3/8" Top LH includes

162052 Spring LH

11 162046 Hinge-Pivot 1-3/8" Bottom LH 12 114260-01 Door-Assy. Complete 24" EF inlcudes

160563-01 Gasket-Magnetic (CAB Door)

136199 Pull-Door

165181 Nameplate-Electro Freeze Large (not shown)

12A 118597 Actuator-Assy. Door Switch (not shown) 13 136199 Pull-Door 14 160563-01 Gasket-Magnetic (CAB Door)

slaceD

.oNtraPnoitpircseD

911561wolFriA"6

520561gninraWretaeB

311461snoitcurtsnIgninaelC

390561yalrevOraelC

720461noitcennoCTMC

310561tnetaPTMC

191561°063modeerF

411461HLpirtsmirTSTM

511461HRpirtsmirTSTM

10-400461snoitcurtsnIgnitarepO

621561lavomeRlenaP

421561egrahcsiDriApoT

741561ogoLFEpirtsmirT

642561dezirusserPgninraW

Use only original or authorized replacement parts with this freezer. 7

Hardware for 88TN-CMT Panels

Panel Screw

Dispense 160076 159132 n/a n/a

Front

Rear 160048 160114 138456 n/a

Side 159219 160114 138456 n/a

Top 160305 n/a n/a n/a

Trimstrip 160076 n/a n/a n/a

n/a - Not Applicable

160076 159132 n/a 159067

Nut-

Spee

Space

Nut-Spee

on Frame

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

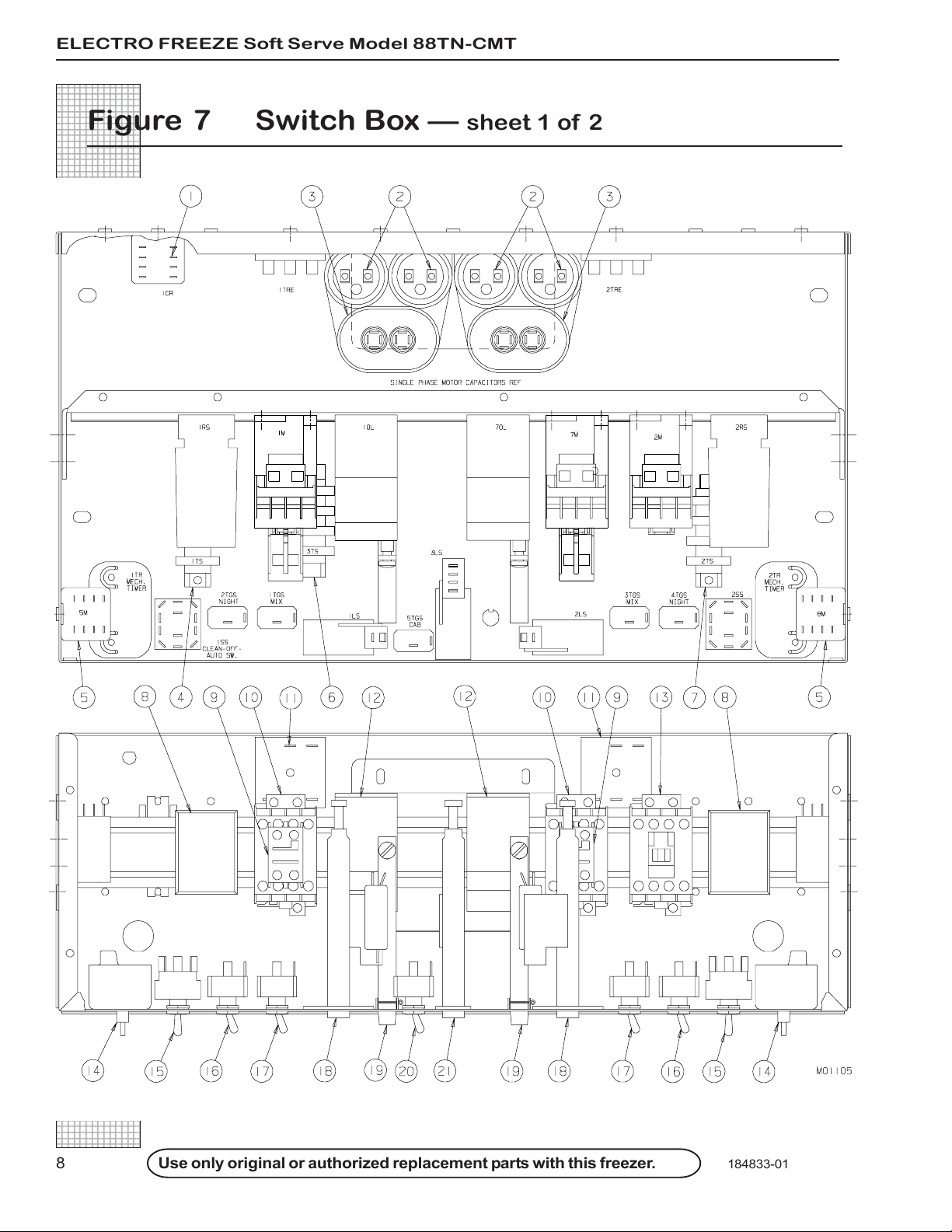

Figure 7 Switch Box — sheet 1 of 2

2345678901234

8 Use only original or authorized replacement parts with this freezer.

184833-01

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

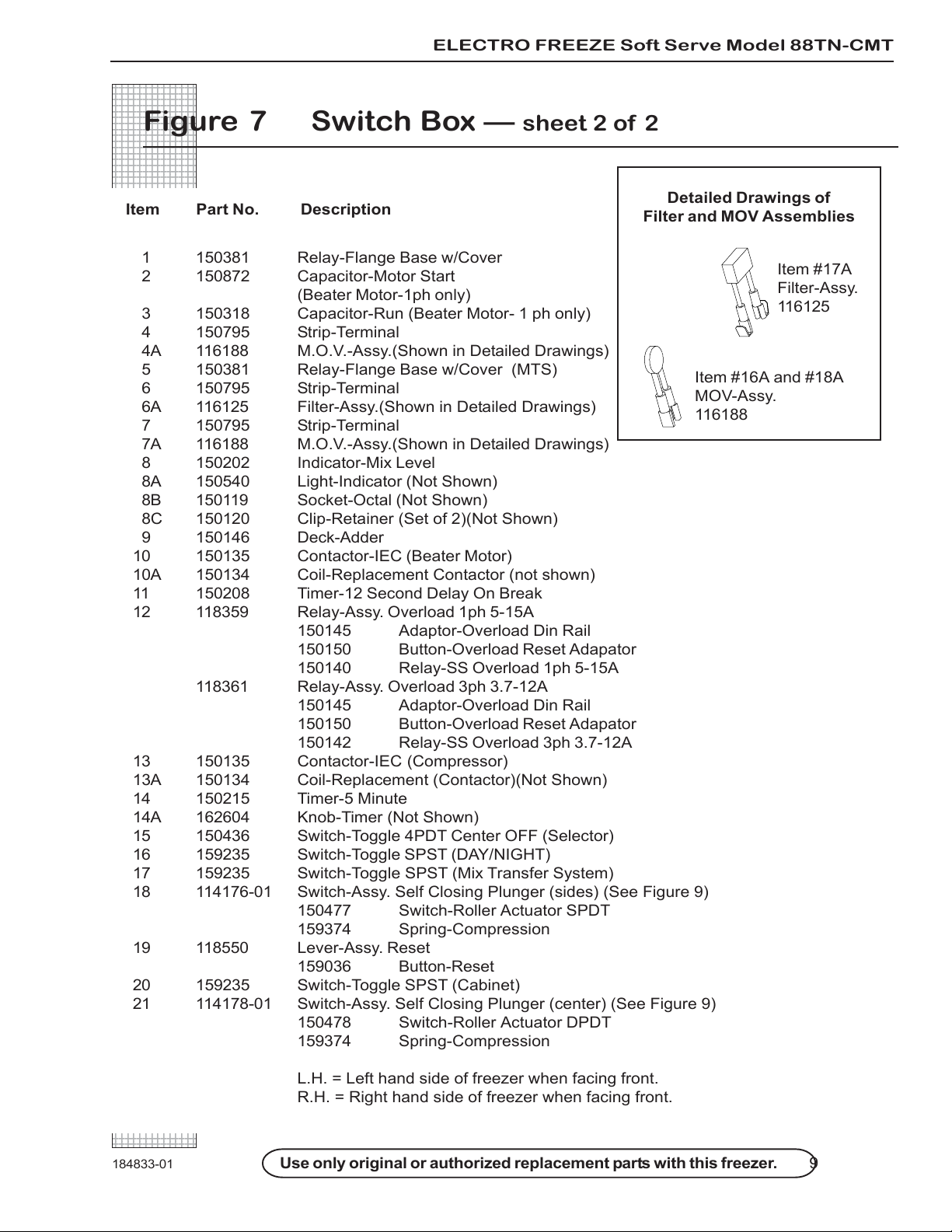

Figure 7 Switch Box — sheet 2 of 2

2345678901234

Item Part No. Description

2345678901234

1 150381 Relay-Flange Base w/Cover

2345678901234

2 150872 Capacitor-Motor Start

2345678901234

3 150318 Capacitor-Run (Beater Motor- 1 ph only)

2345678901234

4 150795 Strip-Terminal

2345678901234

4A 116188 M.O.V.-Assy.(Shown in Detailed Drawings)

2345678901234

5 150381 Relay-Flange Base w/Cover (MTS)

2345678901234

6 150795 Strip-Terminal

2345678901234

6A 116125 Filter-Assy.(Shown in Detailed Drawings)

2345678901234

7 150795 Strip-Terminal

2345678901234

7A 116188 M.O.V.-Assy.(Shown in Detailed Drawings)

2345678901234

8 150202 Indicator-Mix Level

2345678901234

8A 150540 Light-Indicator (Not Shown)

2345678901234

8B 150119 Socket-Octal (Not Shown)

2345678901234

8C 150120 Clip-Retainer (Set of 2)(Not Shown)

2345678901234

9 150146 Deck-Adder

2345678901234

10 150135 Contactor-IEC (Beater Motor)

2345678901234

10A 150134 Coil-Replacement Contactor (not shown)

2345678901234

11 150208 Timer-12 Second Delay On Break

2345678901234

12 118359 Relay-Assy. Overload 1ph 5-15A

2345678901234

13 150135 Contactor-IEC (Compressor)

2345678901234

13A 150134 Coil-Replacement (Contactor)(Not Shown)

2345678901234

14 150215 Timer-5 Minute

2345678901234

14A 162604 Knob-Timer (Not Shown)

2345678901234

15 150436 Switch-Toggle 4PDT Center OFF (Selector)

2345678901234

16 159235 Switch-Toggle SPST (DAY/NIGHT)

2345678901234

17 159235 Switch-Toggle SPST (Mix Transfer System)

2345678901234

18 114176-01 Switch-Assy. Self Closing Plunger (sides) (See Figure 9)

2345678901234

19 118550 Lever-Assy. Reset

2345678901234

20 159235 Switch-Toggle SPST (Cabinet)

2345678901234

21 114178-01 Switch-Assy. Self Closing Plunger (center) (See Figure 9)

2345678901234

118361 Relay-Assy. Overload 3ph 3.7-12A

184833-01

(Beater Motor-1ph only)

150145 Adaptor-Overload Din Rail 150150 Button-Overload Reset Adapator 150140 Relay-SS Overload 1ph 5-15A

150145 Adaptor-Overload Din Rail 150150 Button-Overload Reset Adapator 150142 Relay-SS Overload 3ph 3.7-12A

150477 Switch-Roller Actuator SPDT 159374 Spring-Compression

159036 Button-Reset

150478 Switch-Roller Actuator DPDT 159374 Spring-Compression

L.H. = Left hand side of freezer when facing front. R.H. = Right hand side of freezer when facing front.

Use only original or authorized replacement parts with this freezer. 9

Filter and MOV Assemblies

Detailed Drawings of

Item #17A Filter-Assy. 116125

Item #16A and #18A MOV-Assy. 116188

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

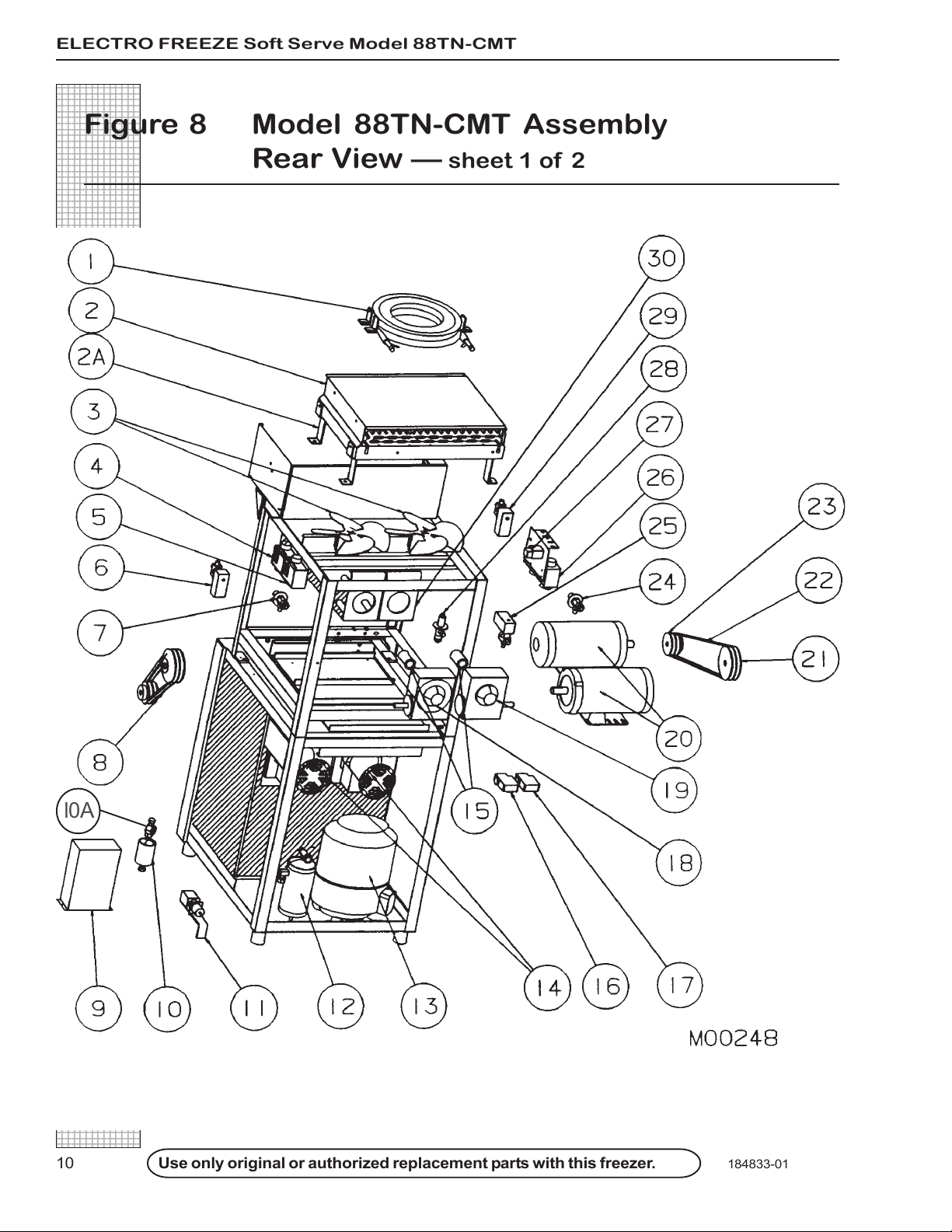

Figure 8 Model 88TN-CMT Assembly

2345678901234

l0A

2345678901234

10 Use only original or authorized replacement parts with this freezer.

Rear View — sheet 1 of 2

184833-01

2345678901234

5

2345678901234

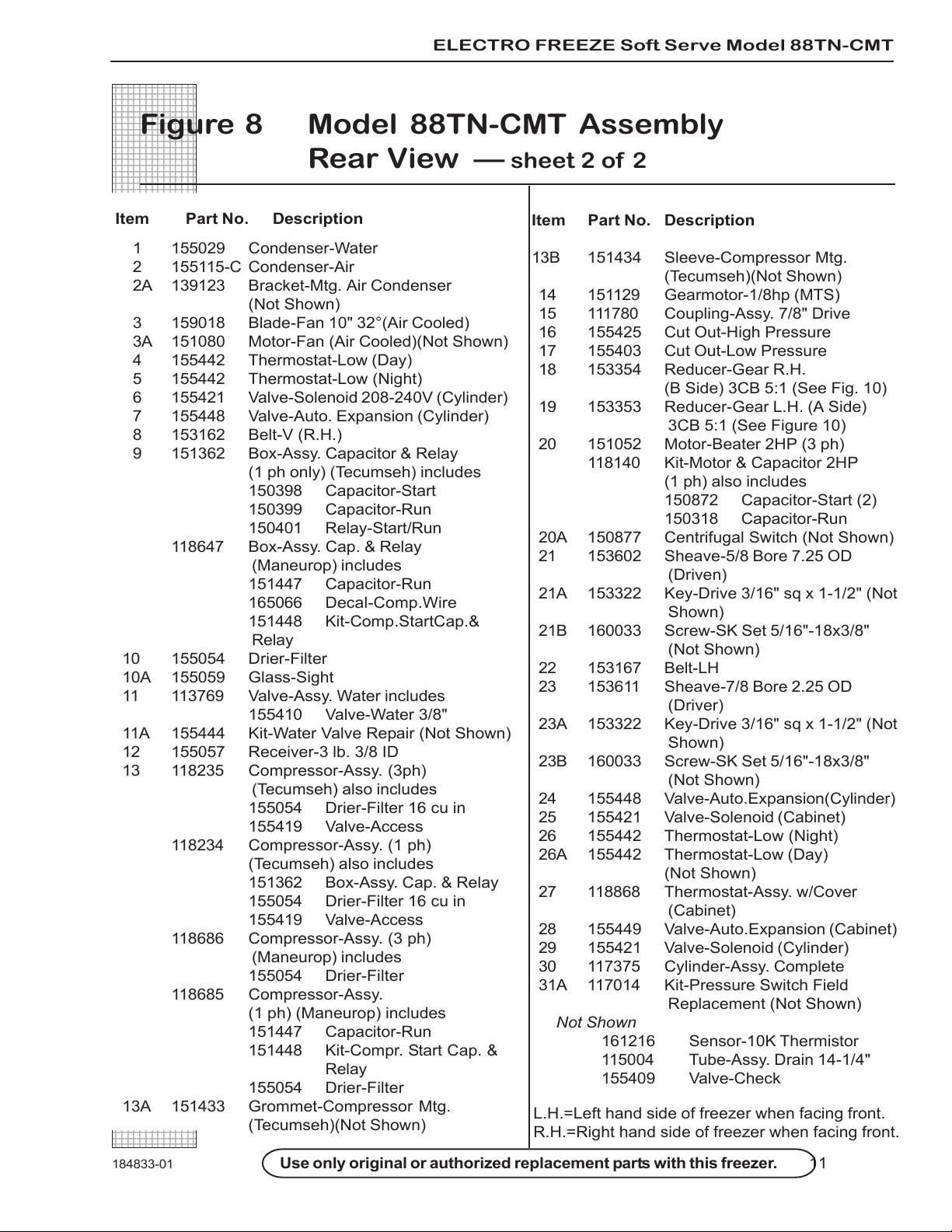

Figure 8 Model 88TN-CMT Assembly

2345678901234

Item Part No. Description

2345678901234

1 155029 Condenser-Water

2345678901234

2 155115-C Condenser-Air

2345678901234

2A 139123 Bracket-Mtg. Air Condenser

2345678901234

3 159018 Blade-Fan 10" 32°(Air Cooled)

2345678901234

3A 151080 Motor-Fan (Air Cooled)(Not Shown)

2345678901234

4 155442 Thermostat-Low (Day)

2345678901234

5 155442 Thermostat-Low (Night)

2345678901234

6 155421 Valve-Solenoid 208-240V (Cylinder)

2345678901234

7 155448 Valve-Auto. Expansion (Cylinder)

2345678901234

8 153162 Belt-V (R.H.)

2345678901234

9 151362 Box-Assy. Capacitor & Relay

2345678901234

10 155054 Drier-Filter

2345678901234

10A 155059 Glass-Sight

2345678901234

11 113769 Valve-Assy. Water includes

2345678901234

11A 155444 Kit-Water Valve Repair (Not Shown)

2345678901234

12 155057 Receiver-3 lb. 3/8 ID

2345678901234

13 118235 Compressor-Assy. (3ph)

2345678901234

13A 151433 Grommet-Compressor Mtg.

2345678901234

118647 Box-Assy. Cap. & Relay

118234 Compressor-Assy. (1 ph)

118686 Compressor-Assy. (3 ph)

118685 Compressor-Assy.

(Not Shown)

(1 ph only) (Tecumseh) includes 150398 Capacitor-Start 150399 Capacitor-Run 150401 Relay-Start/Run

(Maneurop) includes 151447 Capacitor-Run 165066 Decal-Comp.Wire 151448 Kit-Comp.StartCap.&

Relay

155410 Valve-Water 3/8"

(Tecumseh) also includes 155054 Drier-Filter 16 cu in 155419 Valve-Access

(Tecumseh) also includes 151362 Box-Assy. Cap. & Relay 155054 Drier-Filter 16 cu in 155419 Valve-Access

(Maneurop) includes 155054 Drier-Filter

(1 ph) (Maneurop) includes 151447 Capacitor-Run 151448 Kit-Compr. Start Cap. &

155054 Drier-Filter

(Tecumseh)(Not Shown)

184833-01

Rear View — sheet 2 of 2

Relay

Use only original or authorized replacement parts with this freezer. 11

ELECTRO FREEZE Soft Serve Model 88TN-CMT

Item Part No. Description

13B 151434 Sleeve-Compressor Mtg.

(Tecumseh)(Not Shown) 14 151129 Gearmotor-1/8hp (MTS) 15 111780 Coupling-Assy. 7/8" Drive 16 155425 Cut Out-High Pressure 17 155403 Cut Out-Low Pressure 18 153354 Reducer-Gear R.H.

(B Side) 3CB 5:1 (See Fig. 10) 19 153353 Reducer-Gear L.H. (A Side)

3CB 5:1 (See Figure 10)

20 151052 Motor-Beater 2HP (3 ph)

118140 Kit-Motor & Capacitor 2HP

(1 ph) also includes

150872 Capacitor-Start (2)

150318 Capacitor-Run 20A 150877 Centrifugal Switch (Not Shown) 21 153602 Sheave-5/8 Bore 7.25 OD

(Driven)

21A 153322 Key-Drive 3/16" sq x 1-1/2" (Not

Shown)

21B 160033 Screw-SK Set 5/16"-18x3/8"

(Not Shown) 22 153167 Belt-LH 23 153611 Sheave-7/8 Bore 2.25 OD

(Driver) 23A 153322 Key-Drive 3/16" sq x 1-1/2" (Not

Shown) 23B 160033 Screw-SK Set 5/16"-18x3/8"

(Not Shown) 24 155448 Valve-Auto.Expansion(Cylinder) 25 155421 Valve-Solenoid (Cabinet) 26 155442 Thermostat-Low (Night) 26A 155442 Thermostat-Low (Day)

(Not Shown)

27 118868 Thermostat-Assy. w/Cover

(Cabinet) 28 155449 Valve-Auto.Expansion (Cabinet) 29 155421 Valve-Solenoid (Cylinder) 30 117375 Cylinder-Assy. Complete 31A 117014 Kit-Pressure Switch Field

Replacement (Not Shown)

Not Shown

161216 Sensor-10K Thermistor 115004 Tube-Assy. Drain 14-1/4" 155409 Valve-Check

L.H.=Left hand side of freezer when facing front. R.H.=Right hand side of freezer when facing front.

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

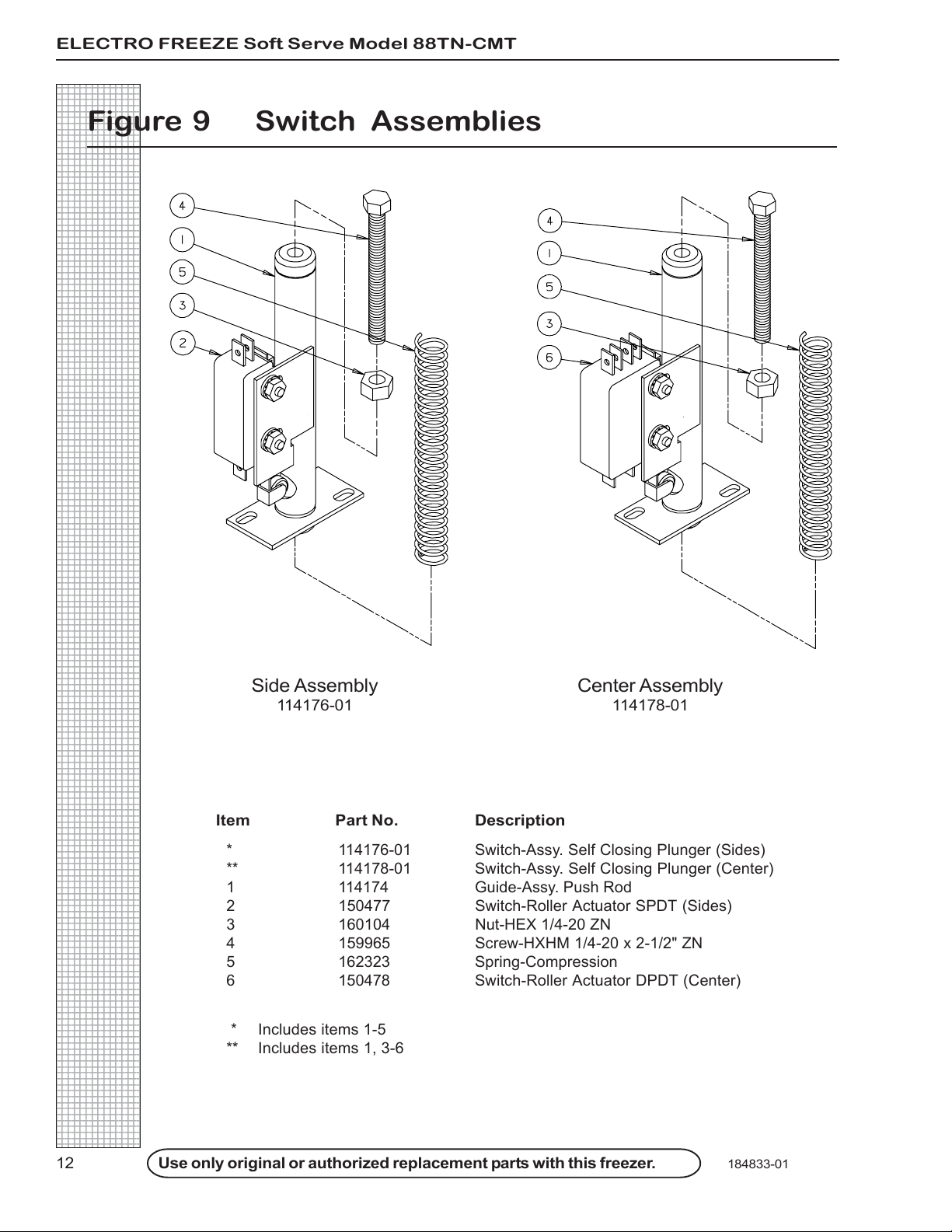

Figure 9 Switch Assemblies

2345678901234

12 Use only original or authorized replacement parts with this freezer.

Side Assembly

114176-01

Item Part No. Description

* 114176-01 Switch-Assy. Self Closing Plunger (Sides) ** 114178-01 Switch-Assy. Self Closing Plunger (Center) 1 114174 Guide-Assy. Push Rod 2 150477 Switch-Roller Actuator SPDT (Sides) 3 160104 Nut-HEX 1/4-20 ZN 4 159965 Screw-HXHM 1/4-20 x 2-1/2" ZN 5 162323 Spring-Compression 6 150478 Switch-Roller Actuator DPDT (Center)

* Includes items 1-5 ** Includes items 1, 3-6

Center Assembly

114178-01

184833-01

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

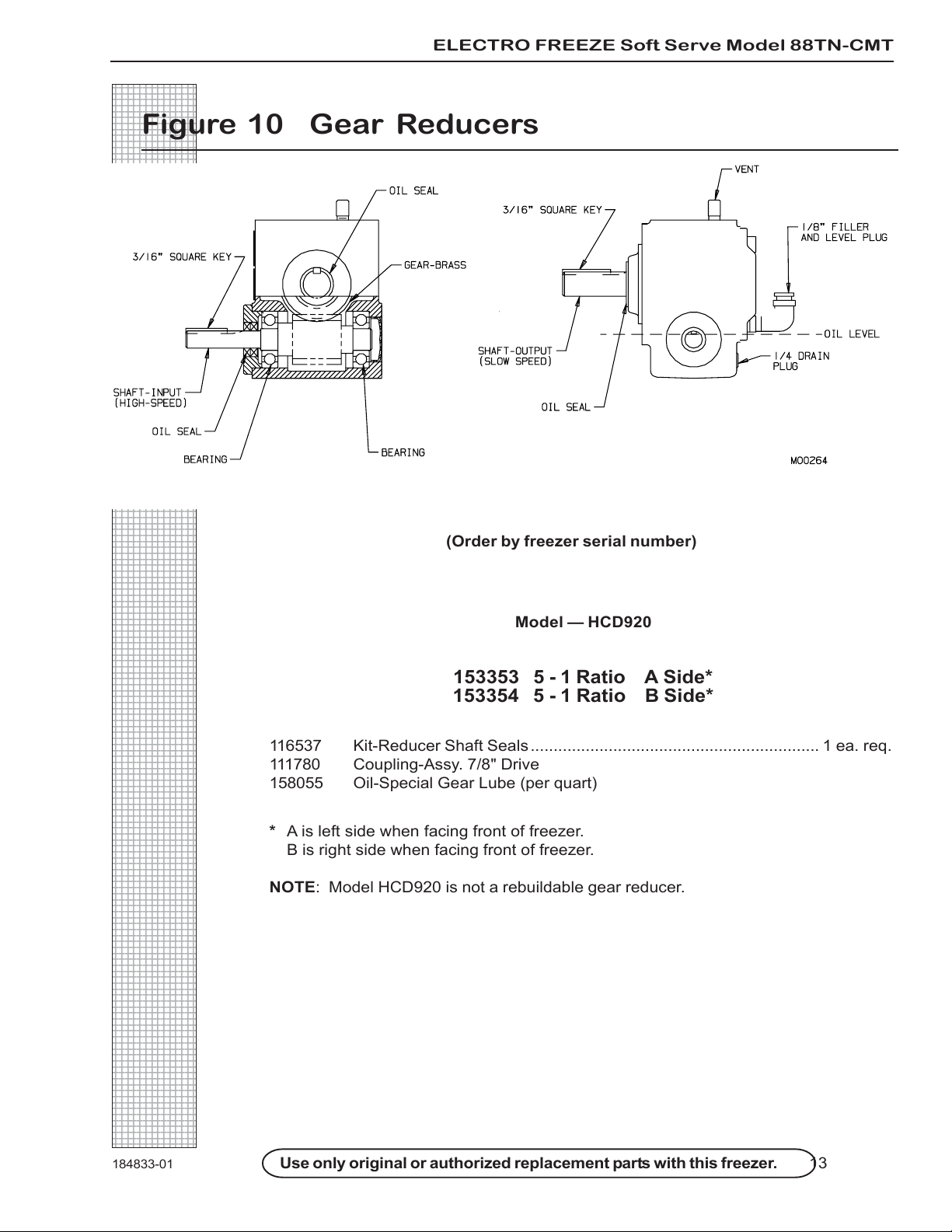

Figure 10 Gear Reducers

2345678901234

184833-01

116537 Kit-Reducer Shaft Seals ............................................................... 1 ea. req.

111780 Coupling-Assy. 7/8" Drive 158055 Oil-Special Gear Lube (per quart)

* A is left side when facing front of freezer.

B is right side when facing front of freezer.

NOTE: Model HCD920 is not a rebuildable gear reducer.

Use only original or authorized replacement parts with this freezer. 13

(Order by freezer serial number)

153353 5 - 1 Ratio A Side*

153354 5 - 1 Ratio B Side*

Model — HCD920

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

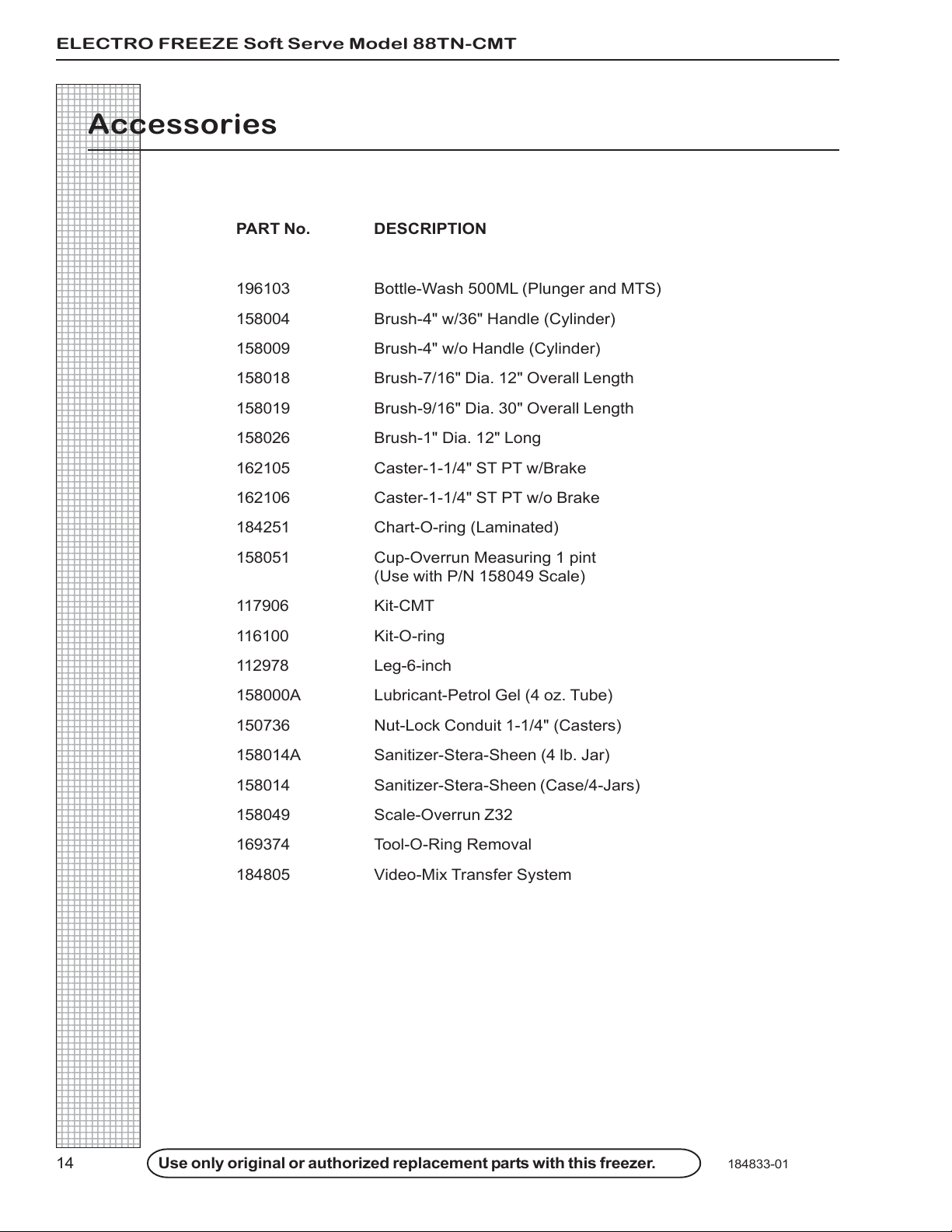

Accessories

2345678901234

14 Use only original or authorized replacement parts with this freezer.

PART No. DESCRIPTION

196103 Bottle-Wash 500ML (Plunger and MTS)

158004 Brush-4" w/36" Handle (Cylinder)

158009 Brush-4" w/o Handle (Cylinder)

158018 Brush-7/16" Dia. 12" Overall Length

158019 Brush-9/16" Dia. 30" Overall Length

158026 Brush-1" Dia. 12" Long

162105 Caster-1-1/4" ST PT w/Brake

162106 Caster-1-1/4" ST PT w/o Brake

184251 Chart-O-ring (Laminated)

158051 Cup-Overrun Measuring 1 pint

(Use with P/N 158049 Scale)

117906 Kit-CMT

116100 Kit-O-ring

112978 Leg-6-inch

158000A Lubricant-Petrol Gel (4 oz. Tube)

150736 Nut-Lock Conduit 1-1/4" (Casters)

158014A Sanitizer-Stera-Sheen (4 lb. Jar)

158014 Sanitizer-Stera-Sheen (Case/4-Jars)

158049 Scale-Overrun Z32

169374 Tool-O-Ring Removal

184805 Video-Mix Transfer System

184833-01

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

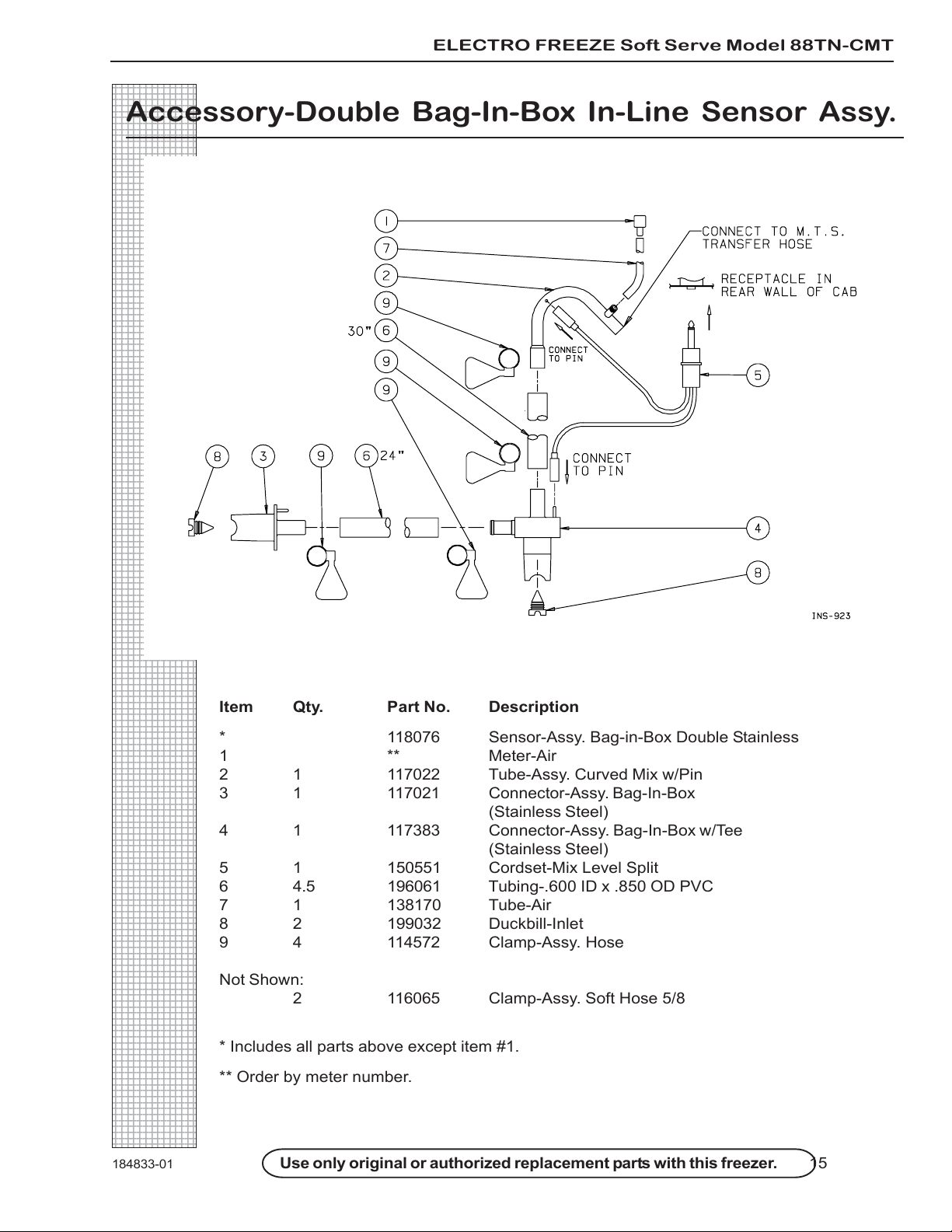

Accessory-Double Bag-In-Box In-Line Sensor Assy.

2345678901234

184833-01

Item Qty. Part No. Description

* 118076 Sensor-Assy. Bag-in-Box Double Stainless 1 ** Meter-Air 2 1 117022 Tube-Assy. Curved Mix w/Pin 3 1 117021 Connector-Assy. Bag-In-Box

(Stainless Steel)

4 1 117383 Connector-Assy. Bag-In-Box w/Tee

(Stainless Steel) 5 1 150551 Cordset-Mix Level Split 6 4.5 196061 Tubing-.600 ID x .850 OD PVC 7 1 138170 Tube-Air 8 2 199032 Duckbill-Inlet 9 4 114572 Clamp-Assy. Hose

Not Shown:

2 116065 Clamp-Assy. Soft Hose 5/8

* Includes all parts above except item #1.

** Order by meter number.

Use only original or authorized replacement parts with this freezer. 15

5

ELECTRO FREEZE Soft Serve Model 88TN-CMT

2345678901234

16 Use only original or authorized replacement parts with this freezer.

184833-01

®®

®

Cleaning & Sanitizing Electro FreezeCleaning & Sanitizing Electro Freeze

Cleaning & Sanitizing Electro Freeze

Cleaning & Sanitizing Electro FreezeCleaning & Sanitizing Electro Freeze

®®

30T-CMT and 88TN-CMT Freezers 30T-CMT and 88TN-CMT Freezers

30T-CMT and 88TN-CMT Freezers

30T-CMT and 88TN-CMT Freezers 30T-CMT and 88TN-CMT Freezers

This instruction sheet is not intended to be used in place of the Operator’s Manual. Use the following information to assist you only after you have read, understood, and are accomplished in the procedures for cleaning and sanitizing detailed in the Electro Freeze freezer Operator’s Manual.

DRAINING PRODUCT

Follow Closing Procedures in Operator’s Manual to remove frozen product from the freezer.

1. Turn selector switches to “CLEAN”, MTS switches to “ON”, CAB switch to “OFF”.

2. Empty the remaining mix out of mix containers.

3. Run beaters 5 minutes to soften product. Dispense as much frozen product as possible.

4. Pour 2 gallons of cool water into each mix container, allowing the cylinders to fill with water.

5. Open plungers to drain mix and water. Repeat step 4 until water is clear.

6. Prepare and pour 2 gallons of warm sanitizing solution of 100ppm available chlorine in container.

7. Open air relief and fill each cylinder with sanitizer. Close air relief. Place selector switch to clean for 5 minutes.

8. Put all switches in the “OFF” position. Drain completely.

DISASSEMBLY

CAUTION: To avoid electrical shock or contact with moving parts, make sure all switches are in the “OFF” position and that the main power supply is disconnected. Some freezers have more than one disconnect switch.

CAUTION: PRESSURIZED SYSTEM. Plungers must be open before disassembly.

Disassemble the freezer components in accordance with the Operator’s Manual instructions.

ASSEMBLY

Assemble and lubricate freezer components in accordance with the Operator’s Manual instructions.

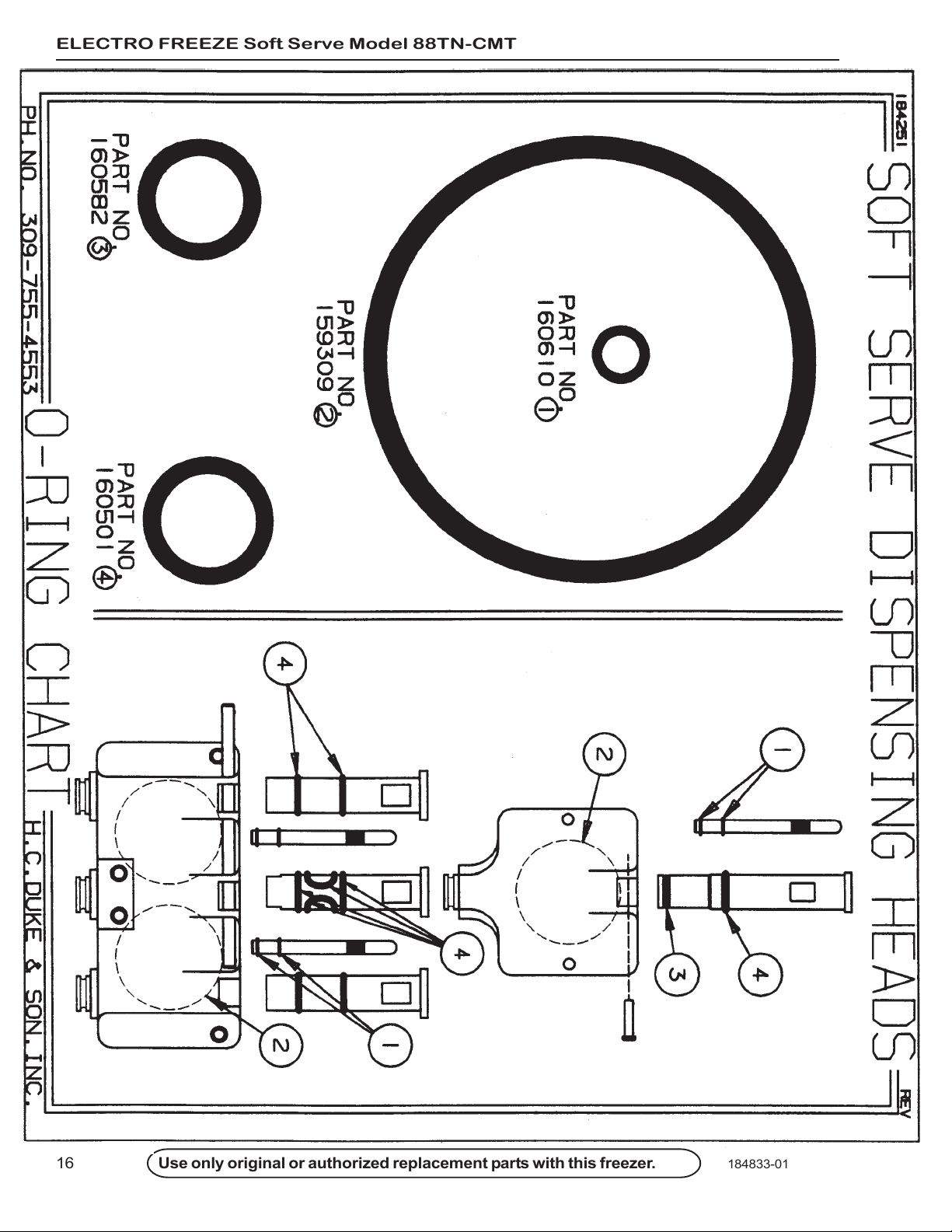

PINHANDLE

PLUGAIR BLEED

O-RINGPLUG

RODPLUNGER

KNOB-HAND

HANDLEDISPENSE

PLUNGER

0-RING-PLUNGERS

O-RING-HEAD

BUSHINGHEAD

HEAD

NOZZLE

1. Remove dispensing head and beater shafts from freezer.

Disassemble MTS and move to cleaning area.

CLEANING

1. Prepare a three-compartment sink for cleaning, rinsing, and

sanitizing parts removed from the freezer per applicable health codes. The sanitizer should be mixed according to the manufacturer’s instructions to yield 100 parts per million (PPM) available chlorine solution. (example: Stera-Sheen Green Label).

2. Disassemble all parts and remove o-rings. Clean each part with

the appropriate brush supplied with freezer.

3. Wash, rinse, sanitize, and air dry all parts removed from the

freezer. For proper sanitizing, the parts must remain in the sanitizer for 5 minutes.

4. Go to freezer and use sanitizing solution to thoroughly brush the

mix feed tubes from the refrigerated cabinet to the cylinders.

5. Brush the inside of the cylinders with sanitizing solution, making

certain to clean the back walls.

6. Brush the inside of the drain tube.

SANITIZING

1. Wash and sanitize your hands and forearms.

2. Prepare 2 gallons (7.5 liters) of sanitizing solution in each mix container. Sanitizing solution must be mixed according to manufacturer’s instructions to yield 100 PPM (parts per million) available chlorine solution.

3. Brush the interior mix container walls, the underside of the container covers, and low mix probes with sanitizer solution.

4. Place the mix containers with sanitizer in the refrigerated cabinet, insert pickup tube and sanitize exterior of the tubes.

5. Place an empty container under the dispensing head.

6. Open the air bleed plugs by pulling up until the plugs touch the bottom of the switch box.

7. Reconnect the main power supply to the freezer. Turn the MTS switches to “ON”. This will push the sanitizer into the cylinders.

8. When sanitizer flows out the bottom of the dispense head, close the air bleed plugs.

(over)

17

SANITIZING (continued)

9. Turn both selector switches to “CLEAN” and allow the beaters to run for 5 minutes. Check for leaks around the head, drain tube, clamps and MTS.

10. Drain the solution from the cylinders by slowly pulling down on the dispense handles. NOTE: Some sanitizer

will remain in hoses and cylinders.

11. Leave the handles down, and turn the selector switches to “OFF”. Let the MTS force all possible sanitizer out of the freezing cylinders.

Important:

Failure to completely remove sanitizer or water

from the freezing cylinder before placing in “AUTO” will damage the freezer.

12. Turn the MTS switches to “OFF”.

13. Remove the mix inlet tubes, holding the top 6-inch portion only.

14. Remove the mix containers and empty any remaining sanitizer.

Priming The Freezer

1. Make sure that your hands, forearms, and all freezer assemblies are sanitized.

Priming The Freezer

(continued)

6. Place an empty container under the dispensing head on the drip tray.

7. Open the side plungers and air bleed plugs.

8. Turn the MTS switches to “ON” and allow the mix to push the remaining sanitizer from the cylinders through the plunger openings.

2. Holding the top 6-inch portion only, insert the pickup tubes into the sanitized mix container through the small hole in the rear cover and set containers in the cabinet.

3. Fill the mix containers with mix and install the front covers.

4. Insert the low mix probes through the large hole in the rear cover, and connect the probe cords to the probes and to the back of the cabinet.

5. Turn the cabinet switch to “ON” and close the cabinet door.

9. Close the side plungers when pure mix is coming out.

Important: Failure to completely remove sanitizer or water from the freezing cylinder before placing in “AUTO” will damage the freezer.

10. After mix appears at the bottom of the head (approximately 50–55 seconds), close the air bleed plugs and wait for the MTS to fill the cylinders and shut off.

11. After the MTS has cycled off (approximately 30 seconds) turn both selector switches to “AUTO”, both DAY/NIGHT switches to “DAY”, and both MTS switches to “ON”.

12. Allow the freezer to cycle for 15 minutes. Sanitize the nozzles and install on the head. The product is now ready to serve.

18

Problem? Contact your local authorized distributor or the freezer manufacturer, Electro Freeze Service Department, 2116 Eighth Avenue, East Moline, IL 61244, (309) 755-4553

Part No. 184872

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

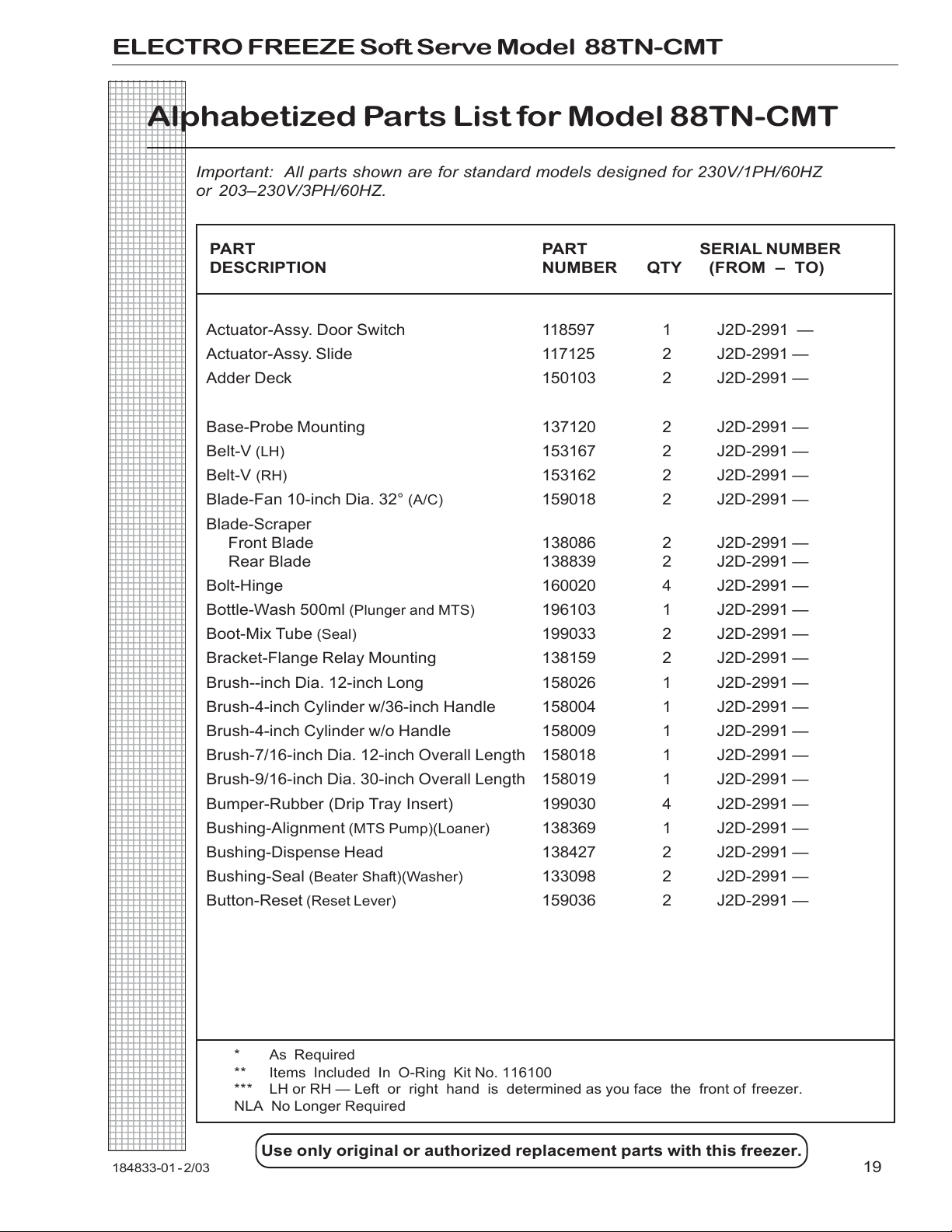

Alphabetized Parts List for Model 88TN-CMT

234567890123

184833-01 - 2/03 19

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Actuator-Assy. Door Switch 118597 1 J2D-2991 —

Actuator-Assy. Slide 117125 2 J2D-2991 —

Adder Deck 150103 2 J2D-2991 —

Base-Probe Mounting 137120 2 J2D-2991 —

Belt-V

Blade-Fan 10-inch Dia. 32°

(LH)

(RH)

(A/C)

153167 2 J2D-2991 —

153162 2 J2D-2991 —

159018 2 J2D-2991 —

Blade-Scraper Front Blade 138086 2 J2D-2991 — Rear Blade 138839 2 J2D-2991 —

Bolt-Hinge 160020 4 J2D-2991 —

Bottle-Wash 500ml

Boot-Mix Tube

(Plunger and MTS)

(Seal)

196103 1 J2D-2991 —

199033 2 J2D-2991 —

Bracket-Flange Relay Mounting 138159 2 J2D-2991 —

Brush--inch Dia. 12-inch Long 158026 1 J2D-2991 —

Brush-4-inch Cylinder w/36-inch Handle 158004 1 J2D-2991 —

Brush-4-inch Cylinder w/o Handle 158009 1 J2D-2991 —

Brush-7/16-inch Dia. 12-inch Overall Length 158018 1 J2D-2991 —

Brush-9/16-inch Dia. 30-inch Overall Length 158019 1 J2D-2991 —

Bumper-Rubber (Drip Tray Insert) 199030 4 J2D-2991 —

Bushing-Alignment

(MTS Pump)(Loaner)

138369 1 J2D-2991 —

Bushing-Dispense Head 138427 2 J2D-2991 —

Bushing-Seal

Button-Reset

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

(Beater Shaft)(Washer)

(Reset Lever)

133098 2 J2D-2991 —

159036 2 J2D-2991 —

Use only original or authorized replacement parts with this freezer.

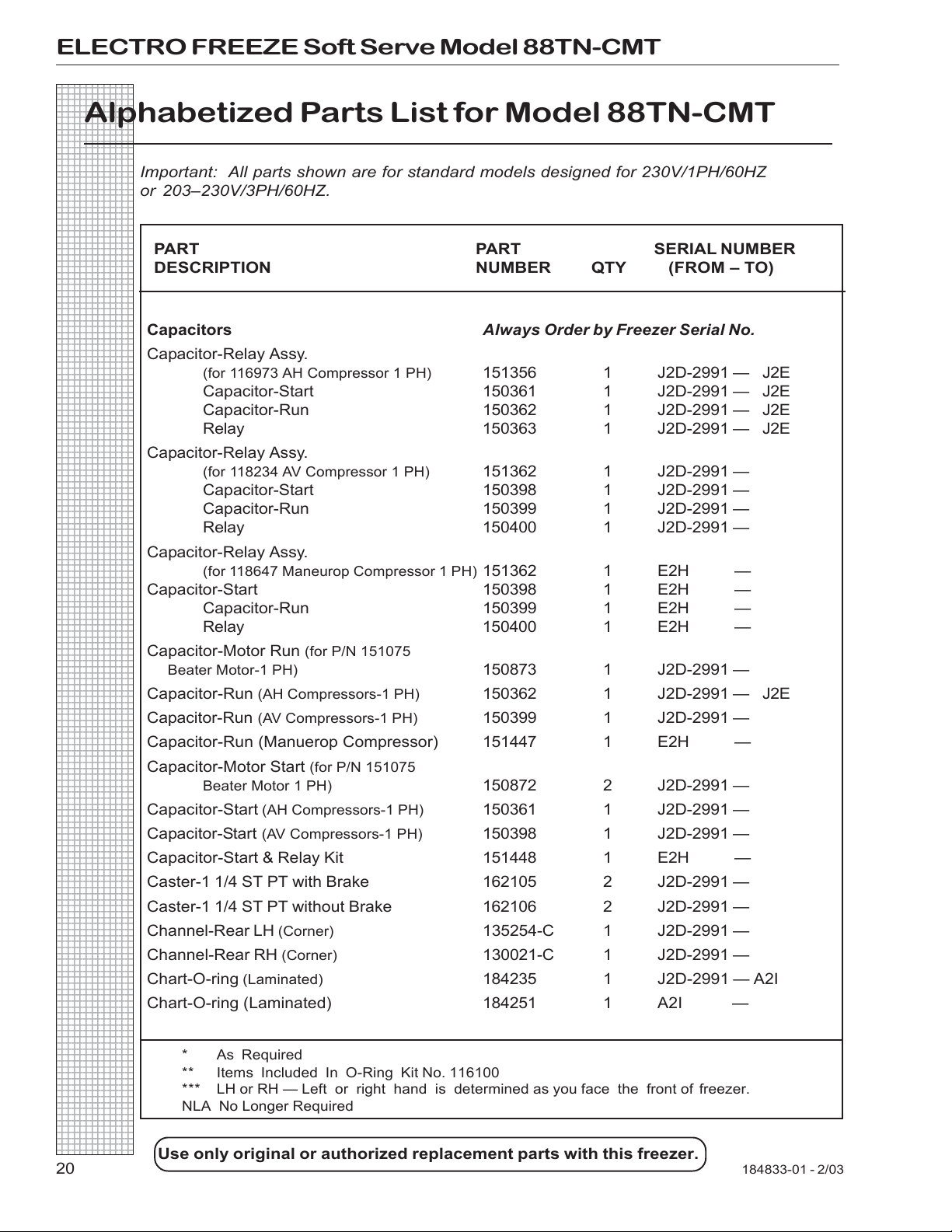

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

20 184833-01 - 2/03

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Capacitors Always Order by Freezer Serial No.

Capacitor-Relay Assy.

(for 116973 AH Compressor 1 PH)

151356 1 J2D-2991 — J2E Capacitor-Start 150361 1 J2D-2991 — J2E Capacitor-Run 150362 1 J2D-2991 — J2E Relay 150363 1 J2D-2991 — J2E

Capacitor-Relay Assy.

(for 118234 AV Compressor 1 PH)

151362 1 J2D-2991 — Capacitor-Start 150398 1 J2D-2991 — Capacitor-Run 150399 1 J2D-2991 — Relay 150400 1 J2D-2991 —

Capacitor-Relay Assy.

(for 118647 Maneurop Compressor 1 PH)

151362 1 E2H —

Capacitor-Start 150398 1 E2H —

Capacitor-Run 150399 1 E2H — Relay 150400 1 E2H —

Capacitor-Motor Run

Beater Motor-1 PH)

Capacitor-Run

(AH Compressors-1 PH)

(AV Compressors-1 PH)

(for P/N 151075

150873 1 J2D-2991 —

150362 1 J2D-2991 — J2E

150399 1 J2D-2991 —

Capacitor-Run (Manuerop Compressor) 151447 1 E2H —

Capacitor-Motor Start

Beater Motor 1 PH)

Capacitor-Start

(AH Compressors-1 PH)

(AV Compressors-1 PH)

(for P/N 151075

150872 2 J2D-2991 —

150361 1 J2D-2991 —

150398 1 J2D-2991 —

Capacitor-Start & Relay Kit 151448 1 E2H —

Caster-1 1/4 ST PT with Brake 162105 2 J2D-2991 —

Caster-1 1/4 ST PT without Brake 162106 2 J2D-2991 —

Channel-Rear LH

Channel-Rear RH

Chart-O-ring

(Corner)

(Laminated)

135254-C 1 J2D-2991 —

130021-C 1 J2D-2991 —

184235 1 J2D-2991 — A2I

Chart-O-ring (Laminated) 184251 1 A2I —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

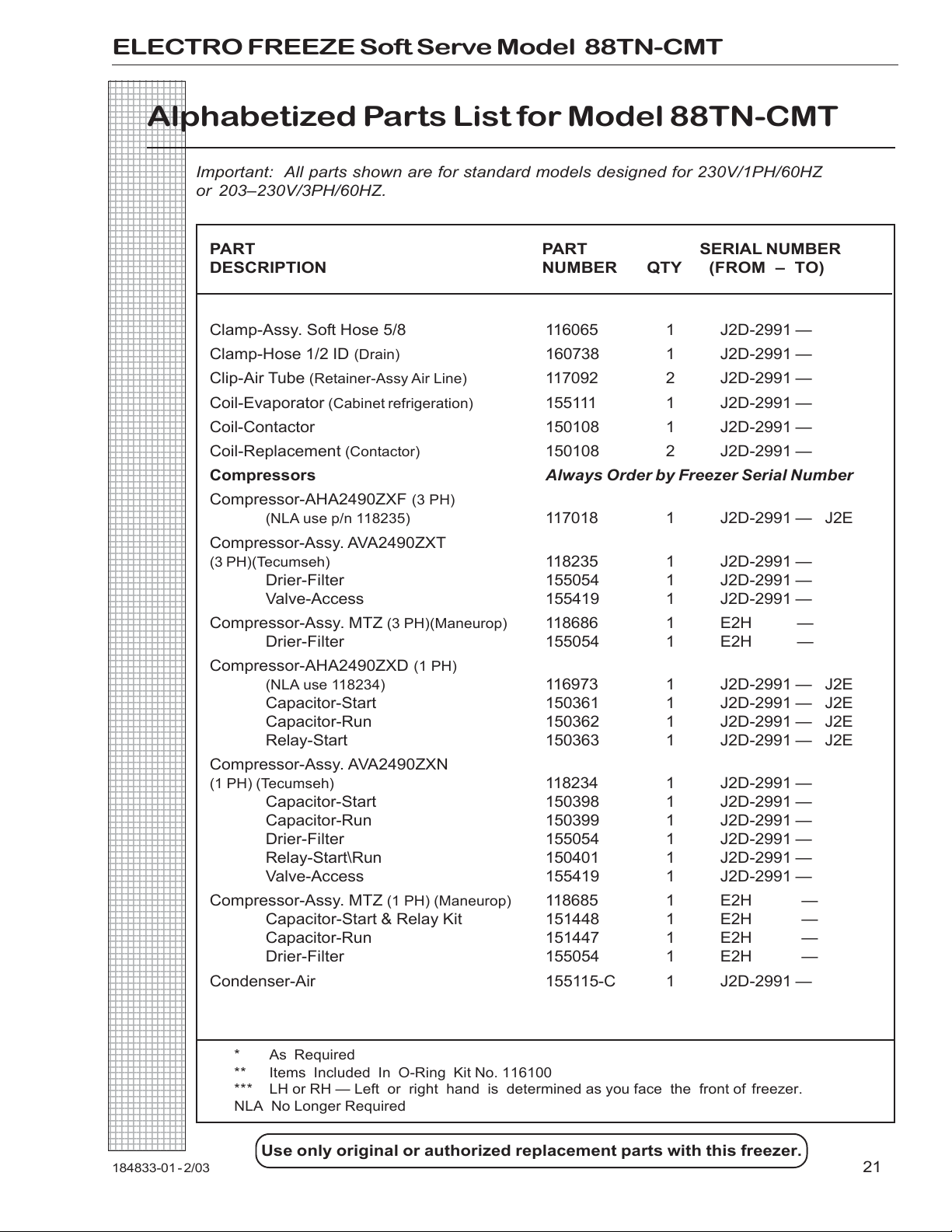

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

184833-01 - 2/03 21

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Clamp-Assy. Soft Hose 5/8 116065 1 J2D-2991 —

Clamp-Hose 1/2 ID

Clip-Air Tube

Coil-Evaporator

(Drain)

(Retainer-Assy Air Line)

(Cabinet refrigeration)

160738 1 J2D-2991 —

117092 2 J2D-2991 —

155111 1 J2D-2991 —

Coil-Contactor 150108 1 J2D-2991 —

Coil-Replacement

(Contactor)

150108 2 J2D-2991 —

Compressors Always Order by Freezer Serial Number

Compressor-AHA2490ZXF

(NLA use p/n 118235)

(3 PH)

117018 1 J2D-2991 — J2E

Compressor-Assy. AVA2490ZXT

(3 PH)(Tecumseh)

118235 1 J2D-2991 — Drier-Filter 155054 1 J2D-2991 — Valve-Access 155419 1 J2D-2991 —

Compressor-Assy. MTZ

(3 PH)(Maneurop)

118686 1 E2H — Drier-Filter 155054 1 E2H —

Compressor-AHA2490ZXD

(NLA use 118234)

(1 PH)

116973 1 J2D-2991 — J2E Capacitor-Start 150361 1 J2D-2991 — J2E Capacitor-Run 150362 1 J2D-2991 — J2E Relay-Start 150363 1 J2D-2991 — J2E

Compressor-Assy. AVA2490ZXN

(1 PH) (Tecumseh)

118234 1 J2D-2991 — Capacitor-Start 150398 1 J2D-2991 — Capacitor-Run 150399 1 J2D-2991 — Drier-Filter 155054 1 J2D-2991 — Relay-Start\Run 150401 1 J2D-2991 — Valve-Access 155419 1 J2D-2991 —

Compressor-Assy. MTZ

(1 PH) (Maneurop)

118685 1 E2H — Capacitor-Start & Relay Kit 151448 1 E2H — Capacitor-Run 151447 1 E2H — Drier-Filter 155054 1 E2H —

Condenser-Air 155115-C 1 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

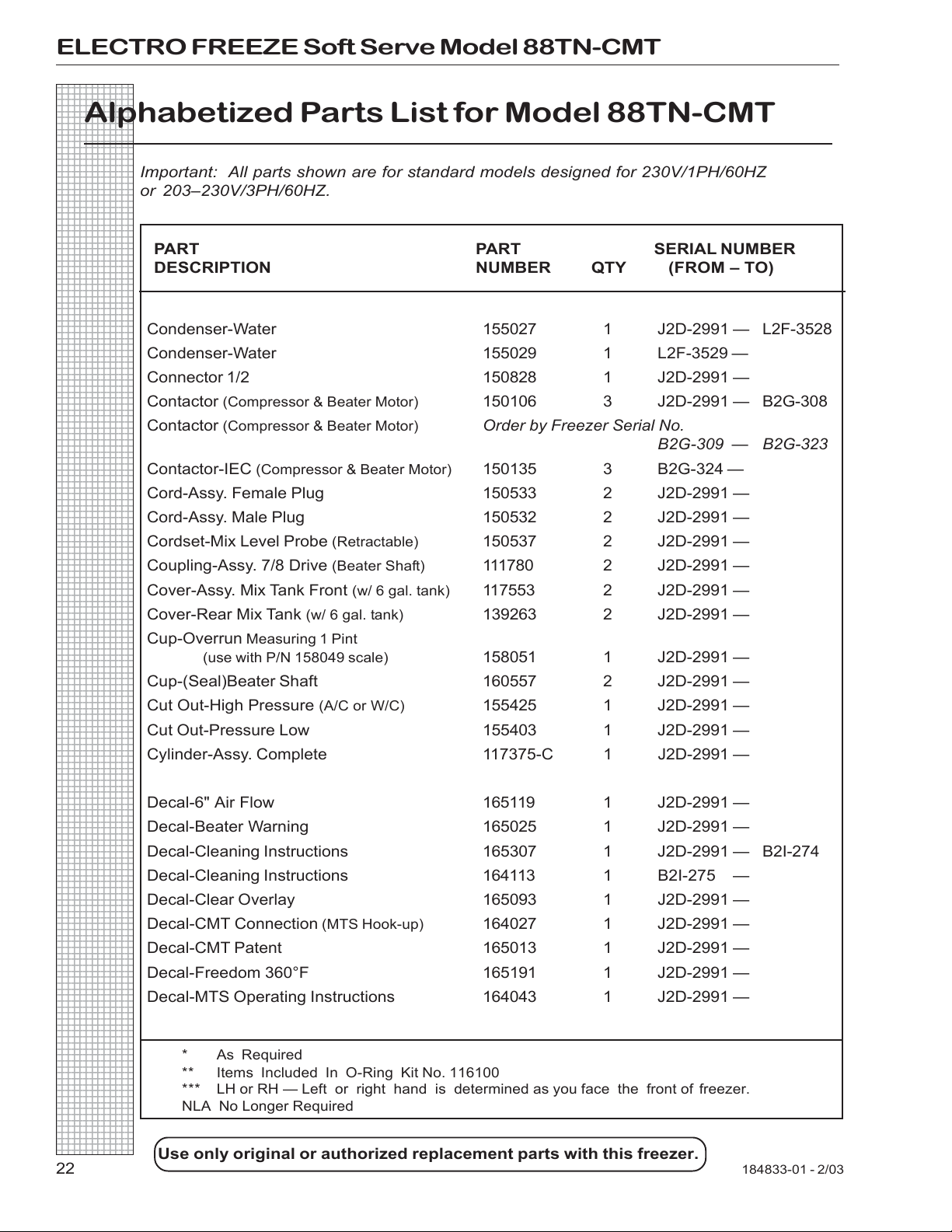

22 184833-01 - 2/03

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Condenser-Water 155027 1 J2D-2991 — L2F-3528

Condenser-Water 155029 1 L2F-3529 —

Connector 1/2 150828 1 J2D-2991 —

Contactor

(Compressor & Beater Motor)

150106 3 J2D-2991 — B2G-308

Order by Freezer Serial No.

B2G-309 — B2G-323

Contactor-IEC

(Compressor & Beater Motor)

150135 3 B2G-324 —

Cord-Assy. Female Plug 150533 2 J2D-2991 —

Cord-Assy. Male Plug 150532 2 J2D-2991 —

Cordset-Mix Level Probe

Coupling-Assy. 7/8 Drive

Cover-Assy. Mix Tank Front

Cover-Rear Mix Tank

Cup-Overrun

Measuring 1 Pint

(use with P/N 158049 scale)

(Retractable)

(Beater Shaft)

(w/ 6 gal. tank)

150537 2 J2D-2991 —

111780 2 J2D-2991 —

117553 2 J2D-2991 —

139263 2 J2D-2991 —

158051 1 J2D-2991 —

Cup-(Seal)Beater Shaft 160557 2 J2D-2991 —

Cut Out-High Pressure

(A/C or W/C)

155425 1 J2D-2991 —

Cut Out-Pressure Low 155403 1 J2D-2991 —

Cylinder-Assy. Complete 117375-C 1 J2D-2991 —

Decal-6" Air Flow 165119 1 J2D-2991 —

Decal-Beater Warning 165025 1 J2D-2991 —

Decal-Cleaning Instructions 165307 1 J2D-2991 — B2I-274

Decal-Cleaning Instructions 164113 1 B2I-275 —

Decal-Clear Overlay 165093 1 J2D-2991 —

Decal-CMT Connection

(MTS Hook-up)

164027 1 J2D-2991 —

Decal-CMT Patent 165013 1 J2D-2991 —

Decal-Freedom 360°F 165191 1 J2D-2991 —

Decal-MTS Operating Instructions 164043 1 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

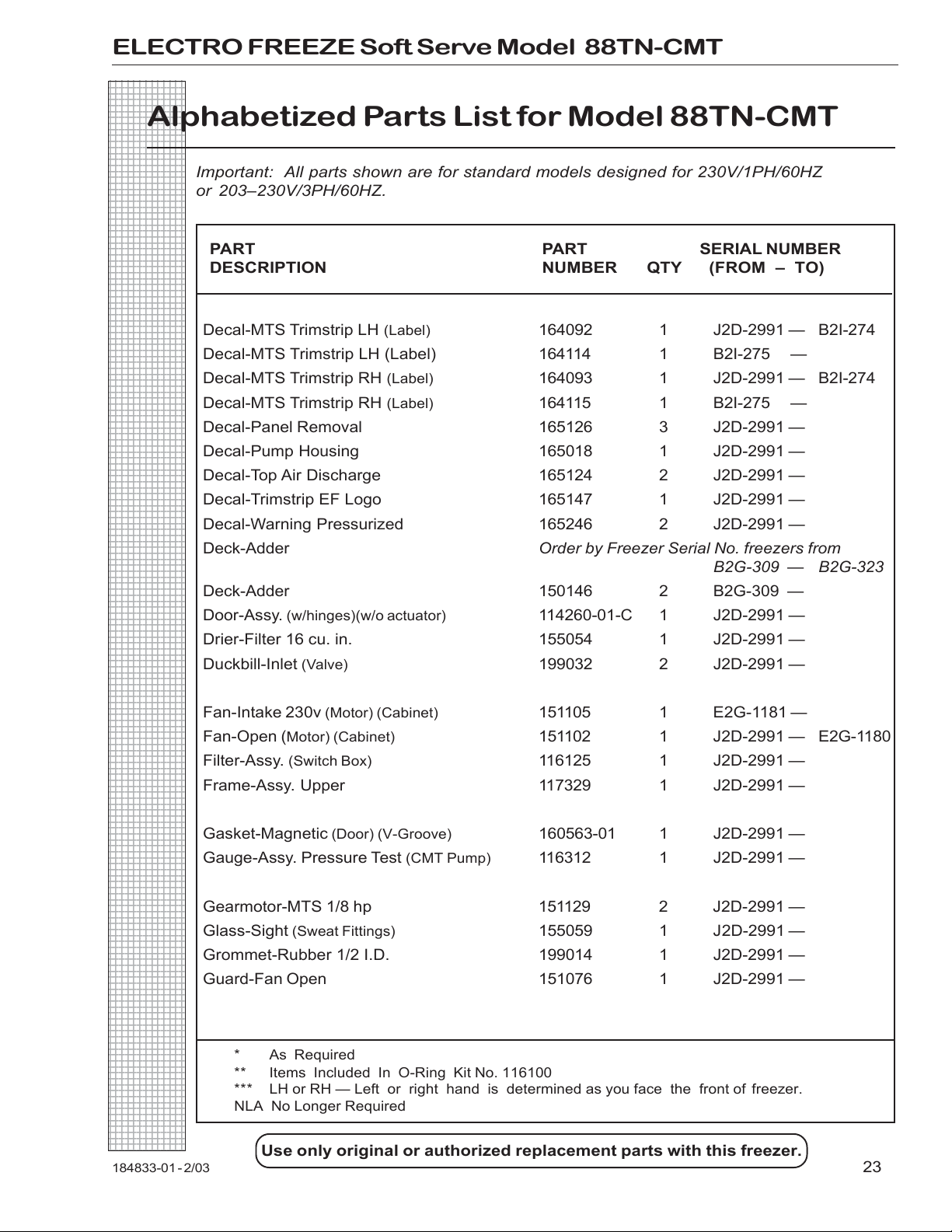

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

184833-01 - 2/03 23

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Decal-MTS Trimstrip LH

(Label)

164092 1 J2D-2991 — B2I-274

Decal-MTS Trimstrip LH (Label) 164114 1 B2I-275 —

Decal-MTS Trimstrip RH

(Label)

164093 1 J2D-2991 — B2I-274

164115 1 B2I-275 —

Decal-Panel Removal 165126 3 J2D-2991 —

Decal-Pump Housing 165018 1 J2D-2991 —

Decal-Top Air Discharge 165124 2 J2D-2991 —

Decal-Trimstrip EF Logo 165147 1 J2D-2991 —

Decal-Warning Pressurized 165246 2 J2D-2991 —

Deck-Adder Order by Freezer Serial No. freezers from

B2G-309 — B2G-323

Deck-Adder 150146 2 B2G-309 —

Door-Assy.

(w/hinges)(w/o actuator)

114260-01-C 1 J2D-2991 —

Drier-Filter 16 cu. in. 155054 1 J2D-2991 —

Duckbill-Inlet

Fan-Intake 230v

Fan-Open (

Filter-Assy.

(Valve)

(Motor) (Cabinet)

Motor) (Cabinet)

(Switch Box)

199032 2 J2D-2991 —

151105 1 E2G-1181 —

151102 1 J2D-2991 — E2G-1180

116125 1 J2D-2991 —

Frame-Assy. Upper 117329 1 J2D-2991 —

Gasket-Magnetic

Gauge-Assy. Pressure Test

(Door) (V-Groove)

(CMT Pump)

160563-01 1 J2D-2991 —

116312 1 J2D-2991 —

Gearmotor-MTS 1/8 hp 151129 2 J2D-2991 —

Glass-Sight

(Sweat Fittings)

155059 1 J2D-2991 —

Grommet-Rubber 1/2 I.D. 199014 1 J2D-2991 —

Guard-Fan Open 151076 1 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

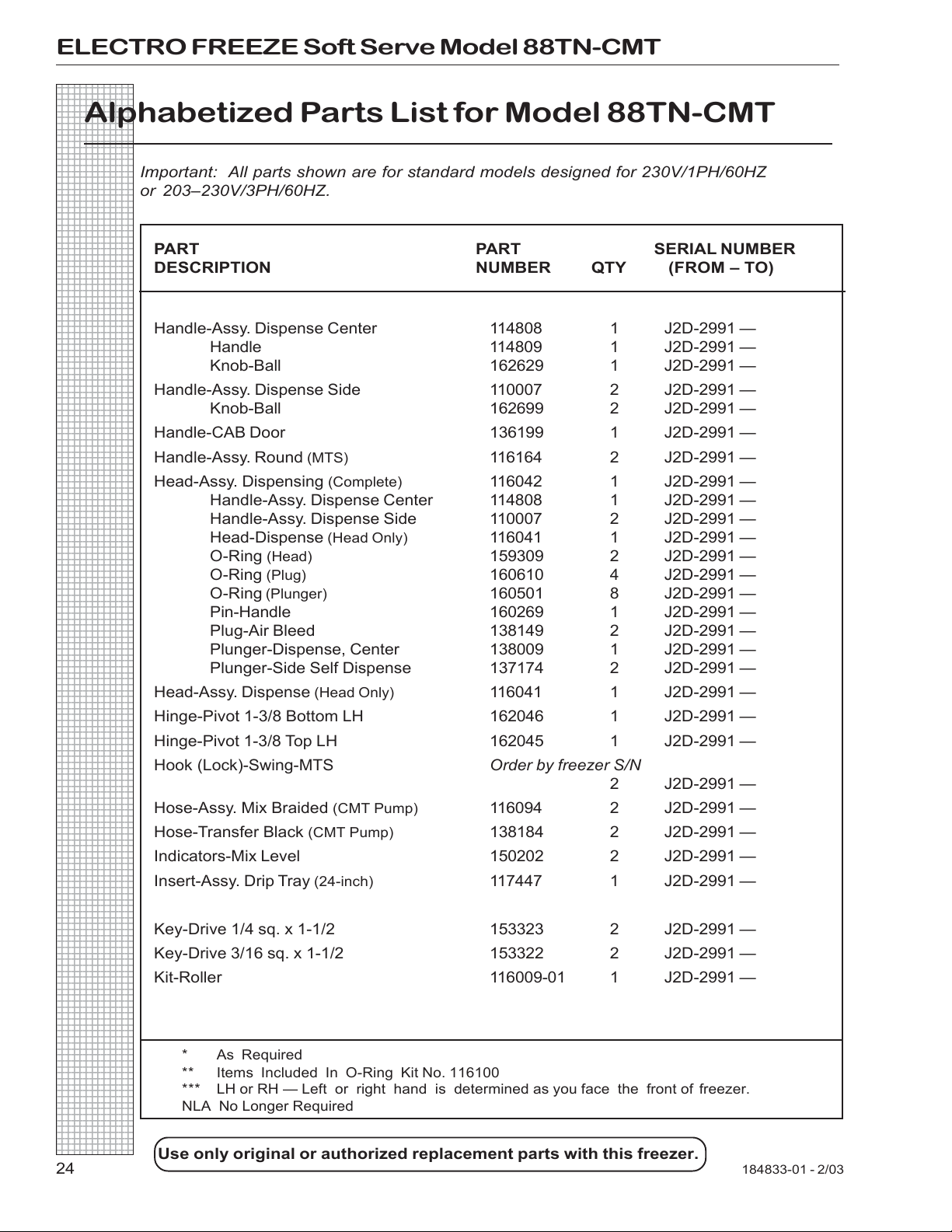

24 184833-01 - 2/03

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Handle-Assy. Dispense Center 114808 1 J2D-2991 —

Handle 114809 1 J2D-2991 — Knob-Ball 162629 1 J2D-2991 —

Handle-Assy. Dispense Side 110007 2 J2D-2991 —

Knob-Ball 162699 2 J2D-2991 —

Handle-CAB Door 136199 1 J2D-2991 —

Handle-Assy. Round

Head-Assy. Dispensing

(MTS)

(Complete)

116164 2 J2D-2991 —

116042 1 J2D-2991 — Handle-Assy. Dispense Center 114808 1 J2D-2991 — Handle-Assy. Dispense Side 110007 2 J2D-2991 — Head-Dispense O-Ring O-Ring O-Ring

(Head) (Plug)

(Plunger)

(Head Only)

116041 1 J2D-2991 —

159309 2 J2D-2991 —

160610 4 J2D-2991 —

160501 8 J2D-2991 — Pin-Handle 160269 1 J2D-2991 — Plug-Air Bleed 138149 2 J2D-2991 — Plunger-Dispense, Center 138009 1 J2D-2991 — Plunger-Side Self Dispense 137174 2 J2D-2991 —

Head-Assy. Dispense

(Head Only)

116041 1 J2D-2991 —

Hinge-Pivot 1-3/8 Bottom LH 162046 1 J2D-2991 —

Hinge-Pivot 1-3/8 Top LH 162045 1 J2D-2991 —

Hook (Lock)-Swing-MTS Order by freezer S/N

2 J2D-2991 —

Hose-Assy. Mix Braided

Hose-Transfer Black

(CMT Pump)

116094 2 J2D-2991 —

138184 2 J2D-2991 —

Indicators-Mix Level 150202 2 J2D-2991 —

Insert-Assy. Drip Tray

(24-inch)

117447 1 J2D-2991 —

Key-Drive 1/4 sq. x 1-1/2 153323 2 J2D-2991 —

Key-Drive 3/16 sq. x 1-1/2 153322 2 J2D-2991 —

Kit-Roller 116009-01 1 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

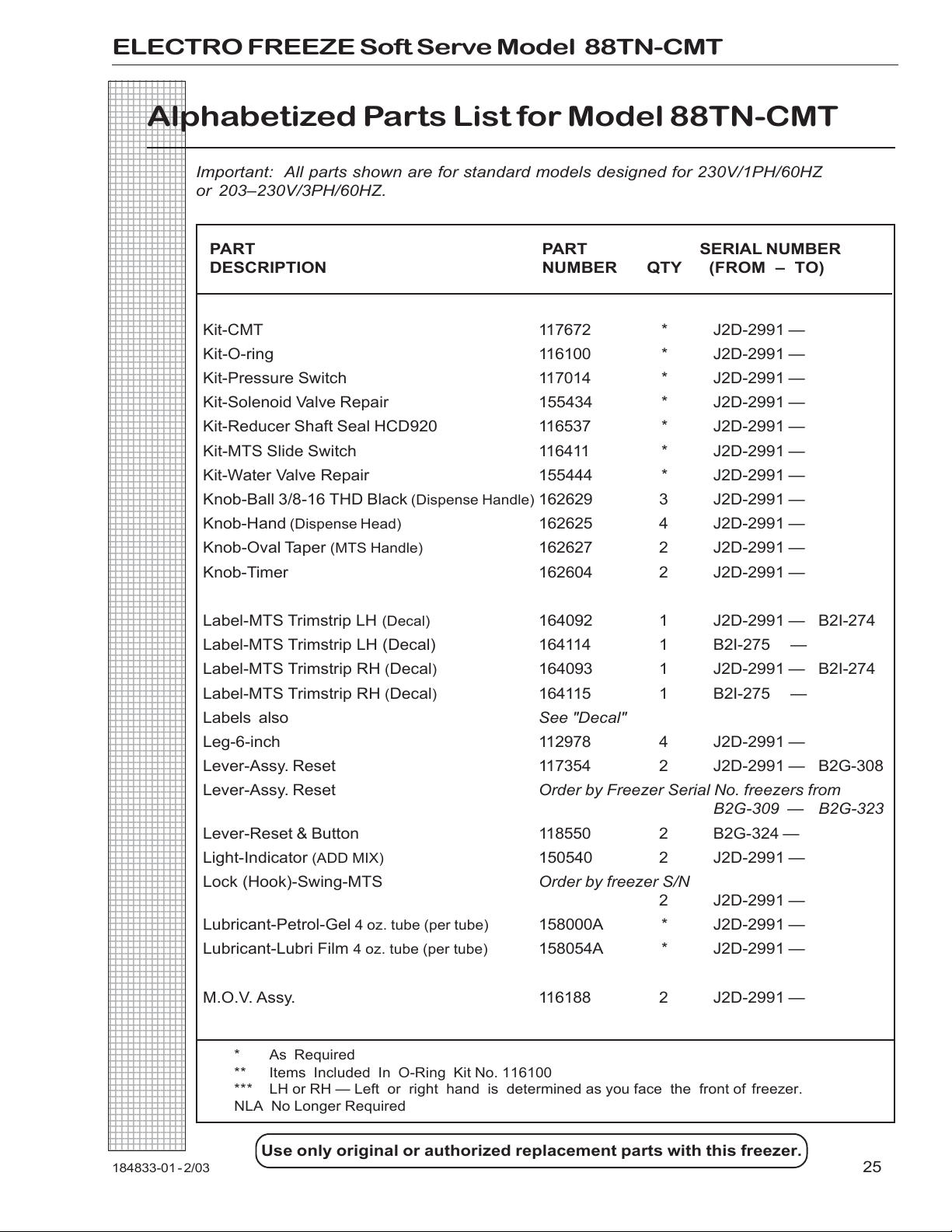

Alphabetized Parts List for Model 88TN-CMT

234567890123

184833-01 - 2/03 25

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Kit-CMT 117672 * J2D-2991 —

Kit-O-ring 116100 * J2D-2991 —

Kit-Pressure Switch 117014 * J2D-2991 —

Kit-Solenoid Valve Repair 155434 * J2D-2991 —

Kit-Reducer Shaft Seal HCD920 116537 * J2D-2991 —

Kit-MTS Slide Switch 116411 * J2D-2991 —

Kit-Water Valve Repair 155444 * J2D-2991 —

Knob-Ball 3/8-16 THD Black

Knob-Hand

Knob-Oval Taper

(Dispense Head)

(MTS Handle)

(Dispense Handle)

162629 3 J2D-2991 —

162625 4 J2D-2991 —

162627 2 J2D-2991 —

Knob-Timer 162604 2 J2D-2991 —

Label-MTS Trimstrip LH

(Decal)

164092 1 J2D-2991 — B2I-274

Label-MTS Trimstrip LH (Decal) 164114 1 B2I-275 —

Label-MTS Trimstrip RH (Decal

)

164093 1 J2D-2991 — B2I-274

164115 1 B2I-275 —

Labels also See "Decal"

Leg-6-inch 112978 4 J2D-2991 —

Lever-Assy. Reset 117354 2 J2D-2991 — B2G-308

Lever-Assy. Reset Order by Freezer Serial No. freezers from

B2G-309 — B2G-323

Lever-Reset & Button 118550 2 B2G-324 —

Light-Indicator

(ADD MIX)

150540 2 J2D-2991 —

Lock (Hook)-Swing-MTS Order by freezer S/N

2 J2D-2991 —

Lubricant-Petrol-Gel

Lubricant-Lubri Film

4 oz. tube (per tube)

158000A * J2D-2991 —

158054A * J2D-2991 —

M.O.V. Assy. 116188 2 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

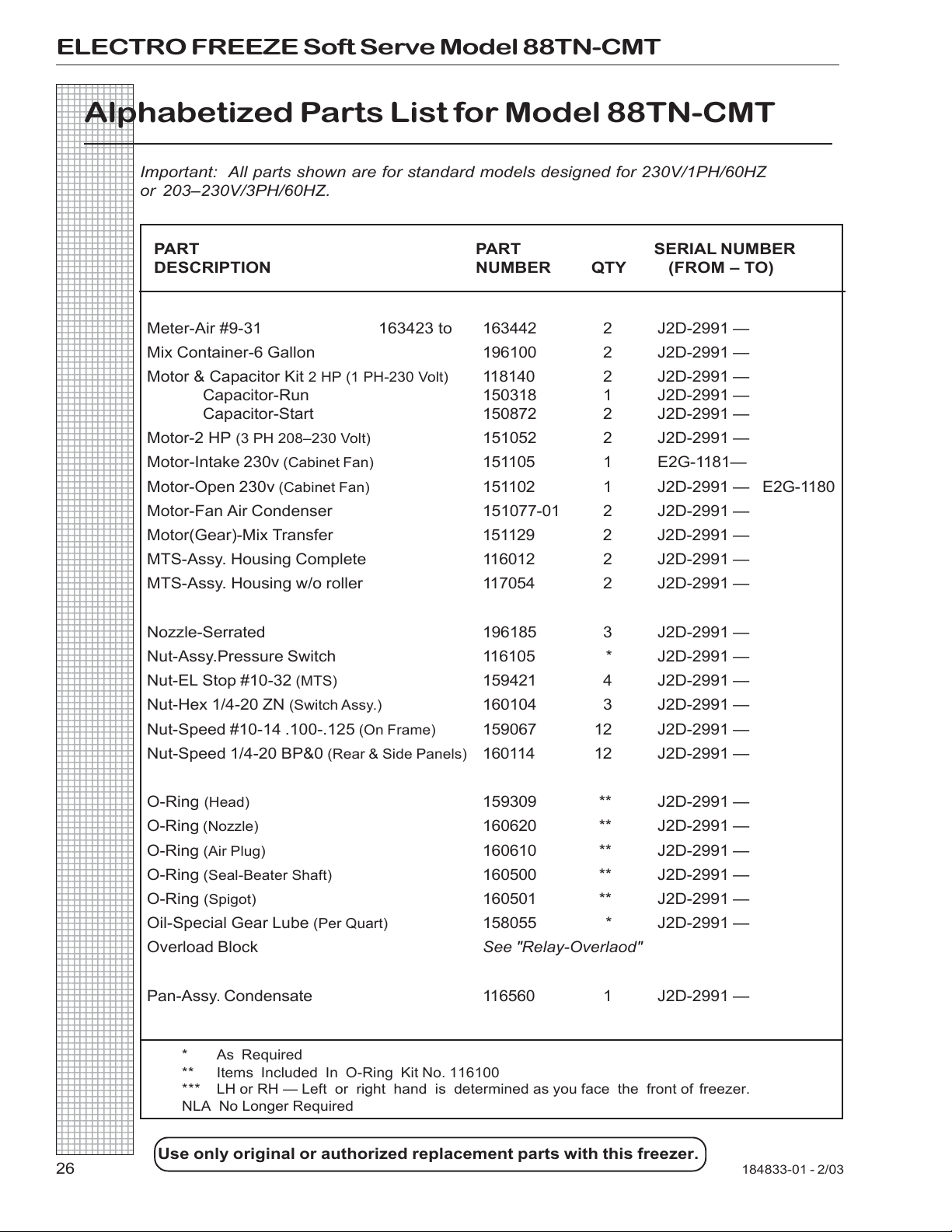

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

26 184833-01 - 2/03

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Meter-Air #9-31 163423 to 163442 2 J2D-2991 —

Mix Container-6 Gallon 196100 2 J2D-2991 —

Motor & Capacitor Kit

2 HP (1 PH-230 Volt)

118140 2 J2D-2991 — Capacitor-Run 150318 1 J2D-2991 — Capacitor-Start 150872 2 J2D-2991 —

Motor-2 HP

Motor-Intake 230v

Motor-Open 230v

(3 PH 208–230 Volt)

(Cabinet Fan)

151052 2 J2D-2991 —

151105 1 E2G-1181—

151102 1 J2D-2991 — E2G-1180

Motor-Fan Air Condenser 151077-01 2 J2D-2991 —

Motor(Gear)-Mix Transfer 151129 2 J2D-2991 —

MTS-Assy. Housing Complete 116012 2 J2D-2991 —

MTS-Assy. Housing w/o roller 117054 2 J2D-2991 —

Nozzle-Serrated 196185 3 J2D-2991 —

Nut-Assy.Pressure Switch 116105 * J2D-2991 —

Nut-EL Stop #10-32

Nut-Hex 1/4-20 ZN

Nut-Speed #10-14 .100-.125

Nut-Speed 1/4-20 BP&0

O-Ring

(Head)

(Nozzle)

(Air Plug)

(Seal-Beater Shaft)

(Spigot)

Oil-Special Gear Lube

(MTS)

(Switch Assy.)

(On Frame)

(Rear & Side Panels)

(Per Quart)

159421 4 J2D-2991 —

160104 3 J2D-2991 —

159067 12 J2D-2991 —

160114 12 J2D-2991 —

159309 ** J2D-2991 —

160620 ** J2D-2991 —

160610 ** J2D-2991 —

160500 ** J2D-2991 —

160501 ** J2D-2991 —

158055 * J2D-2991 —

Overload Block See "Relay-Overlaod"

Pan-Assy. Condensate 116560 1 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

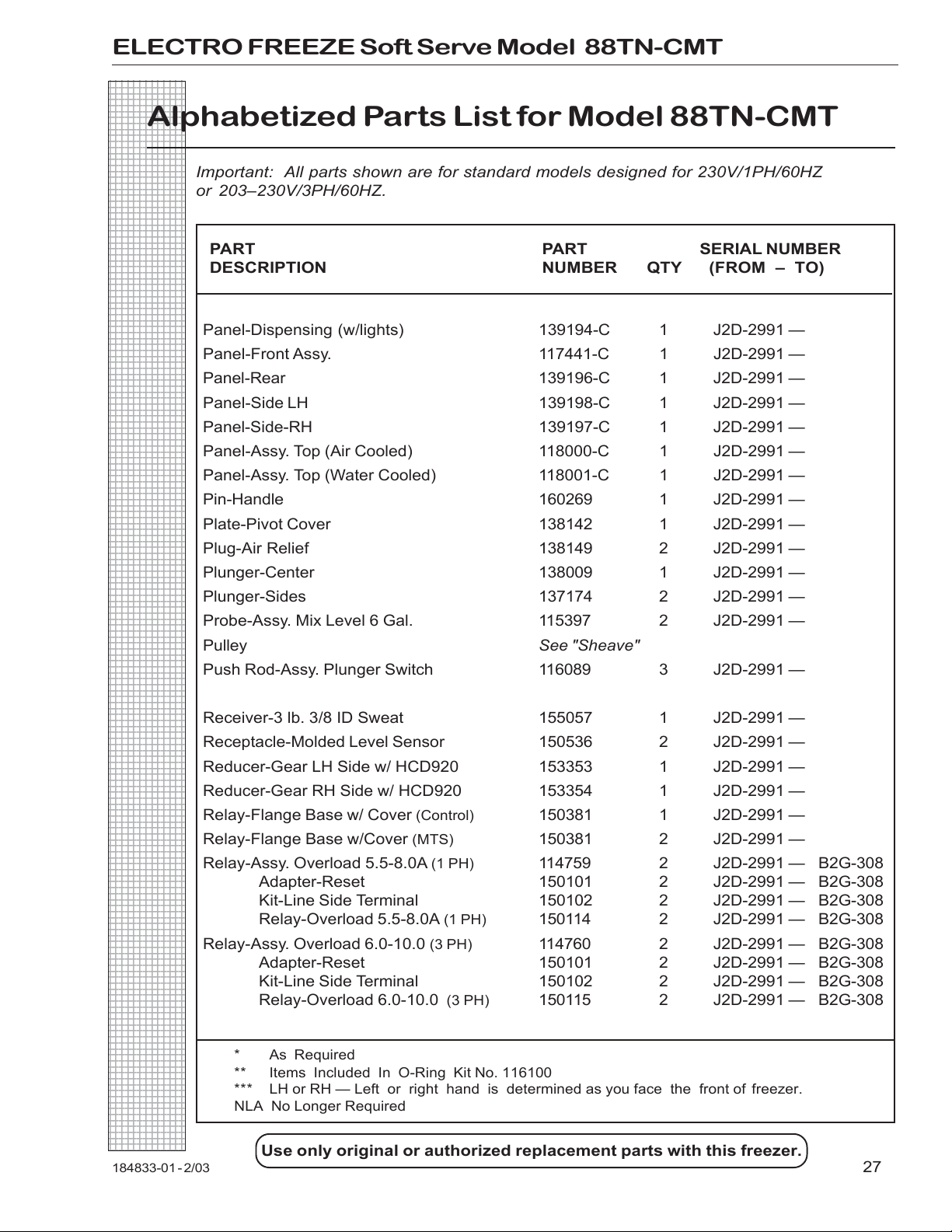

184833-01 - 2/03 27

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Panel-Dispensing (w/lights) 139194-C 1 J2D-2991 —

Panel-Front Assy. 117441-C 1 J2D-2991 —

Panel-Rear 139196-C 1 J2D-2991 —

Panel-Side LH 139198-C 1 J2D-2991 —

Panel-Side-RH 139197-C 1 J2D-2991 —

Panel-Assy. Top (Air Cooled) 118000-C 1 J2D-2991 —

Panel-Assy. Top (Water Cooled) 118001-C 1 J2D-2991 —

Pin-Handle 160269 1 J2D-2991 —

Plate-Pivot Cover 138142 1 J2D-2991 —

Plug-Air Relief 138149 2 J2D-2991 —

Plunger-Center 138009 1 J2D-2991 —

Plunger-Sides 137174 2 J2D-2991 —

Probe-Assy. Mix Level 6 Gal. 115397 2 J2D-2991 —

Pulley See "Sheave"

Push Rod-Assy. Plunger Switch 116089 3 J2D-2991 —

Receiver-3 lb. 3/8 ID Sweat 155057 1 J2D-2991 —

Receptacle-Molded Level Sensor 150536 2 J2D-2991 —

Reducer-Gear LH Side w/ HCD920 153353 1 J2D-2991 —

Reducer-Gear RH Side w/ HCD920 153354 1 J2D-2991 —

Relay-Flange Base w/ Cover

Relay-Flange Base w/Cover

Relay-Assy. Overload 5.5-8.0A

(Control)

(MTS)

(1 PH)

150381 1 J2D-2991 —

150381 2 J2D-2991 —

114759 2 J2D-2991 — B2G-308 Adapter-Reset 150101 2 J2D-2991 — B2G-308 Kit-Line Side Terminal 150102 2 J2D-2991 — B2G-308 Relay-Overload 5.5-8.0A

Relay-Assy. Overload 6.0-10.0

(1 PH)

(3 PH)

150114 2 J2D-2991 — B2G-308

114760 2 J2D-2991 — B2G-308 Adapter-Reset 150101 2 J2D-2991 — B2G-308 Kit-Line Side Terminal 150102 2 J2D-2991 — B2G-308 Relay-Overload 6.0-10.0

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

(3 PH)

150115 2 J2D-2991 — B2G-308

Use only original or authorized replacement parts with this freezer.

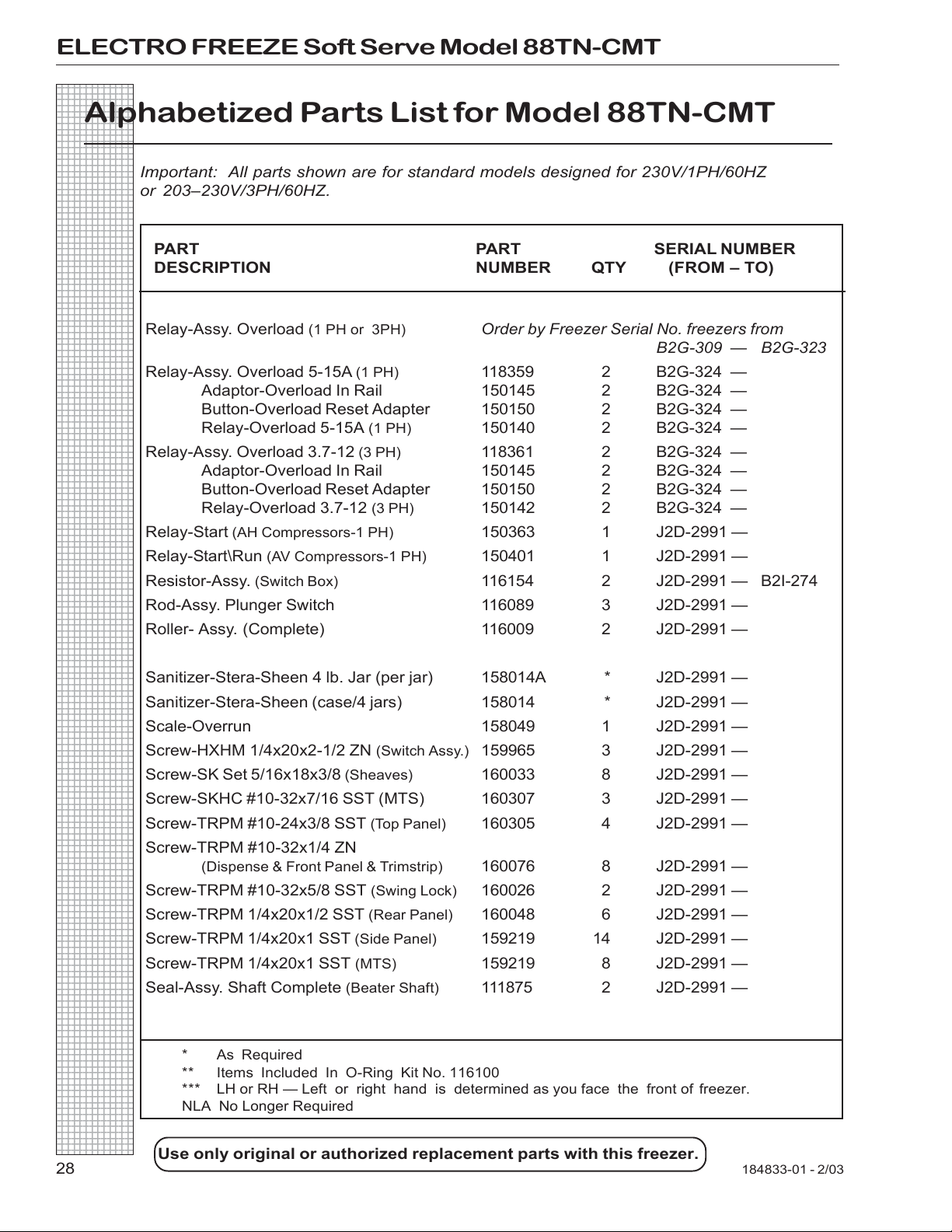

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

28 184833-01 - 2/03

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Relay-Assy. Overload

(1 PH or 3PH)

Order by Freezer Serial No. freezers from

B2G-309 — B2G-323

Relay-Assy. Overload 5-15A

(1 PH)

118359 2 B2G-324 — Adaptor-Overload In Rail 150145 2 B2G-324 — Button-Overload Reset Adapter 150150 2 B2G-324 — Relay-Overload 5-15A

Relay-Assy. Overload 3.7-12

(1 PH)

(3 PH)

150140 2 B2G-324 —

118361 2 B2G-324 — Adaptor-Overload In Rail 150145 2 B2G-324 — Button-Overload Reset Adapter 150150 2 B2G-324 — Relay-Overload 3.7-12

Relay-Start

(AH Compressors-1 PH)

Relay-Start\Run

Resistor-Assy.

(AV Compressors-1 PH)

(Switch Box)

(3 PH)

150142 2 B2G-324 —

150363 1 J2D-2991 —

150401 1 J2D-2991 —

116154 2 J2D-2991 — B2I-274

Rod-Assy. Plunger Switch 116089 3 J2D-2991 —

Roller- Assy. (Complete) 116009 2 J2D-2991 —

Sanitizer-Stera-Sheen 4 lb. Jar (per jar) 158014A * J2D-2991 —

Sanitizer-Stera-Sheen (case/4 jars) 158014 * J2D-2991 —

Scale-Overrun 158049 1 J2D-2991 —

Screw-HXHM 1/4x20x2-1/2 ZN

Screw-SK Set 5/16x18x3/8

(Switch Assy.)

(Sheaves)

159965 3 J2D-2991 —

160033 8 J2D-2991 —

Screw-SKHC #10-32x7/16 SST (MTS) 160307 3 J2D-2991 —

Screw-TRPM #10-24x3/8 SST

(Top Panel)

160305 4 J2D-2991 —

Screw-TRPM #10-32x1/4 ZN

(Dispense & Front Panel & Trimstrip)

Screw-TRPM #10-32x5/8 SST

Screw-TRPM 1/4x20x1/2 SST

Screw-TRPM 1/4x20x1 SST

Seal-Assy. Shaft Complete

(Swing Lock)

(Rear Panel)

(Side Panel)

(MTS)

(Beater Shaft)

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

160076 8 J2D-2991 —

160026 2 J2D-2991 —

160048 6 J2D-2991 —

159219 14 J2D-2991 —

159219 8 J2D-2991 —

111875 2 J2D-2991 —

Use only original or authorized replacement parts with this freezer.

4

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

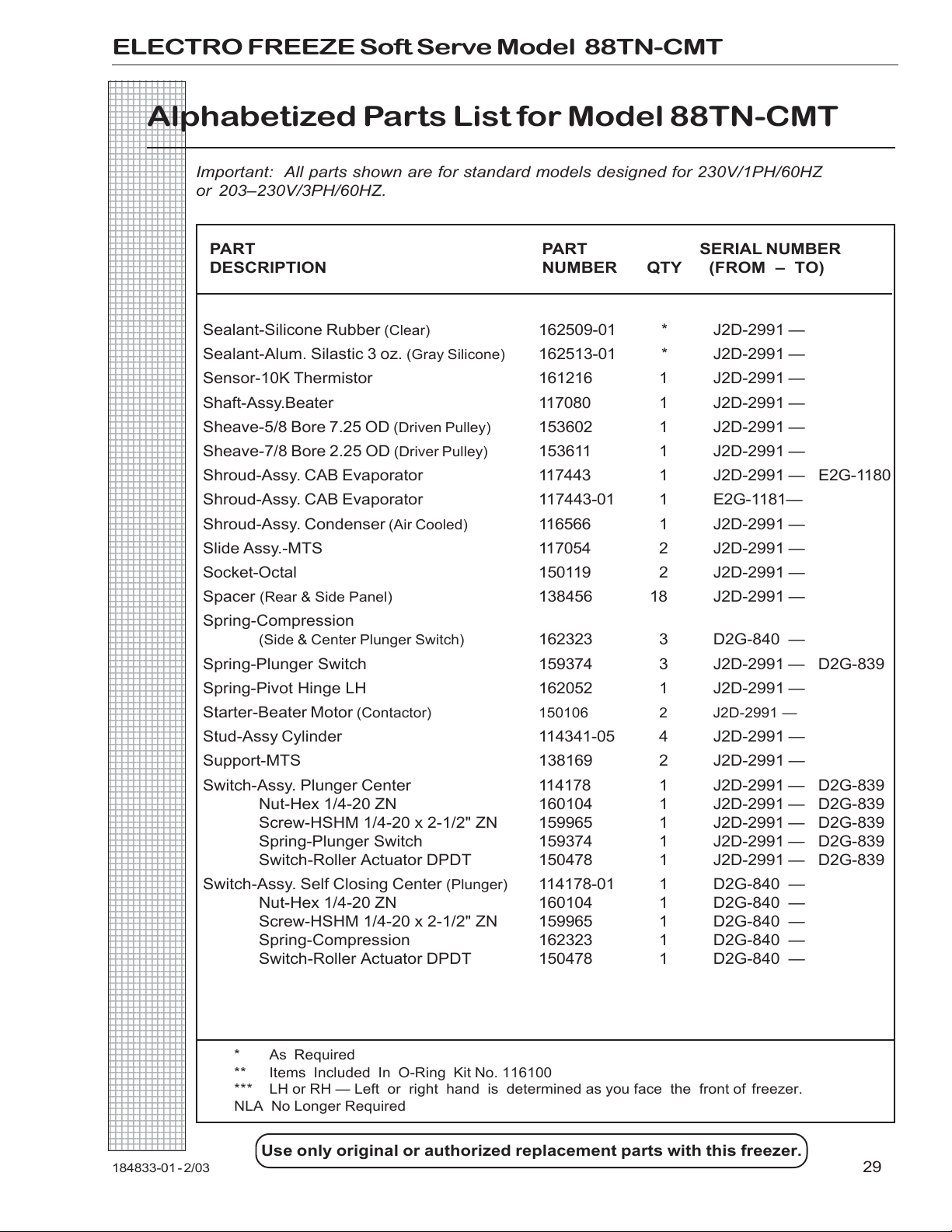

Alphabetized Parts List for Model 88TN-CMT

234567890123

184833-01 - 2/03 29

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Sealant-Silicone Rubber

Sealant-Alum. Silastic 3 oz.

(Clear)

(Gray Silicone)

162509-01 * J2D-2991 —

162513-01 * J2D-2991 —

Sensor-10K Thermistor 161216 1 J2D-2991 —

Shaft-Assy.Beater 117080 1 J2D-2991 —

Sheave-5/8 Bore 7.25 OD

Sheave-7/8 Bore 2.25 OD

(Driven Pulley)

(Driver Pulley)

153602 1 J2D-2991 —

153611 1 J2D-2991 —

Shroud-Assy. CAB Evaporator 117443 1 J2D-2991 — E2G-1180

Shroud-Assy. CAB Evaporator 117443-01 1 E2G-1181—

Shroud-Assy. Condenser

(Air Cooled)

116566 1 J2D-2991 —

Slide Assy.-MTS 117054 2 J2D-2991 —

Socket-Octal 150119 2 J2D-2991 —

Spacer

(Rear & Side Panel)

138456 18 J2D-2991 —

Spring-Compression

(Side & Center Plunger Switch)

162323 3 D2G-840 —

Spring-Plunger Switch 159374 3 J2D-2991 — D2G-839

Spring-Pivot Hinge LH 162052 1 J2D-2991 —

Starter-Beater Motor

(Contactor) 150106 2 J2D-2991 —

Stud-Assy Cylinder 114341-05 4 J2D-2991 —

Support-MTS 138169 2 J2D-2991 —

Switch-Assy. Plunger Center 114178 1 J2D-2991 — D2G-839

Nut-Hex 1/4-20 ZN 160104 1 J2D-2991 — D2G-839 Screw-HSHM 1/4-20 x 2-1/2" ZN 159965 1 J2D-2991 — D2G-839 Spring-Plunger Switch 159374 1 J2D-2991 — D2G-839 Switch-Roller Actuator DPDT 150478 1 J2D-2991 — D2G-839

Switch-Assy. Self Closing Center

(Plunger)

114178-01 1 D2G-840 — Nut-Hex 1/4-20 ZN 160104 1 D2G-840 — Screw-HSHM 1/4-20 x 2-1/2" ZN 159965 1 D2G-840 — Spring-Compression 162323 1 D2G-840 — Switch-Roller Actuator DPDT 150478 1 D2G-840 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

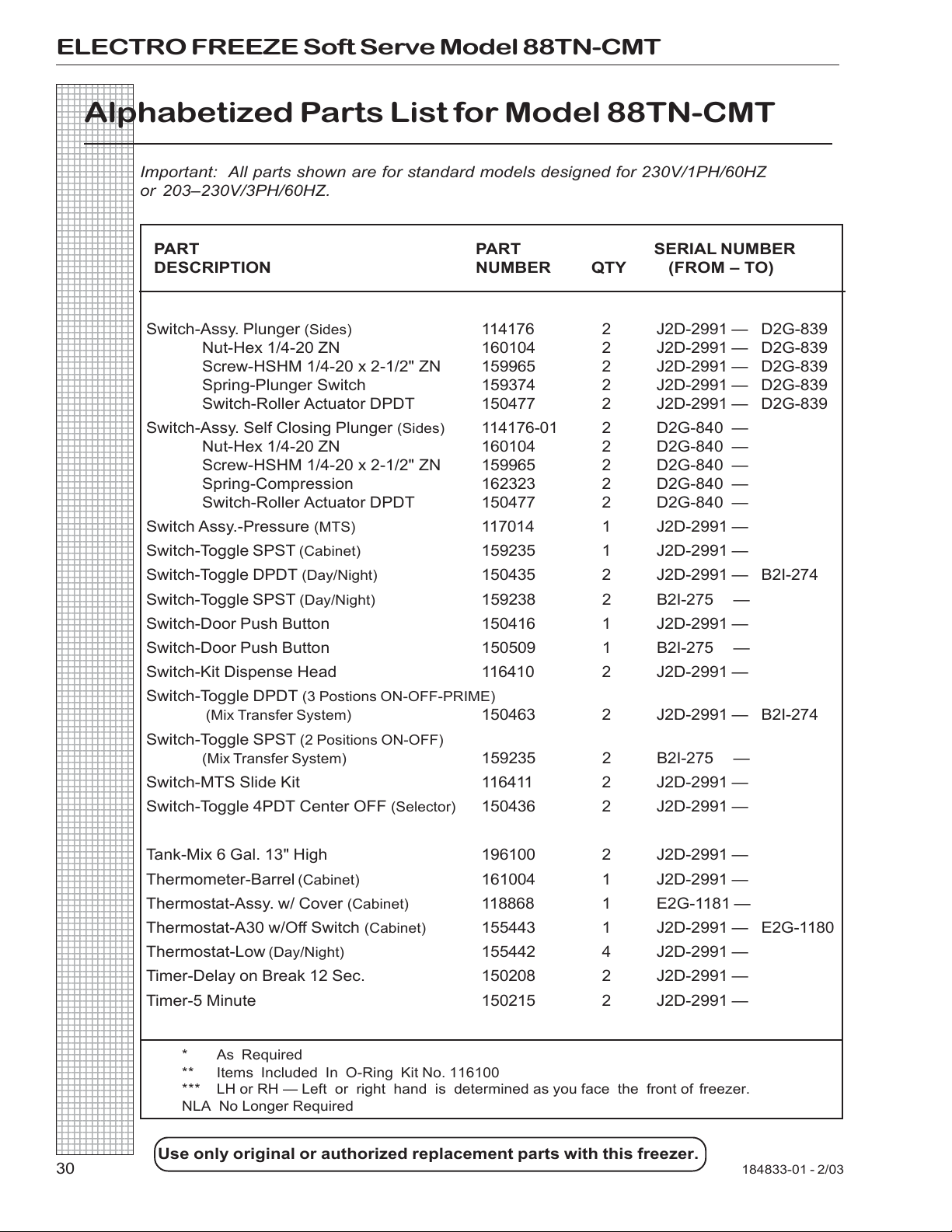

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

30 184833-01 - 2/03

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Switch-Assy. Plunger

(Sides)

114176 2 J2D-2991 — D2G-839 Nut-Hex 1/4-20 ZN 160104 2 J2D-2991 — D2G-839 Screw-HSHM 1/4-20 x 2-1/2" ZN 159965 2 J2D-2991 — D2G-839 Spring-Plunger Switch 159374 2 J2D-2991 — D2G-839 Switch-Roller Actuator DPDT 150477 2 J2D-2991 — D2G-839

Switch-Assy. Self Closing Plunger

(Sides)

114176-01 2 D2G-840 — Nut-Hex 1/4-20 ZN 160104 2 D2G-840 — Screw-HSHM 1/4-20 x 2-1/2" ZN 159965 2 D2G-840 — Spring-Compression 162323 2 D2G-840 — Switch-Roller Actuator DPDT 150477 2 D2G-840 —

Switch Assy.-Pressure

Switch-Toggle SPST

Switch-Toggle DPDT

Switch-Toggle SPST

(MTS)

(Cabinet)

(Day/Night)

117014 1 J2D-2991 —

159235 1 J2D-2991 —

150435 2 J2D-2991 — B2I-274

159238 2 B2I-275 —

Switch-Door Push Button 150416 1 J2D-2991 —

Switch-Door Push Button 150509 1 B2I-275 —

Switch-Kit Dispense Head 116410 2 J2D-2991 —

Switch-Toggle DPDT

(Mix Transfer System)

Switch-Toggle SPST

(Mix Transfer System)

(3 Postions ON-OFF-PRIME)

150463 2 J2D-2991 — B2I-274

(2 Positions ON-OFF)

159235 2 B2I-275 —

Switch-MTS Slide Kit 116411 2 J2D-2991 —

Switch-Toggle 4PDT Center OFF

(Selector)

150436 2 J2D-2991 —

Tank-Mix 6 Gal. 13" High 196100 2 J2D-2991 —

Thermometer-Barrel

Thermostat-Assy. w/ Cover

Thermostat-A30 w/Off Switch

Thermostat-Low

(Cabinet)

(Day/Night)

(Cabinet)

161004 1 J2D-2991 —

118868 1 E2G-1181 —

155443 1 J2D-2991 — E2G-1180

155442 4 J2D-2991 —

Timer-Delay on Break 12 Sec. 150208 2 J2D-2991 —

Timer-5 Minute 150215 2 J2D-2991 —

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

Use only original or authorized replacement parts with this freezer.

4

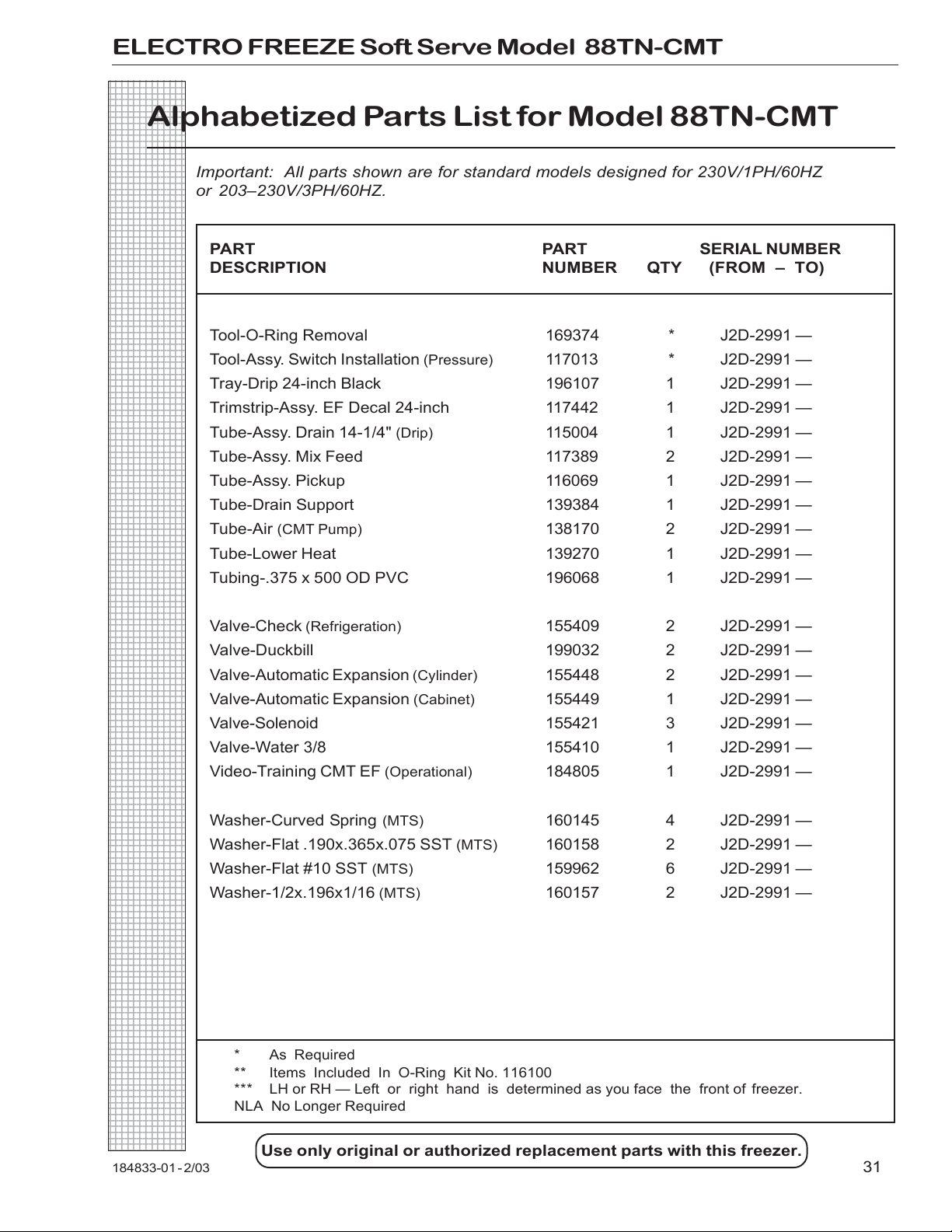

ELECTRO FREEZE Soft Serve Model 88TN-CMT

234567890123

Alphabetized Parts List for Model 88TN-CMT

234567890123

184833-01 - 2/03 31

Important: All parts shown are for standard models designed for 230V/1PH/60HZ or 203–230V/3PH/60HZ.

PART PART SERIAL NUMBER DESCRIPTION NUMBER QTY (FROM – TO)

Tool-O-Ring Removal 169374 * J2D-2991 —

Tool-Assy. Switch Installation

(Pressure)

117013 * J2D-2991 —

Tray-Drip 24-inch Black 196107 1 J2D-2991 —

Trimstrip-Assy. EF Decal 24-inch 117442 1 J2D-2991 —

Tube-Assy. Drain 14-1/4"

(Drip)

115004 1 J2D-2991 —

Tube-Assy. Mix Feed 117389 2 J2D-2991 —

Tube-Assy. Pickup 116069 1 J2D-2991 —

Tube-Drain Support 139384 1 J2D-2991 —

Tube-Air

(CMT Pump)

138170 2 J2D-2991 —

Tube-Lower Heat 139270 1 J2D-2991 —

Tubing-.375 x 500 OD PVC 196068 1 J2D-2991 —

Valve-Check

(Refrigeration)

155409 2 J2D-2991 —

Valve-Duckbill 199032 2 J2D-2991 —

Valve-Automatic Expansion

(Cylinder)

(Cabinet)

155448 2 J2D-2991 —

155449 1 J2D-2991 —

Valve-Solenoid 155421 3 J2D-2991 —

Valve-Water 3/8 155410 1 J2D-2991 —

Video-Training CMT EF

Washer-Curved Spring

Washer-Flat .190x.365x.075 SST

Washer-Flat #10 SST

Washer-1/2x.196x1/16

* As Required ** Items Included In O-Ring Kit No. 116100 *** LH or RH — Left or right hand is determined as you face the front of freezer. NLA No Longer Required

(Operational)

(MTS)

184805 1 J2D-2991 —

160145 4 J2D-2991 —

160158 2 J2D-2991 —

159962 6 J2D-2991 —

160157 2 J2D-2991 —

Use only original or authorized replacement parts with this freezer.

Electro Freeze 88TNCMT User Manual

Safety Decal Locations

Table of Contents

2 Note to Installer

3 Specifications

4 Part Names and Functions

Figure 4-1 Head Assembly

Figure 4-2 Beater Shaft Assembly

1 MIX TRANSFER SYSTEM

5 Operator Controls and Indicators

6 Disassembly and Cleaning

Safety Information

6.1 Cleaning Accessories

6.3 Cleaning Instructions

7 Assembly

8.1 Sanitizing Instructions

8 Start-up Instructions

8.2 Priming

9 Closing Procedures

9.1 Night Switch Operation

9.2 Draining Product

10.1 Overrun

10.2 Overrun Adjustment

WEEKLY

MONTHLY

Winter Storage

SAFETY

Table of Contents

Figure 1 Head Assembly

Figure 2 Beater Shaft Assembly

Figure 3 Cabinet Parts

Figure 4 MTS Hose Assembly

Figure 5 Mix Transfer System

Figure 9 Switch Assemblies

Accessories
