Page 1
OPERATOR’S MANUAL
with Replacement Parts List
COMPACT SERIES
SHAKE FREEZER
Model CS704
185260 - 6/17
H. C. Duke & Son, LLC P/N 185260 June 2017 Printed in U.S.A.
Page 2
Page 3
Operator’s Manual
for the
Electro Freeze Model CS704
Compact Series Flavor Injected
Shake Freezer
All contents © Copyright 2017 H.C. Duke & Son, LLC, 2116 Eighth Avenue, East Moline, Illinois 61244
i
Page 4
ELECTRO FREEZE Shake Model CS704
SAFETY FIRST!
Follow these four steps to safety ....
1. Recognize Safety Information ....Look for this
safety alert symbol throughout this manual.
When you see this symbol on your freezer or in this manual, be
alert to the potential for personal injury. Follow recommended
precautions and safe operating practices.
2. Understand Signal Words ....
The signal words — DANGER, WARNING and
DANGER
WARNING
CAUTION — are used with the safety alert symbol
(DANGER decals on the freezer may or may not have the
safety alert symbol, but the message is the same). Decals
with the words DANGER, WARNING or CAUTION appear
on the freezer. DANGER identies the most serious
hazard. Decals with the words DANGER or WARNING
are typically near specic hazards on the freezer. General
precautions are listed on CAUTION safety decals. In this
manual, CAUTION messages with the safety alert symbol
call attention to safety messages.
CAUTION
3. Follow Safety Instructions ....
Read and understand all safety messages in this manual.
Read and understand the decal safety messages on your
freezer. Take notice of the location of all decals on the freezer
and keep the safety decals in good condition. Check them
periodically and replace missing, damaged or illegible safety
decals. The safety decals must remain in place and legible
for the life of the freezer. If you need new decals, use the
information and illustrations on pages v and vi of this manual to
identify the decal and call or write to H.C. Duke & Son, LLC. or
local Electro Freeze distributor.
DO NOT attempt to operate the soft serve freezer until you
read and understand all safety messages and the operating
instructions in this manual.
ii
Page 5
ELECTRO FREEZE Shake Model CS704
SAFETY FIRST!
4. Definitions ....
Trained person (or Operator): A person who has been trained in the basic operation of
the freezer. This person is knowledgeable in the operation of machine startup, stopping,
lling, and basic cleaning, disassembly, washing, and sanitation of the freezer.
Freezer Technician: A person who has been trained by a factory representative, or
an experienced and qualied service person, to perform more complicated operations
such as freezer installation, maintenance repairs, component replacement , is aware of
hazards associated with electricity, moving parts, and takes necessary steps to protect
against injury to themselves and other people.
5. Operate Safely ....
IMPORTANT: Store Managers,owners, and supervisors must be aware of staff
capabilities and that they do not perform freezer operations outside their level of
knowledge or responsibility.
6. Caution ....
• This Freezer is to be operated by trained persons. The Dispense
feature, if used by public in self-serve applications, shall be monitored
by trained persons able to assist people with physical, sensory or mental
impaired capabilities.
DO NOT allow untrained personnel to maintain or
service this freezer. Failure to follow this instruction
may result in severe personal injury. DO NOT operate
the freezer until all service and access covers are
secured with screws. DO NOT attempt to repair
the freezer until the main power supply has been
disconnected. Some freezers have more than one
disconnect switch. Contact your authorized service
representative for original equipment parts.
• Children should not be allowed to play around this equipment.
• Do not store explosive substances such as aerosol cans with a ammable propellant
in freezer.
• This appliance is not designed for outdoor weather conditions and shall not be
exposed to rain.
• Do not wash machine with power sprayer. Do not install machine next to a power
sprayer where splash of freezer can occur.
• Machine is designed for use in areas of normal atmosphere. It is not to be used in
areas subject to explosion-proof standards.
iii
Page 6
ELECTRO FREEZE Shake Model CS704
Safety Decal Locations
Do not attempt to operate the freezer
until all safety precautions and operating
instructions in this manual are read and
understood.
Take notice of all warning, caution,
instruction and information decals (or
labels) on the freezer as shown in the
gure on the following page. The labels
have been put there to help maintain a
safe working environment.
The labels have been designed to
withstand washing and cleaning. All
labels must remain legible for the life of
the freezer. Check labels periodically
to be sure they can be recognized as
warning labels.
If it is necessary to replace any label,
please contact your local authorized
Electro Freeze Distributor or H. C. Duke
& Son, LLC. When ready to order you will
need to determine the (1) part number,
(2) type of label, (3) location of label, and
(4) quantity required, and include a return
shipping address.
You may contact your local authorized
Electro Freeze Distributor, as follows:
Name:
Address:
Phone:
or — for factory service assistance —
contact H. C. Duke & Son, LLC. Electro
Freeze Service Department by phone or
FAX:
Phone: 309-755-4553
800-755-4545
FAX: 309-755-9858
E-mail: [email protected]
(The decals on the next page are numbered 1 and 2. Those numbers correspond to the numbers in the table below.
The table provides the part number,
description, and quantity for each decal.)
No. Part No. Description (Qty)
1 HC165126 Decal — Panel Removal Warning (3)
2 HC165025 Decal — Beater Warning (1)
iv
Page 7
ELECTRO FREEZE Shake Model CS704
Safety Decal Locations
1 P/N HC165126
2 P/N HC165025
v
Page 8
ELECTRO FREEZE Shake Model CS704
Table of Contents
SECTION DESCRIPTION PAGE
SAFETY ........................................................................................... ii
SAFETY DECALS LOCATIONS ............................................iv
PART I
1. INTRODUCTION .............................................................................1
2. NOTE TO INSTALLER ...................................................................1
2.1. Uncrating and Inspection ................................................................2
2.2. Installation ......................................................................................2
2.3 Electrical Connections ...................................................................3
3. SPECIFICATIONS ...........................................................................3
3.1 Particulars. ...................................................................................... 3
3.2 Data Plate ........................................................................................4
3.3 Reference Information .....................................................................4
3.4 Installation Date ..............................................................................4
3.5 Dimensions. .....................................................................................5
4. PART NAMES AND FUNCTIONS .............................................6
5. OPERATOR CONTROLS & INDICATORS .................. 10
5.1 Rinse Switch .................................................................................11
5.2 Spinner Motor Fuse .......................................................................11
5.3 Lexible Spinner Shaft.....................................................................11
5.4 Reset -Circuit Breaker ...................................................................11
5.5 Selector Switch .............................................................................11
5.6 Prime / Calibrate ............................................................................12
5.7 Flavor Selection Buttons ................................................................12
5.8 Indicator Light “ADD MIX” .............................................................12

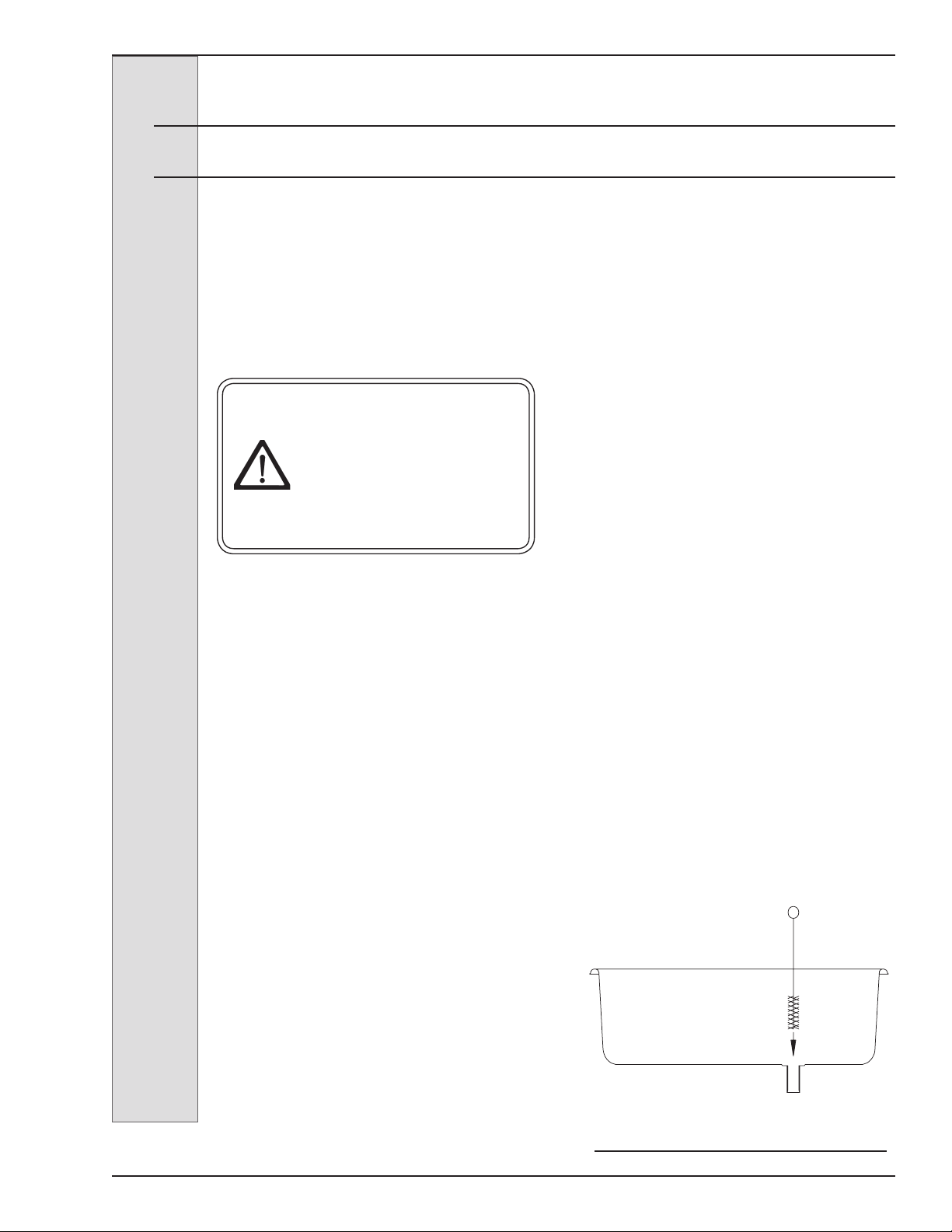

5.9 Mix Float ........................................................................................12
6. DISASSEMBLY AND CLEANING ...........................................13
6.1 Accessories ..................................................................................13
6.2 Disassembly Instructions ...............................................................14
6.3 Cleaning Instructions ....................................................................17
7. ASSEMBLY .......................................................................................19
vi
Page 9
ELECTRO FREEZE Shake Model CS704
Table of Contents - continued
SECTION DESCRIPTION PAGE
8. START-UP INSTRUCTIONS .....................................................23
8.1 Sanitizing ......................................................................................23
8.2 Priming ...........................................................24
8.3 Dispensing Milk Shakes .................................................................25
9. DAILY PROCEDURES ................................................................ 26
9.1 Night or Idle Operation ..................................................................... 26
9.1.1 General Cleaning ..................................................................26
9.1.2 Operation ..............................................................................27
9.2 Draining Product From Freezer ........................................................ 28
10. PRODUCT INFORMATION ............................... 29
10.1 Overrun ........................................................................................ 29
10.2 Rerun ............................................................................................29
11. SYRUP FLAVOR SYSTEM ................................ 30
11.1 Syrup Line Disassembly and Sanitizing ......................................... 30
11.2 Syrup Line Assembly and Sanitizing ............................................. 32
11.3 Syrup Calibration ...........................................................................34
12. ROUTINE MAINTENANCE ............................................ 35
13. TROUBLESHOOTING TABLES ........................ 39
vii
Page 10
Page 11
1 Introduction
ELECTRO FREEZE Shake Model CS704
This freezer is designed to produce four
avors of milkshakes plus vanilla, with
a temperature range of 24° to 30°F (-4°
to -1°C). If such products are prepared
from powdered concentrate, they should
be precooled to 38°F (3°C) prior to
introduction to the freezer. Syrups should
be free of pulp, seeds or matter that could
clog injection ports. Use of other products
in this machine is considered misuse (see
Warranty).
This manual has been prepared to assist
you in the proper operation and general
maintenance of the Electro Freeze Model
CS704 Freezer.
Your freezer will not compensate for or
correct any assembly or priming errors
made during the initial start-up. Therefore,
it is important to follow the assembly
and priming procedures detailed in this
manual.
Make sure all personnel responsible for
equipment operation completely read and
understand this manual before operating
the freezer. When properly operated and
maintained, the freezer will produce a
consistent quality product.
If you require technical assistance, please
contact your local authorized Electro
Freeze Distributor, as follows:
Name:
Address:
Phone:
For factory service assistance — contact
H. C. Duke & Son, LLC, Electro Freeze
Service Department as follows.
Phone: (309) 755-4553
(800) 755-4545
FAX: (309) 755-9858
E-mail: [email protected]
2 Note to Installer
This freezer must be installed and serviced by an Electro Freeze Distributor or
authorized service technician in accordance with the installation instructions.
After installation, the warranty registration card must be completed and returned to
validate the warranty.
185260
1
Page 12
ELECTRO FREEZE Shake Model CS704
2.1 Uncrating and Inspection
CAUTION
Be sure to properly
support the machine
when removing bolts and
installing legs or casters.
When the unit is received and while
the carrier is still present, inspect the
shipping carton for any damage that
may have occurred in transit. If the
SHOCKWATCH® label indicates red and/
or the carton is broken, torn, or punctured
note the damage on the carrier’s freight
bill and notify the carrier’s local agent
immediately. Also note on the freight bill.
2.2 Installation
CAUTION
All materials and connections
must conform to local
requirements and be in
compliance with the National
Electrical Code (NEC).
1. Remove the carton from the pallet,
and move the machine as close as
possible to the permanent location.
2. Remove the shipping bolts on the
bottom of the freezer and remove the
freezer from the pallet.
CAUTION
Use caution when moving the
freezer to avoid a tip hazard.
3. A minimum 3-inch (7.6 cm) air
space is required on both sides and back
of the freezer for adequate ventilation.
4. Test the operation of the head and
ex shaft cover safety switches prior to
placing the freezer in service. See Section
12, Routine Maintenance, Monthly.
CAUTION
Tip Hazard. Front side of freezer
must remain positioned on door
side of cart. DO NOT reverse
position of freezer on cart.
1. This freezer is designed for indoor
use and must be protected from outdoor
weather conditions.
2. This freezer requires a potable
water connection for the rinse line. The
water inlet is located at the back of the
freezer next to the power supply. A 3/8”
MPT water inlet connector will be needed.
2
185260
Page 13
2.3 Electrical Connections
ELECTRO FREEZE Shake Model CS704
CAUTION
All materials and
connections must conform
to local requirements and
be in compliance with the
National Electric Code (NEC).
CAUTION
To prevent accidental
electrical shock, a receptacle
with a positive earth ground
is required.
1. Always verify electrical
specications on the data plate (gure
3-2) of each individual freezer. Data plate
specications will always supersede the
information in this manual.
2. This freezer requires a protected
20 amp 230 volt circuit. Connect the
freezer to a circuit separate from any
other electrical equipment. The power
cord on this freezer connects to a NEMA
6-20R receptacle. See Figure 2-1.
3. Supply voltage must be within
±10% of voltage indicated on the
nameplate. Request your local power
company to correct any voltage problem.
4. The control transformer in the
electrical box is factory wired to 208 volts
(red) wire tap for 208V nominal power
supply. If power supply is between 230240 volts use 240V (orange) wire tap on
transformer.
Figure 2-1
3 Specifications
3.1 Particulars
Width (in/cm) 18.4/46.7
Height (in/cm) 58.9/149.7
Depth (in/cm) 28.1/71.4
Weight (lbs/kg) 250/113.4
Voltage* 208-230/60/1
Min. Circuit Ampacity 20.0
Compressor 1 HP/8000 (BTUH)
.75 kw (Motor)
2.3 kw (Cooling)
Beater Motor 1/2 HP/.37 kw
Refrigerant R-404a
Charge 32.0 oz/.91 kg
Cooling Air
Hopper 20 qts/18.8 liters
Cylinder 7 qts/7.1 liters
*Contact factory for other voltages.
185260
3
Page 14
ELECTRO FREEZE Shake Model CS704
3.2 Data Plate
Model:
Ser. No.
~ Volts:
Ph. Hz. Wire :
Cyl. Compressor RLA LRA V
Beater Motor FLA HP V
Condenser Fan FLA HP V
Hopper Compressor RLA LRA V
Cylinder Refrigerant: Amt:_____LB Type:_____
Design Pressure: High:_____psig Low:_____psig
Hopper Compressor Refrigerant Amt:____ oz Ty pe:____ Design Pressure High:_____psig Low:______psig
Min. Circuit Ampacity: _____A
Max Fuse Size or HACR Cir. Breaker: _____A
SINGLE UNIT
Figure 3-1
3.3 Reference Information
Write in Reference
Information HERE!
ASSEMBLED IN USA
The data plate provides important
information that the operator should
record and have available for parts
ordering, warranty inquiries and service
requests.
Fill in the following information as soon as
you receive the Electro Freeze CS704.
(The item numbers — encircled, below —
correspond with the call-out numbers in
gure 4-1.)
3.4 Installation Date
Fill in the date of installation, and the name, address, and phone number of the
installer in the space provided below. This information will be needed when ordering
parts or service for the CS704 freezer.
Date of installation: _____________________________________
Installed by: _____________________________________
Address: _____________________________________
_____________________________________
Phone: _____________________________________
1.) Model Number: _________________
2.) Serial Number:__________________
3.) Electrical Spec: Voltage ________
Phase _______ Hertz _________
4.) Maximum Fuse Size: ____________
5.) Minimum Circuit Ampacity: _______
4
185260
Page 15
3.5 Dimensions
ELECTRO FREEZE Shake Model CS704
Figure 3-2 Electro Freeze Model CS704 Dimensions
185260
5
Page 16
ELECTRO FREEZE Shake Model CS704
4 Part Names and Functions
19
20

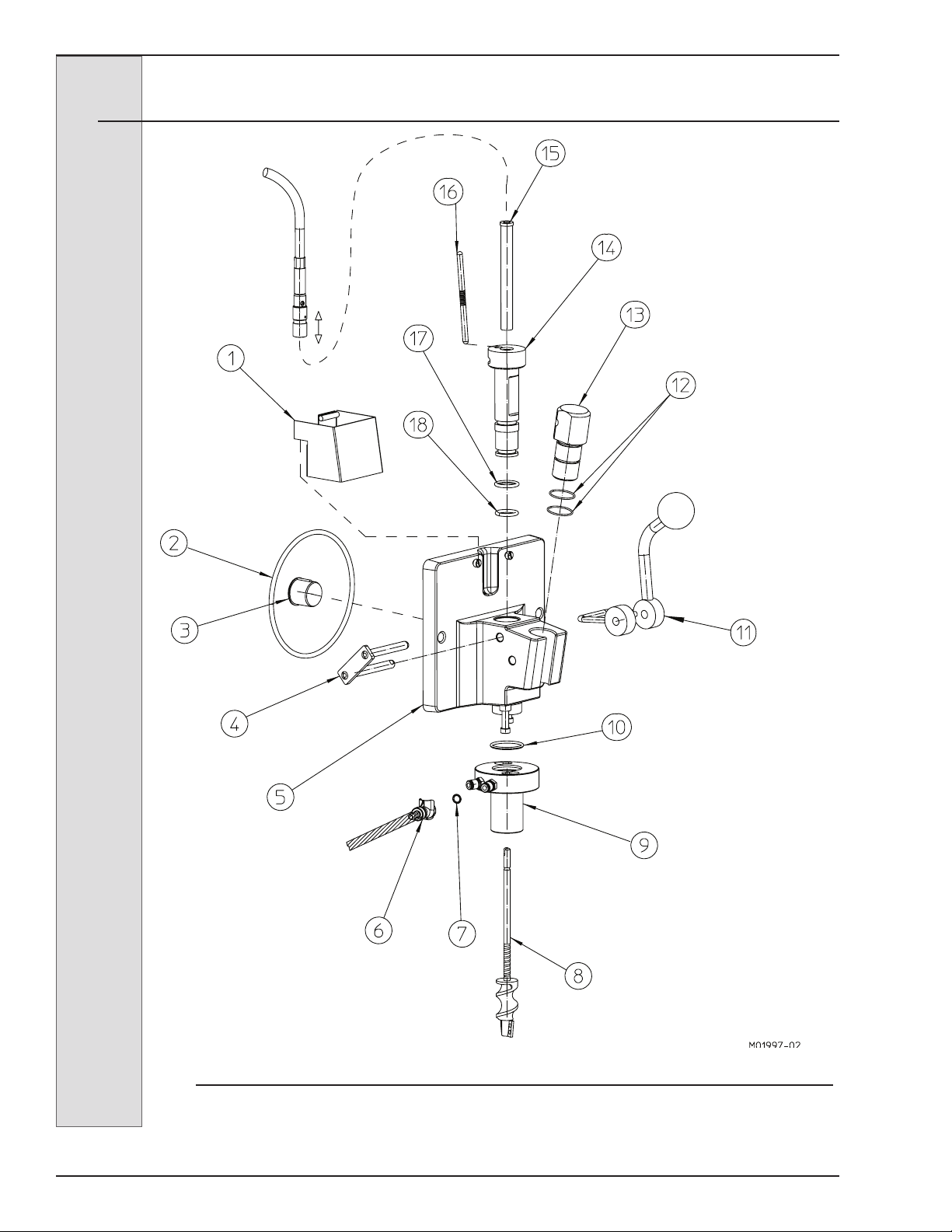

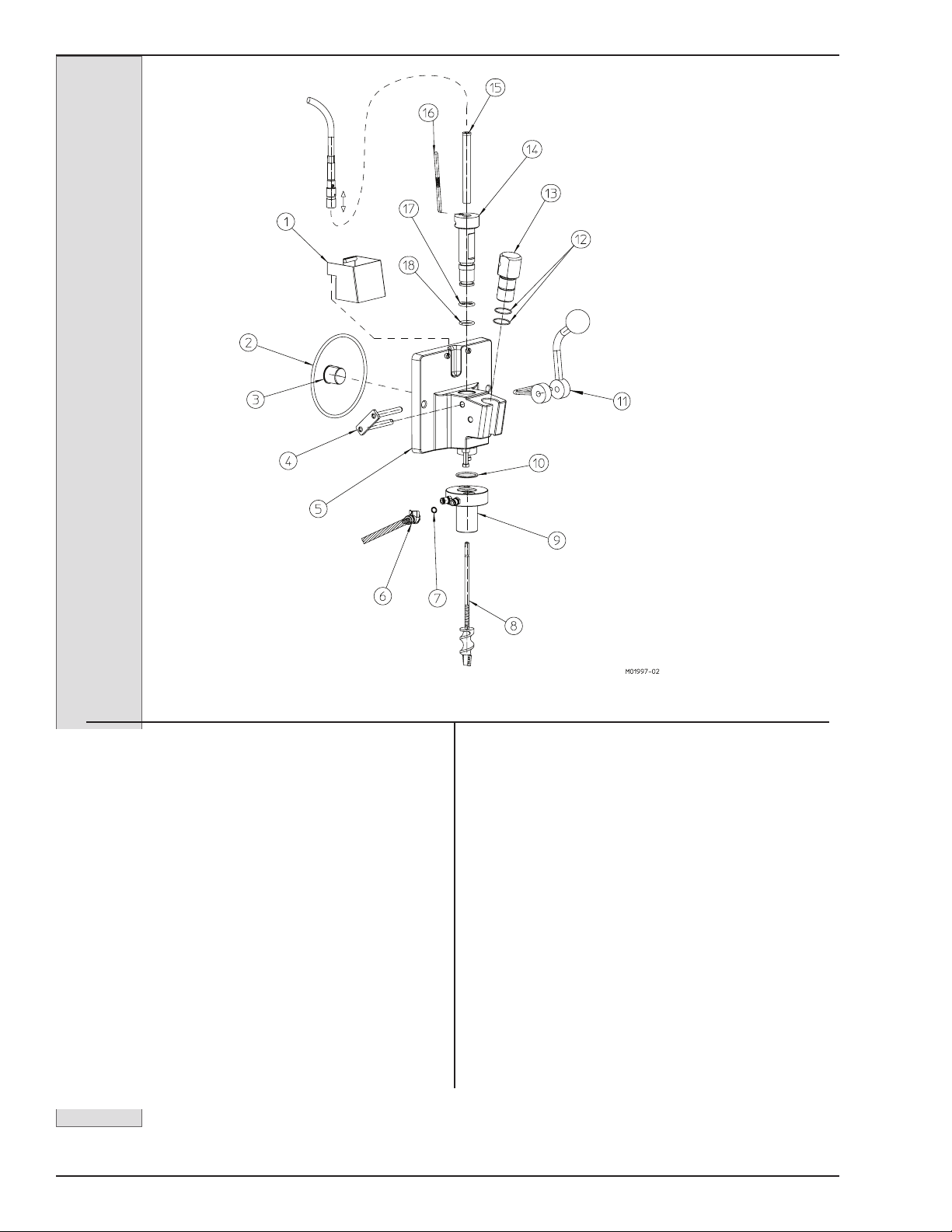

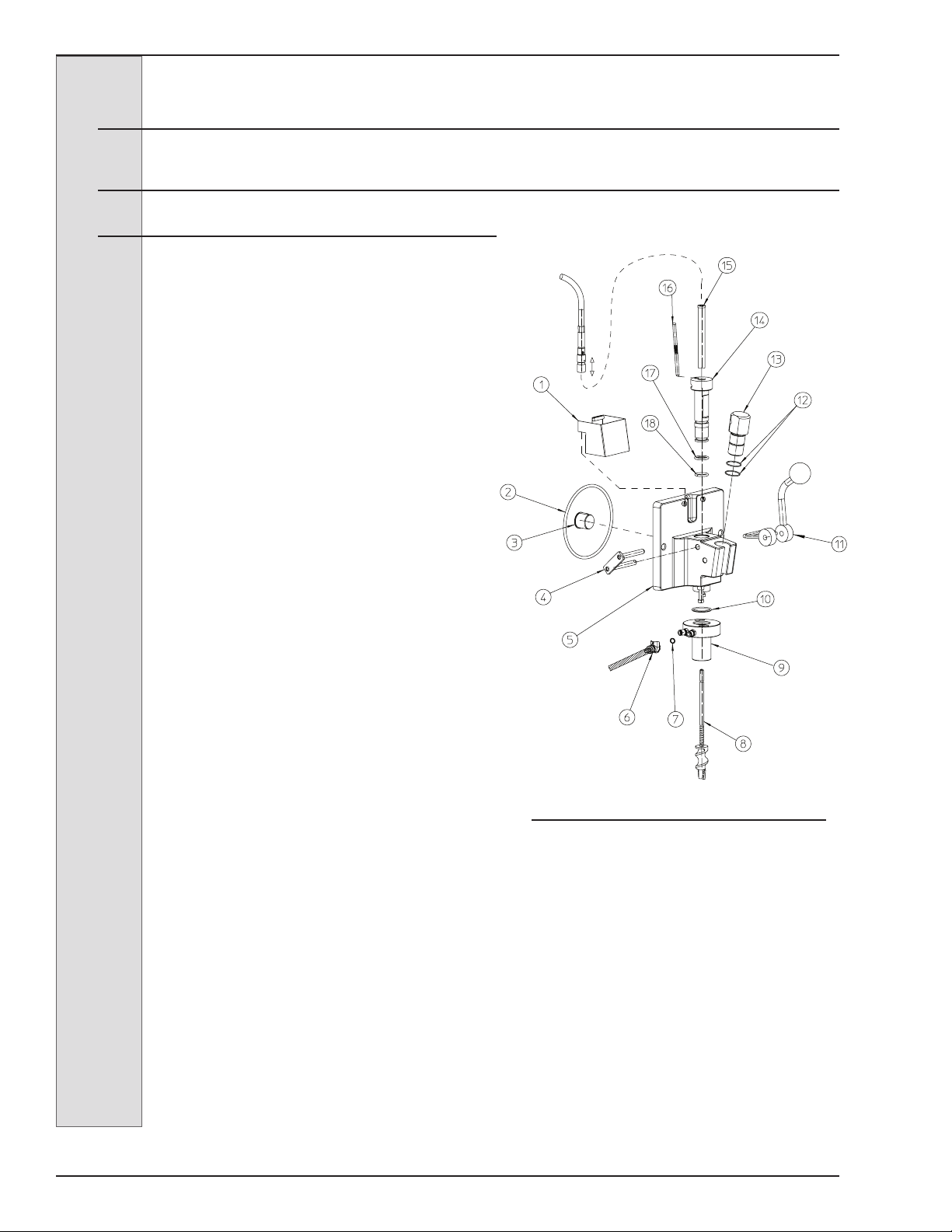

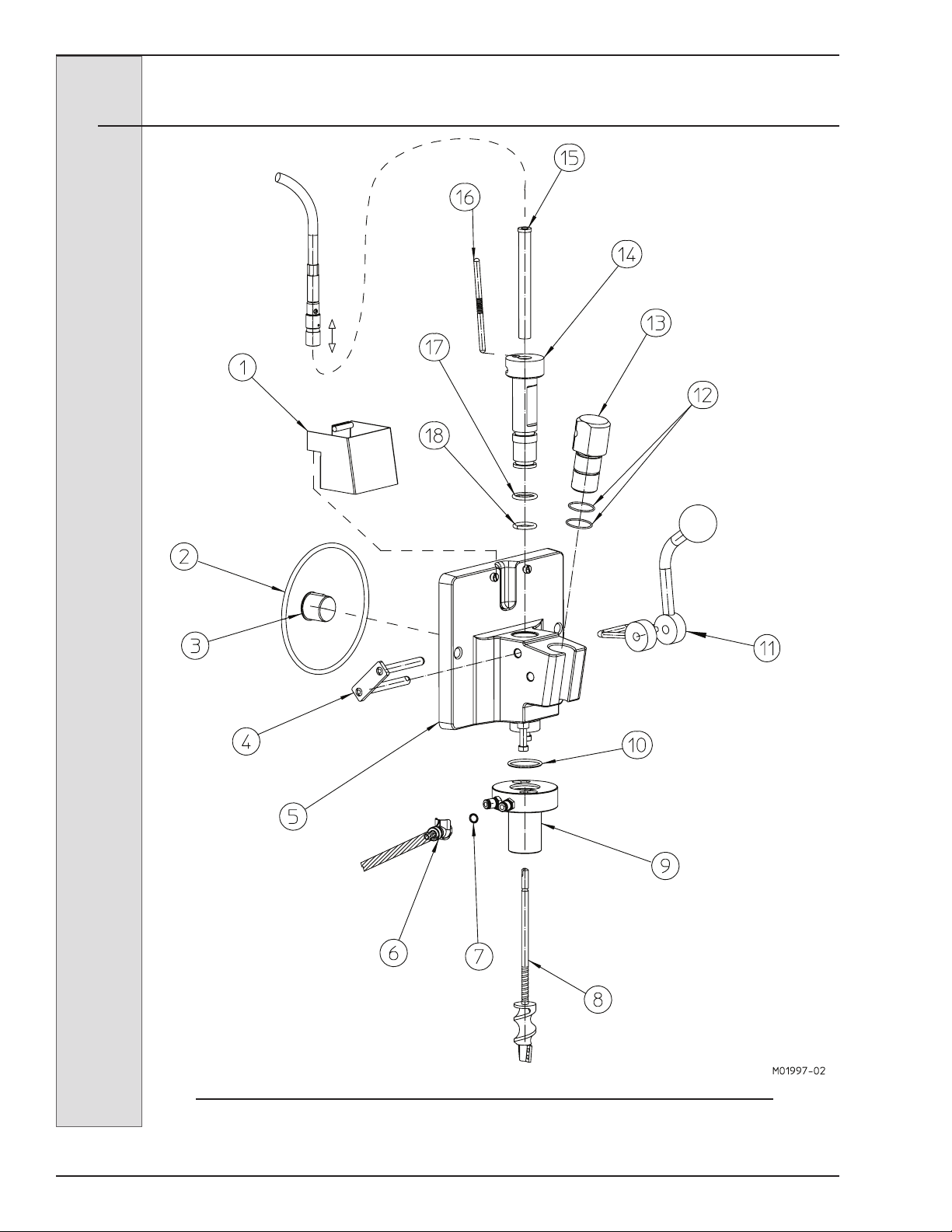

Figure 4-1 Head Assembly
6
185260
Page 17
ELECTRO FREEZE Shake Model CS704
4 Part Names and Functions — continued
The following part names and descriptions refer to gure 4-1.
1.) COVER - ASSY FLEX SHAFT: Protects
from accidental contact with rotating
shaft. Must be in place to operate.
2.) O-RING - HEAD: Seals the head to the
freezing cylinder. Must be lubricated.
3.) BUSHING - BEATER BEARING: Holds
the beater in place at the front of the
cylinder. Must be inserted into the
head and lubricated before assembly.
4.) KEEPER - ASSY SPINDLE: Secures
the handle to the head.
5.) HEAD - ASSY. W/RETAINERS 4
FLAVOR: Encloses the freezing
cylinder and provides an opening for
product to be dispensed.
6.) QUICK CONNECT WITH SHUT OFF:
Allows syrup line to be removed from
the mix chamber.
7.) O-RING - SYRUP LINE: Prevents syrup
from leaking.
15.) BUSHING - MIXER SHAFT: Holds the
mixing shaft in place. Prevents wear
on plunger.
16.) ROD - ACTUATOR: Starts the freezer
when dispensing. Must be in place
before product can be dispensed.
17.) O-RING - PLUNGER-LOWER
18.) O-RING - PLUNGER-LOWER: Seals
the plunger in the head. Must be
lubricated to seal and slide properly.
19.) SHAFT - FLEXIBLE W/CASING 161/2: Spins the mix shaft.
20.) CONNECT - ASSY DRIVE: Quick
connector used to connect or
disconnect the exible shaft from the
mix shaft
8.) SHAFT - ASSY MIX: Mixes avor into
shake mix.
9.) CHAMBER - MIX: Delivers syrup to the
shake mix.
10.) O-RING - CHAMBER: Prevents mix
from leaking. Lightly lubricate.
11.) HANDLE - ASSY COMPLETE: Opens
and closes the plunger to start and stop
the ow of product from the freezer.
12.) O-RING - PIVOT POST: Holds the pivot
post in place. Lightly lubricate.
13.) POST - PIVOT: Holds the handle in
place.
14.) PLUNGER - DISPENSING: Seals the
product opening in the head when
closed. Allows product to ow when
open.
185260
7
Page 18
ELECTRO FREEZE Shake Model CS704
T
BLADE-SCRAPER
4. Part Names and Functions — continued
SEAL(CUP)-BEATER SHAFT
SHAFT-BEATER
SEAL(CUP)-BEATER SHAF
WASHER-DOUBLE SHAFT SEAL
BLADE-SCRAPER

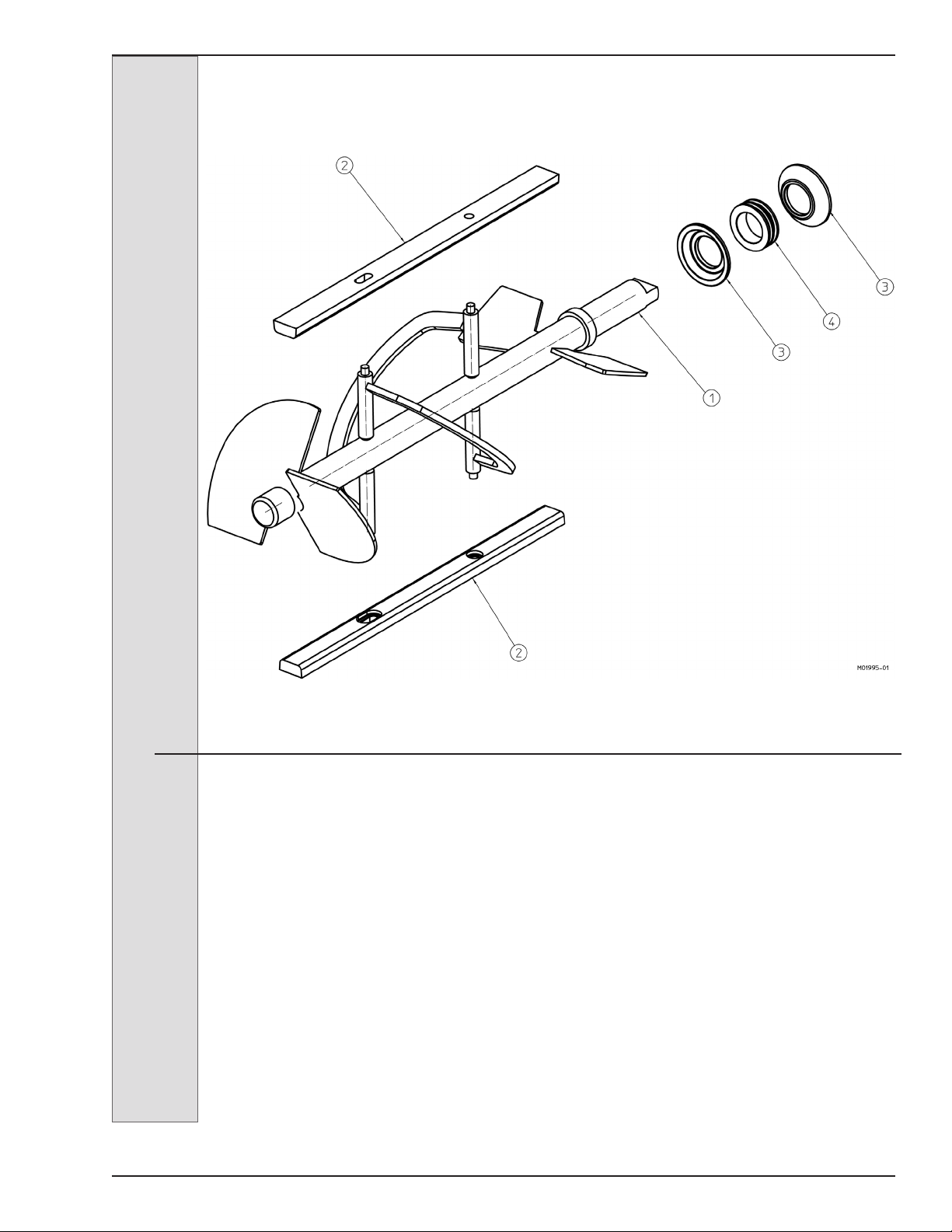

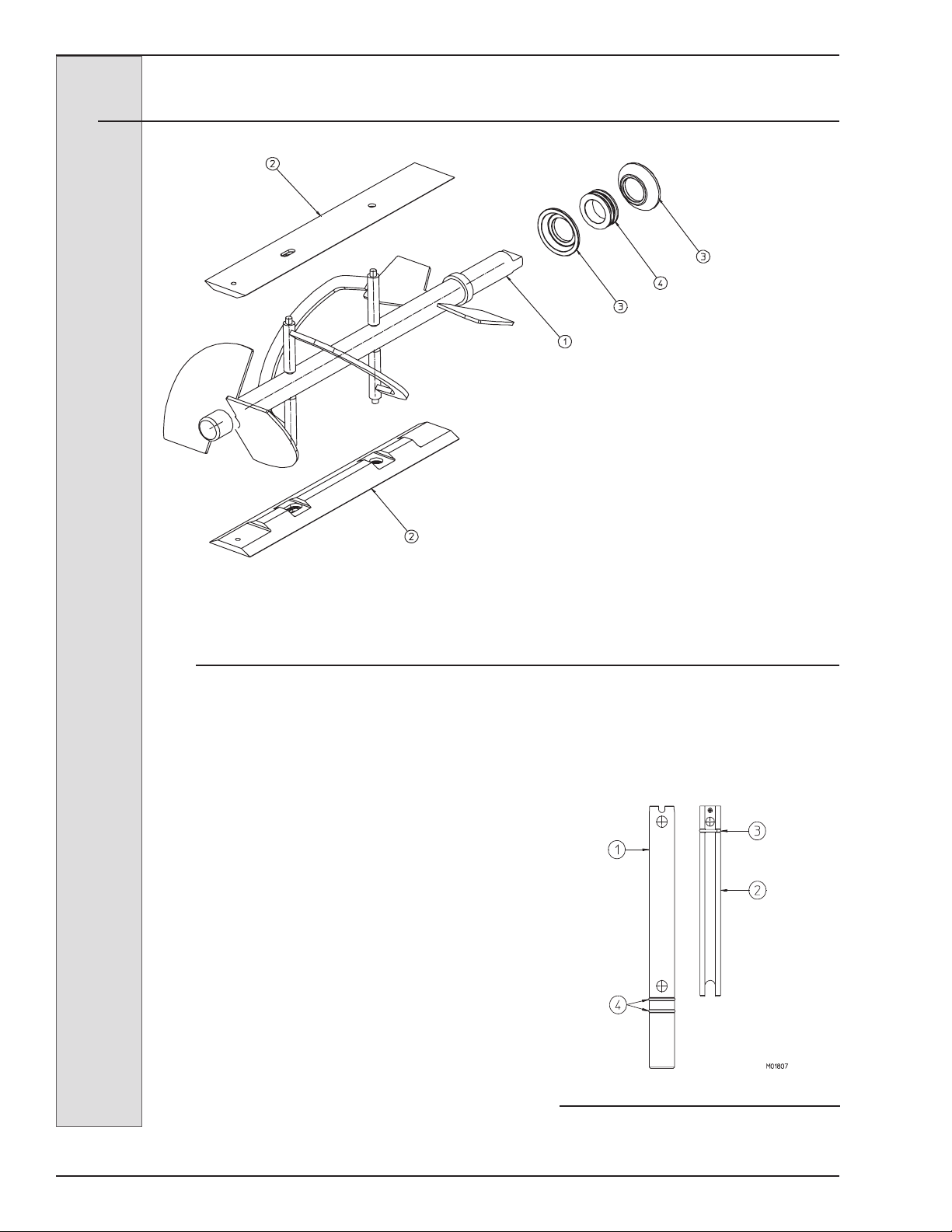

Figure 4-2 Beater Shaft Assembly
The following part names and descriptions
refer to gure 4-2.
1.) SHAFT - BEATER:
Rotates in the
freezing cylinder, blending air and
mix and ejecting product.
2.) BLADE - SCRAPER:
Scrapes the
frozen product from the freezing
cylinder wall.
3.) SEAL (CUP) - BEATER SHAFT:
Seals the opening between the
freezing cylinder and the beater. DO
NOT LUBRICATE.
4.) WASHER - SHAFT SEAL:
Holds
the shaft seals together. Must be
lubricated.
8
185260
Page 19
ELECTRO FREEZE Shake Model CS704
4. Part Names and Functions — continued
O-Ring
Tube-Mix Feed
Insert-Assy. Mix
Feed
O-Ring
Figure 4-3 Mix Feed Tube
The following part names and descriptions refer to gure 4-3.
1.) TUBE - MIX FEED: Meters the correct
amount of mix and air into the freezing
cylinder from the hopper.

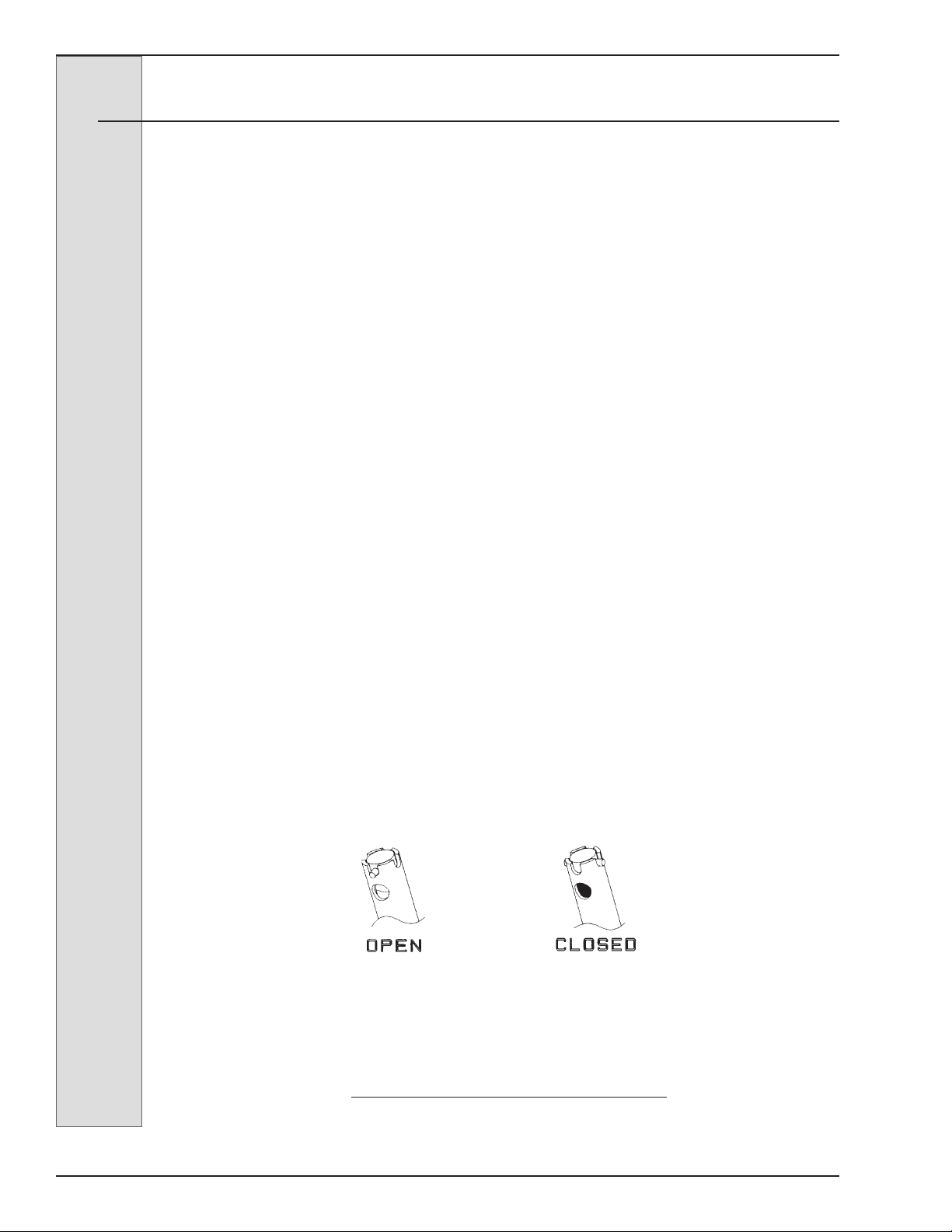

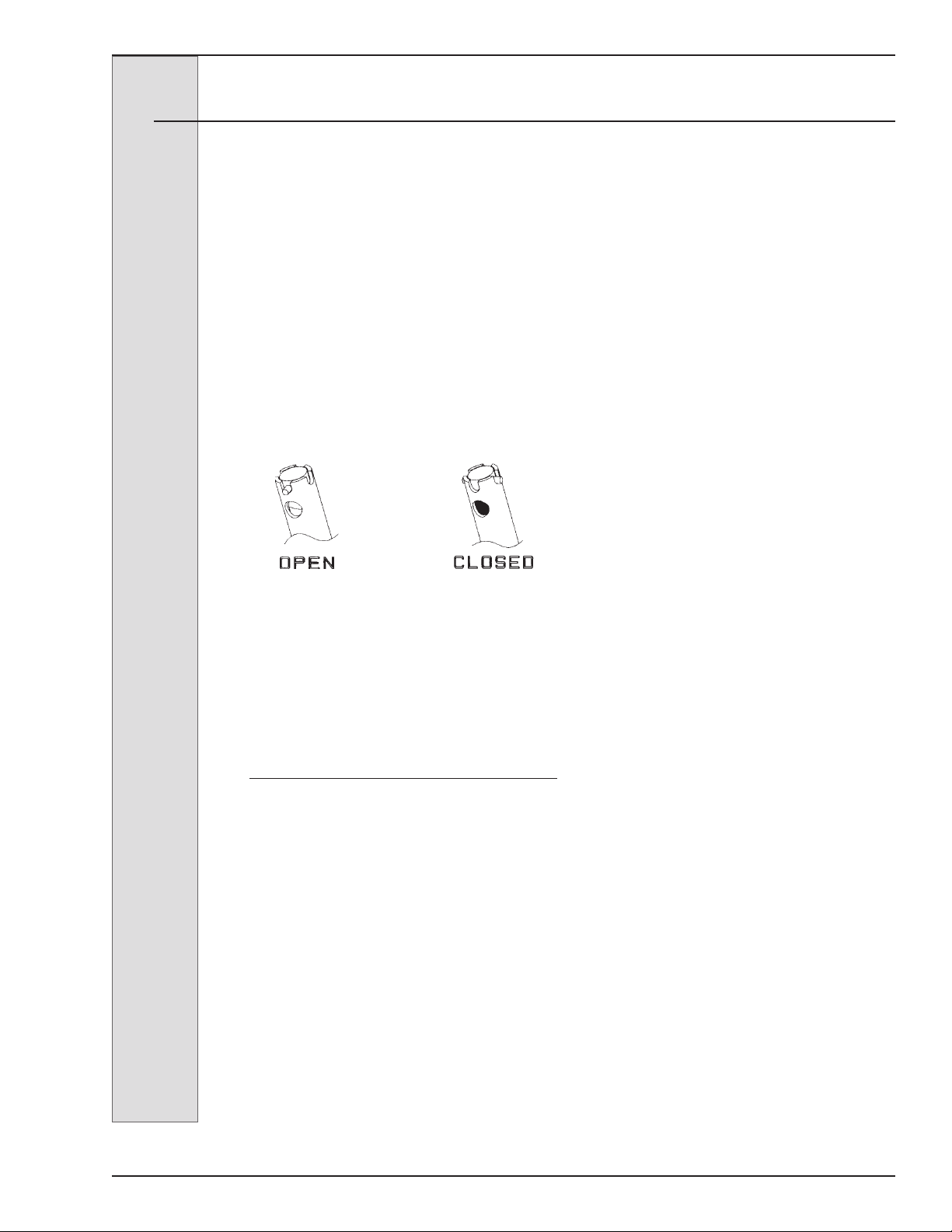

2.) INSERT - ASSEMBLY MIX FEED
(Regulator): Regulates mix ow.
Open position for day operation and
closed position for night.
3.) O-RING - INSERT ASSEMBLY: Holds
the insert in place in the mix tube.
Must be lubricated.
4.) O-RING - MIX FEED ASSEMBLY:
Seals the opening between the
hopper and mix feed tube. O-rings do
not need lubrication.
185260
9
Page 20
ELECTRO FREEZE Shake Model CS704

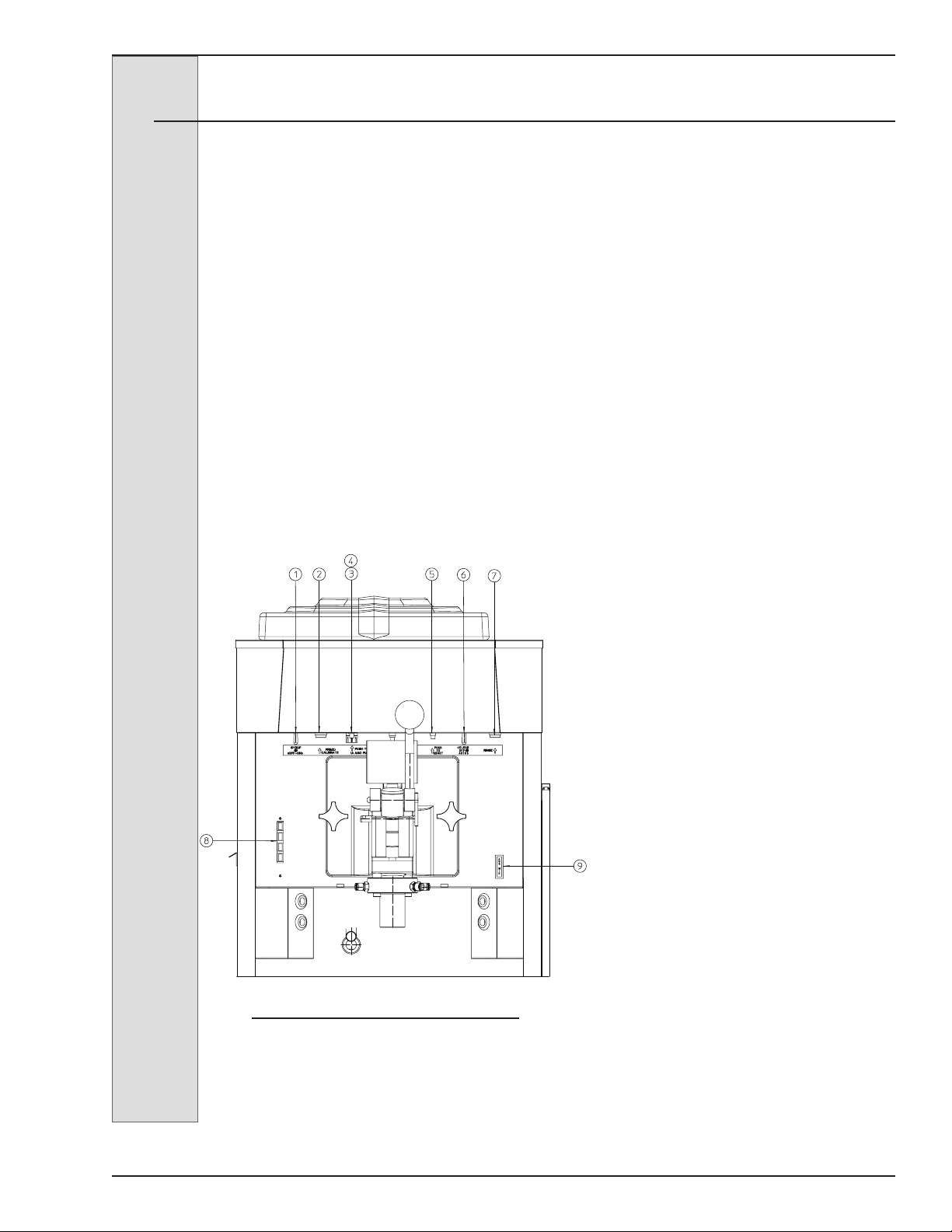

5 Operator Controls

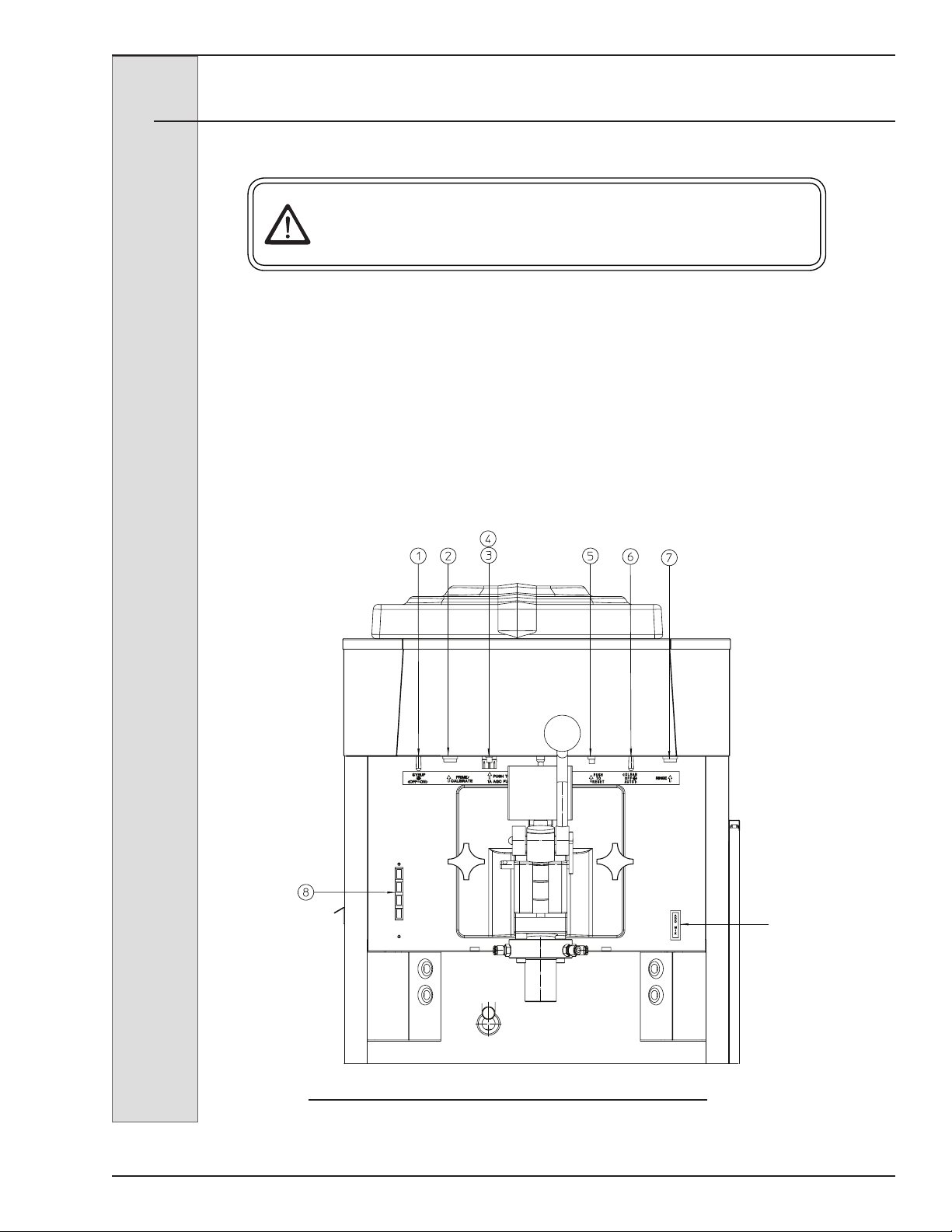

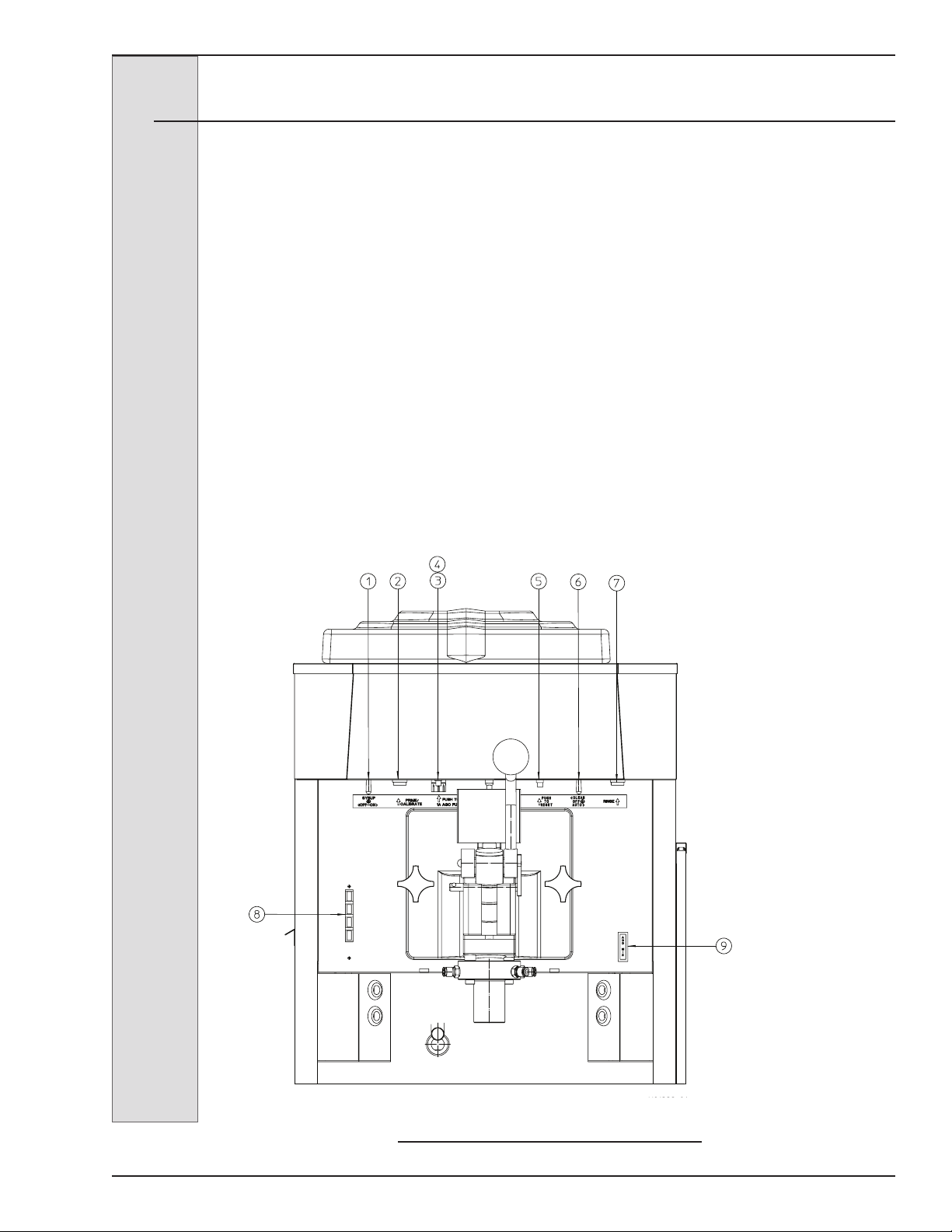

Figure 5-1
The following paragraphs describe
the operator controls and indicators.
Refer to gure 5-1 for location of these
controls and indicators on the freezer.
NOTE: The head, actuator rod, and
metal cover must be in place before the
beater will operate.
5.1 Syrup Pump Switch (1)
This two-position switch controls the
operating mode of your freezer.
a. “ON” (right) — This position
operates the syrup motor. Always use this
mode when operating the syrup system.
b. “OFF” (left) — In this position
the syrup motors do not run.
CAUTION
Test operation of the head switch
prior to placing the freezer in
service. See Section 12, Routine
Maintenance, Monthly.
—continued
10
185260
Page 21
ELECTRO FREEZE Shake Model CS704
5 Operator Controls — continued
5.2 Prime / Calibrate (2)
This push button switch is used for
priming and calibrating the avor syrups.
With the syrup switch in the “ON” position,
the selector switch (5) in “AUTO” and
a avor selection (8) made, pressing
this button will activate the pump for
that avor to ush and prime the avor
delivery line and to allow calibration of the
syrup ow.
5.3 Reset - Circuit Breaker Spinner Motor (3)
This control protects the spinner motor
against failure from an overload condition
by automatically shutting it down. To
restart wait 2-3 minutes, then depress the
reset button.
If the circuit breaker trips frequently,
your spinner mechanism and circuitry
should be checked. Contact your
Electro Freeze Distributor.
Important:
5.4 Syrup Pump Fuse 4
This holds the AGC fuse for the syrup
pumps.
5.5 Reset — Circuit Breaker Beater Motor (5)
This control protects the beater motor
against failure from an overload condition
by automatically shutting down the
freezer. To restart properly, turn the
SELECTOR switch (5) to “OFF”, wait 2-3
minutes, then depress the reset button
and turn the SELECTOR switchback to
the “AUTO” or “CLEAN” position.
Important:
If the circuit breaker trips frequently,
your freezer should be checked for
proper product temperature, overrun
and voltage. Contact your Electro
Freeze Distributor.
5.6 Selector Switch (6)
This three-position switch controls the
operating mode of your freezer.
a. “CLEAN” (left) — This
position operates the beater only (no
refrigeration). Always use this mode
when performing cleaning and sanitizing
operations.
b. “OFF” (center) — In this
position the beater motor and refrigeration
system will not operate.
185260
Important:
Do not use the “FREEZE” position with
water or sanitizer in the cylinder — the
freezer will be damaged.
c. “AUTO” (right) — This
position activates both the beater motor
and refrigeration unit. This is the normal
operating position which will maintain a
cylinder temperature of 26° to 28°F (-3° to
-2°C).
11
Page 22
ELECTRO FREEZE Shake Model CS704

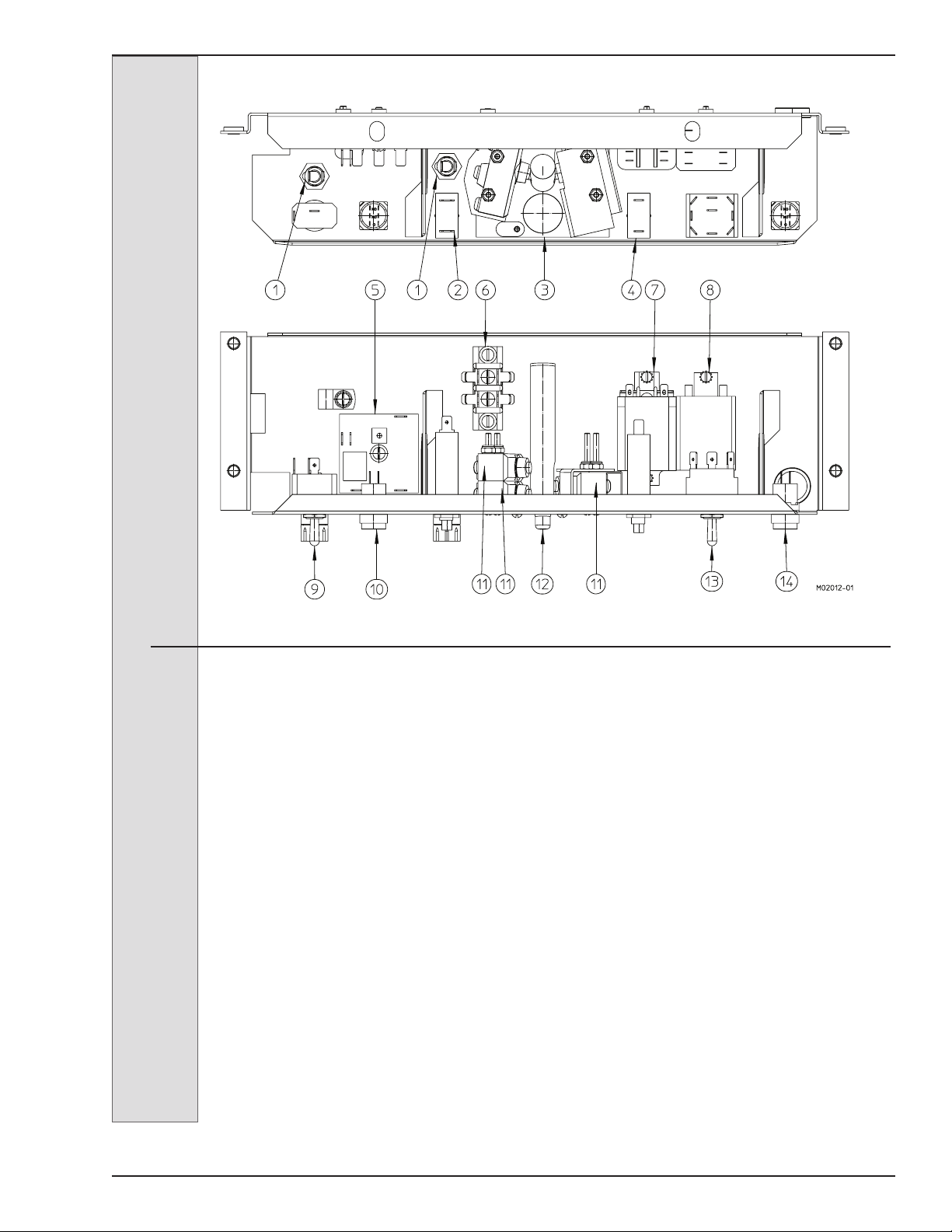

5 Operator Controls — continued
5.7 Rinse Switch (7)
This momentary switch activates the rinse
water solenoid valve and the spinner motor
to rinse the mixing chamber between avor
changes to eliminate avor carryover.

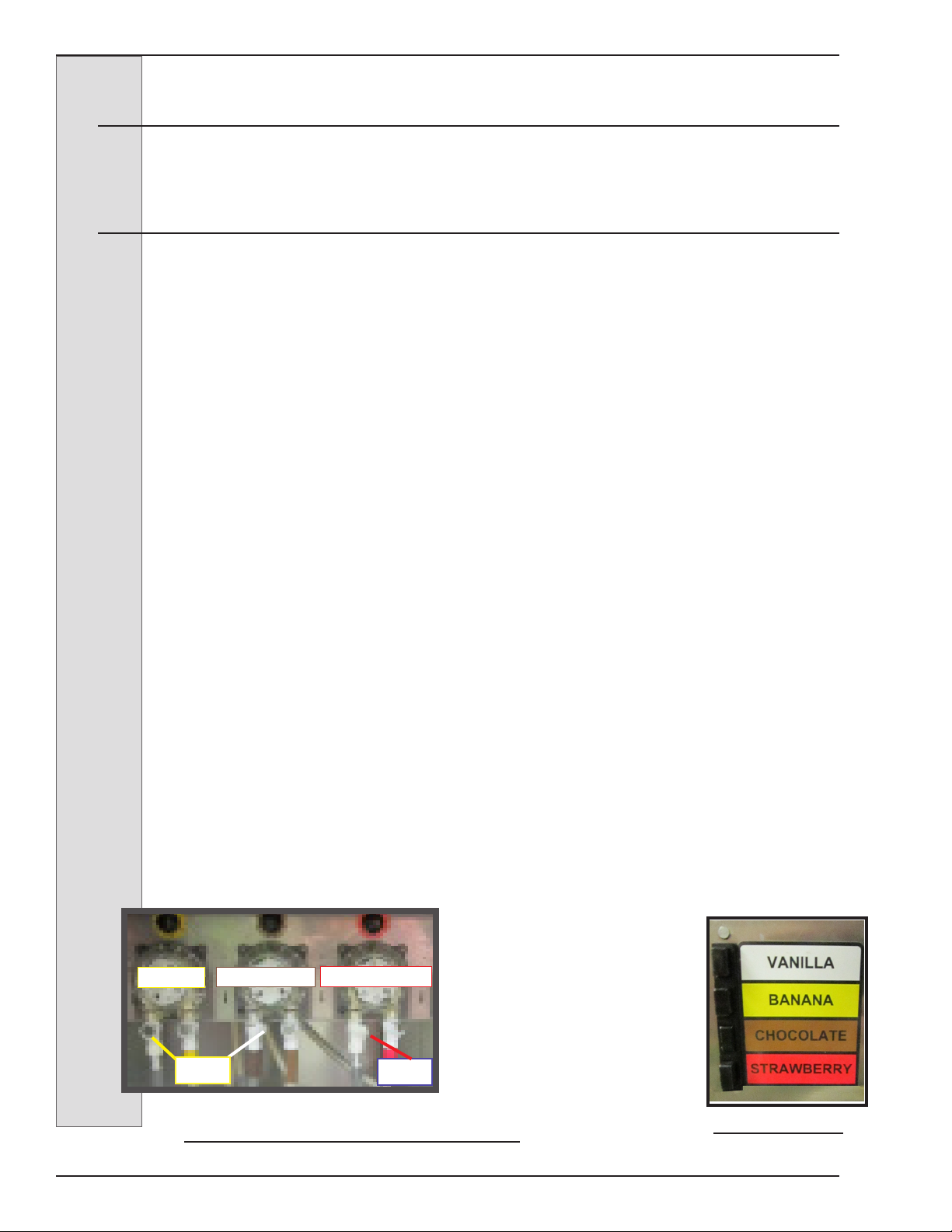

5.8 Flavor Selection Buttons (8)
T
hese push buttons are used to select the
avor of shake to be dispensed. Press
the button for the desired avor. Selection
of another button will cancel the previous
selection. ‘Vanilla’ provides product from
the cylinder only, with no added avoring.
When ‘Chocolate’, Jamocha’ , or ‘Special’
are selected, that corresponding pump
will operate when product is dispensed.
5.9 Indicator- Light — “ADD MIX” 9
This light indicates the mix in the mix
hopper is at a low level and should be
relled as soon as possible. Always
maintain at least 2 inches (5.1 cm) of mix
in the hopper. For best operating results
keep hopper full.
5.10 Mix Float (not shown)
When this oat is mounted on the oat
stem inside the hopper it automatically
senses the mix level. It activates the “Add
Mix” light
12
185260
Page 23
ELECTRO FREEZE Shake Model CS704
6 Disassembly and Cleaning
CAUTION
To avoid electrical shock or
contact with moving parts,
make sure all switches are in
the “OFF” position and that
the main power supply is
disconnected.
It is important that the freezer be
disassembled, washed, lubricated and
sanitized before operation.
6.1 Cleaning Accessories
The following accessories shipped with the freezer are necessary for cleaning,
sanitizing, and disassembly/assembly:
1. BRUSH - HC158010. 6-inch diameter
used to clean the cylinder.
2. HANDLE - HC158012. 36-inch handle
used with brush p/n HC15010.
3. BRUSH - HC158077. 9/16-inch in
diameter with 36-inch handle used to clean
drain tube.
4. BRUSH - DOUBLE END - HC158003.
1-1/8-inch diameter and 7/16-inch diameter
used for cleaning mix feed tube and general
cleaning.
5. TOOL - O-RING REMOVAL.
HC169374. Aids in removing O-rings from
plunger, head, air relief plug, and spindle.
6. LUBRICANT - COMPOUND 7
(SEVEN) HC158066. Approved lubricant for
moving parts, peristolic tubes and O-rings.
The cleaning and sanitizing instructions
explained in this manual are required to
maintain a clean, sanitary freezer. The
freezer should be disassembled, cleaned,
reassembled, lubricated and sanitized to
ensure the best possible product quality
and freezer operation.
Persons assembling, cleaning, or
sanitizing the freezer must wash and
sanitize hands and forearms with an
approved sanitizer.
7. BRUSH - HC158026. 1-inch in
diameter 12 inches long used to clean the
hopper walls.
8. WASH BOTTLE - HC196103. used to
ush the plunger and hopper walls.
9. BRUSH - HC158028. 3/8 inch
diameter x 1/2-inch 21 inch handle used to
clean mix chamber ports and syrup hoses.
9. BEAKER - 150 ML HC196109. Used
in syrup calibration. (not shown)
10. KIT - O-RING. Contains all O-rings
and seals needing replacement on a regular
basis. (not shown)
185260

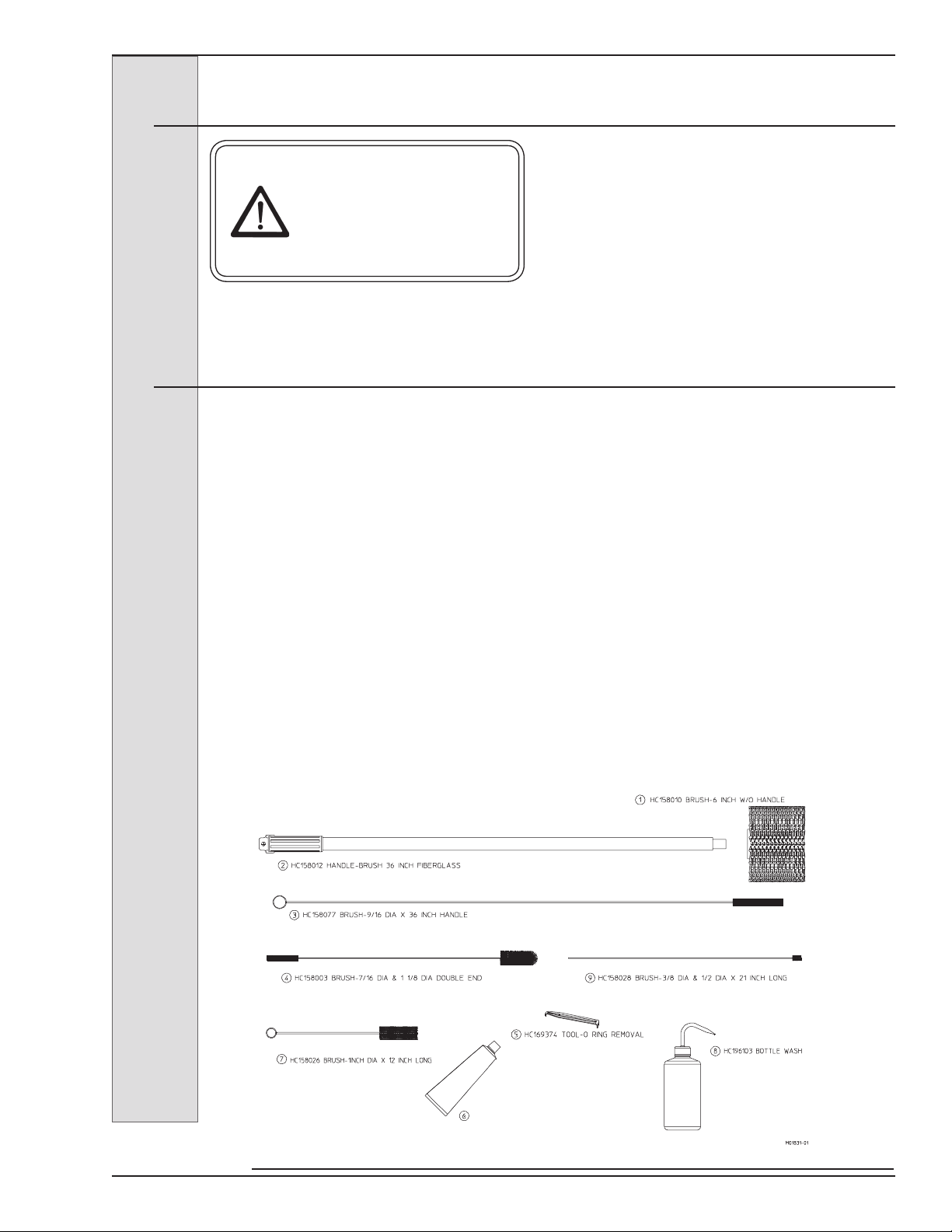

Figure 6-1 Accessories
HC158066 LUBRICANT-COMPOUND 7 (SEVEN)
5.3 OZ TUBE
13
Page 24
ELECTRO FREEZE Shake Model CS704
6.2 Disassembly Instructions
14
Figure 6-2 Dispense Head Assembly
185260
Page 25
ELECTRO FREEZE Shake Model CS704
6.2 Disassembly Instructions — continued
CAUTION
To avoid electrical shock
or contact with moving
parts, make sure all
switches are in the “OFF”
position and that the
main power supply is
disconnected.
CAUTION
To prevent bacteria growth,
remove ALL O-rings when
disassembling for cleaning.
Failure to do so could create
a health hazard.
1. If there is product in the
freezer refer to Section 9.2, CLOSING
PROCEDURES - DRAINING PRODUCT.
2. Remove ex shaft cover (1).
(Refer to gure 6-2).
3. Place an empty bucket under the
dispensing head.
4. Remove the syrup lines from the
freezer by pressing the metal clip next to
the mix chamber. Twist and pull the mix
chamber (9) off of the head. Remove the
chamber o-ring (10). Remove o-rings (7)
from the quick connect tting on the mix
chamber.
5. Remove the actuator rod (16) by
lifting up and swing out.
6. Hold onto the bottom of the
dispense head (5) and release the mixer
shaft (8) from the exible spinner tube by
lifting up the retainer sleeve on the ex
shaft.
Important:
Mixing shaft will fall out of the mix
chamber and could be damaged if
dropped.
FRAGILE. DO NOT DROP.
7. Pull the keeper (4) out of the
head. Remove the pivot post (13). Turn
the handle (11) and remove from plunger
slot.
8. Remove the hand knobs and pull
the head straight out.
9. Remove the plunger (14) from
the head. Remove the mixer bushing (17)
from the plunger.
10. Remove O-rings (2,12,17,18)
from the head (5), pivot post (12) and
plunger (14).
185260
—continued
15
Page 26
ELECTRO FREEZE Shake Model CS704
SEAL(CUP)-BEATER SHAFT
BLADE-SCRAPER
WASHER-DOUBLE SHAFT SEAL
BLADE-SCRAPER
SHAFT-BEATER
SEAL(CUP)-BEATER SHAFT
6.2 Disassembly Instructions — continued
Figure 6-3 Beater Shaft Assembly
11. Remove the beater bearing
bushing (gure 6-2, 3) and beater shaft
(gure 6-3) from the cylinder. Then
remove the scraper blades (2) and
shaft seal (3,4) from the beater shaft
(1). Remove the cup seals (3) from the
washer (4) on the shaft seal assembly .
Remove the drip tray.
12. Remove the mix feed tube
assembly from the hopper, as shown in
gure 6-4 and remove the o-rings (2).
13. Remove the oat from the
hopper.
14. Wipe off all lubricants with paper
towel.
Tube-Mix Feed
O-Ring
Figure 6-4 Diassemble Mix Feed Tube
O-Ring
Insert-Assy. Mix
Feed
16
185260
Page 27

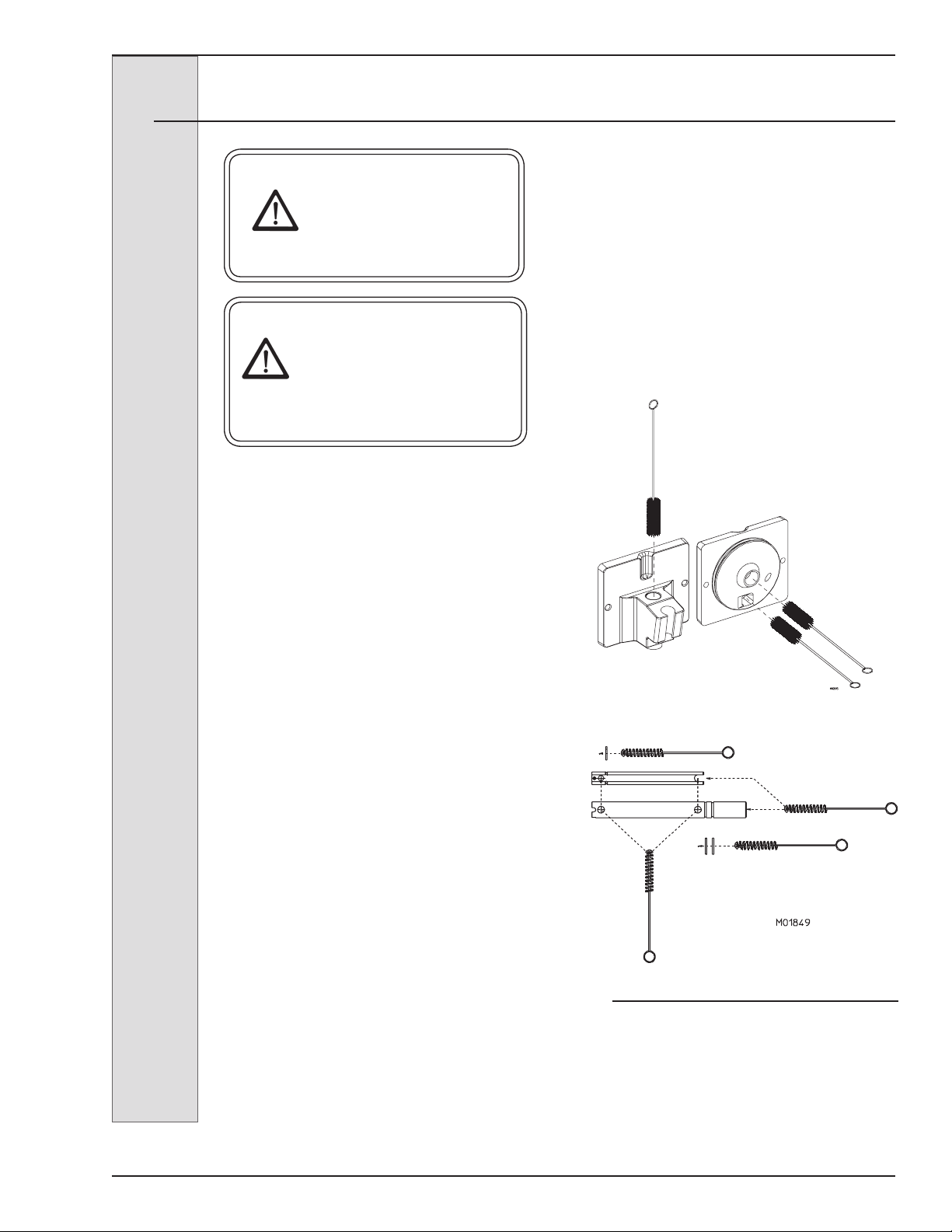

6.3 Cleaning Instructions
FRONT
BACK
ELECTRO FREEZE Shake Model CS704
CAUTION
To prevent bacteria growth,
remove all O-rings when
cleaning. Failure to do
so could create a health
hazard.
CAUTION
Electrical shock hazard. Do
not splash water on switches
or allow water to ow onto
electrical components inside
the machine.
The cleaning instructions explained in
this section are procedures to remove
bacteria. The shake freezer must be
disassembled, washed, and sanitized
according to the instructions in this
manual before start-up to ensure the best
possible cleanliness.
Important:
Do not use unapproved sanitizer
or laundry bleach. These materials
may contain high concentrations of
chlorine and will chemically attack
freezer components.
2. Wash all parts removed from the
freezer thoroughly with a dish detergent
solution. Clean the following parts with the
appropriate supplied brush:
a. The head assembly, o-ring
grooves, plunger, key and
dispense openings as shown in
gure 6-5.
b. The mix feed tube, insert and
o-rings as shown in gure 6-6.
NOTE: It is your responsibility to
be aware of, and conform to, the
requirements for meeting federal, state
and local laws concerning the frequency
of cleaning and sanitizing the freezer.
1. Prepare a three-compartment
sink in accordance with local health
regulations. The sink will be used to
wash, rinse, and sanitize the freezer
components which will be removed later.
Also, prepare a clean surface to air-dry all
parts.
NOTE: The sanitizer should be mixed
according to the manufacturer’s
instructions to yield 100 PPM strength
chlorine solution (example: Stera Sheen
Green Label®). Use warm water (100° to
110°F or 38° to 43°C) to wash, rinse, and
sanitize.
Figure 6-6
—continued
185260
17
Page 28
ELECTRO FREEZE Shake Model CS704
Cylinde
r

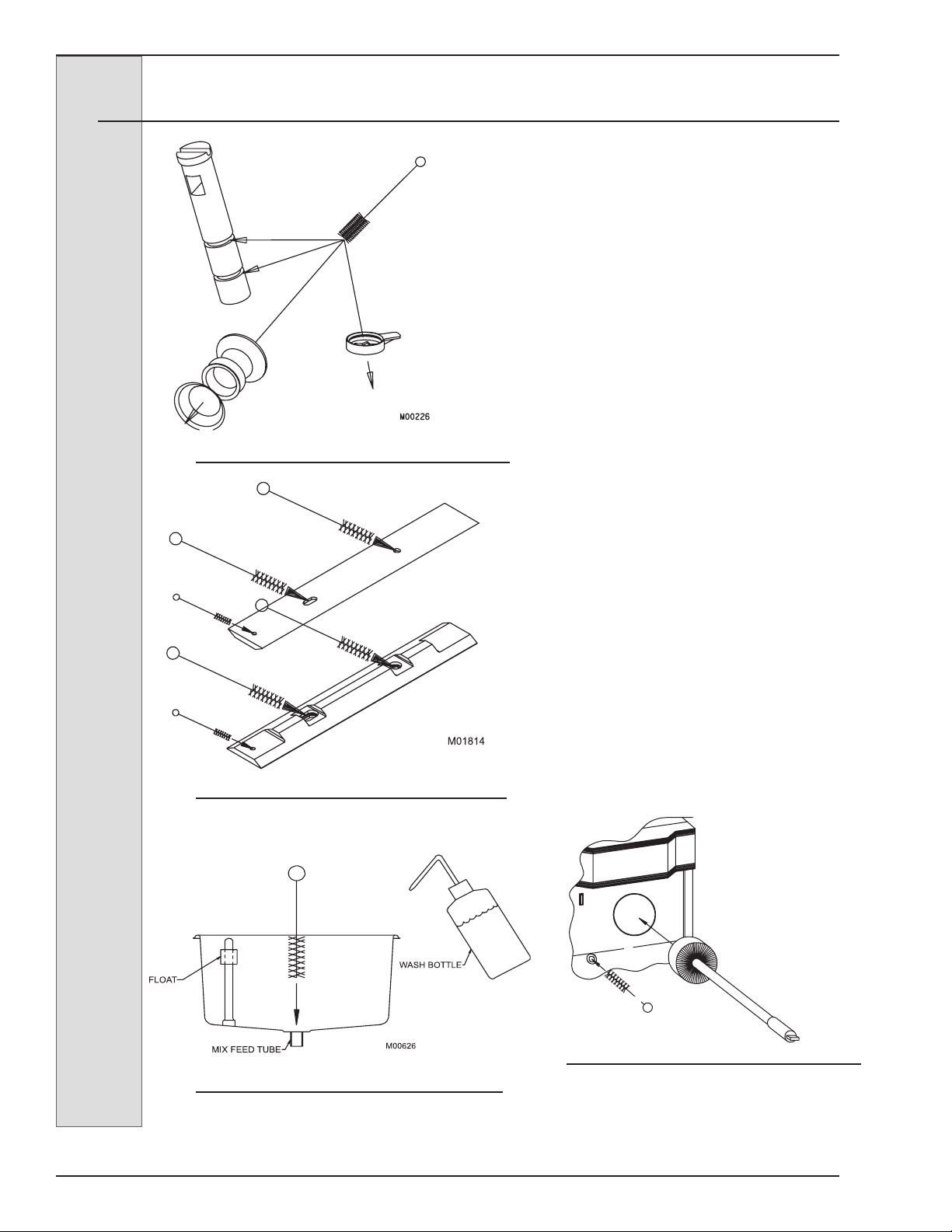

6.3 Cleaning Instructions — continued
Figure 6-7 Clean shaft seal and plunger
c. The shaft cup seal, washer,
and plunger O-ring grooves (gure
6-7).
d. The beater shaft and the
scraper blade pin holes, shown in
gure 6-8.
e. The mixer shaft and bushing.
g. Mix chamber and tubes.
3. After all parts are washed, rinse
and place them in the sanitizing solution.
For proper sanitizing, all parts must
remain fully immersed in the sanitizer
for 5 minutes. Allow parts to air-dry after
sanitizing.
Important:
Do not leave parts in sanitizer for more
than 15 minutes.
Figure 6-8 Clean scraper blades
4. Wash hopper walls and all soiled
surfaces on the freezer with a clean
disposable towel.
5. Using the spray bottle lled with
sanitizing solution spray out the end
of each syrup line and the water line
connector.
6. Using proper brush, brush the
hopper inlet tube (gure 6-9), the drain
tube, the cylinder, and cylinder back
wall (gure 6-10), thoroughly with dish
detergent solution. Rinse using rinse
bottle. Using sanitizing solution, repeat
brushing procedure making sure all
surfaces contact sanitizer.
18
Drain Tube
Drain Tube
Cylinder
Figure 6-10 Clean drain tube & cylinder
Figure 6-9 Clean hopper and mix feed port Replace worn brushes. Use only
Electro Freeze original or authorized
replacement parts. See Accessories
Parts List in Part II of this manual to
order new brushes.
185260
Page 29
7 Assembly

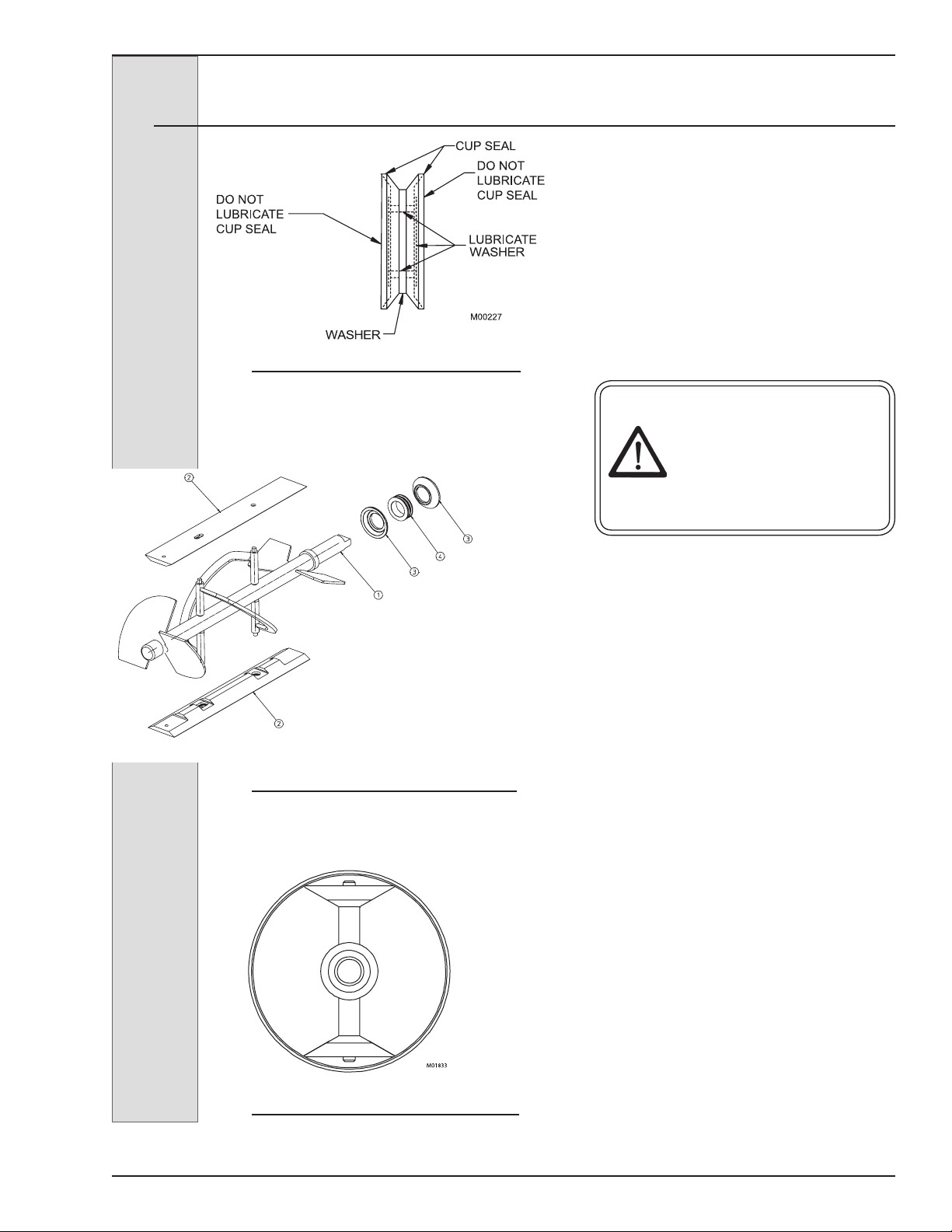

Figure 7-1 Shaft Seal Lubrication
BLADE-SCRAPER
SEAL(CUP)-BEATER SHAFT
SHAFT-BEATER
ELECTRO FREEZE Shake Model CS704
Correct assembly of the freezer is
essential to prevent leakage of the
product and damage to the freezer. To
assemble the freezer, you will need an
approved lubricant (such as Compound
7). Make sure all parts of the assemblies
have been washed and sanitized before
assembling. Persons assembling the
freezer must rst wash and sanitize their
hands and forearms with an approved
sanitizer.
CAUTION
To avoid electrical shock or
contact with moving parts,
make sure all switches are in
the “OFF” position and that
the main power supply is
disconnected.
SEAL(CUP)-BEATER SHAFT
WASHER-DOUBLE SHAFT SEAL
1. Persons assembling the freezer
must rst wash and sanitize their hands
and forearms with an approved sanitizer.
BLADE-SCRAPER
Figure 7-2 Beater Shaft Assembly
2. Assemble the shaft seal by
installing the cup seals (3) on the plastic
washer (4). Apply a moderate amount
of approved sanitary lubricant (such as
Compound 7) to the washer. Do not allow
any lubricant to come in contact with the
bell-shaped rubber portions of the seal
(gure 7-1).
3. See gure 7-2. Install the shaft
seal over the rear of the beater shaft.
Wipe off excess lubricant from the beater
shaft.
4. Place the scraper blades on the
beater shaft, making sure the blades are
installed properly.
5. See gure 7-3. Insert the
assembled beater shaft into the cylinder
by placing one blade on the bottom of
the cylinder. This will center the beater
and allow alignment with the drive
shaft. Rotate the beater assembly while
pushing, until the shank has engaged the
drive shaft.
185260
Figure 7-3 Scraper Blade Installation
—continued
19
Page 30
ELECTRO FREEZE Shake Model CS704
7 Assembly — continued
20
Figure 7-4 Head Assembly
185260
Page 31
ELECTRO FREEZE Shake Model CS704
7 Assembly — continued

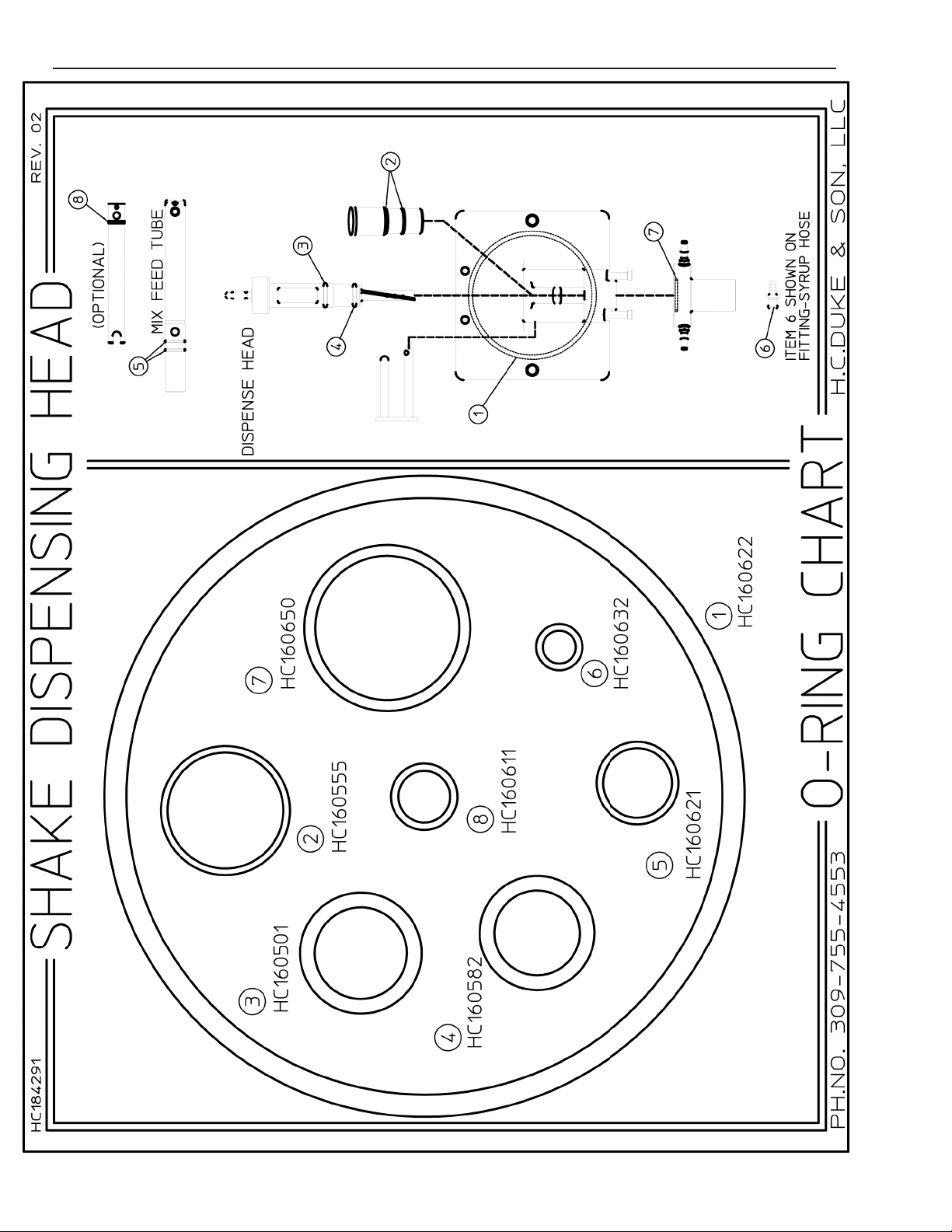

6. See gure 7-4 and o-ring chart
in the replacement parts section of this
manual. Install the head o-ring (2) into the
groove on the back of the dispense head
(5),
7. (Install the o-rings (17, 18) on the
plunger (14). Lubricate the o-rings.
8. Install the o-rings (12) onto the
pivot post (13). Lubricate o-rings lightly.
Insert pivot post into the head so the
holes are toward the back.
9. Install the mixer shaft bushing
(15) into the plunger (14).
10. Install the plunger (14) into the
head (5) just past the top o-ring with the
slot facing back. Turn slot slightly to the
left and hook handle (11) into the slot.
With handle in the slot turn the slot to the
back.
11. Place the keeper (4) through the
handle (11), pivot post (13) and head (5)
until it locks in place.

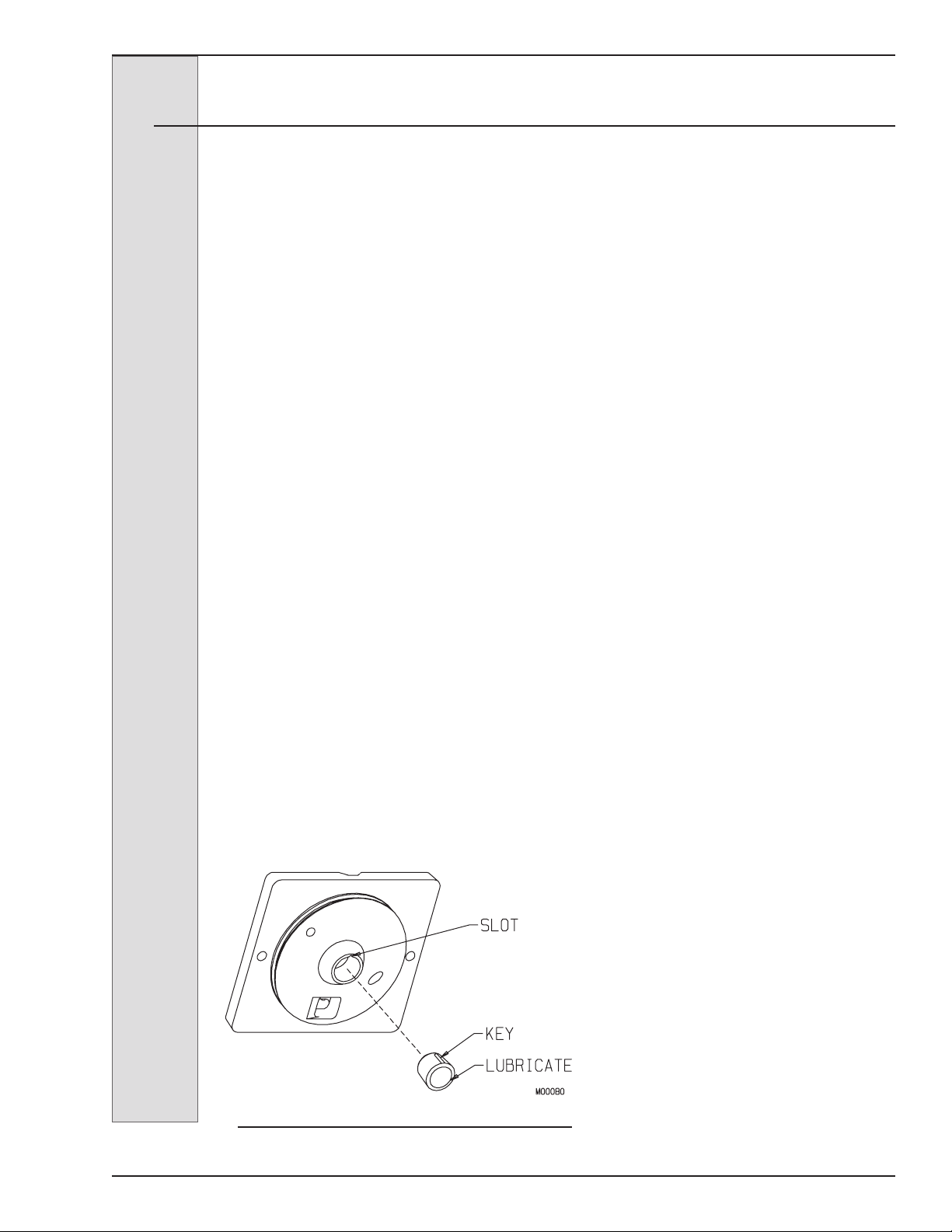

12. Lubricate the inside surface of
the beater bearing bushing (3) and place
in the head (5) making sure to align
bushing key into head slot, as shown in
gure 7-5.
Important:
Match the key on the bushing. Make
sure the key aligns with the slot.
Failure to install the bushing properly
in the dispensing head will damage
the head.
13. Install the dispensing head
onto the freezer by tilting the top of the
head towards you, aligning the studs
with the holes in the head, and sliding
toward the freezer. As you push the head
towards the freezer, carefully rock it into
place, and align the shaft with the drive
coupling.
14. Tighten the hand knobs
simultaneously, nger-tight only.
Important:
Excessive force will damage the head.
Do not use tools to tighten.
15. Insert mixing shaft (8) into the
bottom of the head (5) with mixer paddle
towards the bottom. Pull back the sleeve
on the end of the exible spinner tube
in the switch box and insert mixing shaft
into tube, turning until it snaps into place.
16. Install the o-ring (10) by pushing
it into groove in the mixing chamber (9).
Lightly lubricate the o-ring. Install the mix
chamber on to the bottom of the head
by placing over bolts and turn to lock in
place.
17. Install the actuator rod (16) by
placing one end into hole in the bottom
of the switch box and the other end in
the indent in the plunger behind the ex
shaft.
18. Place ex shaft cover (1) on top
of head using bolts to lock in place.
Important:
The freezer will not dispense product
without the ex shaft cover in
place.
185260
Figure 7-5 Head Bushing
19. Install the ve o-rings (7) on
quick connect ttings (6) on the mix
chamber. Lightly lubricate o-rings..
20. Push each syrup line quick
connect (6) onto tting of the mixing
chamber (10).
—continued
21
Page 32
ELECTRO FREEZE Shake Model CS704
Tube-Mix Feed
O-Ring
O-Ring
Insert-Assy. Mix
Feed
7 Assembly — continued

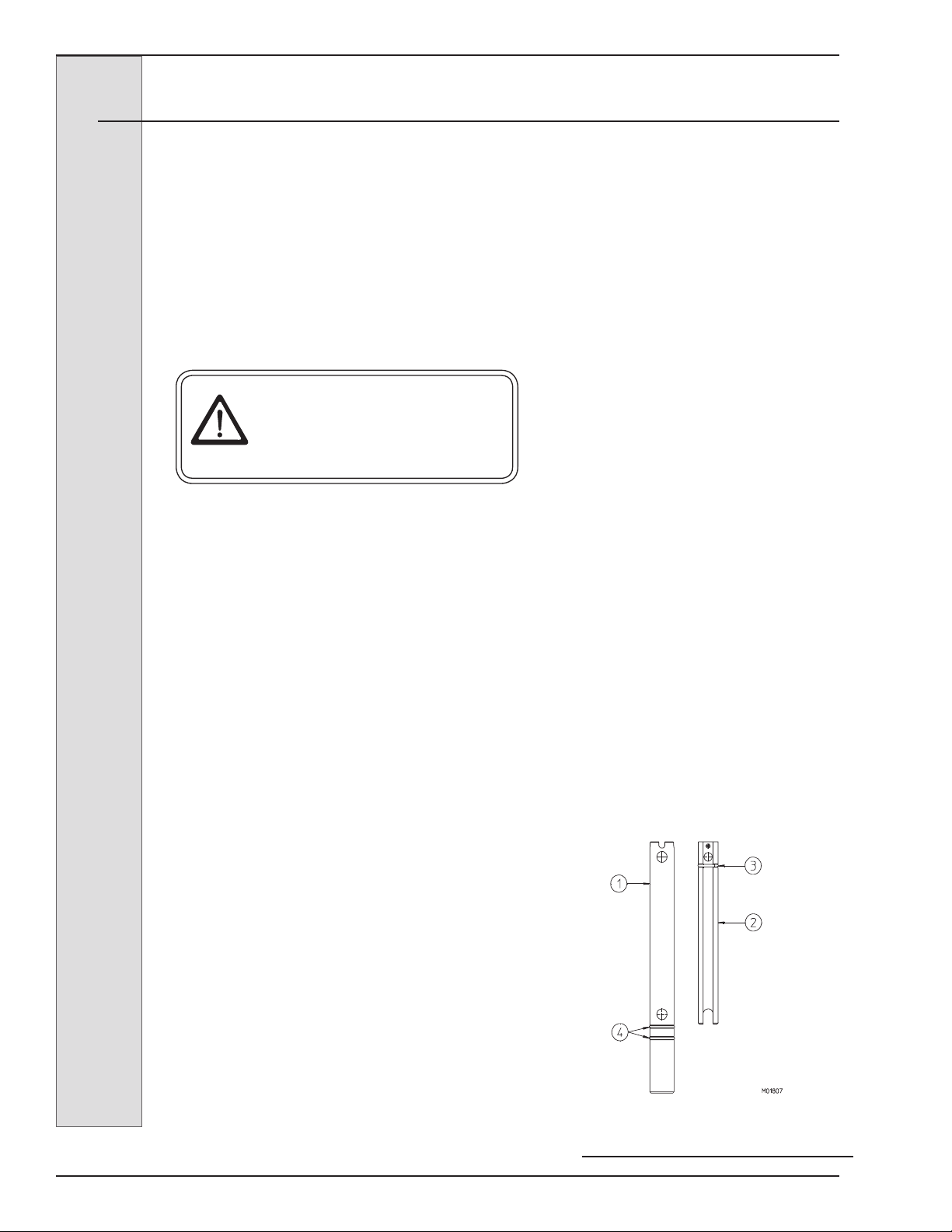

21. See Figure 7-6. Install the
o-ring (3) on the mix feed insert (2) and
lubricate. Then install the o-rings (4) on
the mix feed tube (1) lightly lubricate.
Place the insert inside the mix feed tube.
22. Lay the mix feed tube assembly
in the hopper pan. (Do not install in the
mix feed port in the hopper at this time.)
O-Ring
Tube-Mix
Feed
Insert - Assy.
Mix Feed
O-Ring
Figure 7-6
22
185260
Page 33
ELECTRO FREEZE Shake Model CS704
8 Start-up Instructions
8.1 Sanitizing
The sanitizing instructions explained in
this section are procedures to remove
bacteria and maintain a clean, sanitary
freezer. The shake freezer must be
disassembled, washed, and sanitized according to the instructions in this manual
before start-up to insure the best possible
cleanliness.
CAUTION
To prevent bacteria growth,
use only approved sanitizers
to sanitize the freezer.
Sanitizing must be done just
prior to starting the freezer.
Failure to do so could create
a health hazard.
Important:
Do not use unapproved sanitizer or
laundry bleach. These materials may
contain high concentrations of chlorine and will chemically attack freezer
components.
NOTE: It is your responsibility to be
aware of and conform to the requirements
for meeting federal, state and local laws
concerning the frequency of cleaning and
sanitizing the freezer.
1. Prepare 2 gallons (7.6 liters) of
sanitizing solution in a container. Sanitizing solution must be mixed according to
manufacturer’s instructions to yield 100
PPM strength chlorine solution. (example:
Stera-Sheen Green Label). Use warm water (100-110°F or 37-43°C) to wash, rinse,
and sanitize.
Important:
Do not insert any tools or objects into
the mix feed port or head dispensing
hole while the freezer is running.
4. Pour sanitizing solution into the
hopper pan. Using a clean brush, scrub
the hopper walls, the mix feed port from
the hopper to the cylinder, the inside of
the mix feed tube and adapter (see gure
8-1), and the inside of the hopper cover.
5. Insert mix oat on mix level sensor.
6. Allow sanitizer to ll the cylinder.
7. Connect the main power supply.
8. The syrup switch should be in
the “OFF” position. Place the selector
switch to the “CLEAN” position and allow
the beater to run for 5 minutes. During
this time period check for leaks around
the head, plunger and drain tube.
9. Place an empty container under
the dispensing head and drain the sanitizing solution from the cylinder by slowly
pulling down on the dispense handle.
Open and close the handle approximately
10 times during draining to sanitize the
port area of the dispense head.
10. With most of the sanitizing
solution drained, turn the selector switch
to the “OFF” position and drain remaining
solution from the hopper and cylinder and
close the plunger.
185260
2. Wash and sanitize your hands
and forearms.
3. The mix feed tube assembly
should be laying in the bottom of the hopper pan. Do not install.
Important:
Never let the sanitizer remain in the
freezer for more than 15 minutes.
Figure 8-1 Sanitize hopper and its
components
23
Page 34
ELECTRO FREEZE Shake Model CS704
8.2 Priming
Priming the freezer removes all excess
air and sanitizer from the freezing cylinder
and sets the proper overrun for the rst
cylinder of product. Always have clean,
sanitized hands when handling mix feed
assemblies. Handle only the top 1”. Make
sure the mix feet tube assembly and the
inside of the hopper cover are cleaned
with sanitizer.
1. Wash and sanitize your hands
and forearms.
2. Place an empty container under
the dispense head. Install the mix feed
tube assembly in the closed position,
as shown in gure 8-2, into the mix feed
drain in the hopper. Pour a minimum of
2-1/2 gallons of mix into the hopper.
3. Hold the plunger open and
remove the mix feed tube to allow mix to
push out the sanitizer. When pure mix
ows from the dispense head close the
plunger.
4. When the mix stops bubbling
install the mix feed tube into the mix feed
hopper drain in the “open” position. Place
the selector switch to the “AUTO” position
and the syrup switch to the “ON” position.
Important:
Failure to completely remove sanitizer
or water from the freezing cylinder
before placing in “AUTO” will damage
the freezer.
5. Fill the hopper with mix and Install
the hopper cover.
6. During long idle periods, the
regulator should be closed — but
remember — when dispensing product,
ensure that the mix feed regulator is
“OPEN” at all times. If not open, the ow
of mix will be restricted. If lubricant blocks
the inlet hole in the tube it would also
restrict the ow of mix.
24
Pin is in line with hole.
Look through top hole
in tube — you should
see clear through.
Pin is not in line with hole.
Look through top hole in
tube — you should see the
inner white plastic insert
tube (regulator) blocking the
opening.

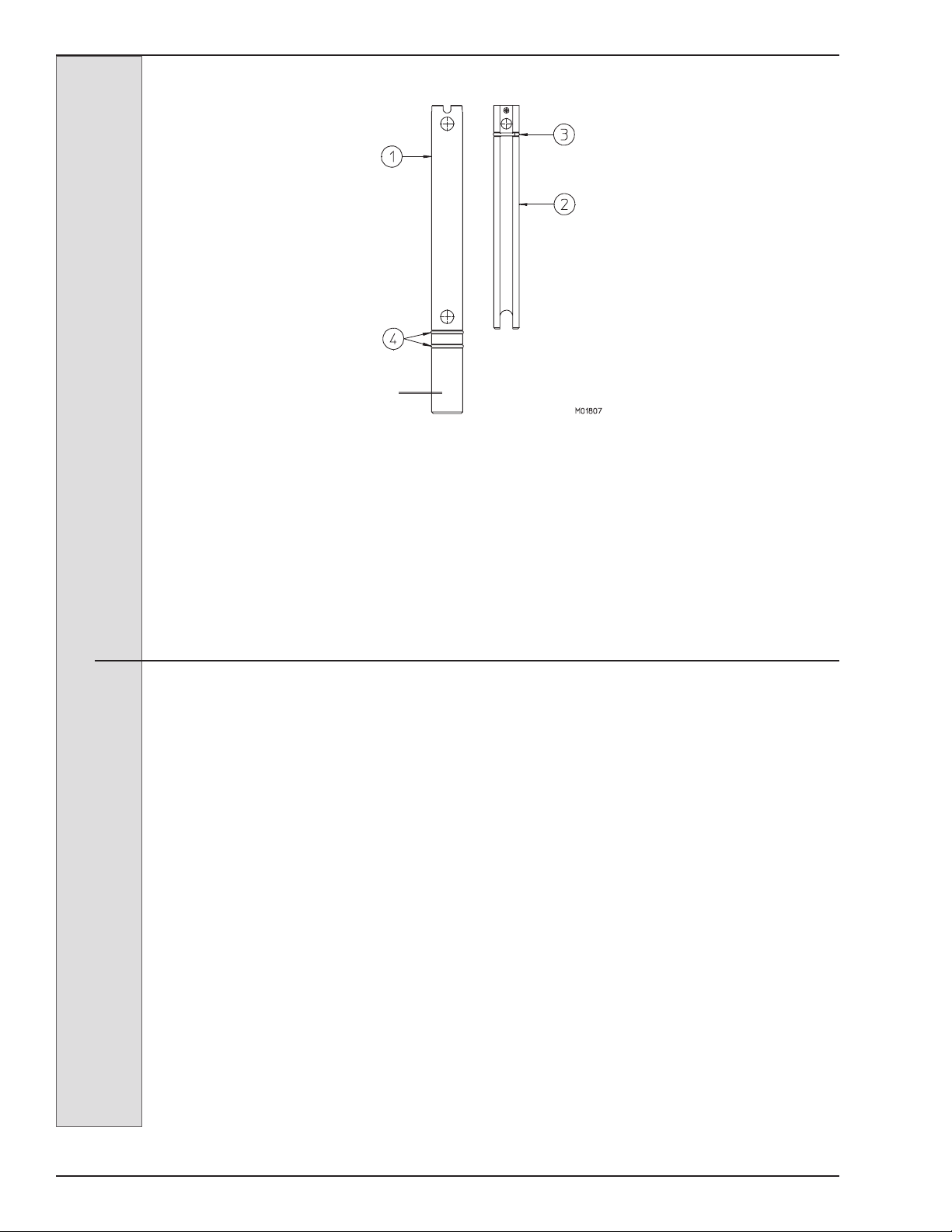

Figure 8-2 Mix Feed Tube Positions
185260
Page 35
ELECTRO FREEZE Shake Model CS704
8.2 Dispensing Milk Shakes
CAUTION
DO NOT touch or get too close to moving parts. Clothing, jewelry, hair
or other body parts may become caught in the machine and result in
personal injury.
1. Place the syrup pump switch (1)
to the “ON” position. See gure 8-3
2. To dispense milk shake select
desired avor (8) on the front panel.
3. Place cup under mixing chamber.
4. Pull down on handle to dispense
shake mix and blend in avoring. Turn
cup as shake dispenses.
5. When cup is lled push handle up
to stop dispensing and remove cup.
6. Product is ready to serve.
7. To clean mixing chamber before
a different avor is selected, place an
empty cup under the mixing chamber and
push the rinse button (7) to clean mixing
chamber before next serving.
185260
Figure 8-3
25
Page 36
ELECTRO FREEZE Shake Model CS704
9 Daily Procedures
9.1 Night or Idle Operation
9.1.1 General Cleaning
1. Remove the spinner ex shaft cover
assembly (1) in preparation to disassemble
the shake mix chamber (9).
SAFETY NOTE: Removal of the ex shaft
cover disables the spinner motor.
2. Disconnect the syrup lines and
water rinse line from the mix chamber.
3. Remove the mix chamber and set
aside for cleaning.
4. Disconnect the ex-shaft from
the spinner shaft (taking care not to drop
the spinner shaft which will fall out of the
plunger), remove the spinner shaft from the
shake head.
5.
solution.
according to manufacturer’s instructions to
yield 100 PPM strength chlorine solution.
(example: Stera-Sheen Green Label). Use
warm water (100-110°F or 37-43°C). Fill the
wash bottle with sanitizing solution.
6. Using a brush and bottle of
sanitizing solution wash down the bottom of
the shake head and plunger, being sure to
clean the plunger spinner shaft hole with a
brush.
7. Using the bottle of sanitizing
solution.
a. rinse down the head, end of the
plunger, and plunger spinner shaft hole
c. spray out the ends of each
syrup line connector. Also spray the end of
the connector for the water line.
d. wash the mix chamber using
a brush to clean the center bore as well as
each of the syrup holes.
Prepare a container of sanitizing
Sanitizing solution must be mixed
Figure 9-1
8. Set parts aside to dry.
9. Leave shake mix system disassembled overnight and re-assemble prior
to the next use. See Assembly Section 7.
10. If your location is open 24 hours,
system must be cleaned once a day, we
recommend cleaning steps 1 through 11 in
the morning or other slow period.
26
e. wash the spinner shaft using a
brush to clean the paddle holes.
f. rinse off the cleaned mix
chamber and spinner shaft with clean
sanitizing solution.
185260
Page 37
9.1.2 Operation
ELECTRO FREEZE Shake Model CS704
1. In areas where state and local
health codes allow, leave the Selector
Switch in the “AUTO” position and the
syrup switch to the “OFF” position.
Note: The plunger rod and cover must be
in place for the unit to operate.
2. Clean all soiled surfaces with a
warm dish detergent solution.
3. Turn the mix feed regulator to the
“CLOSED” position as shown in gure
9-2.
Pin is in line with hole.
Pin is not in line with hole.
DAY NIGHT
4. Check mix level in hopper to
ensure that there is enough mix to
keep the indicator light off, add mix if
necessary. Do not dispense product
when the mix feed regulator is in the
“CLOSED” position.
5. Before serving from the machine
use the wash bottle and spray the
plunger and mix chamber opening with
sanitizing solution and “OPEN” the mix
feed regulator and ll the hopper with mix
(gure 9-2).
Look through top hole
in tube — you should
see clear through.
Look through top hole
in tube — you should
see the inner white
plastic tube (regulator)
blocking the opening.
Figure 9-2 Mix Feed Tube Positions
185260
27
Page 38
ELECTRO FREEZE Shake Model CS704
x
9.2 Draining Product from Freezer
NOTE: It is your responsibility to be
aware of and conform to the requirements
for meeting local, state, and federal laws
concerning the frequency of cleaning and
sanitizing the freezer.
To remove frozen product from the
cylinder, perform the following steps:
1. Remove the ex shaft cover.
2. Place the selector switch in the
“CLEAN” position.
CAUTION
To avoid contact with moving parts,
deactivate spinner by removing
ex shaft cover. Spinner will not
operate with cover removed.
3. Place a clean, sanitized container
under the dispensing nozzle on the drip
tray.
4. Remove the mix feed tube from the
hopper. (See gure 9-3).
5. Disconnect the syrup lines.
6. Twist and pull down the mixing
chamber removing it from the head.
7. Disconnect the mixer shaft by
releasing the coupling while pulling on the
bottom.
8. Take parts to sink.
9. Place a clean, sanitized container
under the dispensing nozzle on the drip
tray. Dispense the product until the mix
is removed. Close the plunger. Place the
selector and syrup switches to “OFF” and
continue dispensing product until it quits
owing and . If local health codes permit,
cover the rerun product container and
place it in the cooler. (See 10.2 General
Information - Rerun).
11. Follow with 2 gallons of warm
water and repeat until the freezer
dispenses clear water. With most of the
water dispensed, place selector switch in
the “OFF” position and drain off remaining
water.
12. Prepare 2 gallons (7.6 liters) of
sanitizing solution in a container. Sanitizing
solution must be mixed according to
manufacturer’s instructions to yield 100
ppm available chlorine solution (example:
Stera-Sheen Green Label).
13. Pour all the sanitizing solution into
the hopper pan. Using a clean brush scrub
the hopper walls.
14. Place the selector switch to the
“CLEAN” position and allow the beater to
run for 5 minutes.
15. Place an empty container under
the dispensing head. Drain the sanitizing
solution from the cylinder by slowly pulling
down on the dispense handle. Open
and close the handle several times while
draining.
16. With most of the sanitizing solution
drained, Place the selector switch to
the “OFF” position and drain remaining
solution from the freezer and close the
plunger.
17. Proceed to sections 6
DISASSEMBLY AND CLEANING,
7 ASSEMBLY AND 8 STARTUP
INSTRUCTIONS.
O-Ring
O-Ring
Tube-Mix
Tube-Mix Feed
Feed
Insert-Assy.
Insert-Assy. Mi
Feed
Mix Feed
28
10. Pour 2 gallons of cold water into
the hopper. Place the selector switch to
“CLEAN” and dispense the cold water.
Important:
DO NOT use hot water. Damage to the
freezer could occur.
O-Ring
O-Ring
Figure 9-3
185260
Page 39
ELECTRO FREEZE Shake Model CS704
10 Product Information
10.1 Overrun
As mix is frozen in the freezing cylinder,
air is incorporated into the mix to increase
its volume, as well as enhance the taste
and texture of the nished product. The
increase in volume is called overrun. Fifty
percent overrun means a volume increase
of 50%—10 gallons of liquid mix has
become 15 gallons of nished product.
Controlled overrun is important to
maintain consistency in product quality.
Too much overrun (air) results in a light,
uffy product lacking the cold, refreshing
appeal of a quality product. Too little
overrun results in a wet, heavy product.
To correctly measure the overrun, perform
the following steps:
a. Place an empty pint container on
the scale* and adjust your scale to zero.
b. Remove the container from the
scale and ll with liquid mix. Measure and
record the weight.
c. Remove the liquid mix and ll the
same container with frozen product. Be
sure there are no voids or air spaces in
the container.
d. Strike off the excess product so it
is even with the top of the container and
measure the weight.
e. Use the following formula to gure
overrun percentage:
“Weight of liquid mix minus weight of
frozen product/divided by the frozen
weight.” See example.
Example:
Weight of one pint of mix = 18 oz.
Weight of one = 12 oz.
pint frozen product
Difference = 6 oz.
6.0 oz. divided by 12 oz. = .5
.5 x 100 = 50% overrun
10.2 Rerun
If local health codes permit the use
of rerun make sure to follow these
procedures:
1. Store rerun mix in a clean,
sanitized container.
2. Store in a cooler with a
temperature below 40ºF (4.4ºC).
3. DO NOT prime the machine with
rerun. Always skim off and discard foam.
Then combine the rerun with fresh mix
in a ratio of 50/50 and add to the hopper
during operation.
4. Once a week run the mix as low
as possible and discard after closing. This
will break the rerun cycle and reduce the
possibility of high bacteria and coliform
counts.
* Your Electro Freeze Distributor can
provide a scale (P/N HC158049) that is
graduated in overrun percentage.
NOTE: Rerun product is unable to
accept the same amount of air as fresh
product. As a result, the quality will
be affected and product may appear
grainy and icy.
For further information contact your local
Electro Freeze distributor or the Service
Department of H. C. Duke & Son, LLC,
phone (309) 755-4553 or (800) 755-4545.
185260
29
Page 40
ELECTRO FREEZE Shake Model CS704
11 Syrup Flavor System
The syrup avor system is included with
all CS704 shake freezers. This system
allows you to serve a vanilla shake and
four other avors by the press of a button.
11.1 Syrup Line Disassembly and Sanitizing
Important:
Do not use the “AUTO” position with
sanitizer or water in the cylinder. The
freezer will be damaged.
The syrup line system should be
cleaned every 30 days. The freezer
should be fully cleaned prior to syrup
line cleaning. Records should be
maintained to record last cleaning of
freezer and syrup lines.
Sanitizer noted in this section must be
prepared according to manufacturer’s
instructions to yield 100ppm strength
chlorine solution (Example: SteraSheen® Green Label) Use warm water
(100-110°F or 37- 43°C)
NOTE: It is your responsibility to be aware
of, and conform to, the requirements for
meeting local, state, and federal laws
concerning the frequency of cleaning and
sanitizing the syrup lines.
allowing the syrup from the tube and hose
to drain back into the bottle. Place the
stainless steel pickup tube in an empty
bucket. Repeat for each avor and take
hoses to sink and ush with hot water
(122°-140°F or 50°-60°C). Remove syrup
bottles from the cabinet. Fill the bucket
with hot water and reconnect the syrup
hoses to the pumps.
3. Place an empty container under
the mix chamber. Turn the syrup pump
switch to the “ON” position. Select a syrup
avor by pushing the proper button (see
gure 11-2) and then press the syrup
prime/calibrate button (see gure 11-3,
item 2) to purge syrup from the line. Hold
the button and allow at least 1-1/2 cups of
hot water to ow through the tube and mix
chamber. Continue until the water runs
clear.
4. Repeat step 3 with the remaining
three syrup avors.
1. Wash and sanitize your hands
and forearms before cleaning syrup lines.
2. With the syrup pickup tube in the
syrup bottle, disconnect syrup hose from
the pump by pushing on the metal clip of
the connector. (see gure 11-1). Slowly
pull the pickup tube out of the syrup bottle

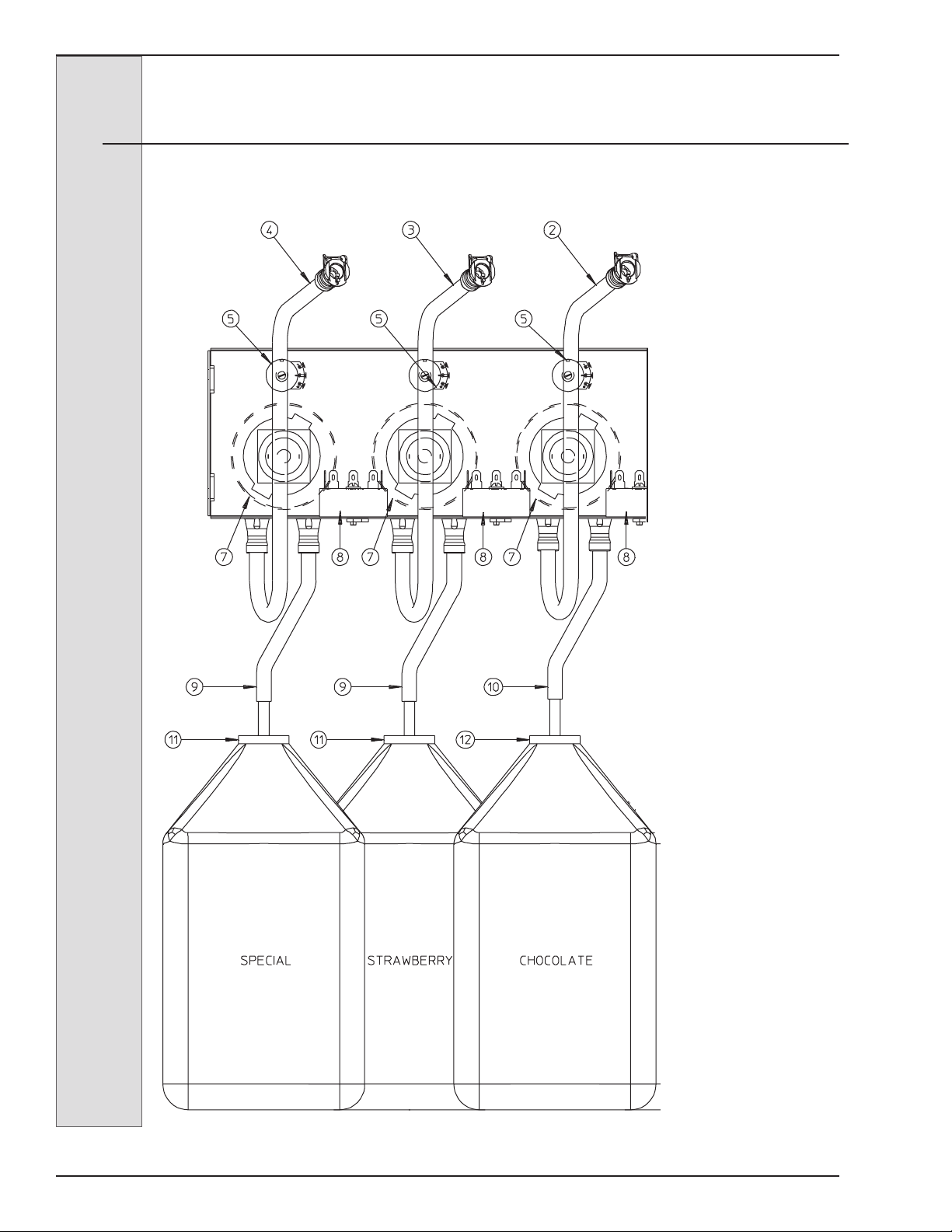

BANANA CHOCOLATE STRAWBERRY
CLIP
Figure 11-1 Removal of syrup lines to bottles
CLIP
Note: At every cleaning or when a new
syrup bottle is opened, the cap with
hole for the syrup tube must be washed,
rinsed, and soaked in sanitizer for 5
minutes before installing on bottle.
5. With a container under the mix
chamber turn the selector switch to clean
and press the rinse button for 5 seconds.
Spinner should be engaged splashing
water in mixing
chamber.
Figure 11-2
30
185260
Page 41
ELECTRO FREEZE Shake Model CS704
11.1 Syrup Line Disassembly and Sanitizing - continued
7. Disconnect each outlet hose from
pump. Remove each pump head from the
body by twisting 15° counterclockwise
and pull straight out. Remove the hose
assembly from pump head and o-rings
from connectors. Wash, rinse, and soak in
sanitizer for 5 minutes. Use 3/8” brush to
clean the inside of tubes.
Important:
The peristaltic, pickup and syrup tubes
for the chocolate line are larger and
must be used only for the chocolate
syrup.
8. Take a clean sanitized cloth and
wash all soiled surfaces inside cabinet.
Disconnect the syrup and water lines
from the mix chamber. Remove the
mix chamber and mixing shaft from the
dispense head. Take parts to the sink,
remove the o-ring and then wash, rinse
and soak in sanitizer for 5 minutes. Wash
and spray sanitizer on the bottom of the
plunger in the dispense head.
9. Fill a small cup with sanitizer.
Dip the syrup line quick connects in
sanitizer for 30 seconds ushing residue
out of connector. Use a small brush if
necessary to remove hardened syrup.
Repeat dipping on outlet quick connect
on syrup pump. Reassemble mixing
shaft and mix chamber to dispense head.
Reconnect syrup lines.
185260
Figure 11-3
31
Page 42
ELECTRO FREEZE Shake Model CS704

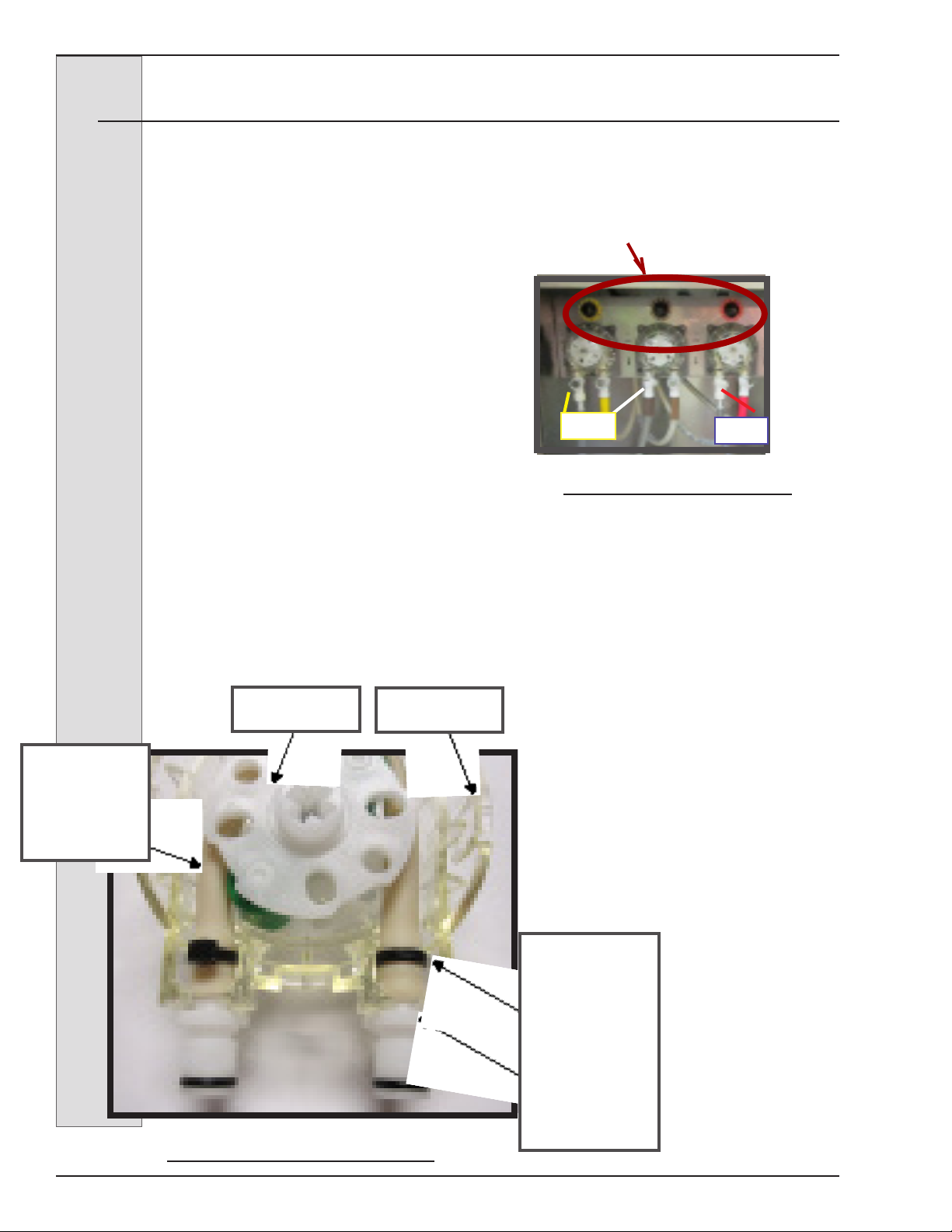

11.2 Syrup Line Assembly And Sanitizing
Important:
The chocolate syrup is a different
viscosity and requires different
hoses. Always be aware of this when
assembling.
1. Place a silicone bead of a
lubricant [i.e. Dow Corning Compound 7,
HC158066] on the outside of each pump
peristaltic tube. Wrap the
around the pump head centering it on
the rollers. Place the head in the housing
making sure the white plastic coupling is
outside of the housing and the black tie
wrap is inside as shown in gure 11-4.
2. Open the cabinet below the
freezer to install the pump housings. The
pump housing with the clear
tube is to be used on the pump with the
brown colored potentiometer dial (see
gure 11-5).
Important:
The clear larger hose is to be used
only for the chocolate syrup.
peristaltic
peristaltic
tube
Line up the center of the pump head to t
into the pump drive housing mounted on
the cabinet back wall, turn until it snaps
into place.
Potentiometers
CLIP
Figure 11-5
Place the three (3) remaining pump heads
on the mix pumps in the cabinet.
4. Connect the syrup lines from
the freezer to the pumps. The color
coded hoses need to be matched to
the corresponding color coded on the
potentiometer dials above the mix pumps.
CLIP
3.
Pump
Peristalic Tube
Must be
lubricated when
installing.
Pump Head
Figure 11-4 Syrup Pump Housing
Pump Housing
5. Sanitize the syrup line system.
a. Prepare 2 gallons (7.6 liters)
of sanitizing solution in a container.
Sanitizing solution must be mixed
according to manufacturer’s instructions
to yield 100 PPM strength chlorine
solution. (example: Stera-Sheen Green
Label). Use warm water (100-110°F or
37-43°C) to wash, rinse, and sanitize. Fill
a clean empty bucket with 2 gallons of
sanitizing solution.
Proper Hose
Installation
Note position of
the black tie wrap
in the housing
and the white
plastic coupling
below the
housing
—continued
32
185260
Page 43
ELECTRO FREEZE Shake Model CS704
11.2 Syrup Line Assembly and Sanitizing - continued
Important:
Do not use unapproved sanitizer
or laundry bleach. These materials
may contain high concentrations of
chlorine and will chemically attack
freezer components.
b. Wash and sanitize your hands
and forearms.
c. Place the bucket of sanitizing
solution on the oor by the cabinet. Place
the syrup bottle caps with the holes
in the lid, the black cap boots and the
stainless steel ends of the pickup tubes
into the bucket of sanitizer. Be sure there
is no loop in pickup tube so sanitizer will
contact all surfaces of tubes.
d. Place an empty bucket or
container under the dispensing head.
Turn syrup system switch to the “ON”
position. (see gure 11-6, item 1)
e. Select a syrup avor by
pushing the proper button then press
the syrup prime/calibrate button (see
gure 11-4 item 2). Hold the button until
sanitizer is owing into bucket. Continue
holding button for one (1) minute.
f. Repeat step 5e with the
remaining three syrup lines.
g. Allow sanitizer to soak in
syrup lines for 5 minutes.
h. Place each syrup bottle cap
from the sanitizing solution onto the syrup
bottles. Then place a black boot cover on
each bottle cap.
i. Disconnect a hose from the
pump by pushing on the metal clip of the
connector (see gure 11-5). Remove the
pickup tube from the bucket of sanitizer,
draining sanitizer back into the bucket.
Reconnect hose to pump.
Important:
The largest pickup tube into the
chocolate syrup bottle.
j. Repeat step 5i with the
remaining three syrup lines. Refer to the
potentiometers or door decal to connect
the proper avor to the proper pump.
k. Select one avor, press the
syrup prime/calibrate button until the
syrup line has been purged of sanitizer.
Pure mix should appear at the mixing
chamber on dispense head.
l. Press water button (7 gure
11-5) to clear line.
m. Repeat step 5j and 5k for
remaining syrup avors.
185260
Figure 11-6
33
Page 44
ELECTRO FREEZE Shake Model CS704

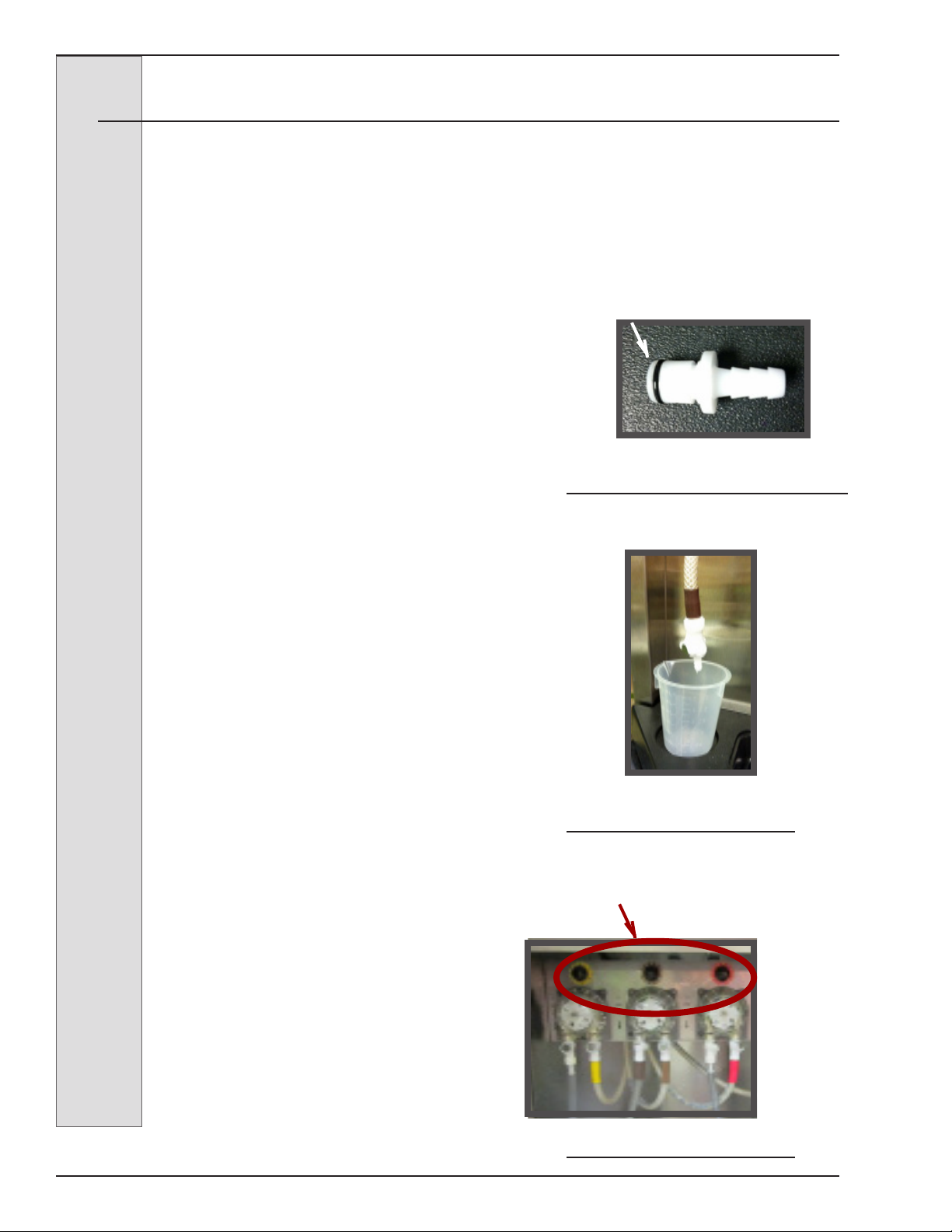

11.3 Syrup Calibration
NOTE: Time how long it takes to ll
a medium shake and calibrate the
syrup pumps so that 1½ oz. of syrup is
dispensed in that time.
1. Sanitize and prime each syrup line
as described in section 11.2.
2. Select a syrup avor by pushing
the proper button on the front of the freezer.
Disconnect that mix chamber syrup tube
from the front panel connector by pushing
the metal clip in. Attach the coupling insert
(see gure 11-7) to the tting by pushing
the mating end into the panel connector unit
it clicks. Place the barb end of the coupling
insert into the beaker as shown in gure 11-
8.
3. Press the syrup prime/calibrate
button for 5 seconds using a stop watch
or second hand. The measure of syrup
dispensed into the beaker should be 1½
oz. If it is not you will have to adjust the
potentiometer.
11. Repeat steps 2 and 3 to check
calibration. If further adjustment is needed
repeat steps 5 through 10.
12. When desired syrup dispense rate
is achieved, remove the coupling insert and
reconnect the mix chamber syrup tube.
Mating End
Figure 11-7 Coupling Insert
Part No. HC121061
4, Repeat steps 2 and 3 for other
avors.
5. Turn the syrup pump switch to
“OFF”.
6. Open the cabinet door to allow
access to the four avor adjustment
potentiometers located above the mix
pumps. See gure 11-9.
7. Approximate setting for the
adjustment potentiometers is 7.
8. Calibration levels for each avor of
syrup should be adjusted to 1½ oz.
9. Select the proper potentiometer for
the avor to be adjusted.
a. If the amount of syrup
dispensed into the beaker is less than 1½
oz. turn the potentiometer of that syrup
line a few degrees clockwise for MORE
SYRUP.
b. If the amount of syrup
dispensed into the beaker is more than 1½
oz. turn the potentiometer of that syrup line
a few degrees counter-clockwise for LESS
SYRUP.
Figure 11-8 Calibration Beaker
Part No. HC196109
Potentiometers
34
10. Close the cabinet door. Place the
syrup pump switch in the “ON” position.
Figure 11-9
185260
Page 45
ELECTRO FREEZE Shake Model CS704
12 Routine Maintenance
Electro Freeze recommends the following
schedule to help maintain your equipment
in like-new operating condition. Take the
time to learn and perform these routine
procedures and receive in return many
years of valuable service from your
freezer. Protect your investment.
DAILY
1. Disassemble, wash, rinse,
sanitize, air dry, reassemble and sanitize
all parts that come into contact with the
mix or product.
CAUTION
To prevent bacteria growth,
remove all O-rings when
cleaning. Failure to do so could
create a health hazard.
2. Clean and sanitize syrup lines
with sanitizing solution.
3. Clean the cylinder and drain tube
with the appropriate brushes.
3. Upon cleaning, inspect and
lubricate all seals and O-rings as
instructed that come into contact with
mix. Replace any O-ring that is worn,
torn, or loose-tting.
4. Wipe all exterior surfaces of the
freezer to remove any splattered mix.
5. Check overrun and temperature
of the product.

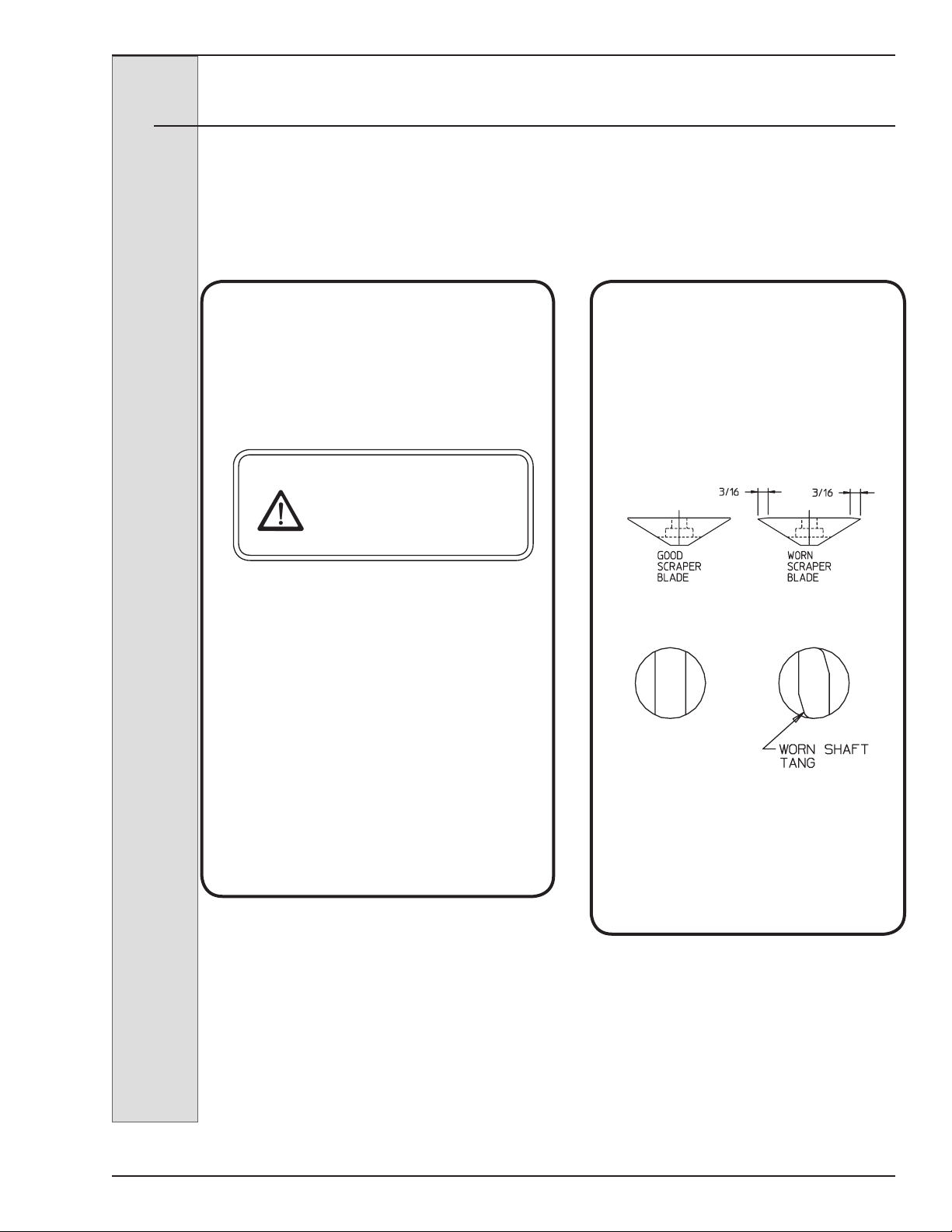

WEEKLY
1. Carefully inspect all parts for
wear including, seals, O-rings, mix
transfer tube and blades.
2. Replace as required.
Replace blades if worn 3/16” or
more.
3. Check the beater tangs and
drive shaft for wear.
GOOD SHAFT
TANG
A worn coupling will have a nonparallel
shape on the drive opening.
4. Check the air lter and clean
as necessary. After cleaning apply spray
adhesive, p/n HC162548.
185260
35
Page 46
ELECTRO FREEZE Shake Model CS704
12 Routine Maintenance — continued
MONTHLY
A. Test Head Switch.
The head switch feature is designed
to prevent the beater shaft from being
accidentally activated. It is essential that the
proper operation of this switch be veried on a
routine basis. Use the following instructions to
test for proper operation:
1. Be sure all switches are in the “OFF”
position.
2. Disconnect the main power supply.
3. Remove the dispense head and
beater shaft assembly.
4. Connect the main power supply.
5. Turn the selector switch to the
“CLEAN” position.
CAUTION
Moving parts. Do not place hands
in the freezing cylinder. Severe
personal injury could result.
MONTHLY
B. Test Flex Cover Switch.
The ex cover switch feature is designed to
prevent the spinner shaft from being accidentally
activated. It is essential that the proper operation
of this switch be veried on a routine basis.
Use the following instructions to test for proper
operation:
1. Be sure all switches are in the “OFF”
position.
2. Disconnect the main power supply.
3. Remove the ex shaft cover.
4. Connect the main power supply.
5. Turn the selector switch to the “CLEAN”
position.
CAUTION
DO NOT touch or get too close to moving
parts. Clothing, jewelry, hair or other
body parts may become caught in the
machine and result in personal injury.
6. Look inside the freezing cylinder
toward the rear. The drive shaft coupling
should NOT be turning. Turn the selector
switch to “OFF” and disconnect the main
power supply.
7. If the drive shaft coupling is turning,
or you are unable to determine whether or
not the shaft is turning, turn the switch to the
“OFF” position, disconnect the main power
supply, and contact your Electro Freeze
distributor for service. DO NOT place the
freezer in service until the problem has been
xed.
6. Place a container under the dispensing
plunger.
7. Push the rinse switch button. The
spinner shaft should NOT be turning. Water will be
dispensed. Turn the selector switch to “OFF” and
disconnect the main power supply.
8. If the spinner shaft is turning, or you
are unable to determine whether or not the shaft
is turning, turn the selector switch to the “OFF”
position, disconnect the main power supply, and
contact your Electro Freeze distributor for service.
DO NOT place the freezer in service until the
problem has been xed.
36
185260
Page 47
ELECTRO FREEZE Shake Model CS704
12 Routine Maintenance -— continued
QUARTERLY
A. Air Condenser.
Important:
Never use a screwdriver or sharp
object to clean between ns.
Both air and water cooled freezers have
an air condenser. The condenser ns
need to be cleaned by your Electro
WARNING!
Failure to properly maintain/clean your air condenser can cause
premature compressor failure. Compressor failure due to improper
condenser care will void the compressor warranty.
Freeze Distributor to remove dirt, lint and
dust.
B. Refrigeration System
Have your Electro Freeze Distributor check
the refrigeration system and make any
necessary adjustments.
ANNUALLY
CAUTION
To avoid electrical shock or
contact with moving parts,
make sure all switches are in
the “OFF” position and that
the main power supply is
disconnected.
1. Contact your Electro Freeze
Distributor for service to replace drive belts.
2. Contact your Electro Freeze
Distributor to have the inside of the freezer
cleaned, including base, side panels,
condenser, etc.
3. Contact your Electro Freeze
Distributor to check water-cooled
condenser and ush clean to remove scale
and deposits if necessary.
USE ORIGINAL OR AUTHORIZED REPLACEMENT PARTS ONLY
WITH THIS FREEZER.
185260
Should you have any questions on items which are not included in this schedule or problems where
service assistance is needed, please call your local Distributor or H. C. Duke & Son, LLC, Electro
Freeze, Service Department for factory service assistance.
Phone number: (309) 755-4553 Fax number : (309) 755-9858
37
Page 48
ELECTRO FREEZE Shake Model CS704
12 Routine Maintenance -— continued
Winter Storage
To protect the unit during seasonal shutdown, it is important to store the
CS700 Shake Freezer properly. Please use the following procedures:
1. Disconnect all power to the freezer.
2. Disassemble and wash all parts that come into contact with
the mix with a warm, mild detergent solution. Rinse in clear water and dry
all parts thoroughly.
3. Store the loose parts, such as the head assembly, beater
assembly, and pump parts in a safe, dry place.
4. Do not lay heavy objects on the plastic or rubber parts.
5. Cover the freezer and all loose parts to protect them from dust
or other elements that could contaminate them while in storage. Place the
freezer in a dry location.
6. On air-cooled freezers, have condenser ns cleaned.
38
185260
Page 49
ELECTRO FREEZE Shake Model CS704
13 Troubleshooting Charts
SAFETY
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT PERSONAL SAFETY
MESSAGES IN THIS MANUAL. WHEN YOU SEE THIS SYMBOL, BE ALERT TO
THE POSSIBILITY OF PERSONAL INJURY. DO NOT ATTEMPT TO CONTINUE
UNTIL THE SAFETY PRECAUTIONS ARE THOROUGHLY UNDERSTOOD.
CAUTION
All maintenance adjustments must be done by an Electro
Freeze Distributor or authorized service technician.
CAUTION
To avoid electrical shock or contact with moving parts,
make sure all switches are in the “OFF” position and that
the main power supply is disconnected. Some freezers have
more than one disconnect switch.
Important:
Refrigerants are hazardous to the earth’s atmosphere. To
protect our environment, use a refrigerant recovery/recycling
unit whenever removing refrigerant from the system.
185260
39
Page 50
ELECTRO FREEZE Shake Model CS704
13 Troubleshooting Charts — continued
PROBLEM PROBABLE CAUSE REMEDY
1. Freezer unplugged. 1. Plug in freezer.
Unit does not operate.
2. Fuse or breaker blown at
main disconnect.
3. Actuator rod not installed. 3. Install actuator rod.
4. Off on high pressure cut-out
control.
5. Circuit breaker tripped. 5. Reset. If trips again contact
6. Faulty selector switch. 6. Contact your Electro Freeze
7. Disconnected or broken wire
in electrical circuit.
2. Make sure your freezer is
4. Water turned off or defective
7. Contact your Electro Freeze
connected to a separate
circuit independent from any
other electrical equipment.
Have technician check fuse
or breaker size and check for
low voltage; if not within 10%
of nameplate rating call power
company.
water regulating valve. Check
water supply. (Water Cooled)
your Electro Freeze
Distributor for service
Distributor for service.
Distributor for service.
Mix or water leaking from drain
tube to drip tray.
Mix leaking at dispensing head.
Dispensed product too soft.
(Product temperature above
28°F [-2.2°C] )
1. Damaged beater shaft seal
or installed improperly.
1. Faulty head o-ring. 1. Replace o-ring.
2. Head not properly installed. 2. Install head properly. Replace
3. Faulty Plunger o-ring or
wrong o-ring in wrong o-ring
grove.
1. Dirty or blocked condenser,
restricted air ow.
2. Torque control not set rm
enough.
3. Component failure. 3. Contact your Electro Freeze
4. Leak in refrigeration system
resulting in little or no
refrigeration.
1. Replace cup seal. Install
properly.
o-ring if pinched.
3. Check the o-ring chart.
1. Unblock condenser or have
cleaned by your Electro
Freeze Distributor.
2. Contact your Electro Freeze
Distributor for service.
Distributor for service.
4. Contact your Electro Freeze
Distributor for service.
40
185260
Page 51
ELECTRO FREEZE Shake Model CS704
13 Troubleshooting Charts — continued
PROBLEM PROBABLE CAUSE REMEDY
1. No product in hopper. 1. Fill hopper.
Product dispenses slowly out of
dispensing head.
Dispensed product too hard.
Freezer runs continually and
product continues to get colder.
2. Product too cold. 2. See “Dispensed product too
hard.”
3. Mix feed tube not open. 3. Check mix feed tube setting.
1. Torque control erratic or set
too rm
2. Low suction pressure, refrig-
eration system.
3. Mix feed tube not open. 3. Check mix feed tube setting.
1. Plunger not fully closed. 1. Close plunger completely.
2. Starter or relay contact
points stuck.
3. Torque control not set
properly or faulty.
4. Suction pressure too low. 4. Contact your Electro Freeze
1. Contact your Electro Freeze
Distributor for service.
2. Contact your Electro Freeze
Distributor for service.
2. Contact your Electro Freeze
Distributor for service.
3. Contact your Electro Freeze
Distributor for service.
Distributor for service.
Compressor motor does not
operate when dispensing.
Compressor motor does not
operate when dispensing.
185260
1. Plunger switch defective or
out of adjustment.
2. Time delay defective. 2. Contact your Electro Freeze
1. Plunger switch defective or
out of adjustment.
2. Time delay defective. 2. Contact your Electro Freeze
3. Defective torque control. 3. Contact your Electro Freeze
1. Contact your Electro Freeze
Distributor for service.
Distributor for service.
1. Contact your Electro Freeze
Distributor for service.
Distributor for service.
Distributor for service.
41
Page 52
ELECTRO FREEZE Shake Model CS704
13 Troubleshooting Charts — continued
PROBLEM PROBABLE CAUSE REMEDY
1. No product in hopper. 1. Fill hopper.
Product dispenses slowly out of
dispensing head.
Compressor and beater motor
operates only when dispensing.
Compressor will not start hums intermittently (cycling on
overload)
2. Product too cold. 2. See “Dispensed product too
hard.”
3. Mix feed tube not open. 3. Check mix feed tube setting.
1. Defective torque control. 1. Contact your Electro Freeze
Distributor for service.
1. Improperly wired. 1. Contact your Electro Freeze
Distributor for service.
2. Low line voltage. 2. Ask power company to
increase voltage to not less
than 10% below dataplate
rating or have transformer
installed. Have wire checked
for inadequate wire size.
3. Open start capacitor. (Single
phase only)
4. Defective compressor 4. Contact your Electro Freeze
3. Contact your Electro Freeze
Distributor for service.
Distributor for service.
NOTE: Contact your authorized Electro Freeze distributor for instructions prior to
warranty compressor replacement.
QUALITY PARTS
PROTECT
YOUR
EQUIPMENT
Keep your freezer in excellent condition. Always contact your Electro Freeze distributor
for replacement parts and maintenance scheduling.
42
185260
Page 53
Page 54
REPLACEMENT PARTS MANUAL
with ILLUSTRATIONS
COMPACT SERIES
Quality Parts
PROTECT
YOUR
EQUIPMENT
SHAKE FREEZER
Model CS704
185260-01 6/17
Keep Your Freezer In excellent condItIon. AlwAYs contAct
Your electro Freeze dIstrIbutor For replAcement pArts.
H.C. Duke & Son, LLC P/N 185260-01 June 2017 Printed in U.S.A.
Page 55
Page 56
ELECTRO FREEZE Shake Model CS704
Replacement Parts Orders
You must have the serial number of your
freezer when ordering parts — parts may
differ with a particular serial number of
the same model.
Parts are listed using terminology that
best ts the function of the part. The illustrations in this section will help you to nd
the correct part number and description.
The alphabetized parts list can be used
to verify part numbers pertaining to the
serial number of your unit.
Place your parts order through your local
authorized Electro Freeze distributor.
Table of Contents
Name: _______________________
Adress:_______________________
______________________________
Phone:________________________
If you require any further assistance,
contact H. C. Duke & Son, LLC, Electro
Freeze as follows:
Phone: (309) 755-4553
(800) 755-4545
FAX: (309) 755-9858
E-mail: [email protected]
ILLUSTRATIONS
Figure 1 Head Assembly ..............................................2
Figure 2 Beater Shaft Assembly ...................................3
Figure 3 Mix Feed Tube Assembly ................................4
Figure 4 Plunger Box ...................................................5
Figure 5 Switch Assembly ............................................6
Figure 6 Electrical Box ................................................. 7
Figure 7 Syrup System .................................................8
Figure 8 Panel View .................................................................. 10
Figure 9 Side/Rear View ............................................. 12
Figure 10 Drive Shaft & Bearing Assembly ................... 14
OTHER LISTS and INFORMATION
Accessories ................................................................15
O-Ring Chart ...............................................................16
Clean & Sanitizing Sheet ............................................................... 17
Syrup System Sheet...................................................................... 19
Alphabetized Parts List ............................................... 21
185260
1
Page 57
ELECTRO FREEZE Shake Model CS704
Figure 1 Head Assembly
Item Part No. Description
* .........HC121006-03 Head-Assy. Complete 4 Flavor
1 ........HC121020 ..... Cover-Assy Flex Shaft
2 ........HC160622 ..... O-ring (Head)
3 ........HC196072 ..... Bushing-Beater Bearing
4 ........HC113435 ...... Keeper-Assy. Spindle
5 ........HC121005 ..... Head-Assy. w/Posts 5 FL SH
6 ........HC160771 ..... Coupling-Body 1/4 Flow 1/4
Barb Shutoff
7 ........HC160632 ..... O-ring (Syrup Line)
8 ........HC196291 ..... Shaft-Assy. Mix
9 ........HC121106-02 Chamber-Assy. Mix
HC141148-02 . Chamber-Mix
HC121061 ...... Coupling-Assy
Insert 1
HC160650 ...... O-ring
10 ........HC160650 ..... O-ring (Mix Chamber)
11 ........HC121019-01 Handle-Assy. Disp. Complete
HC162629 ....... Knob-Ball 3/8
12 ........HC160555 ..... O-ring (Pivot Post)
Item Part No. Description
13 ........HC135182 ..... Post-Pivot
14 ........HC141150 ...... Plunger-Dispensing 5 Flavor
15 ........HC141151 ...... Bushing-Mixer Shaft
16 ........HC138611 ...... Rod-Actuator
17 ........HC160501 ..... O-ring (Plunger-Upper)
18 ........HC160582 ..... O-ring (Plunger-Lower)
19 ........HC153422 ..... Shaft-Flexible w/Casing 16-
1/2” Does not include item
#20.
20 ........HC121008 ..... Connect-Assy Drive
Not Shown:
HC114341 ......Stud-Assy. Cylinder 1-15/16”
HC162625 ..... Knob-Hand
HC151149 ......Motor-Shake 44W 230v FWR
* Includes Items 2-5, 9, 11-15, 17-18.
2
185260
Page 58
ELECTRO FREEZE Shake Model CS704
Figure 2 Beater Shaft Assembly
Item Part No. Description
1 ................HC118708 Beater-Assy. Shake Short
2 ................HC140900 Blade-Scraper Shake Non Rev
3* ............... HC137593 Washer-Double Shaft Seal
4* ............... HC160557 Seal-Beater Shaft
* Can be ordered together
HC115525 Seal-Assy. Shaft Double
185260
3
Page 59
ELECTRO FREEZE Shake Model CS704
O-Ring
O-Ring
Insert-Assy. Mix
Feed
Figure 3 Mix Feed Tube Assembly
Item Part No. Description
* ....... HC120666....... Tube-Assy. Mix Feed .313
1 ...... HC140721....... Tube-Mix Feed .313 Orice
2 ...... HC120664....... Insert-Assy. Mix Feed (Regulator)
3 .......HC160611....... O-ring (Insert-Regulator)
4 ...... HC160621....... O-ring (Mix Feed Tube)
* Includes items 1 through 4.
4
185260
Page 60
ELECTRO FREEZE Shake Model CS704
Figure 4 Plunger Box
Item Part No. Description
1 .......HC150985 .... Fuse-Fast AGC 1.0A 1/4 x 1-1/4
2 .......HC150984 .... Breaker-Circuit 0.7A
3 .......HC121011 ..... Switch-Assy. Plunger (See Figure 5)
HC162303 ....Spring-Plunger Rod
HC150456 ....Switch-Snap Button
4 .......HC150452 .... Breaker-Circuit 4.5A
5 .......HC150188 .... Timer-DOB .5-60 Sec
6 .......HC150798 .... Terminal-Strip
7 .......HC150381 .... Relay-Flange Base w/Cover
8 .......HC150343 .... Relay-Control Flange 3PDT 24VAC
9 .......HC159235 .... Switch-Toggle SPST
10 .......HC150971 .... Switch-Push DPDT MOM Black
11 .......HC150456 .... Switch-Snap Button
12 .......HC137760 .... Rod-Plunger Switch (Actuator Button)
13 .......HC150465 .... Switch-Toggle 3PDT Center Off
14 .......HC150971 .... Switch-Push DPDT Mom Black
185260
5
Page 61
ELECTRO FREEZE Shake Model CS704

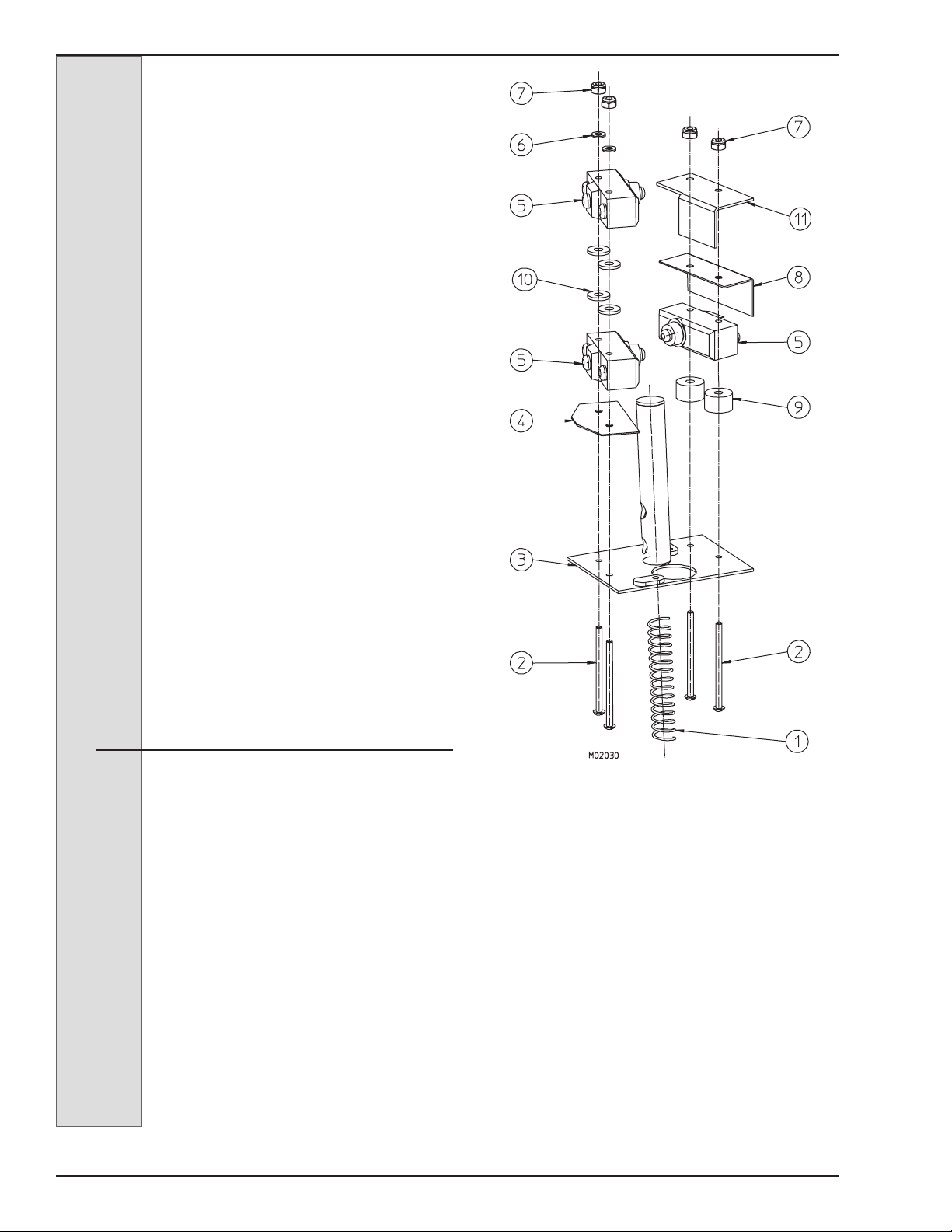

Figure 5 Switch
Assembly
Item Part No. Description
* ....... HC121011 ....... Switch-Assy. Plunger Shake Pres
1 ....... HC162303 ....... Spring-Plunger Rod
2 ....... HC159973 ....... Screw-RDHM #6-32 x 2 Zn
3 ....... HC141209 ....... Guard-Switch Assembly
4 ....... HC137798 ....... Insulator-Switch
5 ....... HC150456 ....... Switch-Snap Button
6 ....... HC160393 ....... Washer-Flat #6 Brass
7 ....... HC160199 ....... Nut-El Stop #6-32 ZN
8 ....... HC139175 ....... Insulator-Switch
9 ....... HC137765-01 .. Spacer-.375 Long
10....... HC160157 ....... Washer-1/2 x .196 x 1/16
11 ....... HC141209 ....... Guard-Switch Assy.
* Includes all items above.
6
185260
Page 62
ELECTRO FREEZE Shake Model CS704

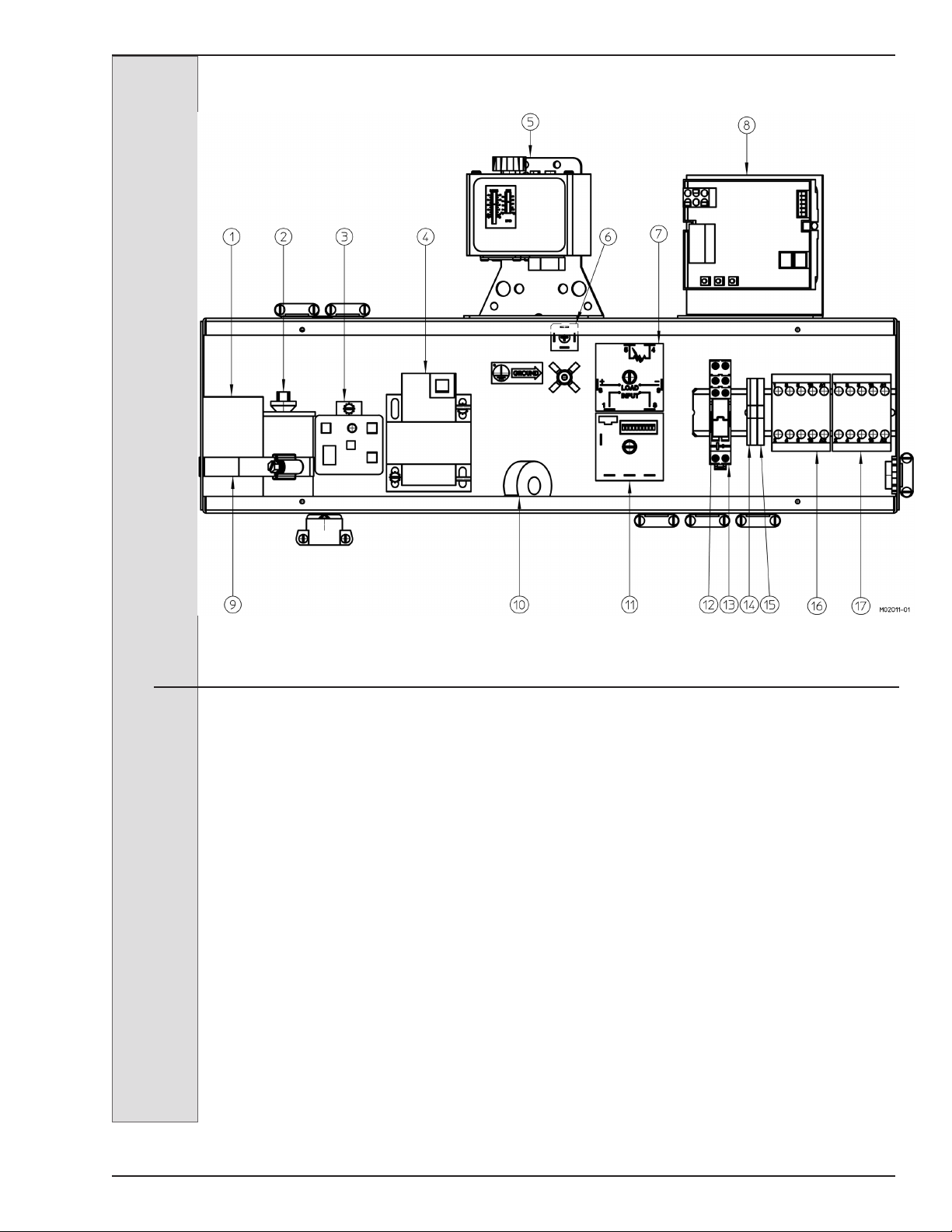

Figure 6 Electrical Box
Item Part No. Description
1 ............... HC151414 ......... Capacitor-Start
2 ............... HC150244 ......... Capacitor-Run
3 ............... HC151474 ......... Relay-Compressor Start
4 ............... IC574100325.....Transformer-75VA / 24VAC / MURD
5 ............... HC119989 .........Kit-Thermostat & Retainer
6 ............... HC150890 ......... Rectier-Bridge
7 ............... HC150967-01 .... Control-Speed 230VAC to DC Motor
8 ............... HC120603 ......... Board-Assy. Torque Monitor Shake
9 ............... HC160743 ......... Clamp-Hose 3-1/6 to 4
10 ..............IC574100349.....Transformer-Current
11............... HC120095 ......... Kit-Recyle Timer Wiring Instructions
12 ..............HC150097-01 .... Relay-Miniature DPDT 230V Coil
13 ..............HC150098 ......... Socket-Miniature Relay DPDT
13A ............HC150166 ......... Clip-Miniature Relay Retaining
14 ..............HC150594 ......... Stop-Terminal Block End (Cover)
15 ..............HC150591 ......... Block-Terminal
16 ..............HC150095 ......... Contactor-Mini 3P (Beater Motor)
17 ..............HC150095 ......... Contactor-Mini 3P (Compressor)
185260
7
Page 63
ELECTRO FREEZE Shake Model CS704
Figure 7 Syrup System View (Sheet 1 of 2)
VIEW FROM BACK SIDE OF HC121066-03 BACKET-ASSY FLAVOR PUMPS
8
185260
Page 64
ELECTRO FREEZE Shake Model CS704
Figure 7 Syrup System View (Sheet 1 of 2)
Item Part No. Description
1 ....... HC121100 ....... Kit-Tube Assy. Syrup Yellow and Coupling
2 ....... HC121101 ....... Kit-Tube Assy. Syrup Brown and Coupling
3 ....... HC121102 ....... Kit-Tube Assy. Syrup Red and Coupling
4 ....... HC121103 ....... Kit-Tube Assy. Syrup Blue and Coupling
5 ....... HC150966 ....... Potentiometer-100K OHM 1-Turn
6 ....... HC150982 ....... Housing-Plug 2/Ears 5 Circuit
7 ....... HC169101 ....... Pump-Peristaltic Syrup 24VDC
8 ....... HC150967 ....... Control-Speed 24VAC to DC Motor
9 ....... HC121039 ....... Tube-Assy. Syrup Pick-up
10....... HC121039-01 .. Tube-Assy. Syrup Pick-up 3/8 (Chocolate)
11 ....... HC141173 ....... Cap-Bottle Gal Punched
11A ..... HC199050 ....... Boot-Syrup Bottle (Black) (not shown)
12....... HC141173-01 .. Cap-Bottle Gal Punched 7/16 (Chocolate)
Not Shown:
HC121094 ....... Tube-Assy Water Line
HC161032 ....... Filter-In Line 3/8NPT Wtr 100 Mesh
HC160720 ....... Clamp-Hose 7/32 to 5/8 (Water line)
HC196109 ....... Beaker 150ml

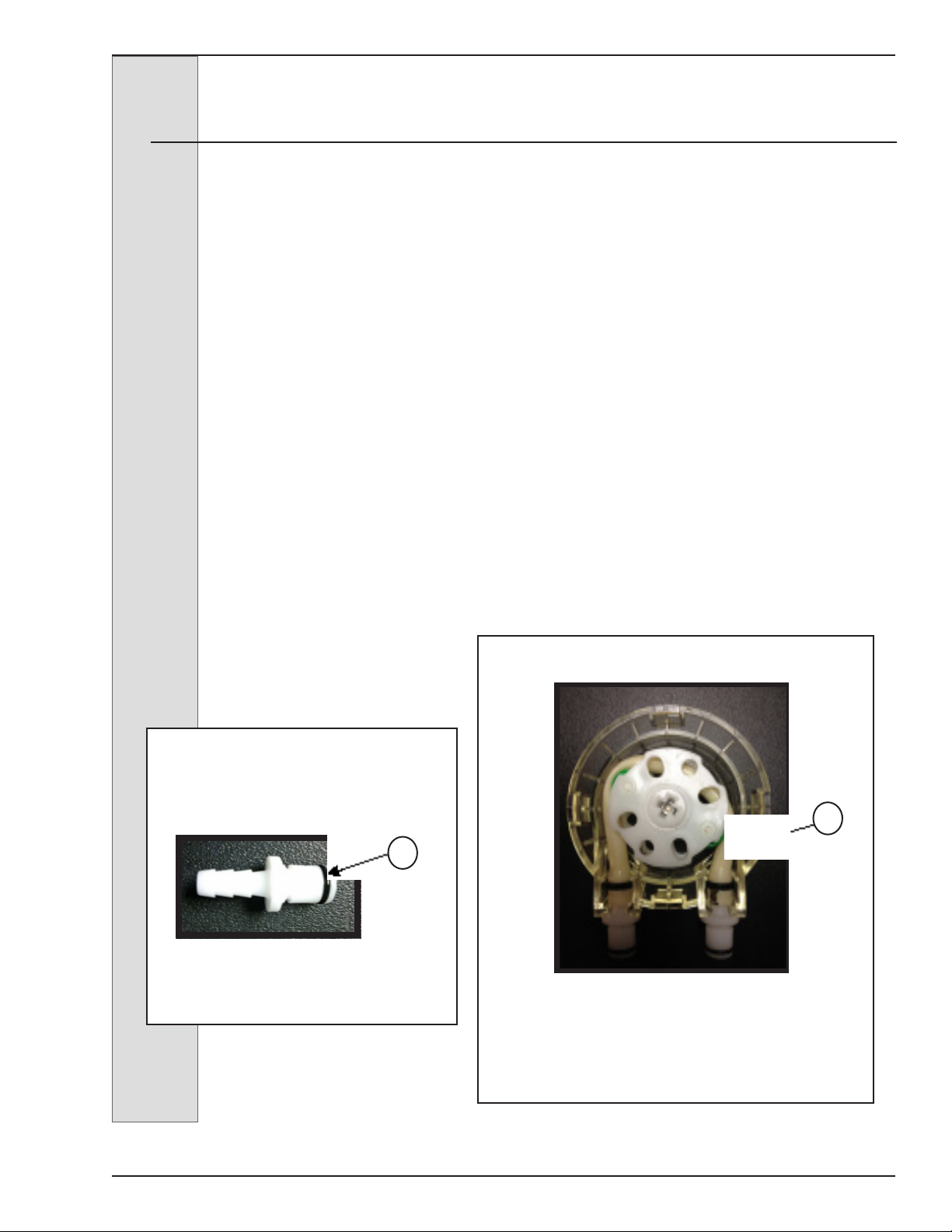

Coupling-Assy. Insert-1/4 Flow
1/8 NPT (also used in calibration
process) HC160770
Item Part No. Description
1 ....... HC160632 ....... O-ring
Pump Peristaltic Tube Assembly
1
1
Item Part No. Description
1 ....... HC120983 ....... Tube-Assy Small Peristaltic
HC120983-01 .. Tube-Assy Large Peristaltic
(Chocolate)
185260
9
Page 65
ELECTRO FREEZE Shake Model CS704

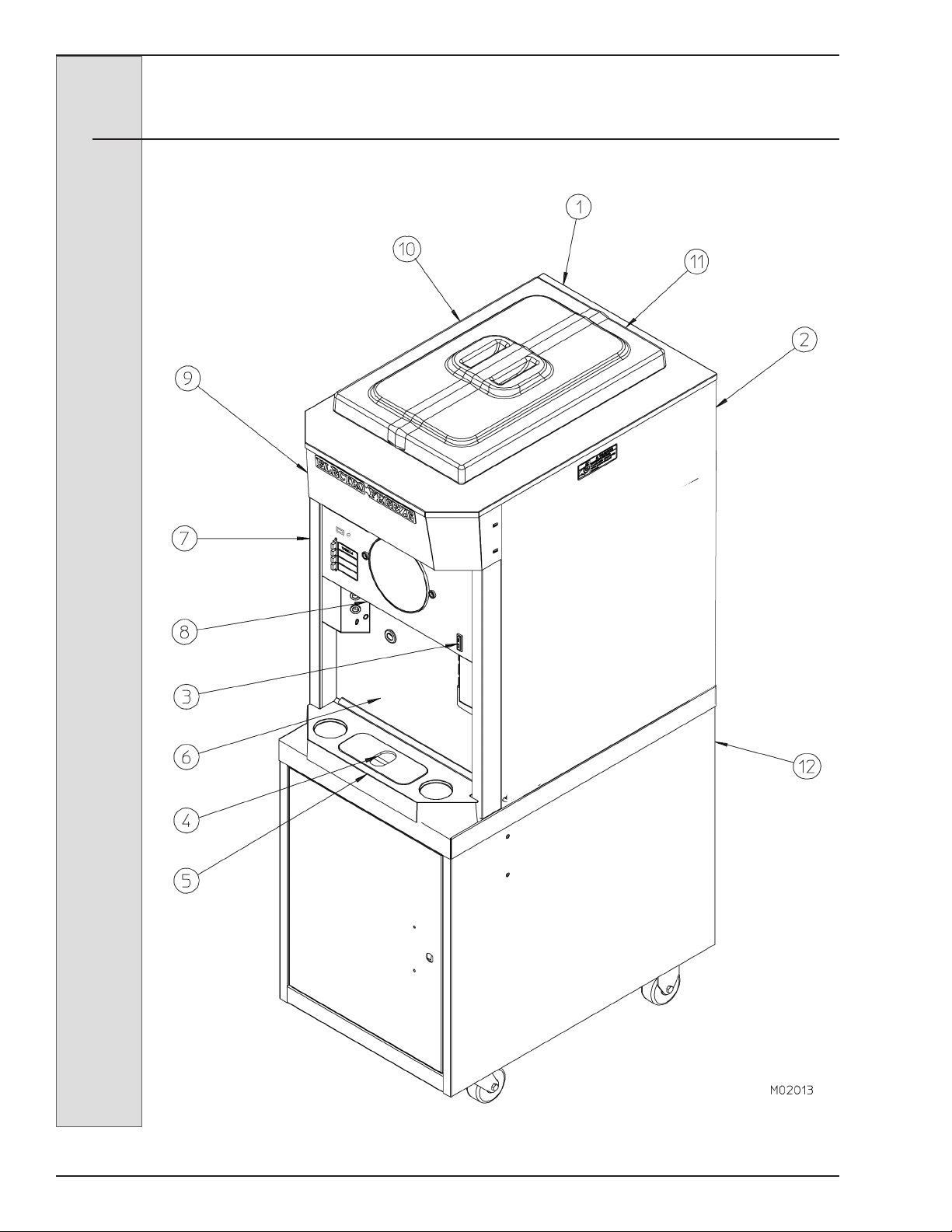

Figure 8 Panel View (Sheet 1 of 2)
10
185260
Page 66
ELECTRO FREEZE Shake Model CS704
Figure 8 Panel View (Sheet 1 of 2)
Item Part No. Description
1 .........HC141185 ........Panel-Rear
2 .........HC141180 ........Panel-Side RH
3 .........HC150541 ........ Light-Indicator 28v ADD MIX
4 .........HC196261 ........ Cover-Drip Tray
5 .........HC196260 ........ Tray-Drip
5A .......HC140738 ........ Retainer-Drip Tray (Not Shown)
6 .........HC121017 ........ Panel-Assy. Front 5 Flavor SH
6A .......HC159064 ........ Grommet-1.1 OD 7/8 GD x 5/8 ID (Drain Tube)(Not
Shown)
7 ........... HC140659 ........Panel-Side LH CS704
8 ........... HC141161-03 ... Panel-Dispense 4 Flavor
9 ........... HC121018 ........Trimstrip-Assy. Tapered
10 ......... HC120804 ........Panel-Assy. Hopper & Top
11 .........HC118691 ........Cover-Assy. Hopper Insulate
12 ......... HC121435-01 ...Cart-CS Stainless
HC162200-11 . Latch-CS Cart
Not Shown:
HC161300 .......... Switch-Level Float Sensor
HC161301 .......... Float-Level Sensor
HC139230 .......... Deector-Panel (Left side)
Hardware for Panels
Panel Screw
DispenseTop
DispenseBottom
Front HC160048 n/a
Rear HC160048 n/a
Side HC159219 n/a
Trimstrip HC160076 n/a
*N/A - Not Applicable
HC160025 n/a
HC160076 n/a
Speed
Nut-
CS705 Panel Decals & Labels
Part No. Description
HC165025 Beater Warning
HC165250 Cleaning Instructions
HC165093 Clear Overlay
HC164215-01 Flavor
HC165414 Nameplate-Electro Freeze
HC165126 Panel Removal
HC164220 Pump Potentiometer
HC164220-01 Pump Potentiometer Brown
HC164220-02 Pump Potentiometer Red
HC164220-03 Pump Potentiometer Blue
HC164216 Syrup Pump
HC164217 Trimstrip
HC169052 Ventilation 3 in.
185260
11
Page 67
ELECTRO FREEZE Shake Model CS704

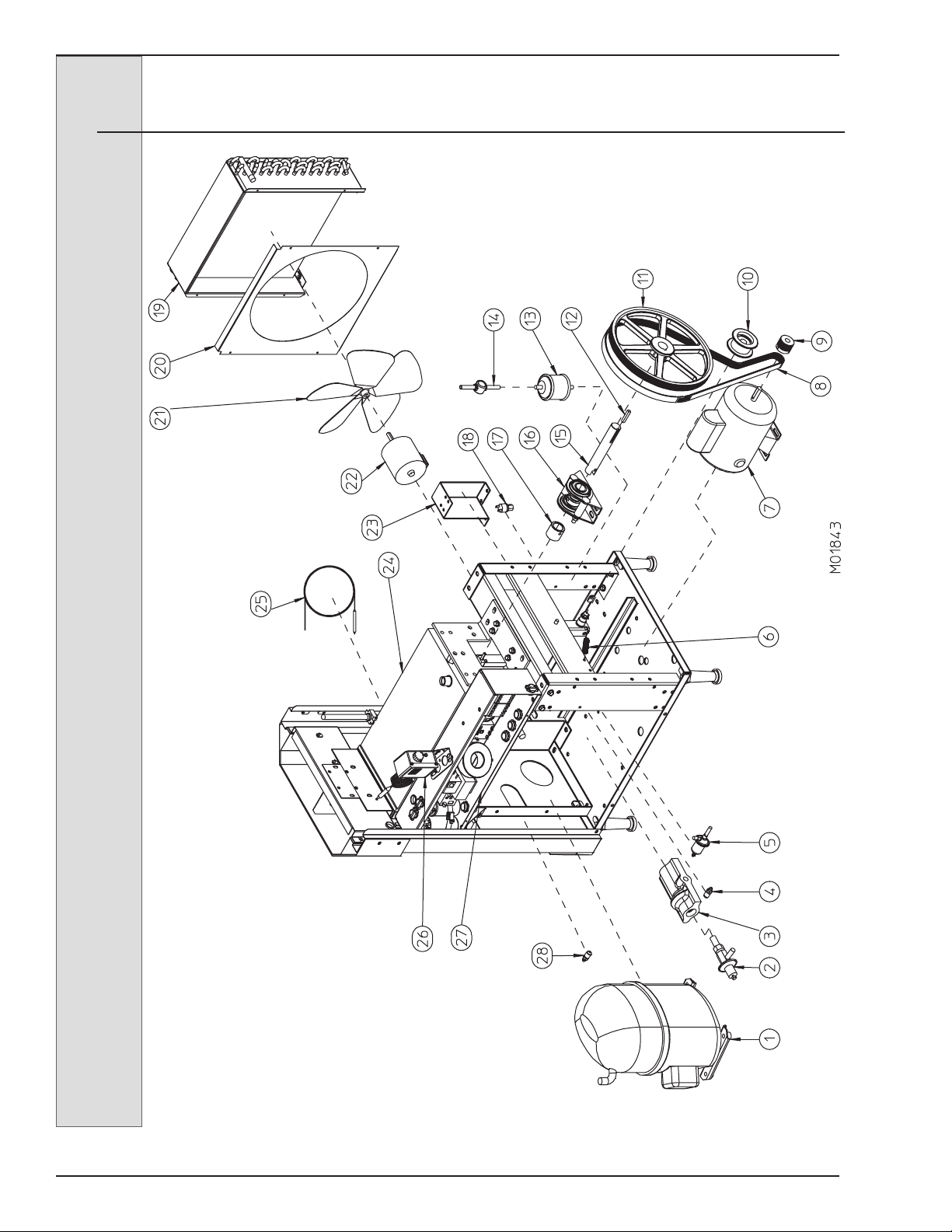

Figure 9 Side View (Sheet 1 of 2)
12
185260
Page 68
ELECTRO FREEZE Shake Model CS704
Figure 9 Side View (Sheet 1 of 2)
Item Part No. Description
18A .......HC155419 ....... Valve-Access
18B ....... HC155649 ....... Valve-Core ..
19 .......HC155140 ....... Condenser-Air 14 x
14 ...............
20 .......HC140656 ....... Shroud-Fan .
21 .......HC159033 ....... Blade-Fan 12 in. 24º
22 .......HC151077-01 .. Motor-Fan 50W 230V 50/60 HZ
23 .......HC120580 ....... Bracket-Assy. Fan Mount
Shake
24 .......HC120417 ....... Cylinder-Assy. Complete
25 .......HC155397 ....... Tube-Capillary w/Strainer
26 .......HC119989 ....... Kit-Thermostat & Retainer
27 ......------- ................ Electric Box (See Figure 5)
28 .......HC155497 ....... Valve-Access (Suction)
29 .......HC120603 ....... Board-Assy. Torque Monitor
30 .......HC155708 ....... Valve-Solenoid 1/4 NPT 240V
Mesh
Not Shown:
HC120606 ....... Tube-Assy. Drain
HC161032 ....... Filter-In line 3/8 NPT WTR 100
HC151149 ....... Motor-Shake 44W 230v FWR
185260
compressor and:
Item Part No. Description
1 .........HC120602 ....... Compressor-Assy. 208-230-1-60 includes
HC150244 .... Capacitor-Run
HC151414 .... Capacitor-Start
HC155063 .... Drier-Filter 3 cu. in. Sweat
HC151478 .... Grommet-Comp.Mtg.
HC151474 .... Relay-Compressor Start
HC151479 .... Sleeve-Comp.Mtg.
2 .........HC155490 ....... Valve-Automatic Expansion
3 .........HC165531 ....... Insulator-Expansion Valve
4 .........HC155497 ....... Valve-Access (EPR)
5 .........HC155398 ....... Valve-EPR
6 .........HC162331 ....... Spring-Extension
Motor)
7 .........HC151143 ....... Motor-1/2 HP 115/208-230-1-60 (Beater
8 .........HC153185 ....... Belt-Poly V
9 .........HC140654 ....... Sheave-Drive 1.438 PD J8
9A .......HC153323 ....... Key-Drive 1/4” Sq. x 1-1/2” (not shown)
10 ......... HC120588 ....... Pulley-Assy. Idler Tensioner
11 .........HC153614 ....... Sheave-Driven
11A ....... HC160033 ....... Screw-SK Set 5/16-18 x 3/8 (not shown)
12 ......... HC153323 ....... Key-Drive 1/4” Sq. x 1-1/2”
OD
13 ......... HC155063 ....... Drier-Filter 3 cu in Sweat
14 ......... HC155059 ....... Glass-Sight
15 ......... HC140824 ....... Shaft-Drive
15B ....... HC160056 ....... Screw-Set 1/4-20 x 1/4 (not shown)
16 ......... HC120946 ....... Bearing-Assy Rear (See Figure 7)
HC153024 ...Bearing-Ball 1.00ID x 2.0472
17 ......... HC140823 ....... Cap-Coupling
18 ......... HC155450 ....... Cut Out-High Pressure 450 PSI
13
Page 69
ELECTRO FREEZE Shake Model CS704

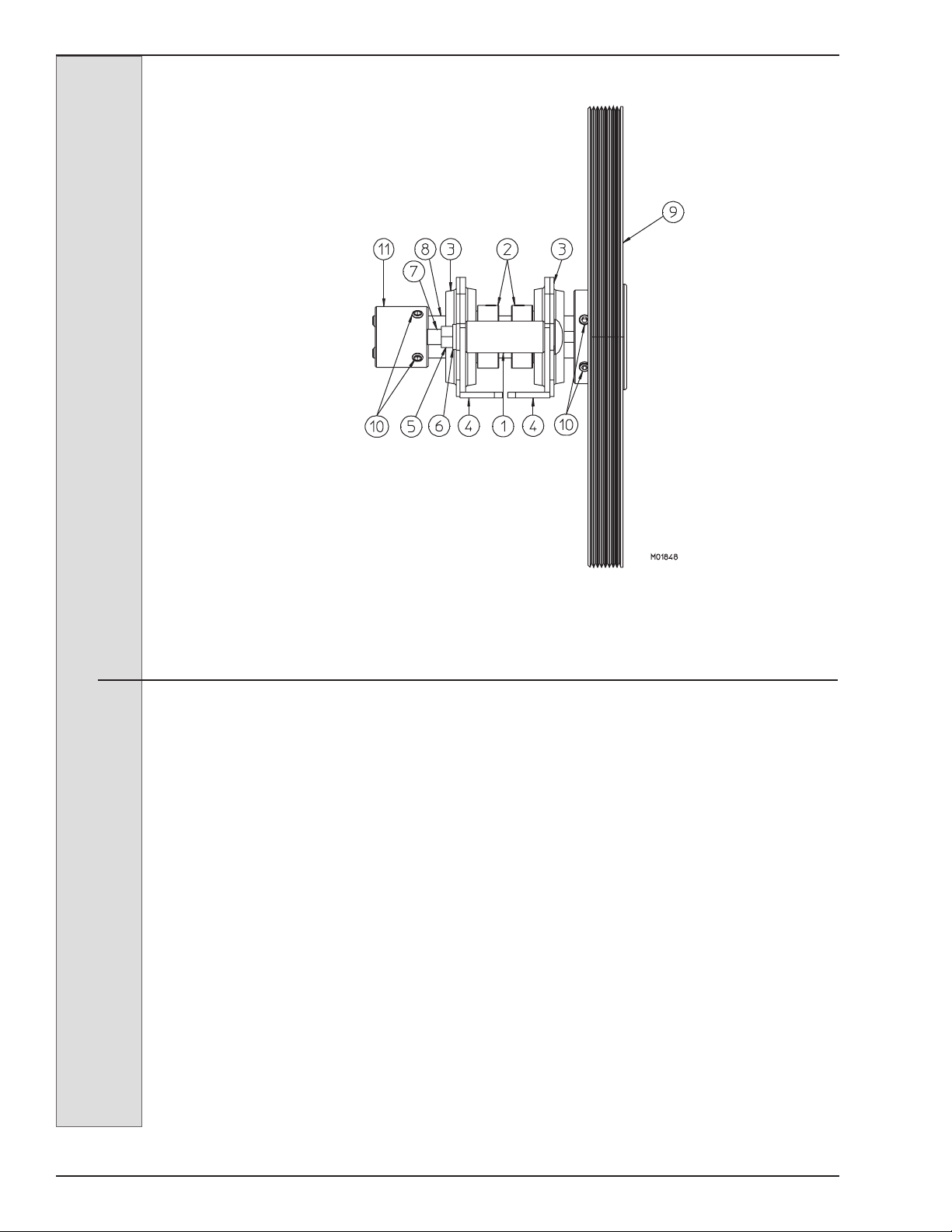

Figure 10 Drive Shaft and Bearing Assembly
Item Part No. Description
* ............. HC120946 ........ Bearing-Assy. Rear
1 ............HC130189 ........ Spacer-Rear Bearing
2 ............HC153024 ........ Bearing-Ball 1.00 ID x 2.0472 OD
3 ............HC153025 ........ Stamping-Retainer Plate
4 ............HC153026 ........ Stamping-Main
5 ............HC160105 ........ Nut-Hex 5/16-18 ZN
6 ............HC160142 ........ Washer-Lock 5/16 ZN
7 ............HC160415 ........ Bolt-Carriage 5/16-18 x 3 ZN
8 ............HC140824 ........ Shaft-Drive
9 ............HC153614 ........ Sheave-Driven
10 ............ HC160056 ........Screw-SK Set
11 ............HC140823 ........ Cap-Coupling
* Includes items 1 through 7.
Not Shown:
HC113948 ........ Bar-Alignment (Loaner)
(used to align bearings to cylinder)
HC113948-01 ... Bar-Alignment (Purchase)
14
185260
Page 70
Accessories
Part No. Description
HC162548 .............. Adhesive-Filter Spray
HC196109 .............. Beaker-150ML
HC196103 .............. Bottle-Wash 500ML
HC158003 .............. Brush-7/16 x 1-1/8 Double Handle
HC158010 .............. Brush-6 inch w/o Handle (Use with Handle HC158012)
HC158026 .............. Brush-1 inch Diameter 12 inches Long
HC158028 .............. Brush-3/8 Dia x 1/2 21inch Handle
HC158077 .............. Brush-9/16 inch with 36 inch Handle
HC184291 .............. Chart-O-ring (Laminated)
HC121061 .............. Coupling-Assy. Insert 1/4 Flow 1/8 NPT
HC160632 ..... O-ring
HC158051 .............. Cup-Overrun Measuring 1 Pint (Use with P/N 158049 scale)
HC158012 .............. Handle-Brush 36 inch Fiberglass (Use with Brush HC158010)
HC158066 .............. Lubricant-Compound 7 5.3 oz. tube (per tube)
HC158014 .............. Sanitizer-Stera-Sheen Case/4 Jars
HC158014A ............Sanitizer-Stera-Sheen 4 lb. jar
HC158049 .............. Scale-Overrun
HC184589 .............. Sheet-Clean & Sanitize CS704
HC184590 .............. Sheet-Clean & Sanitize Syrup System CS704
HC169374 .............. Tool-O-Ring Removal
ELECTRO FREEZE Shake Model CS704
(Used in Calibration Process) includes
185260
15
Page 71
ELECTRO FREEZE Shake Model CS704
ELECTRO FREEZE Shake Model CS704
16
16
185260
Loading...
