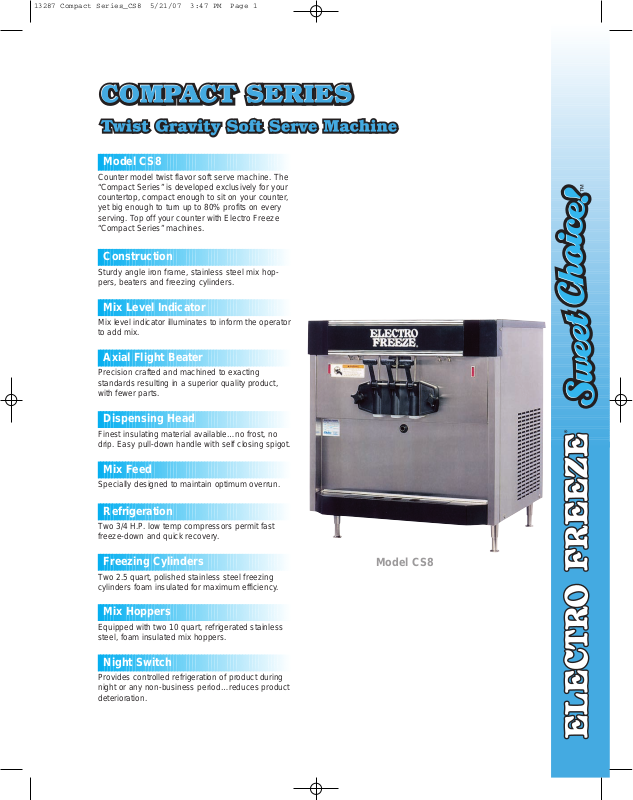

Electro Freeze CS 8 Specifications
Model CS8
C
ounter model twist flavor soft serve machine. The
“Compact Series” is developed exclusively for your
countertop, compact enough to sit on your counter,
yet big enough to turn up to 80% profits on every
serving. Top off your counter with Electro Freeze
“
Compact Series” machines.
Sturdy angle iron frame, stainless steel mix hoppers, beaters and freezing cylinders.
Model CS8
Construction
Mix level indicator illuminates to inform the operator
to add mix.
Mix Level Indicator
Precision crafted and machined to exacting
standards resulting in a superior quality product,
with fewer parts.
Axial Flight Beater
Finest insulating material available…no frost, no
drip. Easy pull-down handle with self closing spigot.
Dispensing Head
Specially designed to maintain optimum overrun.
Mix Feed
Two 3/4 H.P. low temp compressors permit fast
freeze-down and quick recovery
.
Refrigeration
Two 2.5 quart, polished stainless steel freezing
cylinders foam insulated for maximum ef
ficiency
.
Freezing Cylinders
Equipped with two 10 quart, refrigerated stainless
steel, foam insulated mix hoppers.
Mix Hoppers
Provides controlled refrigeration of product during
night or any non-business period…reduces product
deterioration.
Night Switch
13287 Compact Series_CS8 5/21/07 3:47 PM Page 1
Plumbing & Electrical Connections
division of H.C. DUKE & SON, INC.
2116 - 8th Avenue • East Moline, Illinois 61244
Phone (309) 755-4553 • (800)755-4545
Fax (309) 755-9858
E-mail: sales@electrofreeze.com • www
.electrofreeze.com
184717 Printed in U.S.A. 5/07 5M
Model CS8
Authorized Distributor
SOFT SERVE YOGURT SHAKE SLUSH FROZEN COCKTAIL BATCH
SPECIFICATIONS
All specifications subject to change without notice.
MODEL
MOTOR H.P. DIMENSIONS NET TOTAL
NO. Beater Compressor D. W. H. WT. AMPS
Two Two .75 HP 25 1/2" 26 1/4" 29 1/4" 350 LB.
CS8
.75 HP 4300 BTU 65 CM 67 CM 74.3 CM 159 KG.
16
Air cooled. Self contained only. Allow 3" clearance on
sides and rear of unit for air circulation.
WIRING: 208/230 volts, A.C., 60 cycle, 1 Phase;
20 AMP service.
Connects to a standard NEMA 6-20R receptacle.
Electrical characteristics other than above available on
request from sales office.
HOPPER CAPACITY: Two - 10 quarts each (9.5L)
FREEZING CYLINDER CAPACITY: Two - 2.5 quarts
each (2.4L)
REFRIGERANT
: R404a
Certified and/or listed by:
*UL listed and listed by Underwriters Laboratories under
Canadian National Standard C22.2 No. 120-M91
**Select Voltages @ 50 HZ
***
13287 Compact Series_CS8 5/21/07 3:47 PM Page 2
