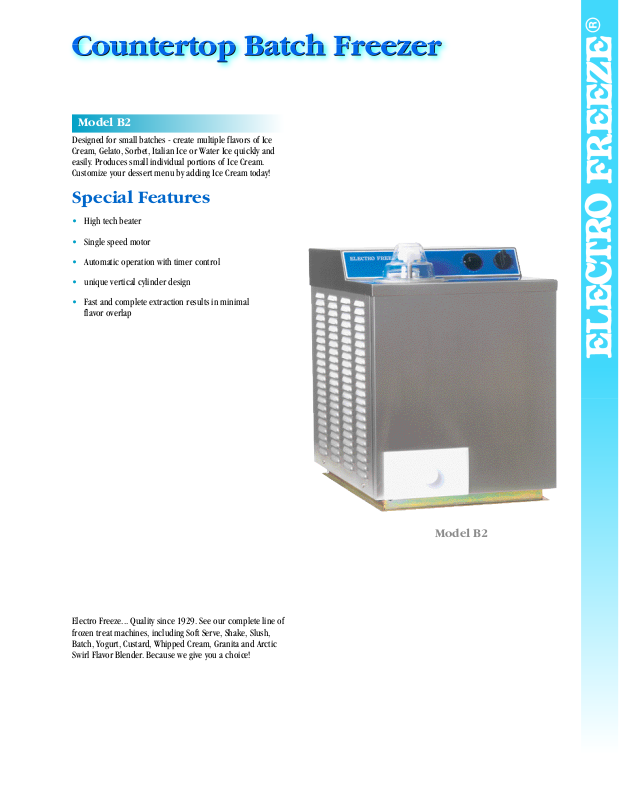

Electro Freeze B2 User Manual

Designed for small batches - create multiple flavors of Ice
Cream, Gelato, Sorbet, Italian Ice or Water Ice quickly and
easily. Produces small individual portions of Ice Cream.
Customize your dessert menu by adding Ice Cream today!

• High tech beater

• Single speed motor

• Automatic operation with timer control

• unique vertical cylinder design

• Fast and complete extraction results in minimal

flavor overlap

Model B2

Model B2

Special Features

Electro Freeze... Quality since 1929. See our complete line of
frozen treat machines, including Soft Serve, Shake, Slush,
Batch, Yogurt, Custard, Whipped Cream, Granita and Arctic
Swirl Flavor Blender. Because we give you a choice!

Plumbing & Electrical Connections

division of H.C. DUKE & SON, INC.

2116 - 8th Avenue • East Moline, Illinois 61244
Phone [phone] • [phone]
Fax [phone]

E-mail: [e-mail] • www.electrofreeze.com

184897 Printed in U.S.A. 8/05

Authorized Distributor

Certified and/or listed by:

*UL listed and listed by Underwriters Laboratories under

Canadian National Standard C22.2 No. 120-M91

*

SPECIFICATIONS

All specifications subject to change without notice.

MODEL MOTOR H.P. DIMENSIONS NET TOTAL

NO. Beater Compressor D. W. H. WT. AMPS

21 7/8” 16 7/8” 22 1/4” 155 LB.

B2 3/4 1

55.6 CM 42.9 CM 56.5 CM 70 KG

22.4

Refrigerant: R404a

Wiring–115 volts A.C., 1 Phase, 60 cycle

Freezing Cylinder Capacity: 2.8 Quarts.

Electrical characteristics other than above available on request from Sales Office.

Model B2
