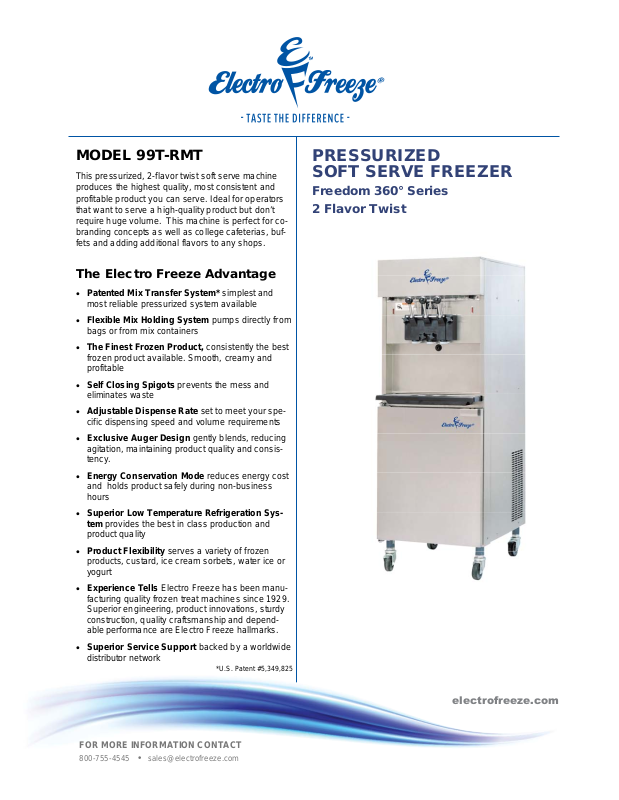

Electro Freeze 99T-RMT User Manual

MODEL 99T-RMT

This pressurized, 2-flavor twist soft serve machine
produces the highest quality, most consistent and
profitable product you can serve. Ideal for operators
that want to serve a high-quality product but don’t
require huge volume. This machine is perfect for co­branding concepts as well as college cafeterias, buf­fets and adding additional flavors to any shops.

The Electro Freeze Advantage

 Patented Mix Transfer System* simplest and

most reliable pressurized system available

 Flexible Mix Holding System pumps directly from

bags or from mix containers

 The Finest Frozen Product, consistently the best

frozen product available. Smooth, creamy and
profitable

 Self Closing Spigots prevents the mess and

eliminates waste

 Adjustable Dispense Rate set to meet your spe-

cific dispensing speed and volume requirements

 Exclusive Auger Design gently blends, reducing

agitation, maintaining product quality and consis­tency.

 Energy Conservation Mode reduces energy cost

and holds product safely during non-business
hours

 Superior Low Temperature Refrigeration Sys-

tem provides the best in class production and
product quality

 Product Flexibility serves a variety of frozen

products, custard, ice cream sorbets, water ice or
yogurt

 Experience Tells Electro Freeze has been manu-

facturing quality frozen treat machines since 1929.
Superior engineering, product innovations, sturdy
construction, quality craftsmanship and depend­able performance are Electro Freeze hallmarks.

 Superior Service Support backed by a worldwide

distributor network

*U.S. Patent #5,349,825

PRESSURIZED
SOFT SERVE FREEZER

Freedom 360° Series
2 Flavor Twist

FOR MORE INFORMATION CONTACT

800-755-4545

• [e-mail]

electrofreeze.com

99T-RMT Soft Serve Freezer

MODEL 99T-RMT SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights lbs. kgs.
Net 752 341
Crated 804 364
cu.ft. cu.m.
Volume 58.42 1.65
Dimensions in. cm.
Width 24 60.96
Depth 30.5 77.54
Height 65-7/16 166.21

Electrical Maximum Minimum Poles (P)

Fuse Size Circuit Ampacity Wires (W)

208-230/60/1 Air 40 37 2P, 2W
208-230/60/1 Water 40 39 2P, 2W
208-230/60/3 Air 30 28 3P, 3W
208-230/60/3 Water 30 26.5 3P, 3W

Total Poles (P)

Amps Wires (W)

380-415/50/3 Air 14.1 3P, 4W
380-415/50/3 Water 15.5 3P, 4W

Electrical characteristics other than above available on re­quest from factory or local distributor. Check nameplate for
exact electrical data.

Bidding Spec
Electrical: Volt_______________________ Hz_______ Ph________

Cooling: ________________________ Neutral _____Yes_____No
Options:________________________________________________

Electrical

One dedicated electrical connection is required. Manufac­tured to be permanently connected. See electrical chart for
the proper requirement. Consult your local electrical codes
for cord and receptacle specifications.

Beater Motor
Two, 2 hp.

Refrigeration Systems

One, 12,000 Btuh. R404a.
Separate Cabinet Refrigeration, One, 1200 Btuh, R134a.
Btuh may vary depending on compressor used.

Air and Water Cooled

6" (15.2 cm) air space required at rear panel or both side
panels and 18” (45.7cm) air space above unit for proper air
circulation.

Mix Tank Capacity: two - 22 quarts (20.8 liters) each
Freezing Cylinder Capacity: two - 3.7quarts (3.5 liters)

each

Certified and/or listed by:

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under

*

**Select Voltages @ 50HZ

**

Electro Freeze div. of H.C. Duke & Son, LLC

2116-8th Avenue, East Moline, Illinois 61244 USA
Phone [phone] • [phone]
FAX [phone]
E-mail: [e-mail] • www. electrofreeze.com

HC184268 Printed in U.S.A. 1/13
