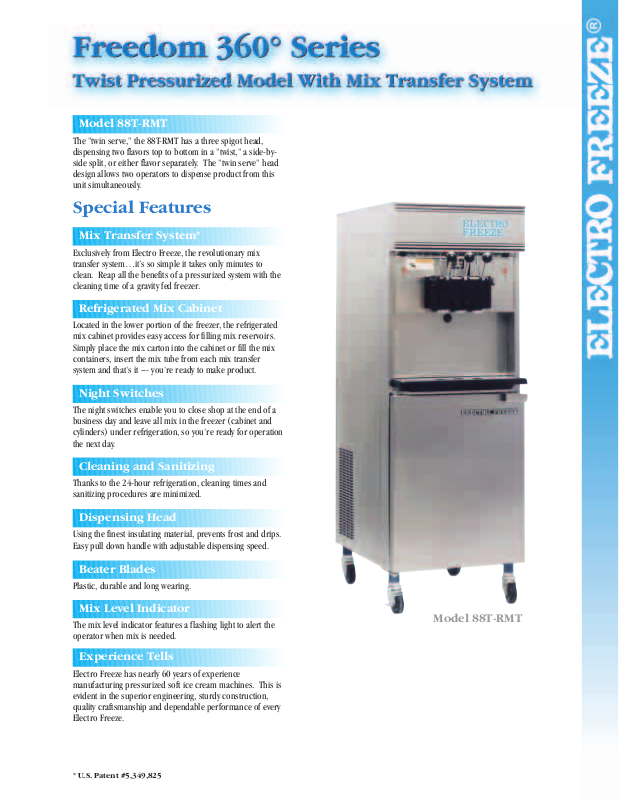

Electro Freeze 88T-RMT User Manual

The "twin serve," the 88T-RMT has a three spigot head,
dispensing two flavors top to bottom in a "twist," a side-by­side split, or either flavor separately. The "twin serve" head
design allows two operators to dispense product from this
unit simultaneously.

Exclusively from Electro Freeze, the revolutionary mix
transfer system…it’s so simple it takes only minutes to
clean. Reap all the benefits of a pressurized system with the
cleaning time of a gravity fed freezer.

Located in the lower portion of the freezer, the refrigerated
mix cabinet provides easy access for filling mix reservoirs.
Simply place the mix carton into the cabinet or fill the mix
containers, insert the mix tube from each mix transfer
system and that's it --- you're ready to make product.

The night switches enable you to close shop at the end of a
business day and leave all mix in the freezer (cabinet and
cylinders) under refrigeration, so you're ready for operation
the next day.

Thanks to the 24-hour refrigeration, cleaning times and
sanitizing procedures are minimized.

Using the finest insulating material, prevents frost and drips.
Easy pull down handle with adjustable dispensing speed.

Plastic, durable and long wearing.

Model 88T-RMT

Mix Transfer System*

Refrigerated Mix Cabinet

Night Switches

Cleaning and Sanitizing

Dispensing Head

Beater Blades

The mix level indicator features a flashing light to alert the
operator when mix is needed.

Mix Level Indicator

Electro Freeze has nearly 60 years of experience
manufacturing pressurized soft ice cream machines. This is
evident in the superior engineering, sturdy construction,
quality craftsmanship and dependable performance of every
Electro Freeze.

Experience Tells

Model 88T-RMT

Special Features

* U.S. Patent #5,349,825

Plumbing & Electrical Connections

division of H.C. DUKE & SON, INC.

2116 - 8th Avenue • East Moline, Illinois 61244
Phone [phone] • [phone]
Fax [phone]

E-mail: [e-mail] • www.electrofreeze.com

184874 Printed in U.S.A. 4/03

Model 88T-RMT

Authorized Distributor

SOFT SERVE YOGURT SHAKE SLUSH FROZEN COCKTAIL BATCH

SPECIFICATIONS

All specifications subject to change without notice. Check nameplate for exact electrical data.

MODEL MOTOR H.P. DIMENSIONS NET TOTAL AMPS

NO. Beater Compressor D. W. H. WT. 1 Phase Water 1 Phase Air 3 Phase Water 3 Phase Air

TWO 12,000 BTU 30.5″ 24″ 68″ 680 LB

88T-RMT

2 HP 2.0 HP 77.5 CM 61 CM 173 CM 308 KG

34.5 36.2 25.6 27.8

MAX FUSE SIZE/HACR CIRCUIT BREAKER

40.0 A. 40.0 A. 35.0 A. 35.0 A.

Refrigerant: 404a

Air or water cooled self contained.

Standard wiring–230 volts A.C., 60 HZ, Single Phase–2 wire

208/230 volts A.C., 60 HZ, Three Phase–3 wire

Electrical characteristics other than above available on request from
Sales Office.

Model

88T-RMT

D.

15.5”

39.4 cm

W.

20.6”

51.0 cm

H.

26,69”

67.8 cm

MIX CABINET DIMENSIONS

Certified and/or listed by:

*UL listed and listed by Underwriters Laboratories under

Canadian National Standard C22.2 No. 120-M91

**Select Voltages @ 50 HZ

***
