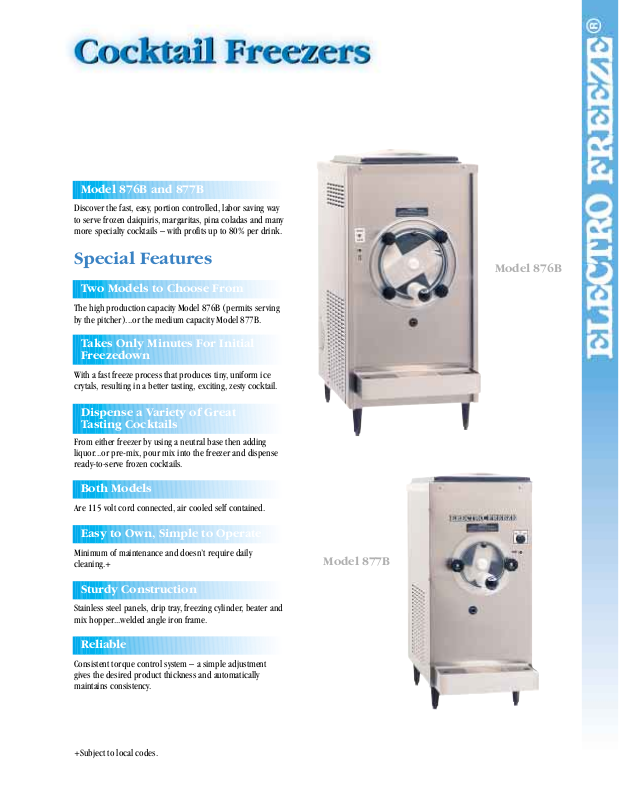

Electro Freeze 876BRH Specifications

Discover the fast, easy, portion controlled, labor saving way
to serve frozen daiquiris, margaritas, pina coladas and many
more specialty cocktails – with profits up to 80% per drink.

The high production capacity Model 876B (permits serving
by the pitcher)...or the medium capacity Model 877B.

With a fast freeze process that produces tiny, uniform ice
crytals, resulting in a better tasting, exciting, zesty cocktail.

From either freezer by using a neutral base then adding
liquor...or pre-mix, pour mix into the freezer and dispense
ready-to-serve frozen cocktails.

Are 115 volt cord connected, air cooled self contained.

Minimum of maintenance and doesn’t require daily
cleaning.+

Stainless steel panels, drip tray, freezing cylinder, beater and
mix hopper...welded angle iron frame.

Consistent torque control system – a simple adjustment
gives the desired product thickness and automatically
maintains consistency.

+Subject to local codes.

Two Models to Choose From

Takes Only Minutes For Initial
Freezedown

Easy to Own, Simple to Operate

Sturdy Construction

Model 877B

Model 876B

Special Features

Dispense a Variety of Great
Tasting Cocktails

Both Models

Reliable

Model 876B and 877B

Plumbing & Electrical Connections

Authorized Distributor

SOFT SERVE YOGURT SHAKE SLUSH FROZEN COCKTAIL BATCH

Certified and/or listed by:

*Listed by Underwriters Laboratories under Canadian National Standard C22.2 No. 120-M91

*

SPECIFICATIONS

All specifications subject to change without notice.

MODEL MOTOR H.P. DIMENSIONS MIX FREEZING SHIPPING TOTAL

NO. Beater Compressor D. W. H. HOPPER CYLINDER WT. AMPS

5500 BTU 25″ 17″ **36″ 20 QTS. 14 QTS. 255 LB.

15.5876B 1/4 HP

3/4 HP 64 CM 43 CM 92 CM 18.9 Liters 13.2 Liters 116 KG

4300 BTU 22″ 13-7/8″ **31″ 20 QTS. 6 QTS. 210 LB.

14.5877B 1/4 HP

5/8 HP 56 CM 35 CM 79 CM 18.9 Liters 5.7 Liters 96 KG

MINIMUM CIRCUIT

876B 20A
877B 20A

Model 876B Model 877B

Air cooled self contained
STANDARD WIRING - 115 volt, A.C., 60 Cy., 1 Phase
Electrical characteristics and cooling other than above available

on request from Sales Office.

**

Includes 4” adjustable legs

division of H.C. DUKE & SON, INC.

2116 - 8th Avenue • East Moline, Illinois 61244
Phone [phone] • [phone]
Fax [phone]

E-mail: [e-mail] • www.electrofreeze.com

184758 Printed in U.S.A. 5/02
