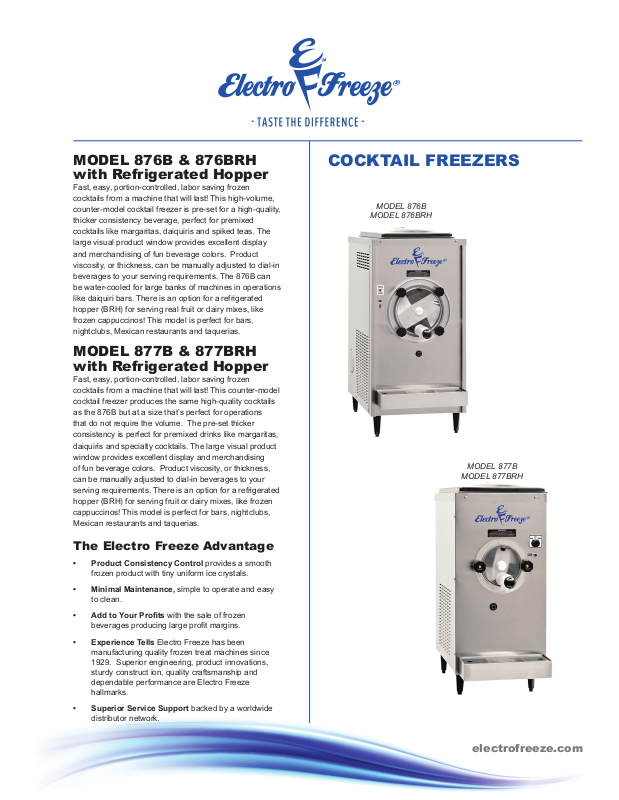

MODEL 876B & 876BRH
with Refrigerated Hopper
Fast, easy, portion-controlled, labor saving frozen
cocktails from a machine that will last! This high-volume,
counter-model cocktail freezer is pre-set for a high-quality,
thicker consistency beverage, perfect for premixed
cocktails like margaritas, daiquiris and spiked teas. The
large visual product window provides excellent display
and merchandising of fun beverage colors. Product
viscosity, or thickness, can be manually adjusted to dial-in
beverages to your serving requirements. The 876B can
be water-cooled for large banks of machines in operations
like daiquiri bars. There is an option for a refrigerated
hopper (BRH) for serving real fruit or dairy mixes, like
frozen cappuccinos! This model is perfect for bars,
nightclubs, Mexican restaurants and taquerias.
MODEL 877B & 877BRH
with Refrigerated Hopper
Fast, easy, portion-controlled, labor saving frozen
cocktails from a machine that will last! This counter-model
cocktail freezer produces the same high-quality cocktails
as the 876B but at a size that’s perfect for operations
that do not require the volume. The pre-set thicker
consistency is perfect for premixed drinks like margaritas,
daiquiris and specialty cocktails. The large visual product
window provides excellent display and merchandising
of fun beverage colors. Product viscosity, or thickness,
can be manually adjusted to dial-in beverages to your
serving requirements. There is an option for a refrigerated
hopper (BRH) for serving fruit or dairy mixes, like frozen
cappuccinos! This model is perfect for bars, nightclubs,
Mexican restaurants and taquerias.
COCKTAIL FREEZERS
MODEL 876B
MODEL 876BRH
MODEL 877B
MODEL 877BRH
The Electro Freeze Advantage
• Product Consistency Control provides a smooth
frozen product with tiny uniform ice crystals.
• Minimal Maintenance, simple to operate and easy
to clean.
• Add to Your Prots with the sale of frozen
beverages producing large prot margins.
• Experience Tells Electro Freeze has been
manufacturing quality frozen treat machines since
1929. Superior engineering, product innovations,
sturdy construct ion, quality craftsmanship and
dependable performance are Electro Freeze
hallmarks.
• Superior Service Support backed by a worldwide
distributor network.
electrofreeze.com
17 3/16”
43.66 cm
876B 877B
30 5/8”
77.79 cm
24 3/4”
36 19/32”
92.97 cm
62.87 cm
13.75”
34.93cm
31”
78.74cm
28.38”
72.09cm
22”
55.88cm
18 15/16”
48.10 cm
3 15/16”
10.01 cm
876B & 877B Slush Freezers
MODEL 876B & 877B SPECIFICATIONS
Due to continual product improvements all specications are subject to change without notice.
Weights 876B 877B
lbs. kgs. lbs. kgs.
Net 255 116 210 95
Crated 274 124 245 111
cu.ft. cu.m. cu.ft. cu.m.
Volume 20.53 0.58 20.53 0.58
Dimensions in. cm in. cm
Width 17-3/16 43.66 13.75 34.93
Depth 24-3/4 62.87 22 55.88
Height 36-19/32 92.97 31 78.74
Electrical Maximum NEMA
Fuse Size Plug Type
115/60/1 Air 20A 5-20P
Total Poles (P)
Amps (Qty) kW Wires (W)
220-240/1/50 5.1 .87 2P, 2W
Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.
Bidding Spec
Electrical: Volt___________________ Hz_______ Ph
Cooling: ______________________ Neutral _____Yes_____No
_________
14.13”
35.89cm
4”
10.16cm
Electrical
One dedicated electrical connection is required. 60 Hertz
units connects to a standard NEMA 5-20P receptacle. See
electrical chart for the proper requirement. Consult your
local electrical codes for cord and receptacle specications.
Beater Motor
One, 1 hp.
Refrigeration Systems
One, 6,900 Btuh. R404a.
Btuh may vary depending on compressor used.
Air Cooled
6” (15.2 cm) air space required on rear panel for proper air
circulation and be open on the top.
Mix Hopper Capacity: 20 quarts (18.93 liters)
Freezing Cylinder Capacity: 14.6 quarts (13.82 liters)
Certied and/or listed by:
*
**
Options: ____________________________________________
___________________________________________________
_______________________________________________
_____
Electro Freeze div. of H.C. Duke & Son, LLC
2116-8th Avenue, East Moline, Illinois 61244 USA
Phone (309) 755-4553 • (800) 755-4545
FAX (309) 755-9858
E-mail: sales@electrofreeze.com • www. electrofreeze.com
HC184292 Printed in U.S.A. 2/16
*UL listed and listed by Underwriters Laboratories under
Canadian National Standard C22.2 No. 120-13
**Selected voltages only. Contact H.C. Duke to verify agency needs.
