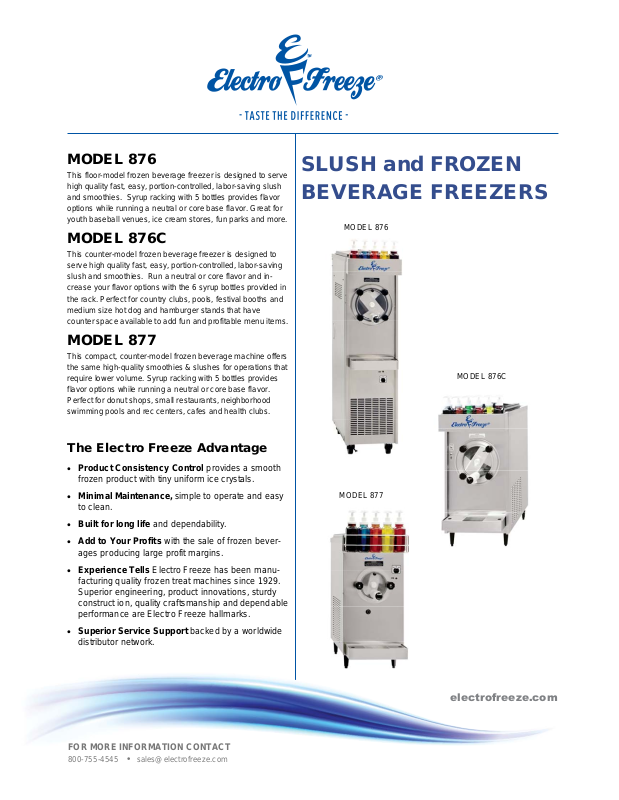

Electro Freeze 876 User Manual

MODEL 876

This floor-model frozen beverage freezer is designed to serve
high quality fast, easy, portion-controlled, labor-saving slush
and smoothies. Syrup racking with 5 bottles provides flavor
options while running a neutral or core base flavor. Great for
youth baseball venues, ice cream stores, fun parks and more.

MODEL 876C

This counter-model frozen beverage freezer is designed to
serve high quality fast, easy, portion-controlled, labor-saving
slush and smoothies. Run a neutral or core flavor and in­crease your flavor options with the 6 syrup bottles provided in
the rack. Perfect for country clubs, pools, festival booths and
medium size hot dog and hamburger stands that have
counter space available to add fun and profitable menu items.

MODEL 877

This compact, counter-model frozen beverage machine offers
the same high-quality smoothies & slushes for operations that
require lower volume. Syrup racking with 5 bottles provides
flavor options while running a neutral or core base flavor.
Perfect for donut shops, small restaurants, neighborhood
swimming pools and rec centers, cafes and health clubs.

The Electro Freeze Advantage

SLUSH and FROZEN
BEVERAGE FREEZERS

MODEL 876

MODEL 876C

 Product Consistency Control provides a smooth

frozen product with tiny uniform ice crystals.

 Minimal Maintenance, simple to operate and easy

to clean.

 Built for long life and dependability.
 Add to Your Profits with the sale of frozen bever-

ages producing large profit margins.

 Experience Tells Electro Freeze has been manu-

facturing quality frozen treat machines since 1929.
Superior engineering, product innovations, sturdy
construct ion, quality craftsmanship and dependable
performance are Electro Freeze hallmarks.

 Superior Service Support backed by a worldwide

distributor network.

FOR MORE INFORMATION CONTACT

800-755-4545

• [e-mail]

MODEL 877

electrofreeze.com

MODEL 876

MODEL 877 MODEL 876C

876, 876C & 877 Slush Freezers

MODEL 876, 876C & 877 SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights 876 876C 877

lbs. kgs. lbs. kgs. lbs. kgs.

Net 280 127 255 116 210 95
Crated 335 152 274 124 245 111

cu.ft. cu.m. cu.ft. cu.m. cu.ft. cu.m.
Volume 30.08 0.85 20.53 0.58 20.53 0.58

Dimensions in. cm. in. cm. in. cm.

Width 14-5/8 37.15 17-3/16 43.66 14-5/8 37.15
Depth 24-15/16 63.34 24-3/4 62.87 24-15/16 63.34
Height 59-7/16 150.98 36-5/8 93.03 59-7/16 150.98

Electrical Total NEMA

Amps Plug Type

115/60/1 Air (876 & 876C) 15.1 5-20P
115/60/1 Air (877) 14.4 5-20P

Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.

Bidding Spec
Electrical: Volt_______________________ Hz_______ ph________

Cooling: ________________________ Neutral _____Yes_____No
Options:________________________________________________
_______________________________________________________

Electro Freeze div. of H.C. Duke & Son, LLC

2116-8th Avenue, East Moline, Illinois 61244
Phone [phone] • [phone]
FAX [phone]
E-mail: [e-mail] • www. electrofreeze.com

HC-184735 Printed in U.S.A. 1/13

Electrical

One dedicated electrical connection is required. Connects
to a standard NEMA 5-20R receptacle. See electrical chart
for the proper requirement. Consult your local electrical
codes for cord and receptacle specifications.

Beater Motor
One, 1/4 hp.

Refrigeration Systems

One, 5000 Btuh. R404a. Models 876 and 876C
One, 4600 Btuh. R404a. Model 877
Btuh may vary depending on compressor used.

Air Cooled

3" (7.62 cm) air space required on both sides and the rear
panel for proper air circulation.

Mix Hopper Capacity: 20 quart (18.8 liters)
Freezing Cylinder
Capacity: 14.6 quart (13.8 liters) Models 876, 876C

7.6 quart (7.1 liters) Model 877

Certified and/or listed by:

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under
