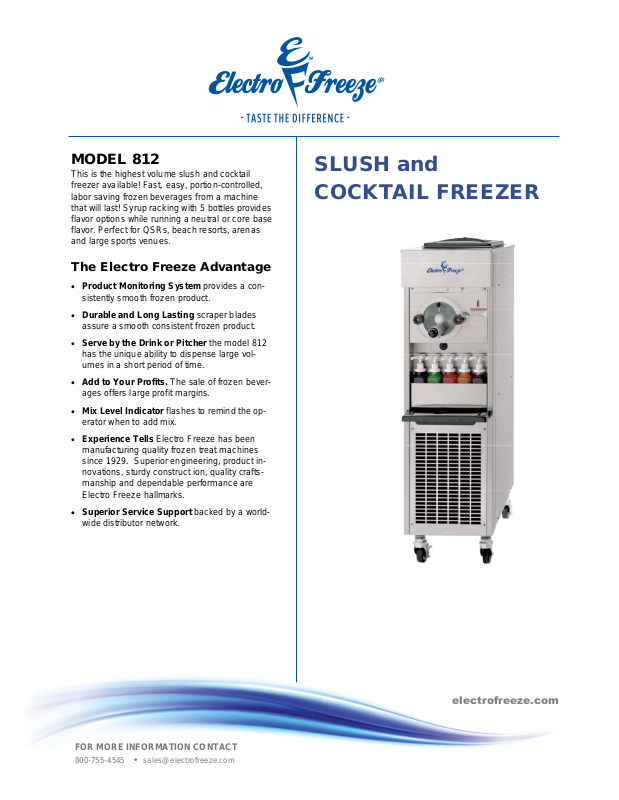

MODEL 812

This is the highest volume slush and cocktail
freezer available! Fast, easy, portion-controlled,
labor saving frozen beverages from a machine
that will last! Syrup racking with 5 bottles provides
flavor options while running a neutral or core base
flavor. Perfect for QSRs, beach resorts, arenas
and large sports venues.

The Electro Freeze Advantage

 Product Monitoring System provides a con-

sistently smooth frozen product.

 Durable and Long Lasting scraper blades

assure a smooth consistent frozen product.

 Serve by the Drink or Pitcher the model 812

has the unique ability to dispense large vol­umes in a short period of time.

 Add to Your Profits. The sale of frozen bever-

ages offers large profit margins.

 Mix Level Indicator flashes to remind the op-

erator when to add mix.

 Experience Tells Electro Freeze has been

manufacturing quality frozen treat machines
since 1929. Superior engineering, product in­novations, sturdy construct ion, quality crafts­manship and dependable performance are
Electro Freeze hallmarks.

 Superior Service Support backed by a world-

wide distributor network.

SLUSH and
COCKTAIL FREEZER

FOR MORE INFORMATION CONTACT

800-755-4545

• [e-mail]

electrofreeze.com

812 Slush and Cocktail Freezer

MODEL 812 SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights lbs. kgs.
Net 414 188
Crated 500 227
cu.ft. cu.m.
Volume 58.4 1.65
Dimensions in. cm.
Width 16-1/8 41
Depth 35-15/16 91.28
Height 59-1/16 150.02

Electrical Maximum Minimum Poles (P)

Fuse Size Circuit Ampacity Wires (W)

208-230/60/1 Air 30 22.5 2P, 2W
208-230/60/1 Water 30 21.0 2P, 2W

Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.

Bidding Spec
Electrical: Volt________________________ Hz_______ Ph_______

Cooling: ________________________ Neutral _____Yes_____No
Options:________________________________________________
_______________________________________________________
_______________________________________________________

Electrical

One dedicated electrical connection is required. See
electrical chart for the proper requirement. Consult
your local electrical codes for cord and receptacle
specifications.

Beater Motor
One, 1/2 hp.
Refrigeration Systems

One, 15,800 Btuh. R404a.
Btuh may vary depending on compressor used.

Air and Water Cooled

6" (15.3 cm) air space required on both sides and the
rear panel for proper air circulation.

Mix Hopper Capacity: one - 20 quart (18.8 liters)
Freezing Cylinder Capacity: one - 12.1 quart (11.45 liters)

Certified and/or listed by:

*

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under

Electro Freeze div. of H.C. Duke & Son, LLC

2116-8th Avenue, East Moline, Illinois 61244
Phone [phone] • [phone]
FAX [phone]
E-mail: [e-mail] • www. electrofreeze.com

HC-184861 Printed in U.S.A. 1/13
