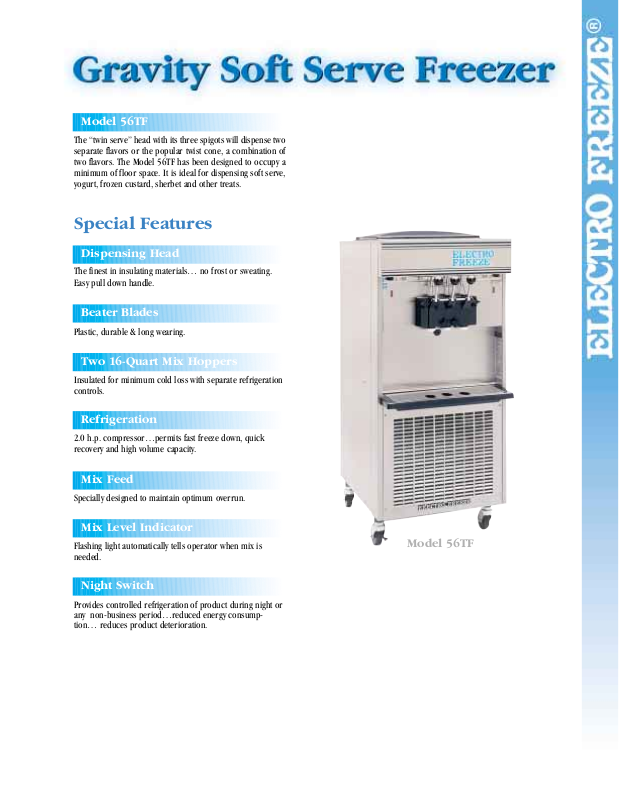

Electro Freeze 56TF User Manual

The “twin serve” head with its three spigots will dispense two
separate flavors or the popular twist cone, a combination of
two flavors. The Model 56TF has been designed to occupy a
minimum of floor space. It is ideal for dispensing soft serve,
yogurt, frozen custard, sherbet and other treats.

The finest in insulating materials… no frost or sweating.
Easy pull down handle.

Plastic, durable & long wearing.

Insulated for minimum cold loss with separate refrigeration
controls.

2.0 h.p. compressor…permits fast freeze down, quick
recovery and high volume capacity.

Specially designed to maintain optimum overrun.

Provides controlled refrigeration of product during night or
any non-business period…reduced energy consump­tion… reduces product deterioration.

Model 56TF

Dispensing Head

Beater Blades

Two 16-Quart Mix Hoppers

Refrigeration

Mix Feed

Night Switch

Model 56TF

Special Features

Flashing light automatically tells operator when mix is
needed.

Mix Level Indicator

Plumbing & Electrical Connections

division of H.C. DUKE & SON, INC.

2116 - 8th Avenue • East Moline, Illinois 61244
Phone [phone] • [phone]
Fax [phone]

E-mail: [e-mail] • www.electrofreeze.com

184782 Printed in U.S.A. 7/02

Model 56TF

Authorized Distributor

SOFT SERVE YOGURT SHAKE SLUSH FROZEN COCKTAIL BATCH

Certified and/or listed by:

*Listed by Underwriters Laboratories under Canadian National Standard C22.2 No. 120-M91

*

SPECIFICATIONS

All specifications subject to change without notice.

MODEL MOTOR H.P. DIMENSIONS NET TOTAL AMPS

NO. Beater Compressor D. W. H. WT. 1 Phase Water 1 Phase Air 3 Phase Water 3 Phase Air

Two 2 H P 30 ″ 26″ 58″ 551 lbs.

28.2 29.7 17.2 18.2

56TF 1.5 H.P. 11,000 BTU 76 CM 66 CM 147 CM 250 KG

MINIMUM CIRCUIT AMPACITY

32.0 33.0 19.0 20.0

Self contained air or water cooled.
REFRIGERANT: R404a
MIX HOPPER CAPACITY: 16 quarts each, 32 quarts total
WIRING - 208/230 Volt A.C., single phase, 60 Hz 2 wire; 208/230 Volt A.C.,

3 Phase, 60 HZ 3 wire

Electrical characteristics other than above available on request.
