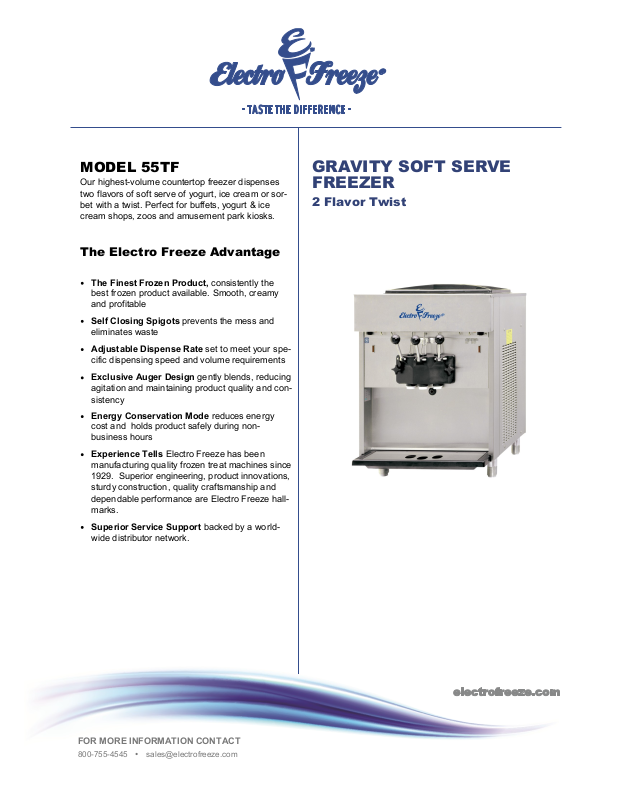

MODEL 55TF

Our highest-volume countertop freezer dispenses
two flavors of soft serve of yogurt, ice cream or sor­bet with a twist. Perfect for buffets, yogurt & ice
cream shops, zoos and amusement park kiosks.

The Electro Freeze Advantage

The Finest Frozen Product, consistently the
best frozen product available. Smooth, creamy
and profitable

Self Closing Spigots prevents the mess and
eliminates waste

Adjustable Dispense Rate set to meet your spe­cific dispensing speed and volume requirements

Exclusive Auger Design gently blends, reducing
agitation and maintaining product quality and con­sistency

Energy Conservation Mode reduces energy
cost and holds product safely during non­business hours

Experience Tells Electro Freeze has been
manufacturing quality frozen treat machines since

1929. Superior engineering, product innovations,
sturdy construction, quality craftsmanship and
dependable performance are Electro Freeze hall­marks.

Superior Service Support backed by a world­wide distributor network.

GRAVITY SOFT SERVE
FREEZER

2 Flavor Twist

FOR MORE INFORMATION CONTACT

800-755-4545 • [e-mail]

55TF Soft Serve Freezer

MODEL 55TF SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights lbs. kgs.

Net 500 226

Crated 600 272

cu.ft. cu.m.

Volume 58.42 1.65

Dimensions in. cm.

Width 26-1/8 66.36

Depth 29-15/16 76.04

Height 37-7/16 94.14

Electrical Maximum Minimum Circuit Poles (P)

Fuse Size Ampacity Wires (W)

208-230/60/1 Air 40 32.0 2P 2W

208-230/60/1 Water 40 31.0 2P 2W

208-230/60/3 Air 35 25.5 3P 3W

208-230/60/3 Water 35 24.5 3P 3W

Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.

Bidding Spec

Electrical: Volt_______________________ Hz________ Ph_______

Cooling: ________________________ Neutral _____Yes_____No

Options:_________________________________________________

________________________________________________________
________________________________________________________

Electrical

One dedicated electrical connection is required.
Manufactured to be permanently connected. See
electrical chart for the proper requirement. Consult
your local electrical codes for cord and receptacle
specifications.

Beater Motor
Two, 1-1/2 hp.

Refrigeration Systems

One, 11,000 Btuh. R404a.
Btuh may vary depending on compressor used.

Air and Water Cooled

6" (15.2 cm) air space required on all louvered panels
for proper air circulation.

Mix Hopper Capacity: two - 16 quarts (15 liters) each
Freezing Cylinder Capacity: two - 3.7 quarts (3.5 liters) each

Certified and/or listed by:

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under

*

Electro Freeze div. of H.C. Duke & Son, LLC

2116-8th Avenue, East Moline, Illinois 61244
Phone [phone] • [phone]
FAX [phone]
E-mail: [e-mail] • www. electrofreeze.corn

HC-184700 Printed in U.S.A. 1/13
