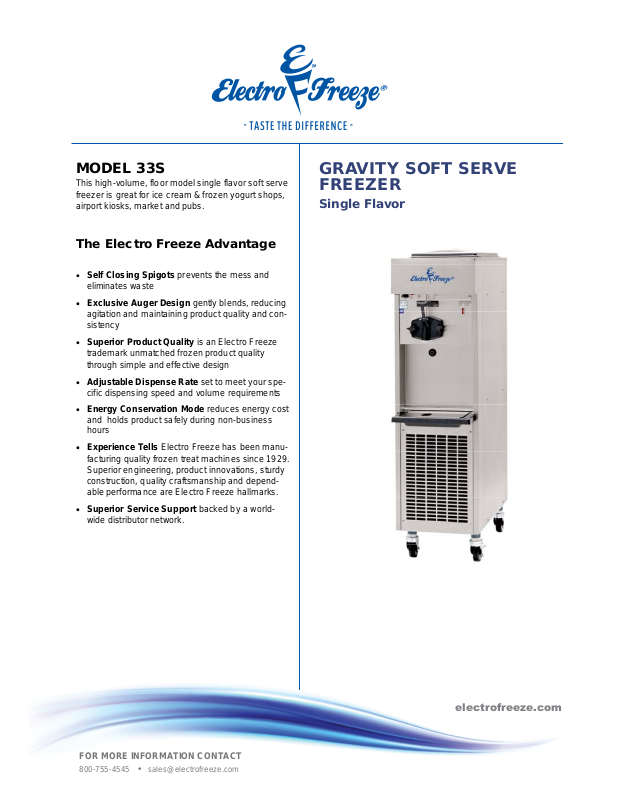

MODEL 33S

This high-volume, floor model single flavor soft serve
freezer is great for ice cream & frozen yogurt shops,
airport kiosks, market and pubs.

The Electro Freeze Advantage

 Self Closing Spigots prevents the mess and

eliminates waste

 Exclusive Auger Design gently blends, reducing

agitation and maintaining product quality and con­sistency

 Superior Product Quality is an Electro Freeze

trademark unmatched frozen product quality
through simple and effective design

 Adjustable Dispense Rate set to meet your spe-

cific dispensing speed and volume requirements

 Energy Conservation Mode reduces energy cost

and holds product safely during non-business
hours

 Experience Tells Electro Freeze has been manu-

facturing quality frozen treat machines since 1929.
Superior engineering, product innovations, sturdy
construction, quality craftsmanship and depend­able performance are Electro Freeze hallmarks.

 Superior Service Support backed by a world-

wide distributor network.

GRAVITY SOFT SERVE
FREEZER

Single Flavor

FOR MORE INFORMATION CONTACT

800-755-4545

• [e-mail]

electrofreeze.com

33S Soft Serve Freezer

MODEL 33S SPECIFICATIONS

Due to continual product improvements all specifications are subject to change without notice.

Weights lbs. kgs.
Net 392 177
Crated 485 219
cu.ft. cu.m.
Volume 58.42 1.65
Dimensions in. cm.
Width 16-1/8 40.96
Depth 30 76.2
Height 60-5/8 153.98

Electrical Maximum Minimum Poles (P)

Fuse Size Circuit Ampacity Wires (W)

208-230/60/1 Air 35 25 2P,2W
208-230/60/1 Water 35 23.5 2P, 2W
208-230/60/3 Air 30 21 3P, 3W
208-230/60/3 Water 30 19.5 3P,3W

Total Poles (P)
Amps Wires (W)

230/50/1 Air 18.1 2P, 2W
400/50/1 Air 13.8 3P, 4W

Electrical characteristics other than above available on request from
factory or local distributor. Check nameplate for exact electrical data.

Bidding Spec
Electrical: Volt_______________________ Hz_______ Ph________

Cooling: ________________________ Neutral _____Yes_____No
Options:________________________________________________

Electrical

One dedicated electrical connection is required.
Manufactured to be permanently connected. See
Electrical chart for the proper requirement. Consult
your local electrical codes for cord and receptacle
specifications.

Beater Motor
One, 1.5 hp.
Refrigeration Systems

One, 8800 Btuh. R404a.

Air and Water Cooled

6" (15.2 cm) air space required on all louvered panels
for proper air circulation.

Mix Hopper Capacity: one - 14 quarts (13.2 liters)
Freezing Cylinder Capacity: 3.7 quarts (3.5 liters)

Certified and/or listed by:

Canadian National Standard C22.2 No. 120-M91 (R2008)

*UL listed and listed by Underwriters Laboratories under

*

**Select Voltages @ 50HZ

**

Electro Freeze div. of H.C. Duke & Son, LLC

2116-8th Avenue, East Moline, Illinois 61244
Phone [phone] • [phone]
FAX [phone]
E-mail: [e-mail] • www. electrofreeze.com

HC-184741 Printed in U.S.A. 1/13
