Eiki LC-X85 User Manual

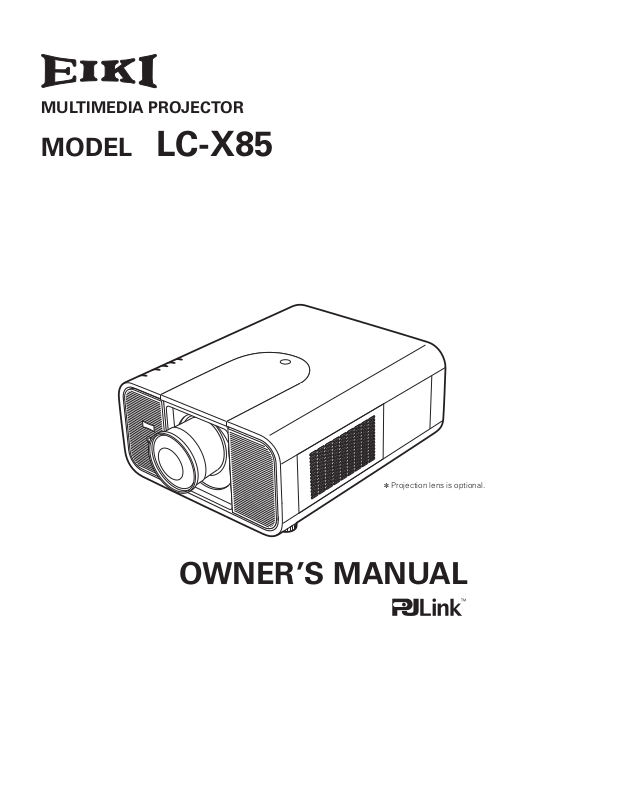

MULTIMEDIA PROJECTOR

MODEL LC-X85

Projection lens is optional.

OWNER’S MANUAL

Features and Design

This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology.

Functionally Rich

Multilanguage Menu Display

This projector has many useful functions such as lens shifting, ceiling and rear projection, perpendicular omnidirectional projection, variety of lens options, etc.

Operation menu is available in 12 languages; English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish, Russian, Chinese, Korean, and Japanese (p.52).

Multi-use Remote Control

Use the remote control as wired and wireless, or as a PC wireless mouse. Eight remote control codes and selectable pointer shapes are also available.

Simple Computer System Setting

The projector has the Multi-scan system to conform to almost all computer output signals quickly (p.38). Supported resolution up to WUXGA.

Useful Functions for Presentation

Digital zoom function allows you to focus on the crucial information during a presentation (pp.15, 44).

Network-capable

Through an optional Pj-to NetDirector, you can operate and control the projector.

Logo Function

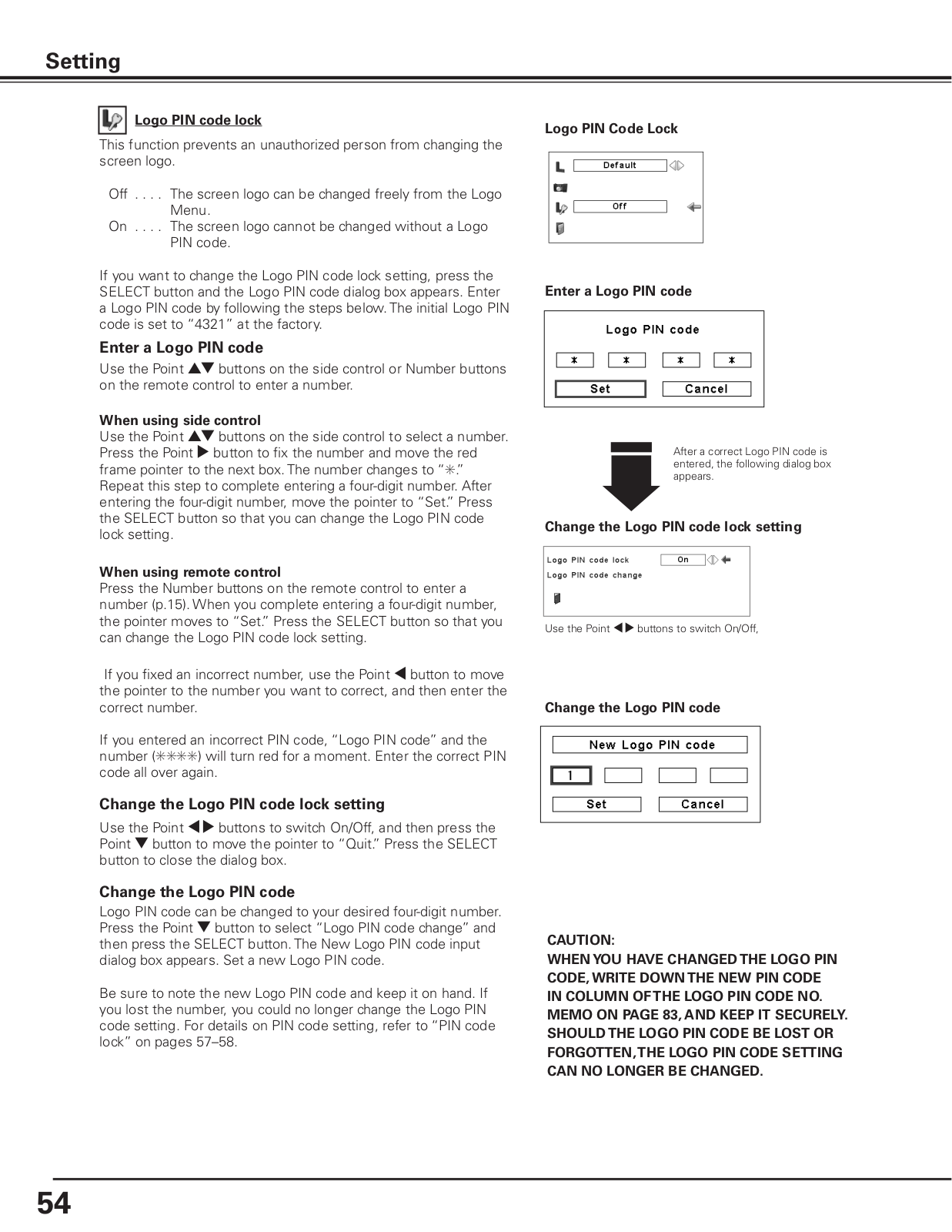

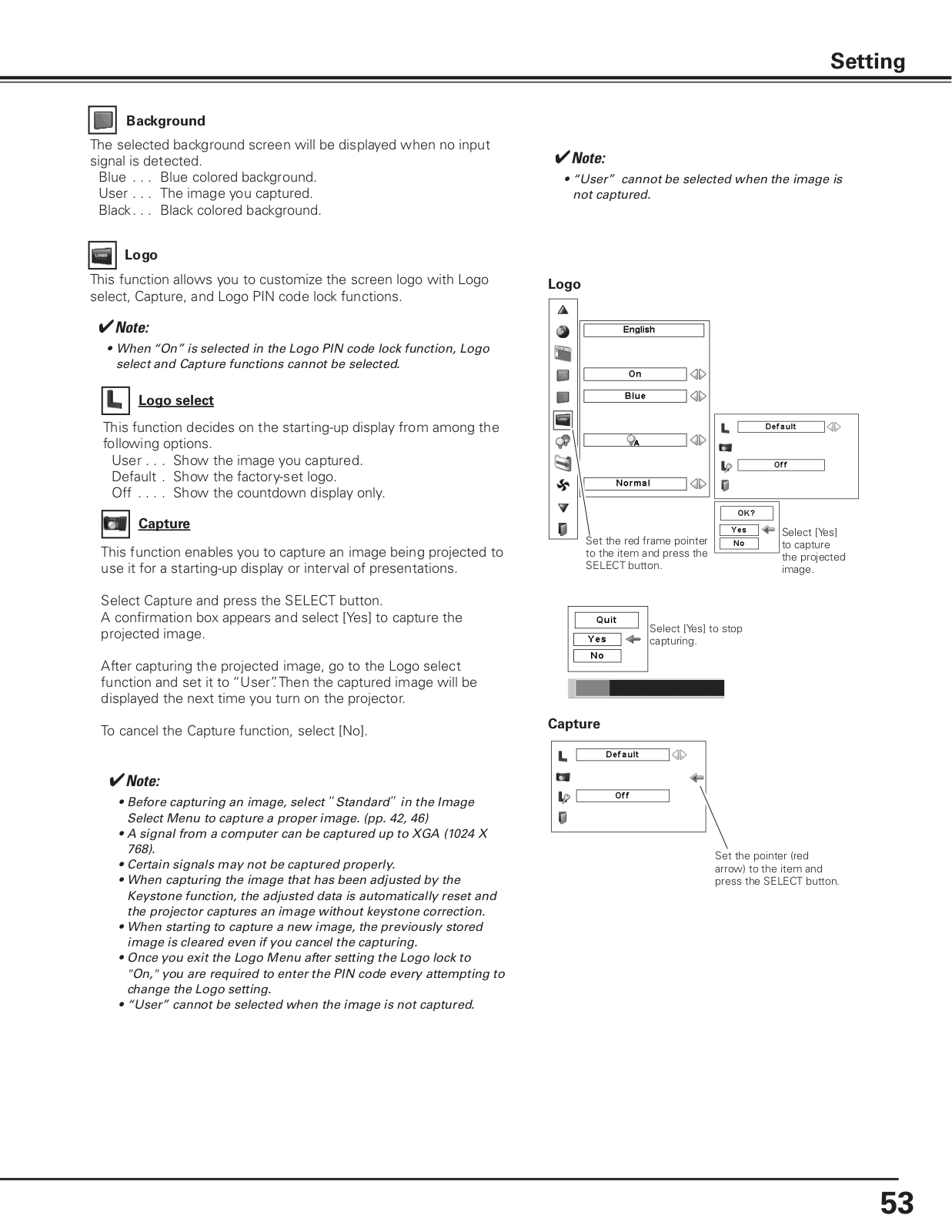

The Logo function allows you to customize the screen logo (pp.53–54). You can capture an image for the screen logo and use it for the starting-up display or between presentations.

Pointer Function

Remote control pointer function. This function helps you to make a smart presentation on a projected screen.

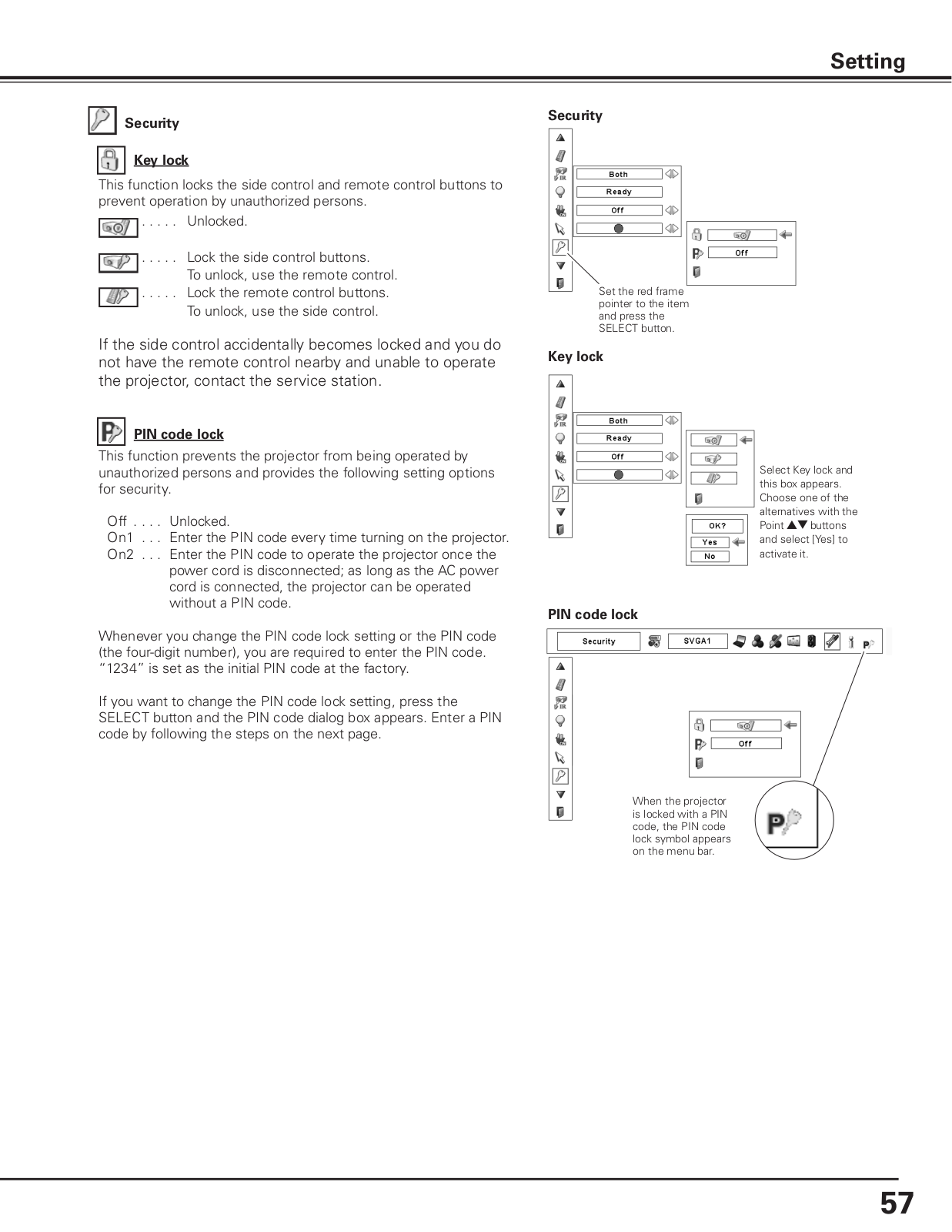

Security Function

The Security function helps you to ensure security of the projector. With the Key lock function, you can lock the operation on the side control or remote control (p.57). PIN code lock functions prevents unauthorized use of the projector (pp.57–58).

Power Management

The Power management function reduces power consumption and maintains lamp life (p.56).

Automatic Filter Replacement Function

The projector monitors the condition of the filter and replaces a filter automatically when it detects the clogging.

Motor-driven Lens Shift

Projection lens can be moved up, down, right and left with the motor-driven lens shift function. This function makes it easy to provide projected image where you want. Zoom and focus can also be adjusted with a motor-driven operation. (p.30)

Note:

Multiple Interface Terminals

The projector has several interface terminals that can support various types of equipment and signals (pp.11-12).

Shutter Function

The projector is equipped with the shutter that provides complete blackness when the projected image is not needed with keeping the projector on. The shutter management function allows you to set the timer. It prevents from keeping the projector on when the shutter is closed for a long time. (p.59)

New Optical Technology

This projector is equipped with a new optical engine. The new optical engine controls the amount of yellow light in the image, producing higher brightness with improved color accuracy and clarity. (p.50)

•The On-Screen Menu and figures in this manual may differ slightly from the product.

•The contents of this manual are subject to change without notice.

2

Table of Contents

Features and Design . . . . . . . . .	.		. 2. .	.	.	Computer. Input . . . . . . . . . . .		. 38. . . . . .
Table of Contents . . . . . . . . . .	.	.	3. .	.	.	.	. Computer System Selection	38
To The Owner . . . . . . . . . . . .	.	.					Auto PC Adjustment	39
			4. . . . . . .
Safety Instructions . . . . . . . . . .	.		.5 . .	.	.	.	Manual PC Adjustment	40
Air Circulation			6				Image Level Selection	42
							Screen Size Adjustment	43
Installing the Projector in Proper Directions			7
						Video Input . . . . . . . . . . . . . . . 45. . . . . . .
Moving the Projector			8
							Video System Selection	45
Cautions in Handling the Projector			8

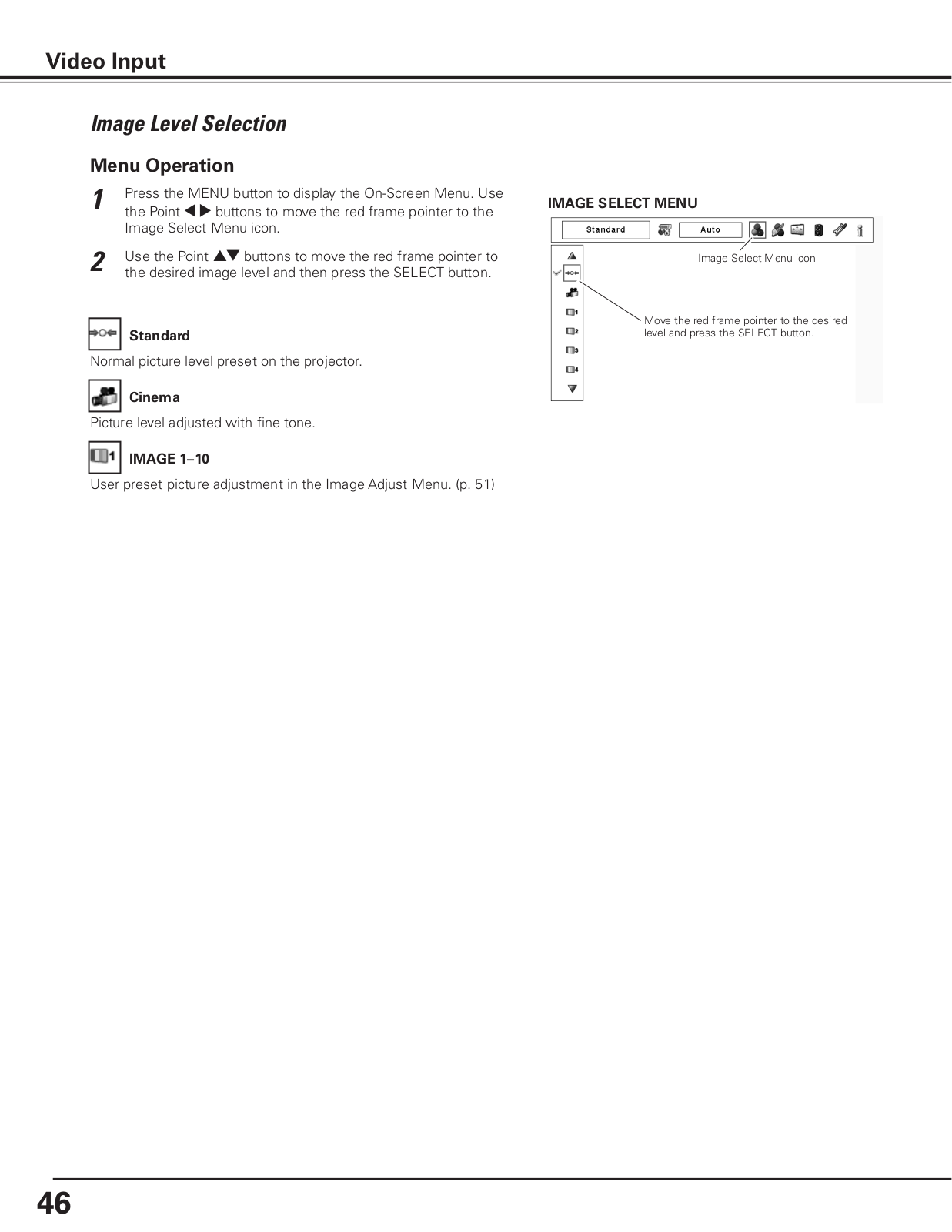

							Image Level Selection	46
Compliance . . . . . . . . . . . . . . .
			.9 . . . . . . .					47

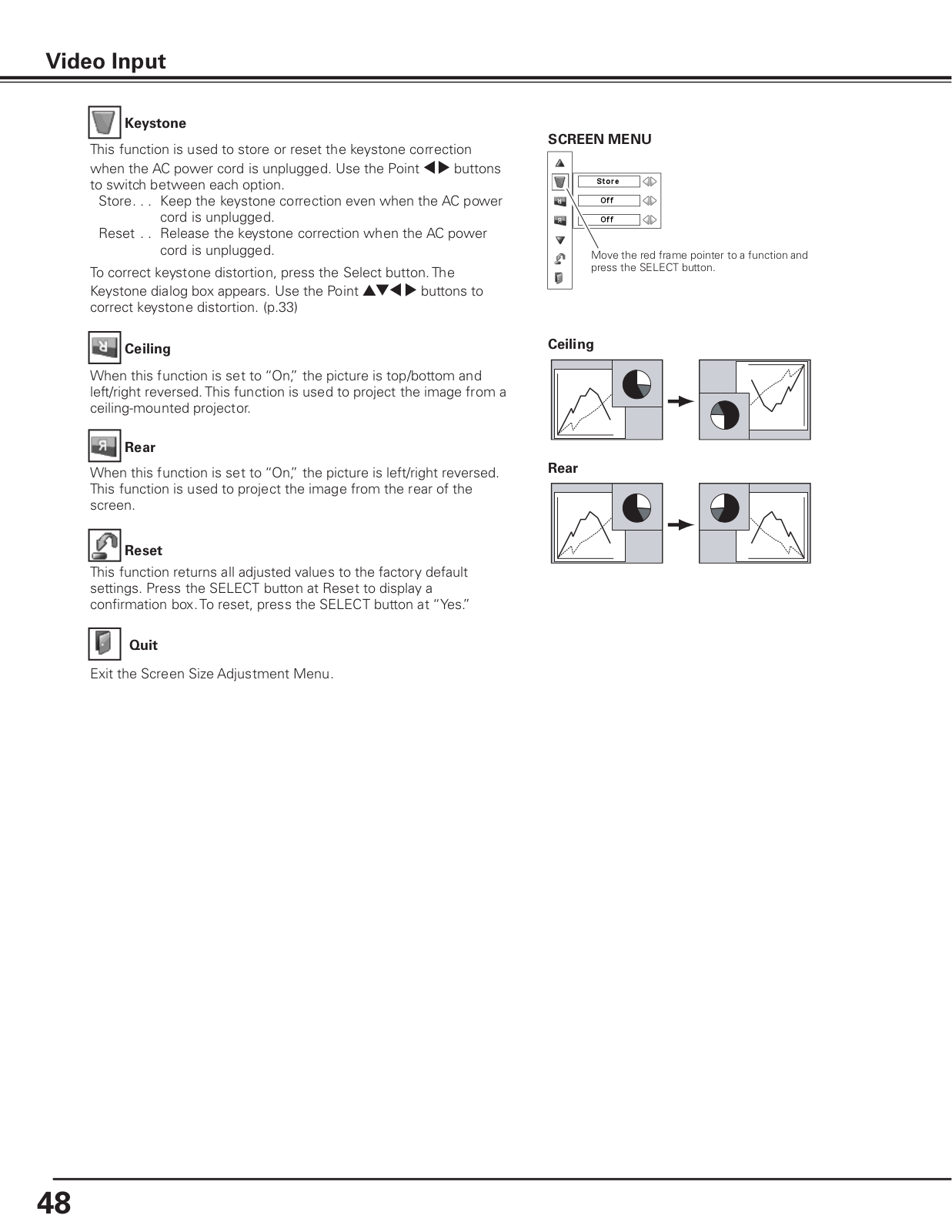

Part Names and Functions . . . . . .	. 10. . .						Screen Size Adjustment
						Picture Image . . . . . . . . . . . . .		.49. . . . . .
Front			10

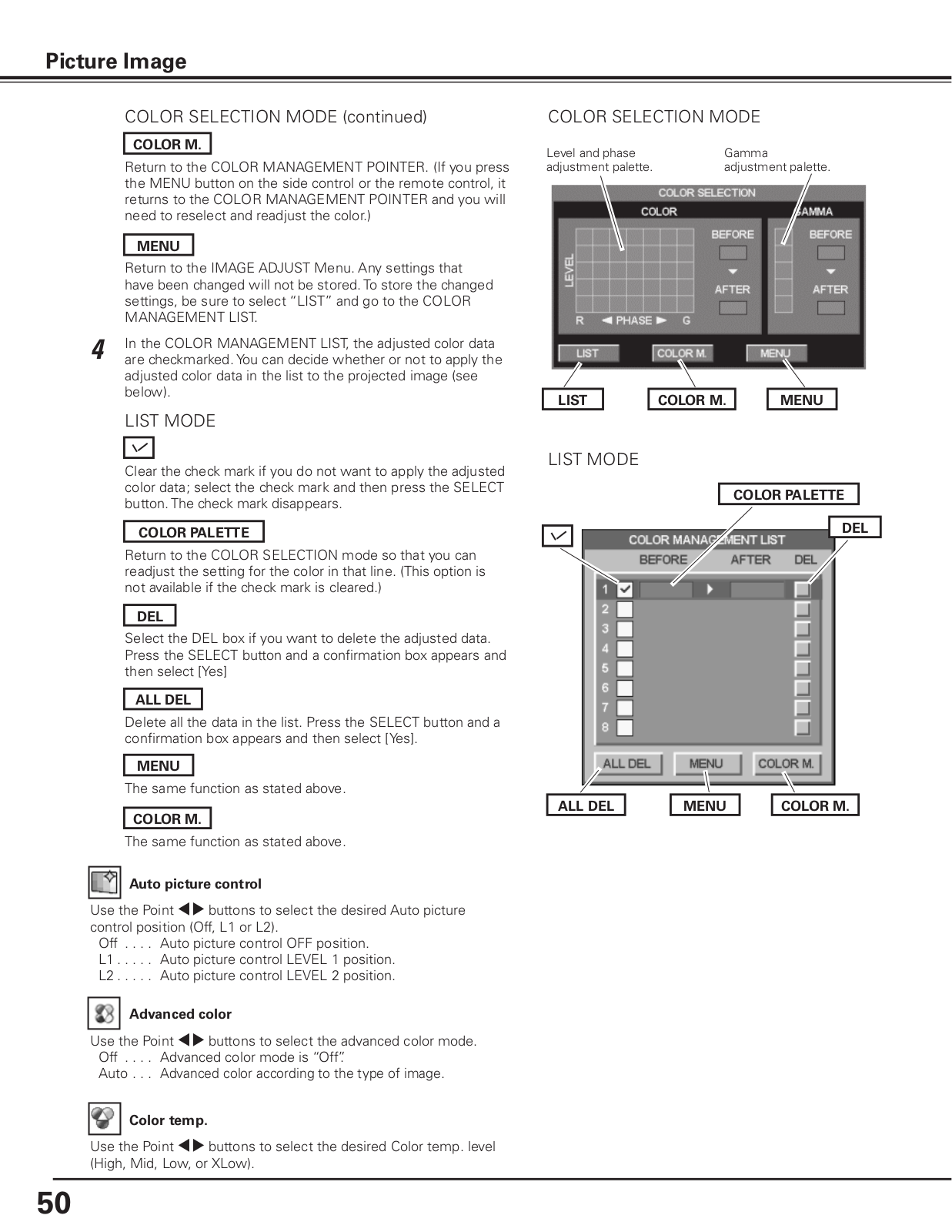

							Image Adjustment	49
Back			10
						Setting . . . . . . . . . . . . . . . . .		.52. . . . . . .
Bottom			10

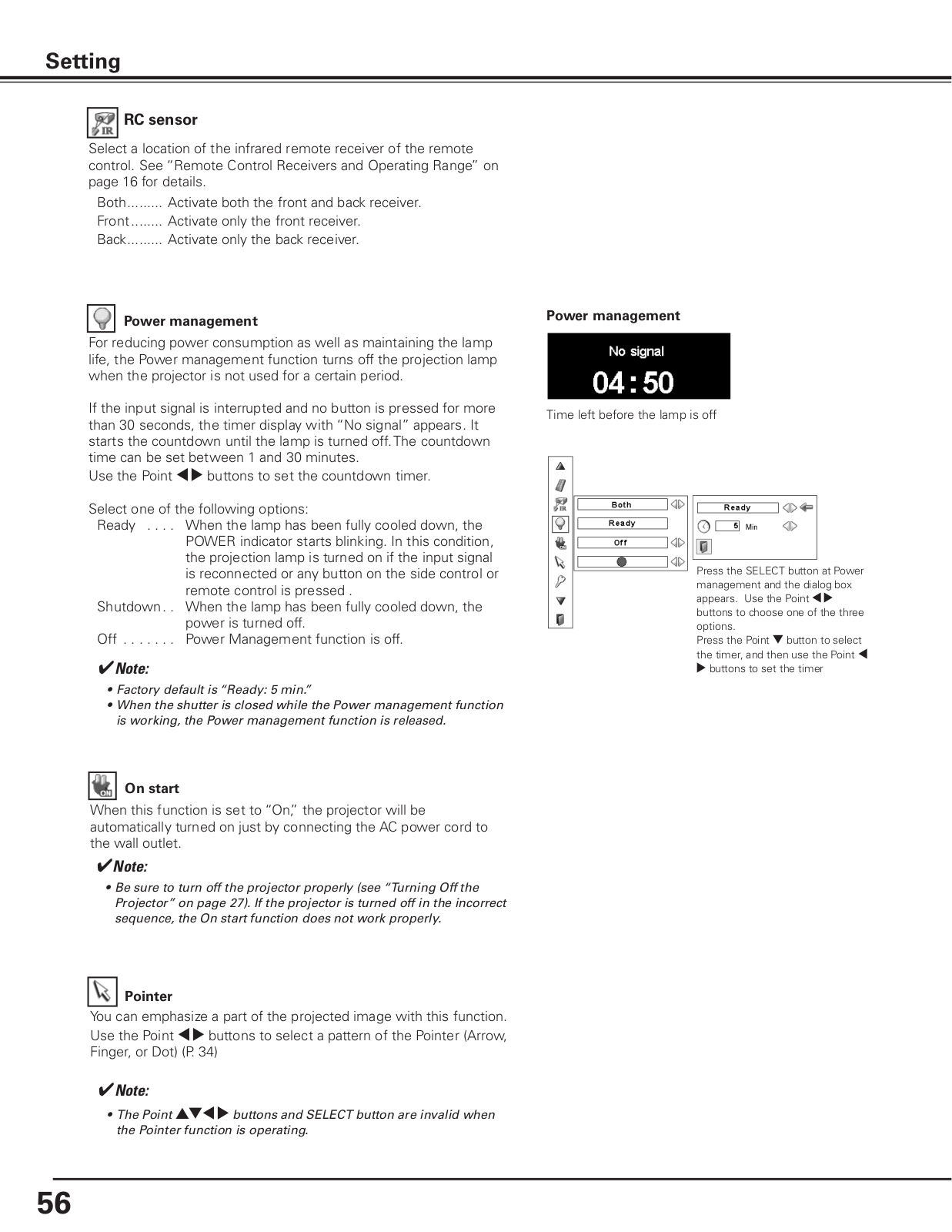

							Setting	52
Rear Terminal			11
						Maintenance and Care . . . . . . . .		. 61. . . .
Rear Terminal			12
Side Control and Indicators			13				Filter Instructions	61
Remote Control			14				Replacing the Filter Cartridge	62

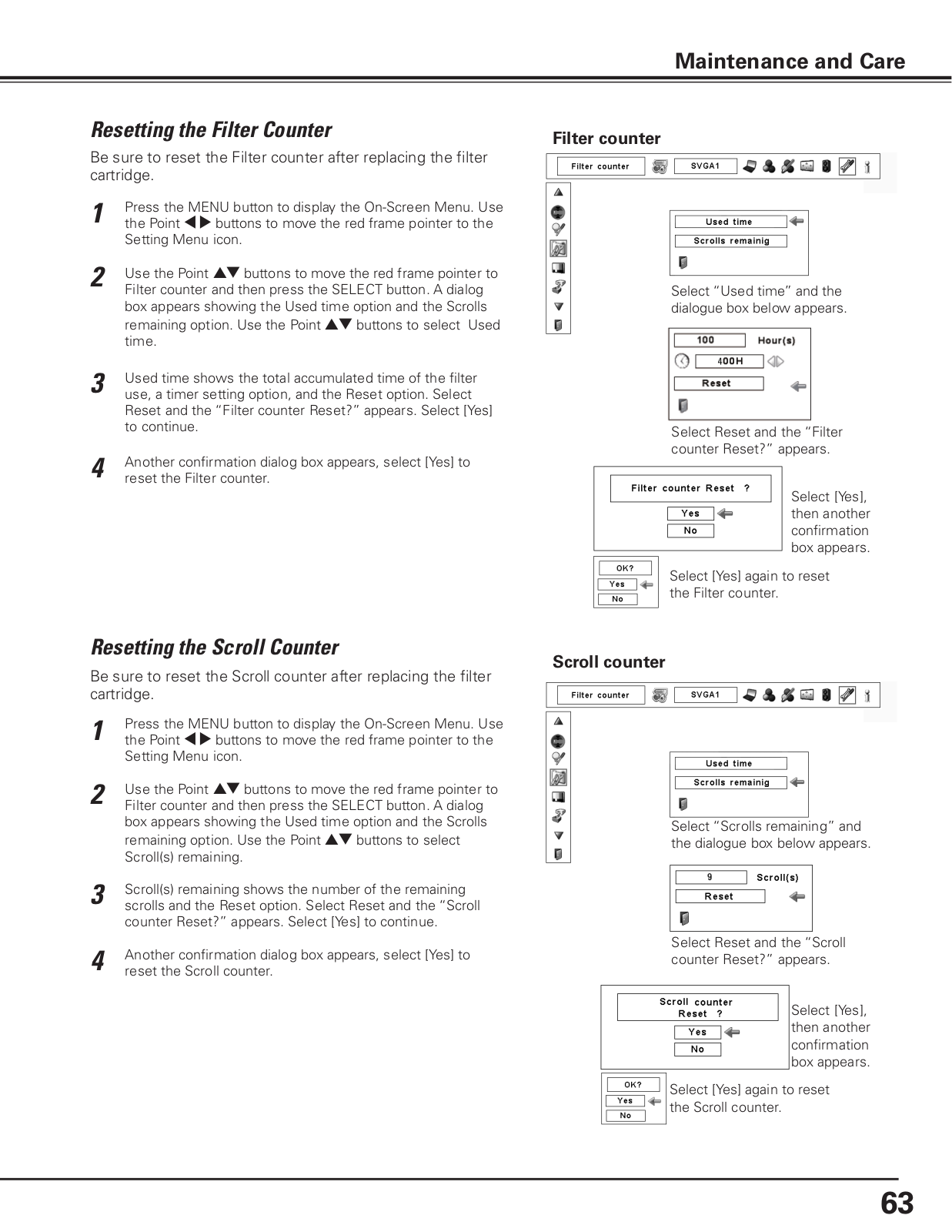

Remote Control Battery Installation			16				Resetting the Filter Counter	63
Remote Control Receivers and Operating Range			16				Resetting the Scroll Counter	63

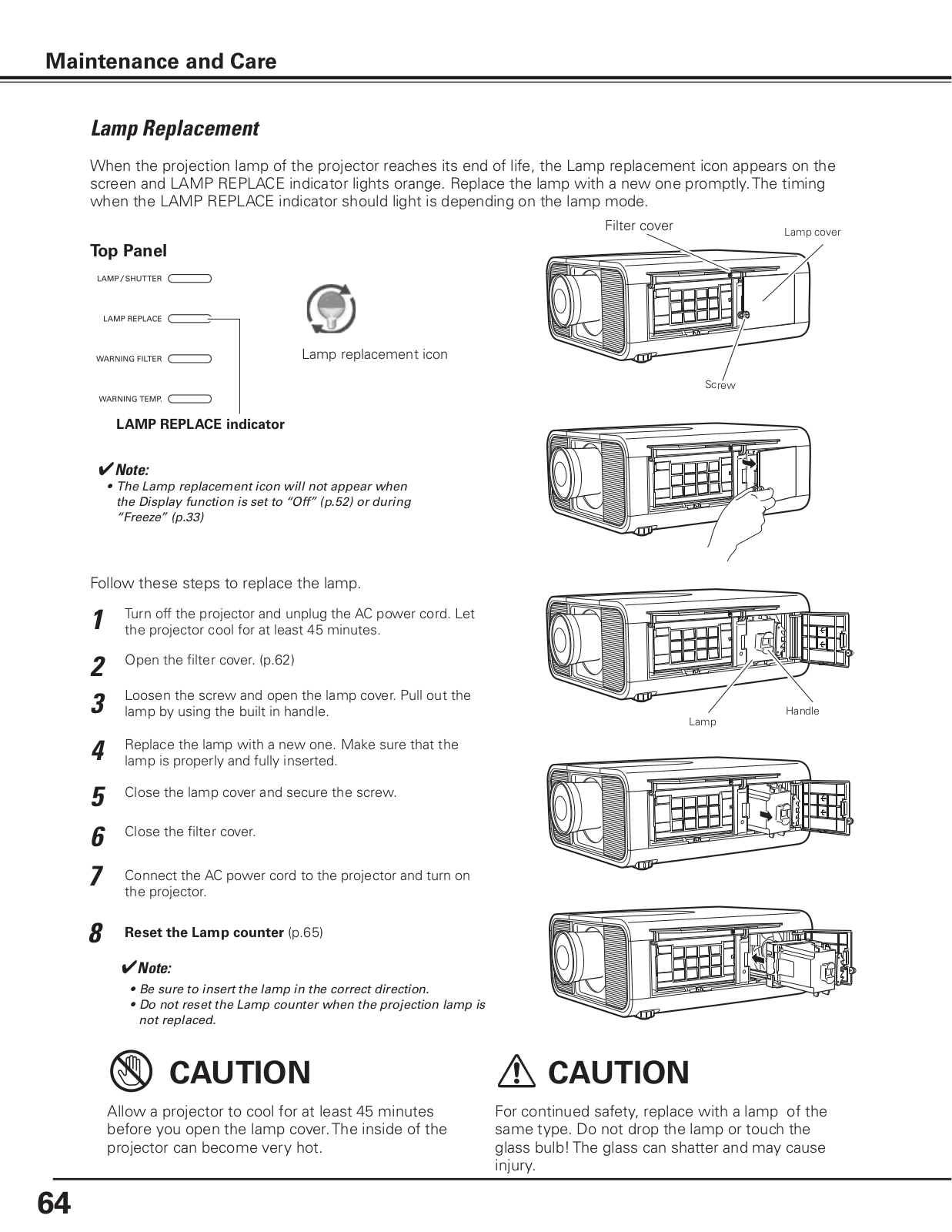

Wired Remote Control Transmitter			16				Lamp Replacement	64

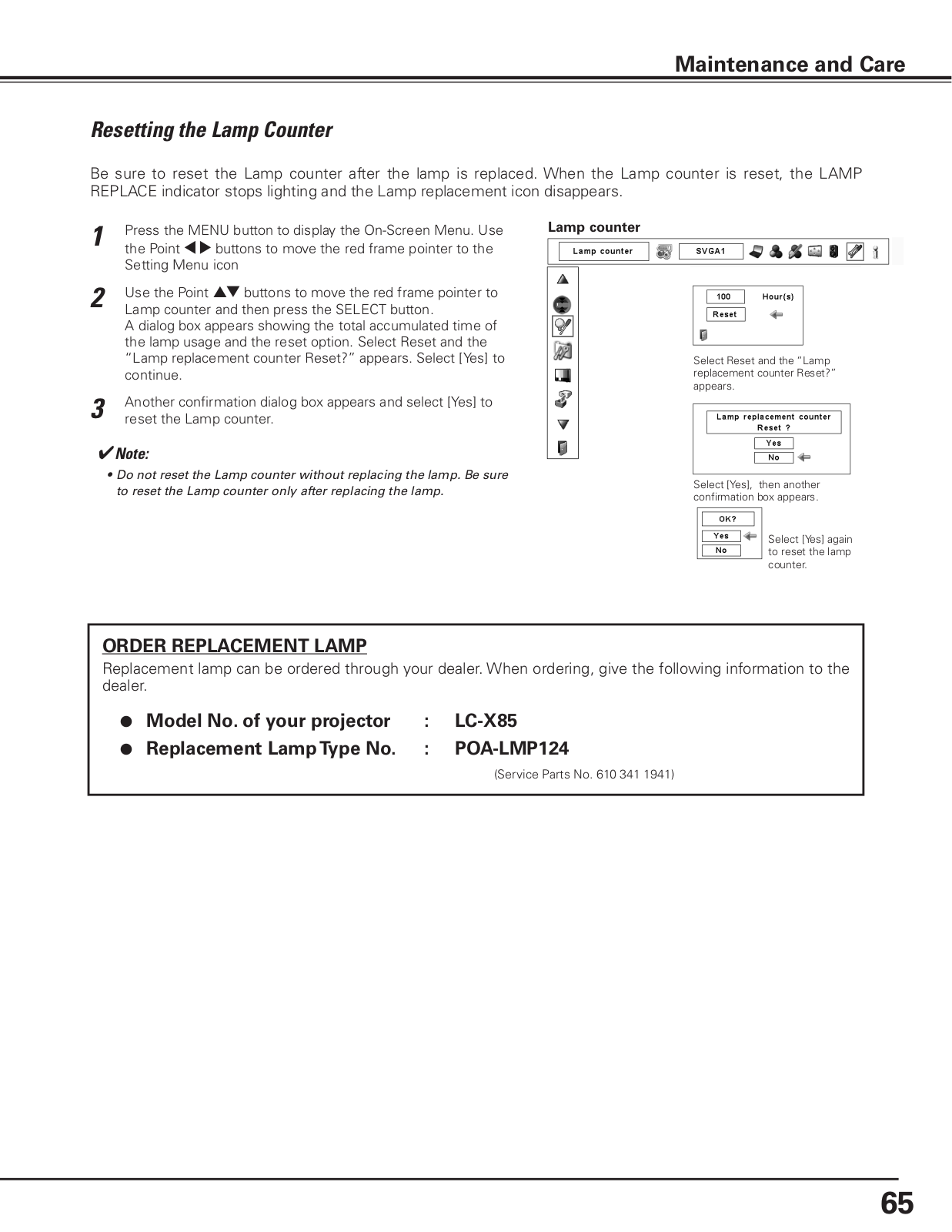

Remote Control Code			17				Resetting the Lamp Counter	65
Installation . . . . . . . . . . . . . .							Cleaning the Projection Lens	67
	. 18. . . . . . .
Adjustable Feet			18				Cleaning the Projector Cabinet	67

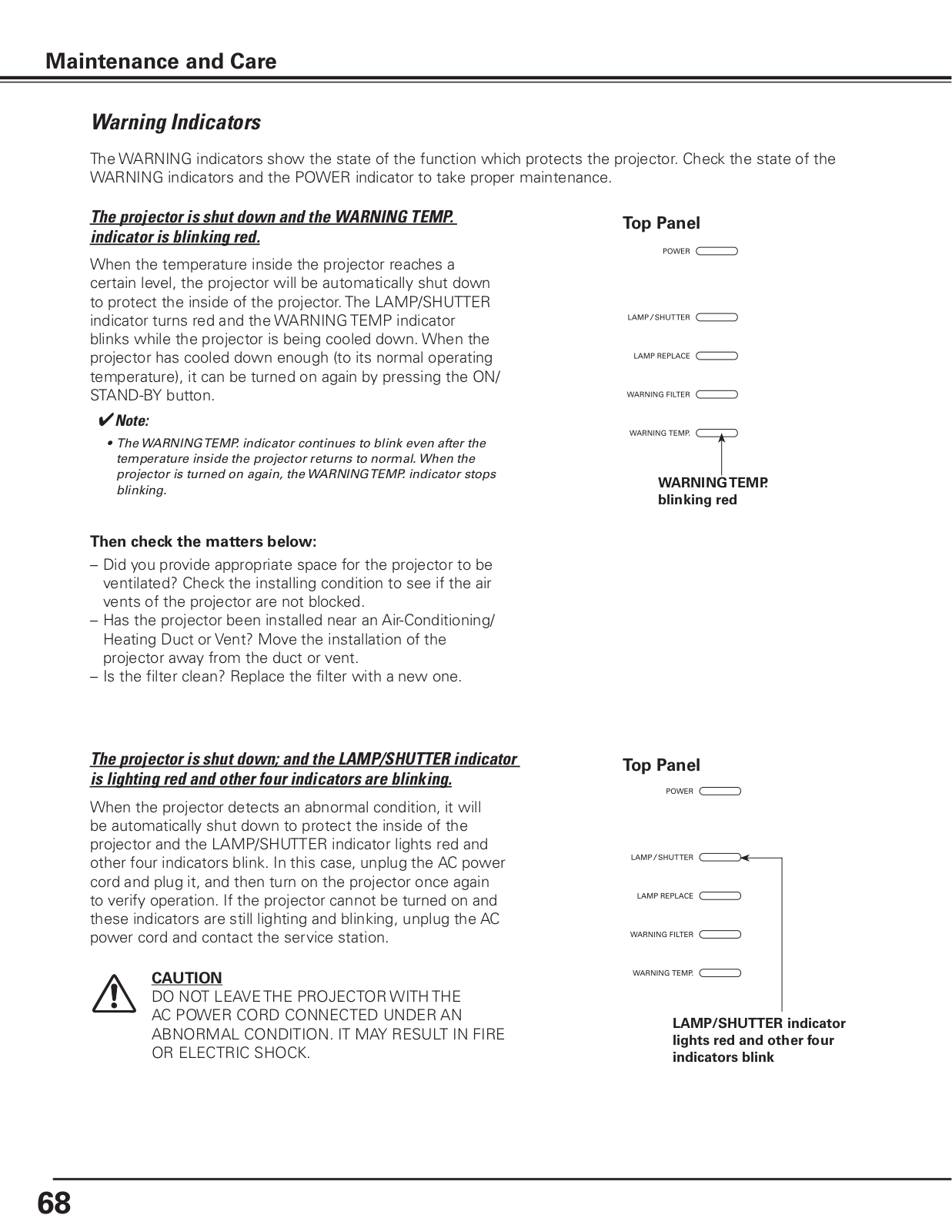

							Warning Indicators	68
Lens Installation			19
						Appendix . . . . . . . . . . . . . . .		. 69. . . . . . . .
Connecting to a Computer (Digital and Analog RGB) 22

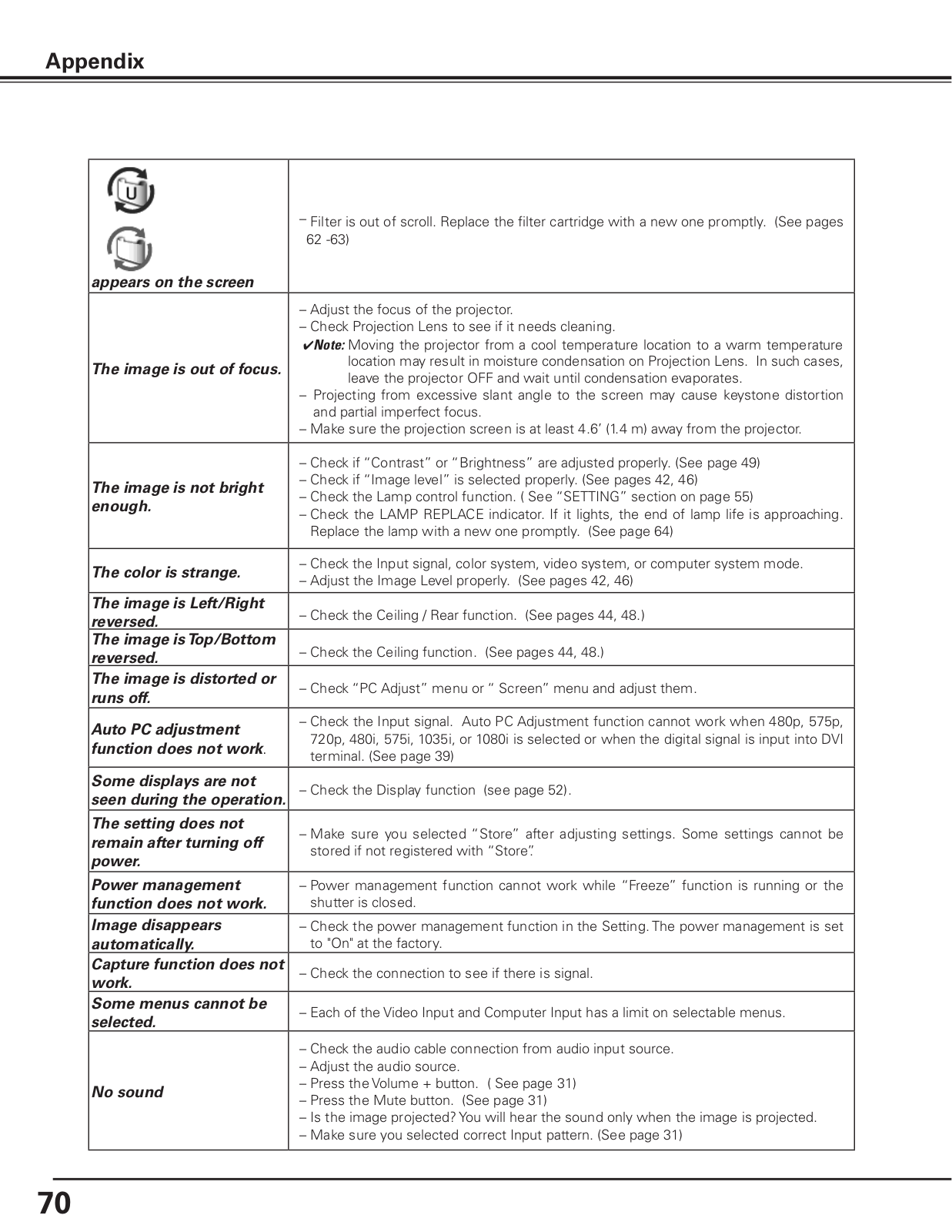

Connecting to Video Equipment (Video, S-Video)			23				Troubleshooting	69

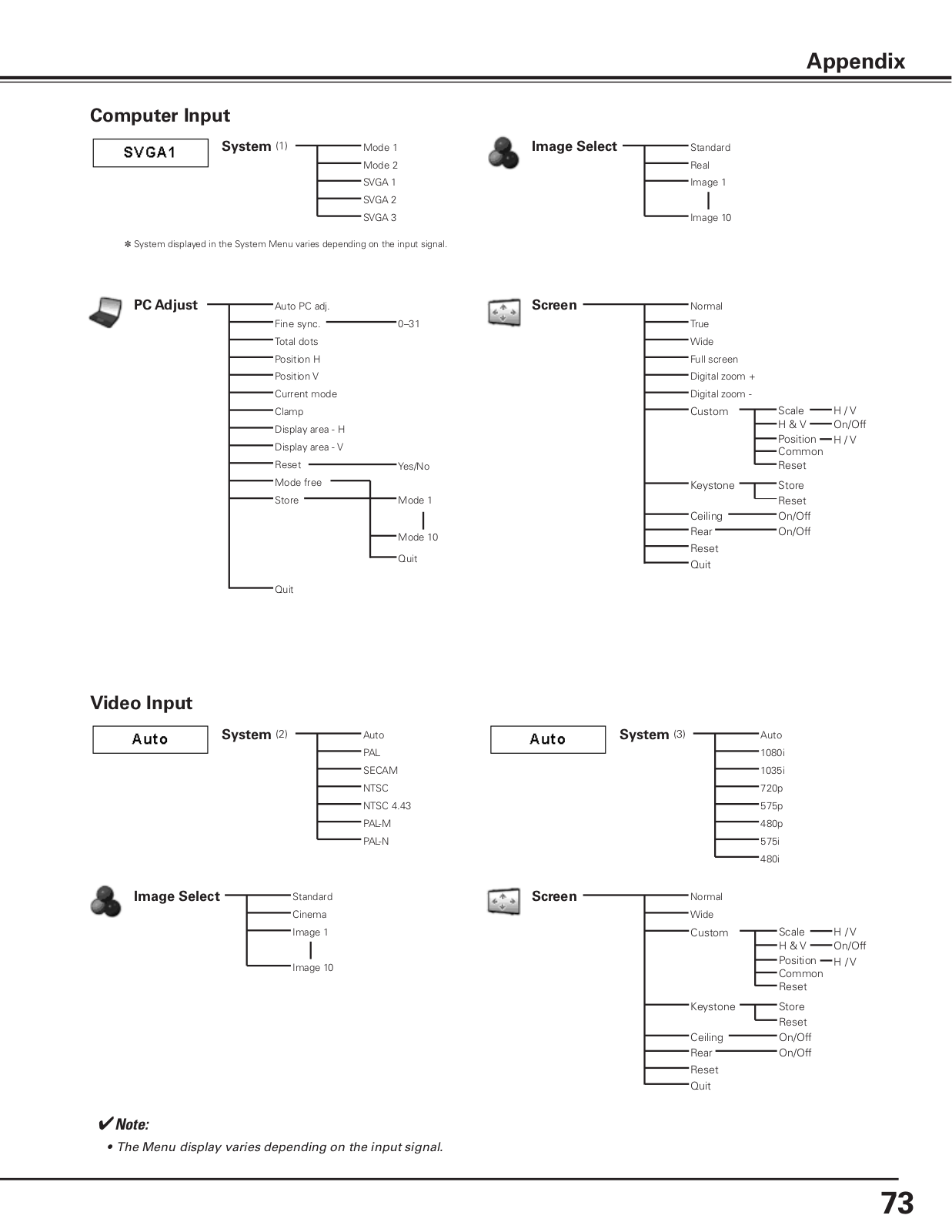

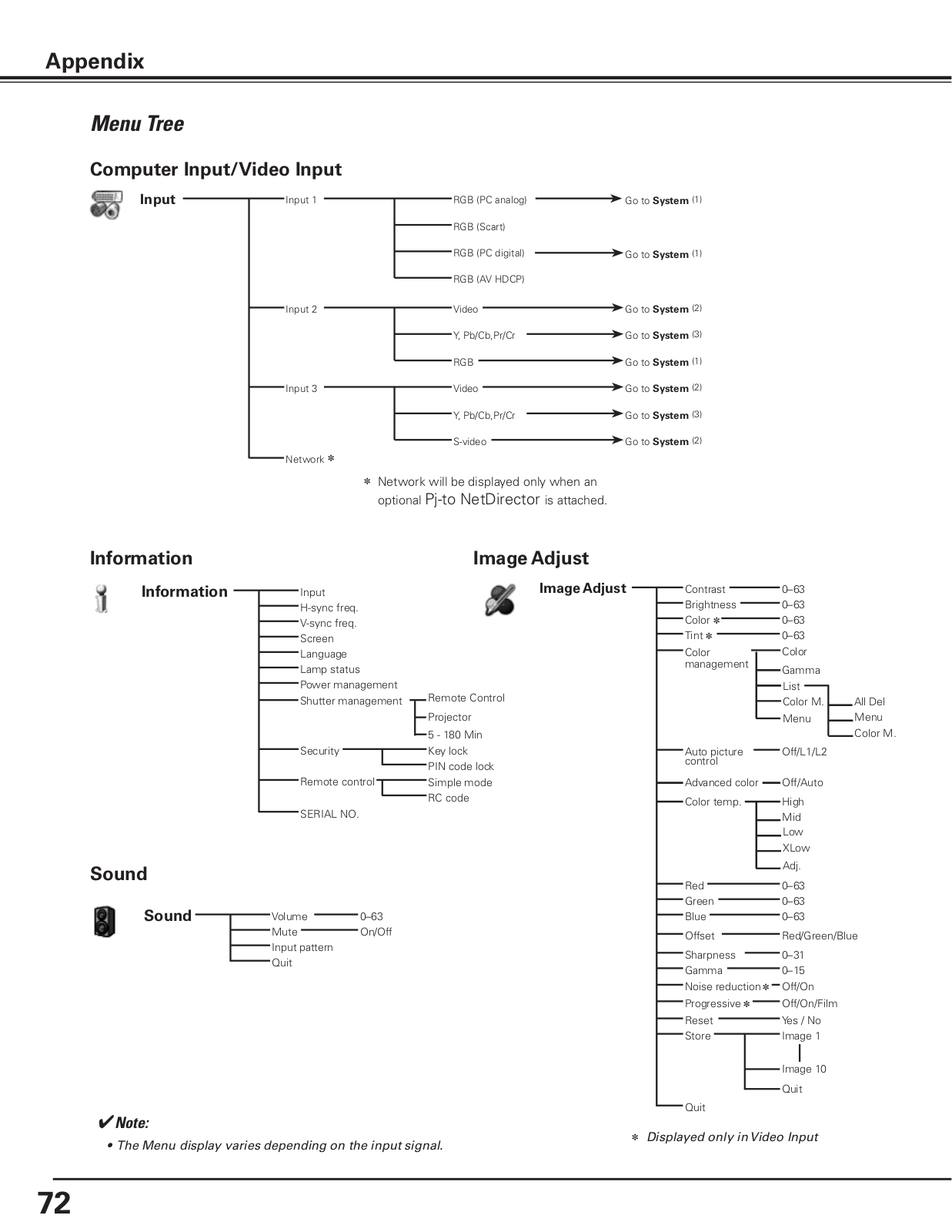

Connecting for Audio Signal			24				Menu Tree	72

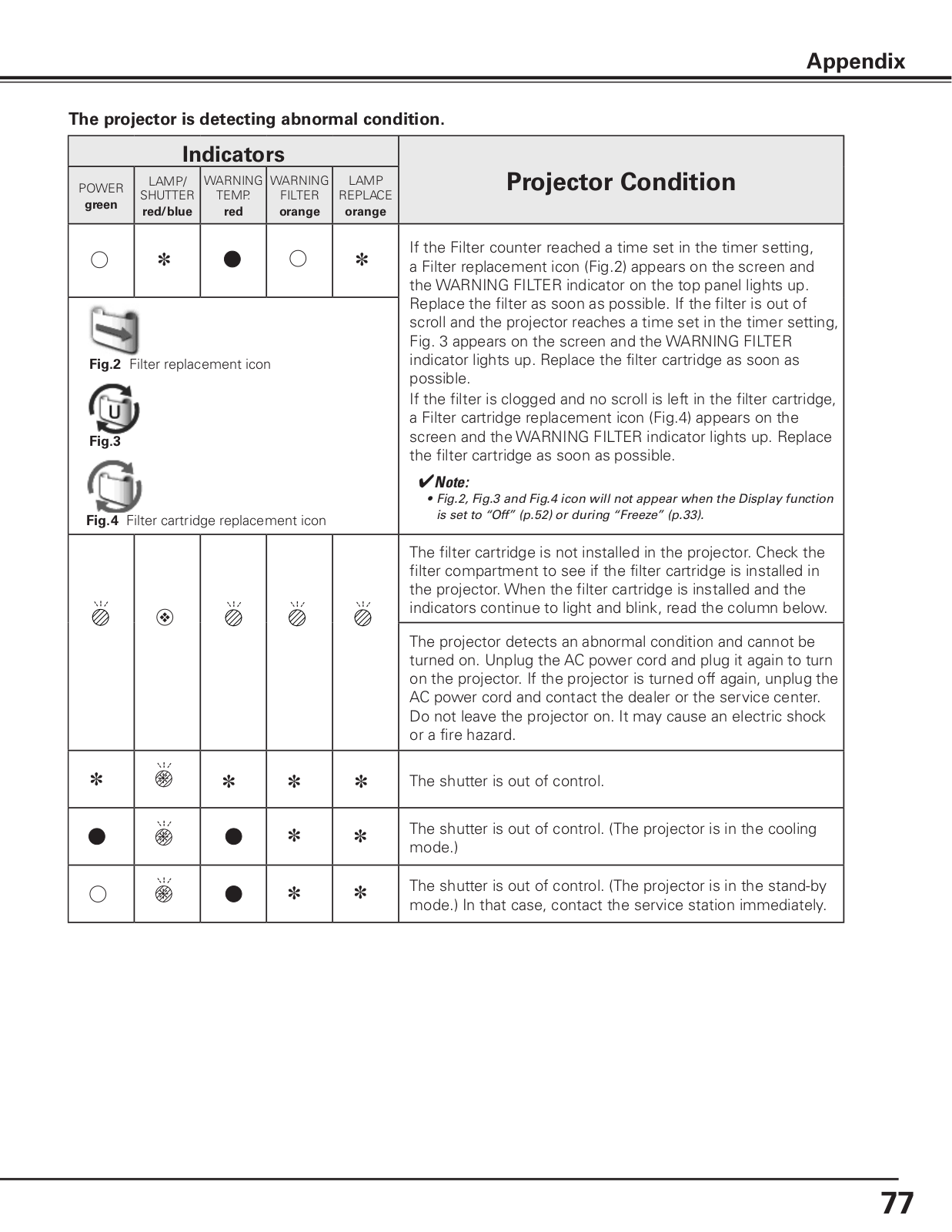

Connecting the AC Power Cord			25				Indicators and Projector Condition	75

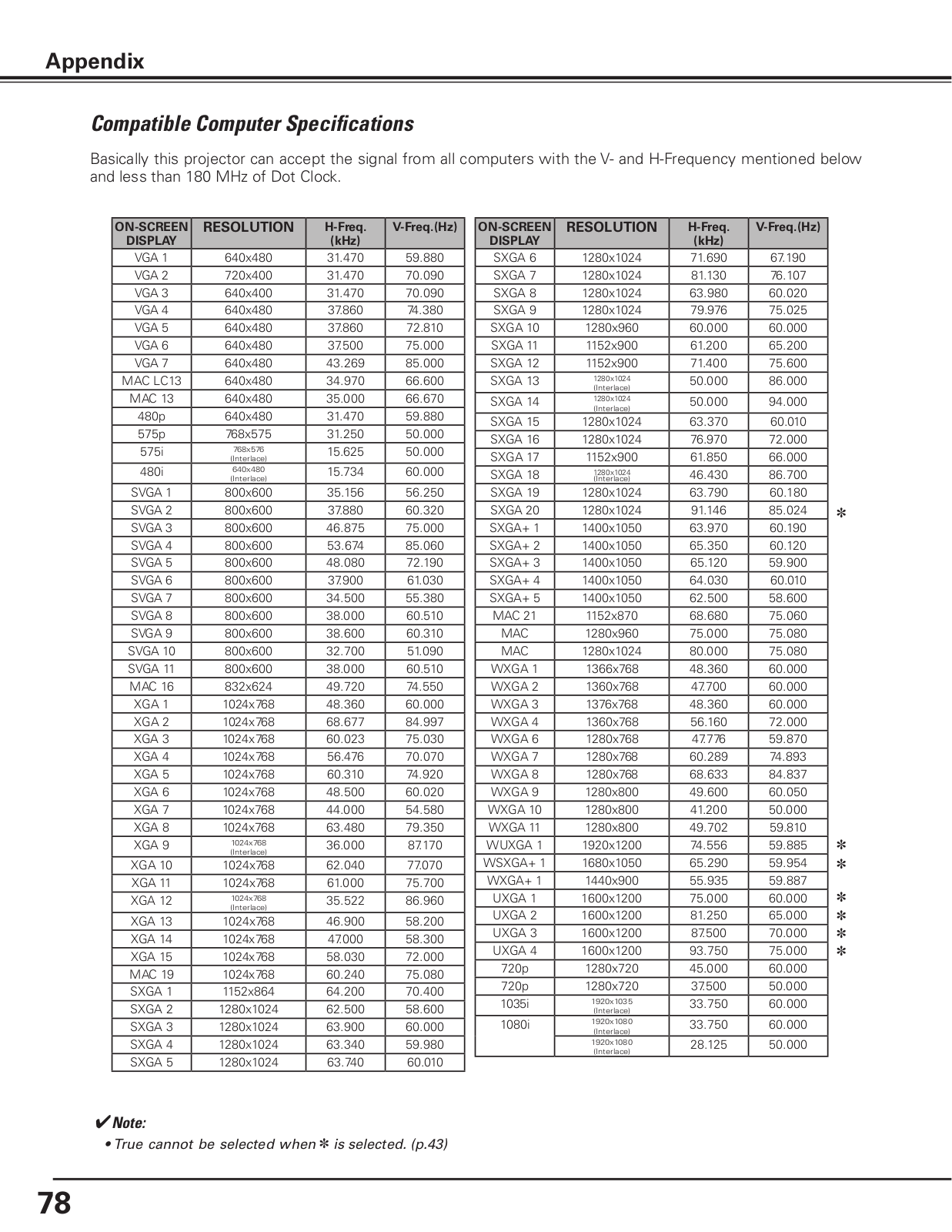

Basic Operation . . . . . . . . . . .	.	26. . .		.	.	.	Compatible Computer Specifications	78
Turning On the Projector			26				Technical Specifications	80
							Optional Parts	81
Turning Off the Projector			27
							Lens Replacement	81

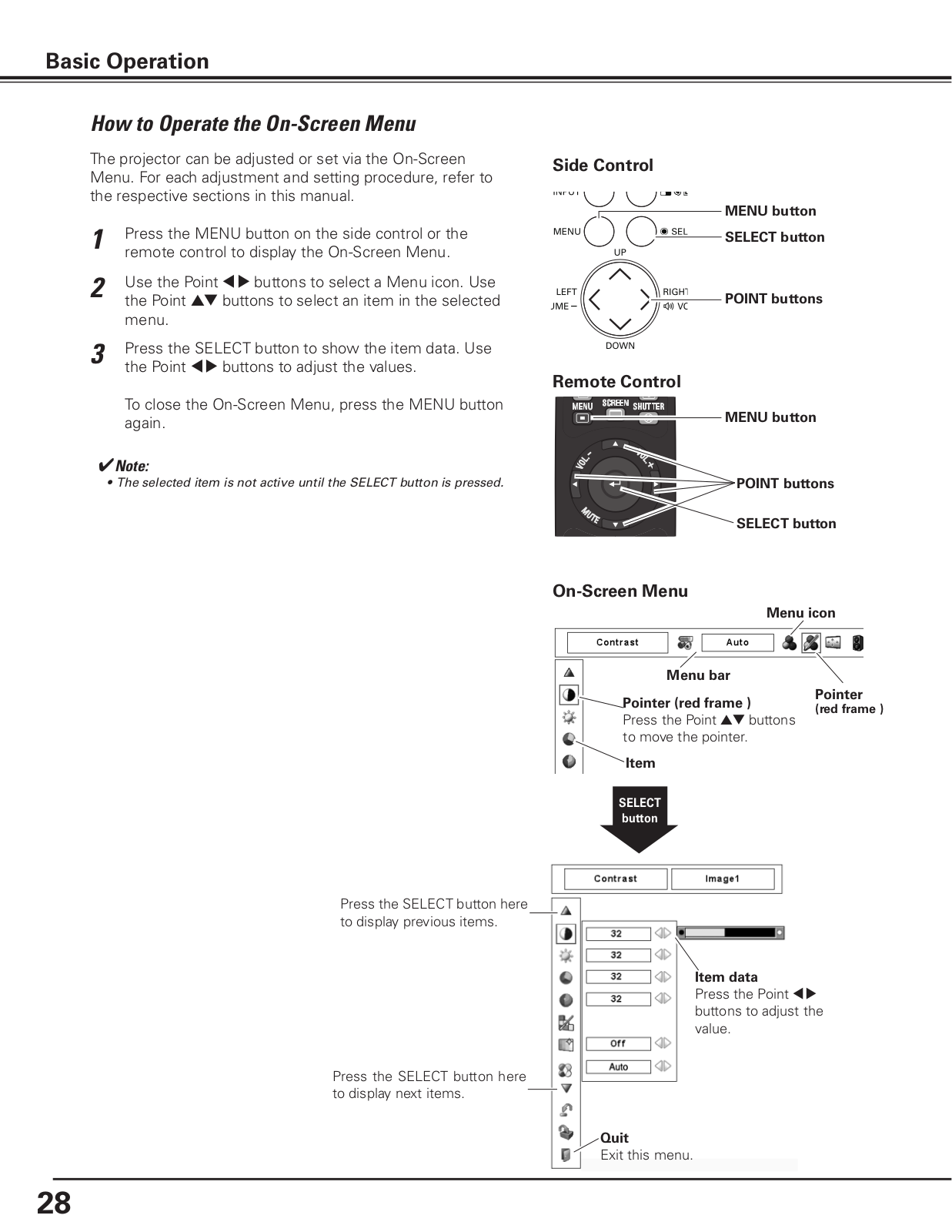

How to Operate the On-Screen Menu			28
							PJ Link Notice	81
Menu Bar			29

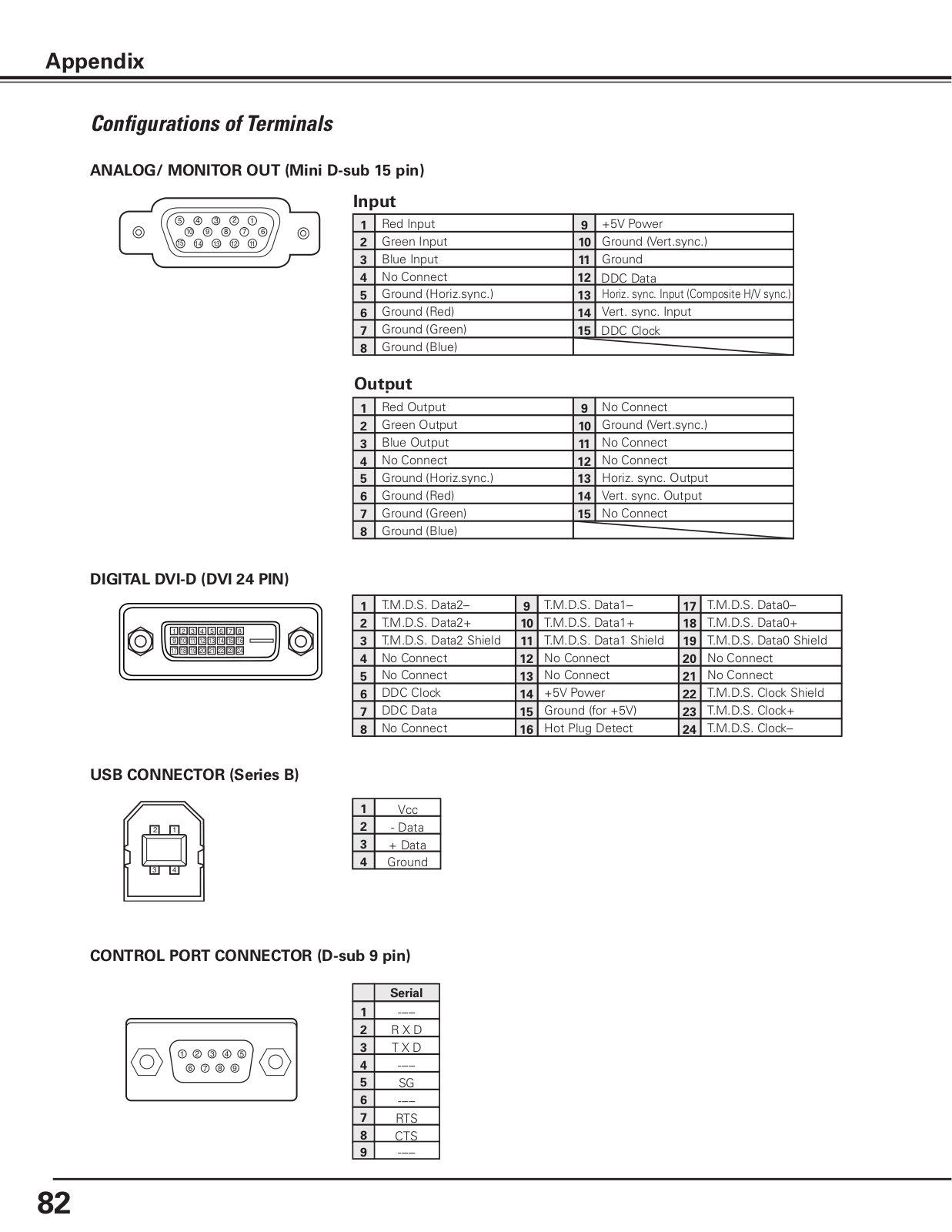

							Configurations of Terminals	82

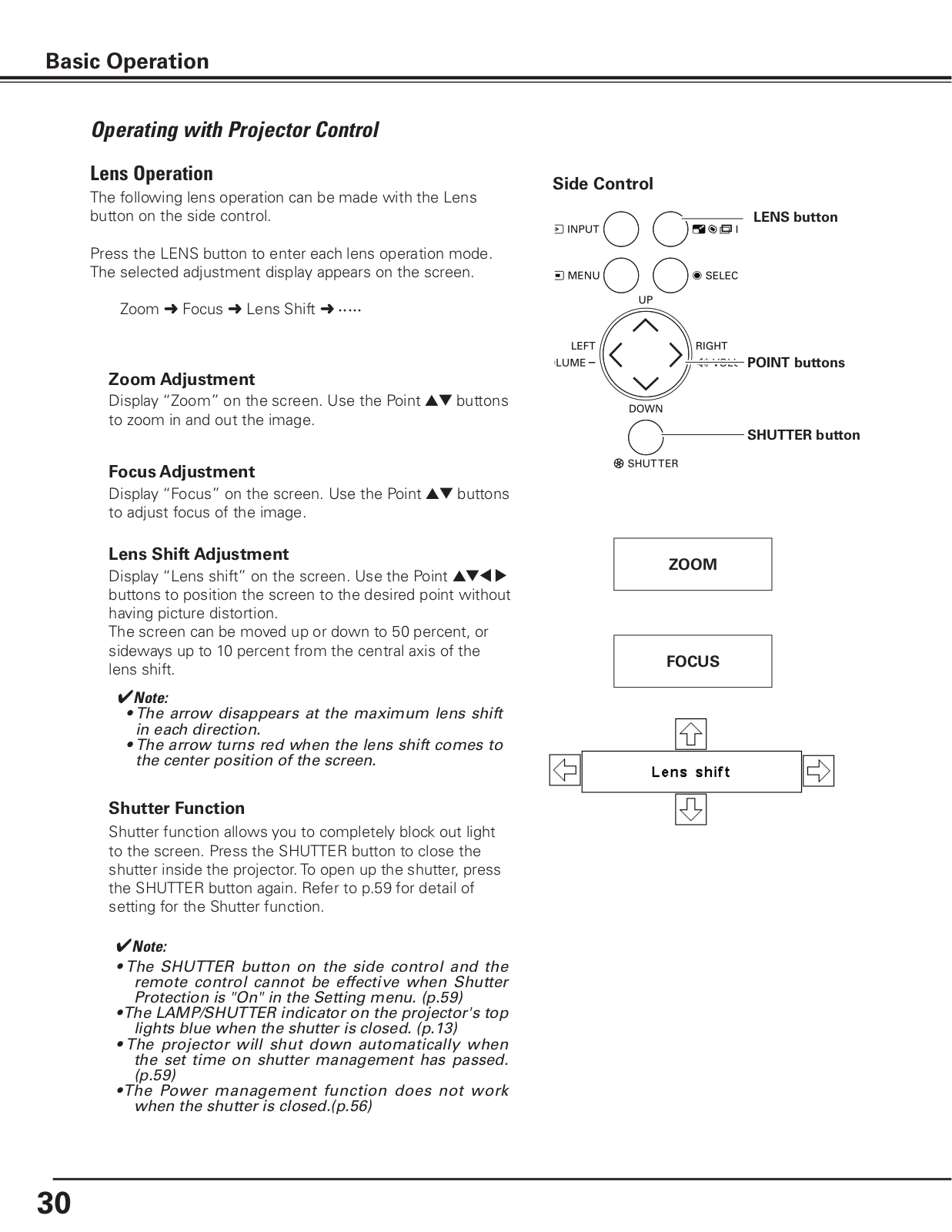

Operating with Projector Control			30

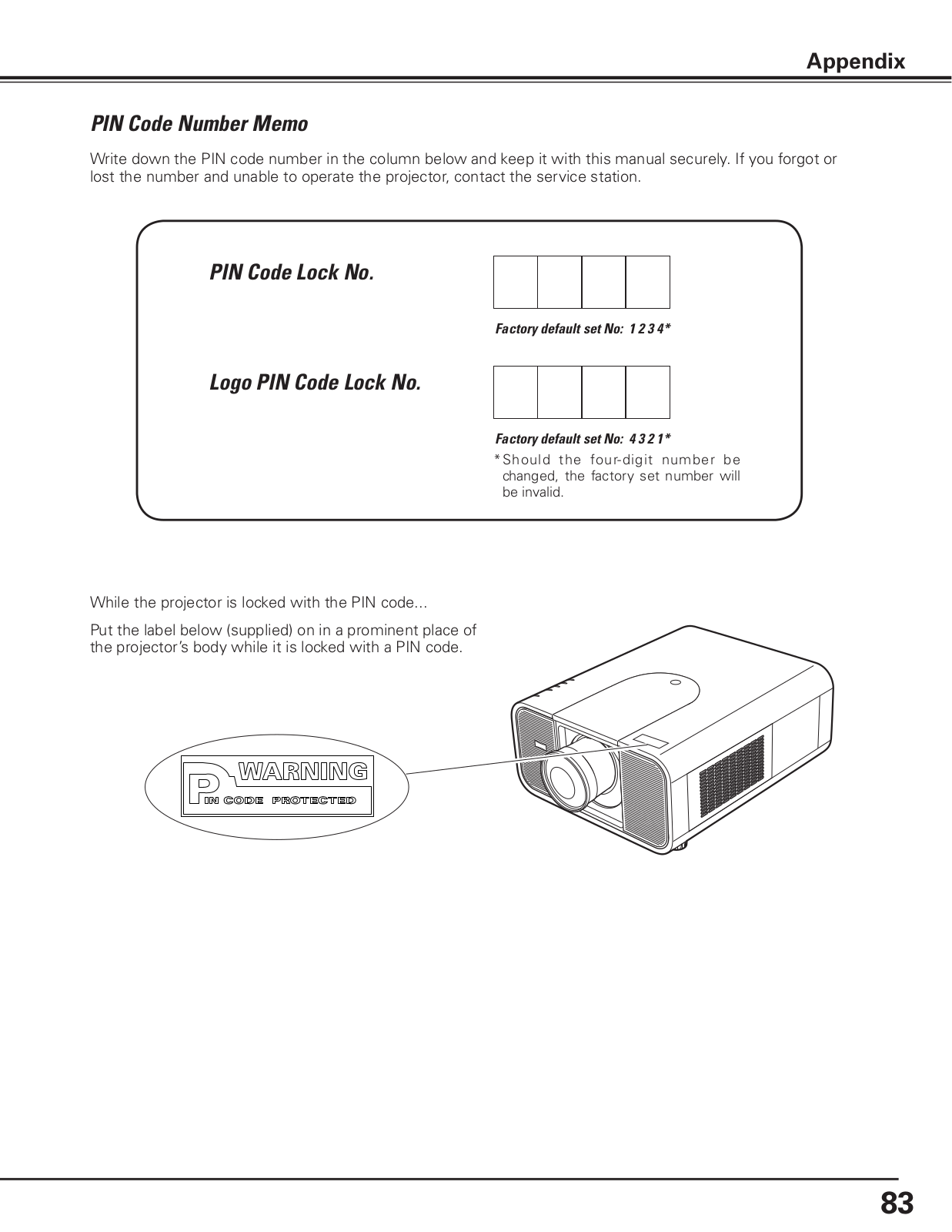

							PIN Code Number Memo	83
Sound Adjustment			31
							Dimensions	84

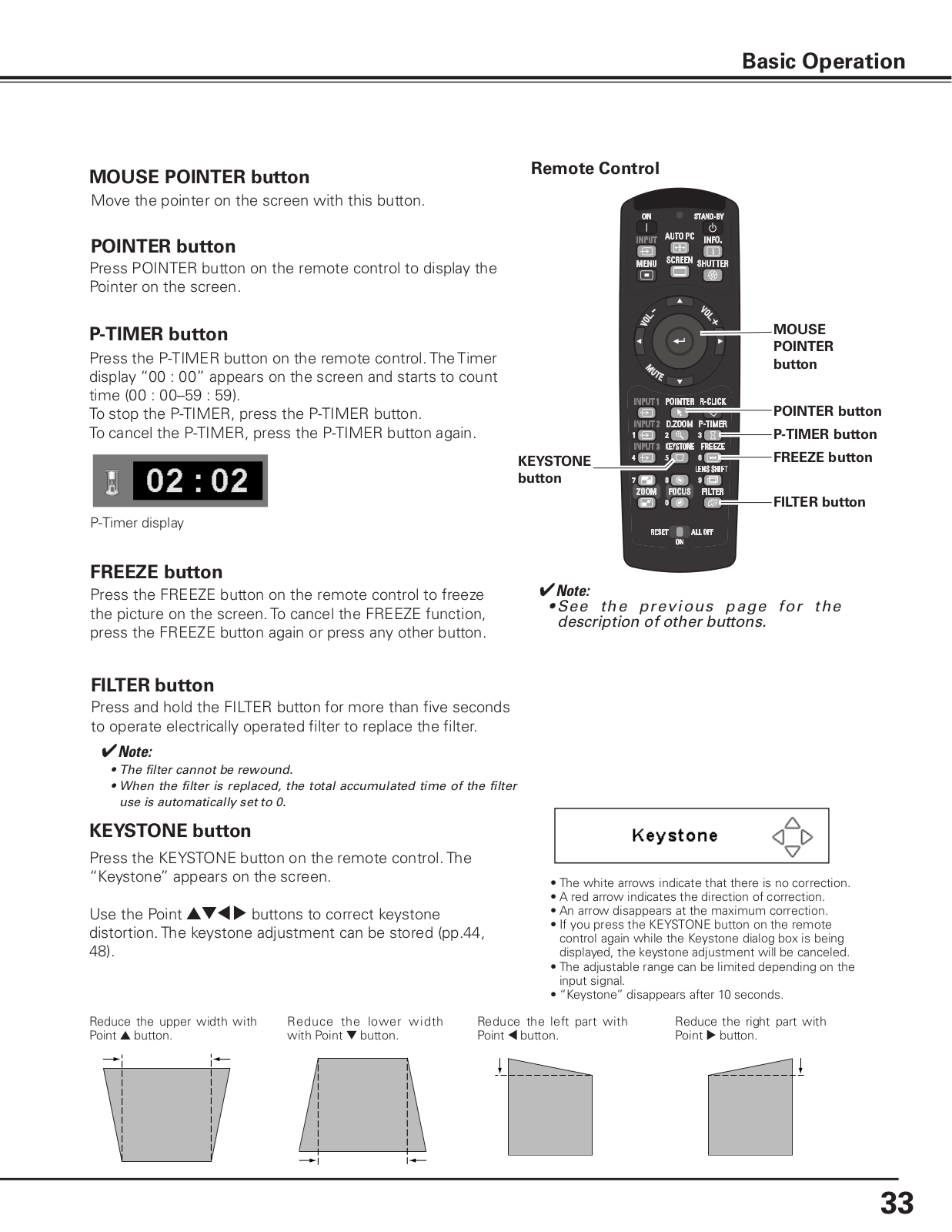

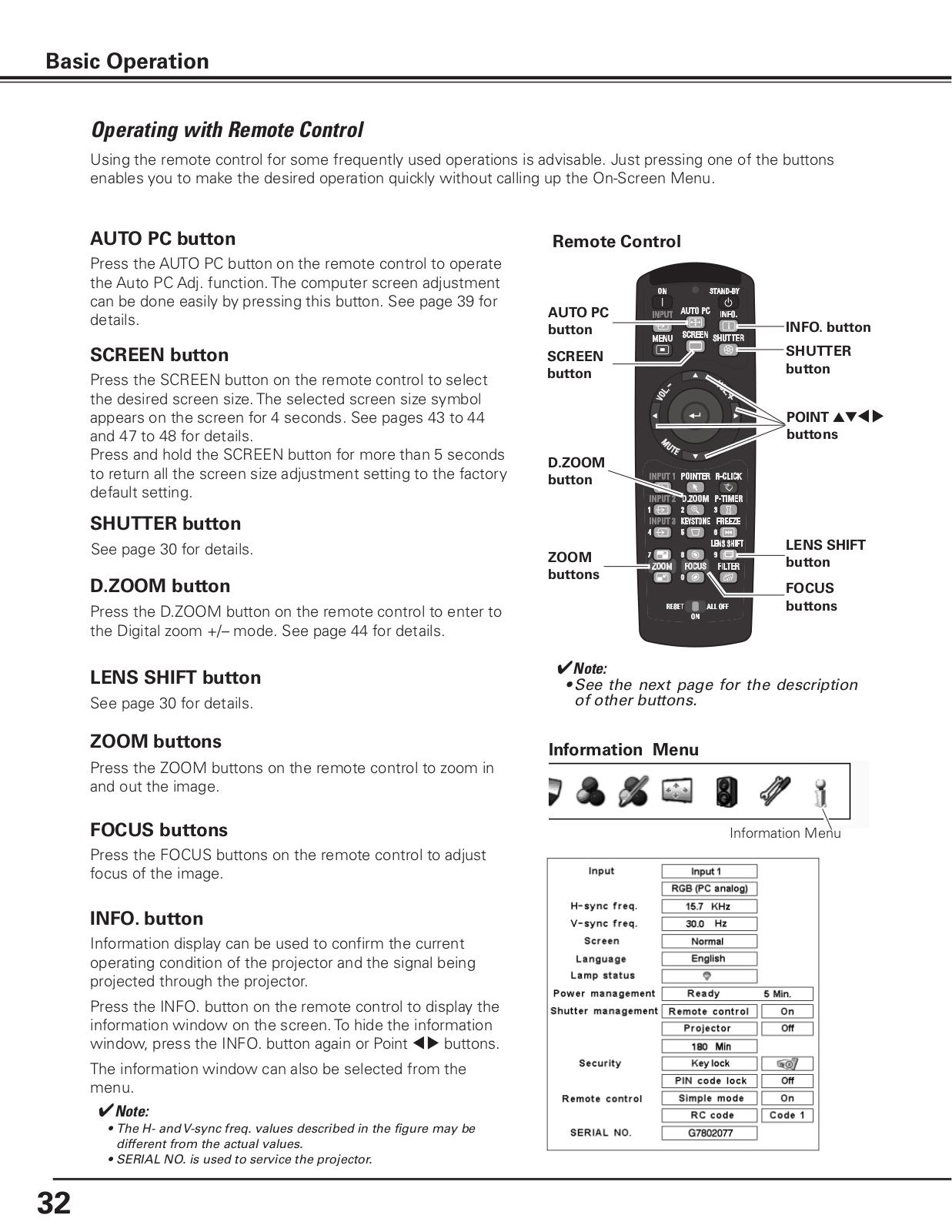

Operating with Remote Control			32

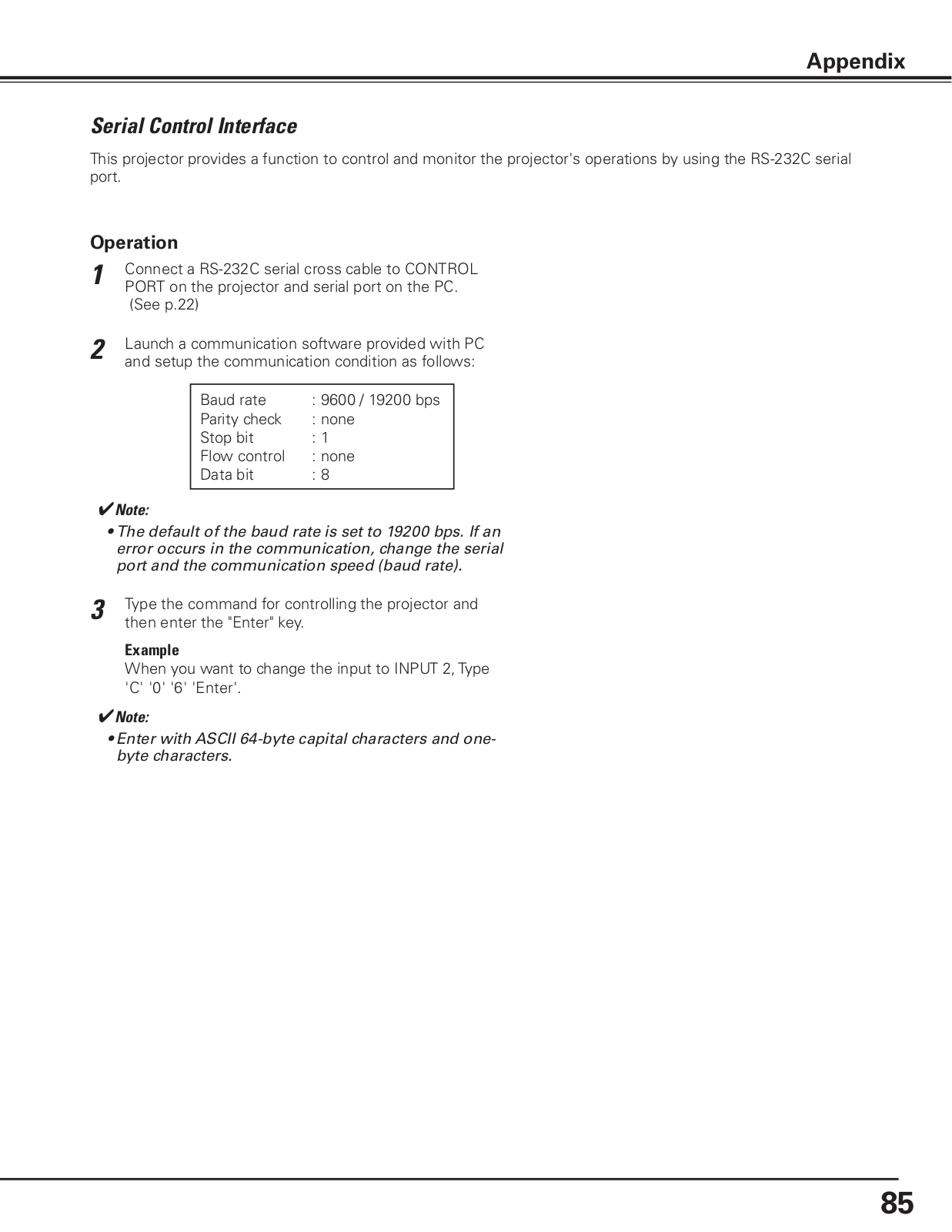

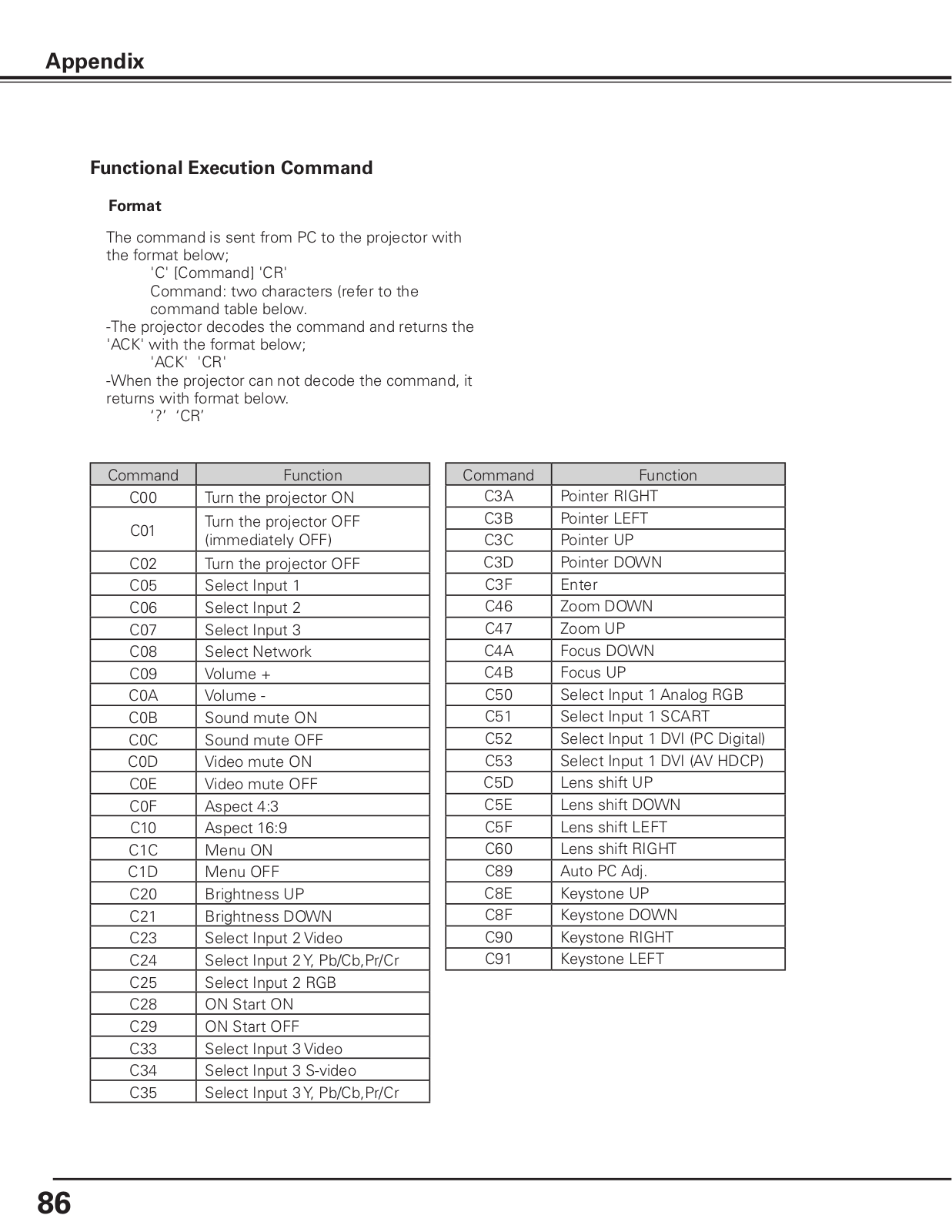

							Serial Control Interface	85

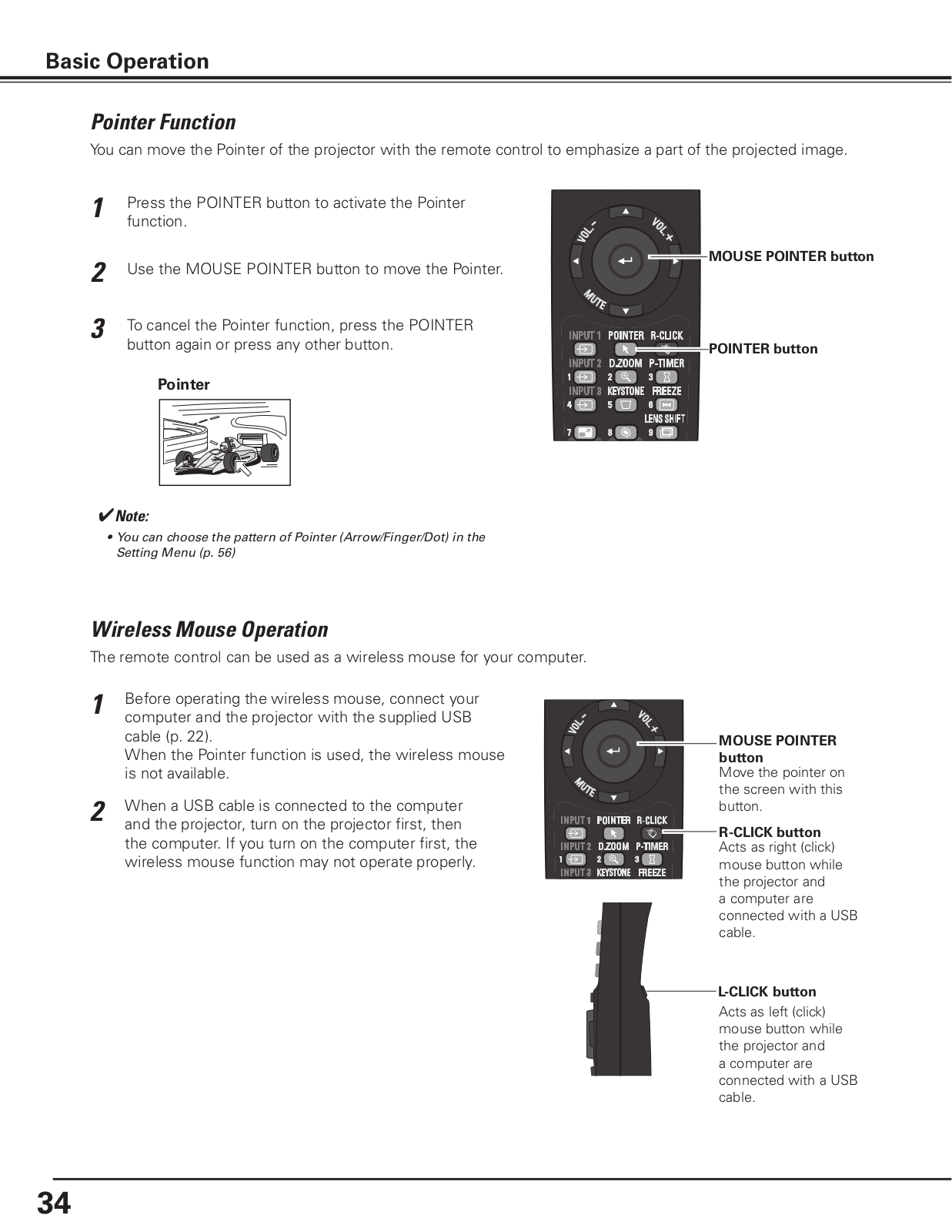

Pointer Function			34
Wireless Mouse Operation			34

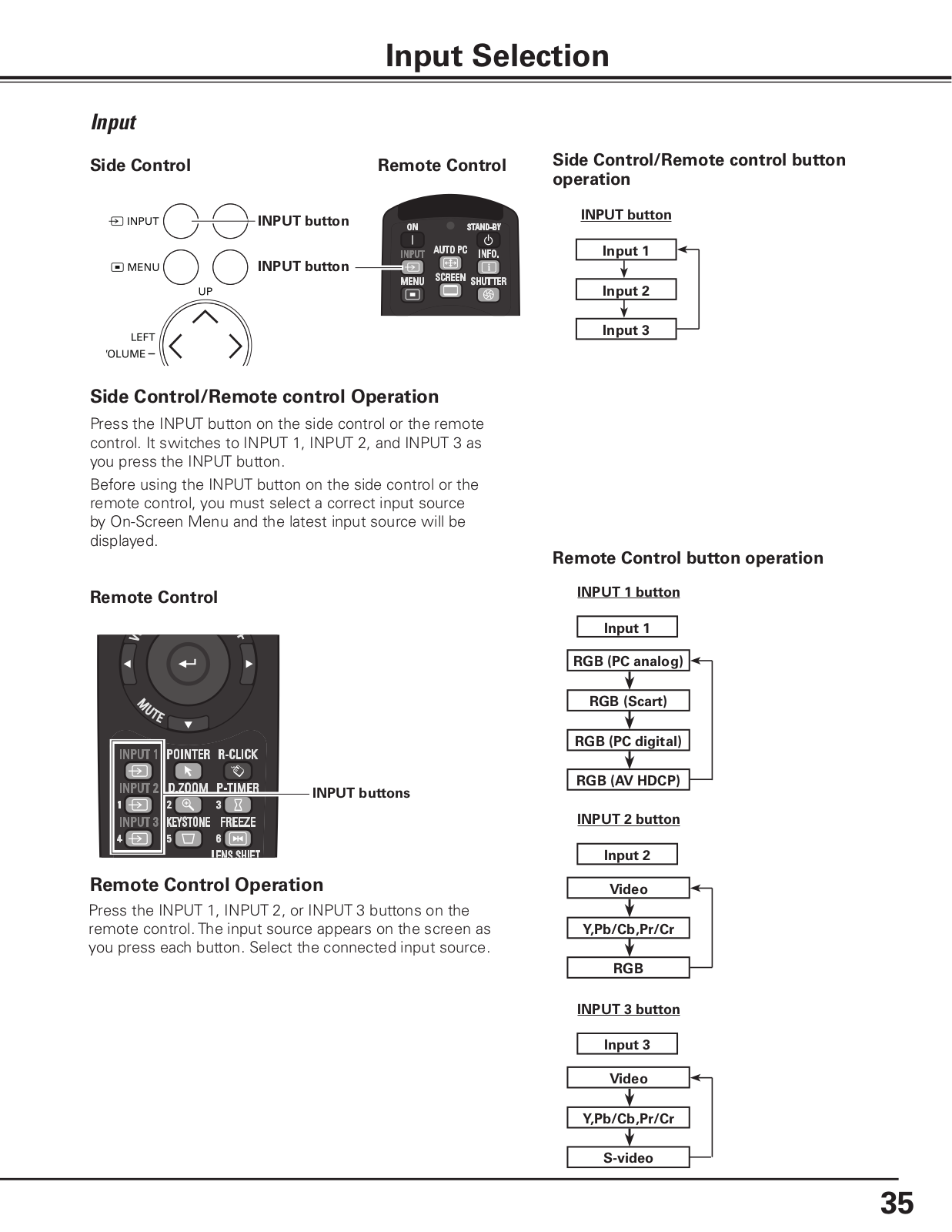

Input Selection . . . . . . . . . . . . . 35. . . . . .

Input	35

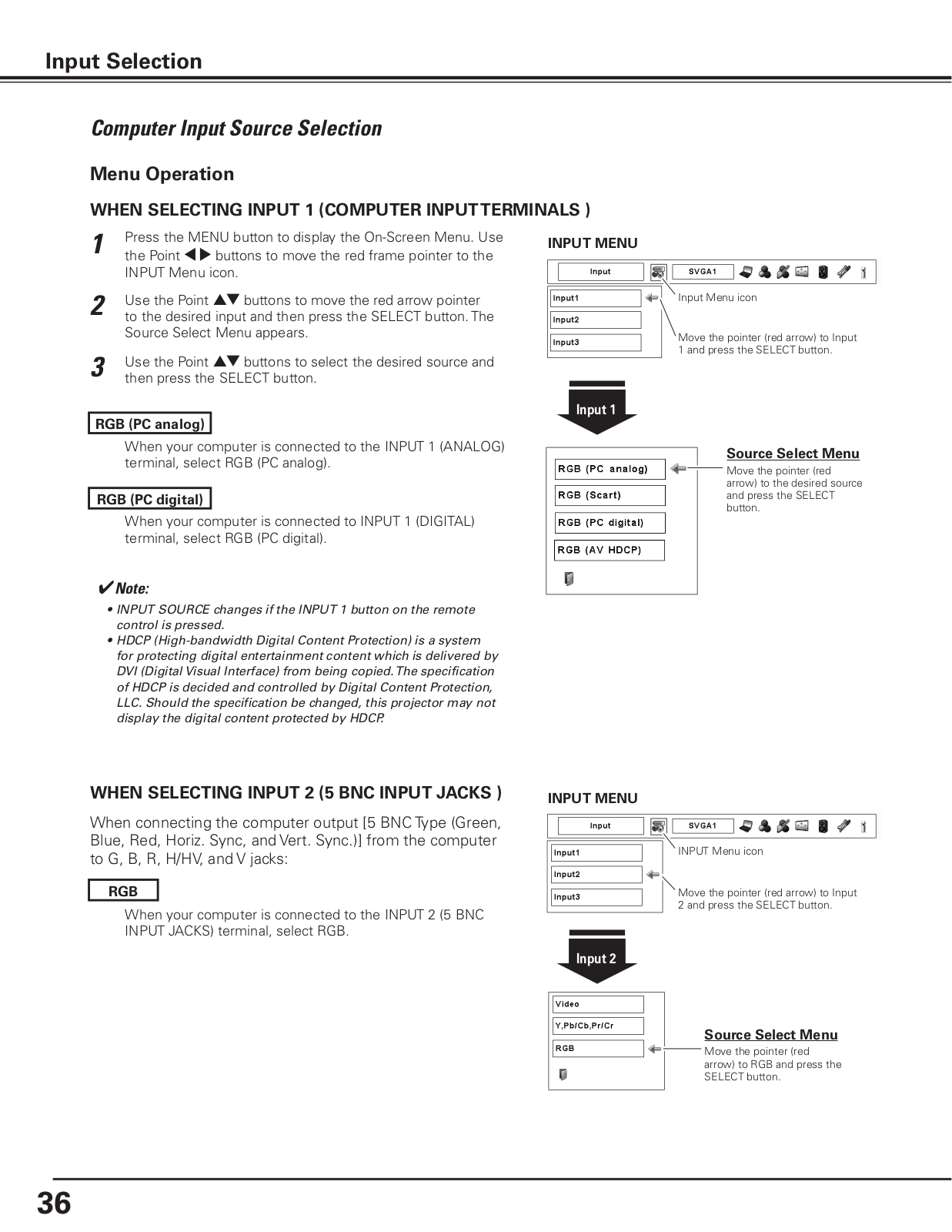

Computer Input Source Selection	36
Video Input Source Selection	37

Trademarks

Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation.

3

To The Owner

Before installing and operating the projector, read this manual thoroughly.

The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come.

Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.

If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the “Troubleshooting” section in the back of this manual. If the problem still persists, contact the dealer where you purchased the projector or the service center.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).. NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT.. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL..

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE

ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE

OWNER'S MANUAL WITH THIS UNIT.

The symbol mark and recycling systems described below apply to EU countries and do not apply to countries in other areas of the world.

Your product is designed and manufactured with high quality materials and components which can be recycled and/or reused.

The symbol mark means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.

Note:

If a chemical symbol is printed beneath the symbol mark, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury, Cd: cadmium, Pb: lead

In the European Union there are separate collection systems for used electrical and electronic equipment, batteries and accumulators.

Please, dispose of them correctly at your local community waste collection/recycling centre.

Please, help us to conserve the environment we live in!

READ AND KEEP THIS OWNER’S MANUAL FOR LATER USE..

Safety Precaution

WARNING: ● THIS APPARATUS MUST BE EARTHED..

●TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE..

–This projector produces intense light from the projection lens. Do not stare directly into the lens, otherwise eye damage could result. Be especially careful that children do not stare directly into the beam.

–Install the projector in a proper position. Otherwise it may result in a fire hazard.

–Allowing the proper amount of space on the top, sides, and rear of the projector cabinet is critical for proper air circulation and cooling of the unit. The diagrams shown here indicates the minimum space required. If the projector is to be built into a compartment or similarly enclosed, these minimum distances must be maintained.

–Do not cover the ventilation slots on the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous.

SIDE and TOP

REAR

1.5' (50 cm)

1.5' (50 cm)

1.5' (50 cm)

3' (1 m)

–If the projector is unused for an extended time, unplug the projector from the power outlet.

–Do not project the same image for a long time. The afterimage may remain on the LCD panels by the characteristic of panel.

CAUTION ON HANGING FROM THE CEILING

When hanging the projector from the ceiling, clean the air intake vents and top of the projector periodically with a vacuum cleaner. If you leave the projector unclean for a long time, the cooling fans can be clogged with dust, and it may cause a

breakdown or a disaster.

Do not set the projector in greasy, wet, or smoky conditions such as IN a kitchen to prevent A Breakdown or a disaster.. If the projector comes in contact with oil or chemicals, it may become deteriorated..

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment, ANSI/NFPA 75.

Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/Data Processing Equipment.

4

Safety Instructions

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Follow all warnings and instructions marked on the projector.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges.

Do not expose this unit to rain or use near water... for

example, in a wet basement, near a swimming pool, etc...

Do not use att achments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Slots and openings in the back and side of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not install the projector near the ventilation duct of airconditioning equipment.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power cord or plug is damaged or frayed.

b.If liquid has been spilled into the projector.

c.If the projector has been exposed to rain or water.

d.If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e.If the projector has been dropped or the cabinet has been damaged.

f.When the projector exhibits a distinct change in performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

NOTE FOR CUSTOMERS IN THE US

Hg LAMP(S) inside this product contain mercury and must be recycled or disposed ofaccording to local, state or federal laws.

5

Safety Instructions

Air Circulation

Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

CAUTION

Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

–Do not put any flammable object or spray can near the projector, hot air is exhausted from the air vents.

–Keep the exhaust vent at least 3’ (1 m) away from any objects.

–Do not touch peripheral parts of the exhaust vent, especially screws and metallic parts. These areas will become hot while the projector is being used.

–Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also may cause fire hazard by heat.

Cooling fans are provided to cool down the projector. The fans’ running speed is changed according to the temperature inside the projector.

Exhaust Vent (Hot air exhaust)

Air flow

IMPORTANT!

Filter Maintenance!!

The projector uses a lamp which generates significant heat. The cooling fans and air vents are provided to dissipate the heat by drawing air into the housing and the filter is located in the intake vents to prevent dust from getting inside of the projector.

In order to care for the projector appropriately, regular cleaning is required. Remove any dirt or dust that has accumulated on the projector.

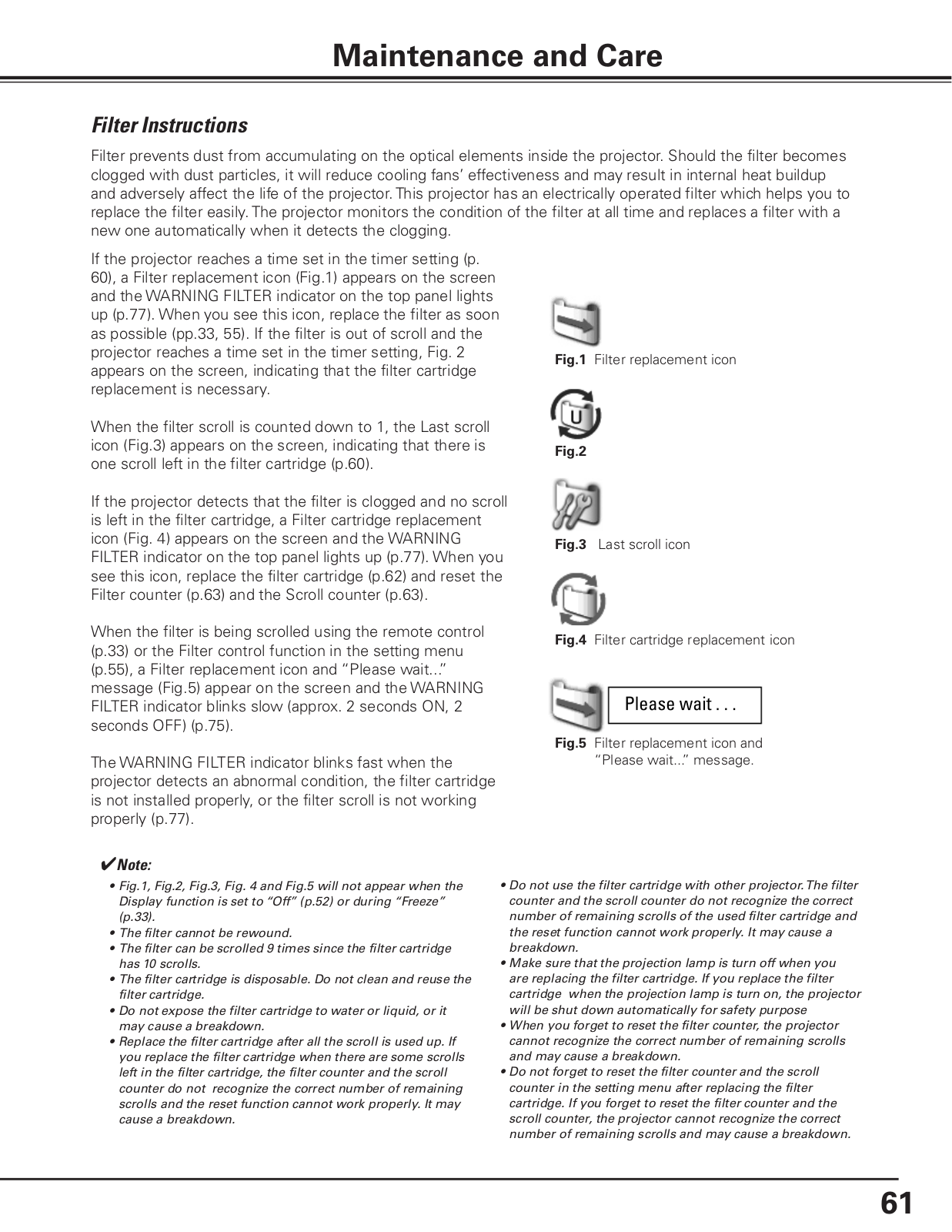

If the projector reaches a time set in the timer setting, a Filter replacement icon (Fig. 1) appears on the screen and WARNING FILTER indicator on the top panel lights up (see below), indicating that the filter replacement is necessary.

If the projector detects that the filter is clogged and no scroll is left in the filter cartridge, a Filter cartridge replacement icon (Fig. 2) appears on the screen and WARNING FILTER indicator on the top panel lights up (see below). Stop using the projector immediately and replace the filter cartridge.

Blocking the air vents and leaving the projector uncleaned for a long time may not only damage the projector and may require costly repairs but may also cause accidents or fire.

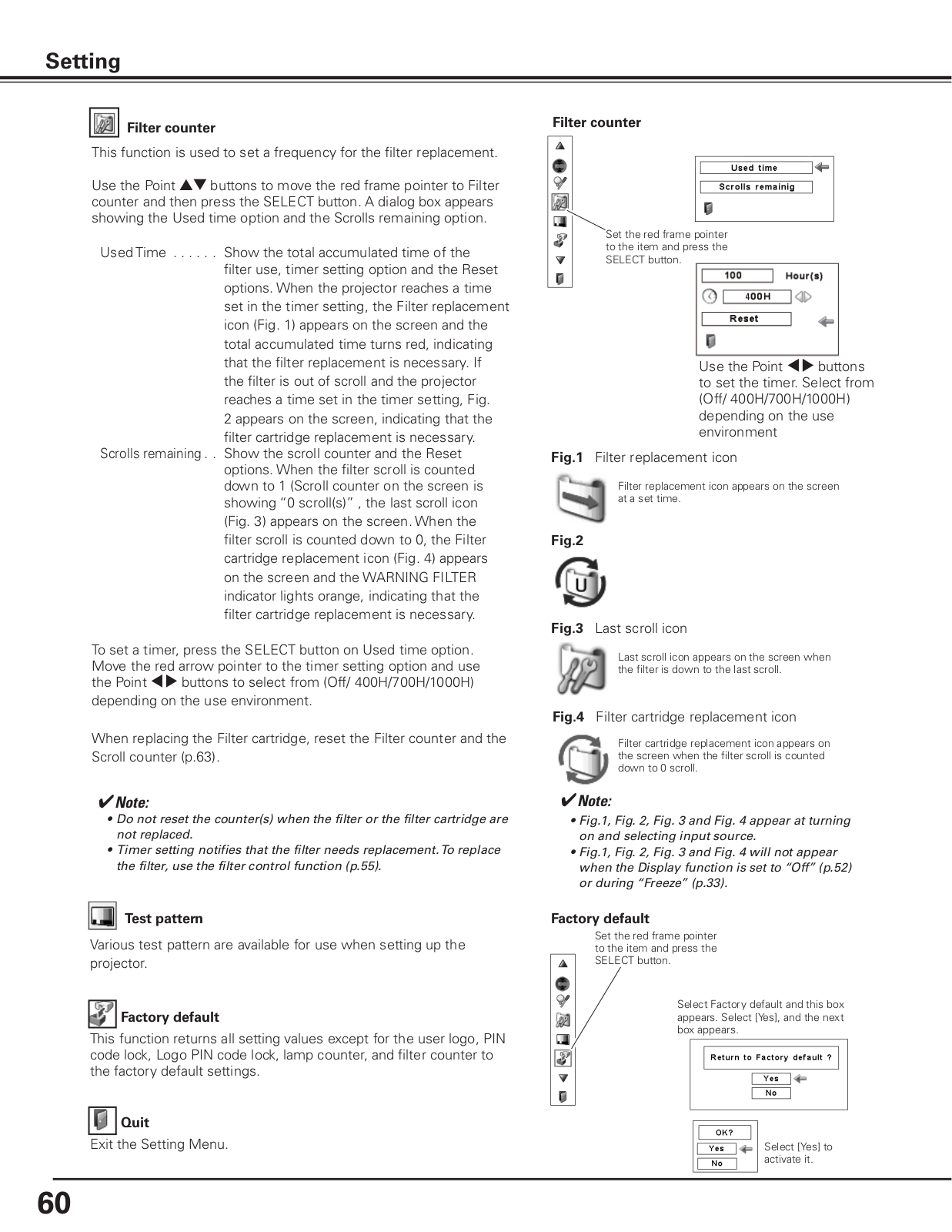

For maintenance of the filter, refer to “Filter counter” on page 60 and “Maintenance and Care” on pages 61–63.

Damages to the projector caused by using an uncleaned filter or improper maintenance will void the warranty on the projector..

Air Intake Vent

Top Panel

Fig..1 Filter replacement icon

Fig..2 Filter cartridge replacement

WARNING FILTER icon indicator

6

Safety Instructions

Installing the Projector in Proper Directions

Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard.

This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane. When installing the projector in downwardly inclined position, install the projector bottom side up.

Note:

• To inverse or reverse the image, set the ceiling function to “On.” (pp. 44, 48)

Positioning Precautions

Avoid positioning the projector as described below when installing.

10˚ 10˚

10˚		Do not tilt the projector more than
		10 degrees from side to side.
10˚

Do not put the projector on either side to project an image.

In upward projection, do not tilt the projector over 10 degrees right and left.

In downward projection, do not tilt the projector over 10 degrees right and left.

10˚ 10˚

CAUTION ON CEILING MOUNTING

For ceiling mounting, you need the ceiling mount kit designed for this projector. When not mounted properly, the projector may fall, causing hazards or injury. For details, consult your dealer. The warranty on this projector does not cover any damage caused by use of any non-

recommended ceiling mount kit or installation of the ceiling mount kit in an improper location.

7

Safety Instructions

Moving the Projector

Use the handle grip when moving the projector.

Retract the adjustable feet to prevent damage to the lens and cabinet when carrying.

When this projector is not in use for an extended period, put it into a suitable case to protect the projector.

CAUTION IN CARRYING OR

TRANSPORTING THE PROJECTOR

– Do not drop or bump the projector, otherwise damages or malfunctions may result.

–When carrying the projector, use a suitable carrying case.

–Do not transport the projector by courier or any other

transport service in an unsuitable transport case. This may cause damage to the projector. For information about transporting the projector by courier or any other transport service, consult your dealer.

– Do not put the projector in a case before it is cooled enough.

Cautions in Handling the Projector

Do not hold the lens or the top cover when lifting or moving the projector. Doing so may cause damage to the lens and the projector.

Care must be taken when handling the projector; do not drop, bump, subject it to strong forces, or put other things on the cabinet.

Do not hold the lens and the peripheral part.

CAUTION

Projection lens is a motorized lens. Please note the followings when using the projector.

● Do not touch the lens while it is moving as this could cause injury to the fingers.

● Never allow children to touch the lens.

8

Compliance

Federal Communications Commission Notice

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Model Number	: LC-X85
Trade Name	: EIKI
Responsible party	: EIKI International, Inc.
Address	: 30251 Esperanza Rancho Santa Margarita CA 92688-2132 U.S.A.
Telephone No.	: 800-242-3454 (949-457-0200)

AC Power Cord Requirement

The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it.

AC Power Cord for the United States and Canada:

	AC Power Cord used in the United States and Canada is listed by the Underwriters
	Laboratories (UL) and certified by the Canadian Standard Association (CSA).
	AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that
	the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be	GROUND
	unable to insert the plug into the outlet, contact your electrician.

AC Power Cord for the United Kingdom:

This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus ASA . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions.

If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. (See Over)

WARNING: A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET..

The Wires in this mains lead are coloured in accordance with the following code: Green-and-yellow ············· Earth

Blue ································· Neutral Brown ······························ Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

WARNING:THIS APPARATUS MUST BE EARTHED..

THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE..

9

Part Names and Functions

Front q

w

e

r t y u i o !0

Back

!1

!2!3

q Indicators

w Top Cover

e Top Cover Release Button

r Infrared Remote Receiver (Front)

t Projection Lens (optional)

y Light-Block Sheet

u Adjustable Feet

i Air Intake Vent

o Filter Cover

!0Lamp Cover

!1Exhaust Vent

CAUTION

Hot air is exhausted from the exhaust

vent. Do not put heat-sensitive objects

near this side.

!2Terminals and Connectors

!3Infrared Remote Receiver (Back)

!4Power Cord Connector

!5Optional Parts Attachment

!6Side Controls

!7Hand Grip

	!4	!5	!6
Bottom	!7	u

10

Part Names and Functions

Rear Terminal

q

w

e

r

t

!0

o

i

u

y

qCOMPUTER INPUT TERMINAL (DIGITAL)

Connect the computer output digital signal to this terminal. The HDTV (HDCP compatible) signal can also be connected (pp.22-23).

wCOMPUTER INPUT TERMINAL (ANALOG)

Connect the computer (or RGB scart) output signal to this terminal (pp.22-23).

e5 BNC INPUT JACKS

Connect the component or composite video output signal from video equipment to VIDEO/Y, Pb/Cb, and Pr/Cr jacks or connect the computer output signal (5 BNC Type [Green, Blue, Red, Horiz. Sync, and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.2223).

rVIDEO INPUT JACK

Connect the component or the composite video output signal from video equipment to this jack (p.23).

tR/C JACK

When using the wired remote control, connect the wired remote control to this jack with a remote control cable.

yUSB CONNECTOR (Series B)

Use this connector when controlling a computer with the remote control of the projector. Connect the USB terminal of your computer to this connector with the supplied USB cable (p.22).

uCONTROL PORT CONNECTOR

When controlling the projector from a computer, connect the computer to this connector with a control cable (p.22).

iAUDIO IN ΙΙ JACK

Connect the audio output (stereo) signal from a computer or video equipment (p.24).

oS-VIDEO INPUT JACK

Connect the S-VIDEO output signal from video equipment to this jack (p.23).

!0AUDIO IN Ι JACK

Connect the audio output (stereo) signal from a computer or video equipment (p.24).

11

Part Names and Functions

Rear Terminal

!3

]

!2

!1

!1MONITOR OUT TERMINAL

This terminal outputs the analog RGB, component or composite video signal that is projected and connected to INPUT 1-3 terminal (pp.22-23).

!2AUDIO MONITOR OUTPUT JACK

This jack outputs the audio signal from computer or video equipment to external audio equipment (p.24).

!3Infrared Remote Receiver (Back)

The infrared remote receiver is also located in the front (pp.10, 16).

Note:

•Use the optional COMPONENT-VGA cable (p.81) and commercially available RCA cable when connecting component or composite video signal to another equipment.

•A Composite video signal is output from the green cord of COMPONENT-VGA cable .

] Kensington Security Slot

This slot is for a Kensington lock used to deter theft of the projector.

*Kensington is a registered trademark of ACCO Brands Corporation.

12

Part Names and Functions

Side Control and Indicators

Side Control

Indicators (on the top panel)

q

wu

e

y

r

t

qON/STAND-BY button

Turn the projector on or off (pp.26–27).

wINPUT button

Select an input source (pp.35–37).

eMENU button

Open or close the On-Screen Menu (p.28).

rPoint ed78 ( VOLUME + / – ) buttons

–Select an item or adjust the value in the OnScreen Menu (p.28).

–Pan the image in Digital zoom + mode (p.44).

–Adjust the volume level (with Point 78buttons) (p.31).

tSHUTTER button

Close and open up the built-in shutter. (p.30)

ySELECT button

–Execute the selected item (p.28).

–Expand or compress the image in the Digital zoom mode (p.44).

uLENS button

Enter the focus, zoom, and lens shift adjustment mode (p.30).

i

o

!0

!1

!2

iPOWER indicator

–Light when in stand-by mode and during operations.

–Blink in the Power management mode (p.56).

oLAMP/SHUTTER indicator

Light red during operations.

Light blue when the shutter is closed (p75).

!0LAMP REPLACE indicator

Light orange when the projection lamp reaches its end of life (pp.64, 76).

!1WARNING FILTER indicator

–Blink slow when the filter is being scrolled (pp. 61, 75).

–Blink fast when the filter scroll is not working properly or the filter cartridge is not installed (pp.61, 77).

–Light orange when the clogging of the filter is detected or the filter counter reaches a time set in the timer setting, urging immediate filter/ filter cartridge replacement (pp.60, 61, 77).

!2WARNING TEMP.. indicator

Blink red when the internal temperature of the projector exceeds the operating range (pp.68, 7577 ).

13

Part Names and Functions

Remote Control

e w q

	r
	t	!3
	y
		!4
	u	!2
	i

o !1

!0

qSTAND-BY button

Turn the projector off (p.27).

wWired Remote jack

Connect the remote control cable to this jack when using as a wired remote control.

eSignal Emission indicator

Light red while a signal is being sent from the remote control to the projector.

rON button

Turn the projector on (p.26).

tAUTO PC button

Automatically adjust the computer image to its optimum setting (pp.32, 39).

yINPUT button

Select a signal (pp.35–37).

uMENU button

Open or close the On-Screen Menu (p.28).

iSCREEN button

Select the screen size (p.32).

oPoint ed 78( VOLUME + / – , MUTE) buttons

–Select an item or adjust the value in the OnScreen Menu (p.28).

–Pan the image in Digital zoom + mode (p.44).

–Adjust the volume level (with Point 78buttons) or mute the sound (with Point dbutton.) (p.31).

!0MOUSE POINTER button

Move a pointer of the projector or a pointer for wireless mouse operation (p.34).

!1SELECT button

–Execute the selected item (p.28).

–Expand or compress the image in the Digital zoom mode (p.44).

!2SHUTTER button

Close and open up the built-in shutter (p.30).

!3INFO.. button

Display the input source information (p.32).

!4L-Click button

Act as the left mouse button for wireless mouse operation (p.34).

To ensure safe operation, observe the following precautions:

–Do not bend, drop, or expose the remote control to moisture or heat.

–For cleaning, use a soft dry cloth. Do not apply benzene, thinner, splay, or any other chemical materials.

14

Part Names and Functions

Remote Control

!5	@6
	@5
!6	@4	@7
		For PIN code
	@3	and remote
!7		control code.

@2

!8

@1

!9

@0

!5D..ZOOM button

Select the Digital zoom +/- mode and resize the image (p.44).

!6INPUT 1 – 3 buttons

Select an input source (INPUT 1 – INPUT 3) (pp.35–37).

!7KEYSTONE button

Correct keystone distortion (p.33).

!8ZOOM ed buttons

Zoom in and out the images (p.32).

!9FOCUS buttons

Adjust the focus (p.32).

@0RESET/ON/ALL-OFF switch

When using the remote control, set this switch to “ON.” Set it to “ALL OFF” for power saving when it is not in use. Slide this switch to “RESET” to initialize the remote control code.

@1FILTER button

Scroll the filter (p.33).

@2LENS SHIFT button

Select the Lens Shift function (p.32).

@3FREEZE button

Freeze the picture on the screen (p.33).

@4P-TIMER button

Operate the P-timer function (p.33).

@5R-CLICK button

Act as the right mouse button for wireless mouse operation (p.34).

@6POINTER button

Act as the On-Off switch for the Pointer (p.33, 34).

@7Number buttons

Act as number buttons. Use these buttons when setting the remote control codes (pp.17, 55) or when entering the PIN code numbers (pp. 26, 54, 58).

15

Part Names and Functions

Remote Control Battery Installation

1	Open the battery
	compartment lid.

Press the lid downward and slide it.

2	Install new batteries into	3	Replace the
	the compartment.		compartment lid.

Two AAA size batteries

For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

To ensure safe operation, please observe the following precautions :

●Use two (2) AAA or LR03 type alkaline batteries.

●Always replace batteries in sets.

●Do not use a new battery with a used battery.

●Avoid contact with water or liquid.

●Do not expose the remote control to moisture or heat.

●Do not drop the remote control.

●If the battery has leaked on the remote control, carefully wipe the case clean and install new batteries.

●Risk of an explosion if battery is replaced by an incorrect type.

●Dispose of used batteries according to the instructions.

Remote Control Receivers and Operating Range

Point the remote control toward the projector (to Infrared Remote Receivers) when pressing the buttons. Maximum operating range for the remote control is about 16.4’ (5 m) and 60 degrees in front and rear of the projector.

Infrared Remote Receivers are provided both in front and back of the projector. You can conveniently use both of the receivers (pp. 10, 56).

Note:

• When hanging the projector from the ceiling, select the Infrared Remote Receiver which is located farther away from the fluorescent light (p.56).

16.4’ (5 m)

16.4’ (5 m)

Wired Remote Control Transmitter

The remote control can be used as a wired remote control. Wired remote control helps you use the remote control outside of the operating range (16.4’/ 5 m). Connect the remote control and

the projector with the remote control cable. Connected with the remote control cable, the remote control does not emit wireless signal.

16

Part Names and Functions

Remote Control Code

The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. See “Remote control” in the Setting Menu on page 55.

1	Press and hold the MENU and a number button (1–8)
	for more than five seconds to switch between the
2	codes.
	To initialize the remote control code, slide the RESET/
	ON/ALL-OFF switch to “RESET,” and then to “ON.” The

initial code is set to Code 1.

MENU button

Number buttons

RESET/ON/ALL

OFF Switch

Press and hold the MENU and a number button (1–8) that corresponds to the remote control code for more than five seconds to switch between the codes.

17

Installation

Adjustable Feet

Projection angle can be adjusted up to 6.5 degrees with the adjustable feet.

Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise.

To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise.

To correct keystone distortion, press the KEYSTONE button on the remote control or select Keystone from the menu (see pages 15, 33, 44, 48).

ADJUSTABLE FEET

18

Installation

Lens Installation

When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the sales dealer for detailed information of the optional lens specifications.

Removing the lens

1	Shift the lens to the center position by using the
	Lens shift function (p. 30).
2	Turn off the projector and unplug the AC power
	cord.
3	While pressing the top cover release button on
	the top cover, slide the top cover toward front to
	remove it.
4	Slide the light-block sheet upward and remove it.
5	Hold the lens with one hand and pull the Lens

Lock Lever upward with the other hand. Remove the lens from the projector.

]Do not touch the glass part of the lens with your hand.

CAUTION

Be careful when handling the lens. Do not drop.

Top cover release button Top cover

Light-block sheet

19

Installation

Attaching the lens to the projector

1

2

Turn off the projector and unplug the AC power cord.

Fit the lens to the projector. Make sure that the lens is fully inserted to the projector.

3	Push the Lens Lock Lever downward. Make sure
	that the lens is properly locked.

4

5

Slide the light-block sheet in the groove to mount.

While pressing the top cover release button on the top cover, slide the top cover back to the projector.

Groove

NOTES ON LENS INSTALLATION

●Do not touch or remove any parts except the lens and related parts. It may result in malfunctions, electrical shock, fire hazard or other accidents.

●Before installing or replacing the lens, check that the Model No. of the Projection Lens matches to the projector.

●For details of the lens and installation, contact the sales dealer where you purchased the projector.

20

Installation

Focus correction

When the lens is attached to the projector and images are being projected onto the screen, the peripheral focus may be out of focus in some localized areas. If this happens, insert the one, of three sizes of spacers, in between the Lens Attachment and the lens to adjust the focus.

Inserting the Spacer corrects the distance on the Lens Adjustment and improves the diagonal focus.

The corrected distance is determined by the thickness of the used spacers. As a guide, the distance is adjusted by approximately 30 mm for each 0.1-mm thickness of the spacers.

There are three types of spacers provided, and there are four of each spacer type. Use these spacers to correct the distance as required.

	Spacer "1"	Correction distance
	Color; Clear	30	mm/for	40-inch
	Thickness; 0.1 mm	projection
	Spacer "2"	Correction distance
	Color; Black	55	mm/for	40-inch
	Thickness; 0.2 mm	projection
	Spacer "3"	Correction distance
	Color; Cream	80	mm/for	40-inch
	Thickness; 0.3 mm	projection

C	A Screen
	40-inch projection

B

D

Distance

Lens Attachment

Spacer A

B

C

D

Lens

A

B

C

D

Screw driver in the lens

Focus adjustment

AH-32011

Set up the projector and project image on the screen.

1..Loosen the Focus Lock Screw on the lens.

2..Rotate the lens to obtain proper focus on center area of the screen.

3..Lock the Focus Lock Screw securely.

When proper focus is not observed at outer area of the screen, proceed the following adjustments.

4..Loosen the Focus Lock Ring on the lens. (Turn the Lock Ring counter-clockwise.)

5..Rotate the lens to obtain proper focus on outer area of the screen.

6..Lock the Focus Lock Ring securely. (Turn the Lock Ring clockwise.)

If proper focus is not observed over the entire screen, repeat above adjustments 1~ 6.

Focus Lock Ring

Focus Lock Screw

BE SURE TO CHECK FOR SAFETY

After installing or replacing the lens, be sure to check the following for safety.

1.Check the lens is securely fixed with the screws.

2.Check no wiring is damaged or tangled on the gear of the lens motor or the other mechanical parts.

3.Check no part is missing, and no mounting part is loose.

Some parts are not used for installation or replacement. Keep these parts for later use.

Note:

• Figures in this manual may differ from the actual product.

21

Installation

Connecting to a Computer (Digital and Analog RGB)

Cables used for connection ( = Cables not supplied with this projector.)

• VGA Cable (One cable is supplied.)	• Serial Cross Cable
• DVI-Digital Cable	• USB Cable
• BNC Cable

USB port

Monitor Output

Monitor Output

Monitor Output

Monitor Input v

Serial out

USB

BNC

DVI-Digital

VGA

VGA

Serial Cross

cable

cable

cable

cable

cable

cable

USB

G B R H/V V

DIGITAL IN

ANALOG IN

MONITOR OUT

CONTROL PORT

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

vSee the next page for the signals that can output to the MONITOR OUT terminal.

22

Installation

Connecting to Video Equipment (Video, S-Video)

Cables used for connection ( = Cables not supplied with this projector.)

•Video Cable (RCA x 1 or RCA x 3)

•BNC Cable

•S-VIDEO Cable

•Scart-VGA Cable

•DVI-Digital Cable

Unplug the power cords of both the projector and external equipment

from the AC outlet before connecting cables.

Monitor Out Signal Table

Input Terminal

Monitor Out

Cable

D-sub15

RGB (PC analog)

YES

Input 1

RGB (SCART)

NO

DVI-D

RGB (PC digital)

NO

RGB (AV HDCP)

NO

RGB

YES

Input 2

5BNC

Video

YES

Q

Y, Cb/Cr

YES

Q

RCA

Y, Cb/Cr

YES

Q

Input 3

S-Video

S-video

NO

Video

Video

YES

Q

Network

NO

Q

A cable with one end D-sub 15 and the other end (Black box) compatible with each equipment is necessary.

Digital Output

Component Video

RGB Scart

S-video

Composite Video

Component Video

Output

(HDCP

Output

(Y, Pb/Cb, Cr/Pr)

Composite Video compatible)

21-pin Output

Output

Refer to the Monitor Out Signal Table (above).

RCA

BNC

DVI-Digital

Scart-VGA

S-video

cable

cable

cable

cable

cable

Video

Y - Pb/Cb - Pr/Cr

Y - Pb/Cb - Pr/Cr

Video

DIGITAL IN

ANALOG IN

MONITOR OUT

S-VIDEO

23

Installation

Connecting for Audio Signal

Cables used for connection ( = Cables not supplied with this projector.)

• Audio Cable

Audio Output Audio Output

(R) (L)

External Audio Equipment

Audio Input

Audio	Audio
cable	cable
(stereo)	(stereo)

			Audio
	AUDIO IN Ι/ΙΙ	AUDIO IN Ι/ΙΙ	cable
			(stereo)
			AUDIO OUT
			(stereo)

Unplug the power cords of both the projector and external equipment from the AC outlet before connecting cables.

Note:

•See the Sound menu to set the Input pattern for AUDIO IN Ι/ΙΙ. (p. 31)

24

Installation

Connecting the AC Power Cord

This projector uses nominal input voltages of 100–120 V or 200– 240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

If you are not sure of the type of power being supplied, consult your authorized dealer or service station.

Connect the projector with all peripheral equipment before turning on the projector.

CAUTION

The AC outlet must be near this equipment and must be easily accessible.

Note:

•Unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet with AC power cord, it is in stand-by mode and consumes a little electric power.

Connect the AC power cord (supplied) to the projector.

NOTE ON THE POWER CORD

AC power cord must meet the requirements of the country where you use the projector.

Confirm the AC plug type with the chart below and proper AC power cord must be used.

If the supplied AC power cord does not match your AC outlet, contact your sales dealer.

Projector side		AC Outlet side
	For the U..S..A.. and Canada	For Continental Europe	For the U..K..
	Ground
To POWER CORD
CONNECTOR on your	To the AC Outlet.	To the AC Outlet.	To the AC Outlet.
projector.	(120 V AC)	(200–240 V AC)	(200–240 V AC)

25

Basic Operation

Turning On the Projector

1	Complete peripheral connections (with a computer,
	VCR, etc.) before turning on the projector.
2	Connect the projector’s AC power cord into an AC
	outlet. The LAMP/SHUTTER indicator lights red and the
	POWER indicator lights green.
3	Press the ON/STAND-BY button on the side control
	or the ON button on the remote control. The LAMP/
	SHUTTER indicator dims and the cooling fans start to
	operate. The preparation display appears on the screen
	and the countdown starts.
4	After the countdown, the input source that was
	selected the last time and the Lamp control status icon

(see page 55) appear on the screen.

If the projector is locked with a PIN code, PIN code

Input Dialog Box will appear. Enter the PIN code as instructed below.

Enter a PIN code

Use the Point ed buttons on the side control or Number buttons on the remote control to enter a number.

When using side control

Use the Point ed buttons on the side control to select a number. Press the Point 8 button to fix the number and move the red frame pointer to the next box. The number changes to “ .” Repeat this step to complete entering a four-digit number. After entering the four-digit number, move the pointer to “Set.” Press the SELECT button so that you can start to operate the projector.

When using remote control

Press the Number buttons on the remote control to enter a number (p.15). When you complete entering a four-digit number, the pointer moves to “Set.” Press the SELECT button so that you can start to operate the projector.

If you fixed an incorrect number, use the Point 7 button to move the pointer to the number you want to correct, and then enter the correct number.

If you entered an incorrect PIN code, “PIN code” and the number ( ) will turn red for a moment. Enter the correct PIN code all over again.

What is PIN code?

PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector.

A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on page 57-58 for locking operation of the projector with your PIN code.

16

The preparation display will disappear after 30 seconds.

Selected Input Source and Lamp control

Lamp control status

See page 55 for the Lamp control status

Note:

•The Lamp replacement icon and the Filter replacement or the Filter cartridge replacement icon may appear on the screen depending on the usage state of the projector.

•When the filter cartridge replacement icon keeps appearing on the screen at turning on the projector for some time and no action is taken to replace the filter cartridge, the projector will be automatically shut down in 3 minutes after turning on to protect the projector. (pp. 61-63, 77)

PIN code Input Dialog Box

After the OK icon disappears, you can operate the projector.

Note:

•When the Logo select function is set to “Off,” the logo will not be shown on the screen (p.53).

•When the “Countdown off” or “Off” is selected in the Display function, the countdown will not be shown on the screen (p.52).

•During the countdown period, all operations are invalid.

•If the PIN code number is not entered within 3 minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

•The “1234” is set as the initial PIN code at the factory.

CAUTION ON HANDLING PIN CODE

If you forget your PIN code, the projector can no longer be started. Take special care in setting a new PIN code; write down the number in a column on page 83 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center.

26

Basic Operation

Turning Off the Projector

1	Press the ON/STAND-BY button on the side control
	or the STAND-BY button on the remote control, and
	“Power off?” appears on the screen.
2	Press the ON/STAND-BY button on the side control or
	the STAND-BY button on the remote control again to
	turn off the projector. The LAMP/SHUTTER indicator
	lights bright and the POWER indicator turns off. After
	the projector is turned off, the cooling fans operate for	“Power off?” disappears after 4 seconds.
	90 seconds. You cannot turn on the projector during this
	cooling down period.
3	When the projector has cooled down enough, the
	POWER indicator lights green and then you can turn on

the projector. To unplug the AC power cord, wait until the projector is completely cooled down.

TO MAINTAIN THE LIFE OF THE LAMP, ONCE YOU

TURN THE PROJECTOR ON, WAIT AT LEAST FIVE

MINUTES BEFORE TURNING IT OFF.

DO NOT UNPLUG THE AC POWER CORD WHILE

COOLING FANS ARE RUNNING OR BEFORE THE

POWER INDICATOR LIGHTS GREEN AGAIN.

OTHERWISE IT WILL RESULT IN SHORTENING OF

THE LAMP LIFE.

DO NOT OPERATE THE PROJECTOR CONTINUOUSLY

WITHOUT REST. CONTINUOUS USE MAY RESULT

IN SHORTENING THE LAMP LIFE. TURN OFF THE

PROJECTOR AND LET STAND FOR ABOUT AN HOUR

IN EVERY 24 HOURS.

Note:

•When the On start function is set to “On,” the projector will be turned on automatically by connecting the AC power cord to an AC outlet (p.56).

•The running speed of cooling fans is changed according to the temperature inside the projector.

•Do not put the projector in a case before the projector is cooled enough.

•If the WARNINGTEMP. indicator blinks red, see “Warning Indicators” on page 68.

•The projector cannot be turned on during the cooling period with the POWER indicator turned off.You can turn it on again after the POWER indicator becomes green again.

27
