E-flite Fury 15 DF BNF Basic User Manual

FJ–2 Fury 15 DF

Instruction Manual / Bedienungsanleitung Manuel d’utilisation / Manuale di Istruzioni

NOTICE

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product.

Meaning of Special Language:

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury. WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high

probability of superﬁ cial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

AGE RECOMMENDATION: Not for children under 14

years. This is not a toy.

WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found

in a Horizon Hobby product, always purchase from Horizon Hobby LLC. or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby LLC. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum.

Safety Precautions and Warnings

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.

• Always keep a safe distance in all directions around your airplanes to avoid collisions or injury. This airplanes is controlled by a radio signal subject to interference from many sources outside your control. Interference can cause momentary loss of control.

• Always operate your airplanes in open spaces away from full-size vehicles, trafﬁ c and people.

• Always carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.).

• Always keep all chemicals, small parts and anything electrical out of the reach of children.

• Always avoid water exposure to all equipment not speciﬁ cally designed and

protected for this purpose. Moisture causes damage to electronics.

• Never place any portion of the airplanes in your mouth as it could cause serious injury or even death.

• Never operate your airplanes with low transmitter batteries.

• Always keep aircraft in sight and under control.

• Always use fully charged batteries.

• Always keep transmitter powered on while aircraft is powered.

• Always remove batteries before disassembly.

• Always keep moving parts clean.

• Always keep parts dry.

• Always let parts cool after use before touching.

• Always remove batteries after use.

• Always ensure failsafe is properly set before ﬂ ying.

• Never operate aircraft with damaged wiring.

• Never touch moving parts.

To register your product online, visit www.e-ﬂ iterc.com

Box Contents

MCT

TBCCF

CFI

Speciﬁ cations

Ducted Fan Unit: EDF Fan Unit

(EFL725013)

Motor: BL15 Ducted Fan Motor, 3700Kv (EFLM3315DF)

ESC: 60-Amp Brushless ESC (EFL725017)

(6) Servos Installed

Receiver: Spektrum™ AR636 6-Channel Sport Receiver

Battery: 3200mAh 14.8V 4-cell 30C Li-Po (EFLB32004S30)

Battery Charger: Prophet Sport Plus 50W AC DC Charger (DYNC2010CA)

Recommended Transmitter:

Full-Range 2.4GHz with Spektrum

technology (DX6i or better)

38.75 in (984mm)

™

DSM2®/DSMX®

Table of Contents

Installed

Required to

Complete

™

Required to

Complete

Required to

Complete

3.3 lbs (1.49 kg)

304 sq. in. (19.6 sq. dm)

Model Assembly ..................................................................................4

Control Horn and Servo Arm Settings ...................................................7

Transmitter Setup ...............................................................................7

Transmitter and Receiver Binding .........................................................8

Battery Installation and ESC Arming .....................................................8

Center of Gravity (CG) .........................................................................9

Control Direction Tests .........................................................................9

Flying Tips and Repairs ......................................................................10

Post Flight .........................................................................................11

Power Component Service .................................................................11

Nose Gear Removal ...........................................................................12

Troubleshooting Guide AS3X .............................................................12

Troubleshooting Guide .......................................................................13

AMA National Model Aircraft Safety Code ...........................................14

Limited Warranty ...............................................................................15

Contact Information ...........................................................................16

FCC Information .................................................................................16

IC Information ....................................................................................16

Compliance Information for the European Union .................................16

Replacement Parts .............................................................................59

Optional Parts ....................................................................................59

36.75 in (933mm)

Preﬂ ight

1 Remove and inspect contents. 2 Read this instruction manual thoroughly. 3 Charge ﬂ ight battery. 4 Fully assemble airplane. 5 Install the ﬂ ight battery in the aircraft (once it has been fully charged). 6 Check the Center of Gravity (CG). 7 Bind aircraft to your transmitter. 8 Make sure linkages move freely.

9 Perform the Control Direction Test with the transmitter. 10 Perform the AS3X Control Direction Test with the aircraft. 11 Adjust ﬂ ight controls and transmitter. 12 Perform a radio system Range Test. 13 Find a safe open area to ﬂ y. 14 Plan ﬂ ight for ﬂ ying ﬁ eld conditions.

Model Assembly

Wing Installation

1. Guide the aileron servo connectors (A) through the hole located to the side of fan unit.

2. Slide the two guide pins (B) of the wing into the two holes in the fuselage.

CAUTION: DO NOT crush or otherwise damage wiring when attaching the wing to the fuselage.

3. Align and attach the wing to the fuselage using a screw (C).

Tip: Carefully support the aircraft while installing or removing screws.

4. Carefully lift the front of the canopy (D) and pull the canopy forward and off the fuselage.

5. Connect both aileron servo connectors (E) to the aileron Y-harness. The left and right servo connectors do not have to be connected to a particular side of the Y-harness.

IMPORTANT: Correct operation of the AS3X system requires connection of both ailerons to the included Y-harness and the AILE channel of the receiver.

When needed, disassemble in reverse order.

FPO

4 X 12mm

Landing Gear Installation

Tip: For belly landing, do not install the main landing gear and see the Nose

Gear Removal section to remove the nose gear from the fuselage.

Main Gear Installation

1. Install each main landing gear strut (A) in a wing mount. The coils on the struts should be facing rearward as shown.

Horizontal Tail Installation

1. Slide the horizontal tail (A) into the slot in the rear of the fuselage

while connecting the left and right elevator servos to the marked

connectors in the fuselage.

IMPORTANT: Ensure the left elevator servo connects to port 5 and the right elevator servo connects to port 3 on the receiver.

CAUTION: DO NOT crush or otherwise damage wiring when attaching the horizontal tail to the fuselage.

2. Install 4 screws in the tail, above and below the elevators.

When needed, disassemble in reverse order.

3 X 12mm (2)

2 X 8mm (2)

Clevis Installation

• Pull the tube from the clevis to the linkage.

• Carefully spread the clevis, then insert the clevis pin into the outer hole in the control horn.

• Move the tube to hold the clevis on the control horn.

Control Surface Centering

After assembly, conﬁ rm that the control surfaces are centered. If the control surfaces are not centered, mechanically center the control surfaces by adjusting the linkages.

IMPORTANT: DO NOT use sub-trim and trim to center the control surfaces. The AS3X system requires sub-trim and trim set at 0.

If adjustment is required, turn the clevis on the linkage to change the length of the linkage between the servo arm and the control horn.

After binding a transmitter to the aircraft receiver, set the trims and sub-trims to 0, then adjust the clevises to center the control surfaces.

Tank Installation

1. If desired for scale appearance, install the tanks (A) in the wing mounts us-

ing 2 screws (B) each. The screws tighten correctly when they are installed as shown.

Tip: For belly landing, remove or do not install the tanks.

When needed, disassemble in reverse order.

2 X 10mm

Control Horn and Servo Arm Settings

The table to the right shows the factory settings for the control horns and servo arms. Fly the aircraft at factory settings before making changes.

Horns Arms

Elevator

Rudder

Ailerons

Transmitter Setup

IMPORTANT: Set up your transmitter before binding your transmitter to the

aircraft.

Transmitters DX6i and Above

Start all transmitter programming with a blank ACRO model (do a model reset), then name the model. Leave all settings at default.

Dual Rates and Expo

Dual Rates and Expo are factory set in the receiver. GEAR / Channel 5 operates 2 ﬂ ight modes: Position 1 is Low Rate, and Position 0 is High Rate.

Take ﬁ rst ﬂ ights in Low Rate ﬂ ight mode.

NOTICE: If oscillation occurs at high speed, refer to the Troubleshooting Guide for more information.

Transmitter and Receiver Binding

Binding Procedure

IMPORTANT: The included AR636 receiver has been programmed for operation in only this aircraft. Refer to the receiver manual for correct setup if the receiver is replaced or is used in another aircraft.

Read the transmitter instructions for binding to a receiver (location of transmitter’s Bind control). Please visit www.bindnﬂ y.com for a complete list

of compatible transmitters.

CAUTION: When using a Futaba® transmitter with a Spektrum DSM

module, you must reverse the throttle channel and rebind. Refer to your Spektrum module manual for binding and failsafe instructions. Refer to your Futaba transmitter manual for instructions on reversing the throttle channel.

1. Make sure the transmitter is powered off.

2. Move the transmitter controls to neutral (ﬂ ight controls: rudder, elevators and ailerons) or to low positions (throttle, throttle trim).**

3. Install a bind plug in the receiver bind port extension.

4. Connect the ﬂ ight battery to the ESC. The ESC will produce a series of sounds. One long tone, then 4 short tones conﬁ rm that the LVC is set correctly for the ESC. The orange bind LED on the receiver will begin to ﬂ ash rapidly.

5. Power on the transmitter while holding the transmitter bind button or switch. Refer to your transmitter’s manual for binding.

6. When the receiver binds to the transmitter, the orange bind light on the receiver will turn solid and the ESC will produce a series of three ascending tones. The tones indicate the ESC is armed, provided the throttle stick and throttle trim are low enough to trigger arming.

7. Remove the bind plug from the bind port extension.

8. Safely store the bind plug (some owners attach the bind plug to their transmitter using two-part loops and clips).

9. The receiver should retain the binding instructions received from the transmitter until another binding is done.

* The throttle will not arm if the transmitter’s throttle control is not put at the lowest position. If you encounter problems, follow the binding instructions and refer to the transmitter troubleshooting guide for other instructions. If needed, contact the appropriate Horizon Product Support ofﬁ ce.

**Failsafe

If the receiver loses transmitter communication, the failsafe will activate. When activated, the airplane controls return to the neutral position established during step 2 of the binding procedure.

Bind Plug Installation

BIND PLUG

Battery Installation and ESC Arming

Battery Selection

We recommend the E-ﬂ ite® 3200mAh 14.8V 4S 30C Li-Po battery (EFLB32004S30). Refer to the Optional Parts List for other E-ﬂ ite batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-ﬂ ite Li-Po battery packs to ﬁ t in the fuselage. Be sure the model balances at the recommended CG.

1. Lower the throttle and throttle trim to the lowest settings. Power on the Transmitter, then wait 5 seconds.

2. Apply hook and loop tape to the bottom of your battery.

3. Remove the canopy hatch.

4. Install the fully charged battery (B) in the center of the battery compartment. See the Adjusting the Center of Gravity instructions for more

information.

5. Make sure the ﬂ ight battery is secured using the hook and loop strap (C).

6. Connect the battery to the ESC (the ESC is now armed).

7. Keep the aircraft immobile and away from wind for 5 seconds or the system will not initialize.

• The ESC will sound a series of tones (refer to step 4 of the binding instructions for more information).

• An LED will light on the receiver. If the ESC sounds a continuous double beep after the ﬂ ight battery is

connected, recharge or replace the battery.

8. Reinstall the canopy hatch.

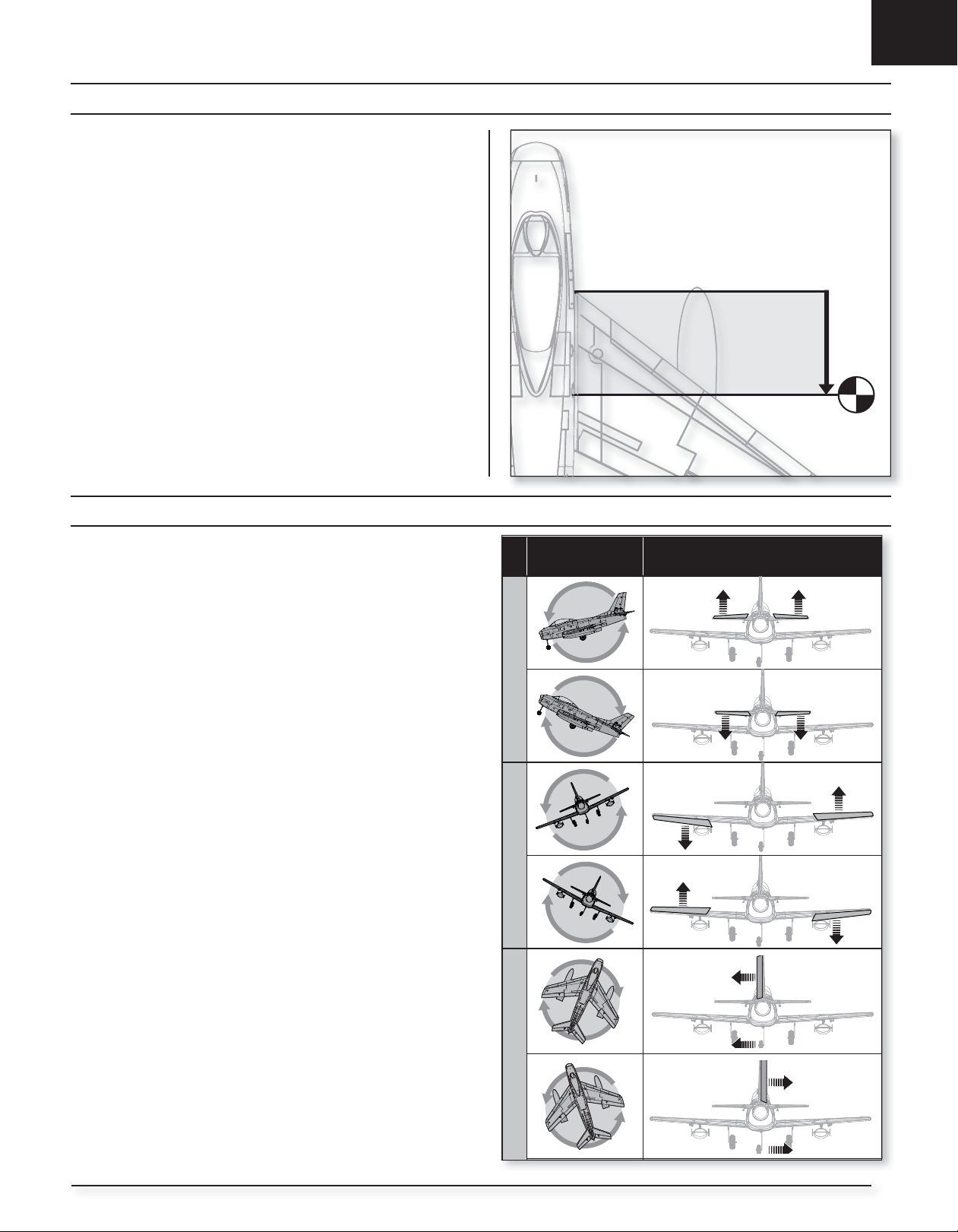

Center of Gravity (CG)

The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB32004S30) installed in the middle of the battery compartment.

6.1 inches back from the leading edge of the wing at the root.

155mm

Control Direction Tests

Assemble the aircraft and bind your transmitter to the receiver before performing these tests. After binding a transmitter to the aircraft receiver, set the trims and sub-trims to 0, then adjust the clevises to center the control surfaces. Move the controls on the transmitter to make sure the aircraft control surfaces move in the proper direction.

AS3X Control Direction Test

This test ensures that the AS3X® control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before performing this test.

1. Advance the throttle to 25% to activate the AS3X system.

2. Fully lower the throttle.

3. Move the entire aircraft as shown and ensure the control surfaces move in the direction indicated in the graphic. If the control surfaces do not respond as shown, do not ﬂ y the aircraft. Refer to the receiver manual for more information.

Once the AS3X system is active, control surfaces may move rapidly. This is normal. AS3X is active until the battery is disconnected.

Aircraft

movement

ElevatorAileronRudder

AS3X Reaction

Flying Tips and Repairs

Consult local laws and ordinances before choosing a ﬂ ying location.

Range Check your Radio System

Before you ﬂ y, range check the radio system. Refer to your speciﬁ c transmitter instruction manual for range test information.

Oscillation

Once the AS3X system is active (after advancing the throttle for the ﬁ rst time), you will normally see the control surfaces react to aircraft movement. In some ﬂ ight conditions you may see oscillation (the aircraft rocks back and forth on one axis due to overcontrol). If oscillation occurs, decrease airspeed. If oscillation persists, refer to the Troubleshooting Guide for more information.

ROG Takeoff

Place the aircraft in position for takeoff (facing into the wind). Select low rates for ﬁ rst takeoff and gradually increase the throttle to full and steer with the rudder. Allow the model to accelerate to ﬂ ying speed, then pull back gently on the elevator and climb to a comfortable altitude.

Hand launch

It is advisable to have a helper for the ﬁ rst few hand launches. Hold the airplane behind the wing with the throwing hand and support the nose with the opposite hand. Run the motor up to full throttle and give a FIRM throw straight ahead. The aircraft should be launched ﬁ rmly with the nose up 5–10 degrees and directly into the wind.

Flying

If this is your ﬁ rst ducted fan aircraft, just remember that because there is no prop blast blowing air over the control surfaces, the controls will not be as responsive at low speeds. The aircraft is easy to ﬂ y, but because it can reach a very high speed, plan your ﬂ ight path to avoid obstacles or people.

Fly the aircraft and trim it for level ﬂ ight at 3/4 throttle. After landing, adjust the linkages mechanically to account for trim changes and then reset the trims to neutral. Ensure the aircraft will ﬂ y straight and level with no trim or sub-trim.

Tip: If using more than 8 clicks of ﬂ ight trim, mechanically adjust the linkage so less trim is needed, or AS3X operation may be affected.

Landing

For your ﬁ rst ﬂ ights with the included or recommended battery pack (EFLB32004S30), set your transmitter timer or a stopwatch to 4 minutes. After 4 minutes, land the aircraft. If at any time the motor pulses, land the air- craft immediately to recharge the ﬂ ight battery. See the Low Voltage Cutoff (LVC) section for more details on maximizing battery health and run time.

Land the aircraft into the wind. Approach the runway at 1/4 to 1/8 throttle. Use the power to control altitude and the elevator to control angle of attack. Once your glide path is established, ﬂ y the aircraft down to about a foot (30 cm) off the runway. Gradually reduce power and ﬂ are the aircraft to touch down on the main wheels ﬁ rst. Reduce elevator input to set the nosewheel on the ground and steer with the rudder stick until the aircraft has come to a stop.

CAUTION: Always lower the throttle after

landing to avoid accidental intake of materials, which could result in possible damage to the rotor and/ or motor and cause personal injury.

NOTICE: After any impact, always ensure the receiver is secure in the fuselage. If you replace the receiver, install the new receiver in the same orientation as the original receiver or damage may result.

NOTICE: Crash damage is not covered under warranty.

NOTICE: When you are ﬁ nished ﬂ ying, never leave the aircraft in direct sunlight

or in a hot, enclosed area such as a car. Doing so can damage the foam.

NOTICE: Always decrease throttle at ground contact.

Low Voltage Cutoff (LVC)

When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The ESC protects the ﬂ ight battery from over-discharge using Low Voltage Cutoff (LVC). Before the battery charge decreases too much, LVC removes power supplied to the motor. Power to the motor pulses, showing that some battery power is reserved for ﬂ ight control and safe landing.

Disconnect and remove the Li-Po battery from the aircraft after use to prevent trickle discharge. Charge your Li-Po battery to about half capacity before storage. During storage, make sure the battery charge does not fall below 3V per cell. LVC does not prevent the battery from over-discharge during storage.

NOTICE: Repeated ﬂ ying to LVC will damage the battery.

Tip: Monitor your aircraft battery’s voltage before and after ﬂ ying by using a

Li-Po Cell Voltage Checker (EFLA111, sold separately).

Repairs

Thanks to the Z-Foam™ material in this aircraft, repairs to the foam can be made using virtually any adhesive (hot glue, regular CA, epoxy, etc). When parts are not repairable, see the Replacement Parts List for ordering by item number. For a listing of all replacement and optional parts, refer to the list at the end of this manual.

NOTICE: Use of CA accelerant on your aircraft can damage paint. DO NOT handle the aircraft until accelerant fully dries.

Belly Landing

If landing on grass without the landing gear, use the same approach as if ﬂ ying with landing gear. Start your ﬂ are with the power off about 1 foot (30 cm) above the ground and hold the nose off until the tail touches down. Try to keep the wings level to prevent clipping a wing on the ground.

Post Flight

Disconnect the ﬂ ight battery from the ESC (Required for Safety

and battery life). 2 Power OFF the transmitter. 3 Remove the ﬂ ight battery from the aircraft. 4 Recharge the ﬂ ight battery.

Power Component Service

CAUTION: Always disconnect the ﬂ ight battery before performing

motor service.

Disassembly

1. Remove the wing, disconnecting servos as needed.

2. Disconnect the motor connectors from the ESC connectors.

3. Remove the 4 screws (A) and fan unit (B) from the fuselage.

4. Remove the screw (C) and spinner (D) from the collet (E).

5. Remove the nut (F) rotor (G), washer (H) backplate (I) and collet from the motor. You will need a tool to turn the nut. Tap lightly on the end of the collet to free the backplate from the collet.

6. Remove 2 screws (J) and the motor (K) from the motor mount (L).

5 Repair or replace all damaged parts.

Store the ﬂ ight battery apart from the aircraft and monitor the

battery charge. Make note of the ﬂ ight conditions and ﬂ ight plan results, planning for

future ﬂ ights.

Not all wiring shown.

7. Remove 2 screws (M) and the housing (N) from the motor.

Assembly

Assemble in reverse order.

• Correctly align and connect the motor wire colors with the ESC wires.

• Ensure the front of the rotor is installed facing the nose of the aircraft.

• A tool is required to tighten the nut on the rotor and collet.

• Ensure the spinner is fully connected for safe operation.

Nose Gear Removal

Tip: For belly landing, remove the nose gear from the fuselage.

1. Remove the 6 screws (A) and the nose cover (B) from the fuselage.

2. Loosen the set screw (C) in the steering arm (D) using a hex wrench, then remove the arm from the nose strut (E).

3. Remove the nose strut from the cover.

4. Disconnect the nose gear linkage (F) from the innermost hole in the steering servo arm (G).

5. Disconnect the steering servo from the servo extension in the fuselage.

CAUTION: DO NOT crush or otherwise damage wiring when attaching the cover to the fuselage.

6. Install the nose cover on the fuselage using the 6 screws.

Troubleshooting Guide AS3X

Problem Possible Cause Solution

Damaged rotor or spinner Replace rotoror spinner

Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed

Oscillation

Inconsistent ﬂ ight performance

Loose receiver Align and secure receiver in fuselage

Loose aircraft controls Tighten or otherwise secure parts (servo, arm, linkage, horn and control surface)

Worn parts Replace worn parts (especially rotor, spinner or servo)

Irregular servo movement Replace servo

Trim is not at neutral If you adjust trim more than 8 clicks, adjust the clevis to remove trim

Sub-Trim is not at neutral No Sub-Trim is allowed. Adjust the servo linkage

Aircraft was not kept immobile for 5 seconds

Power off and on the ESC while keeping the aircraft still for 5 seconds with throttle stick in lowest position

Troubleshooting Guide

Problem Possible Cause Solution

Incorrect response to the AS3X Control Direction Test

Aircraft will not respond to throttle but responds to other controls

Extra fan noise or extra vibration

Reduced ﬂ ight time or aircraft underpowered

Aircraft will not Bind (during binding) to transmitter

Aircraft will not connect (after binding) to transmitter

Control surface does not move

Controls reversed Transmitter settings are reversed

Motor power pulses then motor loses power

Incorrect direction settings in the receiver, which can cause a crash

Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater

Throttle channel is reversed Reverse throttle channel on transmitter Motor disconnected from ESC Make sure motor is connected to the ESC Damaged rotor and spinner, collet or motor Replace damaged parts Rotor is out of balance Balance or replace rotor Prop nut is too loose Tighten the prop nut Spinner is not tight or fully seated in place Tighten the spinner or remove the spinner and turn it 180 degrees

Flight battery charge is low Completely recharge ﬂ ight battery Flight battery damaged Replace ﬂ ight battery and follow ﬂ ight battery instructions

Flight conditions may be too cold Make sure battery is warm before use Battery capacity too low for flight conditions Replace battery or use a larger capacity battery

Transmitter too near aircraft during binding process

Aircraft or transmitter is too close to large metal object, wireless source or another transmitter

The bind plug is not installed correctly in the bind port Install bind plug in bind port and bind the aircraft to the transmitter Flight battery/transmitter battery charge is too low Replace/recharge batteries Bind switch or button not held long enough during

bind process Transmitter too near aircraft during connecting

process Aircraft or transmitter is too close to large metal

object, wireless source or another transmitter Bind plug left installed in bind port Rebind transmitter to the aircraft and remove the bind plug before cycling power Aircraft bound to different model memory

(ModelMatch Flight battery/Transmitter battery charge is too low Replace/recharge batteries Transmitter may have been bound to a different air-

craft using different DSM protocol Control surface, control horn, linkage or servo

damage Wire damaged or connections loose Do a check of wires and connections, connect or replace as needed Transmitter is not bound correctly or the incorrect

airplanes was selected Flight battery charge is low Fully recharge ﬂ ight battery BEC (Battery Elimination Circuit) of the ESC is

damaged

ESC uses default soft Low Voltage Cutoff (LVC) Recharge ﬂ ight battery or replace battery that is no longer performing Weather conditions might be too cold Postpone flight until weather is warmer Battery is old, worn out, or damaged Replace battery Battery C rating might be too small Use recommended battery

radios only)

DO NOT ﬂ y. Correct the direction settings (refer to the receiver manual), then ﬂ y

Move powered transmitter a few feet from aircraft, disconnect and reconnect ﬂ ight battery to aircraft

Move aircraft and transmitter to another location and attempt binding again

Power off transmitter and repeat bind process. Hold transmitter bind button or switch until receiver is bound

Move powered transmitter a few feet from aircraft, disconnect and reconnect ﬂ ight battery to aircraft

Move aircraft and transmitter to another location and attempt connecting again

Select correct model memory on transmitter

Bind aircraft to transmitter

Replace or repair damaged parts and adjust controls

Re-bind or select correct airplanes in transmitter

Replace ESC

Perform the Control Direction Test and adjust the controls on transmitter appropriately

AMA National Model Aircraft Safety Code

Effective January 1, 2014

A. GENERAL

A model aircraft is a non-human-carrying aircraft capable of sustained ﬂ ight in the atmosphere. It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model ﬂ ights must be conducted in accordance with this safety code and any additional rules speciﬁ c to the ﬂ ying site.

1. Model aircraft will not be ﬂ own: (a) In a careless or reckless manner. (b) At a location where model aircraft activities are prohibited.

2. Model aircraft pilots will: (a) Yield the right of way to all man carrying aircraft. (b) See and avoid all aircraft and a spotter must be used when appropriate. (AMA Document #540-D.) (c) Not ﬂ y higher than approximately 400 feet above ground level within three (3) miles of an airport, without notifying the airport operator. (d) Not interfere with operations and trafﬁ c patterns at any airport, heliport or seaplane base except where there is a mixed use agreement. (e) Not exceed a takeoff weight, including fuel, of 55 pounds unless in compliance with the AMA Large Model Aircraft program. (AMA Document 520-A.) (f) Ensure the aircraft is identiﬁ ed with the name and address or AMA number of the owner on the inside or afﬁ xed to the outside of the model aircraft. (This does not apply to model aircraft ﬂ own indoors). (g) Not operate aircraft with metal-blade propellers or with gaseous boosts except for helicopters operated under the provisions of AMA Document #555. (h) Not operate model aircraft while under the inﬂ uence of alcohol or while using any drug which could adversely affect the pilot’s ability to safely control the model. (i) Not operate model aircraft carrying pyrotechnic devices which explode or burn, or any device which propels a projectile or drops any object that creates a hazard to persons or property.

Exceptions:

• Free Flight fuses or devices that burn producing smoke and are

securely attached to the model aircraft during ﬂ ight.

• Rocket motors (using solid propellant) up to a G-series size may

be used provided they remain attached to the model during ﬂ ight. Model rockets may be ﬂ own in accordance with the National Model Rocketry Safety Code but may not be launched from model aircraft.

• Ofﬁ cially designated AMA Air Show Teams (AST) are authorized to

use devices and practices as deﬁ ned within the Team AMA Program Document (AMA Document #718). (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A).

3. Model aircraft will not be ﬂ own in AMA sanctioned events, air shows or

model demonstrations unless: (a) The aircraft, control system and pilot skills have successfully demonstrated all maneuvers intended or anticipated prior to the speciﬁ c event. (b) An inexperienced pilot is assisted by an experienced pilot.

B. RADIO CONTROL

1. All pilots shall avoid ﬂ ying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and property of others.

2. A successful radio equipment ground-range check in accordance with manufacturer’s recommendations will be completed before the ﬁ rst ﬂ ight of a new or repaired model aircraft.

3. At all ﬂ ying sites a safety line(s) must be established in front of which all ﬂ ying takes place (AMA Document #706.) (a) Only personnel associated with ﬂ ying the model aircraft are allowed at or in front of the safety line. (b) At air shows or demonstrations, a straight safety line must be established. (c) An area away from the safety line must be maintained for spectators. (d) Intentional ﬂ ying behind the safety line is prohibited.

4. RC model aircraft must use the radio-control frequencies currently allowed by the Federal Communications Commission (FCC). Only individuals properly licensed by the FCC are authorized to operate equipment on Amateur Band frequencies.

5. RC model aircraft will not operate within three (3) miles of any pre-existing ﬂ ying site without a frequency-management agreement (AMA Documents #922 and #923.)

6. With the exception of events ﬂ own under ofﬁ cial AMA Competition Regulations, excluding takeoff and landing, no powered model may be ﬂ own outdoors closer than 25 feet to any individual, except for the pilot and the pilot’s helper(s) located at the ﬂ ight line.

7. Under no circumstances may a pilot or other person touch a model aircraft in ﬂ ight while it is still under power, except to divert it from striking an individual.

8. RC night ﬂ ying requires a lighting system providing the pilot with a clear view of the model’s attitude and orientation at all times. Hand-held illumi nation systems are inadequate for night ﬂ ying operations.

9. The pilot of a RC model aircraft shall: (a) Maintain control during the entire ﬂ ight, maintaining visual contact without enhancement other than by corrective lenses prescribed for the pilot. (b) Fly using the assistance of a camera or First-Person View (FPV) only in accordance with the procedures outlined in AMA Document #550. (C) Fly using the assistance of autopilot or stabilization system only in ac cordance with the procedures outlined in AMA Document #560.

4. When and where required by rule, helmets must be properly worn and

fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or comply with comparable standards.

Limited Warranty

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modiﬁ cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy

Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, ﬁ nal assembly, modiﬁ cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conﬂ ict of law principals). This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_renderservice-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support ofﬁ ce.

Warranty Requirements For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty

conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service Should your service not be covered by warranty, service will be

completed and payment will be required without notiﬁ cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to

payment of the service without notiﬁ cation. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-servicecenter.

WARRANTY SERVICES Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold noncompliant Product for a period of 60 days from notiﬁ cation, after which it will be discarded.

C u

Contact Information

Country of Purchase Horizon Hobby Phone Number/Email Address Address

United States of

America

United Kingdom

Germany

France

China

Horizon Service Center

(Repairs and Repair Requests)

Horizon Product Support

(Product Technical Assistance)

Sales

Service/Parts/Sales:

Horizon Hobby Limited Horizon Technischer Service service@horizonhobby.de Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100

Service/Parts/Sales:

Horizon Hobby SAS

Service/Parts/Sales:

Horizon Hobby – China

servicecenter.horizonhobby.com/

RequestForm/

www.quickbase.com/db/

bghj7ey8c?a=GenNewRecord

888-959-2305

sales@horizonhobby.com

888-959-2305

sales@horizonhobby.co.uk

+44 (0) 1279 641 097

infofrance@horizonhobby.com 11 Rue Georges Charpak

+33 (0) 1 60 18 34 90

info@horizonhobby.com.cn Room 506, No. 97 Changshou Rd.

+86 (021) 5180 9868

Champaign, Illinois, 61822 USA

Units 1–4 , Ployters Rd, Staple Tye

Harlow, Essex, CM18 7NS, United Kingdom

Christian-Junge-Straße 1

25337 Elmshorn, Germany

77127 Lieusaint, France

Shanghai, China 200060

FCC Information

4105 Fieldstone Rd

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modiﬁ cations not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment. This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

IC Information

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not

Compliance Information for the European Union

Declaration of Conformity

(in accordance with ISO/IEC 17050-1) No. HH2014082404

Product(s): Fury 15 DF BNF Basic Item Number(s): EFL7250 Equipment class: 1

The object of declaration described above is in conformity with the requirements of the speciﬁ cations listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive 2004/108/EC:

EN 301 489-1 V1.9.2: 2012 EN301 489-17 V2.1.1: 2009

cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection

and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city ofﬁ ce, your household waste disposal service or where you purchased the product.

EN55022:2010 + AC:2011 EN55024:2010

Signed for and on behalf of: Horizon Hobby, LLC Champaign, IL USA August 24, 2014

Executive Vice President Product Divisions

Mike Dunne

Horizon Hobby, LLC

Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio

Part # | Nummer Numéro | Codice

EFL725001

EFL725002 EFL725004

EFL725005

EFL725006 EFL725007 EFL725008 EFL725009

EFL725010

EFL725011

EFL725012

EFL725013 EFL725014

EFLM3315DF

EFL725017 EFLR7155

EFLR725015

SPMAR636

Description Beschreibung Description Descrizione

Fuselage w/o hatch: Fury 15 DF E-ﬂ ite Fury 15: Rumpf ohne Haube

Fury 15 DF - Fuselage sans trappe

Fusoliera senza portello: Fury

15 DF Wing: Fury 15 DF E-ﬂ ite Fury 15: Tragﬂ äche Fury 15 DF - Aile Ala: Fury 15 DF Stabilizer: Fury 15 DF E-ﬂ ite Fury 15: Leitwerk Fury 15 DF - Stabilisateur Stabilizzatore: Fury 15 DF

Fin w/ Rudder: Fury 15 DF E-ﬂ ite Fury 15: Finne mit Ruder

Fury 15 DF - Dérive avec gouverne

Deriva con timone: Fury 15 DF

Fuse Hatch: Fury DF 15 E-ﬂ ite Fury 15: Haube f. Rumpf Fury 15 DF - Trappe de fuselage Fusibile portello: Fury 15 DF Landing Gear Set: Fury 15 DF E-ﬂ ite Fury 15: Fahrwerk Fury 15 DF - Train d’atterrissage Set carrello: Fury 15 DF Canopy: Fury 15 DF E-ﬂ ite Fury 15: Kabinenhaube Fury 15 DF - Verrière Capottina: Fury 15 DF Screw Set: Fury 15 DF E-ﬂ ite Fury 15: Schraubenset Fury 15 DF - Set de visserie Set viti: Fury 15 DF

Decal Set: Fury 15DF E-ﬂ ite Fury 15: Dekorbogen

Fury 15 DF - Planche de décoration

Set adesivi: Fury 15 DF

Pushrod Set: Fury 15 DF E-ﬂ ite Fury 15: Gestängeset Fury 15 DF - Tringleries Set barrette comandi: Fury 15 DF

Drop Tank Set: Fury 15 DF E-ﬂ ite Fury 15: Abwurftank Set

Fury 15 DF - Set de réservoirs largables

Set serbatoi alari: Fury 15 DF

EDF Unit: Fury 15 DF E-ﬂ ite Fury 15: EFD Einheit Fury 15 DF - Turbine Ventola EDF: Fury 15 DF EDF Rotor: Fury 15 DF E-ﬂ ite Fury 15: Impeller Rotor Fury 15 DF - Rotor de turbine Rotore EDF: Fury 15 DF

BL15 Ducted Fan Motor, 3700Kv E-ﬂ ite Impeller Motor 3700Kv

Moteur BL 15, 3700Kv pour turbine

BL15 motore per ventola 3700Kv

60-AMP Brushless ESC E-ﬂ ite 60A Brushless Regler Contrôleur brushless 60A ESC 60-AMP Brushless 13g Digital Servo: Fury 15 DF E-ﬂ ite Fury 15: 13g Digital Servo Fury 15 DF - Servo digital 13g Servo digitale 13g: Fury 15 DF

Servo Gear Set: Fury 15 DF E-ﬂ ite Fury 15: Servogetriebe

Spektrum AR636 6-Channel

AS3X

Sport Receiver

Spektrum AR636 6-Kanal AS3X Sport Empfänger

Fury 15 DF - Set de pignons pour servo

Récepteur Spektrum AR636 6 voies AS3X

Set ingranaggi servo: Fury 15 DF

Ricevitore Spektrum AR636

6-canali AS3X Sport

Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali

Part # | Nummer Numéro | Codice

EFLA250

EFLAEC302 EC3 Battery Connector, Female (2) EC3 Akkukabel, Buchse (2) Prise EC3 femelle (2pc) EC3 Connettore femmina x batteria (2)

EFLAEC303

EFLA111 Li-Po Cell Voltage Checker Li-Po Cell Voltage Checker Testeur de tension d’éléments Li-Po Voltmetro veriﬁ ca batterie LiPo EFLB32004S30 14.8V 4S 30C 3200MAH Li-Po 14.8V 4S 30C 3200mAh LiPo 14.8V 4S 30C 3200MAH Li-Po 14.8V 4S 30C 3200MAH Li-Po

DYNC2010

DYN1405

DYN1400

Description Beschreibung Description Descrizione

Park Flyer Tool Assortment, 5 pc

EC3 Device/Battery Connector, Male/Female

Prophet Sport Plus 50W AC DC Charger

Li-Po Charge Protection Bag, Large

Li-Po Charge Protection Bag, Small

DX6i DSMX 6-Channel Transmitter Spektrum DX6i DSMX 6-Kanal Sender Emetteur DX6i DSMX 6 voies DX6i DSMX Trasmettitore 6 canali DX6 DSMX 6-Channel Transmitter Spektrum DX6 DSMX 6-Kanal Sender Emetteur DX6 DSMX 6 voies DX6 DSMX Trasmettitore 6 canali DX7s DSMX 7-Channel Transmit-

ter DX8 DSMX 8-Channel Transmitter Spektrum DX8 DSMX 8 Kanal Sender Emetteur DX8 DSMX 8 voies DX8 DSMX Trasmettitore 8 canali DX9 DSMX 9-Channel Transmitter Spektrum DX9 DSMX 9 Kanal Sender Emetteur DX9 DSMX 9 voies DX9 DSMX Trasmettitore 9 canali DX10t DSMX 10-Channel

Transmitter DX18 DSMX 18-Channel

Transmitter

E-ﬂ ite Park Flyer Werkzeugsortiment; 5 teilig

EC3 Kabelsatz, Stecker/Buchse Prise EC3 male/femelle

Dynamite Ladegerät Prophet Sport Plus 50W AC/DC EU

Dynamite LiPoCharge Protection Bag groß

Dynamite LiPoCharge Protection Bag klein

Spektrum DX7s DSMX 7 Kanal Sender Emetteur DX7s DSMX 7 voies DX7s DSMX Trasmettitore 7 canali

Spektrum DX10t DSMX 10 Kanal Sender

Spektrum DX18 DSMX 18 Kanal Sender

Assortiment d’outils park ﬂ yer, 5pc

Chargeur Prophet Sport Plus 50W AC/DCCaricatore Prophet Sport Plus 50W

Sac de charge Li-Po, grand modèle

Sac de charge Li-Po, petit modèle Busta protezione piccola par LiPo

Emetteur DX10t DSMX 10 voies DX10t DSMX Trasmettitore 10 canali

Emetteur DX18 DSMX 18 voies DX18 DSMX Trasmettitore 18 canali

Park Flyer assortimento attrezzi, 5 pc

EC3 Connettore batteria maschio/ femmina

AC DC Sacchetto grande di protezione per

carica LiPo

5959

E-ﬂ ite, AS3X, Delta-V, EC3, Prophet, DSM, DSM2, DSMX, the DSMX logo, Z-Foam, Bind-N-Fly, the BNF logo, and ModelMatch are trademarks or registered trademarks of Horizon Hobby, LLC.

The Spektrum trademark is used with permission of Bachmann Industries, Inc.

Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan. All other trademarks, service marks and logos are property of their respective owners.

Patents pending.

http://www.e-ﬂ iterc.com/

EFL7250

Created 08/14 40860

E-flite Fury 15 DF BNF Basic User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
