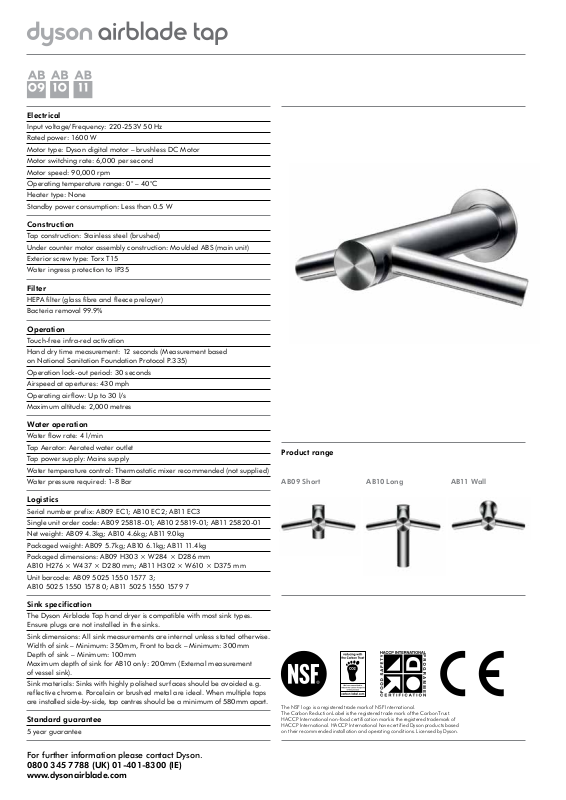

Dyson Airblade Tap Technical Specifications

Electrical

Input voltage/Frequency: 220-253V 50 Hz

Rated power: 1600 W

Motor type: Dyson digital motor – brushless DC Motor

Motor switching rate: 6,000 per second

Motor speed: 90,000 rpm

Operating temperature range: 0° – 40 °C

Heater type: None

Standby power consumption: Less than 0.5 W

Construction

Tap construction: Stainless steel (brushed)

Under counter motor assembly construction: Moulded ABS (main unit)

Exterior screw type: Torx T15

Water ingress protection to IP35

Filter

HEPA filter (glass fibre and fleece prelayer)

Bacteria removal 99.9%

Operation

Touch-free infra-red activation

Hand dry time measurement: 12 seconds (Measurement based
on National Sanitation Foundation Protocol P.335)

Operation lock-out period: 30 seconds

Airspeed at apertures: 430 mph

Operating airflow: Up to 30 l/s

Maximum altitude: 2,000 metres

Water operation

Water flow rate: 4 l/min

Tap Aerator: Aerated water outlet

Tap power supply: Mains supply

Water temperature control: Thermostatic mixer recommended (not supplied)

Water pressure required: 1-8 Bar

Logistics

Serial number prefix: AB09 EC1; AB10 EC2; AB11 EC3

Single unit order code: AB09 25818-01; A B10 25819- 01; AB11 25820-01

Net weight: AB09 4.3kg; AB10 4.6kg; AB11 9.0kg

Packaged weight: AB09 5.7kg; AB10 6.1kg; AB11 11.4kg

Packaged dimensions: AB09 H303 × W284 × D286 mm
AB10 H276 × W437 × D280 mm; AB11 H302 × W610 × D375 mm

Unit barcode: AB09 5025 1550 1577 3;
AB10 5025 1550 1578 0; AB11 5025 1550 1579 7

Sink specification

The Dyson Airblade Tap hand dr yer is compatible with most sink types.
Ensure plugs are not installed in the sinks.

Sink dimensions: All sink measurements are internal unless stated other wise.
Width of sink – Minimum: 350mm, Front to back – Minimum: 300mm
Depth of sink – Minimum: 100mm
Maximum depth of sink for AB10 only: 200mm (External measurement
of vessel sink).

Sink materials: Sinks with highly polished surfaces should be avoided e.g.
reflective chrome. Porcelain or brushed metal are ideal. When multiple taps
are installed side-by-side, tap centres should be a minimum of 580mm apart.

Standard guarantee

5 year guarantee

Product range

AB09 Short AB10 Long AB11 Wall

The NSF l ogo is a registe red trade mar k of NSF Inter national.
The Car bon Reductio n Label is the re gistered tr ade mark of the C arbon Trust.
HACCP I nternation al non-food ce rtificat ion mark is the re gistered tr ademark of
HACCP I nternation al. HACCP Inte rnational ha ve certifi ed Dyson prod ucts based
on their r ecommended i nstallation a nd operating c onditions. L icensed by Dys on.

For further information please contact Dyson.

0800 345 7788 (UK) 01-401-8300 (IE)
www.dysonairblade.com

TECHNICAL SPECIFICATION

297 286

SIDE ELEVATIONFRONT ELEVATION

Fixing
locations
(4)

Water
entry point

50.8

Fixing
locations
(4)

266

Rear cable
entry point

52.2

Floor

142

FLOOR

Tap dimensions

AB09 Height 159mm Width 297mm Depth 286mm

Motor bucket dimensions

AB09 Height 266mm Width 142mm Depth 189mm

For further information please contact Dyson.

0800 345 7788 (UK) 01-401-8300 (IE)
www.dysonairblade.com

All dimensions shown
in mm (+/-5mm)

Minimum clearance

Z 100mm clearance from floor.
