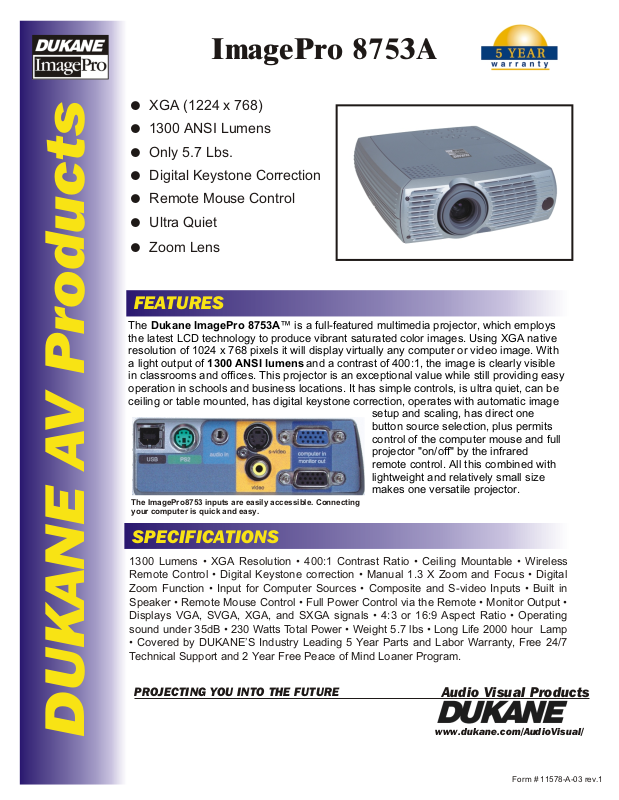

Dukane ImagePro 8753A User Manual

ImagePro 8753A
! XGA (1224 x 768)
! 1300 ANSI Lumens
! Only 5.7 Lbs.
! Digital Keystone Correction
! Remote Mouse Control
! Ultra Quiet
! Zoom Lens
FEATURES
setup and scaling, has direct one button source selection, plus permits control of the computer mouse and full projector "on/off" by the infrared remote control. All this combined with lightweight and relatively small size makes one versatile projector.
The ImagePro8753 inputs are easily accessible. Connecting your computer is quick and easy.
DUKANE AV Products
SPECIFICATIONS
1300 Lumens • XGA Resolution • 400:1 Contrast Ratio • Ceiling Mountable • Wireless Remote Control • Digital Keystone correction • Manual 1.3 X Zoom and Focus • Digital Zoom Function • Input for Computer Sources • Composite and S-video Inputs • Built in Speaker • Remote Mouse Control • Full Power Control via the Remote • Monitor Output • Displays VGA, SVGA, XGA, and SXGA signals • 4:3 or 16:9 Aspect Ratio • Operating sound under 35dB • 230 Watts Total Power • Weight 5.7 lbs • Long Life 2000 hour Lamp
• Covered by DUKANE’S Industry Leading 5 Year Parts and Labor Warranty, Free 24/7 Technical Support and 2 Year Free Peace of Mind Loaner Program.
PROJECTING YOU INTO THE FUTURE
Audio Visual Products
www.dukane.com/AudioVisual/
Form # 11578-A-03 rev.1
ImagePro 8753A XGA Data and Video Projector Model 28A8753A
Specifications (Specifications are subject to change without notice)
Device Type 0.7”x 3 Poly-Silicon Brightness 1300 ANSI Lumens Resolution 1024 x 768 (H x V), XGA Contrast 400:1 Scanning Frequency fh 15-100 kHz, fv 43-130 Hz Lens Manual Zoom, 1.3X Image Offset 50% Keystone Correction Digital, adjustable, +/- 15° Aspect Ratio 4:3, 16:9, Selectable Focus Range, Throw 5 to 30ft. Image Range, Screen 40 to 210 inches, diagional Computer VGA, SVGA, XGA,SXGA, Compatibility Mac, Mac 13” and Mac 16,”
Mac 19”, Mac 21”
Video Compatibility NTSC, PAL, SECAM, EDTV,
S-Video
Image Control Freeze function, Electronic
Magnification and Pan
Mouse Control (remote) Use PS/2 or USB Projection Configuration Front/rear/ceiling
Remote Power Full “off/on” by remote control Color Reproduction 24 bit (16.7 million) Lamp 132W UHP Lamp Life 2000 hours (typical) Audio Speaker 1 x 1watt Inputs, Video (1) Min DIN 4-pin, S-Video
(1) RCA, composite Video
Inputs, Computer (1) Signal; D-sub 15 pin,RGB Inputs, Audio (1) Audio, Stereo mini jack Outputs (1) Monitor 15 pin, D-sub, RGB Control
Fan Levels (noise) 34 db Very quiet Power AC100-240V Size
(WxHxD)
Weight 5.7 lbs Shipping Weight 15 lbs. Carton Size 15.5” x 13.5” x 17” (WxHxL) Accessories Included Remote control with Batteries,
Operating Temperature +5° to 40°C (41°- 104°F)
(1) PS/2 (1)USB (B-type) mouse
50/60 Hz, 200 watt/ 230 watt max.
10" x 3.7" x 12"
Power cord, Audio cable, Composite video cable, RGB Computer cable, operators manual, and soft carrying bag.
High XGA Resolution and Value
The Dukane ImagePro 8753A™ is a full-featured electronic imaging projector for education and office applications. With XGA resolution it can project images, which match or exceed those produced by almost all the computers used today. It provides an exceptional image at a reasonable investment. To simplify any application, the projector is automatically compat­ible with today’s computer and video signals.
With an image of 1300 ANSI lumens and a contrast of 400:1, the image is clearly visible in most classrooms and offices. It is a sharp 1024 x 768 pixel image, that is rock solid with satu­rated colors for hours of pleasant viewing. Freedom of movement for the operator is possible with an easy to use infrared (IR) remote control included with the projector. A second set of controls is on the projector. A 1.3X zoom lens permits matching the image size to that of the screen.
The projector’s automatic scaling circuit provides correctly sized images for computer inputs of VGA, SVGA, XGA, and SXGA resolutions along with the MAC equivalents. Also, video signals in composite or s-video format from a camera, VCR, or DVD player can be displayed. To provide a mixed media class or presentation, the IR remote control can switch the projector between the composite, s-video, and computer inputs. Thus, the projector image from a computer on a web site can easily be switched to the image from a VCR or that from a local camera.
The remote control can also operate the computer mouse functions using the computer’s PS-2 or USB ports. Other remote control functions permit enlargement of an area of the image (zoom) and movement of the enlarged area (pan). For video an image can be “frozen”. A “digital keystone” function lets the user adjust the image width so it always correct
The ImagePro 8753A can be used for normal front or rear screen projection. The image can also be switched for ceiling mounts. In all cases the whisper quiet cooling system never disturbs the room. A standard monitor output exists for special cases where the image must be locally viewed.
At less than 6 pounds the 8753A can be easily moved, using the included bag, to a variety of locations. This projector is backed by Dukane’s legendary service and a industry leading FIVE YEAR limited warranty, plus a TWO year “Peace of Mind” program which is the finest in the industry.
Safety UL/C-UL, CE, FCC-A Optional Accessories Lamps 456-236
Five (5) year Limited Warranty on Parts and Labor in North America, lamp excluded (for other locations,local warranties apply.) Includes Dukane’s FREE 24 month Peace-of-Mind Loaner Program.
Audio Visual Products
Dukane Corporation Audio Visual Products Division 2900 Dukane Drive St. Charles, IL 60174 Toll Free (800) 676-2485 or 2486 Fax (630) 584-5156 e-mail: avsales@dukane.com
Form No: 11578-A-03 rev.1
