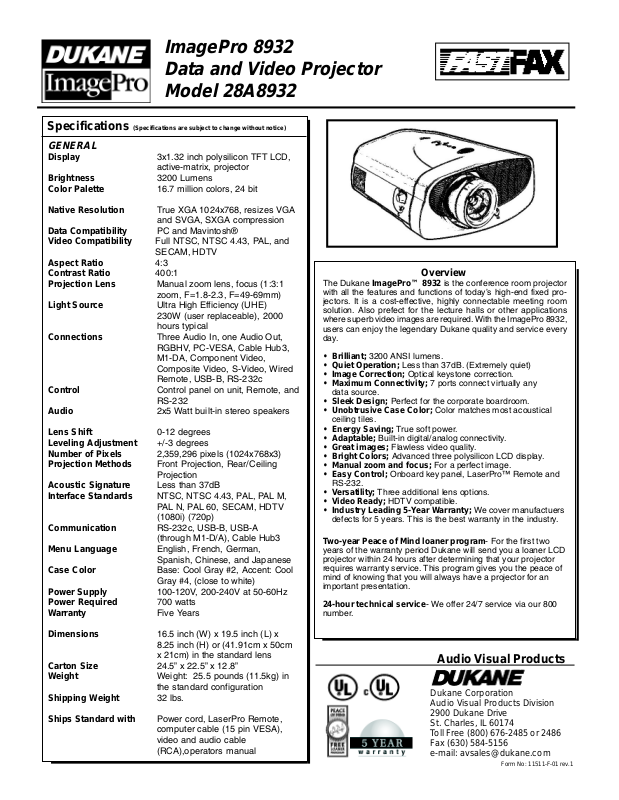

ImagePro 8932

Data and Video Projector

Model 28A8932

Specifications (Specifications are subject to change without notice)

GENERAL

Display

3x1.32 inch polysilicon TFT LCD,

Brightness

active-matrix, projector

3200 Lumens

Color Palette

16.7 million colors, 24 bit

Native Resolution

True XGA 1024x768, resizes VGA

Data Compatibility

and SVGA, SXGA compression

PC and Mavintosh®

Video Compatibility

Full NTSC, NTSC 4.43, PAL, and

Aspect Ratio

SECAM, HDTV

4:3

Contrast Ratio

400:1

Projection Lens

Manual zoom lens, focus (1:3:1

Light Source

zoom, F=1.8-2.3, F=49-69mm)

Ultra High Efficiency (UHE)



230W (user replaceable), 2000

Connections

hours typical

Three Audio In, one Audio Out,



RGBHV, PC-VESA, Cable Hub3,



M1-DA, Component Video,



Composite Video, S-Video, Wired

Control

Remote, USB-B, RS-232c

Control panel on unit, Remote, and

Audio

RS-232

2x5 Watt built-in stereo speakers

Lens Shift

0-12 degrees

Leveling Adjustment

+/-3 degrees

Number of Pixels

2,359,296 pixels (1024x768x3)

Projection Methods

Front Projection, Rear/Ceiling

Acoustic Signature

Projection

Less than 37dB

Interface Standards

NTSC, NTSC 4.43, PAL, PAL M,



PAL N, PAL 60, SECAM, HDTV

Communication

(1080i) (720p)

RS-232c, USB-B, USB-A

Menu Language

(through M1-D/A), Cable Hub3

English, French, German,

Case Color

Spanish, Chinese, and Japanese

Base: Cool Gray #2, Accent: Cool

Power Supply

Gray #4, (close to white)

100-120V, 200-240V at 50-60Hz

Power Required

700 watts

Warranty

Five Years

Dimensions

16.5 inch (W) x 19.5 inch (L) x



8.25 inch (H) or (41.91cm x 50cm

Carton Size

x 21cm) in the standard lens

24.5” x 22.5” x 12.8”

Weight

Weight: 25.5 pounds (11.5kg) in

Shipping Weight

the standard configuration

32 lbs.

Ships Standard with

Power cord, LaserPro Remote,



computer cable (15 pin VESA),



video and audio cable



(RCA),operators manual

Overview

The Dukane ImagePro™ 8932 is the conference room projector with all the features and functions of today’s high-end fixed projectors. It is a cost-effective, highly connectable meeting room solution. Also prefect for the lecture halls or other applications where superb video images are required. With the ImagePro 8932, users can enjoy the legendary Dukane quality and service every day.

Brilliant; 3200 ANSI lumens.

Quiet Operation; Less than 37dB. (Extremely quiet)

Image Correction; Optical keystone correction.

Maximum Connectivity; 7 ports connect virtually any data source.

Sleek Design; Perfect for the corporate boardroom.

Unobtrusive Case Color; Color matches most acoustical ceiling tiles.

Energy Saving; True soft power.

Adaptable; Built-in digital/analog connectivity.

Great images; Flawless video quality.

Bright Colors; Advanced three polysilicon LCD display.

Manual zoom and focus; For a perfect image.

Easy Control; Onboard key panel, LaserPro™ Remote and RS-232.

Versatility; Three additional lens options.

Video Ready; HDTV compatible.

Industry Leading 5-Year Warranty; We cover manufactuers defects for 5 years. This is the best warranty in the industry.

Two-year Peace of Mind loaner program- For the first two years of the warranty period Dukane will send you a loaner LCD projector within 24 hours after determining that your projector requires warranty service. This program gives you the peace of mind of knowing that you will always have a projector for an important presentation.

24-hour technical service- We offer 24/7 service via our 800 number.

Audio Visual Products

Dukane Corporation

Audio Visual Products Division 2900 Dukane Drive

St. Charles, IL 60174

Toll Free (800) 676-2485 or 2486 Fax (630) 584-5156

e-mail: avsales@dukane.com

Form No: 11511-F-01 rev.1
