Dukane ImagePro 8742 User Manual

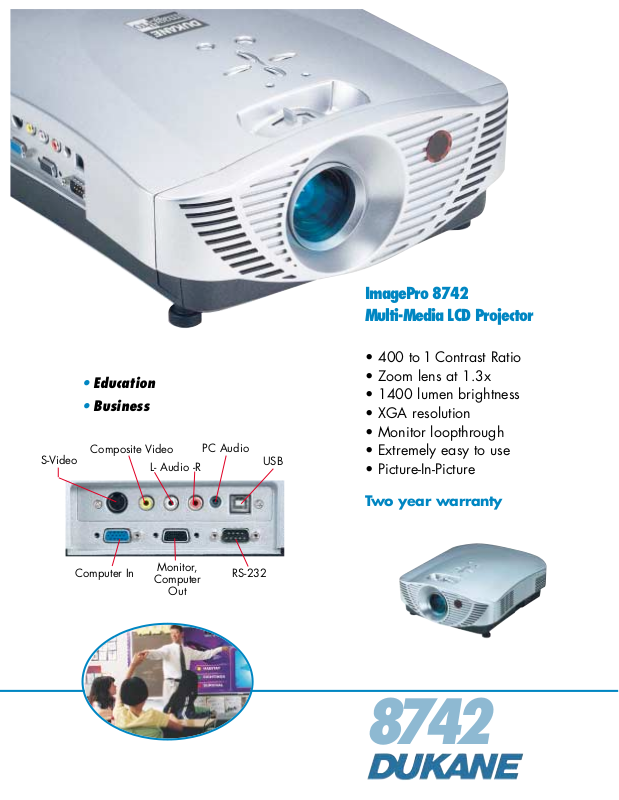

ImagePro 8742
Multi-Media LCD Projector
• 400 to 1 Contrast Ratio
S-Video
• Education
• Business
Composite Video
Computer In
L- Audio -R
Monitor,
Computer
Out
PC Audio
RS-232
• Zoom lens at 1.3x
• 1400 lumen brightness
• XGA resolution
• Monitor loopthrough
• Extremely easy to use
USB
• Picture-In-Picture
Two year warranty
8742
ImagePro 8742
Image Size in inches (feet)
MIN
Max
Diagonal
Width
Height
Throw
Throw
Multi-Media LCD projector
Great Data and Super Video Images
The Dukane ImagePro 8742 is a multimedia projector
that employs LCD elements to generate vibrant, full-color
images. The 8742 accepts signals from sources like a
VCR, DVD player, or PC/MAC computer.
Potential applications are placement on tables and carts,
or the projector can be permanently installed in a ceiling
mount.
This value packed projector
has XGA resolution with
advance electronics that permit
showing SXGA. An IR remote
control permits operation from
convenient locations and can
turn the projector completely
“On” or “Off”.
• Multi Media Projector
• XGA 1024 x 768 and Compressed SXGA
• 1400 Lumens for a bright image
• 400:1 Contrast Ratio
• HDTV Compatible
• Digital Keystone Correction
• Kensington Lock Slot for security
• Monitor Loop Thru and Picture -In- Picture
• Zoom Lens with a 1.3x range
Specifications
8742
Image Element 0.7” polysilicon active-matrix
TFT x3
Brightness 1400 ANSI lumens
Resolution 1024 x 768 pixels (H x V), XGA
Contrast 400 to 1
Scanning Frequency fh 30-90 kHz, fv 56-85 Hz
Lens Manual zoom & focus lens, 1.3X
Lens Throw Ratio 1.5 to 1.9:1, throw distance
to image width
Keystone Correction Digital, vertical +/-15 degree
Aspect Ratio 4:3, 16:9, selectable
Computer SVGA, VGA, XGA,
Compatibility SXGA(Compressed) for PC, and
Mac13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL,
SECAM, S-video, HDTV (1080i,
720p, 575i)
Picture -In- Picture Video image in computer
Image Control Freeze function, electronic
magnification and pan
Mouse Control Using USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 150W UHP
Lamp Life 2000 hours (typical)
Audio 1 speaker x 1 watt
Throw Distance 3.5 to 20 ft.
Screen Size 35” to 200”
Inputs, Video (1) Min DIN 4-pin, s-video
(1) RCA, composite video
(1) Audio, Stereo, RCA x 2
Projection throw distances for 4:3 Aspect, in inches (feet)
60 (5.0) 48 (4.0) 32 (3.0) 71 (5.9) 92 (7.7)
72 (6.0) 57 (4.7) 43 (3.6) 85 (7.1) 111 (9.3)
84 (7.0) 67 (5.6) 50 (4.2) 99 (8.3) 129 (10.8)
100 (8.3) 80 (6.7) 60 (5.0) 118 (9.8) 154 (12.8)
120 (10.0) 96 (8.0) 72 (6.0) 142 (11.8) 184 (15.3)
Minimum distance to screen is 59 inches (4.9 feet)
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
Inputs, Computer (1) Signal: D-sub, 15 pin
Inputs, Other 15 pin, D-sub RS-232 Service
Outputs Monitor 15 pin, D-sub
Outputs,other USB for Mouse control
Operating Range 5 to 35 deg. C
Security Kensington lock slot
Fan Level 36dB, very quiet
Remote Pointer Red laser
Power AC 100-120V, AC220-240V
Size (WxHxD) 10.5” x 3.5” x 11.4”
Weight 5.9 lbs.
Shipping Weight 14 lbs.
Carton Size 19.5” x 10.3" x 17.5”
Accessories Included Remote control, batteries, power
Safety UL/CUL, EC, FCC Class B
Optional Accessories Lamp 456-242; rolling
Two (2) year limited warranty
on parts and labor in North America, lamp excluded
Toll-free: 800-676-2485
Fax: 630-584-5156
E-mail: avsales@dukcorp.com
ImagePro is a registered trademark of Dukane Corporation
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program
(1) Audio, PC mini plug
50/60 Hz, 220 watt
cord, USB cable, RGB cable,
operator’s manual and
soft carry case.
briefcase; 185-406
.
