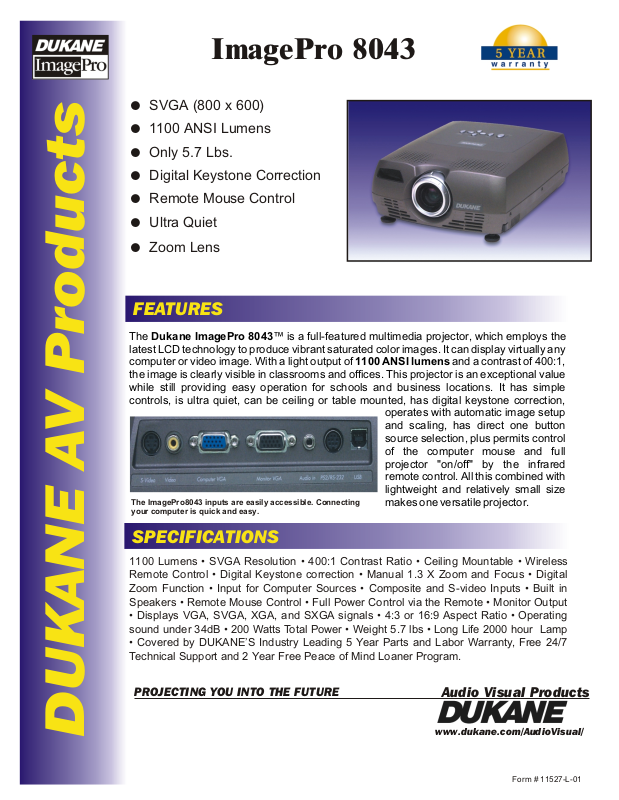

Dukane ImagePro 8043 User Manual

ImagePro 8043

! SVGA (800 x 600)

! 1100 ANSI Lumens

! Only 5.7 Lbs.

! Digital Keystone Correction

! Remote Mouse Control

! Ultra Quiet

! Zoom Lens

FEATURES

The Dukane ImagePro 8043™ is a full-featured multimedia projector, which employs the
latest LCD technology to produce vibrant saturated color images. It can display virtually any
computer or video image. With a light output of 1100 ANSI lumens and a contrast of 400:1,
the image is clearly visible in classrooms and offices. This projector is an exceptional value
while still providing easy operation for schools and business locations. It has simple
controls, is ultra quiet, can be ceiling or table mounted, has digital keystone correction,

operates with automatic image setup
and scaling, has direct one button
source selection, plus permits control
of the computer mouse and full
projector "on/off" by the infrared
remote control. All this combined with
lightweight and relatively small size

The ImagePro8043 inputs are easily accessible. Connecting
your computer is quick and easy.

makes one versatile projector.

DUKANE AV Products

SPECIFICATIONS

1100 Lumens • SVGA Resolution • 400:1 Contrast Ratio • Ceiling Mountable • Wireless
Remote Control • Digital Keystone correction • Manual 1.3 X Zoom and Focus • Digital
Zoom Function • Input for Computer Sources • Composite and S-video Inputs • Built in
Speakers • Remote Mouse Control • Full Power Control via the Remote • Monitor Output

• Displays VGA, SVGA, XGA, and SXGA signals • 4:3 or 16:9 Aspect Ratio • Operating
sound under 34dB • 200 Watts Total Power • Weight 5.7 lbs • Long Life 2000 hour Lamp

• Covered by DUKANE’S Industry Leading 5 Year Parts and Labor Warranty, Free 24/7
Technical Support and 2 Year Free Peace of Mind Loaner Program.

PROJECTING YOU INTO THE FUTURE

Audio Visual Products

www.dukane.com/AudioVisual/

Form # 11527-L-01

ImagePro 8043 SVGA
Data and Video Projector
Model 28A8043

Specifications (Specifications are subject to change without notice)

Device Type 0.7”x 3 Poly-Silicon
Brightness 1100 ANSI Lumens
Resolution 800 x 600 (H x V), SVGA
Contrast 400:1
Scanning Frequency fh 15-100 kHz, fv 43-130 Hz
Lens Manual Zoom, 1.3X
Image Offset 50%
Keystone Correction Digital, adjustable
Aspect Ratio 4:3, 16:9, Selectable
Focus Range, Throw 3.3 to 25ft.
Image Range, Screen 24 to 210 inches, diagional
Computer VGA, SVGA, XGA,SXGA,
Compatibility Mac, Mac 13” and Mac 16,”

Mac 19”, Mac 21”

Video Compatibility NTSC, PAL, SECAM,

S-Video

Image Control Freeze function, Electronic

Magnification and Pan

Mouse Control (remote) Use PS/2 or USB
Projection Configuration Front/rear/ceiling

Remote Power Full “off/on” by remote control
Color Reproduction 24 bit (16.7 million)
Lamp 132W UHP
Lamp Life 2000 hours (typical)
Audio Speaker 2 x 1watt
Inputs, Video (1) Min DIN 4-pin, S-Video

(1) RCA, composite Video

Inputs, Computer (1) Signal; D-sub 15 pin,RGB
Inputs, Audio (1) Audio, Stereo mini jack, PC
Outputs (1) Monitor 15 pin, D-sub, RGB
Control

Fan Levels (noise) 34 db Very quiet
Power AC100-125V / AC220-240V
Size

(WxHxD)

Weight 5.7 lbs
Shipping Weight 15 lbs.
Carton Size 14.7” x 11” x 18” (WxHxL)
Accessories Included Remote control with Batteries,

Operating Temperature +5° to 35°C (41°- 95°F)

(1) PS/2, / RS-232 (8 pin) mouse
(1)USB (B-type) mouse

50/60 Hz, 200 watt

8.3" x 3" x 10.6"

Power cord, Video/ Audio cable,
PS/2 and USB Mouse cable,
S-video cable, RGB cable,
operators manual, and soft
carrying bag.

Super Operation and Value

The Dukane ImagePro 8043™ is a full-featured electronic
imaging projector for education and road warrior office
applications. It has the features needed for providing an
exceptional image at a reasonable investment. To simplify any
application the projector is automatically compatible with
today’s computer and video signals.

With an image of 1100 ANSI lumens and a contrast of 400:1,
the image is clearly visible in most classrooms and offices
even with the lights on. It is a sharp 800 x 600 pixel image,
that is rock solid with saturated colors for hours of pleasant
viewing. Freedom of movement is possible with an easy to use
infrared (IR) remote control included with the projector. A
second set of controls is on the projector. A 1.3X zoom lens
permits matching the image size to that of the screen.

The projector’s automatic scaling circuit provides correctly
sized images for computer inputs of VGA, SVGA, XGA, and
SXGA resolutions along with the MAC equivalents. Also,
video signals in composite or s-video format from a camera,
VCR, or DVD player can be displayed. To provide a mixed
media class or presentation, the IR remote control can switch
the projector between the composite, s-video, and computer
inputs. Thus, the projector image from a computer on a web
site can easily be switched to the image from a VCR or that
from a local camera.

The remote control can also operate the computer mouse
using the computer’s PS-2 or USB ports. Other remote control
functions permit enlargement of an area of the image (zoom)
and movement of the enlarged area (pan). For video an image
can be “frozen”. A “digital keystone” function assures that the
image has the proper screen width.

The ImagePro 8043 can be used for normal front or rear
screen projection. The image can also be switched for ceiling
mounts. In all cases the whisper quiet cooling system never
disturbs the room. A standard monitor output exists for special
cases where the image must be locally viewed.

At less than 6 pounds the 8043 can be easily moved, using
the included bag, to a variety of locations. This projector is
backed by Dukane’s legendary service and a industry
leading FIVE YEAR limited warranty, plus a TWO year “Peace
of Mind” program which is the finest in the industry.

Safety UL/C-UL, CE, FCC-A
Optional Accessories Lamps 456-222

Five (5) year Limited Warranty on Parts and Labor in
North America, lamp excluded (for other locations,local
warranties apply.) Includes Dukane’s FREE 24 month
Peace-of-Mind Loaner Program.

Audio Visual Products

Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free [phone] or 2486
Fax [phone]
e-mail: [e-mail]

Form No: 11527-L-01
