Ducati 998s Bostrom User Manual

1

E

DUCATI998S Bostrom

Owner’s manual

2

E

3

E

Hearty welcome among Ducati fans! Please accept our
best compliments for choosing a Ducati motorcycle. We
think you will ride your Ducati motorcycle for long
journeys as well as short daily trips. Ducati Motor Holding
S.p.A. wishes you smooth and enjoyable riding.
We are steadily doing our best to improve our “Technical
Assistance” service. For this reason, we recommend you
to strictly follow the indications given in this manual,
especially for motorcycle running-in. In this way, your
Ducati motorbike will surely give you unforgettable
emotions.
For any servicing or suggestions you might need, please
contact our authorized service centres.

Enjoy your ride!

Ducati Motor Holding S.p.A. declines any liability
whatsoever for any mistakes incurred in drawing up this
manual. The information contained herein is valid at the
time of going to print. Ducati Motor Holding S.p.A.
reserves the right to make any changes required by the
future development of the above-mentioned products.

For your safety, as well as to preserve the warranty,
reliability and worth of your motorcycle, use original
Ducati spare parts only.

Warning

This manual forms an integral part of the
motorcycle and - if the motorcycle is resold - must
always be handed over to the new owner.

4

E

TABLE OF CONTENTS

General 6

Warranty 6
Symbols 6
Useful information for safe riding 7
Carrying the maximun load allowed 8
Accessories 8
Identification data 9

Controls 10

Position of motorcycle controls 10
Instrument panel 11
Keys 12
Key-operated ignition switch and steering lock 12
Left switch 13
Clutch lever 14
Starter lever 15
Right switch 16
Throttle twistgrip 16
Front brake lever 16
Rear brake pedal 17
Gear change pedal 17
Adjustment of gear change and rear brake pedals 18

Main components and devices 19

Location 19
Tank filler plug 20
Seat catch and helmet hook 21
Side stand 22
Steering damper 23
Front fork adjusters 24
Shock absorber adjusters 26

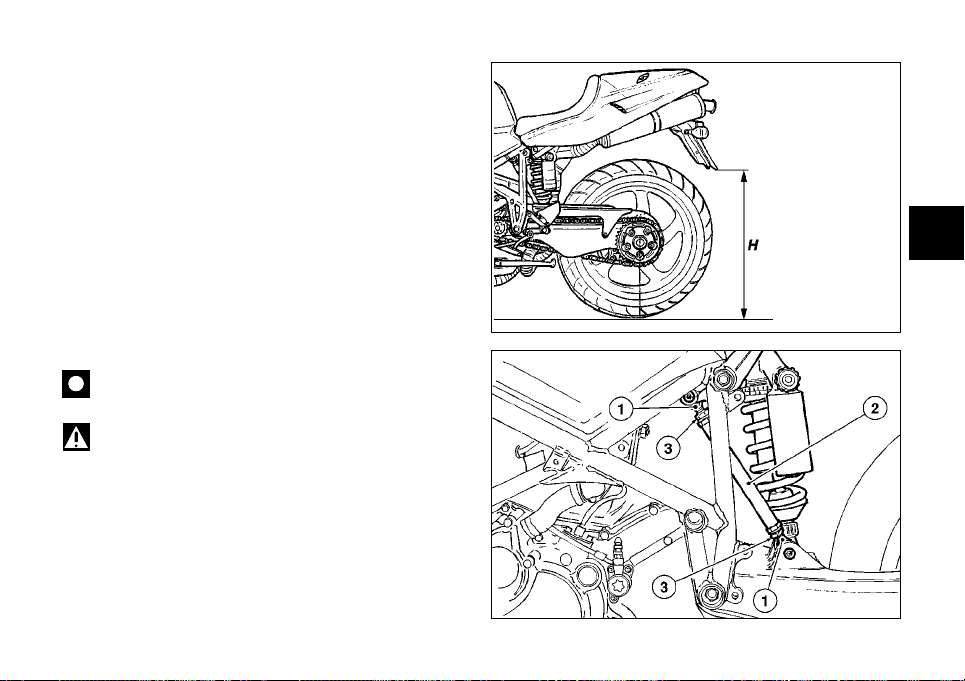

Changing motorcycle track alignment 27

Directions for use 28

Running-in recommendations 28
Pre-ride checks 29

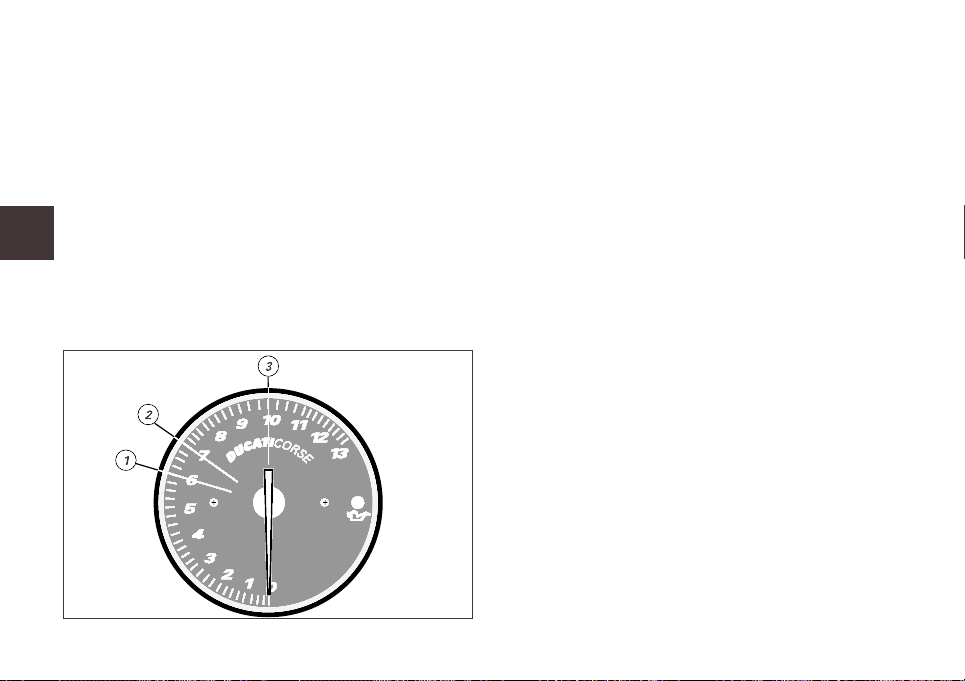

Starting the engine 30
Moving off 32
Braking 32
Stopping the motorcycle 33
Parking 33
Refueling 34
Tool kit and accessories 35

Main maintenance operations 36

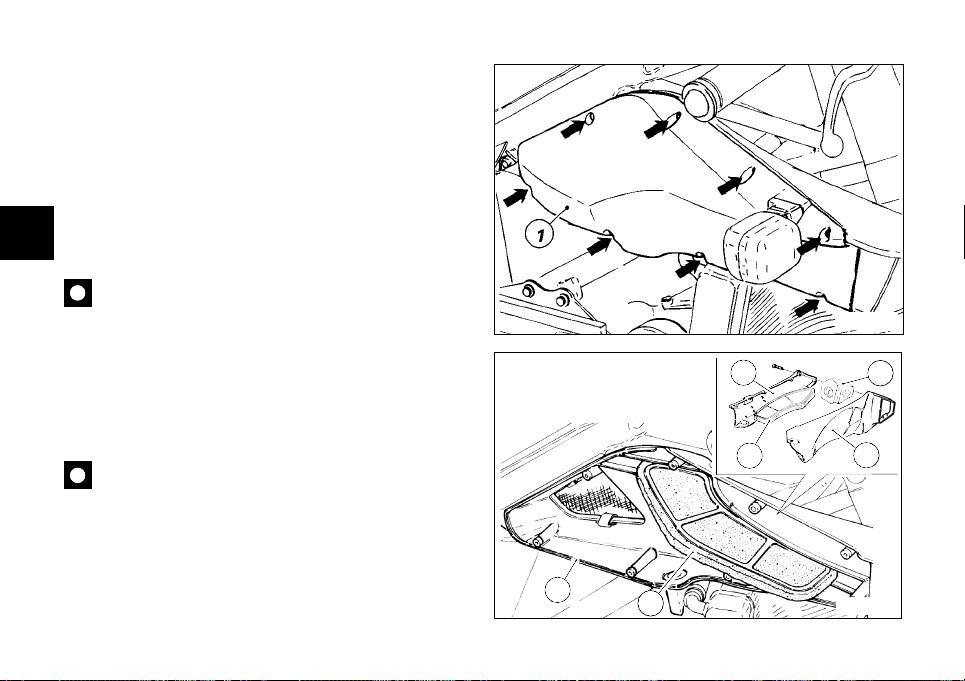

Removing the fairing 36
Cleaning and changing air filters 38
Checking the coolant level 39
Checking brake and clutch fluid level 40
Checking brake pads for wear 41
Lubricating cables and joints 42
Throttle cable adjustment 42
Charging the battery 43
Adjusting headstock angle 44

5

E

Chain tension inspection 45
Chain lubrication 45
Replacing bulbs 46
Beam setting 50
Rear view mirror adjustment 51
Tubeless tyres 51
Checking engine oil level 53
Cleaning and replacing the spark plugs 54
Cleaning the motorcycle 55
Storing the bike away 55
Important notes 56

Technical data 57

Overall dimensions 57
Weights 57
Top-ups 58
Engine 59

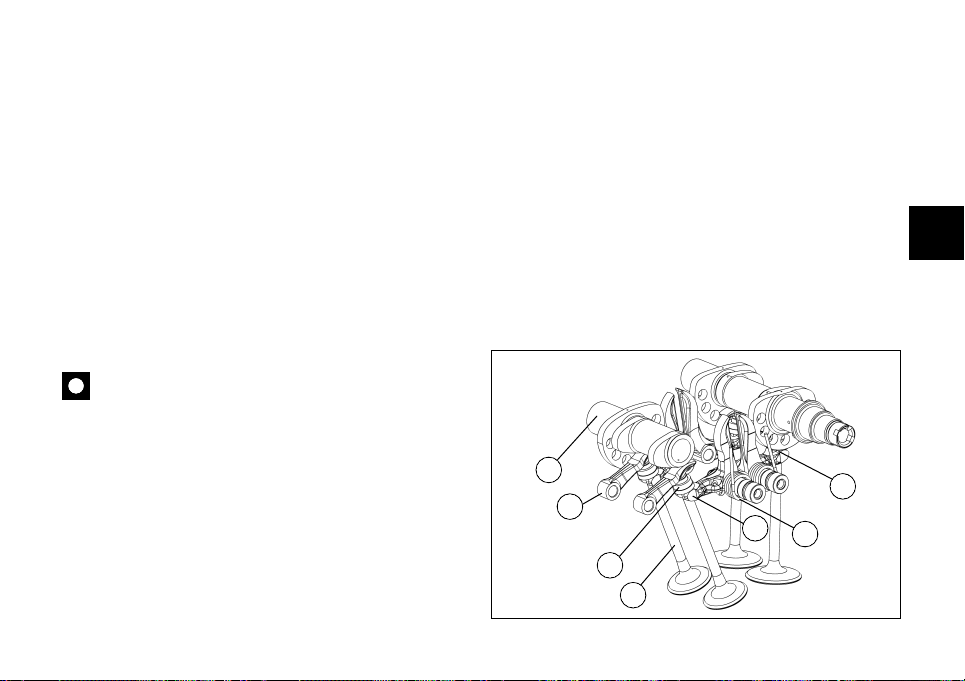

Timing system 59
Spark plugs 60
Performance data 60
Brakes 60
Transmission 61
Frame 62
Wheels 62
Tyres 62
Suspensions 63
Electric system 63

Routine maintenance record 67

6

E

GENERAL

Warranty

In your own interest, and in order to guarantee product
reliability, you are strongly advised to refer to a Ducati
Dealer or Authorized Workshop for any servicing
requiring particular technical expertise. Our highly skilled
staff have access to the implements required to perform
any servicing job at best, using Ducati original spare parts
only as the best guarantee for full interchangeability,
smooth running and long life.

All Ducati motorcycles come with a “Warranty Card”.
However, warranty does not apply to the motorcycles
used in competitions. No motorcycle part may be
tampered with, altered, or replaced with parts other than
original Ducati spare parts during the warranty period, or
the warranty will be automatically invalidated.

Symbols

Ducati Motor Holding S.p.A. advises you to read this
manual carefully so as to become familiar with your
motorcycle. In case of any doubts, please call a Ducati
Dealer or Authorized Workshop. The information
contained herein will prove useful on your trips - and
Ducati Motor Holding S.p.A. wishes you smooth,
enjoyable riding - and will help you keep the performance
of your motorcycle unchanged for a long time.

Warning

Failure to comply with these instructions may put

you at risk and lead to severe injury or death.

Important

Possibility of damaging the motorcycle and/or its

components.

Note

Additional information concerning the job being

carried out.

The terms right and left are referred to the motorcycle

viewed from the riding position.

7

E

Useful information for safe riding

Warning

Read this section before riding your motorcycle.

Accidents are frequently due to inexperience. Always
make sure you have your licence with you when riding;
you need a valid licence to be entitled to ride your
motorcycle.
Do not lend your motorcycle to inexperienced riders or
who do not hold a valid licence.
The rider must always wear a safety helmet.

Wear proper clothing, with no loose items or accessories
that may become tangled in the controls or limit your
zone of vision.
Never start or run the engine indoors. Exhaust gases are
poisonous and may lead to loss of consciousness or even
death within a short time.
The rider should keep his feet on the footpegs when the
motorcycle is in motion.
Always hold the handlebars firmly with both hands so
you will be ready for sudden changes of direction or in
the road surface.
Ride within the law and observe national and local rules.
Always respect speed limits where these are posted.
However, always adjust your speed to the visibility, road
and traffic conditions you are riding in.
Always signal your intention to turn or pull to the next
lane in good time using the suitable turn indicators.
Be sure you are clearly visible and do not ride within the
blind spot of vehicles ahead.

Be very careful when tackling road junctions, or when
riding in the areas near exits from private grounds, car
parks or on slip roads to access motorways.
Always turn off the engine when refueling. Be extremely
careful not to spill fuel on the engine or on the exhaust
pipe when refueling.
Do not smoke when refueling.
While refueling, you may inhale noxious fuel vapors.
Should any fuel drops be spilled on your skin or clothing,
immediately wash with soap and water and change your
clothing.
Always remove the key when you leave your motorcycle
unattended.
The engine, exhaust pipes and mufflers stay hot for a
long time.
Park your motorcycle where no one is likely to hit it and
use the side stand.
Never park on uneven or soft ground or your motorcycle
may fall over.

8

E

Carrying the maximum load allowed

Your motorcycle is designed for long-distance riding,
carrying the maximum load allowed in full safety.
Even weight distribution is critical to preserving safety
features and avoiding trouble when performing sudden
manoeuvres or riding on bumpy roads.

Information about carrying capacity

The total weight of the motorcycle in running order
including rider, luggage and additional accessories should
not exceed 310 Kg.

Arrange your luggage or heavy accessories in the lowest
possible position and close to motorcycle centre.
Be sure to secure the luggage to the supports provided
on the motorcycle as firmly as possible. Improperly
secured luggage may affect stability.
Never fix bulky or heavy objects to the handlebar or to
the front mud guard as this would affect stability and
cause danger.
Do not insert any objects you may need to carry into the
gaps of the frame as these may foul moving parts.
Make sure the tyres are inflated to the proper pressure
indicated at page 51 and that they are in good condition.

Accessories

The motorcycle is supplied with canvas cover, paddock
stand.

Identification data

All Ducati motorcycles have two identification numbers,
for frame (fig. 1.1) and engine (fig. 1.2).

Frame number

Engine number

Note

These numbers identify the motorcycle model and

are required when ordering spare parts.

This exclusive model has been produced in a limited
series. Each motorcycle is identified by a serial number
etched on a silver plate fixed to steering head.

9

E

fig. 1.2

fig. 1.1

10

CONTROLS

Warning

This section details the position and function of all
the controls you need to drive your motorcycle. Be sure
to read this information carefully before you use the
controls.

Position of motorcycle controls (fig. 2)

1) Instrument panel.

2) Key-operated ignition switch and steering lock.

3) Left switch.

4) Clutch lever.

5) Starter lever.

6) Right switch.

7) Throttle twistgrip.

8) Front brake lever.

9) Gear change pedal.

10) Rear brake pedal.

fig. 2

E

5a

1

c

b

8

3 7 4 2 6

D

U

C

A

T

I

C

O

R

S

E

11

E

Instrument panel (fig. 3)

1) Speedometer (km/h or mph).

Gives road speed.
a) Odometer (km or miles).
Gives total distance covered.
b) Trip meter (km or miles).
Gives distance covered since last resetting.
c) Trip meter resetting knob.
Turn to reset trip meter to “0000”.

2) Engine revolution meter (rpm)
Indicates engine rpm.

3) Green light N.
Comes on when gearbox is in neutral.

4) Yellow light .
Comes on when there are about 4 liters (1.05 US Gall.)
fuel left in the tank.

5) Green light .
Comes on and flashes when a turn indicator is on.

6) Red light .
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and
normally goes out a few seconds after engine starts. It
may shortly come on when the engine is hot, however, it
should go out as the engine revs up.

Important

If this light (6) stays on, stop the engine or it may

suffer severe damage.

7) Blue light .
Comes on when right high beam is on.

fig. 3

8) Water temperature indicator .
Indicates engine coolant temperature.

Important

Stop riding if the temperature reaches the max.

value, otherwise the engine might damage.

When parking light is on, the instrument panel is lighted.

12

E

Keys (fig. 4)

Your Ducati was delivered with two universal keys for
ignition, steering lock and seat catch and a key
identification plate (1).

Note

Separate the two keys and keep the identification
plate (1) in a safe place.

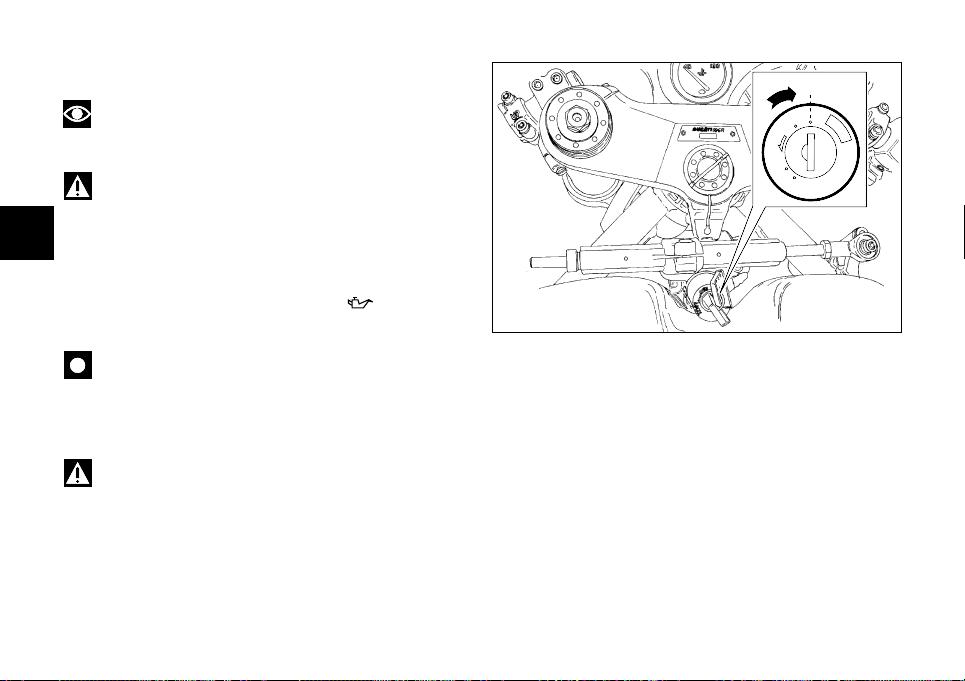

Key-operated ignition switch and steering lock

(fig. 5)
It is located in front of the fuel tank and has four
positions:
A) ON: lights and engine enabled;
B) OFF: lights and engine disabled;
C) LOCK: steering locked;
D) P: parking light and steering lock.

Warning

This vehicle is equipped with an energy-saving
CPU. If the key stays ON for a long period but the ignition
button is not pressed within 15 seconds, the CPU will
stop operating to avoid current absorption. Move the key
to OFF and then to ON again.

Note

To move the key to the last two positions, press it
down before turning it. Switching to (B), (C) and (D), you
will be able to take the key out.

1

A

B

C

D

fig. 4

fig. 5

13

E

Left switch (fig. 6)

1) Switch, light switch, 3 positions:
Down = light off;
Centre = front and rear parking light, number plate
light and panel lights on;
Up = headlamp, front and rear parking light, number
plate light and panel lights on.

Note

This device is not fitted on the Australia and Japan

versions.

2) Dip switch, light dip switch, two positions:
position = low beam on;
position = high beam on.

3) Switch = 3-position turn indicator:
centre position = off;
position = left turn;
position = right turn.
To cancel turn indicators, return switch to central position
and push in.

4) Button = warning horn.

5) Button = high-beam flasher.

4

2

3

1

5

fig. 6

14

E

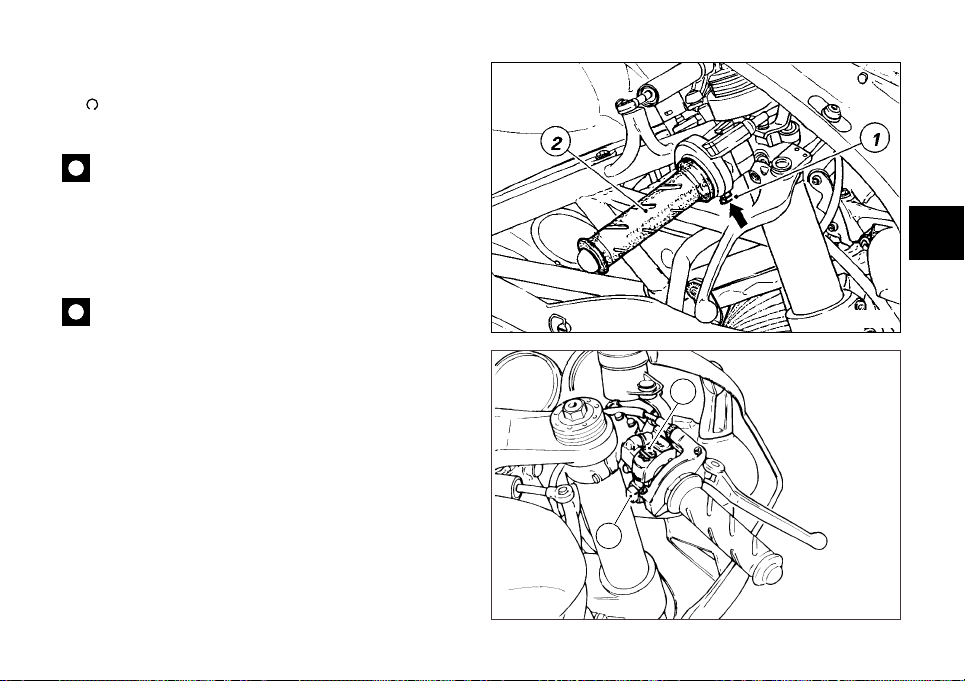

Clutch lever (fig. 7)

Lever (1) disengages the clutch. It features a dial adjuster
(2) for lever distance from the twistgrip on handlebar.
To set lever distance from twistgrip, push lever (1) fully
forward and turn the dial adjuster (2) to one of its four
positions. Remember that position no. 1 gives maximum
distance between lever and twistgrip, whereas lever and
twistgrip are closest when adjuster is set to position no.

4.
When you pull in the lever (1), you will disengage the
engine from the gearbox and therefore from the driving
wheel. Using the clutch properly is essential to smooth
riding, especially when moving off.

Important

Using the clutch properly will avoid damage to
transmission parts and spare the engine.

fig. 7

15

E

Starter lever (fig. 8)

The starter lever (1) is used to start the engine from cold
and to increase the engine idle rotation speed after
starting. Control positions:
A - (vertical) Control not activated
B - Control fully activated
The lever may also be placed on intermediate positions
to match the progressive engine warming up (see page

30).

Important

Never use this device when the engine is warm.

Do not run with the starter control on.

1

A

B

fig. 8

16

E

Right switch (fig. 9)

G) Switch for ENGINE STOP, two positions:
position (RUN) = run.
position (OFF) = stop.

Warning

This switch is mainly intended for use in emergency
cases when you need to stop the engine quickly. After
stopping the engine, return the switch to the
position to enable starting.

Important

Stopping the engine using switch (1) after riding
with the lights on and leaving the ignition key in the ON
position, may run the battery flat as the lights will remain
on.

2) Button = engine start

Throttle twistgrip (fig. 9)
The twistgrip (3) on the right handlebar opens the
throttles. When released, it will spring back to the initial
position (idling speed).

4

5

1

2

3

fig. 9

Front brake lever (fig. 9)
Pull in the lever (4) towards the twistgrip to operate the
front brake. The system is hydraulically operated and you
just need to pull the lever gently.
The brake lever is provided with a dial adjuster (5) for
lever distance adjustment from twistgrip on handlebar.

Warning

Please read the instructions on pages 30 and 31

before using these controls.

17

E

Rear brake pedal (fig. 10)

Push down on the pedal (1) with your foot to operate the
rear brake.
The system is hydraulically operated.

1

fig. 10

1

N

2

3

4

5

6

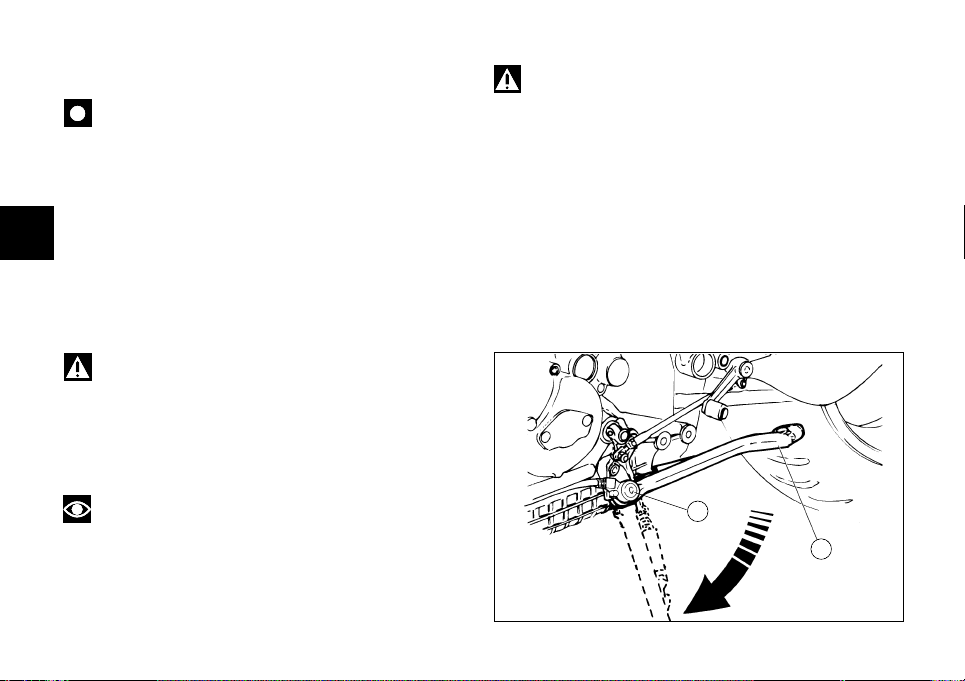

Gear change pedal (fig. 11)
The gear change pedal is at rest when in the central
position N, is moved up and down to change gears and
then returns to the central position.
down = push down on the pedal to engage 1stgear and
to shift down. The N light will go out.
up = lift the pedal to engage the 2ndgear and then the 3rd,
4th, 5thand 6thgear. Each time you move the pedal you will
engage the next gear.

fig. 11

18

E

Adjustment of gear change and rear brake
pedals

Gear change and rear brake pedals can be set in a
preferred position relative to footpegs to better suit the
riding style of every rider.

To set the gear change pedal, lock linkage (1) and loosen
check nuts (2) and (3).

Note

Nut (2) has a left-hand thread.

Apply an open-end wrench to the hexagon portion of
linkage (1) and rotate linkage until the gear change pedal
is in the desired position.
Tighten both check nuts until they contact linkage.

To set the rear brake pedal:
loosen check nut (4).
Turn travel adjuster (5) until pedal is in the desired
position.
Tighten check nut (4).
Work the pedal by hand to make sure it has about

1.5 ÷ 2 mm free play before brake is actuated.
If not so, set master cyilinder rod length as follows:
loosen the check nut (6) on the rod.
Tighten rod into fork (7) to increase free play or loosen it
to decrease play.
Tighten the check nut (6) and check play again.

fig. 11.2

fig. 11.3

19

E

MAIN COMPONENTS AND DEVICES

Location (fig. 12)

1) Tank filler plug.

2) Seat catch.

3) Side stand.

4) Hook for helmet fastening cable.

5) Steering damper.

6) Rear view mirrors.

7) Front fork adjusters.

8) Rear shock absorber adjusters.

9) Motorcycle track alignment linkage.

fig. 12

20

E

Tank filler plug (fig. 13)

Opening

Lift the protection lid (1) and fit the ignition key into the
lock. Turn the key clockwise 1/4 turn to unlock.
Lift the plug.

Closing

Refit the plug with the key in it and push it down into its
seat. Turn the key anticlockwise to its initial position and
take it out. Close the lock protection lid (1).

Note

The plug can only be closed with the key in.

Warning

Always make sure you have properly refitted and
closed the plug after each refueling (see page 34) .

1/4

0

OPEN

1

fig. 13

21

E

Seat catch and helmet hook

Opening (fig. 14.1)
Fit the ignition key into the lock (1) and turn the key
clockwise.
Pull gently the tail guard (2) outwards and lift it until it
rests onto the fuel tank.
On the rear end of the compartment underneath the
seat, there is the helmet fastening cable. Insert the cable
(A) into the helmet and insert the ends of the cable into
the hook. Leave the helmet hanging outside (fig. 14.2)
and refit the seat.

Warning

This system is intended to lock your helmet safely
when you park your motorcycle. Never leave the helmet
hanging from the hook when riding or it may get in the
way and make you lose control of the motorcycle.
Inserting the cable under the subframe from the left side
will enable you to lock the seat.
With the cable in any other position, the seat will not lock
properly.

Closing

Arrange all parts properly inside the compartment under
the seat.
Lower the tail guard to its horizontal position. Press on
the rear end (2) of the seat until you hear the catch click.
Pull the tail guard gently up to make sure it is firmly
secured to the frame.

fig. 14.1

PUSH

2

1

1

1

0

0

fig. 14.2

A
