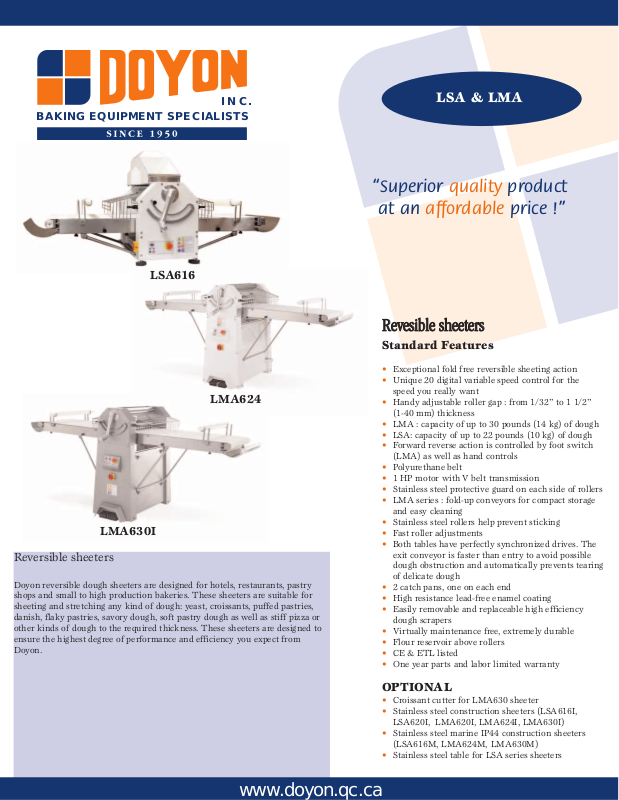

LSA & LMA

LMA624

LSA616

LMA630I

Reversible sheeters

Doyon reversible dough sheeters are designed for hotels, restaurants, pastry
shops and small to high production bakeries. These sheeters are suitable for
sheeting and stretching any kind of dough: yeast, croissants, puffed pastries,
danish, flaky pastries, savory dough, soft pastry dough as well as stiff pizza or
other kinds of dough to the required thickness. These sheeters are designed to
ensure the highest degree of performance and efficiency you expect from
Doyon.

RReevveessiibbllee sshheeeetteerrss

Standard Features

• Exceptional fold free reversible sheeting action

• Unique 20 digital variable speed control for the

speed you really want

• Handy adjustable roller gap : from 1/32” to 1 1/2”

(1-40 mm) thickness

• LMA : capacity of up to 30 pounds (14 kg) of dough

• LSA: capacity of up to 22 pounds (10 kg) of dough

• Forward reverse action is controlled by foot switch

(LMA) as well as hand controls

• Polyurethane belt

• 1 HP motor with V belt transmission

• Stainless steel protective guard on each side of rollers

• LMA series : fold-up conveyors for compact storage

and easy cleaning

• Stainless steel rollers help prevent sticking

• Fast roller adjustments

• Both tables have perfectly synchronized drives. The

exit conveyor is faster than entry to avoid possible
dough obstruction and automatically prevents tearing
of delicate dough

• 2 catch pans, one on each end

• High resistance lead-free enamel coating

• Easily removable and replaceable high efficiency

dough scrapers

• Virtually maintenance free, extremely durable

• Flour reservoir above rollers

• CE & ETL listed

• One year parts and labor limited warranty

OPTIONAL

• Croissant cutter for LMA630 sheeter

• Stainless steel construction sheeters (LSA616I,

LSA620I, LMA620I, LMA624I, LMA630I)

• Stainless steel marine IP44 construction sheeters

(LSA616M, LMA624M, LMA630M)

• Stainless steel table for LSA series sheeters

“Superior quality product

at an affordable price !”

INC.

BAKING EQUIPMENT SPECIALISTS

www.doyon.qc.ca

www.doyon.qc.ca

LMA620 : 91 1/4"
LMA624 : 107"
LMA630 : 130 3/4"

LMA620 : 78 3/4"
LMA624 : 94 1/2"
LMA630 : 118 1/8"

LMA620 : 29 1/2"
LMA624 : 32 1/4"
LMA630 : 36 1/4"

LMA620 : 70"
LMA624 : 77 3/4"
LMA630 : 89 1/2"

LSA616 : 75 1/2"
LSA620 : 91 1/4"

LSA616 : 63"
LSA620 : 78 3/4"

Conforms to
ANSI/NSF8

Conforms to ANSI/UL std. 763
Certified to CSA C22.2 no.195

DIMENSIONS

LSA616 75 1/2”W X 41 1/2”D X 32”H

(1920 mm X 1055 mm X 813 mm)

LSA620 91 1/4”W X 41 1/2”D X 32”H

(2320 mm X 1055 mm X 813 mm)

LMA620 91 1/4”W X 39 1/2”D X 45 3/4”H

(2320 mm X 1005 mm X 1160 mm)

LMA624 107”W X 39 1/2”D X 45 3/4”H

(2720 mm X 1005 mm X 1160 mm)

LMA630 130 3/4”W X 39 1/2”D X 45 3/4”H

(3320 mm X 1005 mm X 1160 mm)

CONVEYOR DIMENSIONS

LSA616 23”W X 63”L

(584 mm X 1600 mm)

LSA620 23”W X 78 3/4”L

(584 mm X 2000 mm)

LMA620 23”W X 78 3/4”L

(584 mm X 2000 mm)

LMA624 23”W X 94 1/2”L

(584 mm X 2400 mm)

LMA630 23”W X 118 1/8”L

(584 mm X 3000 mm)

ELECTRICAL SYSTEM

LSA616 : 120V 4A 1PH NEMA 5-15P
LSA620 : 120V 4A 1PH NEMA 5-15P
LMA620 : 120V 4A 1PH NEMA 5-15P
LMA624 : 120V 4A 1PH NEMA 5-15P
LMA630 : 120V 4A 1PH NEMA 5-15P

SHIPPING WEIGHT

LSA616 525 lb (238 kg) approximately
LSA620 525 lb (238 kg) approximately
LMA620 750 lb (341 kg) approximately
LMA624 750 lb (341 kg) approximately
LMA630 750 lb (341 kg) approximately

Specifications and design subject to change without notice.

1255, rue Principale
Linière, Beauce, Québec, Canada G0M 1J0

Telephone : [phone] Fax: [phone]
Canada : [phone] U.S.: [phone]
E-Mail : [e-mail] Internet: http://www.doyon.qc.ca

Your local distributor:

Printed in Canada Rev: 082009i
