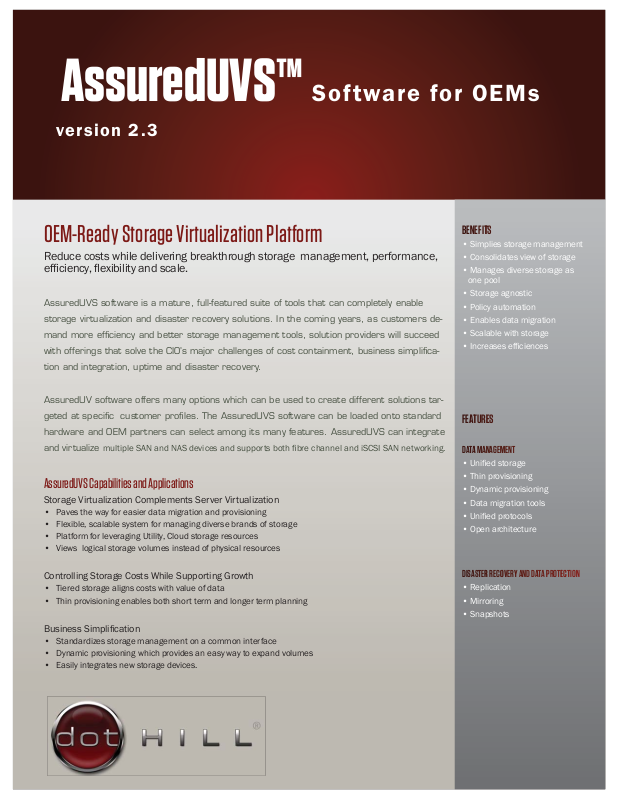

AssuredUVS™ Software for OEMs
version 2.3
OEM-Ready Storage Virtualization Platform
Reduce costs while delivering breakthrough storage management, performance,
effi ciency, fl exibility and scale.
AssuredUVS software is a mature, full-featured suite of tools that can completely enable
storage virtualization and disaster recovery solutions. In the coming years, as customers de-
mand more effi ciency and better storage management tools, solution providers will succeed
with offerings that solve the CIO’s major challenges of cost containment, business simplifi ca-
tion and integration, uptime and disaster recovery.
AssuredUV software offers many options which can be used to create different solutions tar-
geted at specifi c customer profi les. The AssuredUVS software can be loaded onto standard
hardware and OEM partners can select among its many features. AssuredUVS can integrate
and virtualize multiple SAN and NAS devices and supports both fi bre channel and iSCSI SAN networking.
AssuredUVS Capabilities and Applications
Storage Virtualization Complements Server Virtualization
• Paves the way for easier data migration and provisioning
• Flexible, scalable system for managing diverse brands of storage
• Platform for leveraging Utility, Cloud storage resources
• Views logical storage volumes instead of physical resources
BE
• Simplies storage management
• Consolidates view of storage
• Manages diverse storage as
one pool
• Storage agnostic
• Policy automation
• Enables data migration
• Scalable with storage
• Increases effi ciences
FE
DAT MAAGEMEN
• Unifi ed storage
• Thin provisioning
• Dynamic provisioning
• Data migration tools
• Unifi ed protocols
• Open architecture
DI
Controlling Storage Costs While Supporting Growth
• Tiered storage aligns costs with value of data
• Thin provisioning enables both short term and longer term planning
Business Simplifi cation
• Standardizes storage management on a common interface
• Dynamic provisioning which provides an easy way to expand volumes
• Easily integrates new storage devices.
RECOER
• Replication
• Mirroring
• Snapshots
AssuredUVS
High Availability
• By allowing data migration to occur without downtime
• Asynchronous replication feature which can eliminate backup windows
• Dual controller models protect against a single point of failure.
Disaster Recovery
• Snapshot allow restoration to a specifi c point in time. High snapshot frequency can
prevent loss of data
• Asynchronous Replication from site to site
• Synchronous Mirroring
Features and Models
Single Controller Software Models
Number of volumes 128 256 512
Snapshots 1024 2048 4096
Thin provisioning volumes 16 32 64
Proxy volumes for migration 0 16 64
Mirrors/synchronous
replication
Asynchronous replication Available Available Available
NAS support Available Available Available
SAN volume size 2TB 8TB 16TB
Capacity per confi guration 25TB 75TB 150TB
Max capacity per confi guration 25TB 75TB 150TB
Max Controllers per system 1 1 1
Controllers per license 1 1 1
Host interface iSCSI/FC iSCSI/FC iSCSI/FC
41664
network diagram placeholder
Dual Controller Software Models
Number of volumes 256 512 1024 1024 2048 4096
Snapshots 2048 4096 8192 8192 16384 32768
Thin provisioning volumes 32 64 128 128 512 1024
Proxy volumes for migration 0 32 128 128 256 1024
Mirrors/synchronous
replication
Asynchronous replication Available Available Available Available Available Available
NAS support Available Available Available Available Available Available
SAN volume size 4TB 8TB 16TB 64TB 64TB 64TB
Capacity per confi guration 50TB 150TB 300TB 512TB 1024TB 2048TB
Max capacity per confi guration 50TB 150TB 300TB 1.5PB 3PB 6PB
Max controllers per system 2 2 2 2, 4, 6 2, 4, 6 2, 4, 6
Controllers per license 2 2 2 2 2 2
Host interface iSCSI/FC iSCSI/FC iSCSI/FC iSCSI/FC iSCSI/FC iSCSI/FC
8 32 128 128 256 1024
AssuredUVS
Interoperability
Servers
AssuredUVS Software runs on standard server hardware and OEMs can qualify their own servers or other brands.
Storage
In addition to Dot Hill 3000 series, the AssuredUVS platform supports an extremely wide variety of storage vendors and models currently deployed in data centers world wide,
Xiotech, and Xyratex . For specifi c models, please request a copy of the Dot Hill AssuredUVS Interoperability Matrix from your Dot Hill represen-
tative for a full and up-to-date listing of qualifi ed and supported storage.
OEMs can qualify their own storage models if they are not already supported. Please request a copy of the Dot Hill AssuredUVS Interoperability Matrix from your Dot Hill representative for a full and up-to-date listing of qualifi ed and supported storage.
Operating Environments
AssuredUVS operates in Windows, Linux, Solaris, and Mac OS X environments.
Networks
AssuredUVS works in both Fibre Channel and iSCSI networking environments.
including Apple, Dot Hill, EMC, Hitachi, HP, IBM, LSI/Engenio, NetApp, Nexsan, Promise, Sun,
Support and Professional Services
Installation
There is an AssuredUVS professional services Installation package which is available with AssuredUVS purchase. The installation engagement
includes a one day session with a Dot Hill customer support engineer for the purposes of activating AssuredUVS systems, and provisioning the
storage.
Support
Support is required with purchase of AssuredUVS. There are several support packages available which scale with an organization’s service
Management
AssuredUVS’s graphical user interface and Command Line Interface also allow system administrators to manage all functions such as creating
storage volumes, changing their sizes, migrating
fi les, and establishing snapshot schedules from a
common management interface so that the storage environment can be more easily managed.
Note: specifi cations are subject to change at any
time.
