Leading the way: Next-generation connectivity and flexibility.
•
•
Built in Redundancy
•
RAID 0, 1, 3, 5, 6, 10, 50
• Redundant, hot swap components
• AssuredSnap™ - Built-in snapshot capability
• AssuredCopy™ - Additional data protection with
full volume copies
• Built-in schedule capability
Scalability and Performance
•
Dual or single RAID controller or JBOD
• Data rates up to 3Gb/sec. Serial-attached SCSI
• 1.7TB base capacity that scales to 112TB
(utilizing 2TB SATA drives)
• OS Support - Windows, Linux, SuSE, Solaris
• Modular design protects your investment
• Enterprise-class features and functionality without
the enterprise price
Environmentally Responsible / Lower TCO
•
EcoStor™ - Economically and environmentally
sound technologies
- SimulCache™ - Low latency cache mirroring
- Battery-free cache backup
- DC power option
- 1 terabyte energy-saving drives
• RoHS-5 and WEEE compliant
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ª
•
2 5 3 0
•
•
•
•
•
•

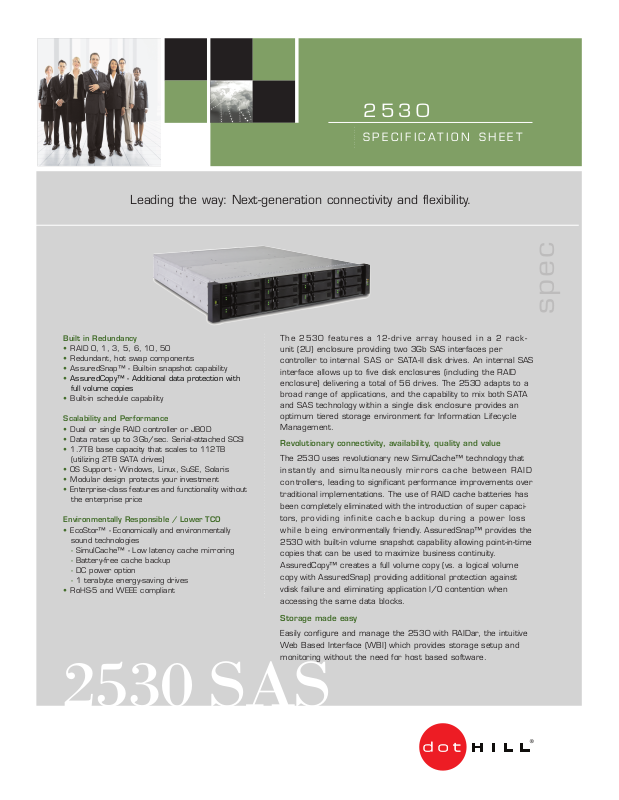

S P E C I F I C A T I O N S H E E T
•
•
•
Th e 25 30 f eat ure s a 12-dr ive arr ay h ous ed i n a 2 rackunit (2U) enclosure providing two 3Gb SAS interfaces per
controller to intern al S AS o r SATA-II disk drives. An internal SAS
interface allows up to five disk enclosures (including the RAID
enclosure) delivering a total of 56 drives. The 2530 adapts to a
broad range of applications, and the capability to mix both SATA
and SAS technology within a single disk enclosure provides an
optimum tiered storage environment for Information Lifecycle
Management.
Revolutionary connectivity, availability, quality and value
The 2530 uses revolutionary new SimulCache™ technology that
in sta ntl y an d si multaneous ly m irr ors cac he b etw een RAI D
co ntrollers, leading to significant performance improvements over
traditional implementations. The use of RAID cache batteries has
been completely eliminated with the introduction of super capacitors, pr ovi din g in fin ite cac he back up d uri ng a pow er l oss
wh ile bei ng environmentally friendly. AssuredSnap™ provides the
2530 with built-in volume snapshot capability allowing point-in-time
copies that can be used to maximize business continuity.
AssuredCopy™ creates a full volume copy (vs. a logical volume
copy with AssuredSnap) providing additional protection against
vdisk failure and eliminating application I/O contention when
accessing the same data blocks.
Storage made easy
Easily configure and manage the 2530 with RAIDar, the intuitive
Web Based Interface (WBI) which provides storage setup and
monitoring without the need for host based software.
spec
2530 SAS
Page 2
2530 Specifications
GE NE RAL
Product Family
Product Type
Chassis Configuration
Disk Architecture
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
2000 Ser ies
RAID, JBOD
2U
3Gb SAS/ 3Gb SATA-II
Max Drives per Chassis 12 drives
Total Capacity
Total Disks
Mounting Options
Max Number of Chassis
Max Capacity per Chassis
Data Management Services (DMS)
1.7TB/56TB (w/exp ansion c hassis)
56
19” Rack , Telco Ra ck, Rack tray
5 (1 RAID and 4 JBOD)
24TB (2T B SATA-II drives)
AssuredSnap
™, AssuredCopy™
PR OT OCO LS AN D STA ND ARD S .. .. ..... .. ..... .. ... .. .. ... .. ..
ICMP (RF C 792, 950, 1256) TCP (RFC 793)
IP (RFC, 894, 1092) SCSI-2 a nd SCSI-3
HO ST S
Initiators
Interface Type
External Ports
DR IV ES
Max Number of Drives
Drive Options
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
SAS (Serial-attached SCSI)
SAS SFF8 088
2/4 SAS (Single/Dual Controller)
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
56
3Gb SAS 146GB 15K RPM
3Gb SAS 300GB 15K RPM
SH OC K AND V IB RATI ON . .. ..... .. ... .. .. ... .. ..... .. ... .. .. ... .
Shock, Operational
Shock, Non-Operational
Vibration, Operational
Vibration, Non-Operational
HI GH -AVA IL ABILI TY FEAT UR ES
Redundant Hot-Swap Controllers
Redundant Hot-Swap Disk
Redundant Hot-Swap Fans
Redundant Hot-Swap Power
Dual Power Cords
Hot Standby Spare
Automatic Failover
Multi-Path Support
Snapshot
Volume Copy with AssuredCopy™
RE GU LATO RY
Safety
3Gb SAS 450GB 15K RPM
3Gb SATA-II 500GB 7200 RPM
3Gb SATA-II 750GB 7200 RPM
3Gb SATA-II 1TB 7200 R PM
3Gb SATA-II 1TB 5400 R PM
RA ID
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
6
Levels Supported
RAID Type
Cache Memory
Cache Backup
Virtual disks per System
Volumes per virtual disk
Volumes per System
Mirrored Cache
Super Capacitor Cache Backup
Cache Backup to Flash
MA NA GEM EN T
Interface Types
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Protocols Supported
Management Consoles
Management Software
PO WE R REQU IR EME NT S - AC
Input Power Requirements
Max Input Power
Heat Dissipation
PO WE R REQU IR EME NT S - DC
Voltage -39 to -72VDC, -48/-60V nominal
3Gb SATA-II 2TB 5400 R PM
Non-RAID, 0, 1, 3, 5, 6, 10 and 50
Hardware
1GB per controller
Battery-free pro tection with sup er capacitors
32
256
256 (ALU A - Asymmetric Logi cal Unit Access)
Yes - SimulCache
™
Yes
Yes - Non-volatile
Mini DB9 RS232, 10/100 Ethe rnet
SNMP, SSL, SSH , SMTP, SMI-S Provider
WEB GUI, CLI
RAIDar
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
100–240VAC, 50/60 Hz, 4.5- 1.9A
475W max imum continuous
1622 BTU /hour
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Electromagnetic Compatibility
RoHS and WEEE RoHS-5 C ompliance , China R oHS, WEE E
Country Approval s Aust ralia/New Zealand , Canada ,
SU PP ORT
Software Warranty
Standard Hardware Warranty
Environmental Monitoring
Phone-home Capability
Remote Diagnostics
Non-disruptive Updates
Non-disruptive Volume Expansion
Max Input Power 500W maximum continuous
Heat Dissipation 1706 BTU/hour
PH YS ICA L
TE MP ERAT UR E AND H UM IDI TY RA NGE S .. .. ... .. .. ... .. ...
Operating Temperature
41°F to 104°F (5°C to 40°C)
Shipping Tempera ture -40°F to 158°F (-40°C to 70°C)
Note: De rate 2°C for every km, up to 3000
meters
Operating
Humidity
10% to 90% RH @ 104°F (40°C),
Height
Depth (excluding cables)
Width
Chassis Weight
Chassis (w/250GB drives) Weight
non-condensing
Non-Operating Hum idity Up to 93% RH @ 104°F (40°C)
non-condensing
DE CL ARE D A CO UST IC NO ISE LE VE LS .... .. ... .. .. ... .. ..... .
Sound Po wer <6.03B S ound Power
Sound Pr essure <55dBA S ound Pressure
© 2008, Dot Hill Systems Corp., All rights reserved. Dot Hill, the Dot Hill logo, the R/Evolution logo, R/Evolution,
AssuredSnap, AssuredCopy, EcoStor and SimulCache are all trademarks of Dot Hill Systems Corp. This document is
for informational purposes only, and does not set forth any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered or to be offered by Dot Hill. Dot Hill reserves the right to make
changes to this document at any time, without notice, and assumes no responsibility for its use. No part of this
document may be copied or reproduced without written permission of Dot Hill Systems Corp. 7.17.09
5.0G, 10 ms, half sine
15G 11ms , half sine
0.21Grms Random 5Hz to 500Hz
flat spectrum/feed forward
0.5G 1 octave/minute 5Hz to 500Hz to
5 Hz sine sweep
0.5Grms Random 20Hz to-1000Hz flat
spectrum
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
UL 60950 -1:2003 (USA)
CAN/CSA-C22.2 No. 60950-1-03 (Canada)
EN 60950 -1 :2001 + A11 (EU)
IEC 6095 0-1 :2001 (International)
CFR 47 Par t 15 Subpar t B (U.S.A ., Class A)
ICES-003 Issue 4 (Canada, C lass A)
EN 55022 :98 +A1 + A2 (EU, Cla ss A)
EN61000-3-2:2000+A1,+A2 ,+A14
(Harmonics)
EN 61000 -3-3 :2001 (Flicker)
EN 55024 :1998 +A1 (EU, Immunity)
CISPR 22 :2005 (International, Class A)
CISPR 24 :97 (International, Immunity)
China (P RC), European Union (EU), G ermany
(GS Mark ), Japan, South Kor ea, Taiwan,
United S tates
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
•
90 days
3 years
SNMP, CLI, RAI Dar, SMTP, SMI- S Provider
Yes
Yes
Yes
Yes for primary volumes
and snap shot volumes
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
3.5 Inch es / 8.9cm
23.7 Inc hes / 60.2cm
17.6 Inc hes / 44.7cm
44lbs. / 19.96kg
65lbs. / 29.48kg
