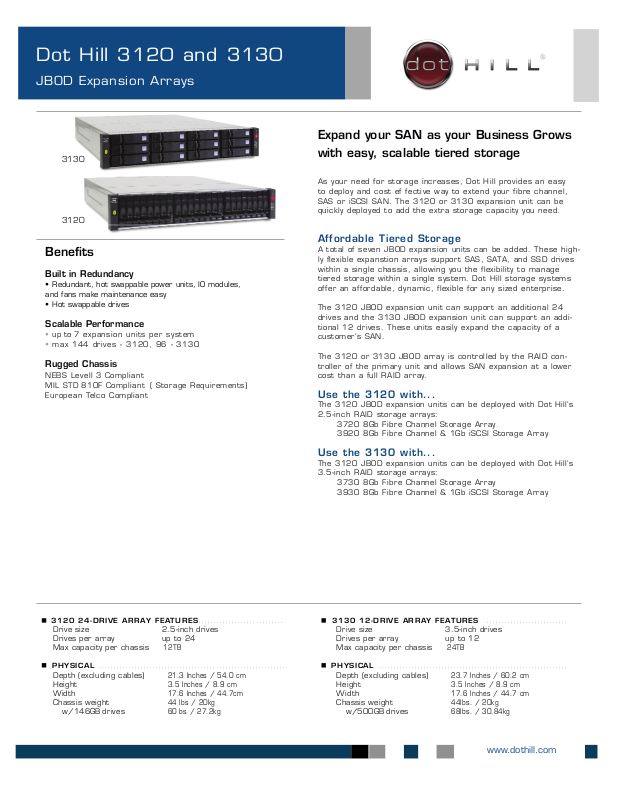

Dot Hill 3120 and 3130
JBOD Expansion Arrays
3130
3120
Benefits
Built in Redundancy
• Redundant, hot swappable power units, IO modules,
and fans make maintenance easy
• Hot swappable drives
Scalable Performance
• up to 7 expan sion unit s pe r system
• max 144 dr ives - 3120, 96 - 313 0
Rugged Chassis
NEBS Levell 3 Comp lia nt
MIL ST D 810F Com pli ant ( S torage Requirem ent s)
European Telco Compliant
•
•
•
•
Expand your SAN as your Business Grows
with easy, scalable tiered storage
•
•
•
•
•
•
•
•
As your ne ed for storage increases, D ot Hi ll provides an e asy
to deploy and cost ef fective w ay to extend your fib re channel,
SAS or iSC SI SAN. The 3120 o r 3130 expansion unit ca n be
quickly deployed to a dd the extra sto rage cap aci ty you need.
Affordable T iered Storage
A total of seven JBOD expansion un its can be added. The se highly flexible e xpa nstion a rra ys support SAS, SATA , and SSD dri ves
within a s ing le chass is, allowing you th e fle xib ili ty to manage
tiered storage w ithin a single system. Dot Hi ll storage systems
of fer an affordable, dynamic, flexible f or any sized enterprise.
The 3120 J BOD expa nsi on unit can s upp or t an additional 24
drives and th e 313 0 JBOD expansion un it ca n suppor t an additional 12 dri ves . The se units easily exp and t he capacity of a
customer’s SAN.
The 3120 o r 3130 JBOD array is controlled by the RAI D controller of th e pri mar y uni t and allows SAN e xpa nsi on at a lower
cost than a full RAID array.
Use the 3120 with...
The 3120 J BOD expa nsi on units can be de plo yed with Dot Hil l’s
2.5-inch RAID st orage ar ray s:
3720 8Gb F ibr e Cha nne l Storage Array
3920 8Gb F ibr e Cha nne l & 1Gb iS CSI Storage Array
31 20 24-D RIVE AR RAY FEATU RES
• • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Drive size 2.5-inch drives
Drives per array up to 24
Max capacity per chassis
PH YSICA L
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Depth (excluding cables)
Height
Width
Chassis weight
w/146GB drives
12TB
21.3 Inches / 54.0 cm
3.5 Inches / 8.9 cm
17.6 Inches / 44.7cm
44 lbs / 20kg
60 bs / 27.2kg
Use the 3130 with...
The 3120 J BOD expa nsi on units can be de plo yed with Dot Hil l’s
3.5-inch RAID st orage ar ray s:
3730 8Gb F ibr e Cha nne l Storage Array
3930 8Gb F ibr e Cha nne l & 1Gb iS CSI Storage Array
31 30 12-D RIVE AR RAY FEATU RES
Drive size 3.5-inch drives
Drives per array up to 12
Max capacity per chassis
PH YSICA L
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Depth (excluding cables)
Height
Width
Chassis weight
w/500GB drives
24TB
23.7 Inches / 60.2 cm
3.5 Inches / 8.9 cm
17.6 Inches / 44.7 cm
44lbs. / 20kg
68lbs. / 30.84kg
• • • • • • • • • • • • • • • • • • • • • • • • • • •
www.dothill.com
Page 2
3120/3130 JBOD specifications
GE NERAL
Product Family
Product Type
Chassis Configuration
Disk Architecture
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
3000 Series
JBOD
2U
6Gb SAS
Data Management Services (DMS) AssuredRemote™
DR IVES
AssuredSnap
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
™, AssuredCopy™
Drive Types SAS, SATA, SSD
RA ID
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Levels Supported
RAID Type
Cache Memory
Cache Backup
Virtual disks per System
Volumes per virtual disk
Volumes per System
Mirrored Cache
Super Capacitor Cache Backup
Cache Backup to Flash
MA NAGEM ENT
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
0, 1, 3, 5, 6, 10 and 5 0
Hardware
2GB per c ontroller
Battery-free pro tection with super capacitors
64
256
256
Yes - SimulCa che
™
Yes
Yes - Non-vol atile
SAS connect to RAID
PO WER REQ UIREM ENT S - AC I NPU T
• • • • • • • • • • • • • • • • • • • • • • • • • • •
Input Power Requirements 100-240VAC 50/60Hz
Max Input Power 436W max maximum continuous
Heat Dissipation 1488 BTUs/hour
PO WER REQ UIREM ENT S - DC I NPU T
• • • • • • • • • • • • • • • • • • • • • • • • • • •
Voltage -36 to -72VDC, -48/-60V nominal
Max Input Power 436W maximum continuous
Heat Dissipation 1488 BTU/hour
TE MPERAT URE AND H UMIDI TY RANG ES .. ..... ... ..... ....
Operating Temperature
41°F to 1 04°F (5°C t o 40°C)
Shipping Temperature -40°F to 158°F (-40°C to 70°C)
Note: Derate 2°C for every km, up to 3000
Operating
Humidity
meters
10% to 90 % RH @ 104°F (40°C),
non-condensing
Non-Operating Hum idity Up to 93% RH @ 104°F (40°C)
non-condensing
DE CLARE D ACOUS TIC N OI SE LE VELS ..... ..... ..... ... ..... .
Sound Power LWAd=6, 75 B
Sound Pressure LpAm - 55dB
SH OCK AND V IBR ATI ON .. ... .. ... ..... ..... ... .. ... ..... ..... ..
Shock, Operational
10G’s for 10 ms (3720)
5G’s for 10 ms (3730)
Shock, Non-Operational
Vibration, Operational
Vibration, Non-Operational
15G 11ms, half sine
5Hz to 500Hz, 0.21Grms flat spectrum
3-365-3Hz, 1.22 Grms, z-axis , 0.85 Grms ,
X&Y axis shaped spectrum
HI GH-AVA ILA BI LIT Y FE ATUR ES
Redundant Hot-Swap Controllers
Redundant Hot-Swap Disk, Fans, Power
Dual Power Cords
Hot Standby Spare
Automatic Failover
Multi-Path Support
Snapshot with AssuredSnap™
Volume Copy with AssuredCopy™
Remote Replication with AssuredRemote™
RE GULATO RY
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Safety UL 60950-1, 1st edition, 2007-10-31 (USA)
CAN/CSA-C22.2 No.60950-1-03,
1st Edition, 2006-7 (Canada)
EN 60950-1:2006 (European Union)
EC 60950-1:2001 (International)
EN 60950-1:2001 +A11:2004 (GS Mark,,Germany)
CCC Mark (power supply only, China PRC)
Electromagnetic Compatibility
Emissions CFR 47 Part 15 Subpart B Class A (U.S.A.)
ICES-003:2004 Class A (Canada)
EN 55022:2006 +A1:2007 Class A (EU)
EN 300 386 V1.4.1:2008 Class A (EU Telco)
AS/NZS CISPR 22:2009 Class A (Australia,
New Zealand)
VCCI:2009-04 Class A (Japan)
GOST R 51318.22-99 Class A (Russia)
KN 22 Class A (S. Korea)
CNS 13438:2006 Class A (Taiwan)
Harmonics EN61000-3-2:2006 (EU)
Flicker EN 61000-3-3:1995 +A1:2001+A2:2005 (EU)
Immunity EN 55024:1998 +A1:2001+A2:2003 (EU)
EN 300 386 V1.4.1:2008 (EUTelco)
GOST R 51318.24-99 (Russia)
KN 24 (S. Korea)
RoHS and WEEE RoHS-6/6 Compliance, China RoHS, WEEE
Country Approvals United States, Canada, European Union (EU),
Australia/New Zealand, Japan, China (PRC) ,
Russia, Mexico, South Africa, Germany, South
Korea, Taiwan
SU PPORT
Software Warranty
Standard Hardware Warranty
Environmental Monitoring
Phone-home Capability
Remote Diagnostics
Non-disruptive Updates
Non-disruptive Volume Expansion
© 2009, Dot Hill Systems Corp., All rights reserved. Dot Hill, the Dot Hill logo, AssuredRemote, AssuredSnap,
AssuredCopy, EcoStor and SimulCache are all trademarks of Dot Hill Systems Corp. This document is for informational
purposes only, and does not set for th any warranty, expressed or implied, concerning any equipment, equipment feature, or service offered or to be offered by Dot Hill. Dot Hill reserves the right to make changes to this document at
any time, without notice, and assumes no responsibility for its use. No part of this document may be copied or reproduced without written permission of Dot Hill Systems Corp. 3.10.10
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
90 days
3 years
SNMP, CL I, RAIDar 2 .0, SMTP, SMI-S P rovider
Yes
Yes
Yes
Yes for prima ry volumes and snapshot volumes
and snapshots
