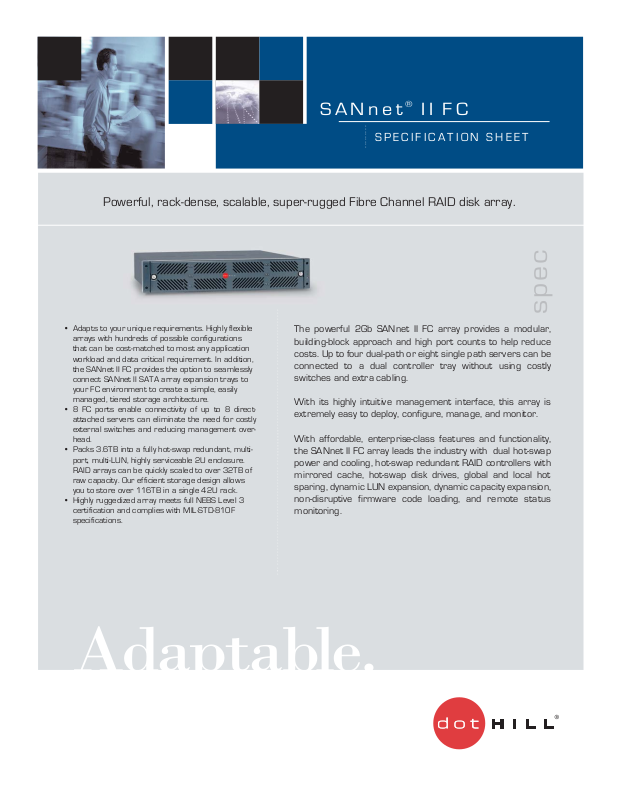

Page 1
The powerful 2Gb SANnet II FC array provides a modular,
building-block approach and high port counts to help reduce
costs. Up to four dual-path or eight single path servers can be
connected to a dual controller tray without using costly
switches and extra cabling.
With its highly intuitive management interface, this array is
extremely easy to deploy, configure, manage, and monitor.
With affordable, enterprise-class features and functionality,
the SANnet II FC array leads the industry with dual hot-swap
power and cooling, hot-swap redundant RAID controllers with
mirrored cache, hot-swap disk drives, global and local hot
sparing, dynamic LUN expansion, dynamic capacity expansion,
non-disruptive firmware code loading, and remote status
monitoring.
Powerful, rack-dense, scalable, super-rugged Fibre Channel RAID disk array.
Adaptable.
Adapts to your unique requirements. Highly flexible
arrays with hundreds of possible configurations
that can be cost-matched to most any application
workload and data critical requirement. In addition,
the SANnet II FC provides the option to seamlessly
connect SANnet II SATA array expansion trays to
your FC environment to create a simple, easily
managed, tiered storage architecture.
8 FC ports enable connectivity of up to 8 directattached servers can eliminate the need for costly
external switches and reducing management overhead.
Packs 3.6TB into a fully hot-swap redundant, multiport, multi-LUN, highly serviceable 2U enclosure.
RAID arrays can be quickly scaled to over 32TB of
raw capacity. Our efficient storage design allows
you to store over 116TB in a single 42U rack.
Highly ruggedized array meets full NEBS Level 3
certification and complies with MIL-STD-810F
specifications.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
ª
•
SANnet
®
II U320
SPECIFICATION SHEET
•
•
•
•
•
•
•
•
•
spec
•
•
•
•
SANnet®II FC
SPECIFICATION SHEET
•
•
•
•
•
•
•
•
•
Page 2
Product Family
SANnet II
Product Type
RAID, JBOD
Chassis Configuration
2U, 12 drives
Storage Architecture
SAN or DAS
Supported Hosts Up to 64
Total Capacity
Up to 32.4TB with 300GB FC drives
Total Disks
Up to 108 FC; or up to 72 mixed SATA & FC
Mounting Options
Rack mount
Max Number of Chassis
9 (1 RAID and 8 JBOD)
Max Capacity per Chassis 3.6TB (300GB FC drives)
6TB (500GB SATA drives)
Host Connection
4/8 Ports - Fibre Channel
Interface Type
2 Gbit Fibre Channel
External Ports
4 per expansion JBOD
Max Number of Drives
108
Drive Options
FC 73GB, 146GB or 300GB at 10,000 RPM
FC 36GB, 73GB or 146GB at 15,000 RPM
SATA 250GB or 500GB at 7,200 RPM
Levels Supported
0, 1, 3, 5, 10, 30, 50 or JBOD
RAID Type
Hardware
Cache Memory
1GB per controller
Cache Backup
Battery, 72 hours
Arrays per System
1 to 32
Partitions per Array
1 to 32
Volumes per System
1 to 1024
Mirrored Cache
Yes
Battery Cache Backup
Yes
Flash Cache Backup
Yes
Interface Types
Serial, Ethernet, FC
Protocols Supported
SMI-S 1.02, SNMP, API
Management Consoles
JAVA, GUI, CLI, API
Management Software Dot Hill SANscape with MPIO support
Voltage
100-240 VAC @ 50/60Hz, single phase
Current
10A maximum per input
Power
360W typical
Voltage
-36 to -72 VDC, -48v nominal
Current 20A maximum per input
Power 360W typical
Temperature
5°C to 40°C (41°F to 104°F)
Humidity
10% to 90% 27°C (81°F) non-condensing
Altitude
-30m to 3048m (-100ft to 10,000ft)
Shock
5.0G, 11ms, half-sine
Vibration
0.2G, 5-500Hz, swept-sine
Noise
Less than LwAd 6.7B (65 dBA)
Heat
1200 BTU/hour
Temperature
--40°C to 65°C (--40°F to 149°F)
Humidity
0% TO 90% 38°C (100°F) non-condensing
Altitude
-30m to 12,192m (-100ft to 40,000 ft)
Shock
15.0G, 11ms, half-sine
Vibration
1.0G, 5-500Hz, swept-sine
Redundant Hot-Swap Controllers
Yes
Redundant Hot-Swap Disks
Yes
Redundant Hot-Swap Fans
Yes
Redundant Hot-Swap Power
Yes
Dual Power Cords
Yes
Multiple Hot Standby Spare
Yes
Automatic Failover
Yes
Alternate Pathing
Yes
Safety
UL listed, cUL, CSA-C22.2 EN
60950:2000, IEC 60950, GS, S-Mark
Emissions
FCC Part 15 Class B, ICES-003, EN 300-386,
EN 55022 Class B, VCCI Class B,
AS/NZS 3548, Class B, BSMI Class B
Harmonics and Flicker
EN 61000-3, EN 61000-3-3
Immunity
EN 300-386, EN 55024
Other NEBS Level 3 (GR-63; GR-1089)
MIL-STD-810F, ETSI EN 300 019
Country Approvals USA, European Union (EU), Canada, Argentina,
Taiwan, Japan, Australia
Standard Hardware Warranty
2 Years
Environmental Monitoring
Yes, via SMI-S, SNMP, CLI, API
Phone-home Capability
Yes
Remote Diagnostics
Yes
Non-disruptive Updates
Yes
Non-disruptive Volume Expansion
Yes
Height
8.75cm (3.45 inches)
Depth
53.3cm (21.0 inches)
Width
44.7cm (17.6 inches)
Chassis Weight
27.2kg (60lbs.)
Chassis w/Drives Weight
34.0kg (75lbs.)
Corporate Headquarters:
2200 Faraday Avenue, Suite 100
Carlsbad, CA 92008
USA
800-872-2783
760-931-5500
Fax: 760-931-5527
Europe:
Marssteden 94
7547 TD Enschede
THE NETHERLANDS
31-53-428-4980
Asia-Pacific:
Chiyoda Trade Ctr., Bldg. 4F
2-3-3 Uchi-Kanda, Chiyoda-Ku
Tokyo 101-0047
JAPAN
81-3-3251-1690
© 2006 Copyright Dot Hill Systems Corporation. All rights reserved. Dot Hill Systems Corp., Dot Hill and the Dot Hill logo are
trademarks of Dot Hill Systems Corp. Product names mentioned herein are trademarks and/or registered trademarks of their
respective owners. Specifications and features may change without notice. 1-12-06
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
••
•
•
•
•
•
•
•
•
••
•
•
•
GENERAL
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
ELECTRICAL – DC INPUT
•••••••••••••••••••••••••••••••••••••••••
ENVIRONMENTAL - OPERATING
•••••••••••••••••••••••••••••••
ENVIRONMENTAL – NON-OPERATING
• ••••••••••••••••••••••
HIGH-AVAILABILITY FEATURES
•••••••••••••••••••••••••••••••••
REGULATORY
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
SUPPORT
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
PHYSICAL
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
HOSTS
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
DRIVES
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
RAID
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
MANAGEMENT
••••••••••••••••••••••••••••••••••••••••••••••••••••••
ELECTRICAL – AC INPUT
•••••••••••••••••••••••••••••••••••••••••
SANnet II FC Specifications
