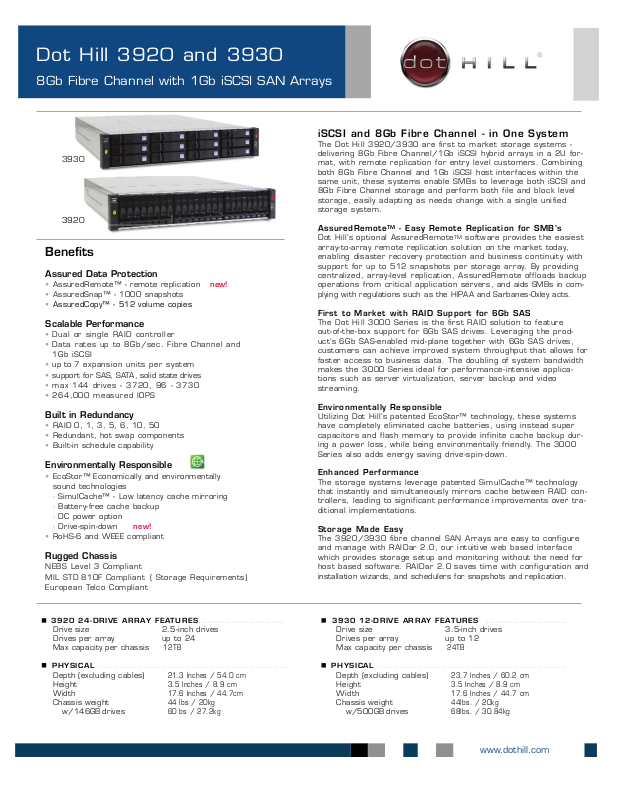

Page 1
Dot Hill 3920 and 3930
8Gb Fibre Channel with 1Gb iSCSI SAN Arrays
iSCSI and 8Gb Fibre Channel - in One System
The Dot Hi ll 3920/ 393 0 are first t o mar ket storage systems -
3930
3920
Benefits
Assured Data Protection
• AssuredRemote™ - remote replication new!
• AssuredSnap™ - 1000 snapshots
• AssuredCopy™ - 512 volume copies
Scalable Performance
• Dual or si ngle RAID con troller
• Data rat es up to 8Gb/se c. F ibre Ch an nel and
1G b iS CSI
• up to 7 expan sion unit s pe r system
• support for SAS, SATA, solid state drives
• max 144 dr ives - 3720, 96 - 373 0
• 264, 00 0 measu re d IOPS
Built in Redundancy
• RAID 0, 1, 3, 5, 6, 10, 50
• Redundant, hot swap components
• Built-in schedule capability
Environmentally Responsible
• EcoStor™ Economically and environmentally
sound technologies
- SimulCache™ - Low latency cache mirroring
- Battery-free cache backup
- DC power option
- Drive-spin-down new!
• RoHS-6 and WEEE compliant
Rugged Chassis
NEBS Level 3 Compl ian t
MIL ST D 810F Com pli ant ( S torage Requirem ent s)
European Telco Compliant
delivering 8Gb F ibre Cha nne l/1 Gb iSCSI hybrid arrays i n a 2U format, with rem ote r epl ica tio n for entr y level customers. Combining
both 8Gb F ibr e Cha nne l and 1Gb iSC SI host inter fac es withi n the
same unit, th ese s yst ems enable SMBs to le ver age both iSCSI and
8Gb Fibre Cha nne l sto rag e and perform both file an d block level
storage, easily adapting as needs change with a single unified
storage system.
Assur edRemoteTM- Easy Remot e Replicat ion for SMB’s
Dot Hill’s optional As suredRemoteTMsoftware provides the ea sie st
array-to-array remote replication so lution o n the market today,
enabling disaster recovery protection and b usiness con tin uit y wit h
support fo r up to 51 2 sna psh ots per storage array. By pr ovi ding
centralized, array-level replication, AssuredRemote o ffloads backup
operations from critical ap pli cat ion s ervers, and aids SMBs in complying with regulations such as the HIPAA and Sarbanes-Oxley acts.
First t o Mar ket with RAI D Sup port for 6Gb S AS
The Dot Hi ll 3000 Series is the first RAID solution to feature
out-of-the-box support f or 6Gb SAS dr ives. Le ver agi ng th e product’s 6Gb SAS-enabled mid-plane t oge the r wit h 6Gb SAS dri ves ,
customers can ac hieve im pro ved system throughput that all ows f or
faster access to b usi nes s data. The d oub ling of system bandwidth
makes the 300 0 Ser ies ideal for pe rformance-intensive applications such as server virt ual iza tio n, se rver backup a nd video
streaming.
Envir onmental ly Responsible
Utilizing Dot Hi ll’s p atented Eco Sto r™ te chn olo gy, the se sy ste ms
have completely eliminated cac he batte rie s, using instead super
capacitors and f las h mem ory to pro vid e infinite cache backup dur ing a p owe r loss, while being e nvi ron mentally fr ien dly. Th e 300 0
Series also a dds e ner gy saving drive-spin-down.
Enhan ced Perfor mance
The storage s yst ems l eve rag e patent ed SimulCache™ technology
that instantly a nd si mul tan eou sly mirr ors cache between R AID c ontrollers, leading to sig nif ica nt performance i mpr ove ments ov er traditional implementations.
Stora ge Made Easy
The 3920/3930 fi bre c han nel SAN Arrays a re ea sy to configure
and manage wi th RA IDa r 2.0, our in tui tiv e web based interf ace
which provides s torage s etu p and monitoring without th e nee d for
host based so ftw are. RAI Dar 2.0 saves time wi th configurati on and
installation wizards, and schedulers for snapshots and replication.
•
•
•
•
•
•
•
•
•
•
•
•
39 20 24-D RIVE AR RAY FEATU RES
• • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Drive size 2.5-inch drives
Drives per array up to 24
Max capacity per chassis
PH YSICA L
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Depth (excluding cables)
Height
Width
Chassis weight
w/146GB drives
12TB
21.3 Inches / 54.0 cm
3.5 Inches / 8.9 cm
17.6 Inches / 44.7cm
44 lbs / 20kg
60 bs / 27.2kg
39 30 12-D RIVE AR RAY FEATU RES
Drive size 3.5-inch drives
Drives per array up to 12
Max capacity per chassis
PH YSICA L
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Depth (excluding cables)
Height
Width
Chassis weight
w/500GB drives
24TB
23.7 Inches / 60.2 cm
3.5 Inches / 8.9 cm
17.6 Inches / 44.7 cm
44lbs. / 20kg
68lbs. / 30.84kg
www.dothill.com
• • • • • • • • • • • • • • • • • • • • • • • • • • •
Page 2
3920/3930 specifications
GE NERAL
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Host speed 2 ports 8Gb Fibre Channel
2 ports 1Gb iSCSI
IOPs 264,000
Data protection
AssuredSnap
™, AssuredCopy™,
AssuredRemote™
EX PAN SIO N
Max number of chassis
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
up to 8 (1 RAID, 7 JBOD)
Expansion units Dot Hill 3120, 3130
PR OTOCO LS AND STA NDARD S .. ... ..... ..... ... .. ... ..... ....
SCSI (IETF)
ICMP (RFC 792, 950, 1256)
IP (RFC, 894, 1092) SCSI-2 and SCSI-3
TCP (RFC 793) FC Chann el
HO STS
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
IP (RFC, 894, 1092)
Fibre Channel
Supported Hosts
4 direct connected hosts, 8Gb, 4Gb, 2Gb
Fibre Channel. 64 switched
Interface Type
External Ports
FCP
2 Single or 4 Dual Controller
iSCSI
Initiators
Interface Type
External Ports
DR IVES
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
All iSCSI complia nt initiators
RJ-45
2 Single or 4 Dual Controller
Drive Types SAS, SATA, SSD
RA ID
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Levels Supported
RAID Type
Cache Memory
Cache Backup
Virtual disks per System
Volumes per virtual disk
Volumes per System
Mirrored Cache
Super Capacitor Cache Backup
Cache Backup to Flash
MA NAGEM ENT
Interface Types
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Protocols Supported
Management Consoles
Management Software
PO WER REQ UIREM ENT S - AC I NPU T
0, 1, 3, 5, 6, 10 and 5 0
Hardware
2GB per c ontroller
Battery-free pro tection with super capacitors
32
256
256
Yes - SimulCa che
™
Yes
Yes - Non-vol atile
10/100 Ethernet, Mini USB
SNMP, SSL, SSH, SMTP, SMI-S Provider, HTTP( S)
WEB GUI, CLI
RAIDar 2.0
• • • • • • • • • • • • • • • • • • • • • • • • • • •
Input Power Requirements 100-240VAC 50/60Hz
Max Input Power 436W max maximum continuous
Heat Dissipation 1488 BTUs/hour
PO WER REQ UIREM ENT S - DC I NPU T
• • • • • • • • • • • • • • • • • • • • • • • • • • •
Voltage -36 to -72VDC, -48/-60V nominal
Max Input Power 436W maximum continuous
Heat Dissipation 1488 BTU/hour
TE MPERAT URE AND H UMIDI TY RANG ES . ... ..... ..... .....
Operating Temperature
41°F to 1 04°F (5°C t o 40°C)
Shipping Temperature -40°F to 158°F (-40°C to 70°C)
Note: Derate 2°C for every km, up to 3000
Operating
Humidity
meters
10% to 90 % RH @ 104°F (40°C),
non-condensing
Non-Operating Hum idity Up to 93% RH @ 104°F (40°C)
non-condensing
DE CLARE D ACOUS TIC N OI SE LE VELS .... ..... ... ..... ..... ..
Sound Power LWAd=6,75 B
Sound Pressure LpAm - 55dB
A
SH OCK AND V IBR ATI ON . ... ..... ..... ..... ... ..... ..... ..... ...
Shock, Operational
10G’s for 10 ms (3720)
5G’s for 10 ms (3730)
Shock, Non-Operational
Vibration, Operational
Vibration, Non-Operational
15G 11ms, half sine
5Hz to 500Hz, 0.21Grms flat spectrum
3-365-3Hz, 1.22 Grms, z-axis , 0.85 Grms ,
X&Y axis shaped spectrum
HI GH-AVA ILA BI LIT Y FE ATUR ES
Redundant Hot-Swap Controllers
Redundant Hot-Swap Disk, Fans, Power
Dual Power Cords
Hot Standby Spare
Automatic Failover
Multi-Path Support
Snapshot with AssuredSnap™
Volume Copy with AssuredCopy™
Remote Replication with AssuredRemote™
RE GULATO RY
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Safety UL 60950-1, 1st edition, 2007-10-31 (USA)
CAN/CSA-C22.2 No.60950-1-03,
1st Edition, 2006-7 (Canada)
EN 60950-1:2006 (European Union)
EC 60950-1:2001 (International)
EN 60950-1:2001 +A11:2004 (GS Mark,,Germany)
CCC Mark (power supply only, China PRC)
Electromagnetic Compatibility
Emissions CFR 47 Part 15 Subpart B Class A (U.S.A.)
ICES-003:2004 Class A (Canada)
EN 55022:2006 +A1:2007 Class A (EU)
EN 300 386 V1.4.1:2008 Class A (EU Telco)
AS/NZS CISPR 22:2009 Class A (Australia,
New Zealand)
VCCI:2009-04 Class A (Japan)
GOST R 51318.22-99 Class A (Russia)
KN 22 Class A (S. Korea)
CNS 13438:2006 Class A (Taiwan)
Harmonics EN61000-3-2:2006 (EU)
Flicker EN 61000-3-3:1995 +A1:2001+A2:2005 (EU)
Immunity EN 55024:1998 +A1:2001+A2:2003 (EU)
EN 300 386 V1.4.1:2008 (EUTelco)
GOST R 51318.24-99 (Russia)
KN 24 (S. Korea)
RoHS and WEEE RoHS-6/6 Compliance, China RoHS, WEEE
Country Approvals United States, Canada, European Union (EU),
Australia/New Zealand, Japan, China (PRC) ,
Russia, Mexico, South Africa, Germany, South
Korea, Taiwan
SU PPORT
Software Warranty
Standard Hardware Warranty
Environmental Monitoring
Phone-home Capability
Remote Diagnostics
Non-disruptive Updates
Non-disruptive Volume Expansion
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
•
90 days
3 years
SNMP, CL I, RAIDar 2 .0, SMTP, SMI-S P rovider
Yes
Yes
Yes
Yes for prima ry volumes and snapshot volumes
and snapshots
