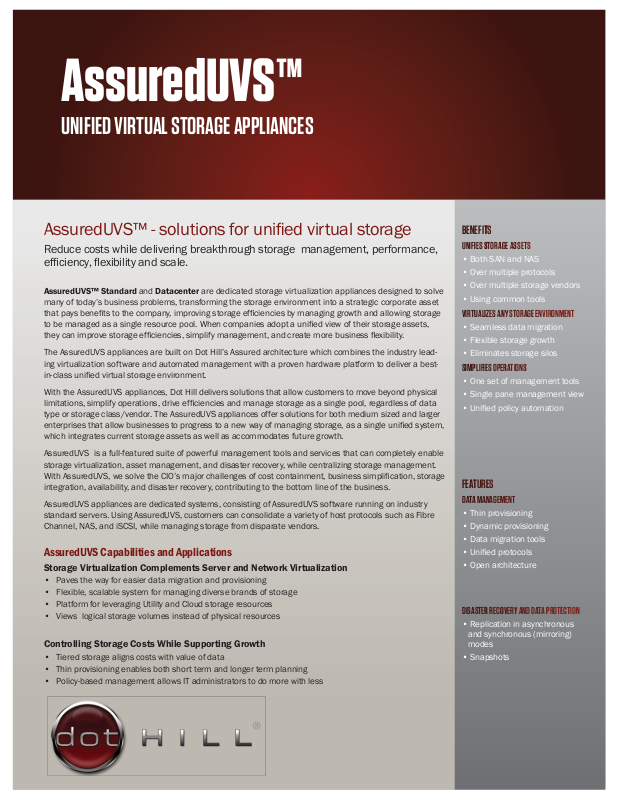

AssuredUVS™
UNIFIED VIRTUAL STORAGE APPLIANCES
AssuredUVS™ - solutions for unifi ed virtual storage
Reduce costs while delivering breakthrough storage management, performance,
effi ciency, fl exibility and scale.
AssuredUVS™ Standard and Datacenter are dedicated storage virtualization appliances designed to solve
many of today’s business problems, transforming the storage environment into a strategic corporate asset
that pays benefi ts to the company, improving storage effi ciencies by managing growth and allowing storage
to be managed as a single resource pool. When companies adopt a unifi ed view of their storage assets,
they can improve storage effi ciencies, simplify management, and create more business fl exibility.
The AssuredUVS appliances are built on Dot Hill’s Assured architecture which combines the industry leading virtualization software and automated management with a proven hardware platform to deliver a bestin-class unifi ed virtual storage environment.
With the AssuredUVS appliances, Dot Hill delivers solutions that allow customers to move beyond physical
limitations, simplify operations, drive effi ciencies and manage storage as a single pool, regardless of data
type or storage class/vendor. The AssuredUVS appliances offer solutions for both medium sized and larger
enterprises that allow businesses to progress to a new way of managing storage, as a single unifi ed system,
which integrates current storage assets as well as accommodates future growth.
AssuredUVS is a full-featured suite of powerful management tools and services that can completely enable
storage virtualization, asset management, and disaster recovery, while centralizing storage management.
With AssuredUVS, we solve the CIO’s major challenges of cost containment, business simplifi cation, storage
integration, availability, and disaster recovery, contributing to the bottom line of the business.
AssuredUVS appliances are dedicated systems, consisting of AssuredUVS software running on industry
standard servers. Using AssuredUVS, customers can consolidate a variety of host protocols such as Fibre
Channel, NAS, and iSCSI, while managing storage from disparate vendors.
AssuredUVS Capabilities and Applications
Storage Virtualization Complements Server and Network Virtualization
• Paves the way for easier data migration and provisioning
• Flexible, scalable system for managing diverse brands of storage
• Platform for leveraging Utility and Cloud storage resources
• Views logical storage volumes instead of physical resources
Controlling Storage Costs While Supporting Growth
• Tiered storage aligns costs with value of data
• Thin provisioning enables both short term and longer term planning
• Policy-based management allows IT administrators to do more with less
BE
UN
• Both SAN and NAS
• Over multiple protocols
• Over multiple storage vendors
• Using common tools
VI
• Seamless data migration
• Flexible storage growth
• Eliminates storage silos
SIMLIFIE O
• One set of management tools
• Single pane management view
• Unifi ed policy automation
T
FE
DAT MAAGEMEN
• Thin provisioning
• Dynamic provisioning
• Data migration tools
• Unifi ed protocols
• Open architecture
DI
RECOER
• Replication in asynchronous
and synchronous (mirroring)
modes
• Snapshots
TM
AssuredUVS
Business Simplifi cation
• Standardizes storage management through a single management tool with
a Graphical User Interface or CLI
• Dynamically provisions providing an easy way to expand storage
• Easily integrates new storage devices
System High-Availability
• By allowing data migration to occur with minimal downtime
• The replication feature which can eliminate backup windows
• Dual controller models protect against a single point of failure.
Disaster Recovery
• Snapshots allow restoration to a specifi c point in time. High snapshot
frequency can reduce the risk of data loss
• Local synchronous and site-to-site long distance replication
Models
AssuredUVS appliances are available to fi t the needs of enterprises, from mid-sized
all the way to the very largest enterprises. AssuredUVS appliances scale from 50TB of
storage to 6 petabytes, and can be upgraded as storage needs grow. Both AssuredUVS
models include management of diverse storage vendor systems, volume creation and
management, thin provisioning, and snapshots. The replication feature and NAS host
connectivity modules are sold separately.
Feat
es
Centralized management Included Included Included
Email alerts Included Included Included
Data migration Included Included Included
Number of volumes 512 4096 12,288
Snapshots 4096 32768 98,304
Thin provisioning volumes 64 1024 3072
Proxy volumes for migration 32 1024 3072
Synchronous replication / mirroring 32 included 1024 included 3072 included
Asynchronous replication Available Available Available
NAS Support Available Available Available
Starting Capacity 50TB 250TB 250TB
SAN volume size 8TB 64TB 64TB
Controllers per confi guration (min., max) 1*,2 2, 4* 6*
Host interface
Maximum storage capacity 250TB 2PB 6PB
AssuredUVS™ Standard
For mid-sized data centers unify-
ing up to 250TB of storage
iSCSI / Fibre Channel iSCSI / Fibre Channel iSCSI / Fibre Channel
AssuredUVS™ Datacenter
For large data centers unifying up
to 2PB of storage
Maximum confi guration, 6PB
AssuredUVS
Management
AssuredUVS’s Graphical User Interface and Command
Line Interface allow system administrators to manage
all functions such as creating storage volumes, migrating data, and establishing snapshot schedules from a
common management interface so that the storage environment can be more easily managed. Administrators
can set up and change policies for all these management functions.
Reports
AssuredUVS includes a complete set of reporting tools.
Interoperability
Storage
The AssuredUVS platform supports an extremely wide
variety of storage vendors and models including Apple,
Dot Hill, EMC, Hitachi, HP, IBM, LSI/Engenio, NetApp,
Nexsan, Promise, Sun, Xiotech, and Xyratex. For specifi c
models, please request a copy of the Dot Hill AssuredUVS
Interoperability Matrix from your Dot Hill representative
for a full and up-to-date listing of qualifi ed and supported
storage.
Operating Environments
AssuredUVS operates in Windows, Linux, Solaris, HP-UX,
AIX, and Mac OS environments. * see the interoperability
matrix for a complete and up to date list.
TM
Support and Professional Services
Installation
There is an AssuredUVS professional services Installation
package which is available with AssuredUVS purchase. The
installation engagement includes a one day session with a
Dot Hill customer support engineer for the purposes of activating AssuredUVS systems, and provisioning the storage.
Hypervisor Environments
AssuredUVS operates in VMware, Citrix Xen and Microsoft
Hyper-V environments.
Application Environments
AssuredUVS can be the perfect storage solution for
supporting Microsoft Exchange, SQL and SharePoint
applications, Apple Xsan, as well as Oracle and MySQL
databases.
Networks
AssuredUVS works in both Fibre Channel and Ethernet
networking environments.
Support
Support is required with purchase of AssuredUVS. There
are several support packages available which scale with
an organization’s service level needs.
Note: specifi cations are subject to change at any time.
* Support available soon.
