analytikjena
FERNGLÄSER
BINOCULARS
JUMELLES
PRISMÁTICOS
БИНОКЛИ
DOCTER® NOBILEM 7 x 50 B / GA
DOCTER® NOBILEM 7 x 50 NAVIDOC
DOCTER® NOBILEM 8 x 56 B / GA
DOCTER® NOBILEM 10 x 50 B / GA
DOCTER® NOBILEM 15 x 60 B / GA
Gebrauchsanleitung
Operating Instructions
Mode d’emploi / Instruction d’utilisation
Instrucciones para el uso
Инструкции по эксплуатации
Made in Germany
6
5
2
1
4
3
•
• Achtung
••
Aufgrund der starken Bündelung des Lichtes kann eine direkte Beobachtung der
Sonne mit einem Fernrohr zu Verletzungen der Augen führen und ist deshalb
unbedingt zu vermeiden.
•
• Notice
••
Due to the high and intense focussing of light a direct observation of the sun with
the telescope may cause eye injuries and must by all means be avoided!
•
• Attention
••
En raison de la forte focalisation de la lumière, une observation directe du soleil
avec la lunette d’approche peut causer des blessures des yeux et doit donc être
impérativement évitée.
•
• Atencion
••
Debido a la fuerte focalización de la luz, debe evitarse observar directamente el
sol con la mira telescópica, ya que los ojos podrían resultar dañados.
•
• Внимание
••
Из-за сильного и интенсивного фокусирования света, строго запрещается
смотреть на солнце сквозь оптический прицел, так как это может привести к
повреждению глаз!
Operating instructions
NOBILEM 7x50
NOBILEM 8x56
NOBILEM 10x50
NOBILEM 15x60
General information
The DOCTER® NOBILEM range of products offers binoculars of the highest quality for
all purposes: Hunting, forestry, expeditions, maritime, sport, trekking, nature observation
and much more.
All models are manufactured in the PORRO prism method. The whole lens system is
provided on all effective surfaces with a super broadband coating. The interplay of these
elements provides a very wide field of view, high resolution as well as a contrast-rich
and true colour picture right to the edges.
In order to protect your binoculars from environmental influences and to achieve a long
life all DOCTER® NOBILEM models have a cast aluminium body and are covered with
an easy-to-hold rubber armour. In this way your binoculars are dust and weather
protected and are an always-ready companion for all your activities.
All DOCTER® NOBILEM models possess the following properties:
• Eye-error equalization by means of ocular settings
• Adjustment possibilities for different eye spacings of the user
• Connection thread for tripod via adaptive arrangement (accessory)
• Objective protection flaps (11)
• Rain protective cover for oculars )12)
Technical data / models
Enlargement
Central focussing (CF)
7 50 7,1 17,3 53-74 18,7 5,8 128 1250 182 207
B/GA
8 56 7 17.5 53-74 21.2 7.1 110 1350 205 214
B/GA
10 50 5 14.5 53-74 22.4 5.7 118 1300 182 207
B/GA
15 60 4 15 53-74 30 7.4 72 1550 227 217
B/GA
Objective lens (mm)
Ø
Ø Outlet pupil (mm)
Outlet pupil interface (mm)
Pupil distance (mm)
Eye relief
Max. Near point
Field of view at 1000 m
Weight
Height (mm)
Width with middle pupil end
distance
NOBILEM 7x50
NAVIDOC 7x50
NAVIDOC 7x50
NAVIDOC 7x50
Enlargement
Ø Objective lens (mm)
Ø Outlet pupil (mm)
Outlet pupil interface (mm)
Pupil distance (mm)
Eye relief
Max. Near point
Field of view at 1000 m
Weight
Height (mm)
Width with middle pupil end
Individual focussing (IF)
7 50 7.1 17.3 53-74 18.7 5.8 128 1250 182 207
B/GA
Nautical binoculars (IF)
7 50 7.1 17.3 53-74 18.7 5.8 128 1250 182 207
B/GA
7 50 7.1 17.3 53-74 18.7 5.8 128 1250 182 207
B/GA (S)
7 50 7.1 17.3 53-74 18.7 5.8 128 1250 182 207
B/GA (CS)
S – with graticule
CS – with compass and graticule
Operation and settings
Adaptation of the eye cups
NOBILEM models (except NOBILEM – Navidoc) are equipped with protective eyecups
(1) whose use assist those wearing glasses and who are emmetropic to use the whole
field of view of the binoculars. Those wearing glasses turn the eye cups over at (2) and
thus achieve the correct ocular – eye-distance. Persons who are emmetropic or who
wear contact lenses leave the eye cups in their erect position (3)
Setting the eye spacing
In order to achieve the largest possible circular picture the binoculars must be set to the
individual eye spacing. Take the binoculars in both hands and turn the middle joint (4) of
the binoculars while looking through it until the picture is sharp and circular. The tight
setting of the middle joint at the works prevents the inadvertent movement of the eye
spacing while carrying and watching. An eye-side graticule marking allows the user to
recognize the setting.
distance
Eye error equalization
Models with centre adjustment:
• With the left eye look through the left binocular half and on the knob of the centre
adjustment (5) set the focus sharp on an object. Keep the right eye closed while
doing this.
• Then look through the binoculars with both eyes and at the right ocular change
the dioptric setting (6) until an equally sharp, circular picture is obtained.
Models with individual focussing:
• The eye error equalization occurs through adjusting the right and left ocular (7)
individually for each eye.
• When viewing, the right picture for the right eye as well as the left picture for the
left eye are individually adjusted at the right and left ocular.
• Adjust the settings of the oculars until you have an even sharp and circular
picture.
• Caution: The adjustments for right and left should be carried out by looking at
the same object in order to prevent incorrect settings.
Distance settings
Models with centre adjustment
• Different object distances require different binocular settings.
• During viewing the object the centre adjustment knob (5) is rotated to the right
and left until the sharpest and most contrasting view is achieved.
Models with individual focussing
• If the two oculars (7) are adjusted to the sharpest setting then there is no need
for further adjustment for viewing different distances.
• Only for viewing objects that are near to the maximum near point of the
binoculars will it be necessary to adjust the oculars in the + - direction.
Additional equipment variants and their application
The NOBILEM – Model 7x50 B/GA (IF) can be equipped optionally at the works with a
graticule plate for estimating distances of viewed objects.

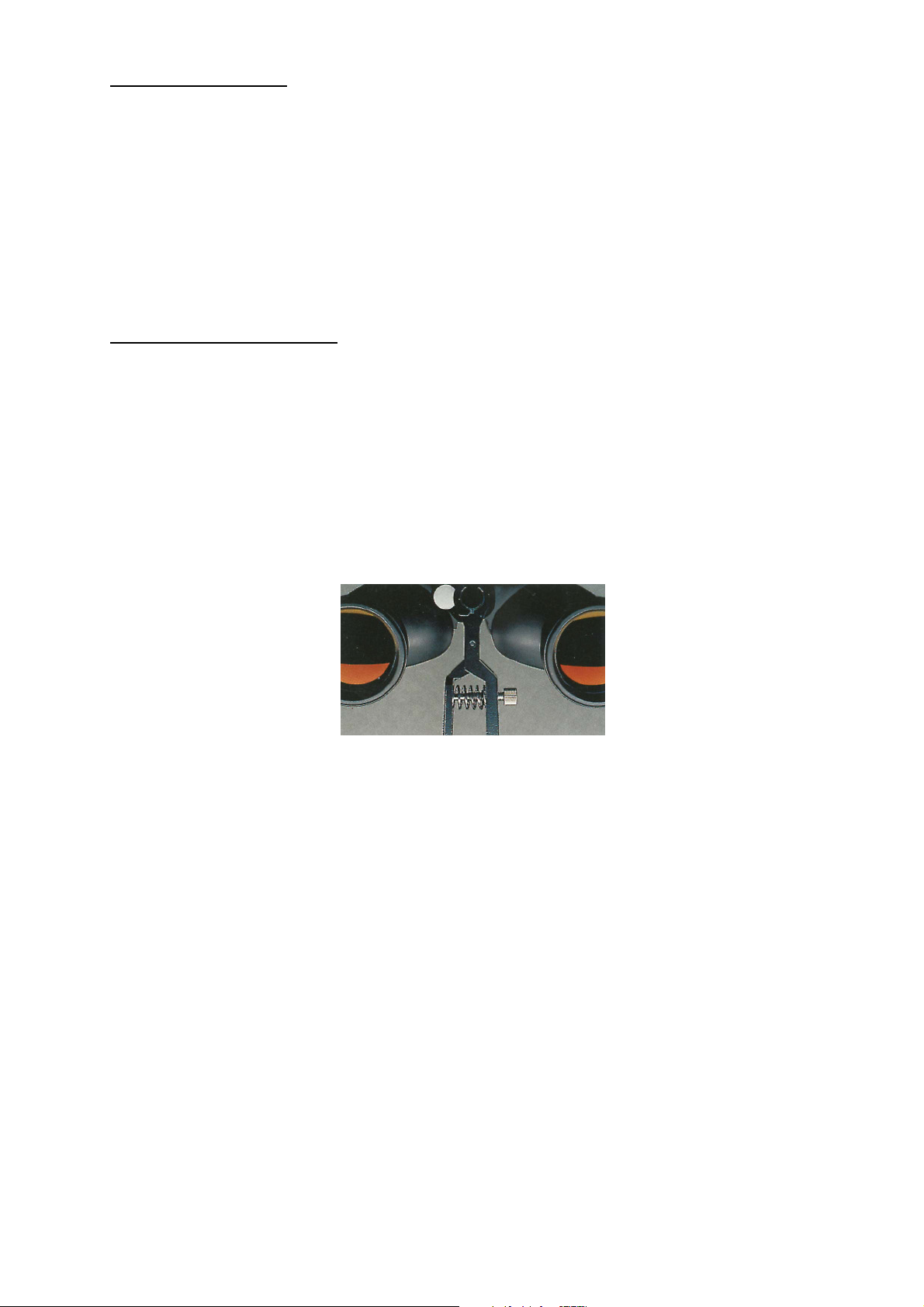

Use with the graticule
If the binoculars is equipped with a graticule plate (on the right ocular side) then it is
possible to determine distances and sizes of objects. The estimation of distance with
the graticule plate is possible from a distance of 100 m.
The scale on the graticule plate is arranged in such a manner that the distance between
two large lines (an interval) corresponds to an object size of 10 m in 1000 m. With the
aid of the scale it is possible with a known size of the object to estimate its distance.
Here the following calculation formula must be used.
Distance in m =
Object size in m x 100
No of intervals, which the object
accepts on the graticule
With a known distance of the object it is possible to determine its size according to the
following formula:
Object size in m =
Distance in m x No of intervals which the object
accepts on the graticule
100
NOBILEM Navidoc nautical binoculars
The NOBILEM Navidoc was designed specially for use at sea and is optionally
equipped ex works with graticule plate or graticule plate and compass. The use of the
graticule plate with the Navidoc is similar to the method described above.
Additionally to the graticule plate the Navidoc can be equipped at the works with a high
performance magnetic compass (8) with 360° Rose (right ocular side). The compass
possesses a 1° division and is mirrored in a special graticule plate. In this way an exact
determination of the points of the compass can be undertaken.
The points of the compass are determined as follows:
• 0° North
• 90° East
• 180° South
• 270° West
Maintenance
With careful handling, the life of a binoculars is practically unlimited. The outside
surfaces of the optics should be carefully cleaned from time to time with a fine hair
brush.
Do not wipe off large dirt particles (e.g. sand) on the lenses but remove them with a hair
brush in order to avoid scratching the coating layer. Fingerprints should be wiped off
with an optical cloth after breathing on them or with a soft cloth. Do not use chemical
solvents
Otional accessories
The steadier the binoculars are held the better the viewing quality. Leaning against
something or support always brings viewing advantages. The use of a tripod is a
necessity for long viewing periods or for high degrees of magnification. With the use of
an adapter and stand clamp (9) obtainable at a specialist shop or from the works, the
Nobilem can be fastened to any commercially available photographic tripod.
A practical swimming belt (10) is available for the NOBILEM – Navidoc models as an
optional accessory.
Use with the tripod clamp
In order to use the NOBILEM models with commercially available tripods it is necessary
to use a tripod adapter.
Installation:
• Remove the protective cap from the threaded hole of the middle joint
• Screw the bolt of the adapter into the threaded hole
• Screw the tripod clamp on to the tripod
• Link the clamp with the adapter pin in a 90° angle
10
9
12
11
8
7
Durch ständige Weiterentwicklung unserer Erzeugnisse können Abweichungen von Bild
und Text dieser Bedienungsanleitung auftreten.
Die Wiedergabe – auch auszugsweise- ist nur mit unserer Genehmigung gestattet. Das
Recht der Übersetzung behalten wir uns vor.
Für Veröffentlichungen stellen wir Reproduktionen der Bilder, soweit vorhanden, gern
zur Verfügung.
Because of the continuous, further development of our products, deviations from the
illustrations and the text of this prospect are possible. Its copy -even in extracts -is oniy
permitted with our authorization. We reserve the right of translation. For publications we
gladlly provide available reproductions of illustrations.
Par le perfectionnement continu de nos produits, des différences de dessin et de texte
concernant ce mode d‘emploi peuvent se présenter.
La reproduction de ces instructions d‘utilisation - même par extraits - n’est autorisée que
par notre permission.
Nous nous réservons le droit de traduction. Pour es publications, nous offrons volontiers
des reproductions des dessins, si disponibies.
Debido al constante perfeccionamiento de nuestros productos, puede haber
divergencias entre las representaciones y el texto de las presentes instrucciones.
La reproducción, aunque sólo sea parcial, sólo podrá realizarse con nuestra
aprobación.
Nos reservamos el derecho de traducción.
Estamos a su disposición para hacer reproducciones de las ilustraciones, si las hubiera,
para su publicación.
Так как наши продукты терпят постоянное развитие, возможны, в этом плане,
несоответствия в иллюстрациях и тексте. Копирование – даже части текста –
разрешается только после нашей авторизации. Мы сохраняем право перевода.
Для публикаций будем рады предоставить доступные репродукции иллюстраций.
