User Manual
4G LTE M2M Router
DWM-312
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.
Manual Revisions
Revision Date Description
1.00 May 16, 2017 • Initial release
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2017 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
iD-Link DWM-312 User Manual
Table of Contents
Table of Contents
Product Overview ..............................................................1
Package Contents .........................................................................1
System Requirements ................................................................. 1
Introduction ................................................................................... 2
Hardware Overview .....................................................................3
Front View ................................................................................3
Top Panel ................................................................................. 4
Rear Panel ................................................................................ 5
Installation ......................................................................... 6
Before You Begin ...........................................................................6
Attaching the External Antennas............................................7
Installing the SIM card(s) ............................................................8
Conguration ..................................................................... 9
Getting Started .............................................................................. 9
Internet ...........................................................................................10
WAN Service .........................................................................10
Preferred SIM Card .........................................................10
SIMA/SIMB .............................................................................11
Network Status ...............................................................11
APN Settings ....................................................................12
APN Conguration ........................................................13
Connection Settings .....................................................15
SIM Card Settings ...........................................................16
IPv4 and IPv6 info ..........................................................17
Device Mode ....................................................................18
Router Mode ....................................................................19
LAN ..................................................................................................20
IPv4 ..........................................................................................20
LAN Settings ....................................................................20
Dynamic Route ...............................................................21
DHCP ..................................................................................22
IPv6 ..........................................................................................23
IPv6 Cong .......................................................................23
Internet Connection Type ...........................................24
VPN ..................................................................................................25
IPSec ........................................................................................25
VPN Settings ....................................................................25
XAUTH Account ..............................................................28
PPTP .........................................................................................29
PPTP Server ......................................................................29
PPTP Server ......................................................................30

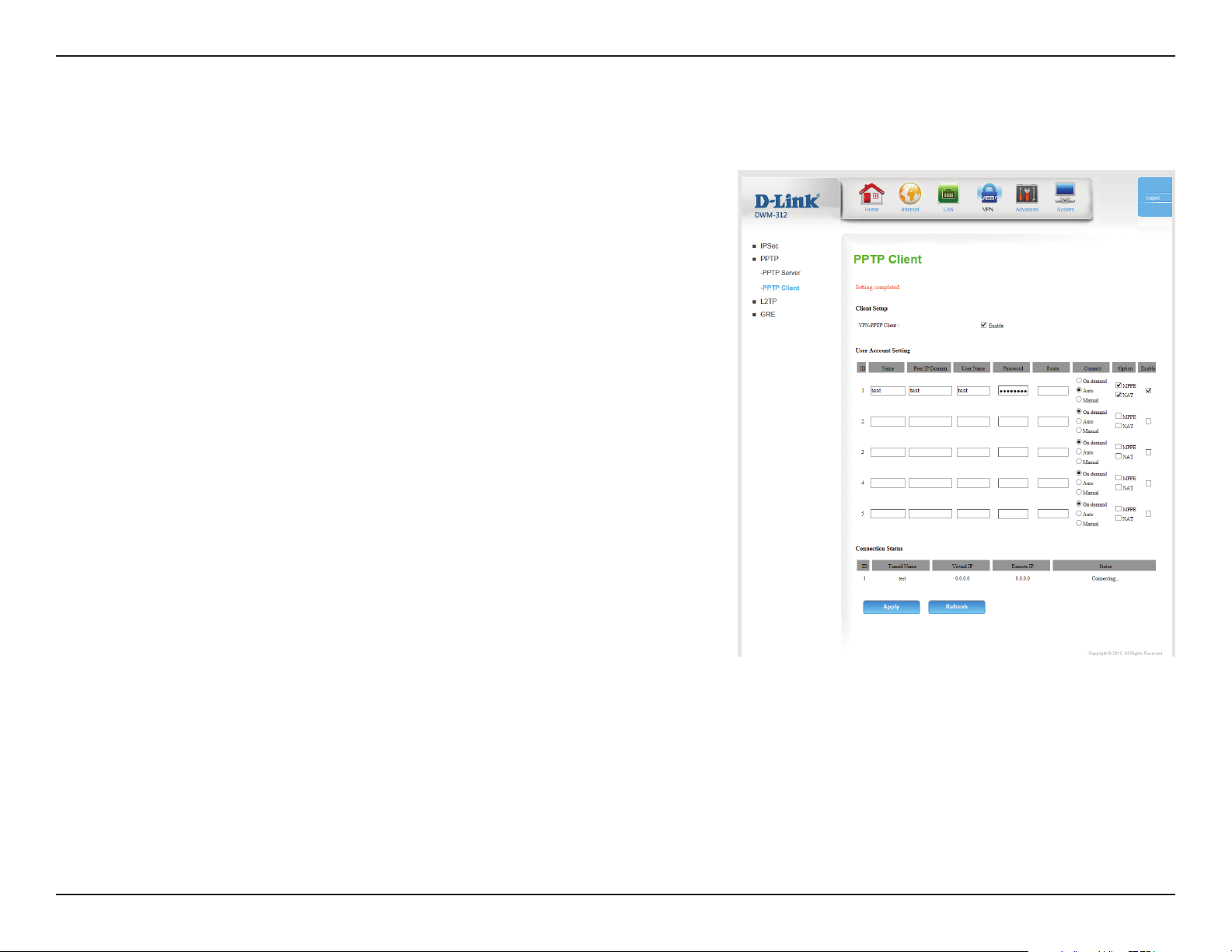

PPTP Client .......................................................................31
L2TP .........................................................................................33

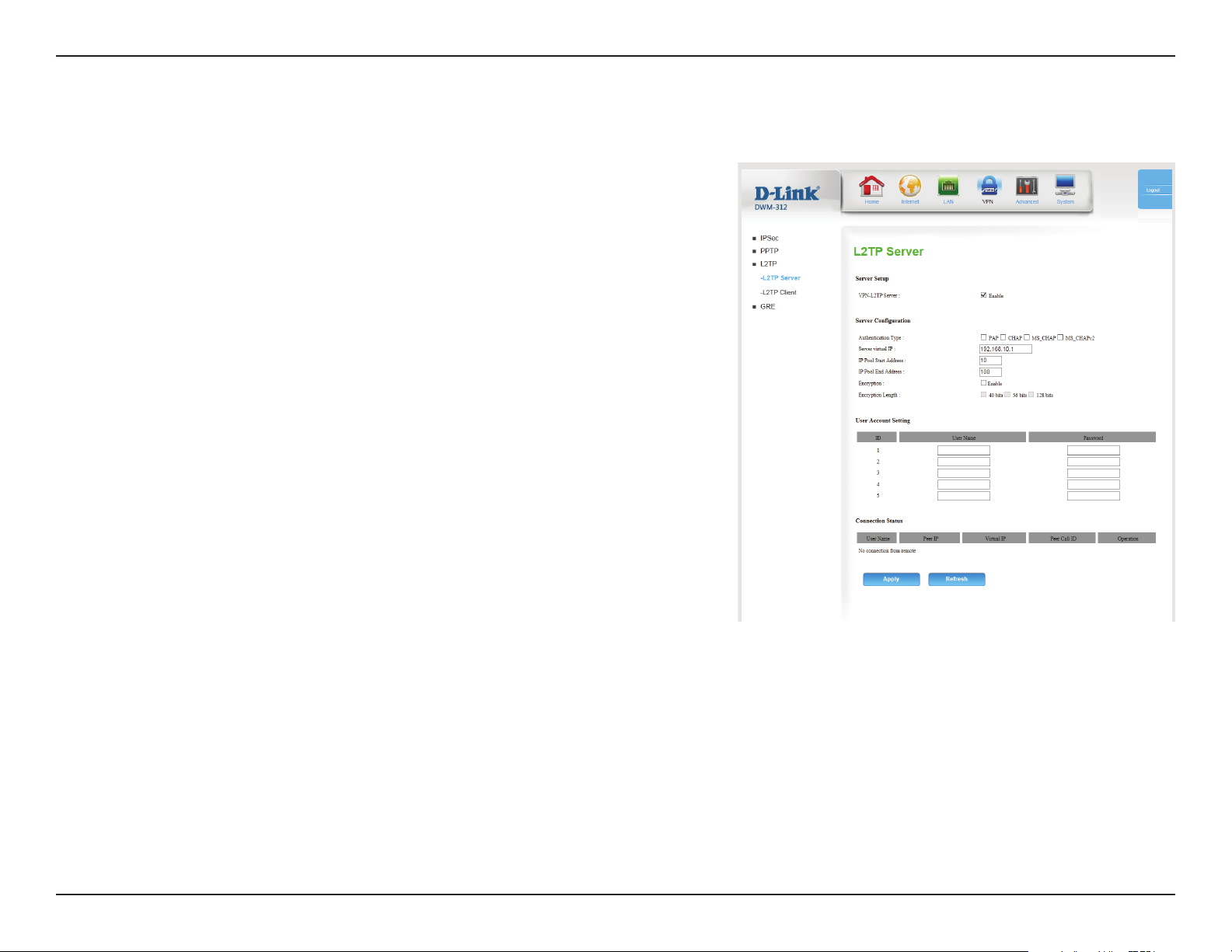

L2TP Server ......................................................................33

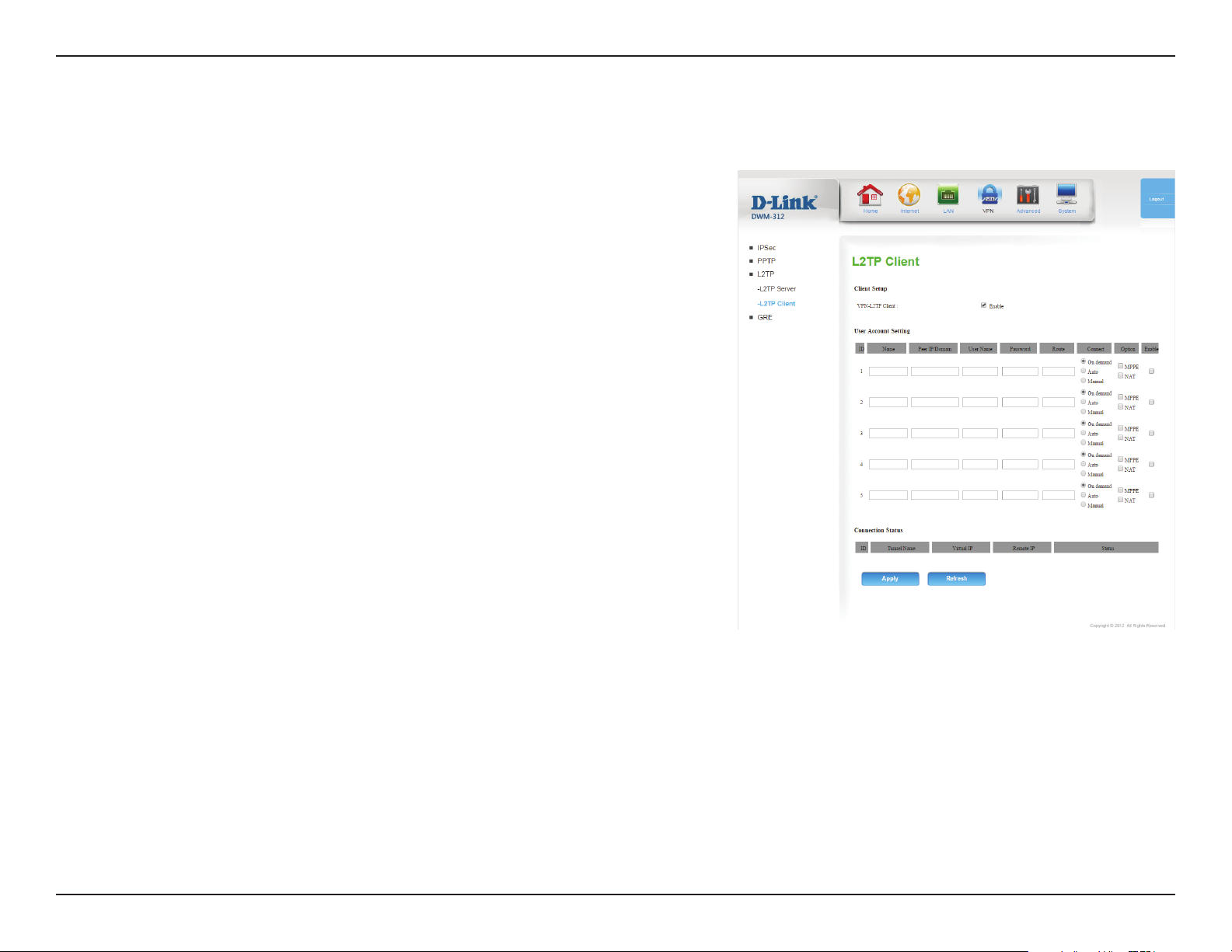

L2TP Client .......................................................................35

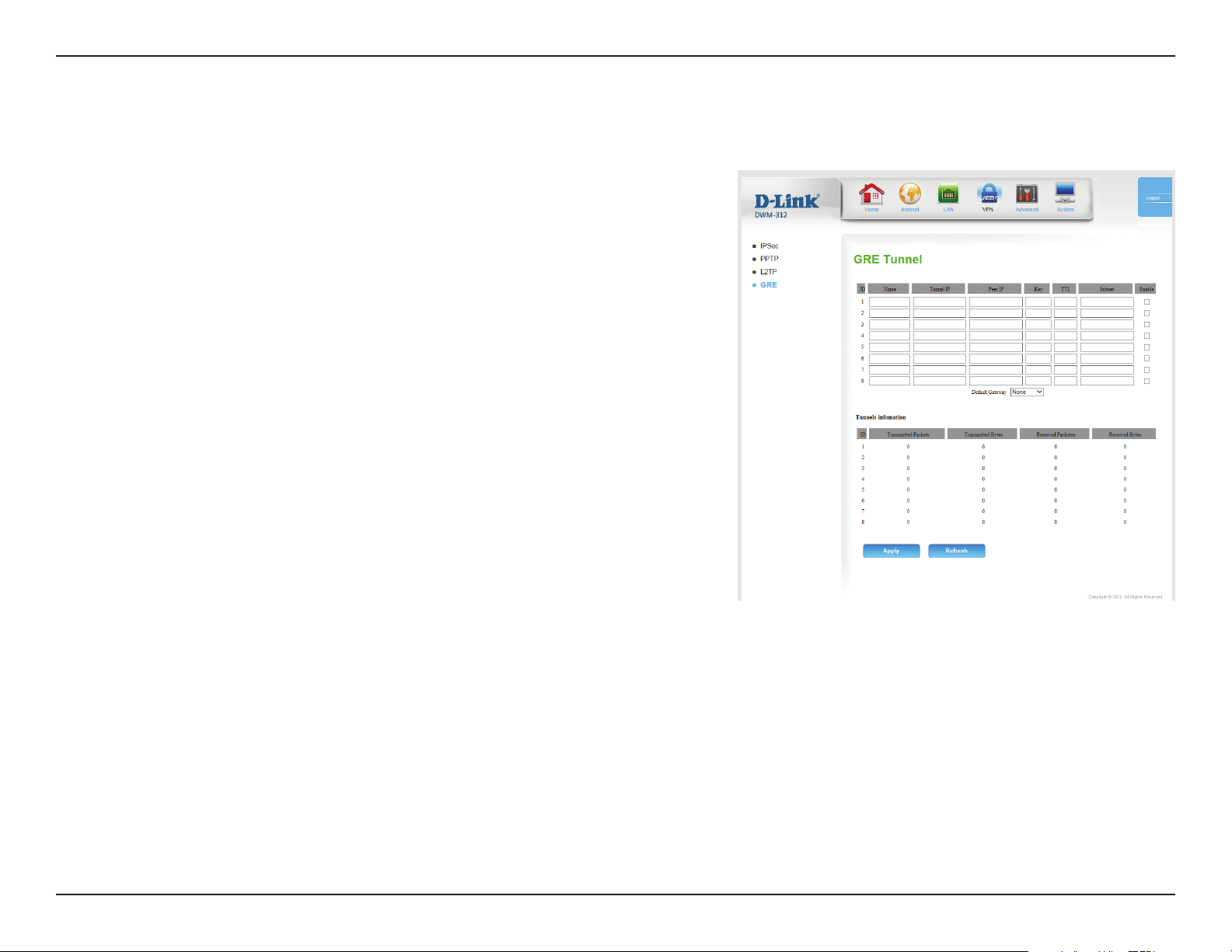

GRE ...........................................................................................37
Advanced ......................................................................................38
DNS ..........................................................................................38
DNS .....................................................................................38
DNS Redirect....................................................................39
Firewall ...................................................................................40
iiD-Link DWM-312 User Manual
Table of Contents

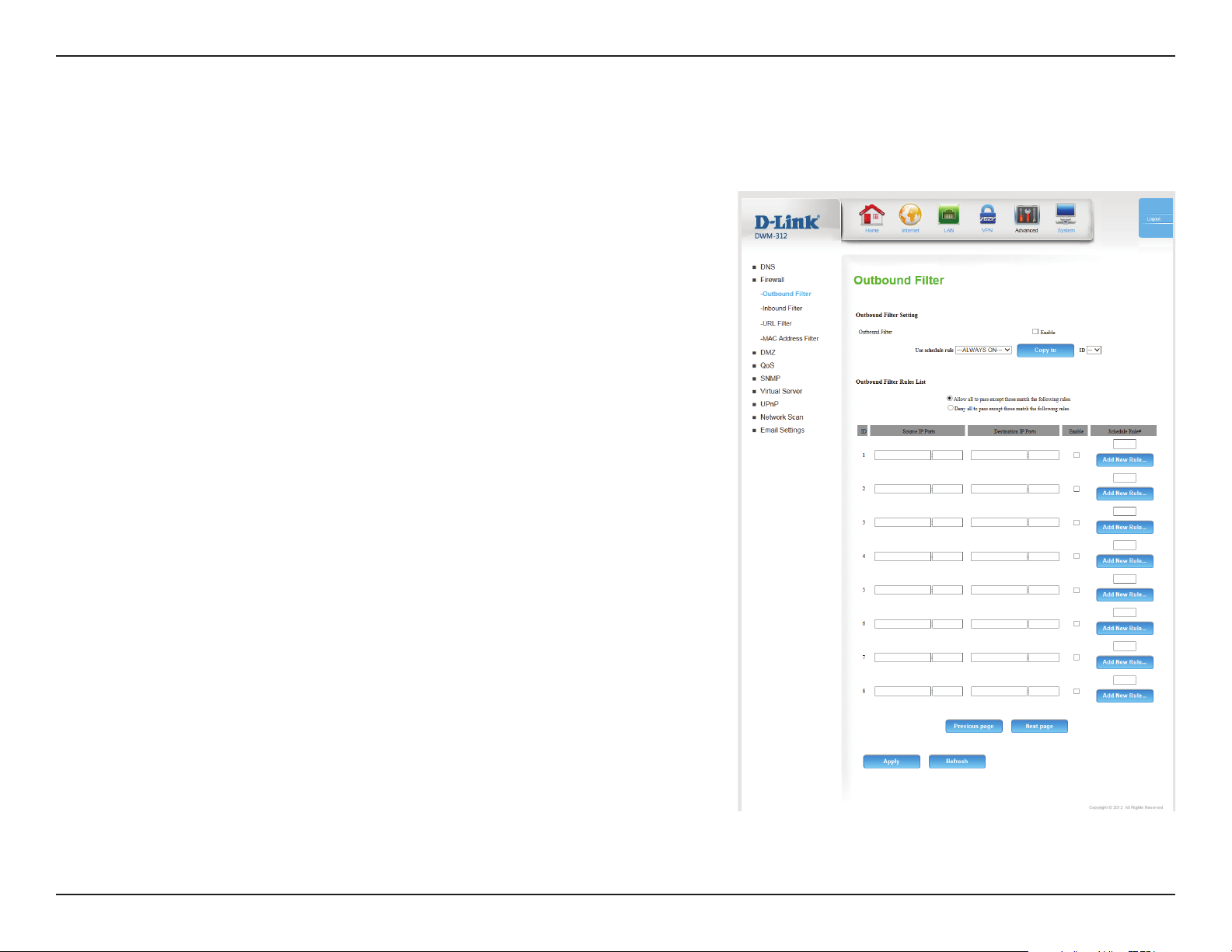

Outbound Filter ..............................................................40
Inbound Filter ..................................................................41
URL Filter ...........................................................................42
MAC Address Filter ........................................................43
DMZ .........................................................................................44
QoS...........................................................................................45
SNMP .......................................................................................46
Virtual Server ........................................................................ 48

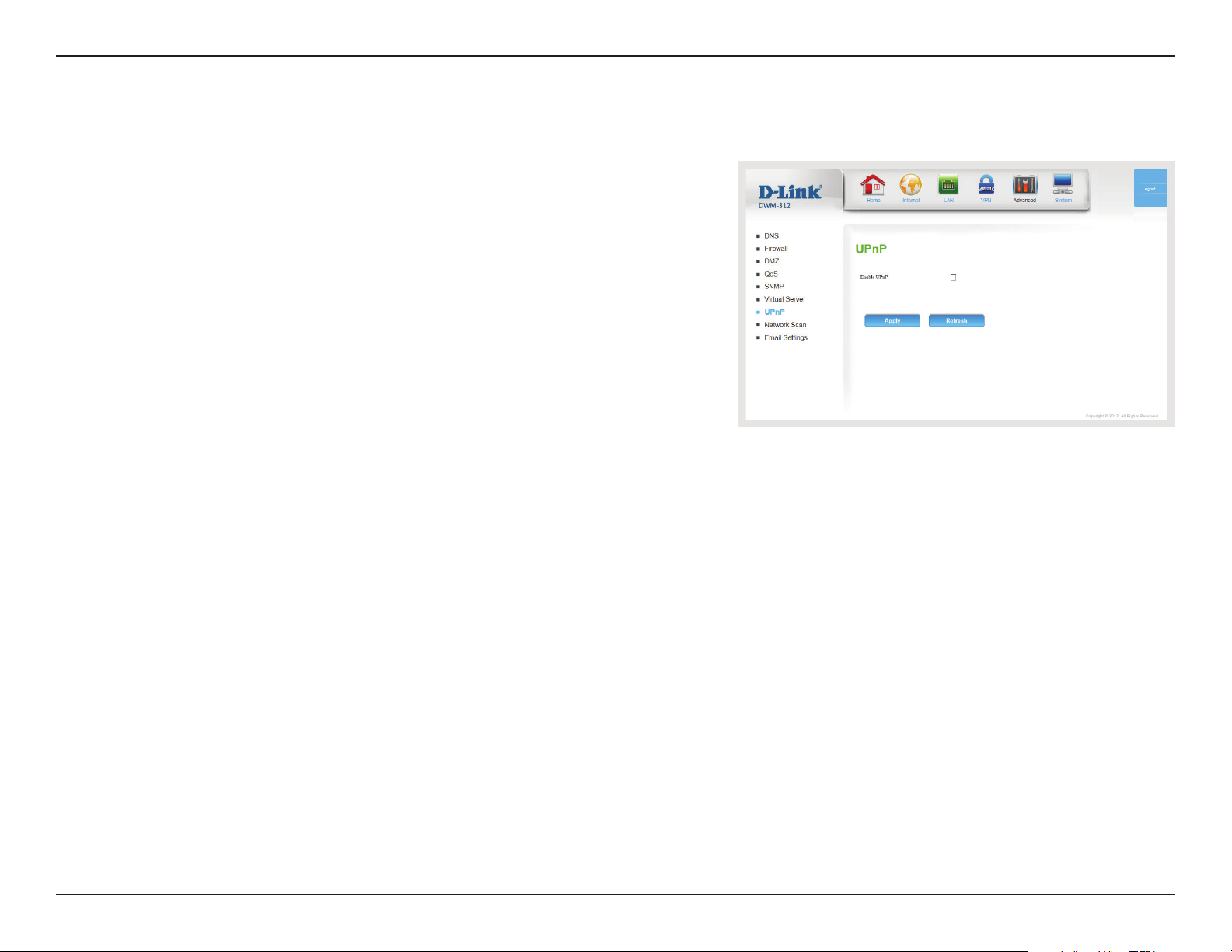

UPnP ........................................................................................49
Network Scan .......................................................................50
System ............................................................................................52
Administration .....................................................................52
Password Settings .........................................................52
Remote Login Settings .....................................................53

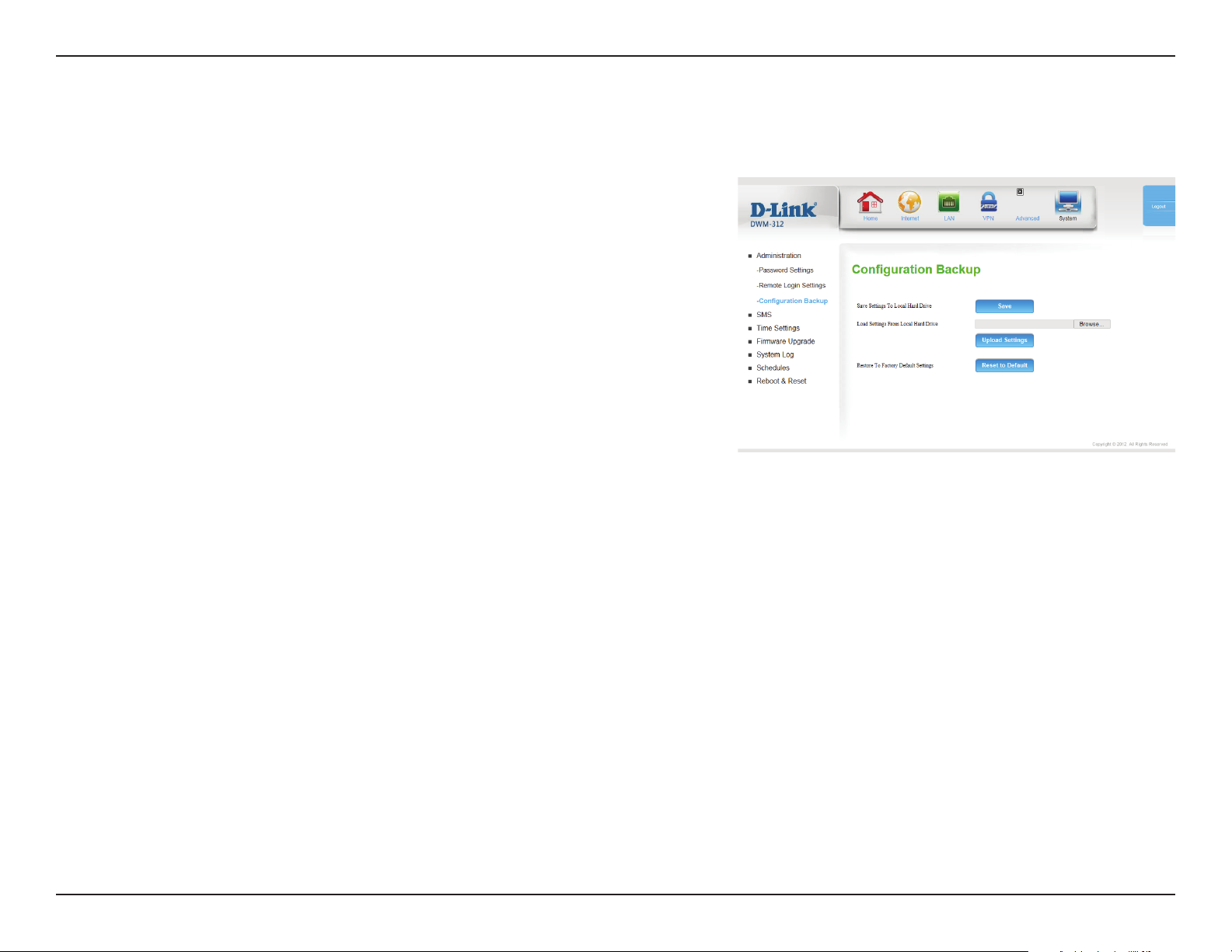

Conguration Backup ..................................................54
SMS ..........................................................................................55

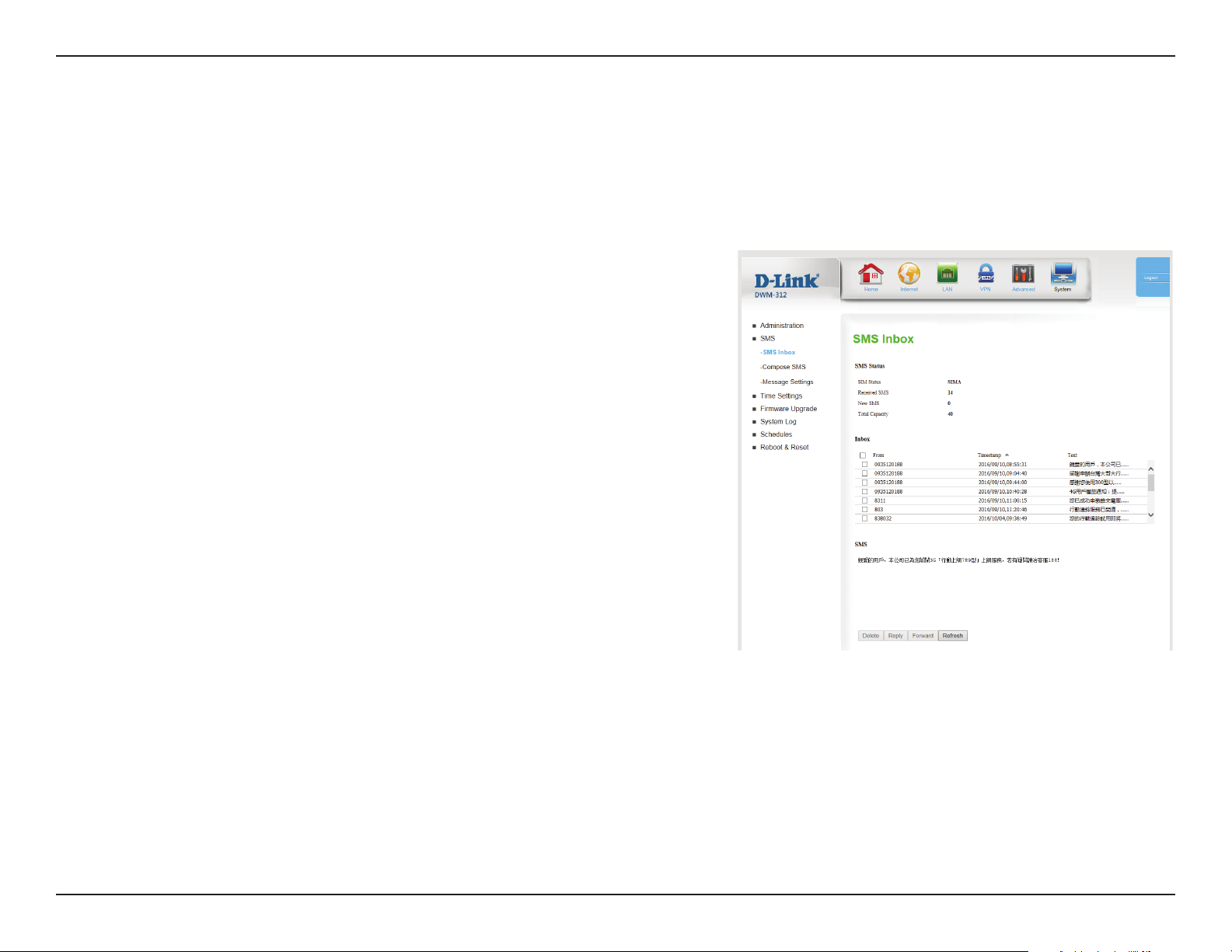

SMS Inbox .........................................................................55
Reboot and Reset ...............................................................64
Reboot the Device .........................................................64
Connection Reset ...............................................................65
Troubleshooting .............................................................. 66
Networking Basics ........................................................... 70
Check your IP address ...............................................................70
Statically Assign an IP address ...............................................71
Technical Specications ..................................................72
Regulatory Information ..................................................74
Compose SMS .................................................................56
Message Settings ...........................................................57
Time Settings .......................................................................59
Firmware Upgrade ..............................................................60
Device Upgrade ..............................................................60
Module Upgrade ............................................................61
System Log ............................................................................62
Schedules ..............................................................................63
Add New Rule ..................................................................63
iiiD-Link DWM-312 User Manual
Section 1 - Product Overview
DWM-312 4G LTE M2M Router
Power Adapter
2x 3G/4G Antennas
RJ-45 Cable
If any of the above items are missing or damaged, please contact your reseller.

Product Overview

Package Contents

System Requirements

A compatible micro-SIM/UICC card with service.*
Computer with Windows, Mac OS, or Linux-based operating system with an installed Ethernet adapter.
Java-enabled browser such as Internet Explorer 6, Safari 4.0, Chrome 20.0, or Firefox 7 or above (for conguration).
* Subject to services and service terms available from your carrier.
1D-Link DWM-312 User Manual
Section 1 - Product Overview

Introduction

The D-Link DWM-312 4G LTE M2M Router is an easy-to-deploy, high-performance 3G/4G router. It features a dedicated Fast Ethernet port and dual-SIM 4G LTE mobile broadband for maximum redundancy and exibility for intense Machine-to-Machine (M2M) applications. Powerful VPN tools and advanced remote management combined with ease of use make the DWM-312 ideal for both large-scale and individual deployments.
Easily connect to your high-speed 3G/4G LTE mobile connection with the DWM-312 4G LTE M2M Router, and enjoy fast downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1, giving you the speed you need for fast, responsive Internet access. Deploy it in a remote location to access IP cameras and systems remotely. The blazing fast LTE connection allows multiple users to access e-mail and stream music and video on the go. Congurable dual-SIM fallback provides reliability and exibility in mixed network environments.
The DWM-312 4G LTE M2M Router’s integrated VPN Client and Server support almost any VPN policy. The router’s hardware engine can support and manage multiple VPN congurations. It supports IPSec, PPTP, L2TPv2, and GRE protocols in Server mode, and handles pass-through trac as well. Advanced VPN conguration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.
The industrial-grade casing means the DWM-312 provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance mean that the DWM-312 is ready for the most demanding M2M applications in virtually any environment. Wall mounts allow the DWM-312 to be mounted virtually anywhere for optimal connectivity. Flexible power input allows the router to be powered by any convenient power source.
1
Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.
2D-Link DWM-312 User Manual
Section 1 - Product Overview

Hardware Overview

Front View

1
1 Ethernet Port
2 Ethernet Activity Flashes green when there is Ethernet trac. 3 DC Power Input
This is a standard 10/100 Mbps Ethernet port to connect any device via Cat 5/5e/6 RJ-45 cables.
5.5 mm barrel connector for power.
2
3
3D-Link DWM-312 User Manual
Section 1 - Product Overview

Top Panel

1 SMA Connector Main SMA female connector - Primary antenna.
2 SMA Connector AUX SMA female connector - Auxiliary Antenna.
3 Wall Mounts Wall mounts for standard 8 gauge (4 mm) screws.
4 Power A green LED indicates the DWM-312 is receiving power.
5 Internet A green LED indicates Internet connectivity.
Solid Green Connected to SIM A LTE Network.
Flashing Green Fallback to SIM A 3G/2G network.
6 Network
7
Signal
Solid Blue Connected to SIM B LTE Network.
Flashing Blue Fallback to SIM B 3G/2G network.
O No Service/SIM Error/APN Error.
Green Indicates strong signal.
Amber Indicates fair signal.
Red Indicates weak signal.
O Indicates no signal.
1
2
3
4
5
6
7
4D-Link DWM-312 User Manual
Section 1 - Product Overview

Rear Panel

1
1 SMA Connector AUX SMA female connector - Auxiliary Antenna.
2 SIM A Primary SIM card slot.
3 Reset Press and hold for 3 seconds to reset.
4 SIM B Secondary SIM card.
5 SMA Connector Main SMA female connector - Primary antenna.
2
3
4
5
5D-Link DWM-312 User Manual
Section 2 - Installation

Installation

This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in an attic or garage.

Before You Begin

Observe the following precautions to help prevent shutdowns, equipment failures, and personal injury:
Install the DWM-312 in a cool and dry place. Refer to the technical specications in the user manual for the acceptable operating temperature and humidity ranges.
Install the router in a site free from strong electromagnetic sources, vibration, dust, excessive moisture, and direct sunlight.
Place antennas in an unobstructed area with clear mobile signal. Avoid metal boxes, brick walls, and other dense materials. It is recommended to use the web interface to conrm signal strength before permanent installation.
Visually inspect the power connector and make sure that it is fully secure.
Do not stack any devices on top of the router.
6D-Link DWM-312 User Manual
Section 2 - Installation

Attaching the External Antennas

The DWM-312 requires two external antennas to function correctly. The included antennas are interchangeable, but third party antennas may require connection to specic ports.
1. Attach the antennas to the SMA connectors labelled “Main” and “Aux” on the back of the router Turn clockwise to fasten the antenna.
2. Position the router where it will recieve optimal signal. Arrange them so they point upward.
Note: The included antennas are interchangeable. Third party antennas may
require connection to specic ports.
7D-Link DWM-312 User Manual
Section 2 - Installation

Installing the SIM card(s)

The DWM-312 is equipped with dual-SIM slots. At least one active SIM card with Internet access is required for proper operation.
1. Insert a micro-SIM card into the slot labelled SIM A with the contacts facing down. If you wish to install a second SIM card, insert it into the slot labelled SIM B.
2. Gently press the micro-SIM into the slot until it locks into place. To remove, press again and the SIM card will be ejected.
Note: SIM behavior must be configured from the web UI before an Internet connection can be established.
8D-Link DWM-312 User Manual
Section 4 - Conguration
Conguration

Getting Started

To access the conguration utility, open a web browser such as Internet Explorer and enter the address of the router (192.168.0.1 by default).
To log in to the conguration utility, enter the default username admin and the default password admin.
Note: If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.
Once you have successfully logged in, you will see the Home page. On this page you can view information about your Internet connection, the wireless/LAN status, and system information.
At the top of the page is a menu. Clicking on one of these icons will take you to the appropriate conguration section.
On each page, ll out the desired settings and click Apply when you are done or Refresh to revert to the old settings.
9D-Link DWM-312 User Manual
Section 4 - Conguration

Internet

WAN Service

On this page you can congure your Internet connection. If you are not sure which settings to use, please contact your Internet Service Provider (ISP). Note that the DWM-312 requires a SIM card and active cellular internet service to connect to the Internet.
Preferred SIM Card
Prefered SIM
Card:
Switch Time:
Select SIMA, SIMB, SIMA First, SIMB Backup, or SIMB First; SIMA Backup.
Selecting a single SIM card, either SIMA or SIMB will connect over a single SIM only. Selecting a backup option will change cause the connection to switch to the specied backup if the primary SIM cannot connect after the specied time.
Selecting SIM cards will cause the menu options to display according to active SIM cards, either showing SIMA, SIMB, or SIMA and SIMB. The conguration options for each are the same.
Select the amount of time in minutes for the router to attempt to reconnect to the primary SIM. If this time elapses, it will automatically switch to the backup.
Click Apply to save your settings, or Refresh to revert to your previous settings.
10D-Link DWM-312 User Manual
Section 4 - Conguration

SIMA/SIMB

Network Status
Network
Provider:
Network Type:
Connection
Time:
Signal Strength:
IP Type:
Total DL:
Total UL:
Prole Name:
Shows the name of the current network provider.
Species the current network type. Indicates LTE, 3G, or 2G.
Indicates the amount of time the network has been up.
Shows cellular signal strength as a percentage.
Shows whether the router is assigned an IPv4 or an IPv6 address.
Shows total downloaded bytes since last reboot.
Shows total uploaded bytes since last reboot.
Indicates the name of the APN prole.
Click Refresh to update the page.
11D-Link DWM-312 User Manual
Section 4 - Conguration
APN Settings
Dial Up Prole:
Country/ Telecom:
Username:
Password:
Verify Password:
Dialed Number:
Authentication:
Select Auto-Detection to have the router automatically detect the settings for your connection. Select Manual to enter the details of your connection manually. Select Selection to choose several pre­congured proles, congurable in APN Conguration on page
12.
If you select Manual, the following options will appear:
Select your country and service provider to automatically ll in some of the required settings.
Fill in only if requested by ISP (optional).
Fill in only if requested by ISP (optional).
Re-type your password in this eld (optional).
Enter the number to be dialed.
Select PAP, CHAP, or Auto detection. The default authentication method is Auto.
APN:
PIN Code:
Primary DNS
Server:
Secondary DNS
Server:
Enter the APN information (optional).
Enter the PIN associated with your SIM card.
Fill in if provided by your ISP. If not, keep the default value (optional).
Fill in if provided by your ISP. If not, keep the default value (optional).
Click Apply to save your settings, or Refresh to revert to your previous settings.
12D-Link DWM-312 User Manual
Section 4 - Conguration
APN Conguration
Item:
Prole Name:
APN:
Priority:
Actions:
Add New APN:
Delete:
This check box allows you to select one or more APN proles.
Indicates the name of the prole.
Indicates the access point name (APN) in use by the selected prole.
APN proles are prioritized by number. If one prole does not lead to an active internet connection, the router will automatically switch to the next prole in the queue.
Click Edit to edit the corresponding prole, described in New/Edit APN Prole on page 13.
Click Add New APN to create a new APN, described in New/Edit APN Prole on page 13.
Click Delete to all proles selected in the Item column.
13D-Link DWM-312 User Manual
Section 4 - Conguration
New/Edit APN Prole
Prole Name:
APN:
PIN Code:
User Name:
Password:
Priority:
Authentication:
Enter a name for the prole.
Enter the APN to be used. This information should be provided by your ISP.
If your SIM uses a PIN, enter it here.
If your mobile connection requires a username, enter it here.
If your mobile connection requires a password, enter it here.
Enter a priority between 1 and 4, with 1 being highest priority and 4 being lowest.
Select the authentication type used by your ISP.
Click Save to save your settings, or Undo to revert to your previous settings.
14D-Link DWM-312 User Manual
Section 4 - Conguration
Connection Settings
Prefer Service
Type:
Allow Data
Roaming:
Reconnect
Mode:
Maximum Idle
Time:
IP Type:
Choose whether the DWM-312 should only use 4G networks, 3G networks, 2G networks, or use Auto Mode to automatically select a network.
Enabling this option will allow you to connect when roaming outside your carrier’s home coverage.
Note: Roaming connections may incur additional fees from your service provider.
Choose Always when you want to establish mobile connection all the time. Choose Manual to only connect when you click Connect on the home screen. If you choose Connect-on-demand, the device will establish a mobile connection when local users want to connect to the Internet, and disconnect if there is no trac after the time period dened by the Maximum Idle Time setting.
Note: These options are only available if SIMA Only has been selected in WAN Service on page 15.
If you have chosen Connect-on-demand, enter the maximum idle time before disconnection in seconds.
Specify IPv4, IPv6, or IPv4/IPv6 to determine what type of IP address will be allocated by your ISP. This information should be provided by your ISP.
Click Apply to save your settings, or Refresh to revert to your previous settings.
15D-Link DWM-312 User Manual
Section 4 - Conguration
SIM Card Settings
SIM Status:
PIN Code
Request
function:
Input SIM PIN
Code:
PIN Attempts:
Indicates which SIM is currently active.
Enable this if you wish to set a PIN for your SIM.
If you have selected Enable for the above feature, enter your new PIN here.
Shows the number of attempts remaining before the SIM is locked. SIM cards generally allow three attempts, after which they can only be unlocked by a PUK code provided by the ISP. For information on the conguration of your SIM card, consult your ISP or carrier.
Click Apply to save your settings, or Refresh to revert to your previous settings.
16D-Link DWM-312 User Manual
Section 4 - Conguration
IPv4 and IPv6 info
IPv4
IP Address:
Subnet Mask
Gateway:
DNS Server1:
DNS Server2:
IP Address:
Gateway:
DNS Server1:
DNS Server2:
Shows the IPv4 address of the current SIM card.
Shows the subnet mark of the current SIM card.
Shows the gateway used by the current SIM card.
Indicates the IP address of the primary DNS server.
Indicates the IP address of the primary DNS server.
IPv6
Shows the IPv4 address of the current SIM card.
Shows the gateway used by the current SIM card.
Indicates the IP address of the primary DNS server.
Indicates the IP address of the primary DNS server.
Click Refresh to update this page.
17D-Link DWM-312 User Manual
Section 4 - Conguration
Device Mode
Device Mode:
Router Mode is the default mode, which enables NAT and DCHP. In this conguration, the DWM-312 gets an IP from the ISP, and then creates its own subnet with a private IP range.
Bridge Mode disables all DHCP, NAT, and routing functions. In this mode, the DWM-312 acts as a simple modem, and IPs are assigned directly by the ISP.
Click Apply to save your settings, or Refresh to revert to your previous settings.
18D-Link DWM-312 User Manual
Section 4 - Conguration
Select NAT or Classical. The Classical option disables the NAT
NAT:
rewall.
Router Mode
Enable:
DNS Query /
ICMP Checking:
Check Incoming/
Outgoing
packet:
Check interval:
Fail Threshold:
Target 1:
Select Enable to enable WAN keep alive. This may be useful if your provider automatically disconnects you after an idle period.
Specify the method for keep-alive. Choose between DNS Query or ICMP Checking.
This option cannot be changed.
Select either 60 seconds or 120 seconds to set the interval at which the router will check for a connection.
The Failure Threshold species the number of retries before the WAN is assumed to be down.
Specify a target of the DNS queries or ICMP checks. Options include DNS1, DNS2, Gateway, NTP Server which automatically use this information from other settings, or your can manually specify an address after selecting Other Host. The default is
DNS1.
Target 2:
In addition to the options available for Target1, you can also select None to use only the host selected in Target1.
Click Apply to save your settings, or Refresh to revert to your previous settings.
19D-Link DWM-312 User Manual
Section 4 - Conguration
LAN
This section allows you to change the local network settings of your router and to congure the DHCP Server settings. IPv4 and IPv6 are congured seperately.

IPv4

LAN Settings
Router IP Address:
Default Subnet
Mask:
Local Domain
Name:
Dynamic Route:
LAN Snooping:
Enter the IP address you want to use for the router. The default IP address is 192.168.0.1. If you change the IP address, you will need to enter the new IP address in your browser to get into the conguration utility.
Enter the subnet mask of the router. The default subnet mask is
255.255.255.0.
Enter the local domain name for your network.
Click this to congure the Router Information Protocol (RIP), described on the following page.
Click this to toggle LAN snooping, described on the following page.
Click Apply to save your settings, or Refresh to revert to your previous settings.
20D-Link DWM-312 User Manual
Section 4 - Conguration
Click Enable to toggle the Router Identication Protocol (RIP). If
RIP:
enabled, choose RIP1 or RIP2.
Click Save to save your settings, or the X button to revert to your previous settings.
Dynamic Route
LAN Snooping:
Check Enable to enable LAN snooping.
Click Save to save your settings, or the X button to revert to your previous settings.
21D-Link DWM-312 User Manual
Section 4 - Conguration
DHCP
The DWM-312 has a built-in DHCP (Dynamic Host Conguration Protocol) server. The DHCP server assigns IP addresses to devices on the network that request them. By default, the DHCP server is enabled on the device. The DHCP address pool contains a range of IP addresses, which are automatically assigned to the clients on the network.
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease Time:
Primary DNS IP
Address:
Secondary DNS IP
Address:
Static IP Setting:
Select this box to enable the DHCP server on your router.
Enter the range of IPs for the DHCP server to use to assign IP addresses to devices on your network. These values will represent the last octet of the IP addresses in the pool.
Enter the lease time for IP address assignments.
Enter the primary DNS IP address that will be assigned to DHCP clients.
Enter the secondary DNS IP address that will be assigned to DHCP clients.
Click Static IP Setting to assign a dedicated IP to a specied MAC address to be saved by the DHCP server.
Select a DHCP client and click Copy to, or enter the MAC address and IP address manually, to assign the IP address to the MAC address. Click Enable to enable the rule.
Click Apply to save your settings, or Refresh to revert to your previous settings.
22D-Link DWM-312 User Manual
Section 4 - Conguration

IPv6

IPv6 Cong
IPv6:
Select Enable to enable IPv6, otherwise select Disable.
IPv6 settings are congured on the next page.
Click Apply to save your settings, or Refresh to revert to your previous settings.
23D-Link DWM-312 User Manual
Section 4 - Conguration
Internet Connection Type
The DWM-312 supports both SLAAC and DHCP IPv6 conguration options. Which one is used will depend on your serivce provider and network conguration.
LAN Assigned
Type:
IPv6 Address
Range(Start):
IPv6 Address
Range (End):
IPv6 Address
Lifetime:
Select DHCPv6, SLAAC+Stateless DHCP or SLAAC+RDNSS.
If you selected DHCPv6, the following options will appear:
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Enter the IPv6 address lifetime (in seconds).
Click Apply to save your settings, or Refresh to revert to your previous settings.
24D-Link DWM-312 User Manual
Section 4 - Conguration
VPN
The DWM-312 supports a number of virtual private network (VPN) protocols. VPNs are used to create virtual private tunnels to remote VPN gateways. The tunnel technology supports data condentiality, data origin authentication, and data integrity of network information by utilizing encapsulation protocols, encryption algorithms, and hashing algorithms. Supported protocols as a client include: IPSec, PPTP, L2TP, and GRE. Supported protocols as a server include PPTP and L2TP.

IPSec

VPN Settings
VPN-IPSEC:
Netbios over
IPSEC:
NAT Traversal:
Dyanmic VPN:
Tunnel Settings:
Tick this box to enable the IPSec VPN function.
Tick this box to receive Netbios from Network Neighborhood.
Some NAT routers and ISPs will block IPSec packets if they don’t support IPSec passthrough. If you connect to another NAT router which doesn’t support IPSec passthrough on the WAN side, you need to activate this option.
Tick this box to enable this feature and click More to congure VPN Dynamic IP on a separate page. Please see the next page for more details.
Tunnel details are displayed here. Click More to congure a new tunnel or click Disconnect to disconnect from an existing tunnel. Select the Enable checkbox to activate this rule. In tunnel settings page, you can click More under Action for detailed tunnel settings.
Click Apply to save your settings, or Refresh to revert to your previous settings.
25D-Link DWM-312 User Manual
Loading...
+ 67 hidden pages
