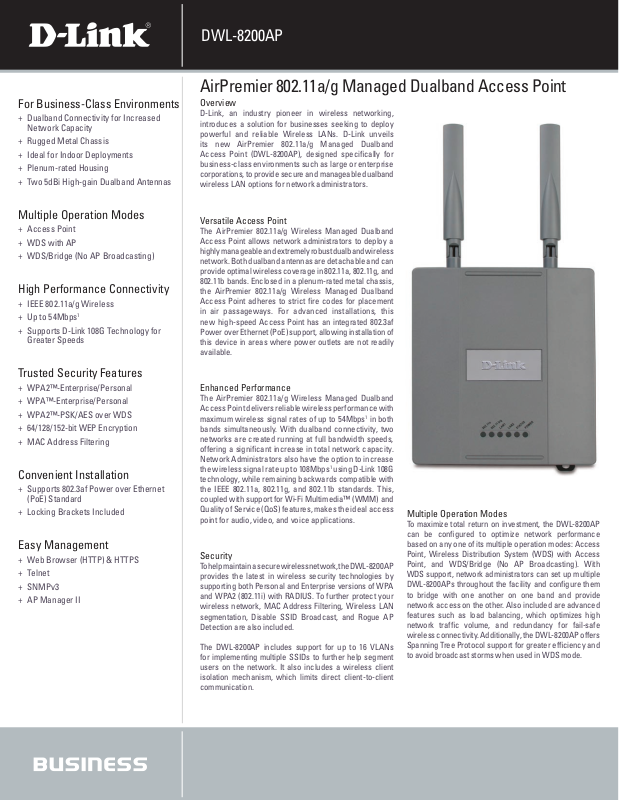

D-Link DWL-8200AP User Manual

For Business-Class Environments

+ Dualband Connectivity for Increased

Network Capacity
+ Rugged Metal Chassis
+ Ideal for Indoor Deployments
+ Plenum-rated Housing
+ Two 5dBi High-gain Dualband Antennas

DWL-8200AP

AirPremier 802.11a/g Managed Dualband Access Point

Overview

D-Link, an industry pioneer in wireless networking,
introduces a solution for businesses seeking to deploy
powerful and reliable Wireless LANs. D-Link unveils
its new AirPremier 802.11a/g Managed Dualband
Access Point (DWL-8200AP), designed specifi cally for
business-class environments such as large or enterprise
corporations, to provide secure and manageable dualband
wireless LAN options for network administrators.

Multiple Operation Modes

+ Access Point
+ WDS with AP
+ WDS/Bridge (No AP Broadcasting)

High Performance Connectivity

+ IEEE 802.11a/g Wireless
+ Up to 54Mbps
+ Supports D-Link 108G Technology for

Greater Speeds

1

Trusted Security Features

+ WPA2™-Enterprise/Personal
+ WPA™-Enterprise/Personal
+ WPA2™-PSK/AES over WDS
+ 64/128/152-bit WEP Encryption
+ MAC Address Filtering

Convenient Installation

+ Supports 802.3af Power over Ethernet

(PoE) Standard
+ Locking Brackets Included

Easy Management

+ Web Browser (HTTP) & HTTPS
+ Telnet
+ SNMPv3
+ AP Manager II

Versatile Access Point

The AirPremier 802.11a/g Wireless Managed Dualband
Access Point allows network administrators to deploy a
highly manageable and extremely robust dualband wireless
network. Both dualband antennas are detachable and can
provide optimal wireless coverage in 802.11a, 802.11g, and

802.11b bands. Enclosed in a plenum-rated metal chassis,
the AirPremier 802.11a/g Wireless Managed Dualband
Access Point adheres to strict fi re codes for placement
in air passageways. For advanced installations, this
new high-speed Access Point has an integrated 802.3af
Power over Ethernet (PoE) support, allowing installation of
this device in areas where power outlets are not readily
available.

Enhanced Performance

The AirPremier 802.11a/g Wireless Managed Dualband
Access Point delivers reliable wireless performance with
maximum wireless signal rates of up to 54Mbps1 in both
bands simultaneously. With dualband connectivity, two
networks are created running at full bandwidth speeds,
offering a signifi cant increase in total network capacity.
Network Administrators also have the option to increase
the wireless signal rate up to 108Mbps1 using D-Link 108G
technology, while remaining backwards compatible with
the IEEE 802.11a, 802.11g, and 802.11b standards. This,
coupled with support for Wi-Fi Multimedia™ (WMM) and
Quality of Service (QoS) features, makes the ideal access
point for audio, video, and voice applications.

Security

To help maintain a secure wireless network, the DWL-8200AP
provides the latest in wireless security technologies by
supporting both Personal and Enterprise versions of WPA
and WPA2 (802.11i) with RADIUS. To further protect your
wireless network, MAC Address Filtering, Wireless LAN
segmentation, Disable SSID Broadcast, and Rogue AP
Detection are also included.

The DWL-8200AP includes support for up to 16 VLANs
for implementing multiple SSIDs to further help segment
users on the network. It also includes a wireless client
isolation mechanism, which limits direct client-to-client
communication.

Multiple Operation Modes

To maximize total return on investment, the DWL-8200AP
can be confi gured to optimize network performance
based on any one of its multiple operation modes: Access
Point, Wireless Distribution System (WDS) with Access
Point, and WDS/Bridge (No AP Broadcasting). With
WDS support, network administrators can set up multiple
DWL-8200APs throughout the facility and confi gure them
to bridge with one another on one band and provide
network access on the other. Also included are advanced
features such as load balancing, which optimizes high
network traffi c volume, and redundancy for fail-safe
wireless connectivity. Additionally, the DWL-8200AP offers
Spanning Tree Protocol support for greater effi ciency and
to avoid broadcast storms when used in WDS mode.

DWL-8200AP

AirPremier 802.11a/g Managed Dualband Access Point

Network Management

Network administrators have multiple options for
managing the DWL-8200AP including Web (HTTP),
Secure Sockets Later (SSL, which provides for a secure
connection to the Internet), Secure Shell (SSH, which
provides for a secure channel between local and
remote computers), and Telnet (a bi-directional, eight­bit byte oriented communications facility). For advanced
network management, administrators can use D­Link’s AP Manager II or D-View SNMPv3 management
module to confi gure and manage multiple access points
from a single location. In addition to a streamlined
management process, the AP Manager II or D-View

software provide network administrators with the means
of verifying and conducting regular maintenance checks
without wasting resources by sending personnel out to
physically verify proper operation.

With integrated dualband functionality, PoE support,
extensive manageability, versatile operation modes,
and solid security enhancements, the new D-Link
AirPremier 802.11a/g Managed Dualband Access Point
(DWL-8200AP) provides enterprise environments with a
business-class solution for deploying a wireless network
in the workplace.

AirPremier 802.11a/g Managed Dualband Access Point

Technical Specifi cations

Standards + IEEE 802.11a + IEEE 802.11b + IEEE 802.11g

+ IEEE 802.3 + IEEE 802.3af + IEEE 802.3u
+ IEEE 802.3x

Network Management + Web Browser Interface

- HTTP

- Secure HTTP (HTTPS)
+ AP Manager II
+ SNMP Support

- D-View Module

- Private MIB
+ Command Line Interface

- Telnet

- Secure (SSH) Telnet

Data Rate

Security + WPA-Personal + WPA-Enterprise

Wireless Frequency Range + 2.4GHz to 2.4835GHz

Wireless Operating Range

Operating Voltage

1

1

For 802.11a/g:
+ 108, 54, 48, 36, 24, 18, 12, 9 and 6Mbps
For 802.11b:
+ 11, 5.5, 2, and 1Mbps

+ WPA2-Personal + WPA2-Enterprise
+ 64/128/152-bit WEP + SSID Broadcast Disable
+ MAC Address Access Control List

+ 5.15GHz to 5.25GHz and 5.725GHz to 5.825GHz

802.11g (Full Power with 5dBi gain diversity dipole antenna)
Indoors:
+ 98ft (30m) @ 54Mbps + 105ft (32m) @ 48Mbps + 121ft (37m) @ 36Mbps
+ 148ft (45m) @ 24Mbps + 203ft (62m) @ 18Mbps + 223ft (68m) @ 12Mbps
+ 253ft (77m) @ 9Mbps + 302ft (92m) @ 6Mbps
Outdoors:
+ 328ft (100m) @ 54Mbps + 968ft (295m) @ 11Mbps + 1378ft (420m) @ 6Mbps

+ 48VDC +/- 10% for PoE
