D-Link DWA-55 User Manual
Table of Contents
Table of Contents
Product Overview ...................................................3
Package Contents ................................................................3
System Requirements .........................................................3
Introduction ........................................................................4
Features ..............................................................................5
Hardware Overview .............................................................6
LEDs ................................................................................6
Installation ...........................................................7
Getting Started .................................................................... 7
Remove Existing Installations .......................................... 7
Disable Other Wireless Adapters ...................................... 8
Wireless Installation Considerations .................................10
Adapter Installation ...........................................................11
Configuration ...................................................... 15
D-Link Wireless Connection Manager ...............................15
What is WPA? ................................................................... 26
Configure WEP ..................................................................27
Using the D-Link Wireless Connection Manager ............27
Using the Windows® XP Utility ......................................29
Configure WPA/WPA2 Passphrase ....................................
Using the D-Link Wireless Connection Manager ............31
Using the Windows® XP Utility ......................................33
Configure WPA/WPA2 .......................................................
Using the D-Link Wireless Connection Manager ............35
Troubleshooting ................................................... 36
Wireless Basics ................................................... 41
Networking Basics ................................................ 46

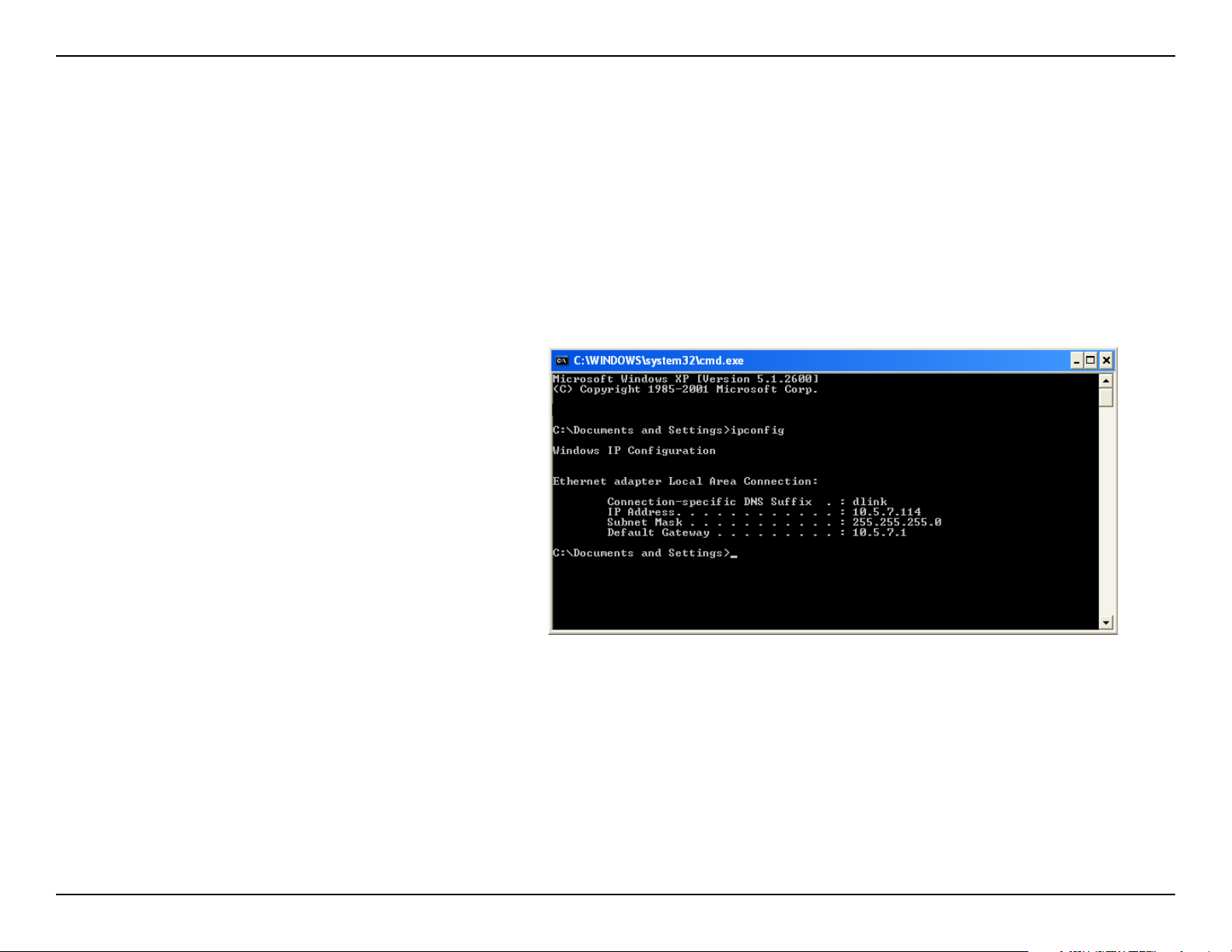

Check your IP address ......................................................46
Statically Assign an IP address .........................................47
31
35
Wireless Networks ......................................................... 16

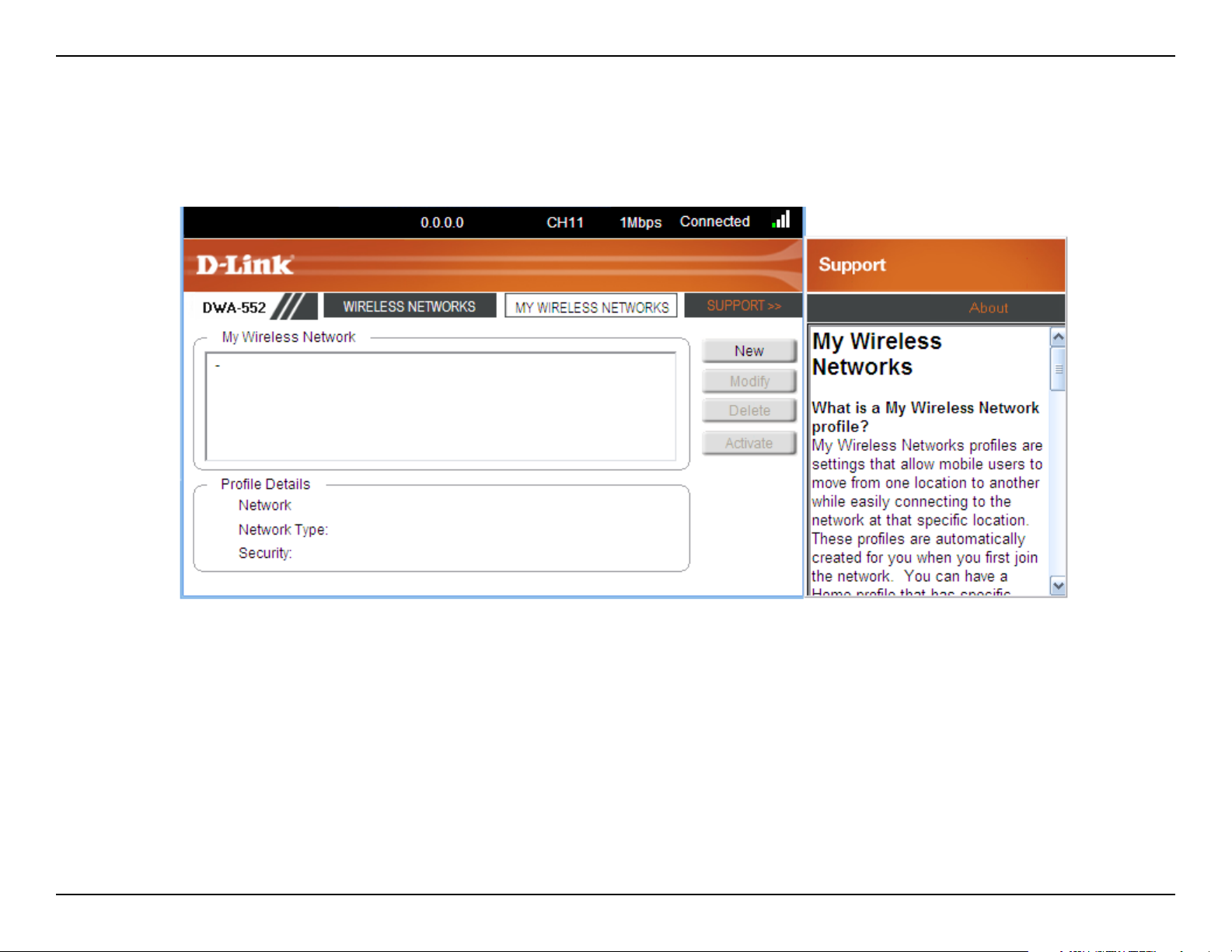

My Wireless Networks ...................................................17
Support ..........................................................................20
About .............................................................................21
Windows® XP Configuration Utility ...................................22
Disabling The Windows® XP Utility ................................23
Wireless Security ................................................. 25
What is WEP? ...................................................................25
Technical Specifications ......................................... 48
Contacting Technical Support ................................... 49
Warranty ........................................................... 50
Registration........................................................ 56
2D-Link DWA-552 User Manual
Section 1 - Product Overview
• D-Link DWA-552 Xtreme N™ Desktop Adapter
• Manual and Warranty on CD
• D-Link Wireless Connection Manager on CD
Product Overview
Package Contents
System Requirements
• A desktop computer with an available PCI slot
• Windows® 2000 (Service Pack 4) or XP (Service Pack 2)
• 300MHz processor and at least 64MB of RAM
• A draft 802.11n or 802.11g access point (for Infrastructure mode), or another draft
802.11n or 802.11g wireless adapter (for Ad-Hoc networking mode).
3D-Link DWA-552 User Manual
Section 1 - Product Overview
Introduction
The D-Link Xtreme N™ Desktop Adapter (DWA-552) is a Draft 802.11n client device that delivers unrivaled wireless performance
for your desktop computer. With the DWA-552, you can add or upgrade your Desktop PC’s wireless connectivity without having to
purchase a new computer. Once connected, access your network’s high-speed Internet connection while sharing photos, files, music,
video, printers, and storage. Get a better Internet experience with a faster wireless connection so you can enjoy digital phone calls,
gaming, downloading, and video streaming.
Powered by Xtreme N™ technology, the DWA-552 provides a faster wireless connection and superior reception than 802.11g*. The
DWA-552 is designed for use in bigger homes and for those that demand higher networking. Maximize wireless performance by
connecting this desktop adapter to a Xtreme N™ Router and stay connected from virtually anywhere in the home. This adapter supports
WEP, WPA, and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.
The D-Link Xtreme N™ DWA-552 is a powerful 32-bit desktop adapter that installs quickly and easily into desktop computers. Like
all D-Link wireless adapters, the DWA-552 can be used in ad-hoc mode to connect directly with other cards for peer-to-peer file
sharing or in infrastructure mode to connect with a wireless access point or router for access to the Internet in your office or home
network.
The DWA-552 features robust security to help protect the wireless network from intruders, complying with the latest wireless
networking security protocols, including WEP encryption and Wi-Fi Protected Access (WPA) support for WPA2-PSK. The DWA552 also includes a configuration utility to discover available wireless networks and create and save detailed connectivity profiles for
those networks most often accessed.
•
Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless
signal range.
4D-Link DWA-552 User Manual
Section 1 - Product Overview
• Faster Wireless Networking* - Enable wireless connectivity on your Desktop PC computer with the
DWA-552. With the performance of D-Link’s Xtreme N™ line of wireless products, the DWA-552 delivers an unsurpassed
wireless experience. Perform multiple network tasks at once with the speed provided by this Wireless Adapter.
• Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards,
the DWA-552 can connect with existing 802.11b or 802.11g compliant routers, access points and cards. That
means you can still communicate with colleagues and friends while you have the ability to link to even more wireless
networks.
• Better Security with 802.1x** and WPA - With the DWA-552 in your Desktop PC you can securely connect to a
wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a
much higher level of security for your data and communication than has previously been available.
• Total Performance - Upgrade your computer with the latest draft 802.11n technology.
Features
• Total Wireless Protection - Connect to secure wireless networks using WEP and WPA.
• Total Connectionn - Get reception throughout your home by connecting to a Xtreme N™ Router.
•
Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely
affect wireless signal range.
** Available as a driver upgrade in the near future from support.dlink.com.
5D-Link DWA-552 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
WLAN LED
A solid light indicates that wireless is
ready. This LED blinks during wireless
data transmission.
6D-Link DWA-552 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device manager
before installing your D-Link adapter. Also, if you have previously installed another wireless adapter, please make sure any software
is uninstalled.
Getting Started
Before installing your new D-Link wireless adapter, please verify the following:
• Remove any previous installations of wireless adapters
• Disable any built-in wireless adapters
• Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacture’s adapter or a different model D-Link adapter, make sure the software is uninstalled before
installing the new software. Some utilities may cause a conflict with the new software. If you plan to use multiple adapters at different
times, make sure the utilities are not set to load when your computer boots up. Windows® XP users may use the built-in wireless
utility for all adapters.
To remove any old software:
®
Windows
Windows
XP users: Click Start > Control Panel > Add or Remove Programs.
®
2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.
7D-Link DWA-552 User Manual
Section 2 - Installation
Disable Other Wireless Adapters
To prevent any conflicts with the D-Link wireless adapter, it is recommended to disable any wireless adapter (as well as any unused
Ethernet adapters).
From the desktop, right-click on the My Computer icon and select Properties.
Click the Hardware tab and then click Device Manager. Scroll down the list and
click the + sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select Disable.
8D-Link DWA-552 User Manual
Section 2 - Installation
Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use
the adapter, simply right-click it and select Enable.
9D-Link DWA-552 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that
the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background
RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum - each
wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in
use.
10D-Link DWA-552 User Manual
Section 2 - Installation
Adapter Installation
Note: Please install the DWA-552 Desktop Adapter into your computer before installing the driver software from the
D-Link CD. When the “Add New Hardware” wizard appears, click Cancel.
Turn on the computer and Insert the D-Link DWA-552 Driver CD in the CD-ROM drive. The step-by-step instructions that follow are
shown in Windows® XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\DWA552.
exe” (where D: represents the drive letter of your CD-ROM drive).
Click Install Drivers
11D-Link DWA-552 User Manual
Section 2 - Installation
The InstallShield Wizard window will appear.
Click Next to continue.
Click Next
By default setup will install to the default location: C:\Program
Files\D-Link\DWA-552, where C: represents the drive letter of your
hard drive. To install to a different location click Browse and specify
the location. Click Next.
Click Next
Select the Program Files folder location.
Click Next
12D-Link DWA-552 User Manual
Section 2 - Installation
For Windows® XP: This Software Installation alert screen will appear.
Click Continue Anyway
Click Finish to continue.
Click Finish
The D-Link Configuration Wizard will now appear.
If you are using Windows® XP (SP2), you will have the option to use either the
D-Link utility or the built-in Windows® Wireless utility.
Click Next
13D-Link DWA-552 User Manual
Section 2 - Installation
Enter the network name (SSID) manually. If you enter the SSID incorrectly, you will
automatically be brought to the site survey page. Click Scan to display the site survey
page.
Click Next
Click on the network name (SSID) and click Next.
Click Next
If you are prompted to reboot your computer, select Yes, I want to restart my
computer now.
Click Finish
14D-Link DWA-552 User Manual
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link wireless adapter using the D-Link Utility as well as the Windows® XP
Zero Configuration Utility.
D-Link Wireless Connection Manager
The D-Link DWA-552 uses the Wireless Connection Manager as the management software. The manager provides the user an easy
interface to change any settings related to the wireless adapter. Double-clicking on the Wireless Connection Manager icon on your
desktop will start the Configuration.
If you are using Windows® XP, please skip to page 22.
Double-click the Wireless Connection
Manager icon on your desktop.
15D-Link DWA-552 User Manual
Section 3 - Configuration
Wireless Networks
The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect to a network,
simply highlight the wireless network (SSID) and click Connect.
SSID:
MAC:
Signal:
Security:
Channel:
Refresh Button:
Connect Button:
The SSID (Service Set Identifier) is the name of the
wireless network.
Displays the MAC address of the wireless device.
Displays the Li nk Q ua lity of the wi re le ss
connection.
If there is a “lock” icon, this means the wireless
network is secure. You must know the encryption
key/security settings to connect.
Displays the channel of the wireless network.
Rescans for available wireless networks in your
area.
Highlight a wireless network and click the Connect
button. If the network is secure, a pop-up window
will appear. Enter the security information to connect
(refer to the Wireless Security section for more
information).
Activate Button:
Sele ct a wir eless network pr ofile from the
drop-down menu and click Activate to connect. Allow
up to 30 seconds to connect.
16D-Link DWA-552 User Manual
Section 3 - Configuration
My Wireless Networks
The My Wireless Networks page will allow you to create, edit, and delete wireless network profiles. Every time you connect to a
network using the Wireless Networks page, a profile will automatically be created.
New Button:
Modify:
Delete:
Activate:
Profile Details:
Click New to create a new wireless network profile
(refer to page 18).
Click Modify to edit a current profile (refer to page
19).
Click Delete to remove a profile.
Click Activate to use a profile. Allow up to 30 seconds
to connect to the wireless network.
The Profile Details section will display information
about the wireless network such as the network name
(SSID), network type (Infrastructure or Ad-Hoc), and
if the network is secured.
17D-Link DWA-552 User Manual
Loading...
