D-Link DSL-502G, DSL-502T User Manual

DSL-502T

ADSL Router

User ‘s Guide

(December 2004)

651SL502T045

DSL-502T ADSL Router User’s Guide

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environme nt. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications . Operation of this equip ment in a residential ar ea is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Table Of Contents

About This User’s Guide...................................................................................... v

BEFORE YOU START .......................................................................V

Installation Overview......................................................................................... v

The Setup Wizard.............................................................................................. v

PACKING LIST................................................................................V

INSTALLATION REQUIREMENTS .................................................. VI

Installing the USB Driver................................................................................... ix

INTRODUCTION .............................................................................1

Router Description and Operation ........................................................................1

Standards Compatibility and Compliance...............................................................3

Front Panel Display............................................................................................4

Rear Panel........................................................................................................ 5

HARDWARE INSTALLATION ...........................................................6

Power on Router................................................................................................6

Factory Reset Button..........................................................................................6

Network Connections .........................................................................................6

BASIC ROUTER CONFIGURATION...................................................8

Configuring IP Settings on Your Computer.............................................................8

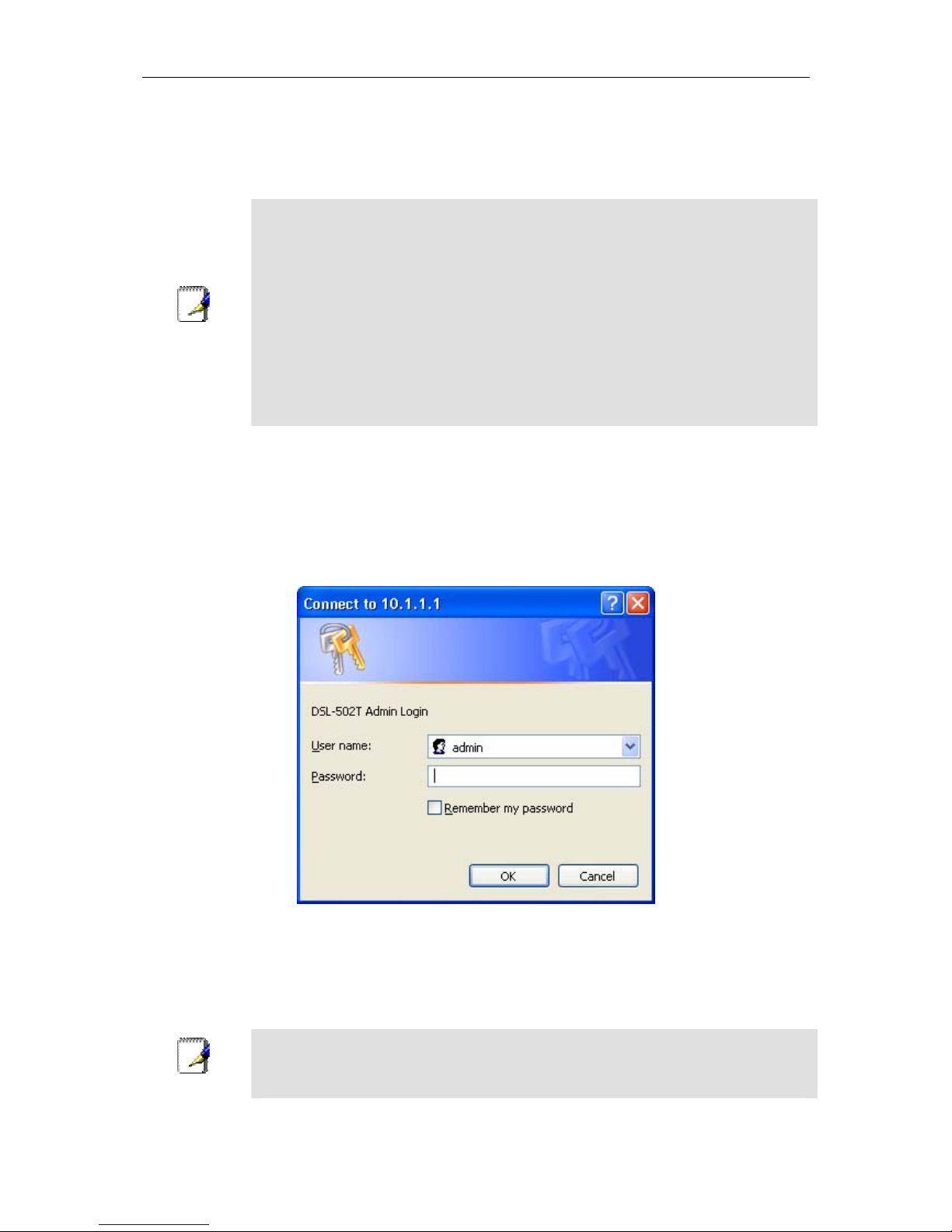

Access the Configuration Manager................................................................... 14

Configure the Router ........................................................................................ 15

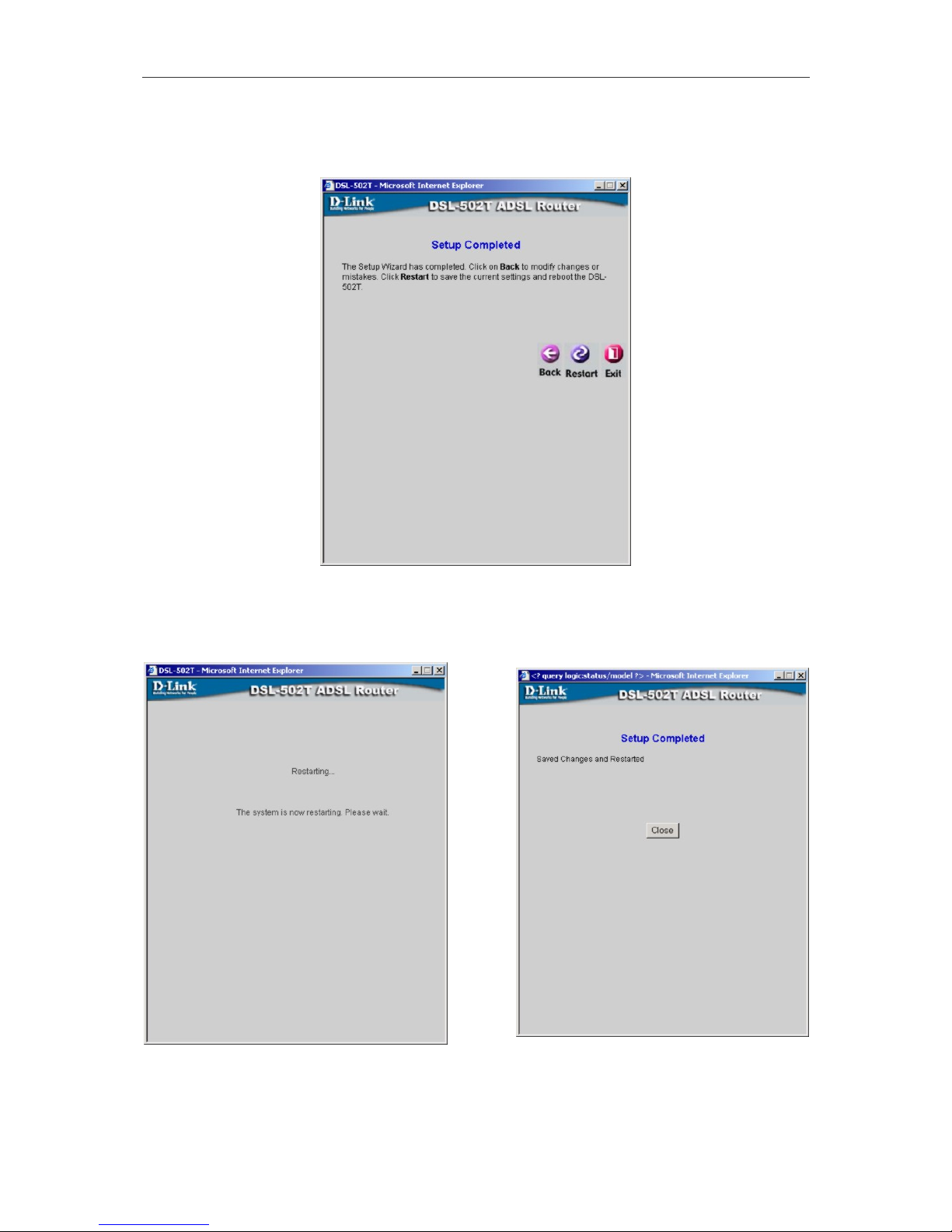

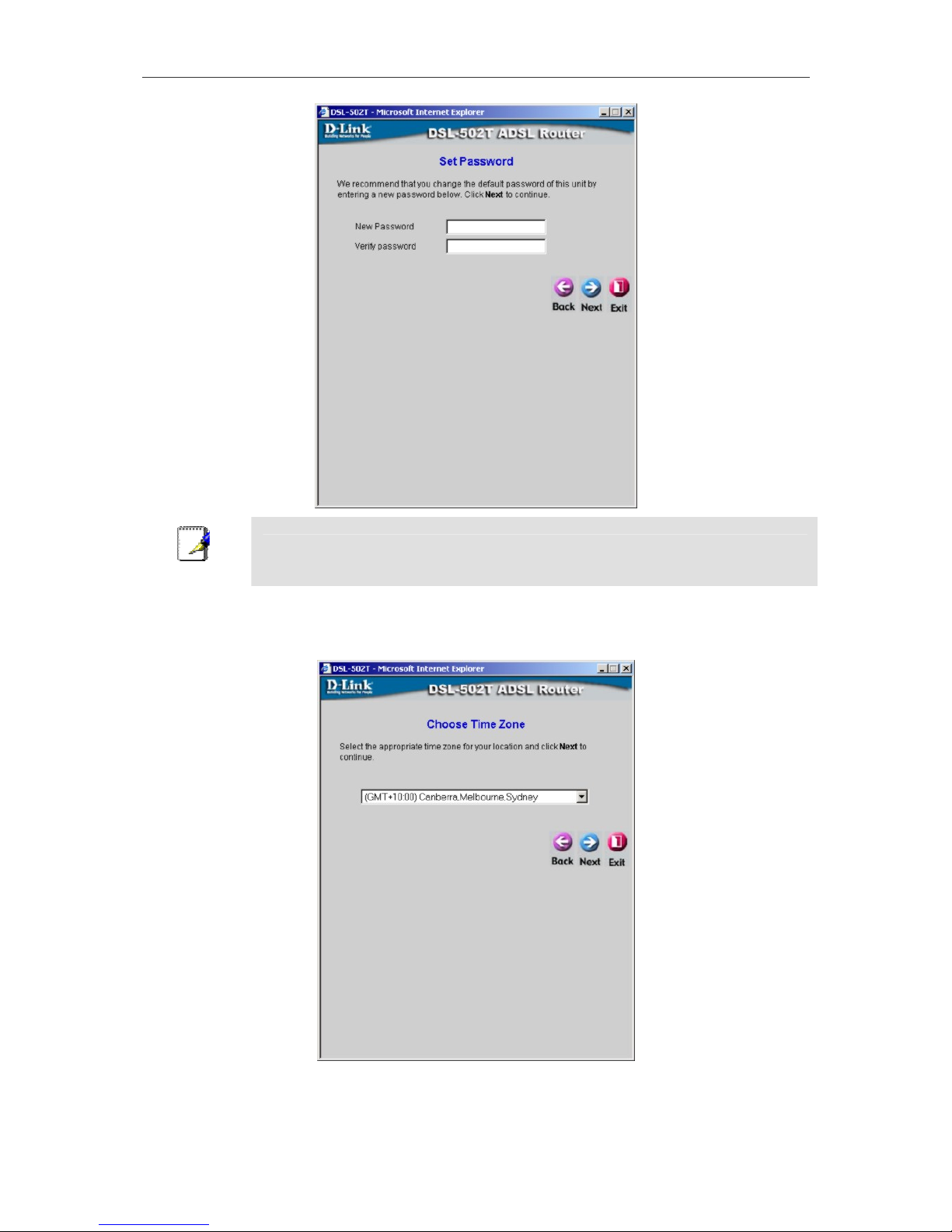

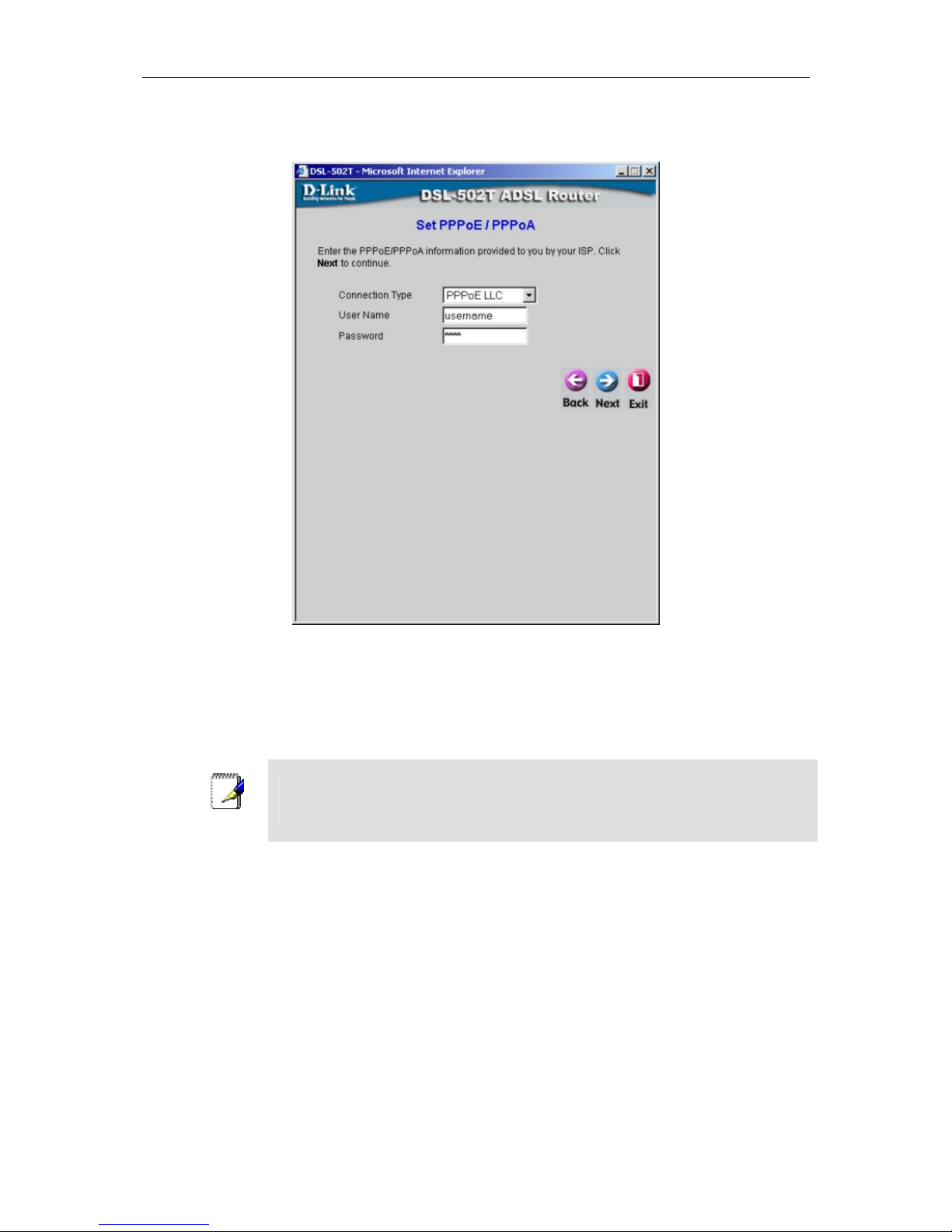

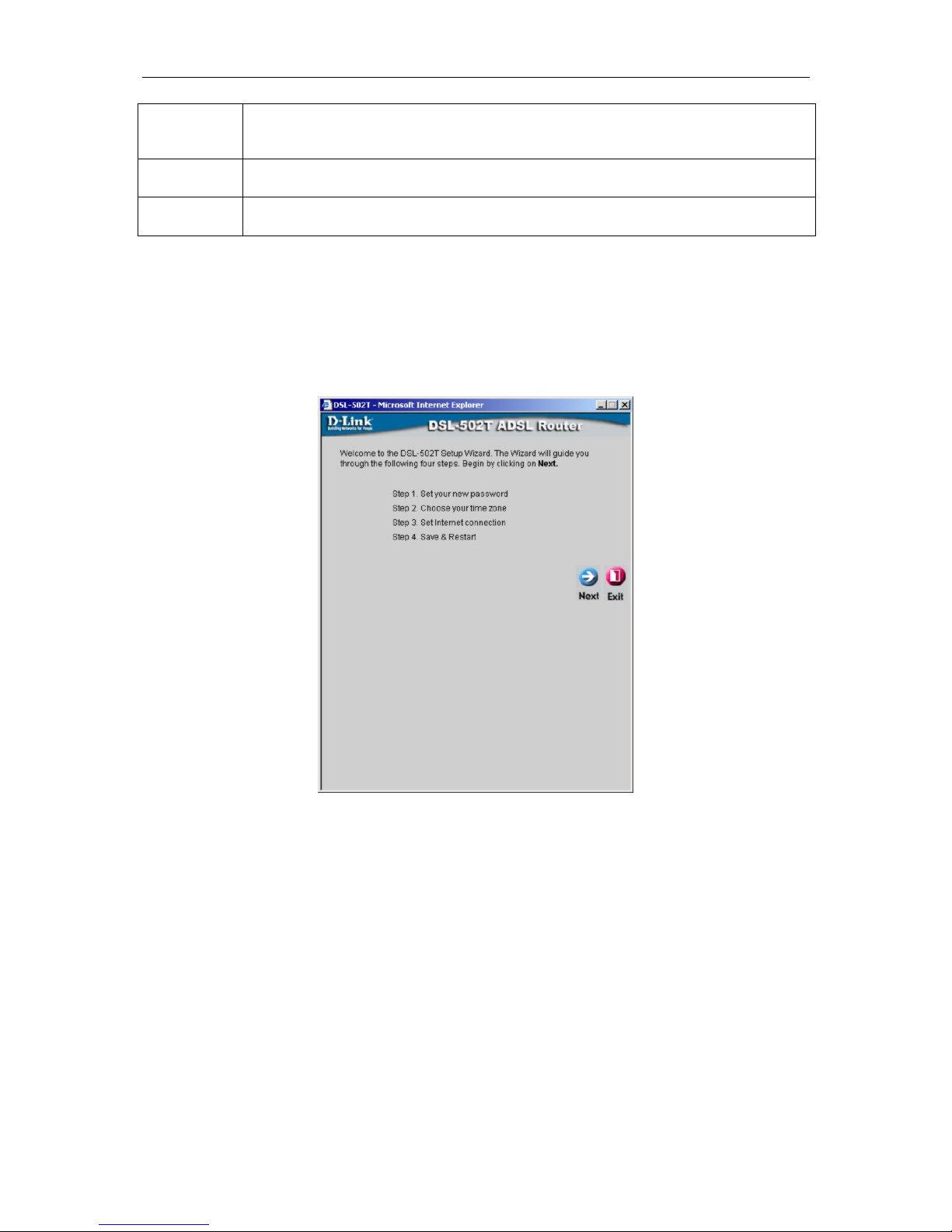

Using the Setup Wizard.................................................................................... 16

Configure WAN Connection............................................................................... 20

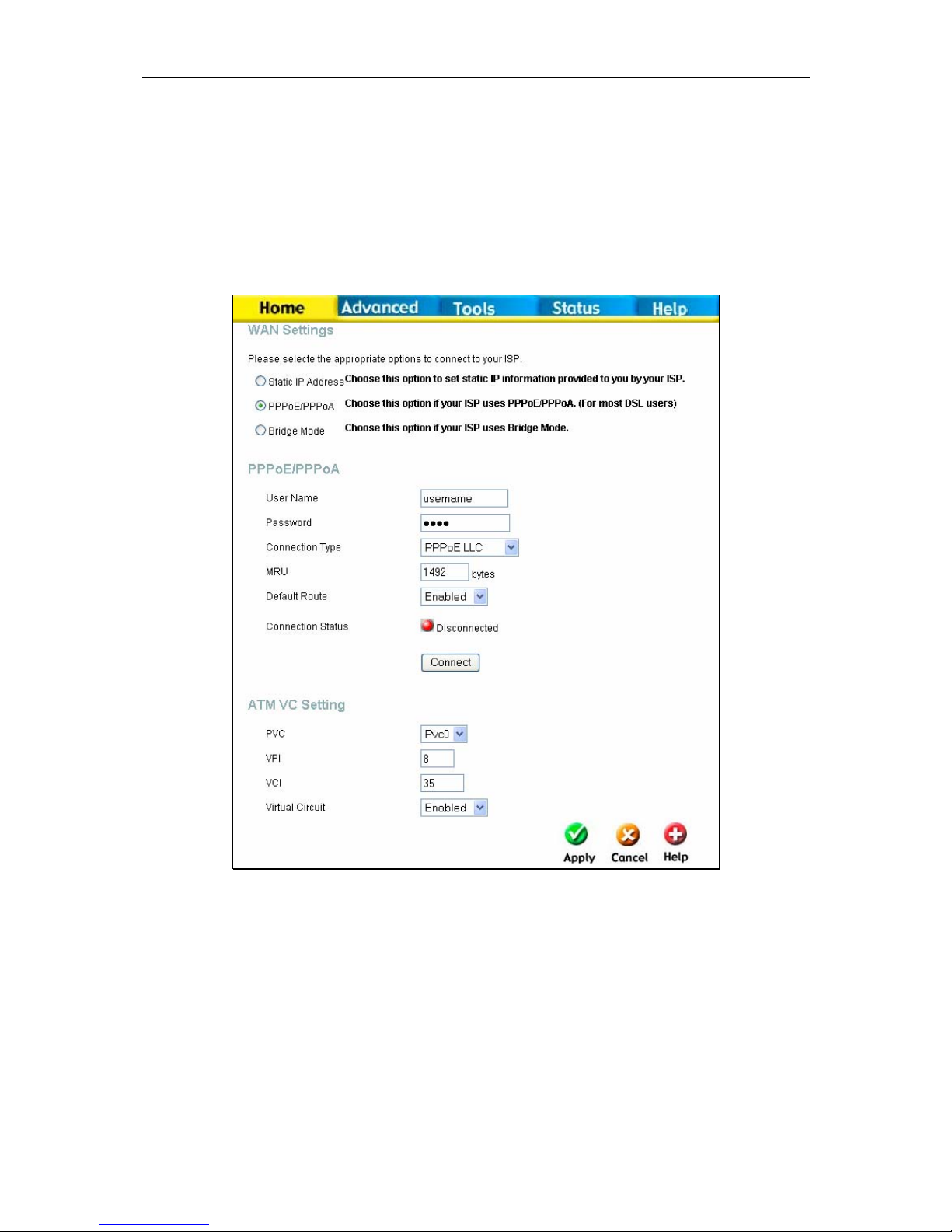

PPPoE and PPPoA Connection for WAN................................................................ 21

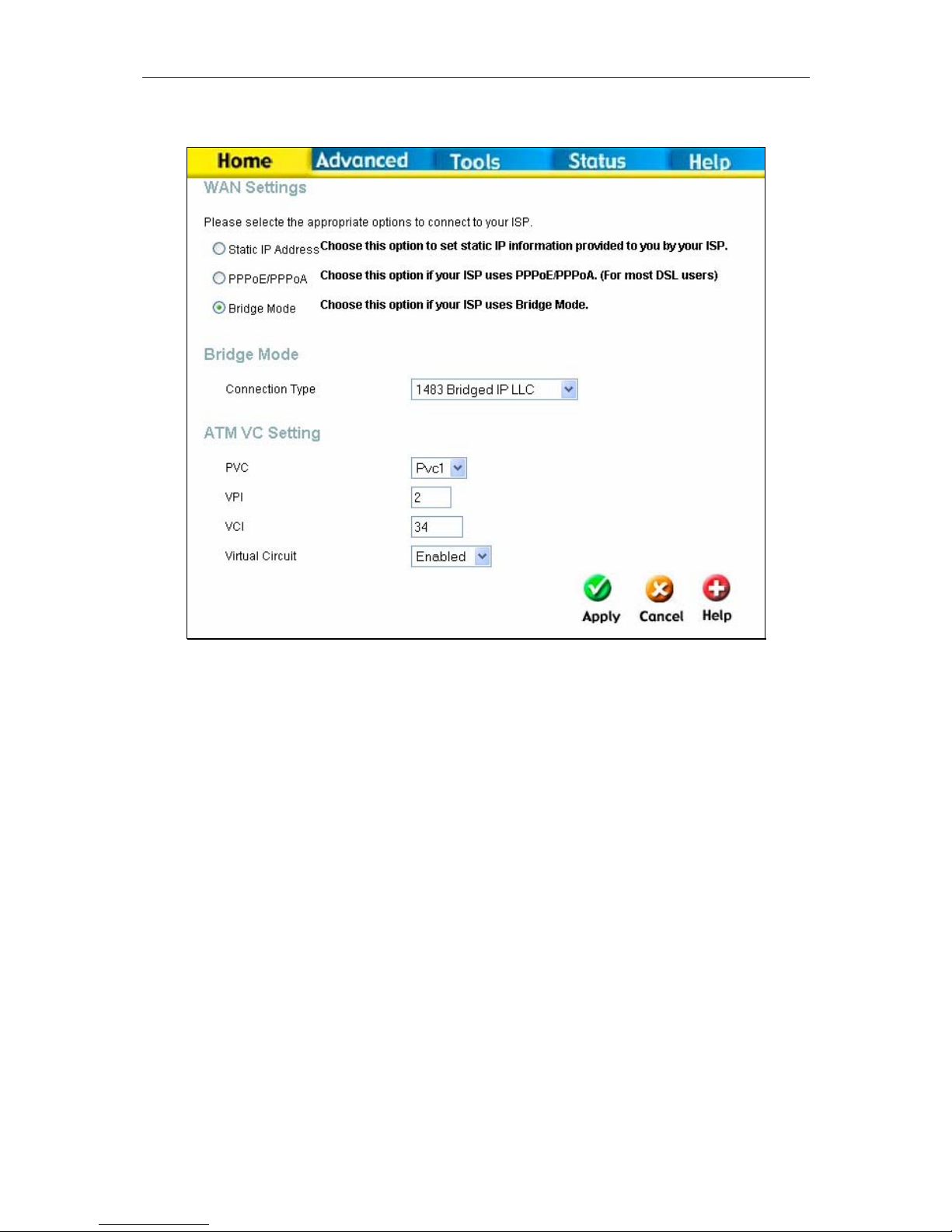

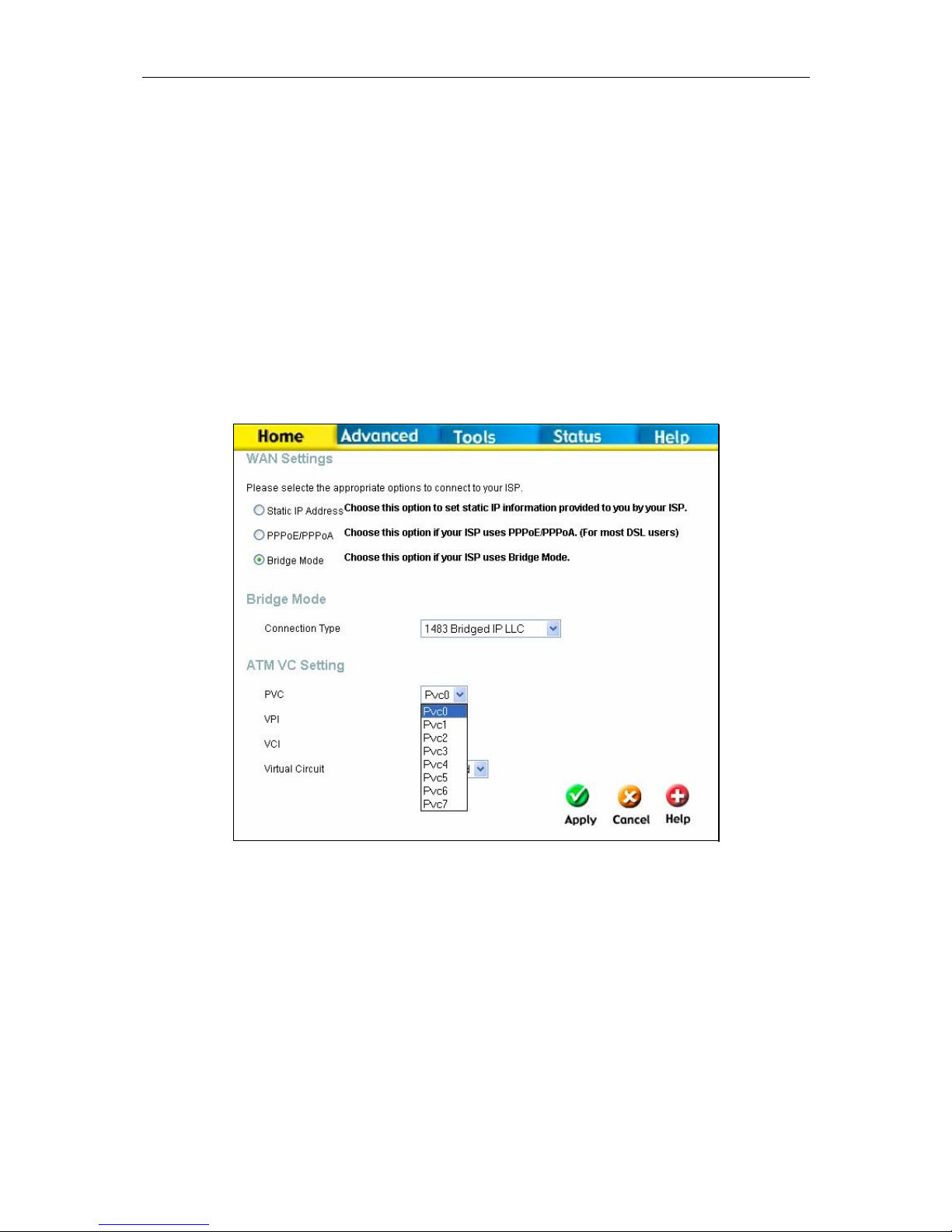

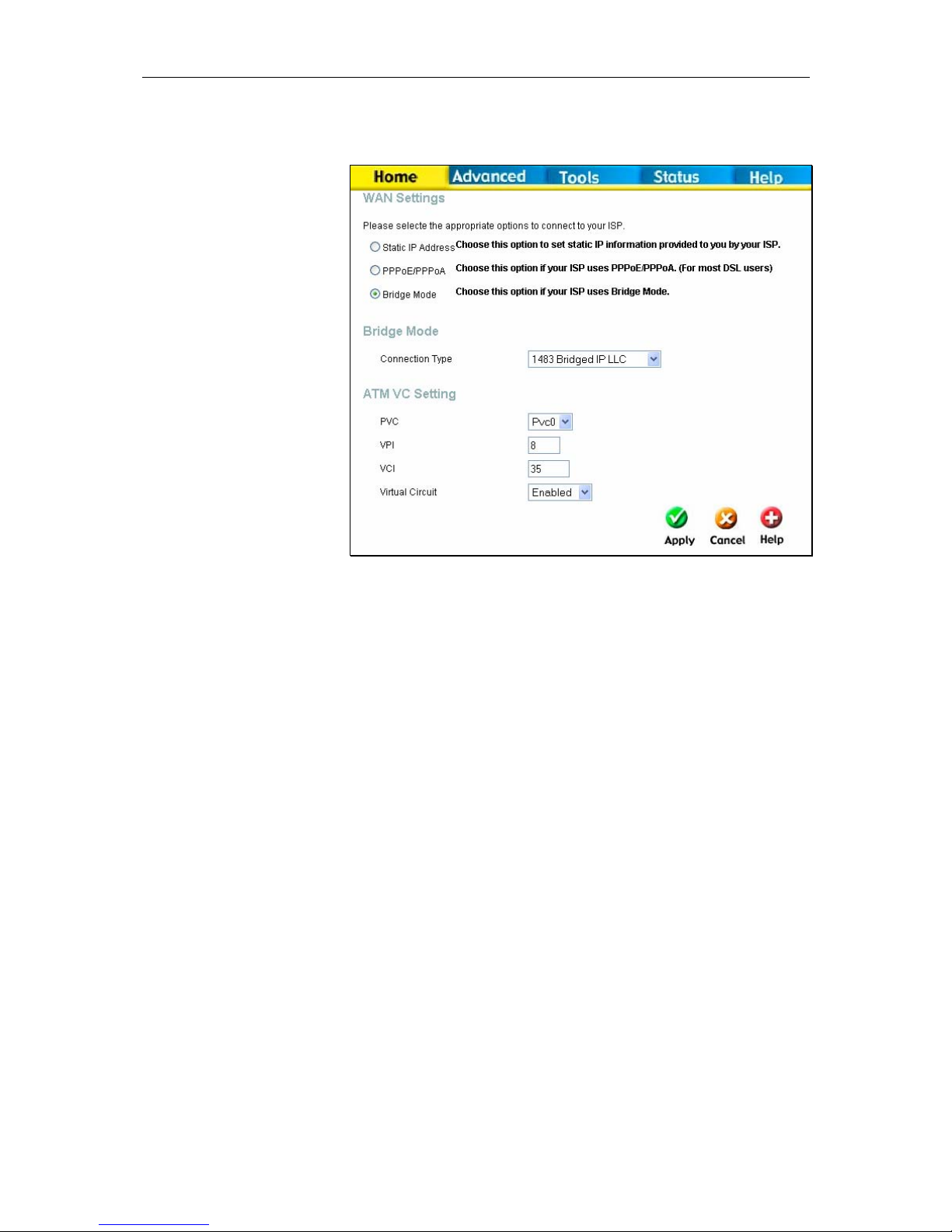

Bridged Connection for WAN ............................................................................. 22

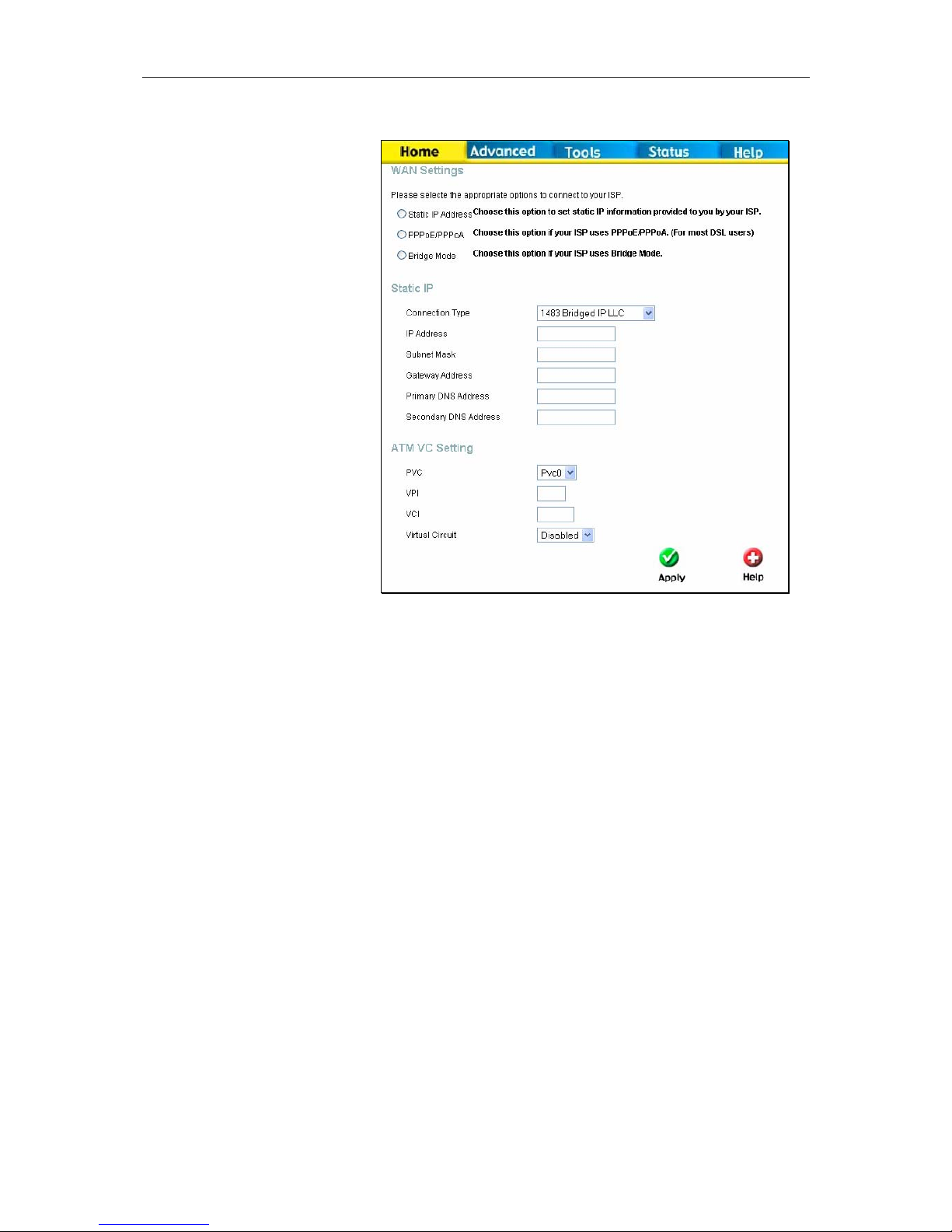

Static IP Address for WAN................................................................................. 23

Multiple Private Virtual Connections................................................................. 24

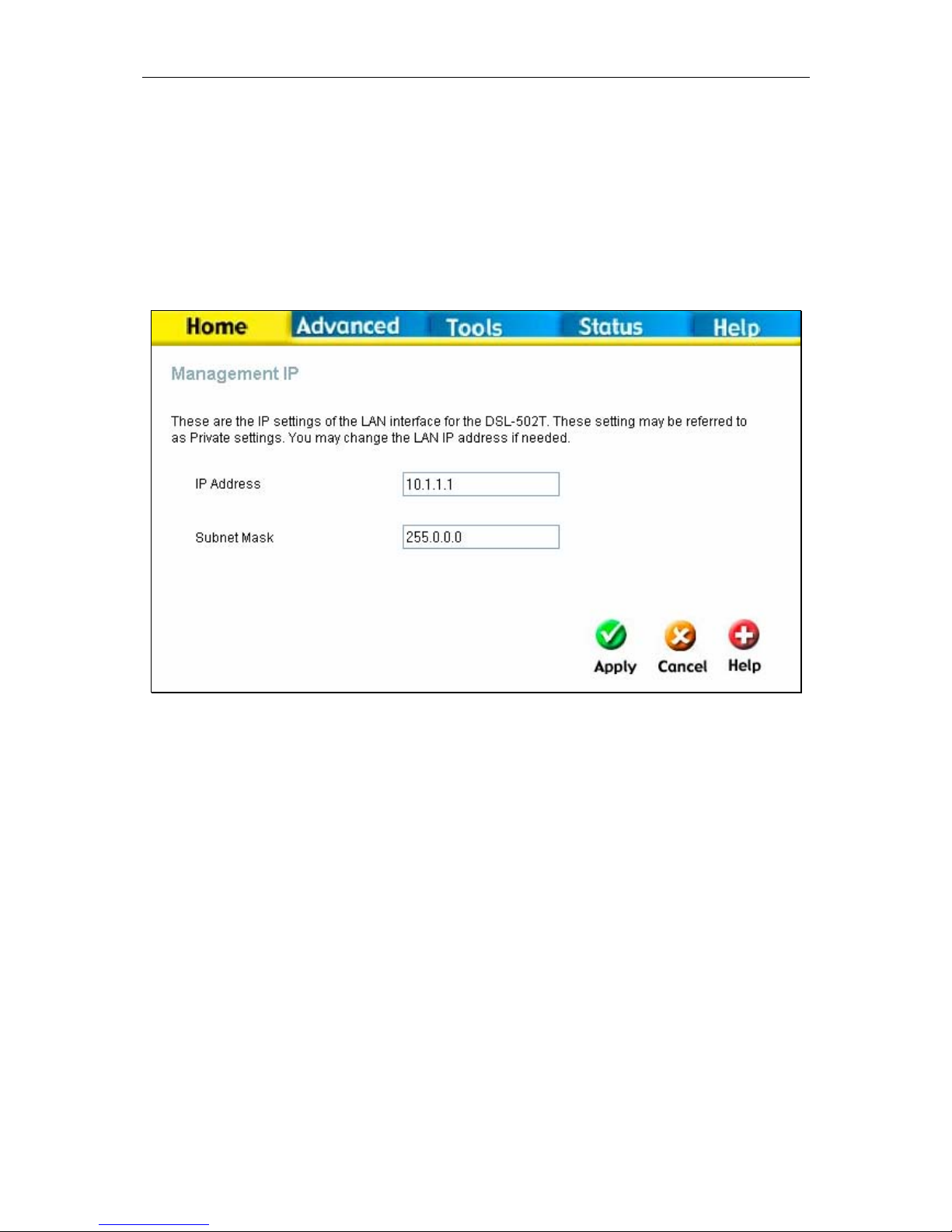

LAN IP Settings ................................................................................................26

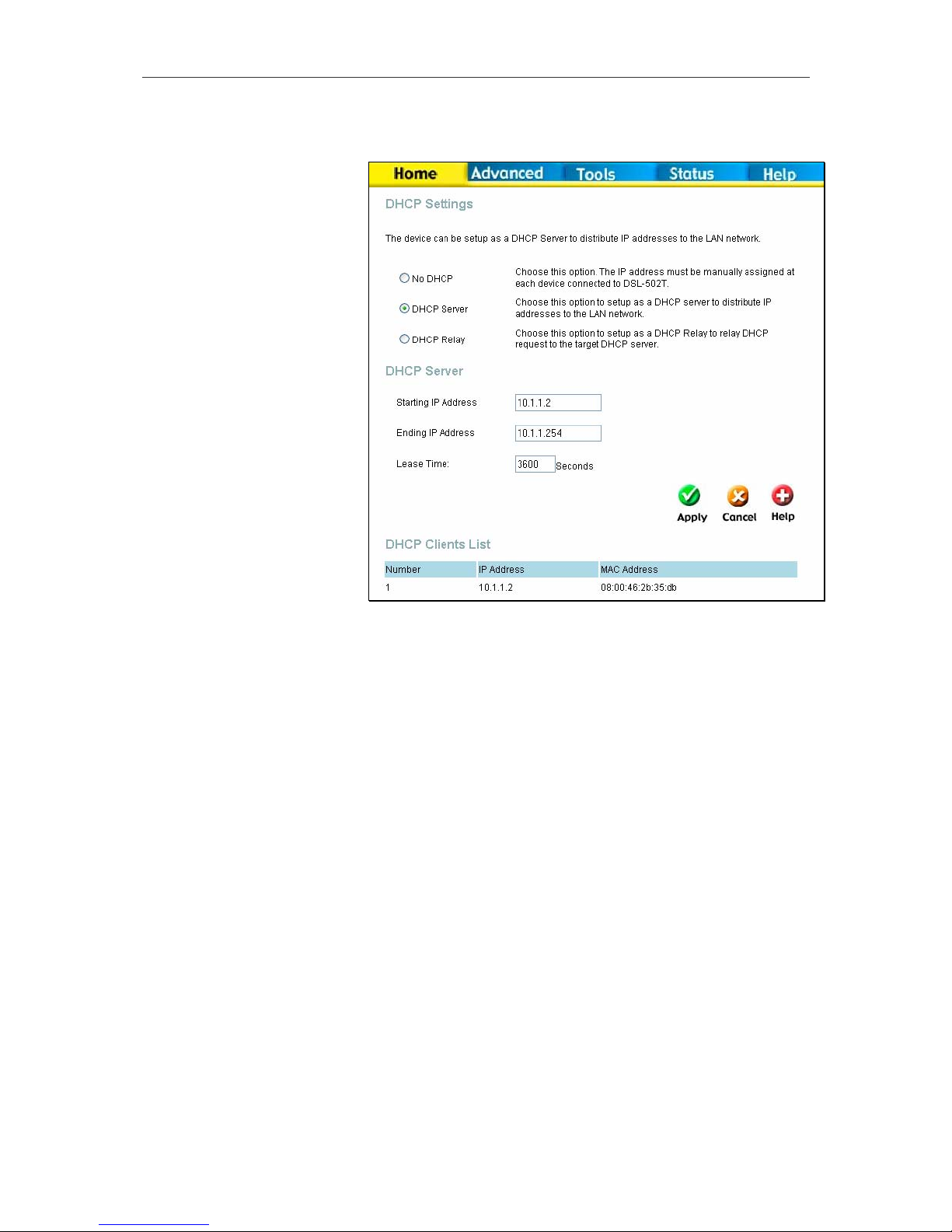

DHCP Server Settings for the LAN .................................................................... 27

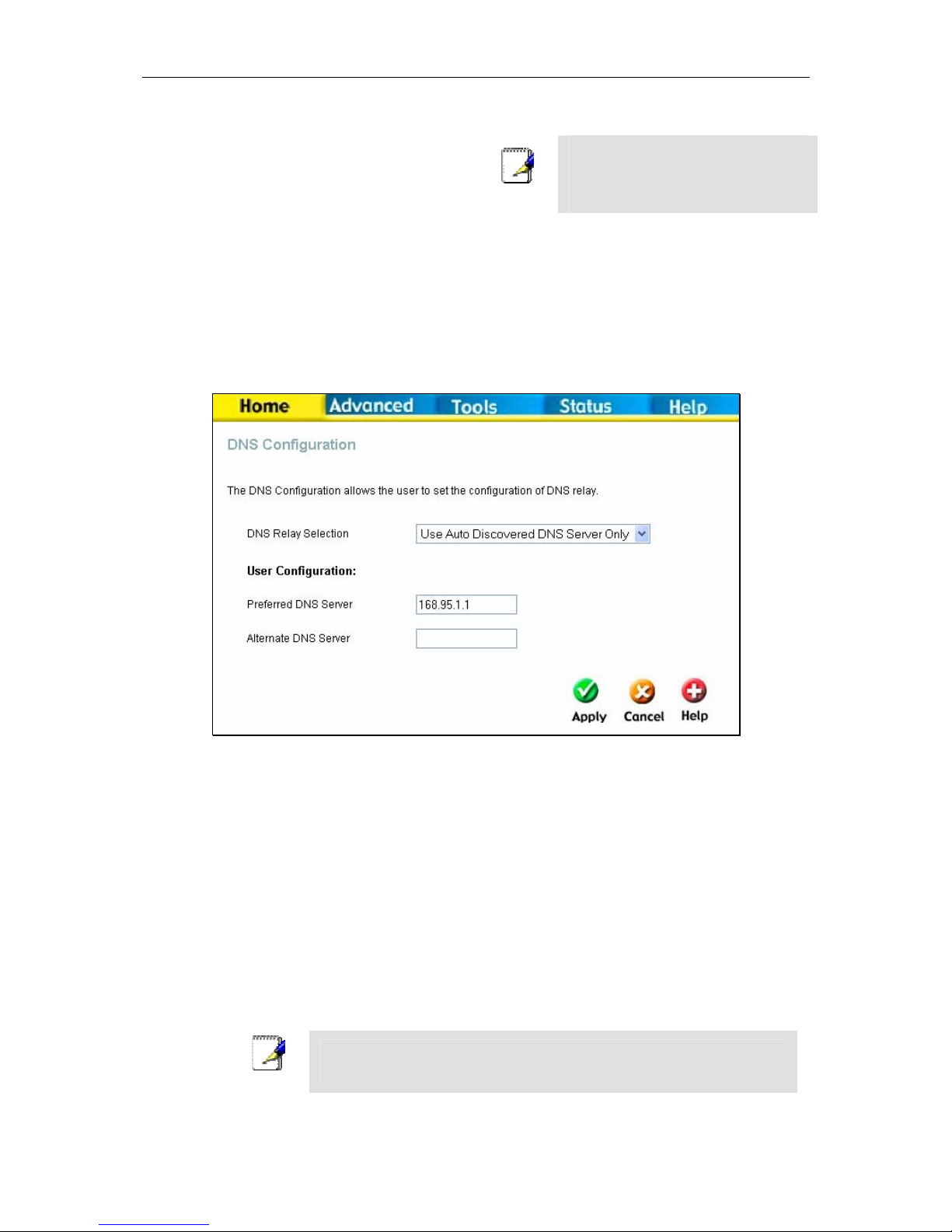

DNS Server Settings........................................................................................ 28

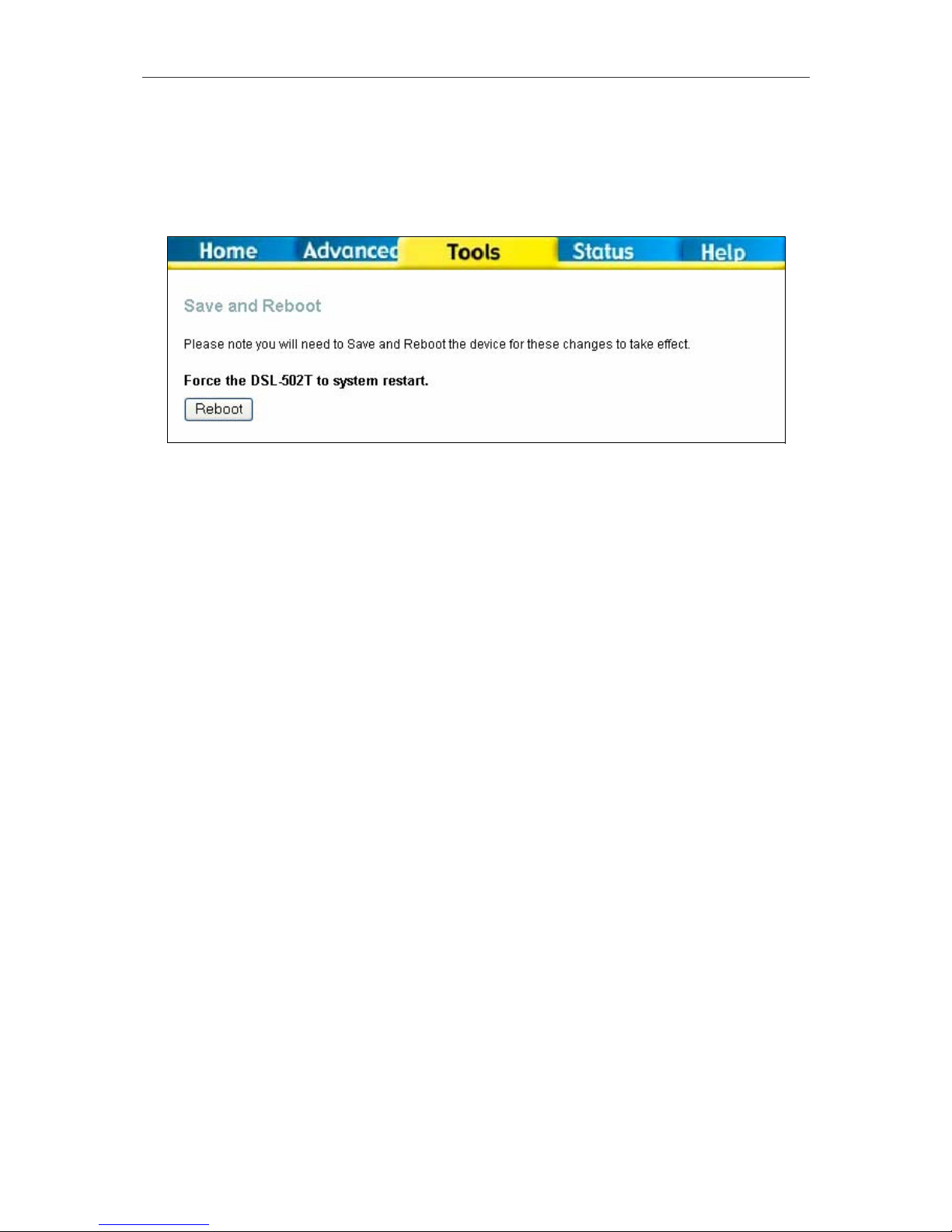

Save Settings and Reboot................................................................................. 29

ADVANCED ROUTER MANAGEMENT..............................................30

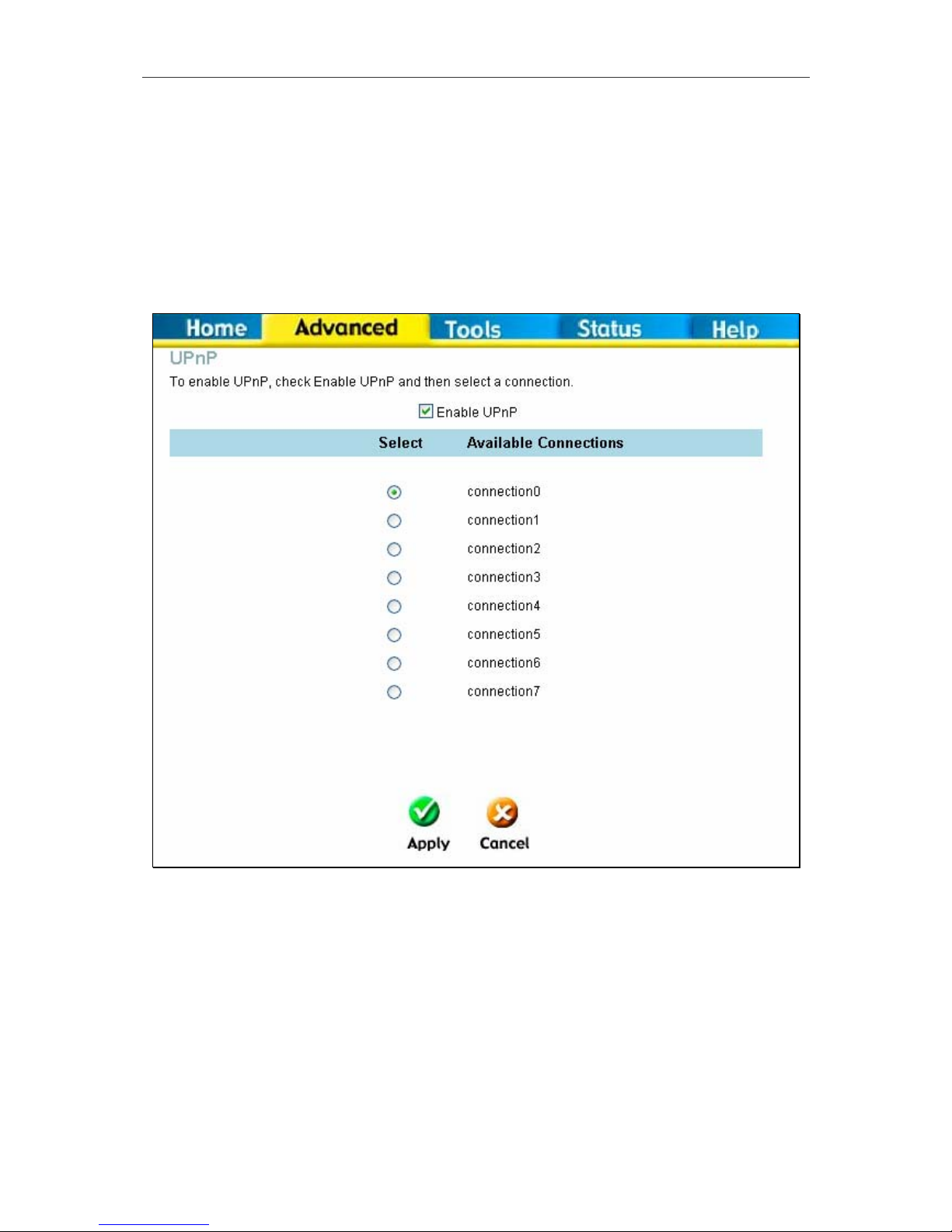

UPnP ............................................................................................................. 31

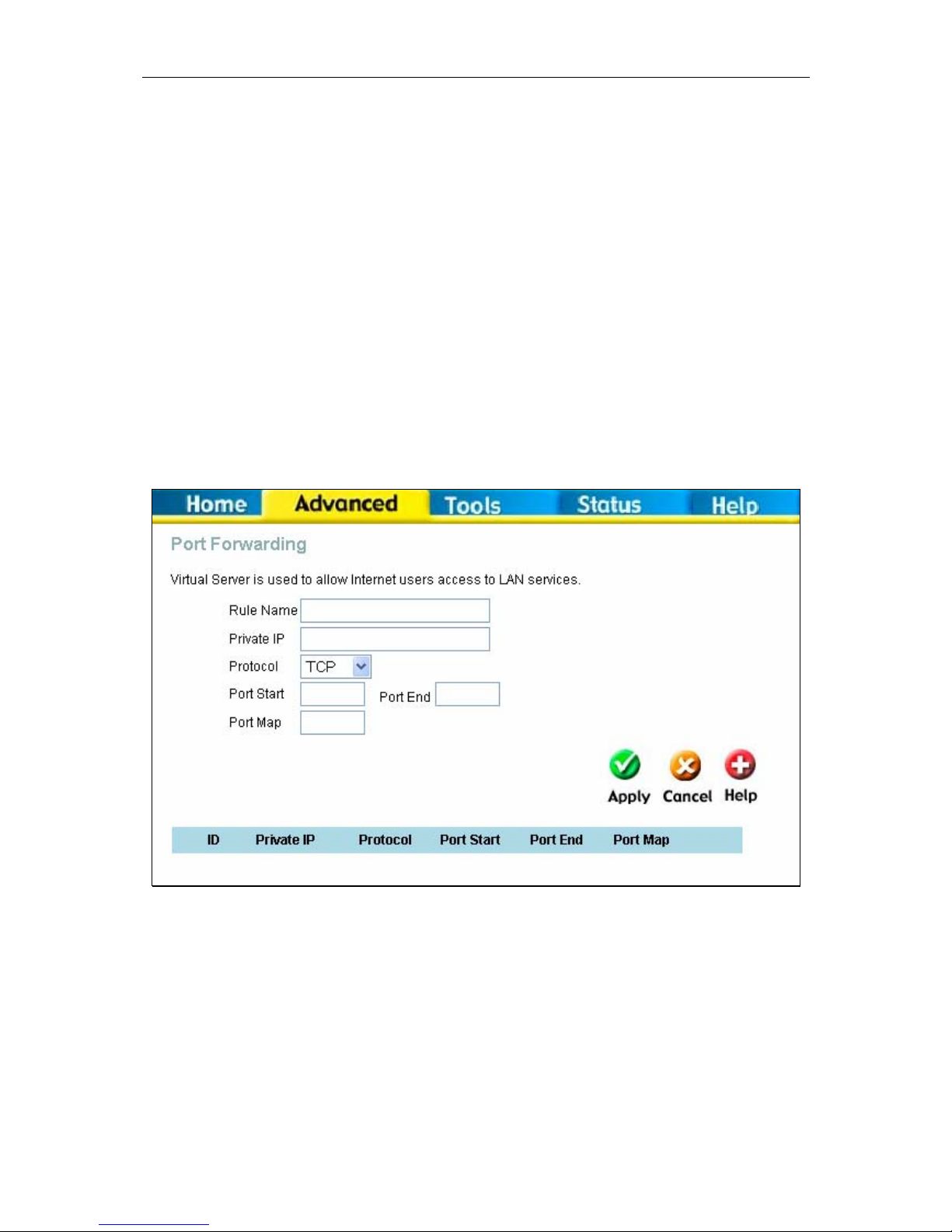

Port Forwarding............................................................................................... 32

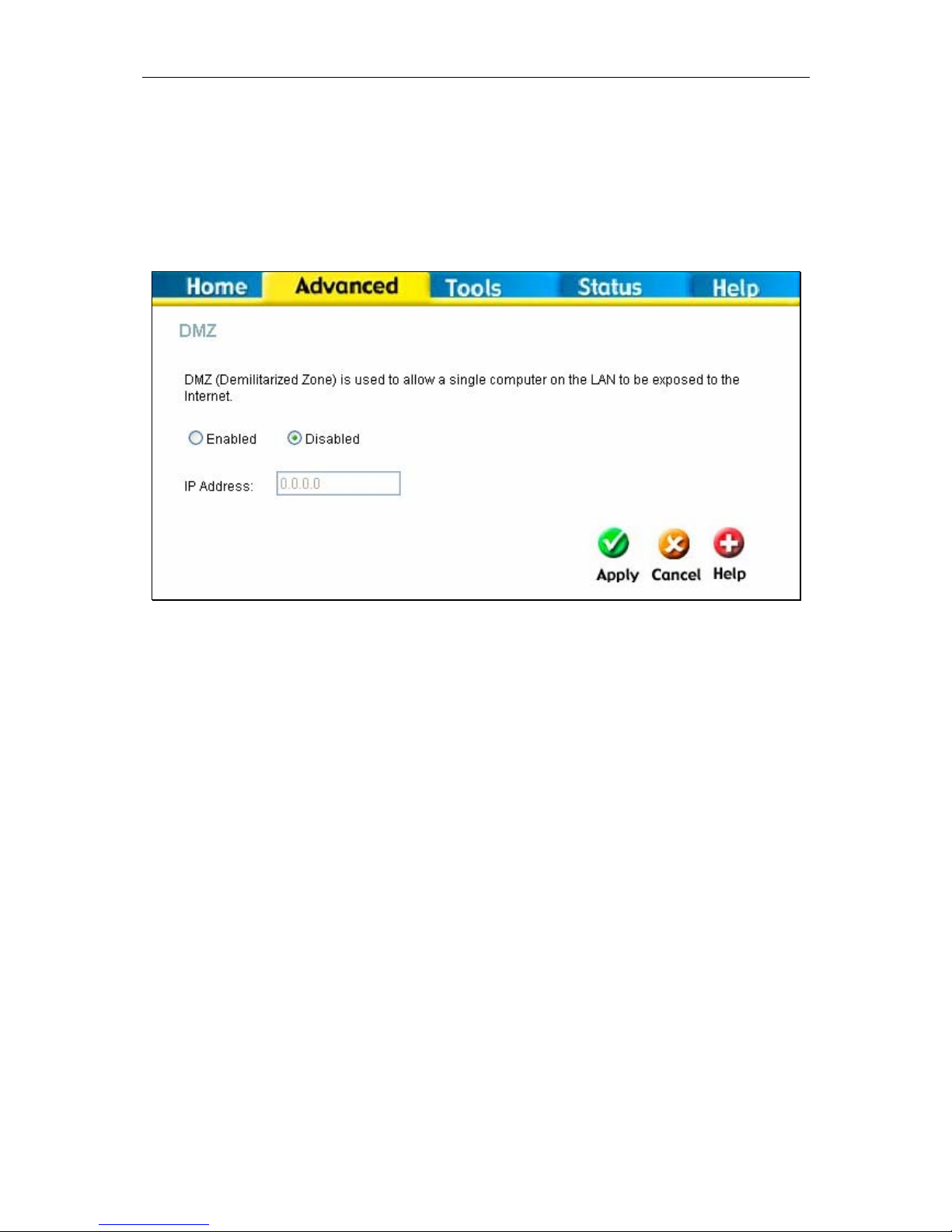

DMZ.............................................................................................................. 34

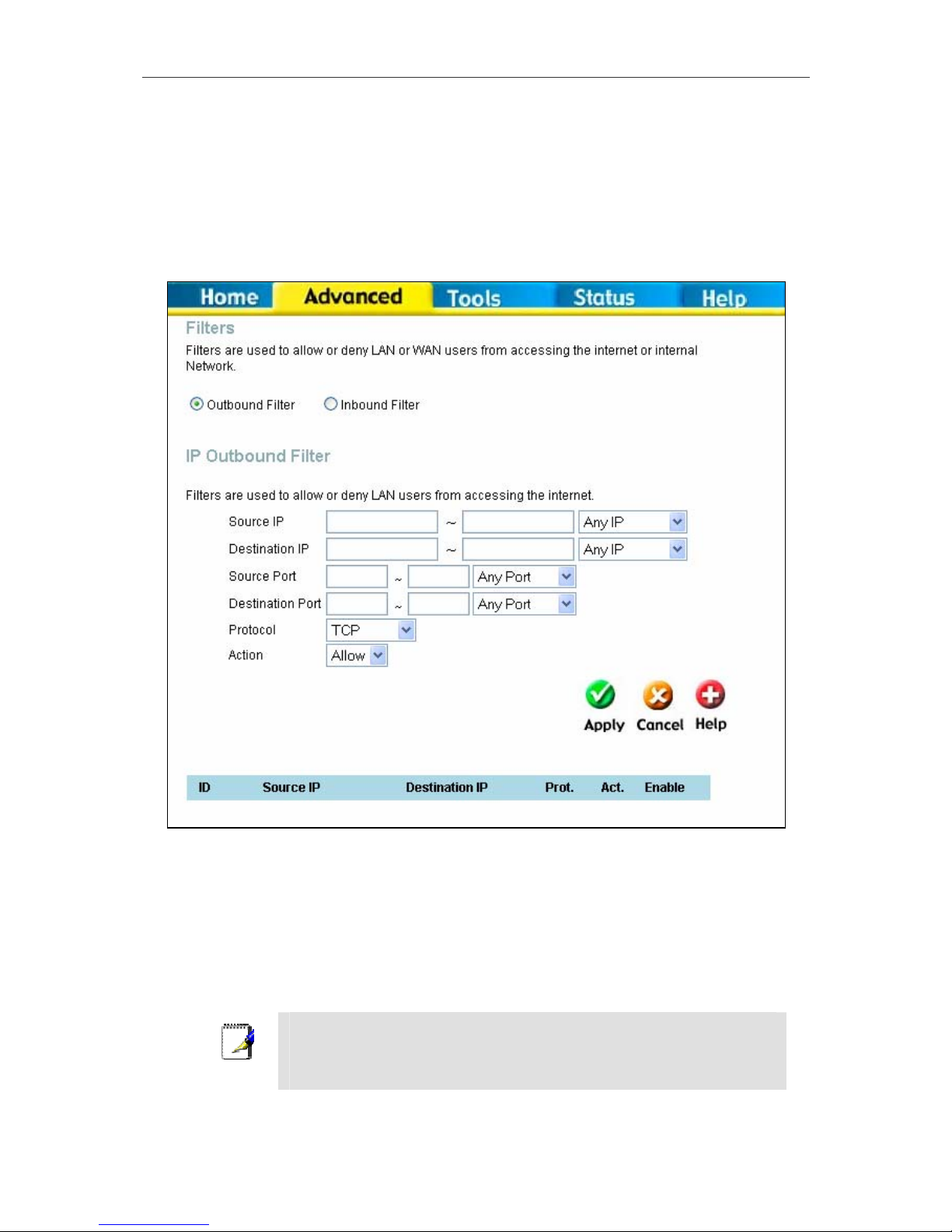

Filters............................................................................................................ 35

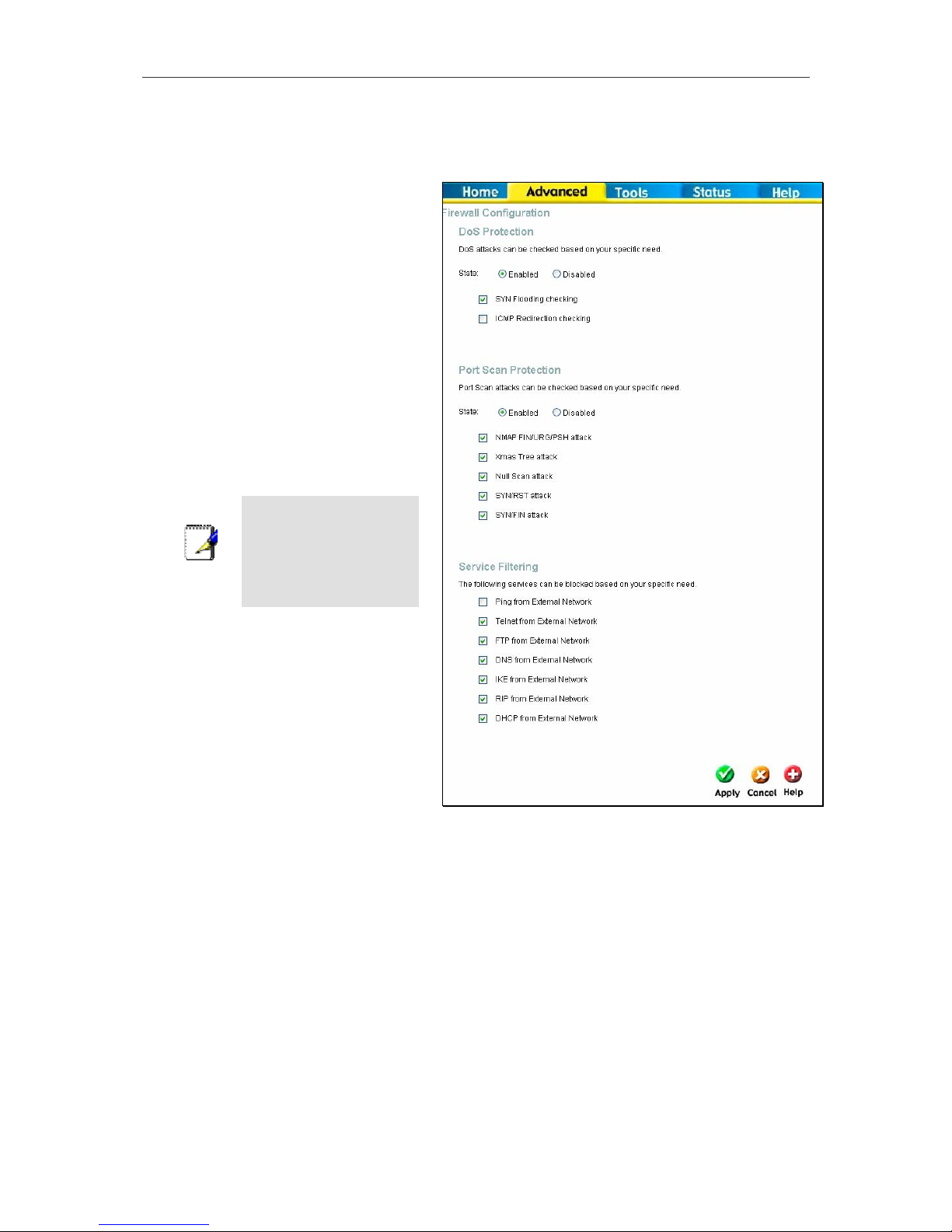

Firewall.......................................................................................................... 37

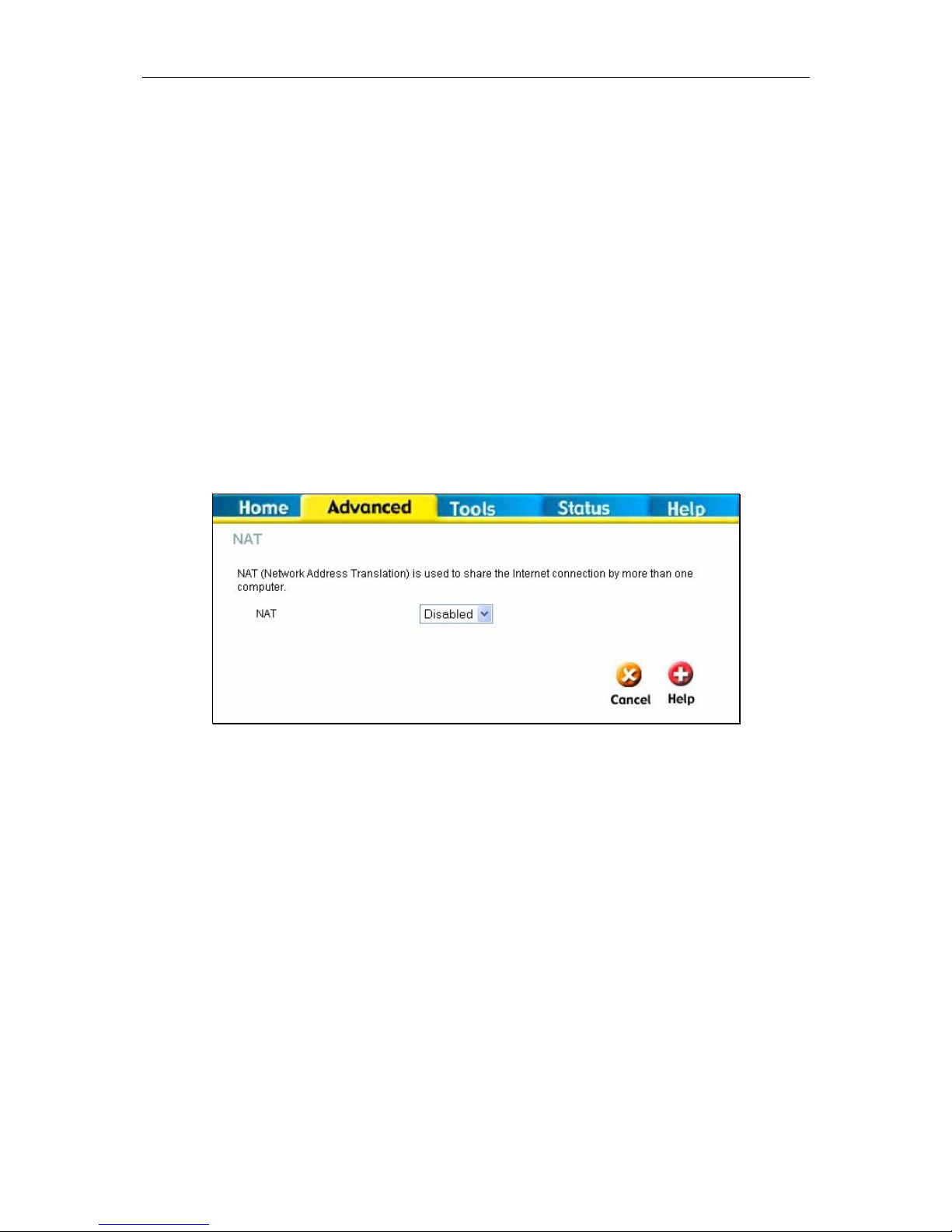

NAT............................................................................................................... 38

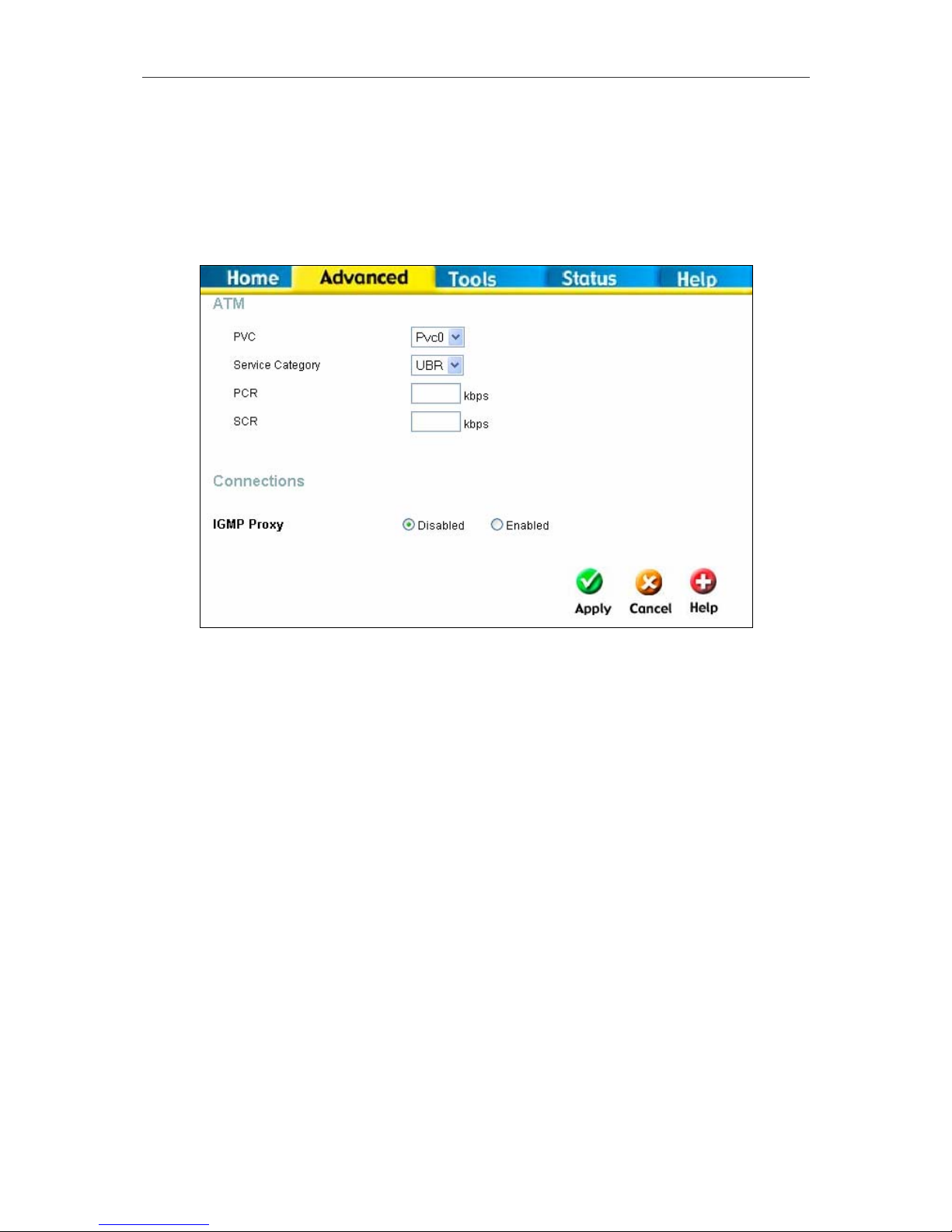

ATM............................................................................................................... 39

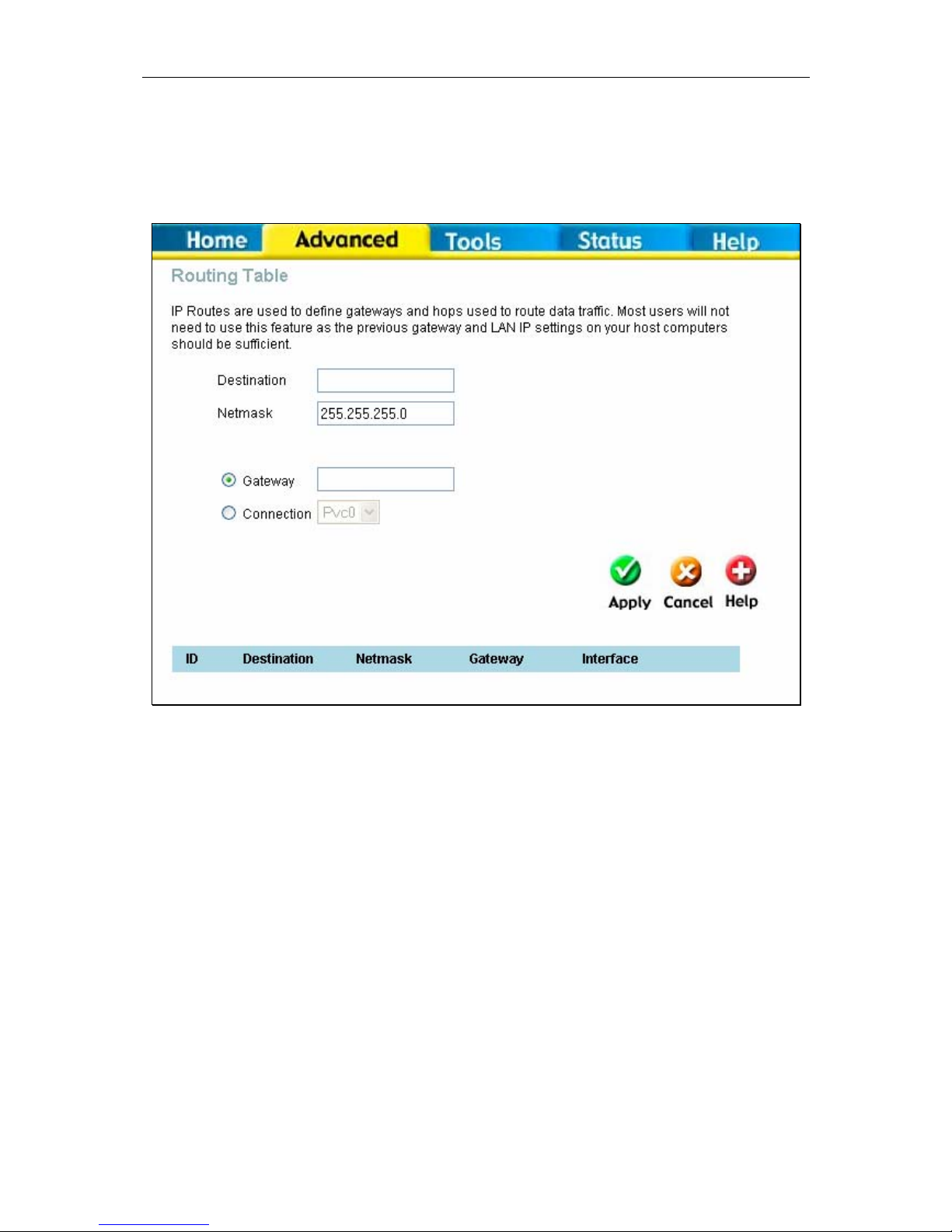

Static Routing................................................................................................. 40

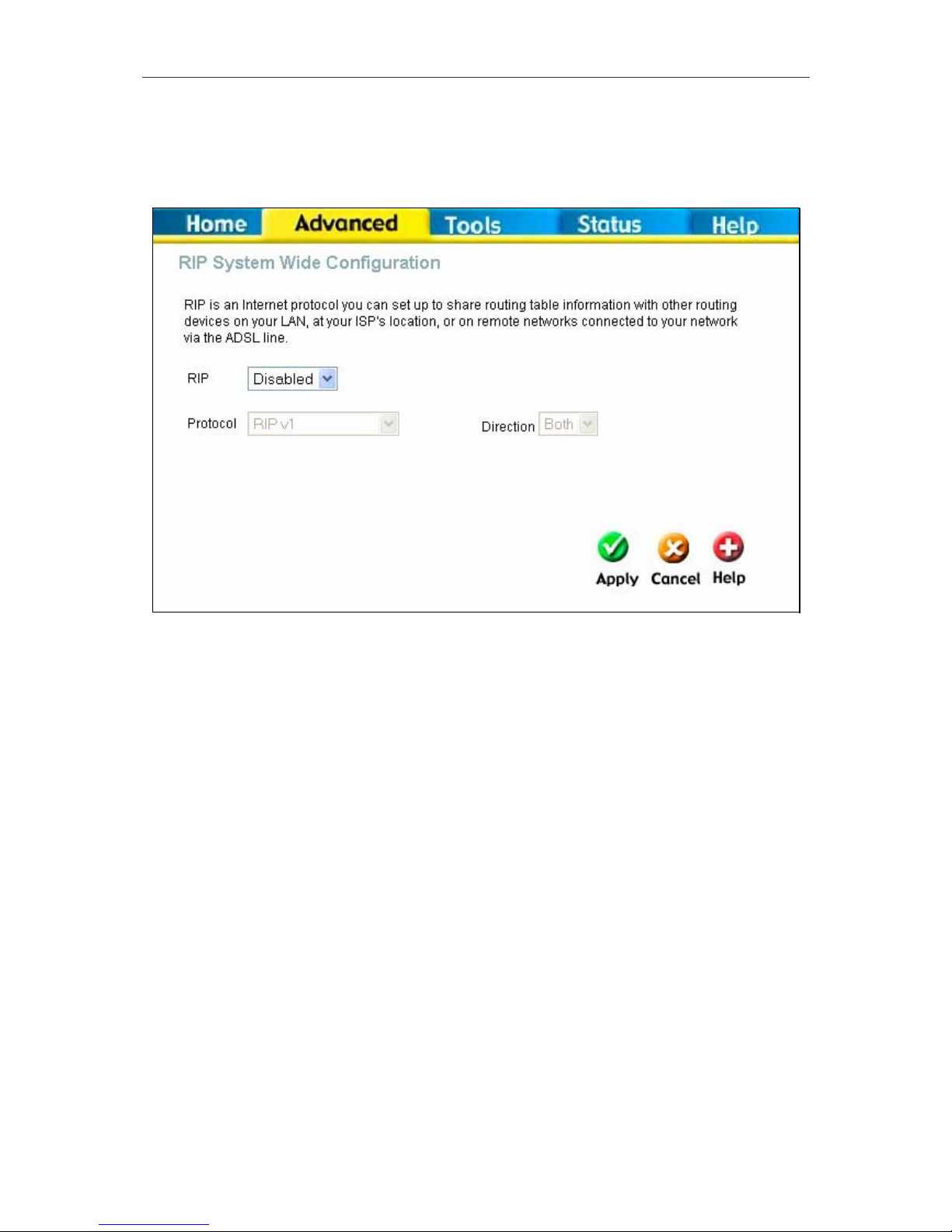

Dynamic Routing (RIP)..................................................................................... 41

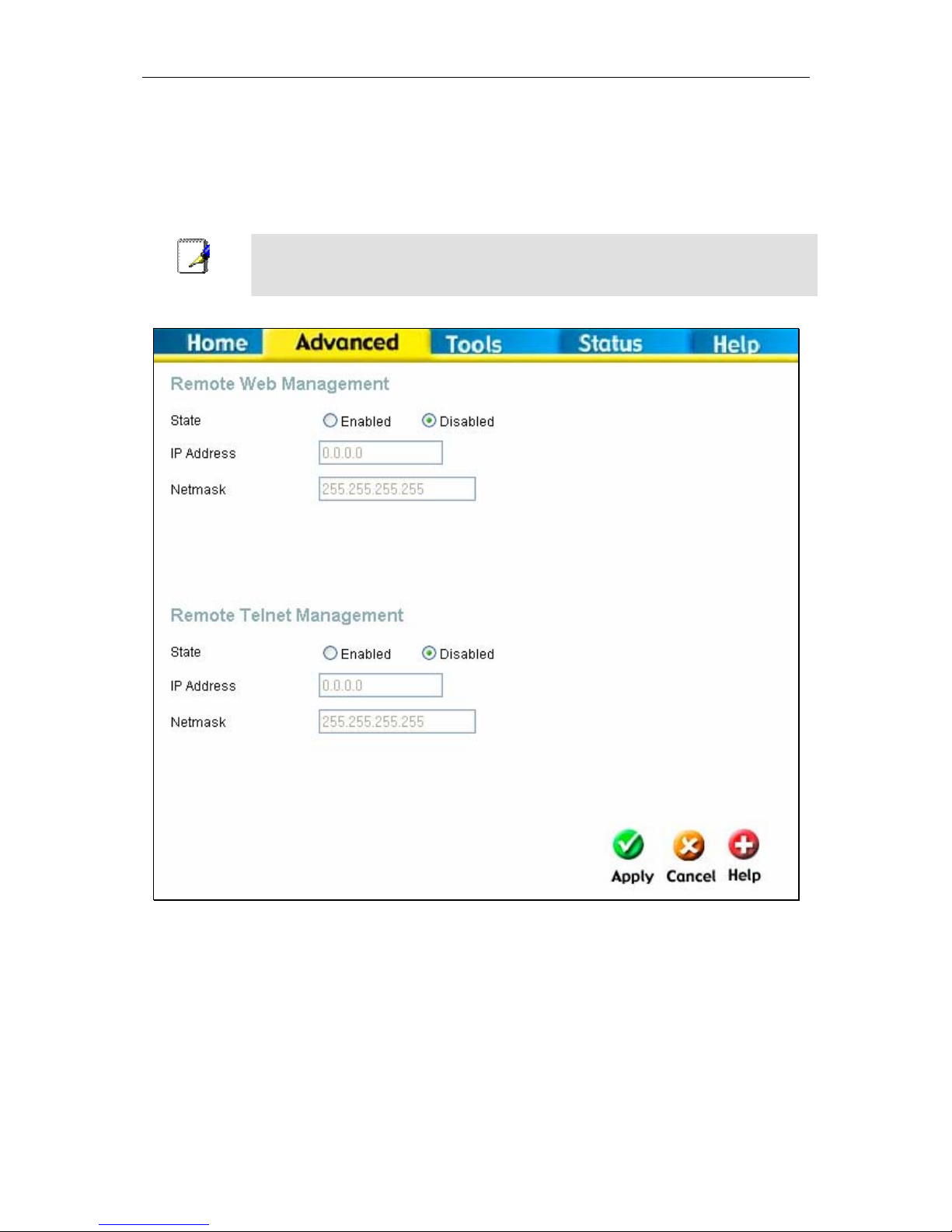

Remote Access................................................................................................ 42

Tools and Utilities............................................................................................. 43

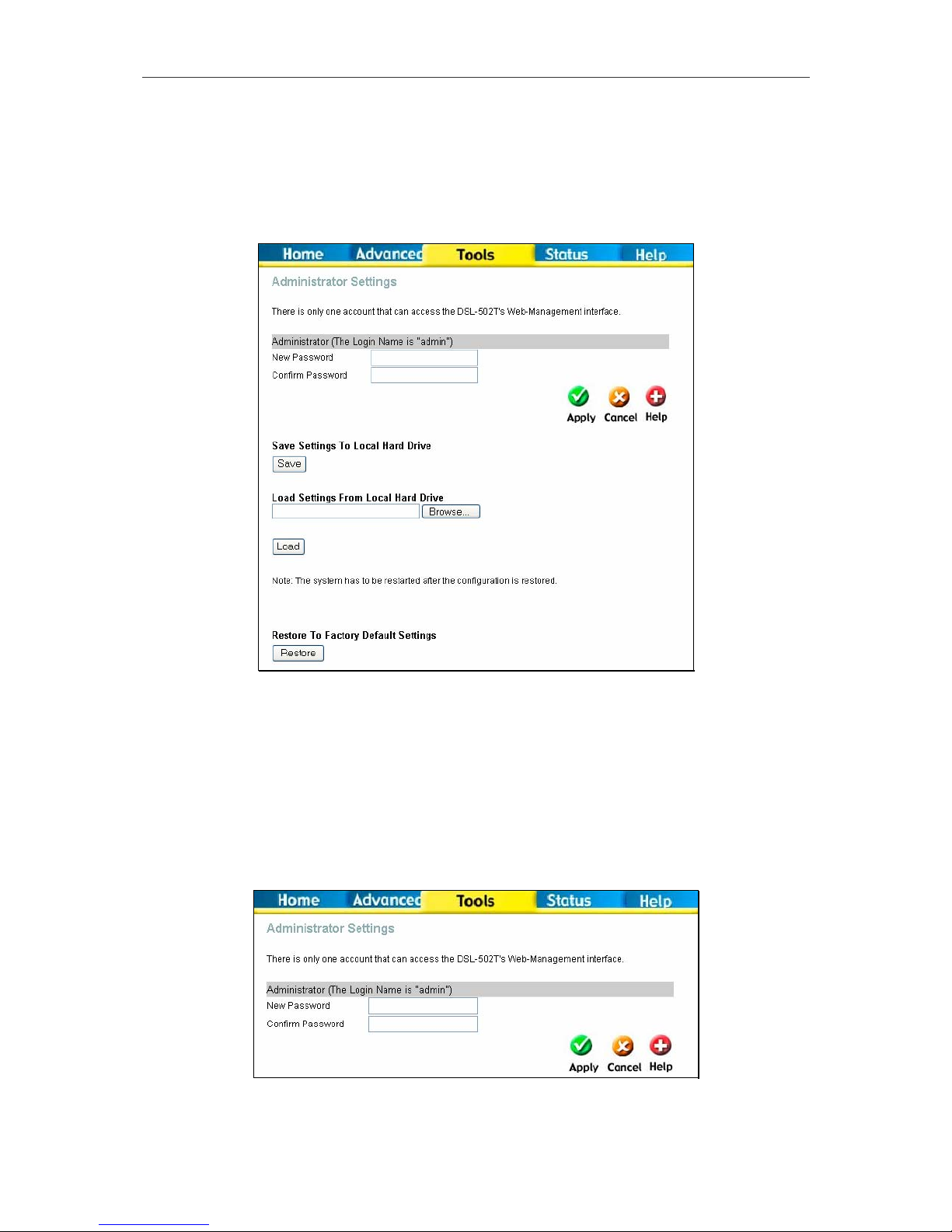

Change System Password................................................................................. 43

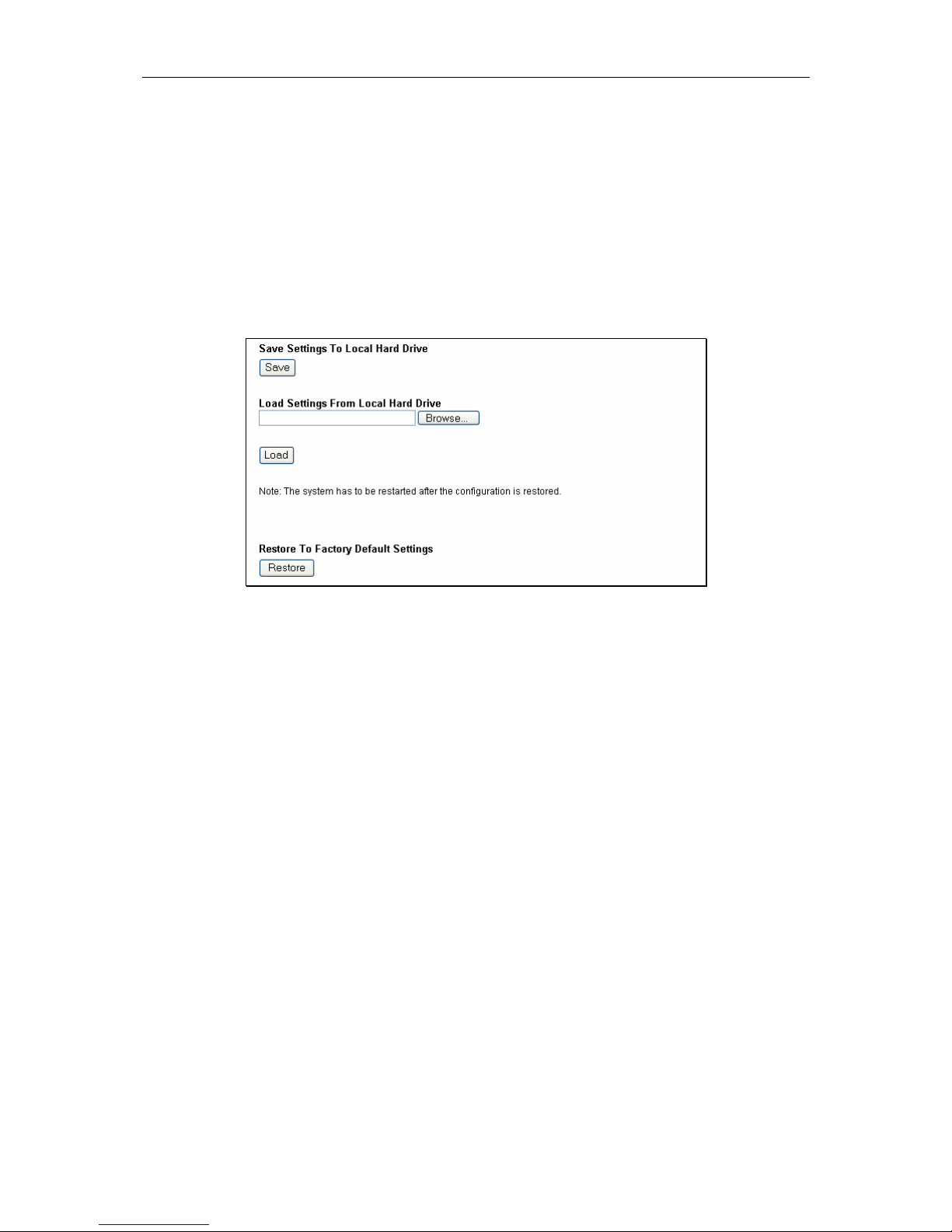

Save or Load Configuration File ......................................................................... 44

Restore Factory Default Settings........................................................................ 44

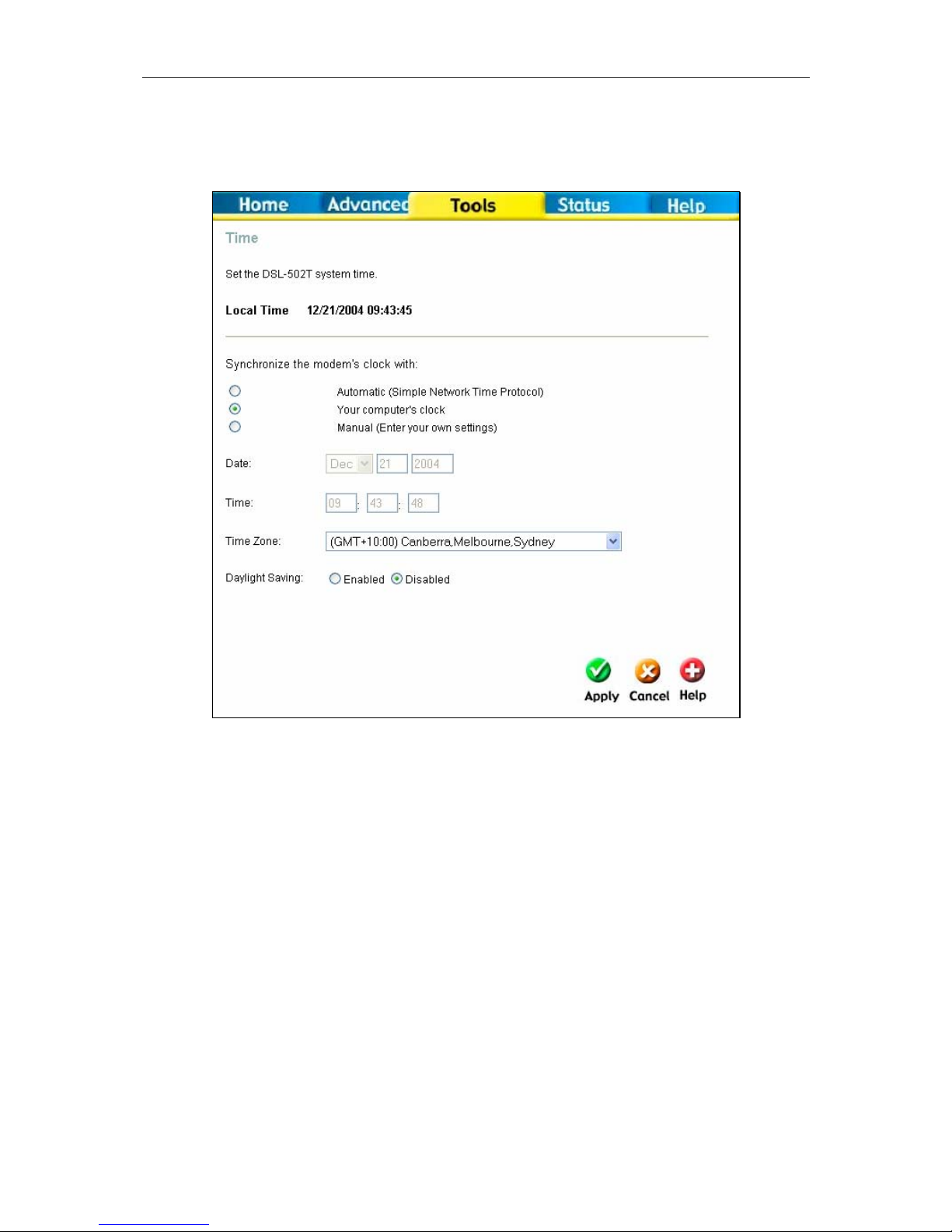

Time.............................................................................................................. 45

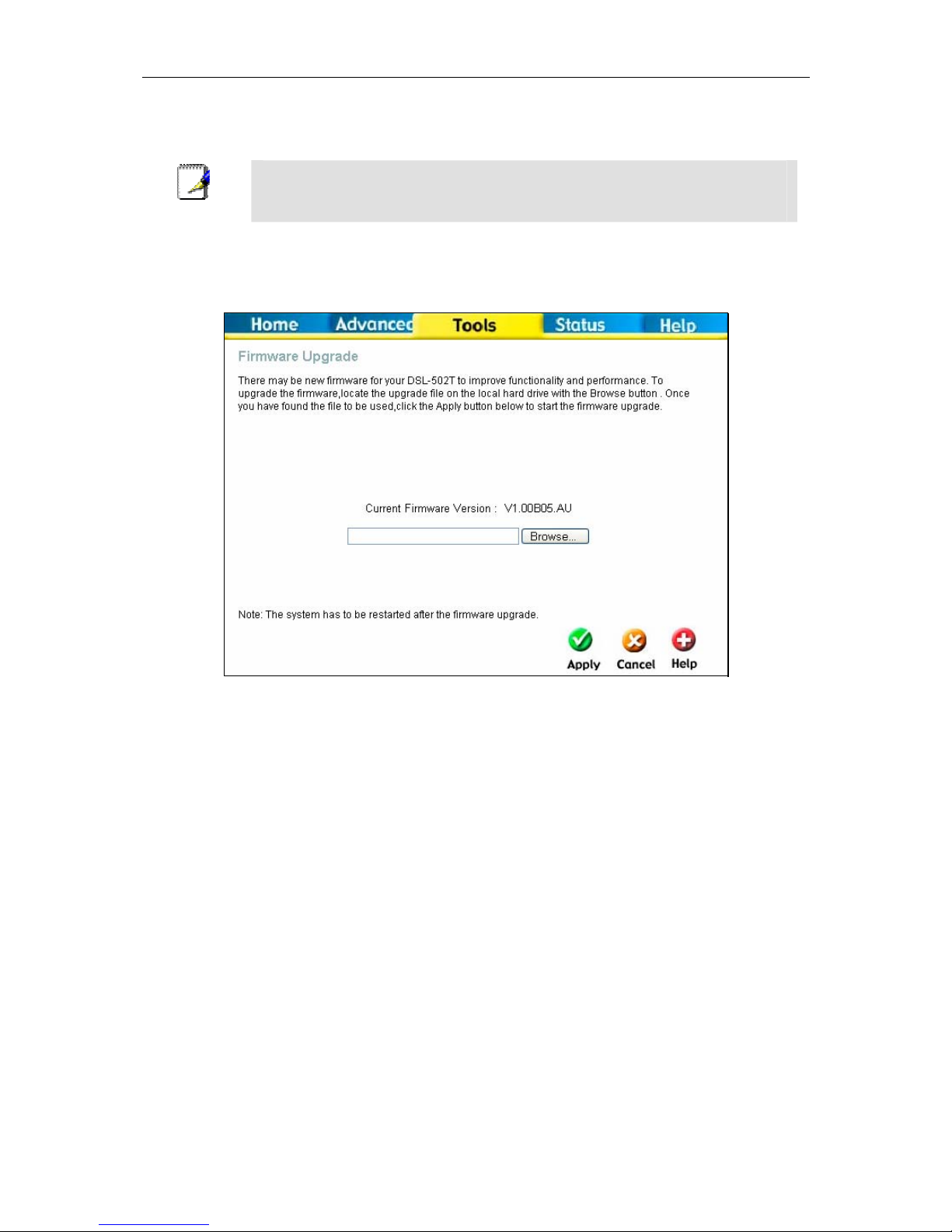

Firmware Upgrade........................................................................................... 46

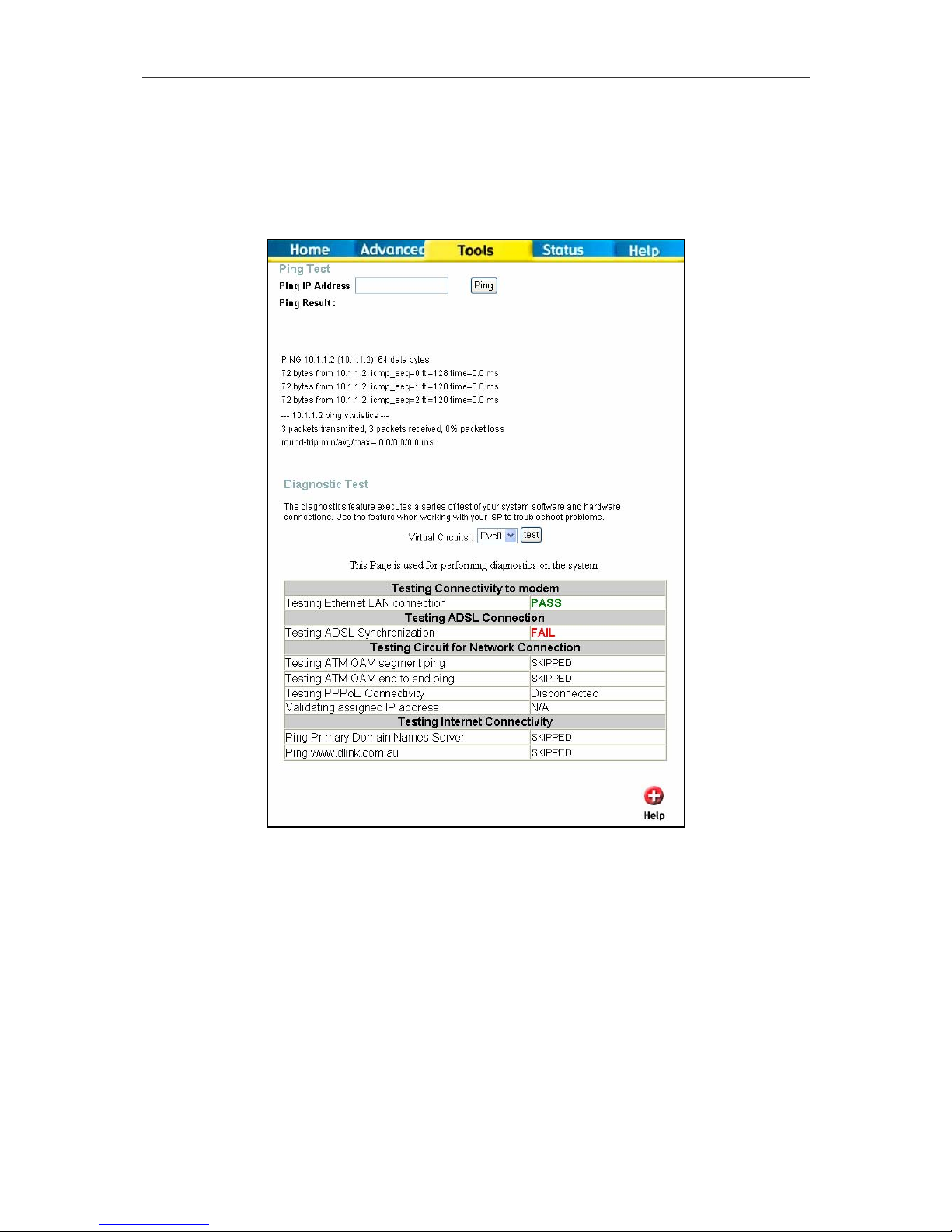

Test............................................................................................................... 47

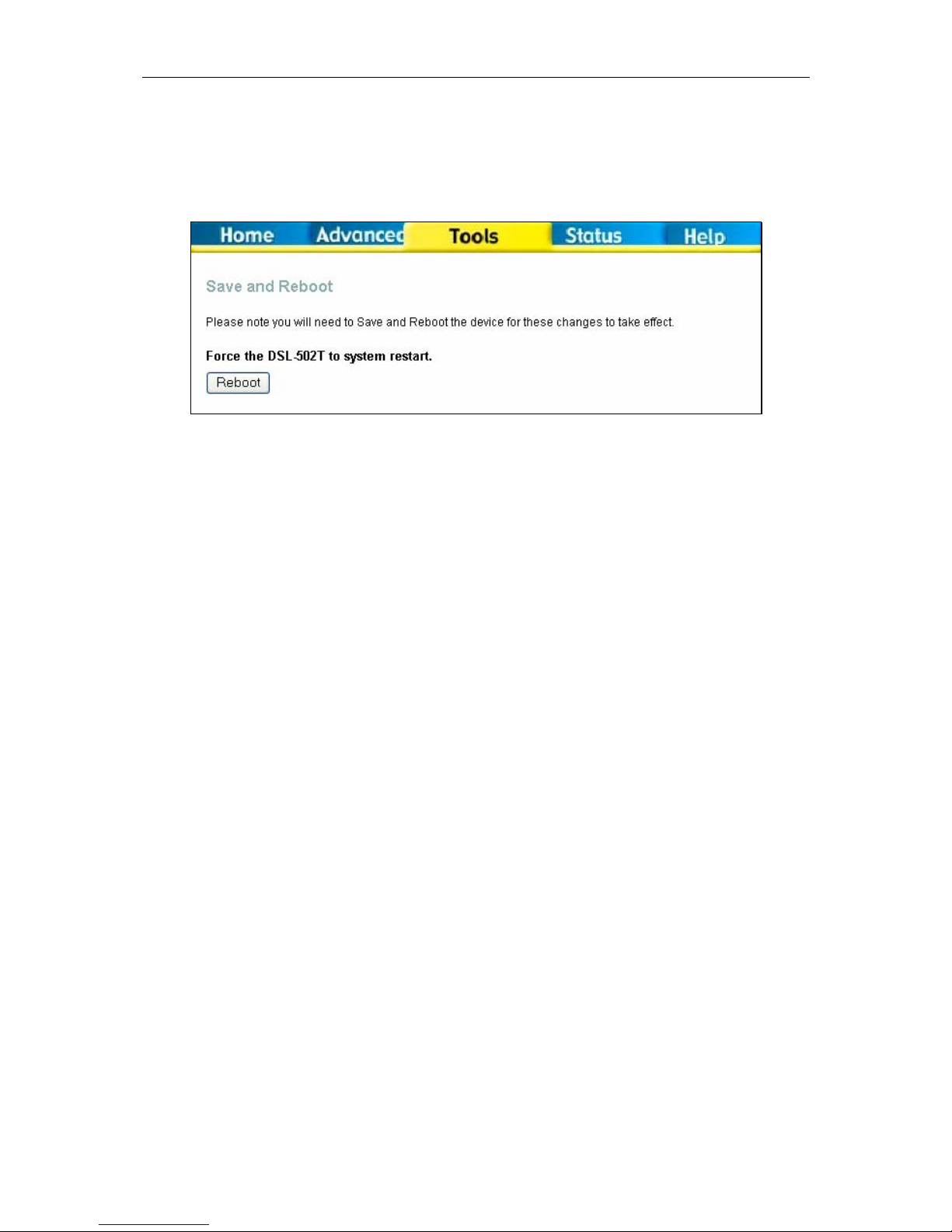

Save Settings and Reboot................................................................................. 48

Router Status Information................................................................................ 49

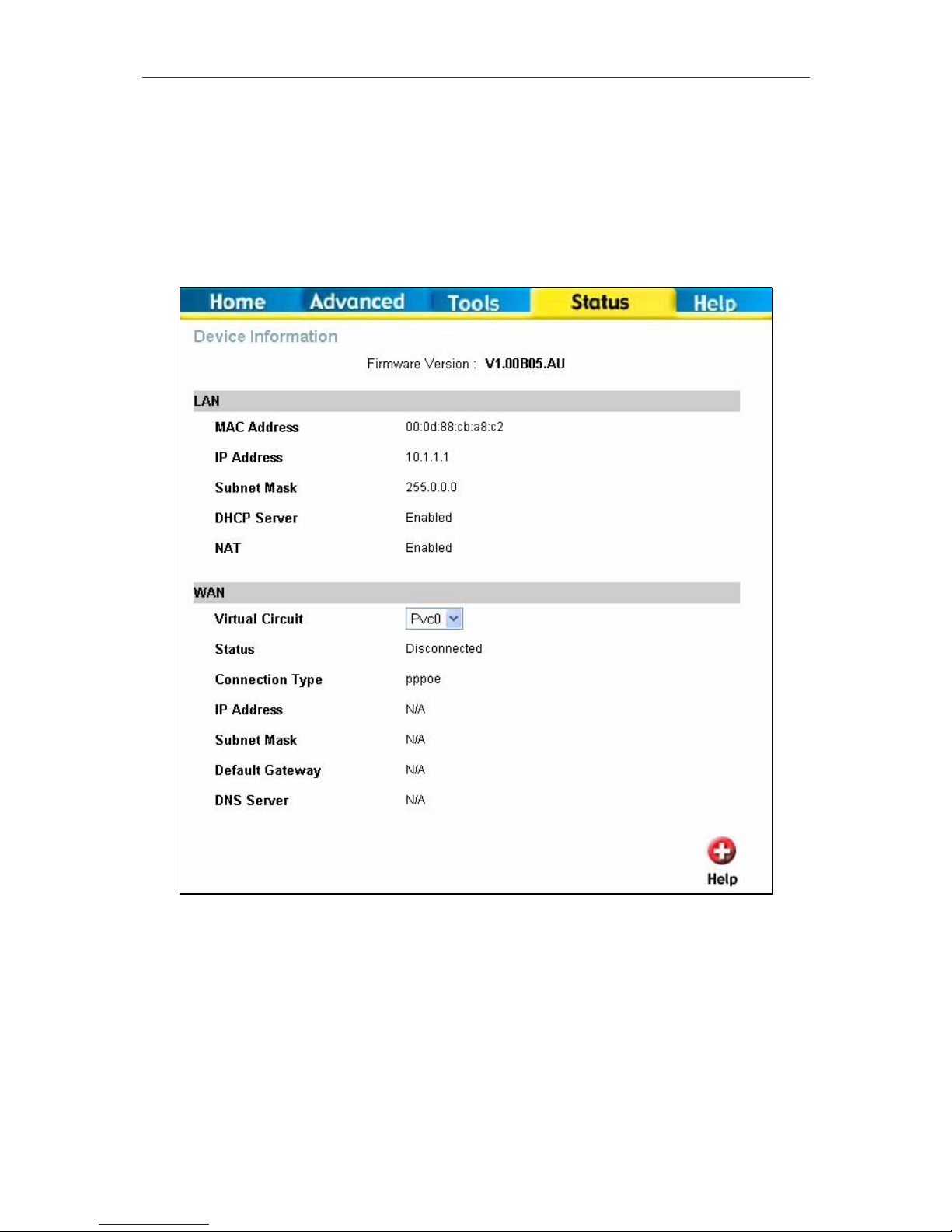

Device Information Display............................................................................... 49

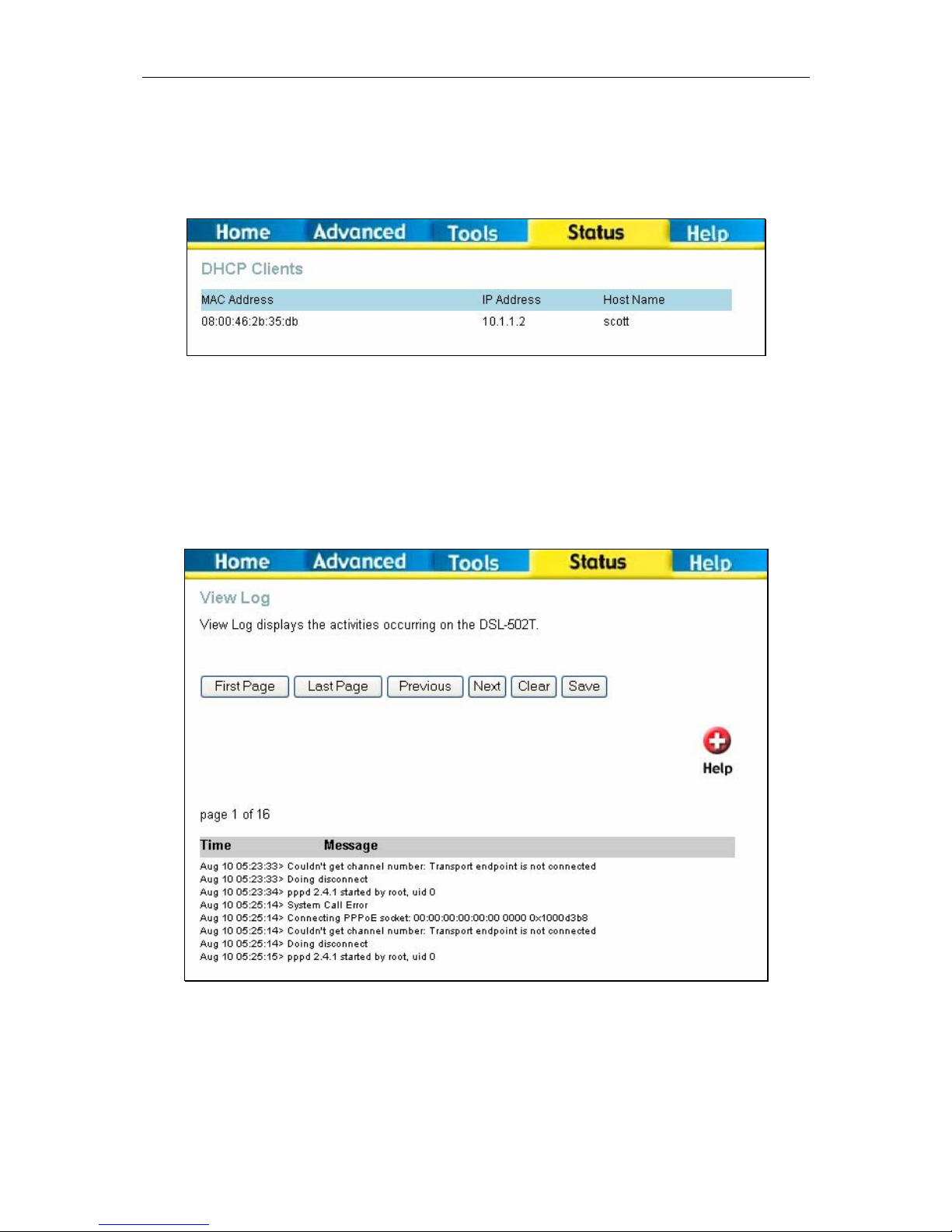

DHCP Clients .................................................................................................. 50

Log................................................................................................................ 50

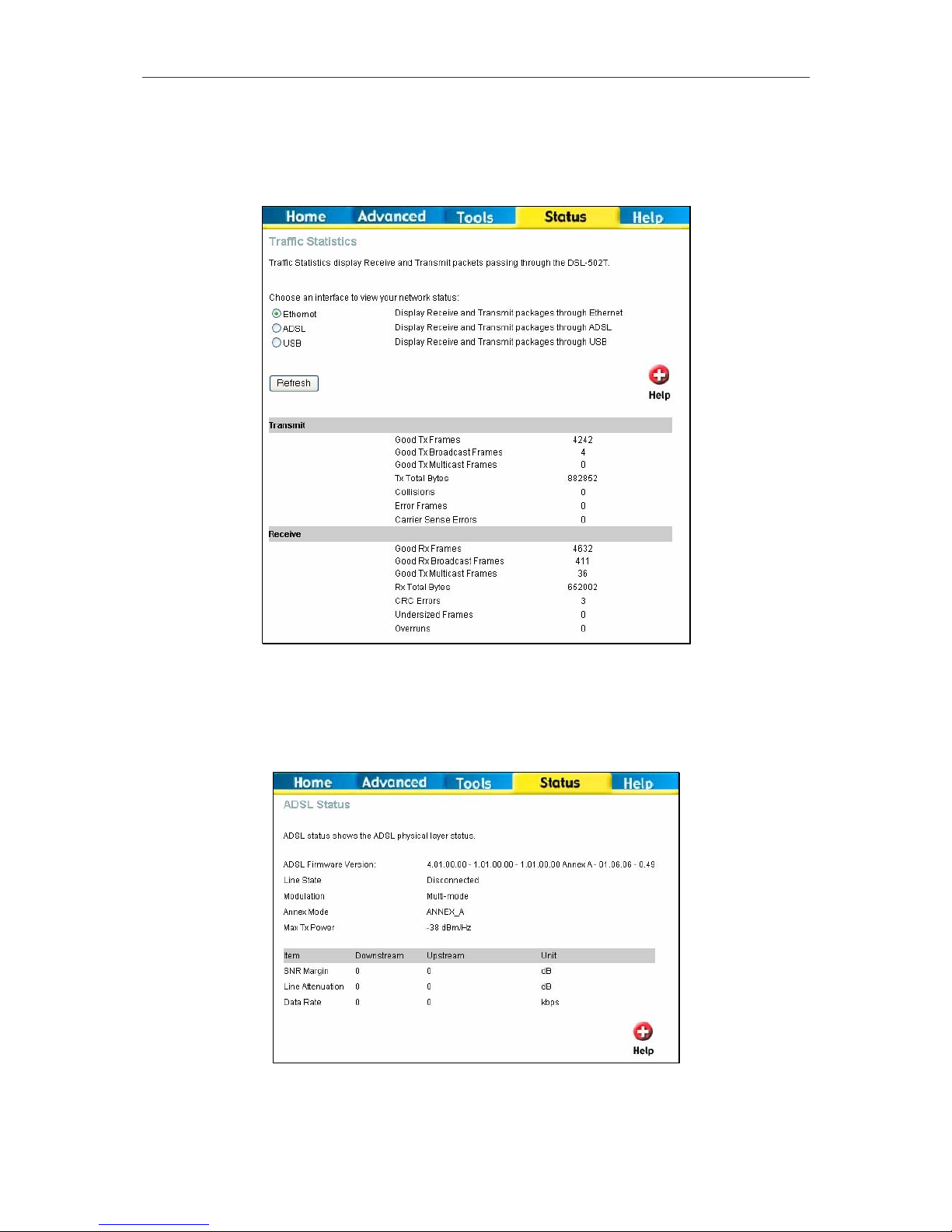

Traffic............................................................................................................ 51

ADSL............................................................................................................. 51

TECHNICAL SPECIFICATIONS ......................................................52

IP ADDRESS SETUP......................................................................54

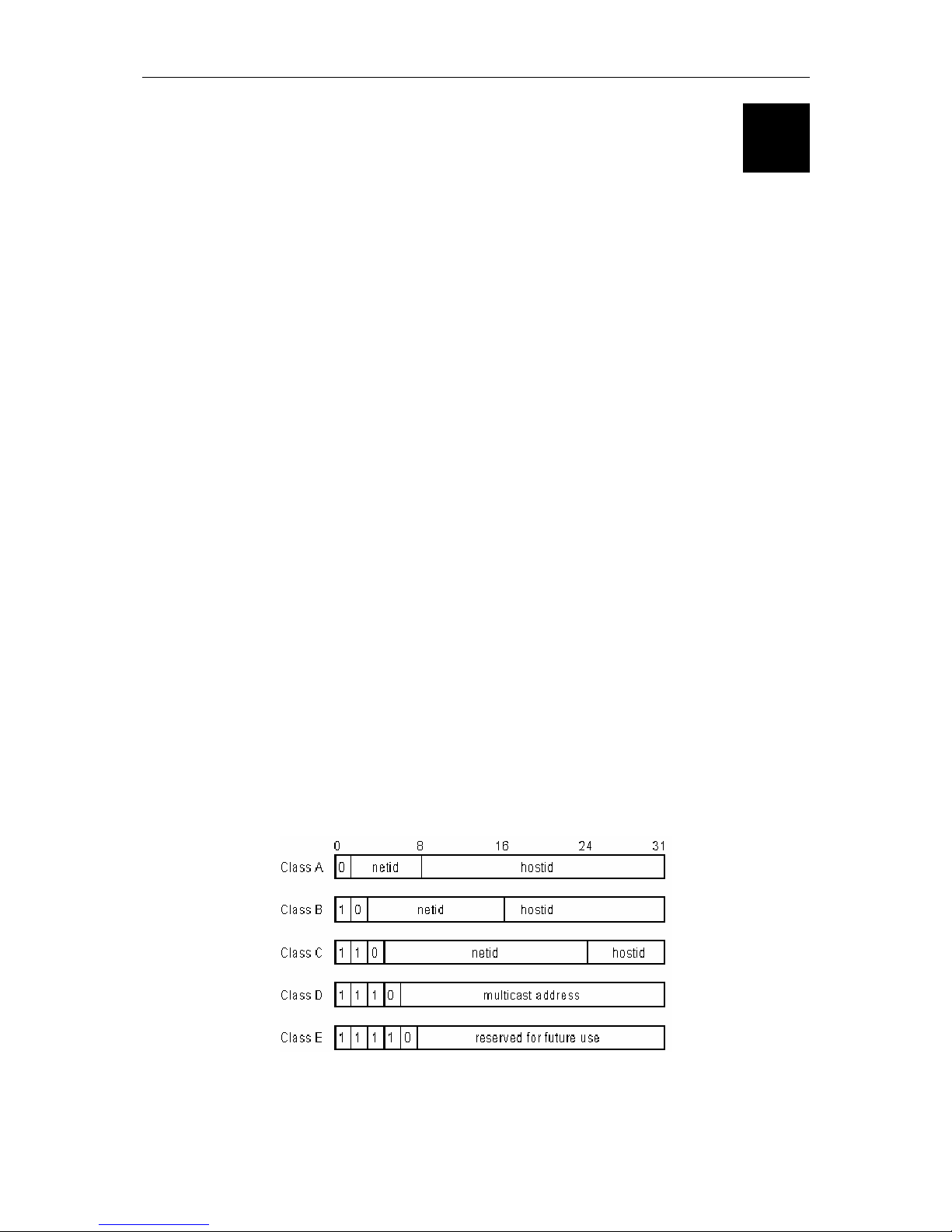

IP CONCEPTS...............................................................................56

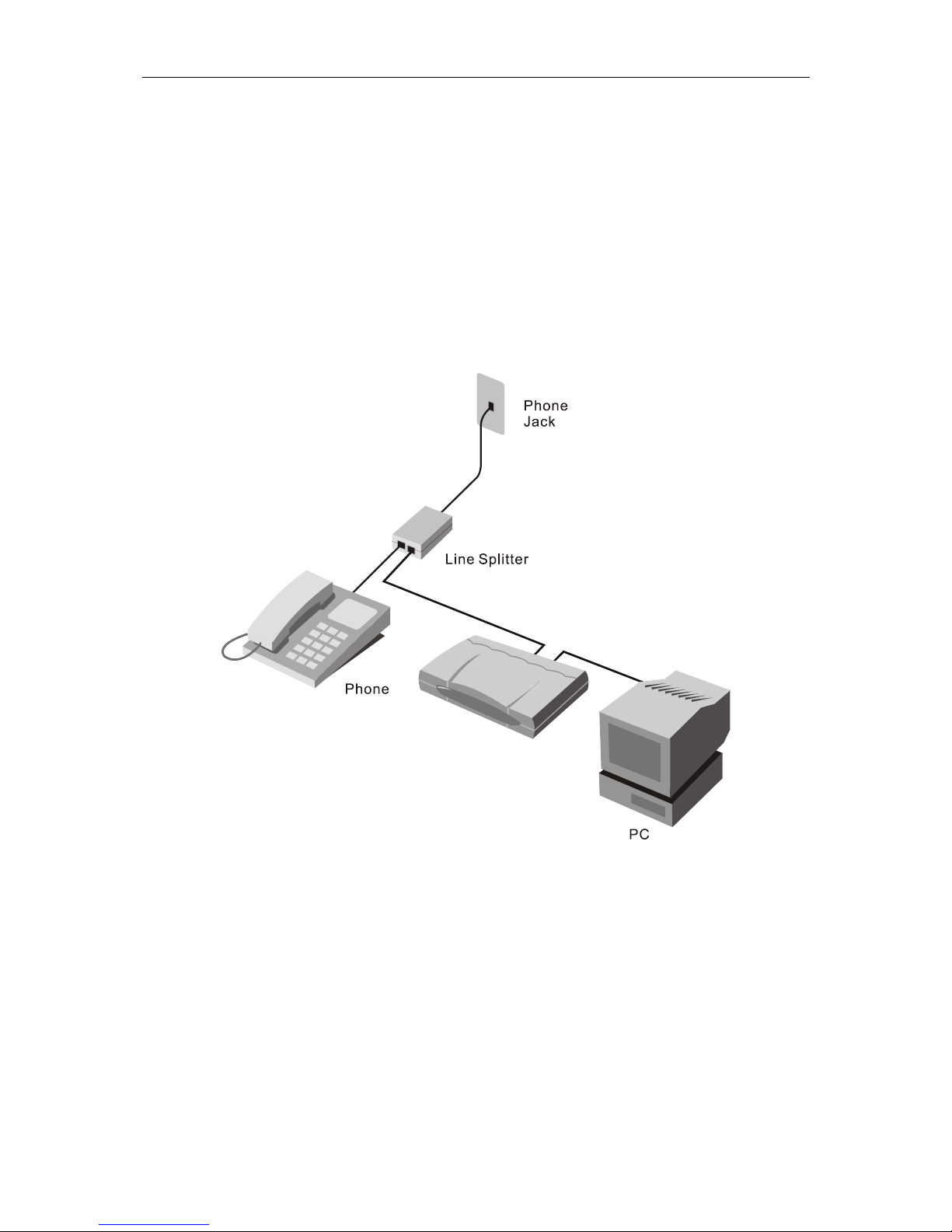

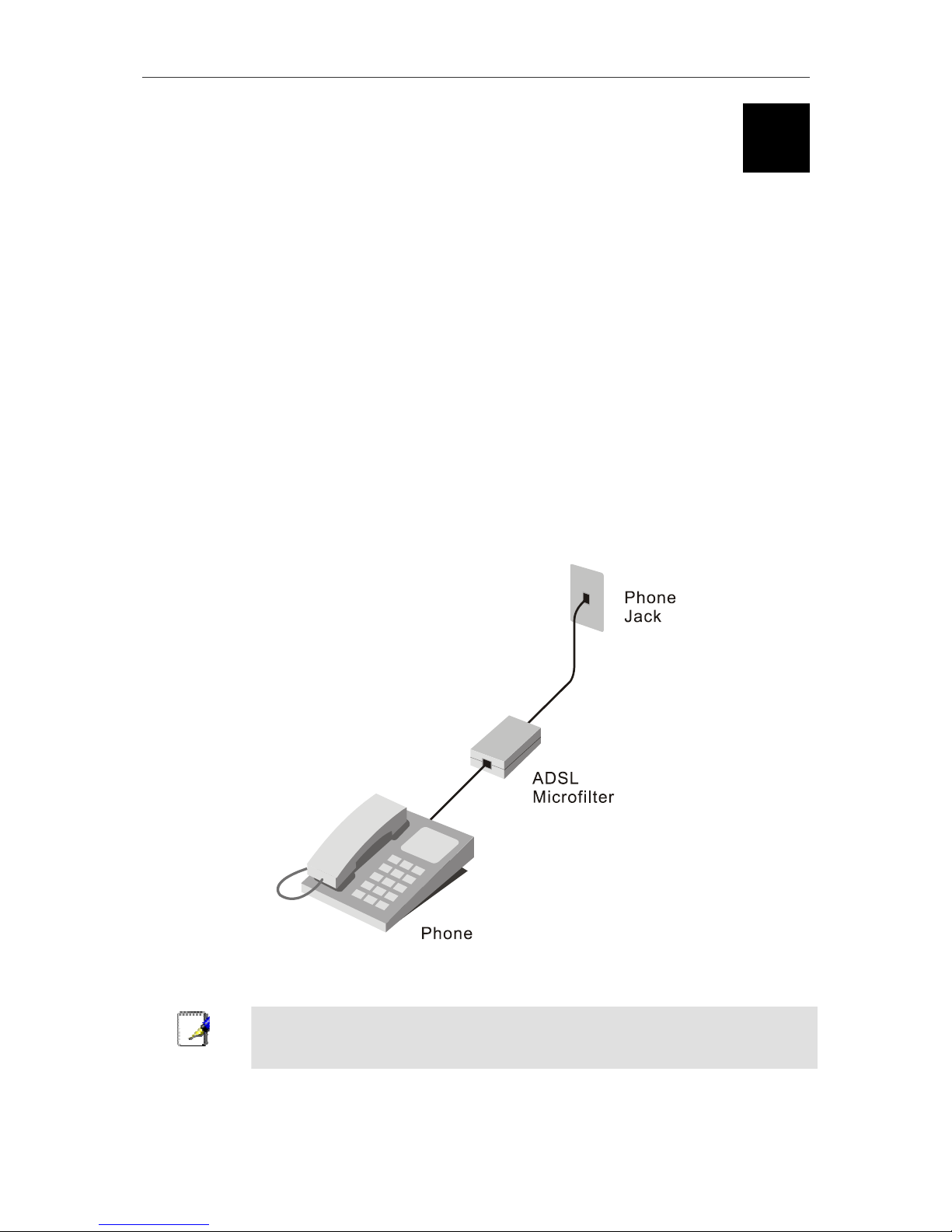

MICROFILTERS AND SPLITTERS...................................................59

DSL-502T ADSL Router User’s Guide

About This User’s Guide

This user’s guide provides instructions on how to install the DSL-502T ADSL Router and use it to provide Internet access for a computer or an Ethernet LAN.

If you are using a computer with a functioning Ethernet port, the quickest and easiest way to set up the DSL-502T is to follow the instructions provided in the Quick Installation Guide. To install the USB driver, click the “Install DSL-502T” link on the initial pop-up menu that appears shortly after inserting the CD and follow the instructions as they are presented. If the menu fails to appear, explore the CD, double-click the autorun.exe file or find the file Setup.exe in the folder labeled USBDRIVER and double-click it to launch the installation software.

Before You Start

Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand before beginning the installation.

Installation Overview

The procedure to install the Router can be described in general terms in the following steps:

1. Gather information and equipment needed to install the device. Before you begin the actual installation make sure you have all the necessary information and equipment.

2. Install the hardware, connect the cables to the device and connect the power adapter. You will need to install a software driver to use the USB port. See the instructions below or QIG for more details..

3. Check the IP settings on your computer and change them if necessary so the computer can access the web-based software built into the Router.

4. Use the web-based management software to configure the device to suit the requirements of your ADSL service and requirements of your local network.

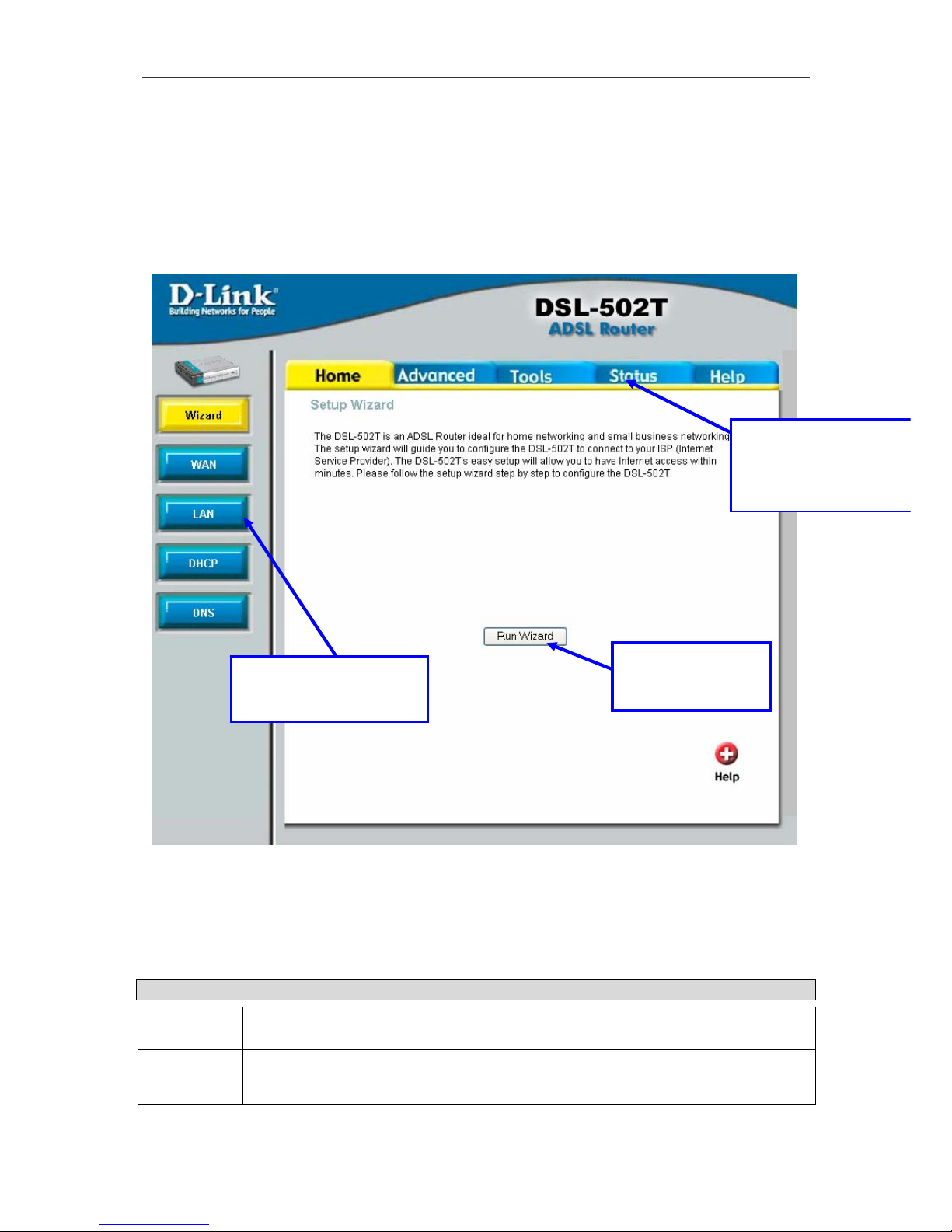

The Setup Wizard

Many users will be able to configure all the settings necessary to use the DSL-502T with the Setup Wizard. For ADSL connections that use PPPoE or PPPoA connections, the simplest way to setup the DSL-502T is to use the Setup Wizard to configure the Internet connection. Once you access the web interface used to configure the device, just launch the Setup Wizard to configure your Internet connection.

If you are connecting a computer to the Router via the USB interface, you must first install the USB driver. Follow the installation instructions below to install the USB driver.

Packing List

Open the shipping carton and carefully remove all items. Make sure that you have the items listed here.

1. One DSL-502T ADSL Ethernet Router

2. One CD-ROM containing the User’s Guide, USB driver and Quick Installation Guide

3. One twisted-pair telephone cable used for ADSL connection

4. One straight-through Ethernet cable

5. One AC power adapte r suitable for your electric service

6. One Inline Telephone Filter

7. One Quick Installation Guide

DSL-502T ADSL Router User’s Guide

Installation Requirements

In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be sure to keep this information safe and private.

Low Pass Filters

Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation.

Operating Systems

The DSL-502T uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, and Windows XP.

Web Browser

Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 5.0, Netscape Navigator® version 4.7, or later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.

Ethernet Port (NIC Adapter)

Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.

Additional Software

It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the device as a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway device, not in the Router itself.

If your ADSL service is delivered through a PPPoE, PPPoA or Static IP connection, the information needed to establish and maintain the Internet connection can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account information used to identify and verify the connection.

DSL-502T ADSL Router User’s Guide

Information you will need from your ADSL service provider:

Username

This is the Username used to log on to your ADSL service provider’s network. It is commonly in the form − user@isp.com. Your ADSL service provider uses this to identify your account.

Record info here

Password

This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.

Connection and Encapsulation Type

This is the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use the default PPPoE/PPPoA, connection type. The Setup Wizard can be used to configure a PPPoE/PPPoA connection type. You may need to specify one of the following connection types (PPPoE LLC, PPPoA LLC or PPPoA VC-MUX). The other available connection and encapsulation combinations must be configured using the web manager. These include Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC-MUX), and Static IP (Bridged IP LLC, 1483 Bridged IP VC-MUX, 1483 Routed IP LLC, 1483 Routed IP VC-MUX or IPoA).

VPI

Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI) to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN menu of the web management interface.

VCI

Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN menu of the web management interface.

Note

The Setup Wizard can be used to configure the Internet connection for most users. If you are using a PPPoE or PPPoA type connection use the Setup Wizard to establish the Internet connection.

vii

DSL-502T ADSL Router User’s Guide

viii

Information you will need about your DSL-502T ADSL Router:

Username

This is the Username needed access the Router’s management interface. When you attempt to connect to the device through a web browser you will be prompted to enter this Username. The default Username for the Router is admin. The user cannot change this.

Record info here

Password

This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is admin. The user may change this.

LAN IP addresses for the DSL-502T

This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI) using a web browser. The default IP address is 10.1.1.1 and it is referred to as the “Management IP” address in this User’s Manual. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP service on the LAN when DHCP is enabled.

LAN Subnet Mask for the DSL-502T

This is the subnet mask used by the DSL-502T, and will be used throughout your LAN. The default subnet mask is 255.0.0.0. This can be changed later.

Information you will need about your LAN or computer:

Ethernet NIC

If your computer has an Ethernet NIC, you can connect the DSL-502T to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the DSL-502T to connect to other computer or Ethernet devices.

Record info here

DHCP Client status

Your DSL-502T ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address to computers on your LAN. The default range of IP addresses the DSL-502T will assign are from 10.1.1.2 to 10.1.1.254. Your computer (or computers) needs to be configured to Obtain an IP address automatically (that is, they need to be configured as DHCP clients.)

It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL connection in the future.

Once you have the above information, you are ready to setup and configure your DSL-502T ADSL Router.

DSL-502T ADSL Router User’s Guide

Installing the USB Driver

IMPORTANT: Do not connect the USB cable to your PC before completing the below steps.

The CD-ROM shipped with the Router contains the USB driver software.

Insert DSL-502T CD-ROM into the CD-ROM drive. Within a few seconds you should see the di alog box shown below. If you do not see the auto-run dialog box shown below, explore the CD-ROM and double-click the setup application file autorun.exe or find the file Setup.exe in the folder labeled USBDRIVER and double-click it to launch the installation software. The auto-run USB driver setup must be completed before connecting the router to your PC with the USB cable. To install the driver follow these instructions:

1. Click the Install DSL-502T link to launch the USB driver installation software.

2. Click Next on the InstallShield dialog box.

DSL-502T ADSL Router User’s Guide

3. Click Install to begin the installation.

4. Click Finish to complete the InstallShield wizard.

When the USB driver has been installed, insert one end of the USB cable included with the router into the DSL-502T router’s USB port. Insert the other end of the USB cable into a USB port on your PC. Connect the power adapter to the power input at the back panel of the DSL-502T and then plug the other end of the power adapter to a wall outlet or power strip. On the front of the device, the Power LED will turn ON to indicate proper operation. Insert the telephone cable incl uded with the Router into the ADSL port, and then connect the cable to your telephone line. Check the LED display on the front of the Router to confirm that the connections have been made.

DSL-502T ADSL Router User’s Guide

Introduction

This section provides a brief description of the Router, its associated technologies and a list of Router features.

Router Description and Operation

The DSL-502T Router is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet network. The Router combines high-speed ADSL Internet connection, IP routing management for the LAN in one package.

The Router is easy to install and use. The DSL-502T connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address. The advanced security enhancements, packet filtering and port redirection, can help protect your network from potentially devastating intrusions by malicious agents from outside your network.

ADSL

Asymmetric Digital Subscriber Line (ADSL) is a broadband network technology that utilizes standard twisted-pair copper wire telephone lines to enable broadband high-speed digital data transmission and bandwidth hungry applications for business and residential customers.

ADSL routers and modems provide faster downloads and more reliable connectivity to the user without loss of quality or disruption of voice/fax telephone capabilities.

ADSL service operates at speeds of up to 8 Mbps downstream and up to 640 Kbps ups tream. A secure dedicated point-to-point connection is established between the user a nd the central office of the service provider.

DSL-502T ADSL Router User’s Guide

Router Features

The DSL-502T ADSL Router utilizes the latest ADSL enhancements to provide a rel iable Internet portal suitable for most small to medium sized offices. DSL-502T advantages include:

• PPP (Point-to-Point Protocol) Security – The DSL-502T ADSL Router supports PAP (Password Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol) for PPP connections.

• DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your network. This eliminates the need to reconfigure every host whenever changes in network topology occur.

• Network Address Translation (NAT) – For small office environments, the DSL-502T allows multiple users on the LAN to access the Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user.

NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-toLAN connection.

• TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-502T supports TCP/IP protocol, the language used for the Internet. It is compatible with access servers manufactured by major vendors.

• RIP-1/RIP-2 – The DSL-502T supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to communicate with all RIP enabled devices.

• Static Routing – This allows you to select a data path to a particular network destination that will remain in the routing table and never “age out”. If you wish to define a specifi c route that will always be used for data traffic from your LAN to a specific destination within your LAN (for example to another router or a server) or outside your network (to an ISP defined default gateway for instance).

• Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is particularly useful when/if the Router functions as the sole connection to the Internet.

• ATM (Asynchronous Transfer Mode) – The DSL-502T supports Bridged Ethernet over ATM (RFC1483), IP over ATM (RFC1577) and PPP over ATM (RFC 2364).

• Precise ATM Traffic Shaping – Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the Quality of Service for ATM data transfer.

• G.hs (Auto-handshake) – This allows the Router to automatically choose either the G.lite or G.dmt ADSL connection standards.

• High Performance – Very high rates of data transfer are possible with the Router. Up to 8 Mbps downstream bit rate using the G.dmt standard.

• Full Network Management – The DSL-502T incorporates SNMP (Simple Network Management Protocol) support for web-based management and text-based network management via an RS-232 or Telnet connection.

• Telnet Connection – The Telnet enables a network manager to access the Router’s management software remotely.

• Easy Installation – The DSL-502T uses a web-based graphical user interface program for convenient management access and easy set up. Any common web browser software can be used to manage the Router.

DSL-502T ADSL Router User’s Guide

Standards Compatibility and Compliance

The DSL-502T complies with or is compatible with the following standards as recognized by their respective agencies.

• ITU G.992.2 (G.lite) compliant

• ITU-T Rec. I.361 compliant

• RFC 791 Internet Protocol compliant

• RFC 792 UDP compliant

• RFC 826 Address Resolution Protocol compliant (ARP) compliant

• RFC 1058 Routing Information Protocol (RIP) compliant

• RFC 1213 MIB II for IP compliant

• RFC 1334 PPP Authentication Protocol compliant

• RFC 1389 Routing Information Protocol 2 (RIP2) compliant

• RFC 1483 IP over AAL5/ Bridged Ethernet over AAL5 compliant

• RFC 1557 Classical IP over ATM (IPoA) compliant

• RFC 1661 Point to Point Protocol (PPP) compliant

• RFC 1877 Automatic IP assignment compliant

• RFC 1994 Challenge Handshake Authentication Protocol compliant

• Supports RFC 2131 and RFC 2132 DHCP functions including: automatic assignment of IP

address, use of subnet mask and default gateway and provision of DNS server address for all hosts

• RFC 2364 PPP over ATM compliant (PPPoA) compliant

• RFC 2516 PPP over Ethernet compliant (PPPoE) compliant

• RFC 2684 Bridged/Routed Ethernet over ATM compliant

• IEEE 802.3 compliant

• IEEE 802.3u compliant

• IEEE 802.1d compliant

• IEEE 802.11g compliant

• IEEE 802.3x compliant

• Embedded web server support

• Supports Dynamic Learning

• Supports Static Routing

• Supports NAPT for up to 4096 connections

• Supports DHCP for up to 253 hot connections

• Supports IGMP

• Supports ATM Forum UNI 3.1/4.0

• Supports ATM VCC (Virtual Channel Circuit) for up to eight sessions

• Supports TELNET and TFTP

• Supports back pressure for half-duplex

DSL-502T ADSL Router User’s Guide

Front Panel Display

Place the Router in a location that permits an easy view of the LED indicators on the front panel. The LED indicators on the front panel include the Power, Status, ADSL Link/Act, Ethernet

Link/Act, and USB Link/Act indicators. The ADSL, Ethernet, and USB indicators monitor link status and activity (Link/Act).

Power

Steady green light indicates the unit is powered on. When the device is powered off this remains dark.

Status

Lights steady green during power on self-test (POST). Once the connection status has been settled, the light will blink green. If the indicator lights steady green after the POST, the system has failed and the device should be rebooted.

ADSL: Link/Act

Steady green light indicates a valid ADSL connection. This will light after the ADSL negotiation process has been settled. A blinking green light indicates activity on the WAN (ADSL) interface.

Ethernet: Link/Act

A solid green light indicates a valid link on startup. This light will blink when there is activity currently passing through the Ethernet port.

USB: Link/Act

Steady green light indicates a valid USB connection. A blinking green light indicates activity on the USB interface.

DSL-502T ADSL Router User’s Guide

Rear Panel

All cable connections to the Router are made at the rear panel. The factory-reset button is located here as well.

ADSL port,

connect ADSL

cable here

Ethernet

port,

connect

Ethernet

cable here

USB port,

connect USB

cable here and

install USB

driver

Power

Adapter

connects

here

Power

button

Rear Panel Cable and Power Connections

Note

To manually reboot the Router, toggle the power switch off and on.

Factory

Reset button

DSL-502T ADSL Router User’s Guide

Hardware Installation

The DSL-502T maintains three separate interfaces, an Ethernet, a USB and an ADSL interface. Place the Router in a location where it can be connected to the various devices as well as to a power source. The Router should not be located where it will be exposed to moisture or excessive heat. Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety procedures.

The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.

Power on Router

CAUTION: The Router must be used with the power adapter included with the device.

To power on the Router:

1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router and plug the adapter into a suitable nearby power source.

2. You should see the Power LED indicator light up and remain lit. The Status LED should light solid green and begin to blink after a few seconds.

3. If the Ethernet port is connected to a working device, check the Ethernet Link/Act LED indicators to make sure the connection is valid. The Router will attempt to establish the ADSL connection, if the ADSL line is connected and the Router is properly configured this should light up after several seconds. If this is the first time installing the device, some settings may need to be changed before the Router can establish a connection.

Factory Reset Button

The Router may be reset to the original factory default settings by depressing the reset button for a few seconds while the device is powered on. Use a ballpoint or paperclip to gentl y push down the reset button. Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings will be restored to the factory default IP address 10.1.1.1 and the subnet mask is 255.0.0.0, the default management Username is admin and the default Password is admin.

Network Connections

Network connections are provided through the ADSL port, the Ethernet port and the USB port on the back of the Router. See the Rear Panel diagram above and the illustrations below for examples. See Installing the USB Driver above for a description of the USB driver installation procedure.

Connect ADSL Line

Use the ADSL cable included with the Router to connect it to a telephone wa ll socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to you by your service provider. The ADSL connection

DSL-502T ADSL Router User’s Guide

represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.

Connect Router to Ethernet

The Router may be connected to a single computer or Ethernet device through the 10/ 100 BASETX Ethernet port on the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of operating at speeds between 0~100Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port.

Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router i s a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a normal straightthrough cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a normal straight-through cable when connecting it to an uplink (MDIII) port on a hub or switch.

The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 metres.

Hub or Switch to Router Connection

Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable as shown in the diagram below:

If you wish to reserve the uplink port on the switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.

Computer to Router Connection

You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided as shown in this diagram.

DSL-502T ADSL Router User’s Guide

Basic Router Configuration

The first time you setup the Router it is recommended that you configure the WAN connection using a single computer making sure that both the computer and the Router are not connected to the LAN. Once the WAN connection is functioning properly, you may continue to make changes to Router configuration including IP settings and DHCP setup. This chapter is concerned with using your computer to configure the WAN connection. The following chapter describes the various menus used to configure and monitor the Router including how to change IP settings and DHCP server setup.

Wan Configuration Summary

1. Connect to the Router To configure the WAN connection used by the Router it is first

necessary to communicate with the Router through its management interface, which is HTML-based and can be accessed using a web browser. To access the management software your computer must be able to “see” the Router. Your computer can see the Router if it is in the same “neighborhood” or subnet as the Router. This is accomplished by making sure your computer has IP settings that place it in the same subnet as the Router. The easiest way to make sure your computer has the correct IP settings is to configure it to use the DHCP server in the Router. The next section describes how to change the IP configuration for a computer running a Windows operating system to be a DHCP client.

2. Configure the WAN Connection Once you are able to access the configuration software

you can proceed to change the settings required to establish the ADSL connection and connect to the service provider’s network. There are different methods used to establish the connection to the service provider’s network and ultimately to the Internet. You should know what Encapsulation and connection type you are required to use for your ADSL service. It is also possible that you must change the PVC settings used for the ADSL connection. Your service provider should provide all the information you need to configure the WAN connection.

Configuring IP Settings on Your Computer

In order to configure your system to receive IP settings from the Router it must first have the TCP/IP protocol installed. If you have an Ethernet port on your computer, it probably already has TCP/IP protocol installed. If you are using Windows XP the TCP/IP is enabled by default for standard installations. Below is an illustrated example of how to configure a Windows XP system to automatically obtain IP settings from the Router. Following this example is a step-by-step description of the procedures used on the other Windows operating systems to first check if the TCP/IP protocol has been installed; if it is not, instructions are provided for installing it. Once the protocol has been installed you can configure the system to receive IP settings from the Router.

For computers running non-Windows operating systems, follow the instructions for your OS that configure the system to receive an IP address from the Router, that is, configure the system to be a DHCP client.

Note

If you are using this Router to provid e Internet access for more th an one com pute r, you can use these instructions later to change the IP settings for the other computers. However, you cannot use the same IP address since every computer must have its own IP address that is unique on the local network.

DSL-502T ADSL Router User’s Guide

Configure Windows XP for DHCP

Use the following steps to configure a computer running Windows XP to be a DHCP client.

1. From the Start menu on your desktop, go to Settings, then click on Network Connections.

DSL-502T ADSL Router User’s Guide

In the Network Connections window, right-click on LAN (Local Area Connection), then click Properties.

2. In the General tab of the Local Area Connection Properties menu, highlight Internet Protocol (TCP/IP) under “This connection uses the following items:” by clicking on it once. Click on the Properties button.

DSL-502T ADSL Router User’s Guide

3. Select “Obtain an IP address automatically” by clicking once in the circle. Click the OK button.

Your computer is now ready to use the Router’s DHCP server.

Windows 2000

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Local Area Connection icon, and then select Properties.

4. The Local Area Connection Properties dialog box displays with a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled, skip ahead to Configure Windows 2000 for DHCP.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click Install.

6. In the Select Network Component Type dialog box, select Protocol, and then click Add.

7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click OK.

8. You may be prompted to install files from your Windows 2000 installation CD or other media. Follow the instructions to install the files.

9. If prompted, click OK to restart your computer with the new settings.

Configure Windows 2000 for DHCP

1. In the Control Panel, double-click the Network and Dial-up Connections icon.

2. In Network and Dial-up Connections window, right-click the Local Area Connection icon, and then select Properties.

3. In the Local Area Connection Properties dialog box, select Internet Protocol (TCP/IP), and then click Properties.

4. In the Internet Protocol (TCP/IP) Properties dialog box, click the button labeled Obtain an IP address automatically.

5. Double-click OK to confirm and save your changes, and then close the Control Panel.

DSL-502T ADSL Router User’s Guide

Your computer is now ready to use the Router’s DHCP server.

Windows ME

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Network icon, and then select Properties.

4. The Network Properties dialog box displays with a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip ahead to Configure Windows ME for DHCP.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click Add.

6. In the Select Network Component Type dialog box, select Protocol, and then click Add.

7. Select Microsoft in the Manufacturers box.

8. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click OK.

9. You may be prompted to install files from your Windows Me installation CD or other media. Follow the instructions to install the files.

10. If prompted, click OK to restart your computer with the new settings.

Configure Windows ME for DHCP

1. In the Control Panel, double-click the Network and Dial-up Connections icon.

2. In the Network and Dial-up Connections window, right-click the Network icon, and then select Properties.

3. In the Network Properties dialog box, select TCP/IP, and then click Properties.

4. In the TCP/IP Settings dialog box, click the Obtain and IP address automatically option.

5. Double-click OK twice to confirm and save your changes, and then close the Control Panel.

Your computer is now ready to use the Router’s DHCP server.

Windows 95 and Windows 98

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. Double-click the Network icon.

2. The Network dialog box displays with a list of currently installed network components. If the list includes TCP/IP, and then the protocol has already been enabled, skip to Configure IP Information Windows 95, 98.

3. If TCP/IP does not display as an installed component, click Add. The Select Network Component Type dialog box displays.

4. Select Protocol, and then click Add. The Select Network Protocol dialog box displays.

5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network Protocols list box.

6. Click OK to return to the Network dialog box, and then click OK again. You may be prompted to install files from your Windows 95/98 installation CD. Follow the instructions to install the files.

7. Click OK to restart the PC and complete the TCP/IP installation.

+ 51 hidden pages

D-Link DSL-502G, DSL-502T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
