D-Link DSL-2642B User Guide

4fu06
Table of Contents
Table of Contents
PACKAGE CONTENTS .......................................................................................... 3
SYSTEM REQUIREMENTS..................................................................................... 3
FEATURES.......................................................................................................... 4
HARDWARE OVERVIEW........................................................................................ 5
Connections ................................................................................................. 5
LEDs............................................................................................................. 6
BEFORE YOU BEGIN............................................................................................ 7
INSTALLATION NOTES .......................................................................................... 7
INFORMATION YOU WILL NEED FROM YOUR ADSL SERVICE PROVIDER .................... 9
INFORMATION YOU WILL NEED ABOUT DSL-2642B.............................................. 10
INFORMATION YOU WILL NEED ABOUT YOUR LAN OR COMPUTER ...........................11
DEVICE INSTALLATION ........................................................................................11
Power on Router .........................................................................................11
Factory Reset Button.................................................................................. 12
Network Connections................................................................................. 12
WEB-BASED CONFIGURATION UTILITY................................................................ 14
QUICK SETUP ................................................................................................... 15
INTERNET SETUP .............................................................................................. 25
PPP over Ethernet (PPPoE)....................................................................... 26
IP over Ethernet (IPoE).............................................................................. 29
Bridging ...................................................................................................... 33
PPP over A TM (PPPoA)............................................................................. 34
IP over ATM (IPoA)..................................................................................... 37
WIRELESS SETTINGS ........................................................................................ 40

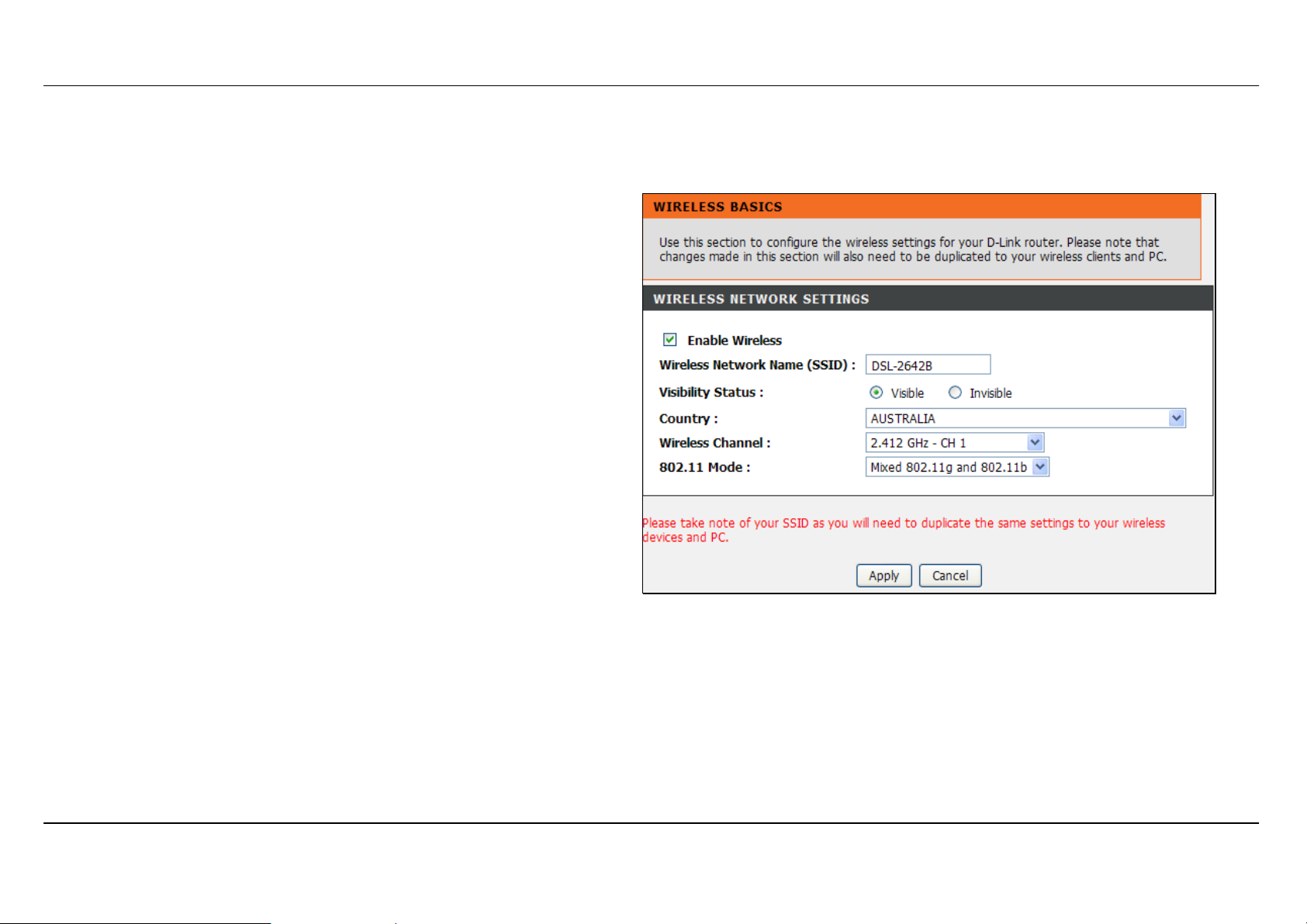

Wireless Basics.......................................................................................... 41
Wireless Security........................................................................................ 42
LOCAL NETWORK.............................................................................................. 51
TIME AND DATE ................................................................................................. 53
ADVANCED WIRELESS....................................................................................... 54
Advanced Settings ..................................................................................... 55
MAC Filtering.............................................................................................. 56
PORT FORWARDING .......................................................................................... 57
DMZ................................................................................................................ 59
PARENTAL CONTROL ......................................................................................... 59
Block Website............................................................................................. 60
Block MAC Address....................................................................................61
FILTERING OPTIONS...........................................................................................62
Inbound Filtering.........................................................................................63

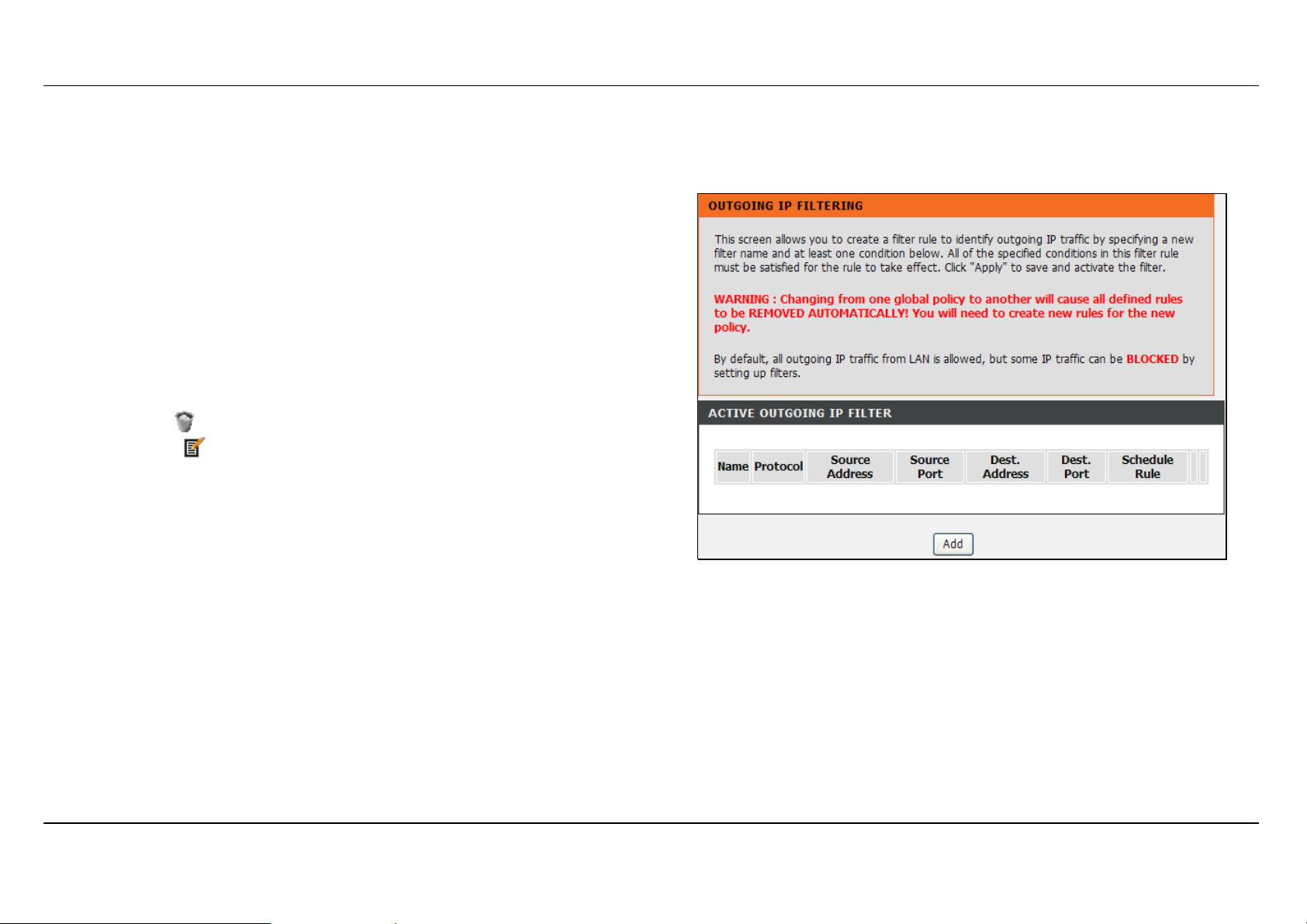

Outbound Filtering......................................................................................65
Bridge Filtering............................................................................................67
DNS SETUP......................................................................................................69
DYNAMIC DNS SETUP.......................................................................................70
IPV6 LAN CONFIG ............................................................................................71
NETWORK TOOLS..............................................................................................72
Port Mapping .............................................................................................. 73
IGMP...........................................................................................................75
Quality of Service........................................................................................76

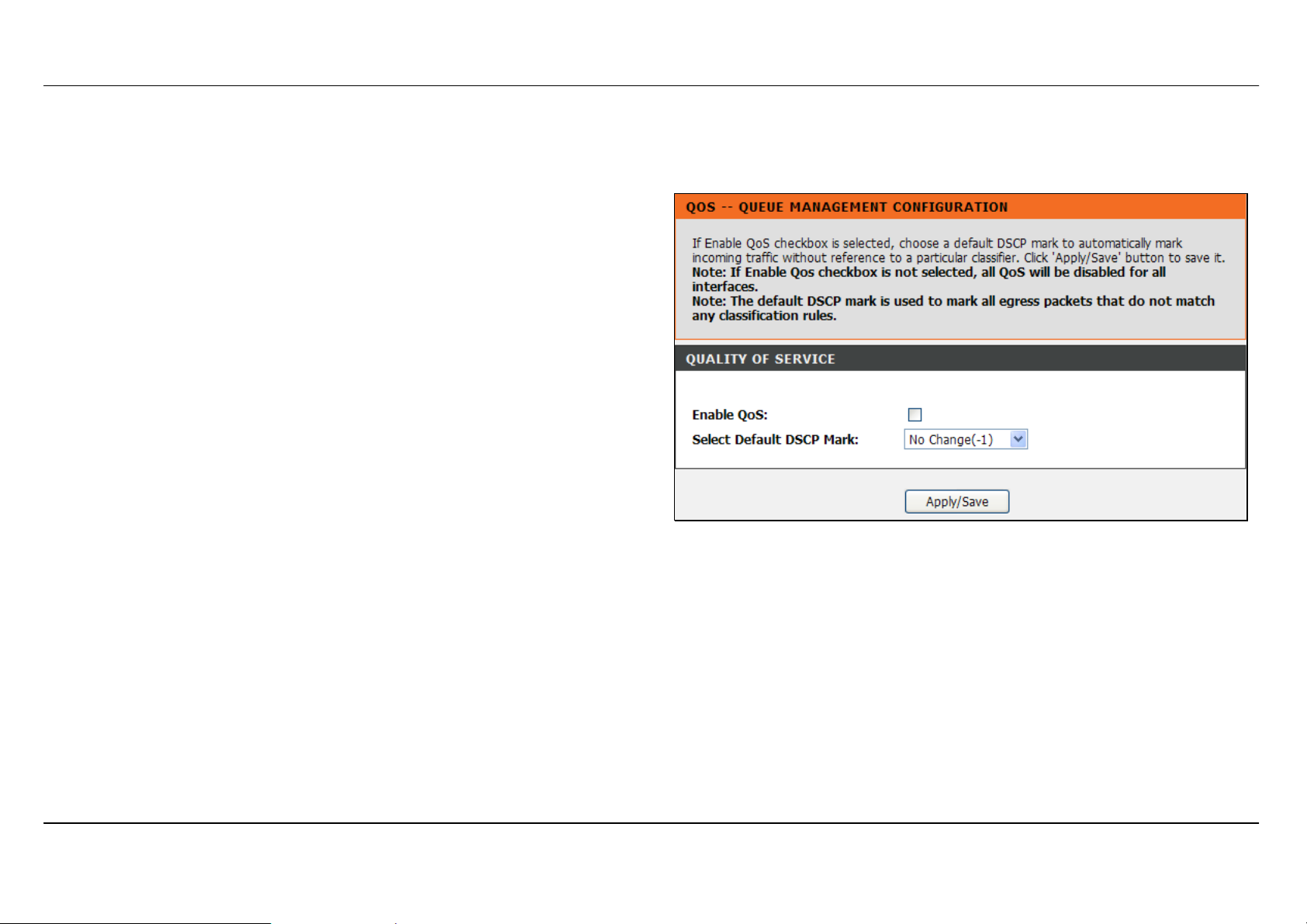

Queue Config..............................................................................................77
Queue Classfication ...................................................................................78
UPnP ..........................................................................................................80
DSL.............................................................................................................81
SNMP .........................................................................................................82
TR-069........................................................................................................83
Certificates..................................................................................................84
ROUTING ..........................................................................................................86
Static Route................................................................................................87
Default Gateway.........................................................................................88
RIP..............................................................................................................88
SCHEDULES......................................................................................................89
MAINTENANCE.................................................................................................. 90
SYSTEM............................................................................................................90
FIRMWARE UPDATE ...........................................................................................91
ACCESS CONTROLS ..........................................................................................92
Account Password......................................................................................93
Services......................................................................................................94
IP Address .................................................................................................. 95
DIAGNOSTICS....................................................................................................96
SYSTEM LOG.....................................................................................................97
STATUS............................................................................................................... 98
DEVICE INFO.....................................................................................................98

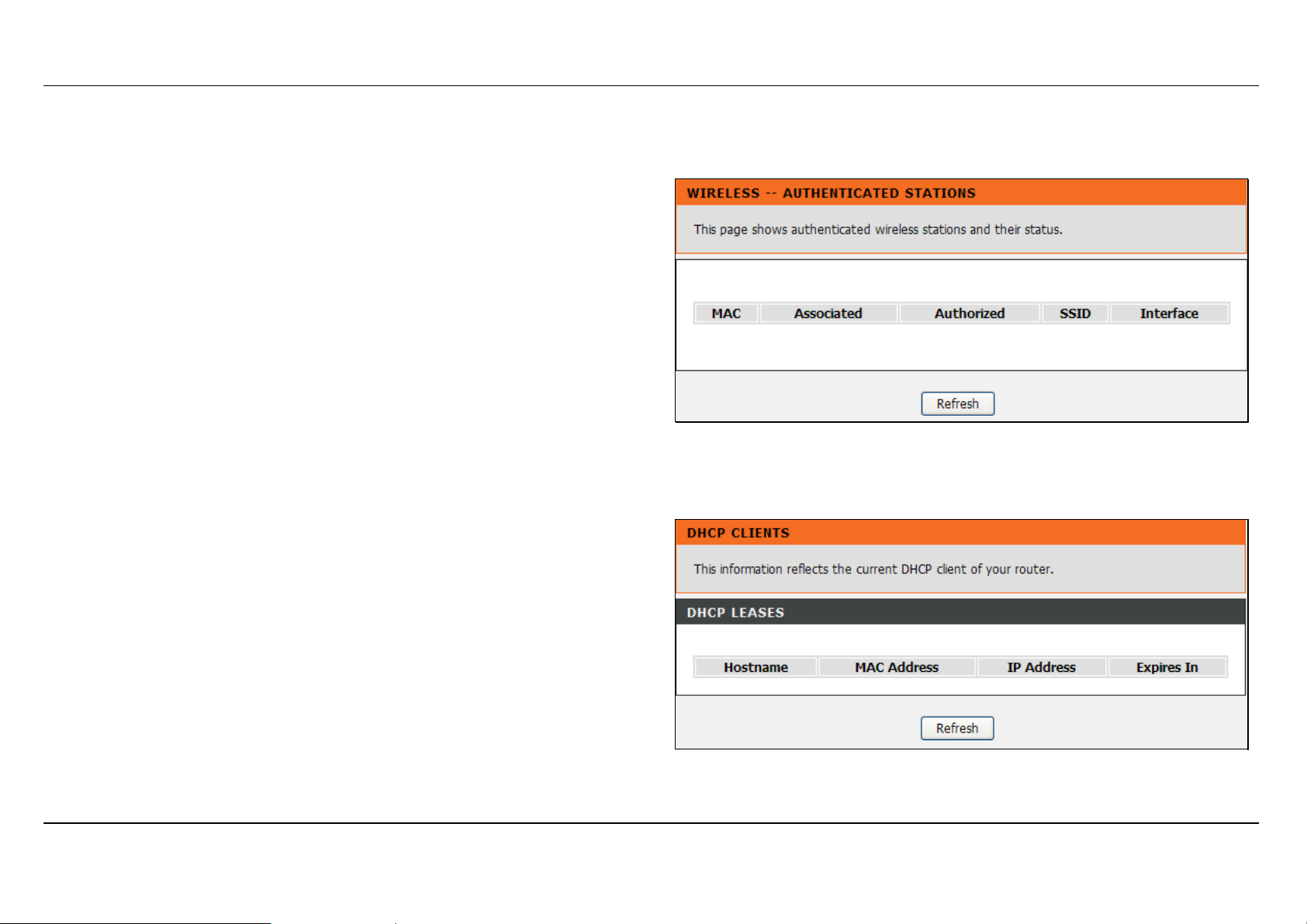

WIRELESS CLIENTS...........................................................................................99
DHCP CLIENTS.................................................................................................99
LOGS..............................................................................................................100
D-Link DSL-2642B User Manual
1
Table of Contents
STATISTICS ..................................................................................................... 101
ROUTING INFO ................................................................................................ 102
CHECK YOUR IP ADDRESS .............................................................................. 106
STATICALLY ASSIGN AN IP ADDRESS ................................................................ 107
D-Link DSL-2642B User Manual
2
Section 1 - Product Overview
Package Contents
DSL-2642B Wireless ADSL Router Power Adapter CD-ROM with User Manual One twisted-pair telephone cable used for ADSL connection One straight-through Ethernet cable One Quick Installation Guide
Note: Using a power supply with a different voltage rating than the one included
with the DSL-2642B will cause damage and void the warranty for this product.
ADSL Internet service Computer with:
200MHz Processor 64MB Memory CD-ROM Drive Ethernet Adapter with TCP/IP Protocol Installed Internet Explorer v6 or later, FireFox v1.5 Computer with Windows 2000, Windows XP, or Windows Vista
t Utility  D-Link Click'n Connec
D-Link DSL-2642B User Manual
System Requirements
3
Section 1 - Product Overview
11
Features
PPP (Point-to-Point Protocol) Security – The DSL-2642B ADSL Router supports PAP (Password Authentication Protocol) and CHAP
(Challenge Handshake Authentication Protocol) for PPP connections. The Router also supports MSCHAP.
DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your
network. This eliminates the need to reconfigure every host whenever changes in network topology occur.
Network Address Translation (NAT) – For small office environments, the DSL-2642B allows multiple users on the LAN to access the
Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user. NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.
TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-2642B supports TCP/IP protocol, the language used for the Internet. It is
compatible with access servers manufactured by major vendors.
RIP-1/RIP-2 – The DSL-2642B supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to
communicate with all RIP enabled devices.
Static Routing – This allows you to select a data path to a particular network destination that will remain in the routing table and never “age
out”. If you wish to define a specific route that will always be used for data traffic from your LAN to a specific destination within your LAN (for example to another router or a server) or outside your network (to an ISP defined default gateway for instance).
Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is
particularly useful when/if the Router functions as the sole connection to the Internet.
ATM (Asynchronous Transfer Mode) – The DSL-2642B supports Bridged Ethernet over ATM (RFC1483), IP over ATM (RFC1577), and
PPP over ATM (RFC 2364).
Precise ATM Traffic Shaping – T raffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the
Quality of Service for ATM data transfer.
G.hs (Auto-handshake) – This allows the Router to automatically choose either the G.lite or G.dmt ADSL connection standards. High Performance – Very high rates of data transfer are possible with the Router. Up to 8 Mbps downstream bit rate using the G.dmt
standard.
Full Network Management – The DSL-2642B incorporates SNMP (Simple Network Management Protocol) support for web-based
management and text-based network management via an RS-232 or Telnet connection.
Telnet Connection – The Telnet enables a network manager to access the Router’s management software remotely. Easy Installation – The DSL-2642B uses a web-based graphical user interface program for convenient management access and easy set
up. Any common web browser software can be used to manage the Router.
D-Link DSL-2642B User Manual
4
Section 1 - Product Overview
Hardware Overview
Connections
Antenna
ADSL Port
Use the ADSL cable to connect to the your telephone line (RJ-11 port)
Ethernet Ports
Use the Ethernet port to connect the Router to a computer or an Ethernet LAN
Reset Button
To manually reset, depress button with the power on for approximately 5 to 8 seconds.
D-Link DSL-2642B User Manual
Power Insert
Use the adapter shipped with the Router to connect to power source
5
Section 1 - Product Overview
DSL
A steady green light indicates a valid ADSL connection. This will light after the ADSL negotiation process has been settled. A blinking green light indicates that ADLS is attempting to sync.
LAN
A solid green light indicates a valid link on startup. This light will blink when there is activity currently passing through the Ethernet port.
Hardware Overview
LEDs
Internet
LED will light green when obtaining WAN IP address from IPCP or DHCP, and DSL connection is build up. It also will light green when a static IP address is configured and PPP negotiation is successfully established.
WLAN
This LED will be lit green when a Wireless LAN connection is detected. It will blink when there is data activity on the connection.
Power
A steady green light indicates the unit is powered on. When the device is powered off this remains dark. Lights steady red during power on self-test (POST) or the device is malfunction.
D-Link DSL-2642B User Manual
6
Section 2 – Installation
Installation
This section will walk you through the installation process. Placement of the Router is very important. Do not place the Router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Before You Begin

Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand before beginning the installation.

Inst allation Notes

In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be sure to keep this information safe and private.
Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation.
Operating Systems
The DSL-2642B uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, Windows XP, and Windows Vista.
D-Link DSL-2642B User Manual
7
Section 2 – Installation
Web Browser
Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.
Ethernet Port (NIC Adapter)
Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.
Additional Software
It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the device a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway device, not in the Router itself.
If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account information used to identify and verify the connection.
All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled device on the LAN side of the bridge, such as a PC, a server, a gateway device such as a router or similar firewall hardware. The IP address can be assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC configuration that may be required.
D-Link DSL-2642B User Manual
8
Section 2 – Installation

Information you will need from your ADSL service provider

Username
This is the Username used to log on to your ADSL service provider’s network. Your ADSL service provider uses this to identify your account.
Password
This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.
WAN Setting / Connection Type
These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use the default settings. You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed in parenthesis):
PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux) Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux) IPoA/MER (Static IP Address) (Bridged IP LLC, 1483 Bridged IP VC Mux, 1483 Routed IP LLC, 1483 Routed IP VC-Mux or IPoA) MER (Dynamic IP Address) (1483 Bridged IP LLC or 1483 Bridged IP VC-Mux)
Modulation Type
ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the type of modulation used for their service. The default DSL modulation (ADSL2+ Multi-Mode) used for the Router automatically detects all types of ADSL, ADSL2, and ADSL2+ modulation.
Security Protocol
This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router supports the PAP and CHAP protocols.
VPI
Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI) to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.
D-Link DSL-2642B User Manual
9
Section 2 – Installation
VCI
Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN Settings window of the web management interface.

Information you will need about DSL-2642B

Username
This is the Username needed access the Router’s management interface. When you attempt to connect to the device through a web browser you will be prompted to enter this Username. The default Username for the Router is “admin.” The user cannot change this.
Password
This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is “admin.” The user may change this.
LAN IP addresses for the DSL-2642B
This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI) using a web browser. The default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP service on the LAN when DHCP is enabled.
LAN Subnet Mask for the DSL-2642B
This is the subnet mask used by the DSL-2642B, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be changed later.
D-Link DSL-2642B User Manual
10
Section 2 – Installation

Information you will need about your LAN or computer

Ethernet NIC
If your computer has an Ethernet NIC, you can connect the DSL-2642B to this Ethernet port using an Ethernet cable. You can also use the Ethernet ports on the DSL-2642B to connect to other computer or Ethernet devices.
DHCP Client status
Your DSL-2642B ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address to computers on your LAN. The default range of IP addresses the DSL-2642B will assign are from 192.168.1.2 to
192.168.1.254. Your computer (or computers) needs to be configured to obtain an IP address automatically (that is, they need to be configured as DHCP clients.)
It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-2642B ADSL Router.

Device Inst allation

The DSL-2642B connects two separate physical interfaces, an ADSL (WAN) and an Ethernet (LAN) interface. Place the Router in a location where it can be connected to the various devices as well as to a power source. The Router should not be located where it will be exposed to moisture or excessive heat. Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety procedures.
The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.
Power on Router
The Router must be used with the power adapter included with the device.
1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router and plug the adapter into a suitable nearby power source.
D-Link DSL-2642B User Manual
11
Section 2 – Installation
2. You should see the Power LED indicator light up red, and then turn green.
3. If the Ethernet port is connected to a working device, check the LAN LED indicators to make sure the connection is valid. The Router will attempt to establish the ADSL connection, if the ADSL line is connected and the Router is properly configured this should light up after several seconds. If this is the first time installing the device, some settings may need to be changed before the Router can establish a connection.
Factory Reset Button
The Router may be reset to the original factory default settings by using a ballpoint or paperclip to gently push down the reset button in the following sequence:
1. Ensure the Router is powered on.
2. Press and hold the reset button on the back of the device for approximately 5 to 8 seconds.
3. This process should take around 1 to 2 minutes.
Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings will be restored to the factory default IP address 192.168.1.1 and the subnet mask is 255.255.255.0, the default management Username is “admin” and the default Password is “admin.”
Network Connections
Connect ADSL Line
Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.
Connect Router to Ethernet
The Router may be connected to a single computer or Ethernet device through the 10BASE-TX Ethernet port on the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of operating at speeds higher than 10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch. The rules governing Ethernet cable lengths apply to
D-Link DSL-2642B User Manual
12
Section 2 – Installation the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.
Hub or Switch to Router Connection
Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable. If you wish to reserve the uplink port on the switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.
Computer to Router Connection
You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided.
D-Link DSL-2642B User Manual
13
Section 3 – Configuration
Configuration
This section will show you how to set up and configure your new D-Link Router using the Web-based configuration utility.

Web-based Configuration Utility

Connect to the Router
To configure the WAN connection used by the Router it is first necessary to communicate with the Router through its management interface, which is HTML-based and can be accessed using a web browser. The easiest way to make sure your computer has the correct IP settings is to configure it to use the DHCP server in the Router. The next section describes how to change the IP configuration for a computer running a Windows operating system to be a DHCP client.
To access the configuration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.1.1).
Type “admin” for the User Name and “admin” in the Password field. If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.
D-Link DSL-2642B User Manual
14
Section 3 – Configuration

Quick Setup

This chapter is concerned with using your computer to configure the WAN connection. The following chapter describes the various windows used to configure and monitor the Router including how to change IP settings and DHCP server setup.
QUICK SETUP
Click the Setup Wizard button in the middle of the main window of the Router’s opening page to launch a series of setup windows.
D-Link DSL-2642B User Manual
15
Section 3 – Configuration
QUICK SETUP – WELCOME TO D-LINK SETUP WIZARD
The first window of the Setup Wizard lists the basic steps in the process. These steps are as follows:
1. Change the Router password.
2. Configure time and date of the Router.
3. Configure the connection to the Internet.
4. Configure the connection to Wireless Network.
5. Save the new configuration settings and reboot the system.
QUICK SETUP – CHANGE DEVICE LOGIN PASSWORD
This window of the Setup Wizard is used to change the Router password. D-Link recommends to help secure your network, the user change the Current Password from the factory default “admin.” The New Password should be between 1 and 16 alphanumeric characters. Once you have filled out the fields in this window, including re-typing the new password in the Confirm Password field, click the Next button to continue.
If you do not want to change the password, click the Skip button to proceed to the next step.
D-Link DSL-2642B User Manual
16
Section 3 – Configuration
QUICK SETUP – SET TIME AND DATE
This page allows you to configure the time and date of the Router. Select a time zone in which you are located from the Time Zone list. Select Enable Daylight Saving and configure the daylight saving
information, if the area you are located has daylight saving. Select Automatically synchronize with Internet time servers to
select first and second NTP (Network Time Protocol) server. Click Copy Your computer’s Time Settings to synchronize the
Router’s time with your computer. Click the Next button to continue.
D-Link DSL-2642B User Manual
17
Section 3 – Configuration
QUICK SETUP – SETUP INTERNET CONNECTION
Now use the drop-down menus to select the Country, Internet Service Provider (ISP), Protocol, and Connection Type used for the Internet connection, and enter VPI and VCI values if applicable. Your ISP has given this information to you—any information that is not required for your provider will automatically be grayed out in this window and subsequent Quick Setup windows.
The available Protocol modes are: PPPoE, PPPoA, Dynamic IP, Static IP and Bridge.
Select PPPoE or PPPoA in the Protocol drop-down list to see the following items.
D-Link DSL-2642B User Manual
18
Section 3 – Configuration
QUICK SETUP – PPPOE/PPPOA CONFIGURATION Type in the User Name and Password used to identify and verify your account to the ISP. If you are instructed to change the VPI or VCI number, type in the correct setting in the available entry fields. Most users will not need to change these settings. The Internet connection cannot function if these values are incorrect.
Some users may have to adjust the Connection Type from the drop-down menu at the bottom of this Setup Wizard window. For PPPoE/PPPoA protocol, the available connection and encapsulation types are VC-Mux and LLC.
Tick the Enable Firewall check box to enable the firewall function of this connection.
Select Dynamic IP in the Protocol drop-down list to see the following items.
D-Link DSL-2642B User Manual
19
Section 3 – Configuration
QUICK SETUP – DYNAMIC IP CONFIGURATION
If you are instructed to change the VPI or VCI numbers, type in the correct setting in the available entry fields. The Internet connection cannot function if these values are incorrect. Select the specific Connection Type from the drop-down menu. The available connection and encapsulation types are LLC and VC-Mux.
Tick the Enable Firewall check box to enable the firewall function of this connection
Select Static IP in the Protocol drop-down list to see the following items.
D-Link DSL-2642B User Manual
20
Section 3 – Configuration
QUICK SETUP – STATIC IP CONFIGURATION
Enter values for VPI, VCI, IP Address, Subnet Mask, Default Gateway IP address, and Primary DNS as instructed by your ISP.
The Internet connection cannot function if these values are incorrect. Select the specific Connection Type from the drop-down menu. The available connection and encapsulation types are LLC, and VC-Mux.
Tick the Enable Firewall check box to enable the firewall function of this connection
Select Bridge in the Protocol drop-down list to see the following items.
D-Link DSL-2642B User Manual
21
Section 3 – Configuration
QUICK SETUP – BRIDGE MODE CONFIGURATION
If you are instructed to change the VPI or VCI numbers, type in the correct setting in the available entry fields. The Internet connection cannot function if these values are incorrect.
Select the specific Connection Type from the drop-down menu. The available connection and encapsulation types are LLC and VC-Mux.
Click the Next button to continue.
D-Link DSL-2642B User Manual
22
Section 3 – Configuration
QUICK SETUP – CONFIGURE WIRELESS NETWORK
Select Enable your Wireless Network by default and configure the SSID, the Visibility Status of SSID and the Wireless network security. The Wireless Network will be unsecure if the Security Level is set to None. There are 3 security options the user can choose: WEP, WPA-PSK or WPA2-PSK. After selecting the Security mode, enter the security key below.
Deselect Enable your Wireless Network for skipping the wireless configurations.
Click the Next button to go to the last step.
D-Link DSL-2642B User Manual
23
Section 3 – Configuration
QUICK SETUP – COMPLETED & RESTART
Finally you can see the Setup Summary of the configurations you did through the wizard. If all the necessary information that you have entered is correct, click the Restart button to save the new configuration settings and restart the Router. If you need to change settings from a previous window, click the Back button.
QUICK SETUP – DSL ROUTER REBOOT
The window opens to indicate the rebooting process of the Router. Once the rebooting process is completed, it will go back to the main web page.
D-Link DSL-2642B User Manual
24
Section 3 – Configuration

Internet Setup

To access the Internet Setup window, click Internet Setup in the Setup directory.
In this page, all available WAN connection displays in the t able. Click the corresponding button to edit the connection. Click the corresponding button to delete the connection.
Click the Add button to see the window in the next page for adding a WAN connection.
D-Link DSL-2642B User Manual
25
Section 3 – Configuration
PPP over Ethernet (PPPoE)
VPI: Enter the correct VPI used here. VCI: Enter the correct VCI used here. Select DSL Link Type: Select the correct DSL Link Type here. For
PPPoE, IPoE and Bridge Modes, select EoA. Encapsulation Mode: Choose the appropriate Encapsulation Mode here.
Service Category: Choose the appropriate Service Category here. Enable Quality of Service: Tick this option to enable Quality of Service.
Select WAN service type: Choose the appropriate WAN Service Type
here. Click the PPP over Ethernet (PPPoE) radio button to configure PPPoE mode. Enter Service Description: This field will display an automated service description. Enable IPv6 for this service: Tick this option to enable IPv6.
D-Link DSL-2642B User Manual
26
Section 3 – Configuration
PPP Username: Enter the account username in here. PPP Password: Enter the account password in here. PPPoE Service Name: Enter the service name here (optional). Authentication Method: Choose the appropriate authentication method here. If not sure leave this option on Auto. Enable NAT: Tick this option to enable NAT for this connection. Enable Fullcone NAT: Tick this option to enable Fullcone NAT for this
connection.
Enable Firewall: Tick this option to enable firewall for this connection. Dial on demand: Tick this option to enable dial on demand for this
connection. Inactivity Timeout: The option appears when Dial on demand is selected. Enter an inactivity timeout value here. Leave this option on 0 to disable this option. Use Static IPv4 Address: Tick this option to use a Static IP version 4 address for this connection. IPv4 Address: The option appears when Use Static IPv4 Address is selected. Enter the Static IP version 4 address used here. Bridge PPP Frames Between WAN and Local Ports: T ick this option to bridge PPPoE frames between WAN and local ports. Enable IGMP Multicast: Tick this option to allow IGMP packets to go through the WAN interface in both directions.
D-Link DSL-2642B User Manual
27
Section 3 – Configuration
Selected WAN Interface: Use the drop-down menu to choose the WAN interface to use this connection.
Obtain DNS info from a WAN interface: Click the radio button to obtain DNS Server IP addresses automatically from the ISP. User the following Static DNS IP address: click the radio button to manually enter the Primary and Secondary DNS Server IP addresses for this connection.
Click the Apply button to accept these changes. Click the Cancel button to discard these changes.
D-Link DSL-2642B User Manual
28
Section 3 – Configuration
IP over Ethernet (IPoE)
VPI: Enter the correct VPI used here. VCI: Enter the correct VCI used here. Select DSL Link Type: Select the correct DSL Link Type here. For
PPPoE, IPoE and Bridge Modes, select EoA. Encapsulation Mode: Choose the appropriate Encapsulation Mode here.
Service Category: Choose the appropriate Service Category here. Enable Quality of Service: Tick this option to enable Quality of Service.
Select WAN service type: Choose the appropriate WAN Service Type here. Click the IP over Ethernet radio button to configure IPoE mode. Enter Service Description: This field will display an automated service
description. Enable IPv6 for this service: Tick this option to enable IPv6.
D-Link DSL-2642B User Manual
29
Loading...
+ 79 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
