User Manual
DSL-2520U
ADSL2/2+ Router with USB and Ethernet Ports
August 2011
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Contents
Chapter 1. Introduction..........................................4
Contents and Audience.......................................................4
Conventions.................................................................4
Document Structure..........................................................4
Chapter 2. Overview..............................................5
General Information.........................................................5
Specifications..............................................................6
Product Appearance..........................................................9
Front Panel...............................................................9
Back Panel...............................................................10
Delivery Package...........................................................11
Safety Instructions........................................................11
Chapter 3. Installation and Connection..........................12
Before You Begin...........................................................12
Connecting to PC (in OS Windows XP)........................................13
PC with Ethernet Adapter.................................................13
PC with USB Port.........................................................13
Obtaining IP Address Automatically.......................................14
Connecting to Web-based Interface..........................................16
Saving and Restoring Settings..............................................18
Chapter 4. Configuring via Web-based Interface..................19
Status.....................................................................19
Network Statistics.......................................................19
DSL Status...............................................................20
WAN Status...............................................................21
DHCP.....................................................................22
Routing Table............................................................23
LAN Clients..............................................................24
Net........................................................................25
Connections..............................................................25
Editing Local Interface Parameters.....................................26
Creating ADSL WAN Connection...........................................30
Advanced...................................................................37
UPnP.....................................................................37
Interface Grouping.......................................................38
DDNS.....................................................................40
DNS......................................................................42
Routing..................................................................43
ADSL.....................................................................45
Remote Access............................................................46
Page 2 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Firewall...................................................................48
IP Filters...............................................................48
Virtual Servers..........................................................50
DMZ......................................................................52
Application Rules........................................................53
MAC Filter...............................................................56
Control....................................................................59

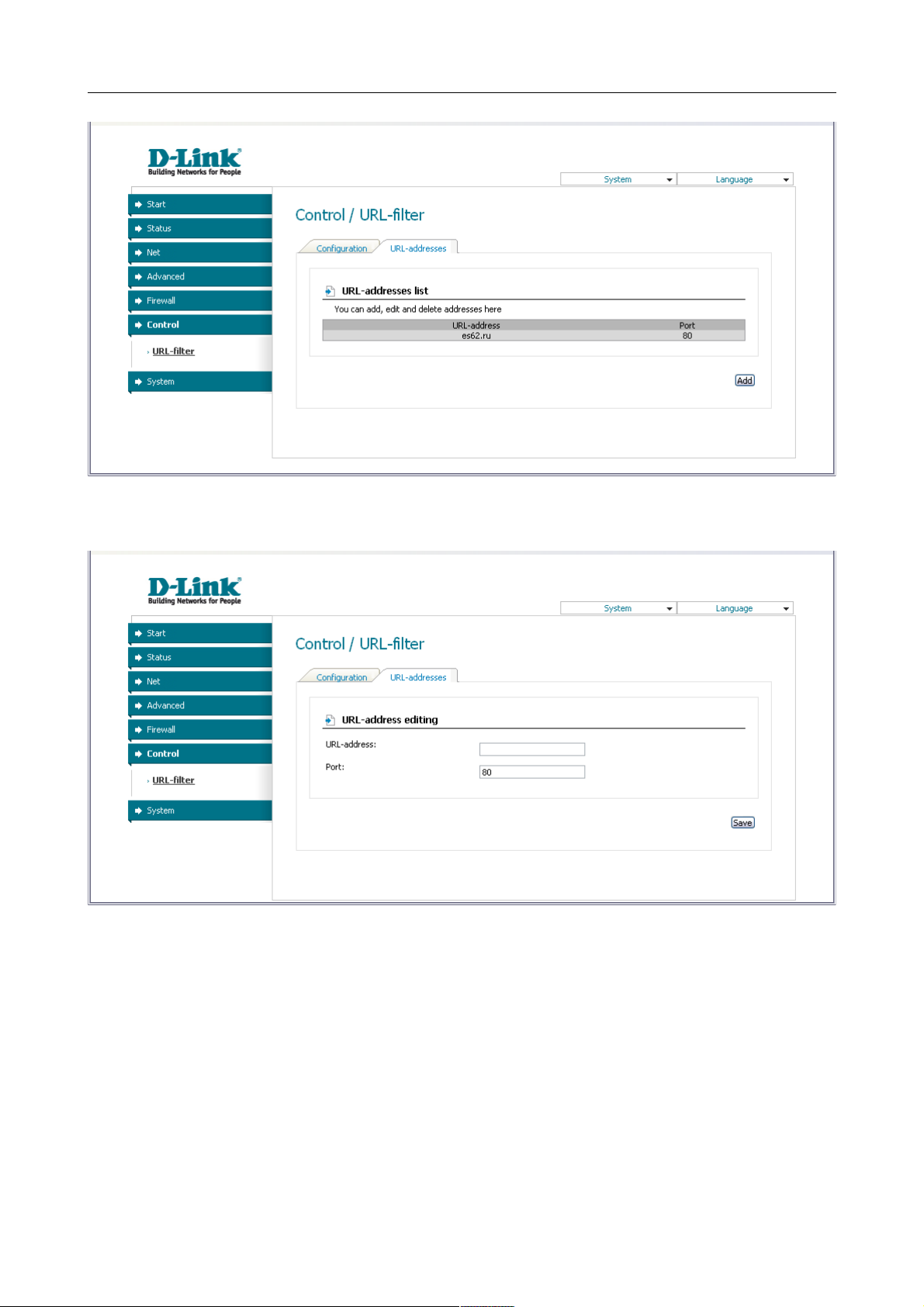

URL Filter...............................................................59
System.....................................................................61
Administrator Password...................................................61
Configuration............................................................62
System Log...............................................................63
Firmware Upgrade.........................................................65
Chapter 5. Abbreviations and Acronyms...........................66
Page 3 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Introduction
CHAPTER 1. INTRODUCTION
Contents and Audience
This manual describes the router DSL-2520U and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts, who create an in-home
local area network, and system administrators, who install and configure networks in offices.
Conventions
Example Description
text The body text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation Guide” A reference to a document.
Change
192.168.1.1
Information An important note.
!
A name of a menu, menu item, control (field, checkbox,
drop-down list, button, etc.).
Data that you should enter in the specified field.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the router's hardware and software features and describes its
appearance and the package contents, and provides safety instructions.
Chapter 3 explains how to install the router DSL-2520U and configure a PC in order to access its
web-based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 introduces abbreviations and acronyms used in this manual.
Page 4 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Overview
CHAPTER 2. OVERVIEW
General Information
The DSL-2520U device is an affordable high-end ADSL router developed for home and SOHO
(Small Office/Home Office) networks. It provides fast and simple broadband access to the Internet
and a shared connection for multi users.
DSL-2520U provides all the essentials for creating a secure high-speed wired network:
ADSL/ADSL2/ADSL2+ standards, Fast Ethernet standard, the built-in firewall, the QoS engine,
and numerous additional features.
The router is equipped with an ADSL port to connect to an ADSL line and an Ethernet port, which
can be used to connect one computer or switch. The device is also equipped with a USB port, to
which you can connect a single computer.
The router DSL-2520U includes a built-in firewall. The advanced security functions minimize
threats of hacker attacks, prevent unwanted intrusions to your network, and block access to
unwanted websites for users of your LAN.
You can configure and manage the settings of the router DSL-2520U via the user-friendly webbased interface (the interface is available in several languages).
Page 5 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Specifications
Interfaces:
• ADSL: 1 RJ-11 port
• LAN: 1 RJ-45 10/100BASE-TX Fast Ethernet port with auto-MDI/MDIX
• USB: 1 port 1.1, type B.
ADSL Standards:
• ADSL:
◦ full rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite)
Annex A, ITU-T G.994.1 (G.hs).
• ADSL2:
◦ ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A.
Overview
• ADSL2+:
◦ ITU-T G.992.5 Annex A/M.
WAN Connection Types:
• PPPoA
• PPPoE
• IPoE
• IPoA
• Bridge.
ATM/PPP Protocols:
• Bridged and routed Ethernet encapsulation
• VC-based or LLC-based multiplexing
• ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
• ATM Adaptation Layer Type 5 (AAL5)
• ITU-T I.610 OAM F4/F5 loopback
• ATM QoS
• PPP over ATM (RFC 2364)
• PPP over Ethernet (PPPoE)
• Keep-alive for PPP connections.
Page 6 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Network Protocols and Functions:
• Static IP routing
• NAT
• DHCP server/client/relay
• DNS relay
• DDNS
• UPnP
• Support of VLAN
• IGMP proxy.
Firewall and Access Management Functions:
• NAT firewall
Overview
• Stateful Packet Inspection (SPI)
• URL filter
• Packet filtering (IP/ICMP/TCP/UDP)
• Virtual servers
• Prevention of DoS attacks
• Intrusion detection system
• DMZ
• Port Triggering.
QoS:
• Interface grouping
• 3 priority queues.
Configuration and Management:
• Multilingual web-based interface for configuration and management
• Access via TELNET
• Firmware update via web-based interface
• Saving/restoring configuration to/from file
• Support of remote logging.
Page 7 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Power:
• External power adapter DC 5V/1A
• ON/OFF power switch
• Reset to Factory Defaults button.
Operating Temperature:
Overview
• From 0
0
C to 40 0C (from 32 0F to 104 0F).
Storage Temperature:
• From -20 0C to 65 0С (from -4 0F to 149 0F).
Humidity:
• From 5% to 95% non-condensing.
Page 8 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Product Appearance
Front Panel
Figure 1. Front panel view.
LED Mode Description
Overview
Power
Status
LAN
USB
DSL
Internet
Solid green
No light
Solid red
Blinking green
No light
Solid green
Blinking green
Solid green
Blinking green
Solid green
Blinking green
No light
Solid green
No light
Solid red
The router is powered on.
The router is powered off.
The router is in the crash recovery mode.
Traffic (Internet traffic) is passing through the router.
A failure of the system.
A device is connected to the port.
The LAN port is active (upstream or downstream traffic).
A device is connected to the port.
The USB port is active (upstream or downstream traffic).
DSL has been synchronized.
Detecting a carrier signal and synchronizing DSL.
No carrier signal.
A WAN connection is established.
The router is in the bridge mode or no WAN connection is
established.
An authorization failure.
Page 9 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Back Panel
Figure 2. Back panel view.
Port Description
Overview
DSL
USB
LAN
RESET
ON/OFF
5V=1A
A DSL port to connect the router to the telephone line.
A USB port to connect to a single computer.
An Ethernet port to connect a computer/switch.
A button to restore the factory default settings.
To restore the factory defaults, push the button (with the device turned on), hold
it for 10 seconds, and then release the button.
A button to turn the router on/off.
Power connector.
Page 10 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Delivery Package
The following should be included:
• Router DSL-2520U
• Power adapter DC 5V/1A
• RJ-11 telephone cable
• Straight-through Ethernet cable (CAT 5E)
• USB cable
• Splitter
• CD-ROM with “User Manual” and “Quick Installation Guide”
• “Quick Installation Guide” (brochure).
Overview
Using a power supply with a different voltage rating than the one included will cause
!
damage and void the warranty for this product.
Safety Instructions
Place your router on a flat horizontal surface or mount the router on the wall (the mounting holes
are located on the bottom panel of the device). Make sure that the router is provided with sufficient
ventilation.
To prevent overheating, do not obstruct the ventilation openings of the router.
Plug the router into a surge protector to reduce the risk of damage from power surges and lightning
strikes.
Operate the router only from an electrical outlet with the correct power source as indicated on the
adapter.
Do not open the cover of the router. Otherwise any warranty will be invalidated.
Unplug the equipment before dusting and cleaning. Use a damp cloth to clean the equipment. Do
not use liquid/aerosol cleaners or magnetic/static cleaning devices.
Page 11 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
CHAPTER 3. INSTALLATION AND CONNECTION
Before You Begin
Please, read this manual prior to installing the device. Make sure that you have all the necessary
information and equipment.
Operating System
Configuration of the router DSL-2520U (hereinafter referred to as “the router”) is performed via the
built-in web-based interface. The web-based interface is available from any operating system that
supports a web browser.
Web Browser
The following web browsers are recommended: Windows Internet Explorer, Mozilla Firefox or
Opera.
For successful operation, JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer.
NIC (Ethernet Adapter)
Any computer that uses the router should be equipped with an Ethernet adapter (NIC). If your
computer is not equipped with such a device, install an Ethernet adapter prior to using the router.
Page 12 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
Connecting to PC (in OS Windows XP)
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet cable between the Ethernet port located on the back panel of the router
and the Ethernet port of your PC.
3. Connect a phone cable between the DSL port of the router and the ADSL OUT port of the
splitter. Connect your phone to the PHONE port of the splitter. Then connect another phone
cable between a phone jack and the ADSL IN port of the splitter.
4. Connect the power cord to the power connector port on the back panel of the router, then
plug the power adapter into an electrical outlet or power strip.
5. Turn on your PC and wait until your operating system is completely loaded.
PC with USB Port
Do not connect your router to your PC until the USB driver is installed.
!
1. Turn on your computer and wait until the operating system is completely loaded. Insert the
CD from the router's delivery package into the CD ROM drive. Open the disk and go to the
USBDriver folder, then run the setup.exe file. Wait until the USB driver is installed.
When the installation is completed, click the Finish button.
2. Connect a phone cable between the DSL port of the router and the ADSL OUT port of the
splitter. Connect your phone to the PHONE port of the splitter. Then connect another phone
cable between a phone jack and the ADSL IN port of the splitter.
3. Connect the power cord to the power connector port on the back panel of the router, then
plug the power adapter into an electrical outlet or power strip.
4. Connect the USB cable between the USB port located on the back panel of the router and
the USB port of your PC.
Page 13 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
Obtaining IP Address Automatically
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window, right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.
Figure 3. The Network Connections window.
3. In the Local Area Connection Properties window, on the General tab, in the This
connection uses the following items section, select the Internet Protocol (TCP/IP)
line. Click the Properties button.
Figure 4. The Local Area Connection Properties window.
Page 14 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
4. Select the Obtain an IP address automatically radio button. Click the OK button.
Figure 5. The Internet Protocol (TCP/IP) Properties window.
Click the ОК button. Now your computer is configured to obtain an IP address automatically.
Page 15 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
Connecting to Web-based Interface
When you have configured your computer, you can access the web-based interface and configure
needed parameters (for example, create an interface to connect to the Internet, specify the settings
of the firewall, edit the password for the administrator account, etc.)
1. Start a web browser (see the Before You Begin section, page 12).
2. In the address bar of the web browser, enter the IP address of the router (by default, the
following IP address is specified: 192.168.1.1). Press the Enter key.
Figure 6. Connecting to the web-based interface of the DSL-2520U device.
3. On the opened page, enter the username (login) and password for the administrator account
(by default, the following username and password are specified: admin, admin). Then
click the Enter button.
Figure 7. The login page.
If the error “ The page cannot be displayed ” (or “ Unable to display the page ”/“ Could not
connect to remote server ”) occurs upon connecting to the web-based interface of the router,
!
make sure that you have properly connected the router to your computer.
After successful registration the system statistics page opens. The page displays general information
on the router and its software.
Page 16 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
Figure 8. The system statistics page.
For security reasons, it is strongly recommended to change the administrator password
upon initial configuration of the router. To do this, proceed to the System /
!
Administrator password page.
The web-based interface of the router is multilingual. Select a needed language from the menu
displayed when the mouse pointer is over the Language caption. You can change the language of
the web-based interface in any menu item.
Figure 9. Changing the language of the web-based interface.
Page 17 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
Saving and Restoring Settings
Note that you should regularly save the changes of the router's settings to the non-
!
The router's web-based interface displays the notification on unsaved changes at the top of the page.
You can save the router's settings via the top-page menu displayed when the mouse pointer is over
the System caption.
volatile memory.
Figure 10. The notification on unsaved changes.
Figure 11. The top-page menu.
Click the Reboot line if you have already saved the router's settings.
Click the Save&Reboot line to save new settings and immediately reboot the router.
Click the Save line to save new settings to the non-volatile memory and continue configuring the
device. Also you can save the device's parameters via the Save button on the System /
Configuration page.
Click the Backup line and follow the dialog box appeared to save the configuration (all settings of
the router) to your PC. Also you can save the router's configuration to your PC via the Backup
button on the System / Configuration page.
Click the Factory line to restore the factory default settings. Also you can restore the factory
defaults via the Factory button on the System / Configuration page.
Also you can restore the factory default settings via the hardware Reset button located on the back
panel of the router. Use a small paperclip to activate the button; insert it into the hole (with the
device turned on), push, and hold for 10 seconds. Release the button and wait until the router is
rebooted (about a minute). Now you can access the web-based interface of the router using the
default IP address, username and password.
When you have configured all needed settings, click the Logout line.
Page 18 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
CHAPTER 4. CONFIGURING VIA WEB-BASED
INTERFACE
Status
This menu displays data on the current state of the router. The following data are represented: DSL
connection status, active WAN connections, IP addresses leased by DHCP server, the routing table,
network statistics, and data on network devices connected to the router.
Network Statistics
On the Status / Network statistics page, you can view statistics for all interfaces (connections)
existing in the system. For each connection the following data are displayed: state, IP address,
subnet mask and gateway (if the connection is established), MAC address, MTU value, and volume
of data received and transmitted (with increase of the volume the units of measurement are changed
automatically: byte, Kbyte, Mbyte, Gbyte).
Figure 12. The Status / Network statistics page.
Page 19 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
DSL Status
The information shown on the tabs of the Status / DSL status page can be used for
troubleshooting and diagnosing connection problems.
Figure 13. The Status / DSL status page.
Page 20 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
WAN Status
The Status / WAN status page displays active WAN connections.
Configuring via Web-based Interface
Figure 14. The Status / WAN status page.
Page 21 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
DHCP
The Status / DHCP page displays the information on computers that have been identified by
hostnames and MAC addresses and have got IP addresses from the DHCP server of the device, as
well as the IP address expiration periods (the lease time).
Figure 15. The Status / DHCP page.
Page 22 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Routing Table
The Status / Routing table page displays the information on routes. The table contains
destination IP addresses, gateways, subnet masks, and other data.
Figure 16. The Status / Routing table page.
Page 23 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
LAN Clients
On the Status / LAN clients page, you can view data on network devices connected to the router.
The page displays devices connected to the router's LAN and devices accessing the web-based
interface of the router.
Figure 17. The Status / LAN clients page.
For each device the following data are displayed: the IP address, the MAC address, and the
interface to which the device is connected.
Page 24 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Net
In this menu you can configure basic parameters of the router's local area network and configure
connection to the Internet (a WAN connection).
Connections
On the Net / Connections page, you can create and edit connections used by the router.
By default, the LAN connection is configured in the system. It corresponds to the local interface of
the router (br0). You cannot delete this connection.
Figure 18. The Net / Connections page.
To create a new connection, click the Add button. On the page displayed, specify the relevant
values.
To edit an existing connection, left-click the relevant line in the table. On the page displayed,
change the parameters and click the Save button.
To delete an existing connection, left-click the relevant line in the table. On the page displayed,
click the Delete button.
To use one of existing WAN connections as a default gateway, select the choice of the Default
gateway radio button located in the line corresponding to this connection.
Page 25 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Editing Local Interface Parameters
To edit the parameters of the router's local area network, left-click the LAN connection on the Net /
Connections page.
On the Main tab, you can configure basic parameters of the router's LAN.
Figure 19. Basic parameters of the router's LAN.
Page 26 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
General settings
Configuring via Web-based Interface
Name
A name for this connection.
Connection Type The type of network protocol used by this connection – IPoE.
Enable
The checkbox enabling this connection.
Direction The direction of this connection.
Physical layer
Physical interface The physical interface to which this connection is assigned – br0.
IP settings
The router's IP address. By default, the following value is specified:
IP Address
192.168.1.1.
The subnet mask. By default, the following value is specified:
Netmask
255.255.255.0.
Interface The name assigned to the connection by the system.
When all needed settings are configured, click the Save button.
On the DHCP server tab, you can configure the built-in DHCP sever of the router.
Figure 20. The tab for configuring the DHCP server.
Page 27 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
An operating mode of the router's DHCP server.
Enable: the router assigns IP addresses to clients automatically in
accordance with specified parameters. When this value is selected,
the Start IP, End IP, and the Lease time fields are displayed on
the tab. If the DHCP server is enabled, you can also specify MAC-
Mode
IP pairs on the Static DHCP tab.
Disable: the router's DHCP server is disabled, clients' IP addresses
are assigned manually.
Relay: an external DHCP server is used to assign IP addresses to
clients. When this value is selected, the External DHCP server IP
field is displayed on the tab.
Configuring via Web-based Interface
Start IP
The start IP address of the address pool used by the DHCP server to
distribute IP addresses to clients.
The end IP address of the address pool used by the DHCP server to
End IP
distribute IP addresses to clients.
The lifetime of IP addresses leased by the DHCP server. At the end
of this period the leased IP address is revoked and can be distributed
Lease time
to another device, unless the previous device has confirmed the need
to keep the address.
External DHCP server
IP
The IP address of the external DHCP server which assigns IP
addresses to the router's clients.
When all needed settings are configured, click the Save button.
Page 28 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
On the Static DHCP tab, you can specify MAC address and IP address pairs. The tab is active
when the router's DHCP server is enabled.
Figure 21. The tab for configuring MAC-IP pairs.
To create a MAC-IP pair (set a fixed IP address in the local area network for a device with a certain
MAC address), click the Add button. Then enter the needed IP address and MAC address in the
relevant fields and click the Save button.
Existing MAC-IP pairs are displayed on the Static DHCP tab. To remove a pair, select the
relevant line in the table and click the Remove button. Then click the Save button.
Page 29 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Creating ADSL WAN Connection
Configuring via Web-based Interface
Figure 22. The page for creating a new connection. The General settings, Physical layer and VLAN
settings sections.
Page 30 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
General settings
Name A name for connection for easier identification.
A type of network protocol to be used by the connection. Available
values:
• PPPoA
Configuring via Web-based Interface
Connection Type
• PPPoE
• IPoE
• IPoA
• Bridge.
Enable Select the checkbox to enable the connection.
Direction The direction of this connection.
Physical layer
A physical or virtual interface to which the new connection will be
Physical interface
assigned. Leave the Create value to create a new interface at the
physical layer.
VPI
VCI
Virtual Path Identifier. The valid range is from 0 to 250.
Virtual Circuit Identifier. The valid range is from 32 to 65535.
Encapsulation Mode Select LLC or VC from the drop-down list.
Page 31 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
A class of traffic for this connection.
UBR
(Unspecified Bit Rate): The UBR service is used for applications
that allow various delays and losses of packets. It is appropriate to
use the UBR service for text/data/image transfer applications, as
well as messaging, distribution, retrieval, and remote terminal
applications.
UBR With PCR
(Unspecified Bit Rate with Peak Cell Rate): The UBR service is
used for applications that allow various delays and losses of
packets. The Peak Cell Rate is a determining factor in how often
cells are sent in an effort to minimize lag or jitter caused by traffic
inconsistencies. When you select this value from the drop-down list,
the Peak Cell Rate field is displayed. Specify a required value (in
cells per second).
Configuring via Web-based Interface
QoS
CBR
(Constant Bit Rate): This service is used for applications that
require a constant data rate. It is mostly used for transferring
uncompressed audio and video, e.g. videoconferencing, interactive
audio (telephony), audio/video distribution (television, distance
education, e-shops), and retrieval (video-on demand, audio
libraries). When you select this value from the drop-down list, the
Peak Cell Rate field is displayed. Specify a required value (in
cells per second).
Non Realtime VBR
(Non-Real-time Variable Bit Rate): This service can be used for
transferring data that have critical response-time requirements, e.g.
air ticket booking, bank transactions, and process monitoring. When
you select this value from the drop-down list, the Peak Cell Rate,
Sustainable Cell Rate, and Maximum Burst Size fields are
displayed. Specify required values.
Realtime VBR
(Real-time Variable Bit Rate): This service is used for delaysensitive applications such as real time video. The Rt-VBR provides
higher network flexibility than the CBR service. When you select
this value from the drop-down list, the Peak Cell Rate,
Sustainable Cell Rate, and Maximum Burst Size fields are
displayed. Specify required values.
Page 32 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Parameter Description
VLAN settings
Use VLAN Select the checkbox to allow the router to apply VLAN tagging.
VLAN priority A priority tag for the type of traffic transmitted.
VLAN ID An identifier for the VLAN.
The Miscellaneous section is displayed for all connection types except for Bridge.
Figure 23. The page for creating a new connection. The Miscellaneous section.
Parameter Description
Enable IGMP Multicast
NAT
Firewall
Miscellaneous
Select the checkbox to allow multicast traffic from the external
network (e.g. video streaming) to be received.
Select the checkbox if you want one WAN IP address to be used for
all computers of your LAN.
Select the checkbox to enable protection against ARP and DDoS
attacks.
Page 33 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
The PPP settings section is displayed for the PPPoE and PPPoA connection types.
Figure 24. The page for creating a new connection. The PPP settings section.
Parameter Description
PPP settings
PPP Username A username (login) to access the Internet.
Without authorization
Password
Password confirmation
Authentication
algorithm
Select the checkbox if you don't need to enter a username and
password to access the Internet.
A password to access the Internet.
The confirmation of the entered password (to avoid mistypes).
Select a required authentication method from the drop-down list or
leave the AUTO value.
Service name The name of the PPPoE authentication server.
Page 34 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
Select the checkbox if you want the router to establish connection to
Dial on demand
the Internet on demand. In the Maximum idle time field, specify
a period of inactivity (in seconds) after which the connection should
be terminated.
MTU The maximum size of units transmitted by the interface.
Configuring via Web-based Interface
PPP IP extension
Keep Alive
Use Static IP Address
PPP debug
PPPoE pass through
This option is used by some ISPs. Contact your ISP to clarify if this
checkbox needs to be enabled.
Select the checkbox if you want the router to keep you connected to
your ISP even when the connection has been inactive for a specified
period of time. When the checkbox is selected, the LCP interval
and LCP fails fields are available. Specify the required values.
Select the checkbox if you want to use a static IP address to access
the Internet. In the IP Address field displayed when the checkbox
is selected, specify a static IP address.
Select the checkbox if you want to log all data on PPP connection
debugging.
Displayed for the PPPoE type only.
Select the checkbox if you want to allow PPPoE clients of
computers from your LAN to connect to the Internet through this
PPPoE connection of the router.
Interface
The name assigned to the connection by the system.
Page 35 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
The IP settings section is displayed for the IPoE and IPoA connection types.
Figure 25. The page for creating a new connection. The IP settings section.
Parameter Description
Obtain an IP address
automatically
IP Address
Netmask
Gateway IP Address
Vendor ID
Interface The name assigned to the connection by the system.
IP settings
Displayed for the IPoE type only.
Select the checkbox to configure automatic IP address assignment
for this connection. When the checkbox is selected, the IP
Address, Netmask, and Gateway IP Address fields are not
displayed.
Enter an IP address for this WAN connection.
Enter a subnet mask for this WAN connection.
Enter an IP address of the gateway used by this WAN connection.
Displayed for the IPoE type only.
The identifier of your ISP. This field is specified when the ISP
assigns an IP address automatically (the Obtain an IP address
automatically checkbox is selected). Optional.
Click the Save button.
Page 36 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Advanced
This menu provides advanced settings of the router. On the pages of this menu, you can define
static routes and rules for remote access to the web-based interface, add name servers, enable the
UPnP function, define interface groups, configure a DDNS service, and edit the ADSL connection
parameters.
UPnP
On the Advanced / UPnP page, you can enable the UPnP function.
UPnP is a set of networking protocols designed for automatic configuration of network devices. The
UPnP function performs automatic configuration of the device's parameters for network
applications requiring an incoming connection to the router.
Figure 26. The Advanced / UPnP page.
If you want to manually specify all parameters needed for network applications, deselect the
Enabled checkbox and click the Change button.
If you want to enable the UPnP function in the router, select the Enabled checkbox and click the
Change button.
Page 37 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Interface Grouping
On the Advanced / Interface grouping page, you can assign virtual PVC connections to the
router's ports (create groups of interfaces), which allows distinguishing different types of traffic.
This function is mostly used in Triple-play networks.
Figure 27. The Advanced / Interface grouping page.
To create a new rule for interface grouping (a group of ports), click the Add group button (the
button is not displayed if there is no WAN connection in the system).
Figure 28. The page for adding a new group of ports.
Page 38 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
You can specify the following parameters:
Parameter Description
Configuring via Web-based Interface
Name
LANs
WANs
Click the Save button.
When you add an interface to the new group, it is excluded from the group to which it has
!
been assigned before.
To edit or remove an existing group, select the relevant group on the Advanced / Interface
grouping page. On the page displayed, change the parameters and click the Save button, or click
the Delete button. When you delete a group, interfaces assigned to it are reassigned to the
DEFAULT group.
A name for the group for easier identification. You can specify any
name.
The list of available internal interfaces is displayed in the left
column of the line. Use the button ==> to select interfaces. The
selected interfaces will be displayed in the right column of the field.
WAN connections to which the new group will be assigned. Use the
button ==> to select WAN connections. The selected connections
will be displayed in the right column of the field.
Page 39 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
DDNS
On the Advanced / DDNS page, you can define parameters of the DDNS service, which allows
associating a domain name with dynamic IP addresses.
Figure 29. The Advanced / DDNS page.
To add a new DDNS service, click the Add button.
Page 40 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 30. The page for adding a DDNS service.
You can specify the following parameters:
Parameter Description
DDNS Service Select a DDNS provider from the drop-down list.
Host name
The domain name registered at your DDNS provider.
User name The username to authorize for your DDNS provider.
User password
Interface
The password to authorize for your DDNS provider.
Select a WAN connection which IP address will be used to access
the DDNS service.
Click the Change button.
To edit parameters of the existing DDNS service, click the relevant service link. On the opened
page, change the needed parameters and click the Change button.
To remove an existing DDNS service, click the relevant service link. On the opened page, click the
Delete button.
Page 41 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
DNS
On the Advanced / DNS page, you can add DNS servers to the system.
Figure 31. The Advanced / DNS page.
DNS servers are used to determine the IP address from the name of a server in Intranets or the
Internet (as a rule, they are specified by an ISP or assigned by a network administrator).
The device performs the DNS relay function, i.e., it redirects the DNS requests of users to external
DNS servers. You can specify the addresses of DNS servers manually on this page, or configure the
router to obtain DNS servers addresses automatically from your ISP upon installing a connection.
When you use the built-in DHCP server, the network parameters (including DNS servers)
!
are distributed to clients automatically.
If you want to configure automatic obtainment of DNS servers addresses, deselect the Manual
checkbox, select a WAN connection which will be used to obtain addresses of DNS servers
automatically from the Interface drop-down list, and click the Change button.
If you want to specify the DNS server manually, select the Manual checkbox and enter a DNS
server address in the Name servers list. To specify several addresses, press the Enter key and
enter a needed address in the next line. Then click the Change button.
To remove a DNS server from the system, remove the relevant line from the Name servers field
and click the Change button.
Page 42 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Routing
On the Advanced / Routing page, you can add static routes (routes for networks that are not
connected directly to the device but are available through the interfaces of the device) into the
system.
Figure 32. The Advanced / Routing page.
To create a new route, click the Add button.
Page 43 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 33. The page for adding a static route.
You can specify the following parameters:
Parameter Description
Destination network A destination network to which this route is assigned.
Destination netmask
Gateway
The destination network mask.
An IP address through which the destination network can be
accessed.
A metric for the route. The lower the value, the higher is the route
Metric
priority. Optional.
Select an interface (connection) through which the destination
network can be accessed from the drop-down list. If you have
Via Interface
selected the <Auto> value of this drop-down list, the router itself
sets the interface on the basis of data on connected networks.
Click the Save button.
To edit an existing route, select the needed route in the table. On the opened page, change the
needed parameters and click the Save button.
To remove an existing route, select the needed route in the table. On the opened page, click the
Delete button.
Page 44 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
ADSL
The Advanced / ADSL page includes the set of ADSL standards that should be defined by an
ISP. Contact your ISP to set proper parameters. Select the relevant options and click the Change
button.
Figure 34. The Advanced / ADSL page.
Page 45 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Remote Access
On the Advanced / Remote access page, you can configure remote access to the web-based
interface of the router. By default, the access from external networks to the router is closed. If you
need to allow access to the router from the external network, create relevant rules.
Figure 35. The Advanced / Remote access page.
To create a new rule, click the Add button.
Page 46 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 36. The page for adding a rule for remote management.
You can specify the following parameters:
Parameter Description
Name
A name for the rule for easier identification. You can specify any
name.
A physical interface through which the web-based interface of the
Interface
router is accessed.
IP address A host or a subnet to which the rule is applied.
Mask
Protocol
The mask of the subnet.
The protocol available for remote management of the router (HTTP,
ICMP, TELNET).
Click the Change button.
To edit a rule for remote access, click the relevant link. On the opened page, change the needed
parameters and click the Change button.
To remove a rule for remote access, click the relevant link. On the opened page, click the Delete
button.
Page 47 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Firewall
In this menu you can configure the firewall of the router: add rules for IP filtering, define a DMZzone, create virtual servers, configure MAC-filters and the Port Triggering function.
IP Filters
On the Firewall / IP-filters page, you can create new rules for filtering IP packets and edit or
remove existing rules.
Figure 37. The Firewall / IP-filters page.
To create a new rule, click the Add button.
Page 48 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 38. The page for adding a rule for IP filtering.
You can specify the following parameters:
Parameter Description
IP-filter rule editing
Name A name for the rule for easier identification.
A protocol for network packet transmission. Select a value from the
Protocol
drop-down list.
Select the checkbox if you want to specify a range of IP addresses as
IP address range
the source or destination IP address.
The source host/subnet IP address. To specify an IP address leave
Source
32 in the field following the slash character (/).
The destination host/subnet IP address. To specify an IP address
Destination
leave 32 in the field following the slash character (/).
IP Addresses
Ports
Page 49 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
Configuring via Web-based Interface
Source
A port of the source IP address. You can specify one port, several
ports separated by a comma, or a range of ports separated by a colon.
A port of the destination IP address. You can specify one port,
Destination
several ports separated by a comma, or a range of ports separated by
a colon.
Click the Change button.
To edit a rule for IP filtering, select the relevant rule in the table. On the opened page, change the
needed parameters and click the Change button.
To remove a rule for IP filtering, select the relevant rule in the table. On the opened page, click the
Delete button.
Virtual Servers
On the Firewall / Virtual servers page, you can create virtual servers for redirecting incoming
Internet traffic to a specified IP address in the local area network.
Figure 39. The Firewall / Virtual servers page.
To create a new virtual server, click the Add button.
Page 50 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 40. The page for adding a virtual server.
You can specify the following parameters:
Parameter Description
Select a virtual server template from the drop-down list, or select
Template
Custom to specify all parameters of the new virtual server
manually.
A name for the virtual server for easier identification. You can
Name
specify any name.
Interface A WAN connection to which this virtual server will be assigned.
A protocol that will be used by the new virtual server. Select a value
Protocol
from the drop-down list.
A port of the router from which traffic is directed to the IP address
Public port (begin)/
specified in the Private IP field. Specify the start and the end value
for the port range. If you need to specify one port, enter the needed
Public port (end)
value in the Public port (begin) field and leave the Public port
(end) field blank.
Page 51 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Parameter Description
A port of the IP address specified in the Private IP field to which
Private port (begin)/
traffic is directed from the Public port. Specify the start and the
end value for the port range. If you need to specify one port, enter
Private port (end)
the needed value in the Private port (begin) field and leave the
Private port (end) field blank.
Private IP The IP address of the server from the local area network.
Click the Change button.
To edit the parameters of an existing server, select the relevant server in the table. On the opened
page, change the needed parameters and click the Change button.
To remove an existing server, select the relevant server in the table. On the opened page, click the
Delete button.
DMZ
A DMZ is a host or network segment located “between” internal (local) and external (global)
networks. In the router, the DMZ implements the capability to transfer a request coming to a port of
the DSL router from the external network to a specified host of the internal network.
On the Firewall / DMZ page you can specify the IP address of the DMZ host.
Figure 41. The Firewall / DMZ page.
To enable the DMZ, select the Enabled checkbox, enter the IP address of a host from your
network in the IP address field, and click the Change button.
Page 52 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Note that when the DMZ is enabled, all traffic coming to a port of the WAN interface of the router
is directed to the same port of the specified IP address. Also note that virtual servers have higher
priority than the DMZ host. In other words, if there has been created a virtual server that directs
traffic from external port 80 to a port of the device from the router's local network, then entering
http://router_WAN_IP in the address bar, users of the external network are directed to the
specified port and IP address configured for the virtual server, but not to port 80 of the device with
the IP address specified on the Firewall / DMZ page.
To disable the DMZ, deselect the Enabled checkbox and click the Change button.
Application Rules
On the Firewall / Application rules page, you can define rules for the Port Triggering function.
Figure 42. The Firewall / Application rules page.
To add a new rule for the Port Triggering function, click the Add button.
Page 53 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 43. The page for adding a rule for the Port Triggering function.
Page 54 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
You can specify the following parameters:
Parameter Description
Application rule editing
Configuring via Web-based Interface
Rules name
A name for the rule for easier identification.
Interface A WAN connection to which this rule will be assigned.
Incoming port and protocol settings
Protocol
A protocol to which this rule will be applied upon receiving data to
the specified port or port range.
A range of the router's ports which will be open to receive data from
Starting port/
the external network (incoming traffic). Specify the start and the end
value for the port range. If you need to specify one port, enter the
Ending port
needed value in the Starting port field and leave the Ending port
field blank.
Outgoing port and protocol settings
A protocol to which this rule will be applied upon transferring data
Protocol
from the specified port or port range.
A range of the router's ports from which data are transferred to the
Starting port/
external network (outgoing traffic). Specify the start and the end
value for the port range. If you need to specify one port, enter the
Ending port
needed value in the Starting port field and leave the Ending port
field blank.
Click the Change button.
To edit an existing rule for the Port Triggering function, select the relevant rule in the table. On the
opened page, change the needed parameters and click the Change button.
To remove an existing rule for the Port Triggering function, select the relevant rule in the table. On
the opened page, click the Delete button.
Page 55 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
MAC Filter
The MAC-address-based filtering allows forwarding and blocking traffic subject to the source and
destination MAC addresses.
MAC-address-based filtering is active only when the device is configured as a transparent
!
bridge (the Bridge mode).
On the Configuration tab, you can select the operating mode of the MAC filter. Select the Allow
value from the Action drop-down list to allow traffic affected by the rules from the MAC-
addresses tab and block the other traffic. Select the Deny value from the drop-down list to block
only traffic affected by the rules from the MAC-addresses tab.
Figure 44. The Firewall / MAC-filter page. The Configuration tab.
To create a new rule, proceed to the MAC-addresses tab and click the Add button.
Page 56 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Figure 45. The Firewall / MAC-filter page. The MAC-addresses tab.
On the opened page, specify the needed parameters.
Figure 46. The page for adding a rule for MAC-address-based filtering.
Page 57 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Parameter Description
Source MAC-address The MAC address of the source host.
Configuring via Web-based Interface
Destination MAC-address
The MAC address of the destination host.
Direction Select a direction for which the rule will be applied.
Protocol
Interface
Select a protocol for which the rule will be applied. The <Any>
value means any protocol from those displayed in the list.
Select a WAN connection (with the Bridge connection type
only) for which the rule will be applied.
Click the Change button.
To edit a rule for filtering, select the relevant rule on the MAC-addresses tab. On the opened
page, change the needed parameters and click the Change button.
To remove a rule for filtering, select the relevant rule on the MAC-addresses tab. On the opened
page, click the Delete button.
Page 58 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Control
This menu is designed to limit access to certain web sites.
URL Filter
On the Control / URL-filter page, you can specify restrictions on access to certain web sites.
Figure 47. The Control / URL-filter page. The Configuration tab.
To enable the URL filter, select the Enable/Disable URL filter checkbox on the Configuration
tab, then select a needed mode from the URL-filter type drop-down list:
• Block listed URLs: when this value is selected, the router blocks access to all addresses
specified on the URL-addresses tab;
• Block all URLs except listed: when this value is selected, the router allows access to
addresses specified on the URL-addresses tab and blocks access to all other web sites.
Click the Change button.
To specify URL addresses to which the selected filtering will be applied, go to the URL-
addresses tab and click the Add button.
Page 59 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Figure 48. The Control / URL-filter page. The URL-addresses tab.
Configuring via Web-based Interface
On the opened page, specify the needed parameters.
Figure 49. The page for adding an address for the URL filter.
Enter a URL address in the URL-address field, specify a port (as usual, you need to specify port
80 for HTTP), then click the Save button.
To remove an address from the list of URL addresses, select the relevant address in the table on the
URL-addresses tab and click the Delete button.
To disable the URL filter, deselect the Enable/Disable URL filter checkbox on the
Configuration tab, then click the Change button.
Page 60 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
System
In this menu you can save the changed settings to the non-volatile memory, create a backup of the
router's configuration, restore the router's configuration from a previously saved file, restore the
factory default settings, view the system log, update the firmware of the router, and change the
password used to access its settings.
Administrator Password
On the System / Administrator password page, you can change the password for the
administrator account used to access the web-based interface of the router and to access the device
via TELNET.
For security reasons, it is strongly recommended to change the administrator password
!
upon initial configuration of the router.
Figure 50. The System / Administrator password page.
Enter the new password in the Password and Confirmation fields and click the Save button.
Page 61 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Configuration
On the System / Configuration page, you can save the changed settings to the non-volatile
memory, restore the factory defaults, backup the current configuration, or restore the router's
configuration from a previously created file.
Figure 51. The System / Configuration page.
The following buttons are available on the page:
Control Description
Click the button to save settings to the non-volatile memory. Please,
Save
save settings every time you change the router's parameters.
Otherwise the changes will be lost upon reboot of the router.
Click the button to restore the factory default settings. Also you can
Factory
restore the factory defaults via the hardware Reset button (see the
Saving and Restoring Settings section, page 18).
Backup
Click the button and follow the dialog box appeared to save the
configuration (all settings of the router) to your PC.
Click the button to upload a previously saved configuration (all
settings of the router) from a file on your PC. Click the
Restore
Choose/Browse1 button to select a previously saved configuration
file located on your PC.
Actions of the Save, Factory, and Backup buttons also can be performed via the top-page menu
displayed when the mouse pointer is over the System caption.
1 The name of the button depends upon the web browser that you use.
Page 62 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
System Log
On the System / System log page, you can set the system log options and configure sending the
system log to a remote host.
Figure 52. The System / System log page. The Configuration tab.
To enable logging of the system events, select the Logging checkbox on the Configuration tab.
Then specify the needed parameters.
Control Description
Select a type of logging from the drop-down list.
• Local: the system log is stored in the router's memory (and
displayed on the Log tab). When this value is selected, the
Server address type, Server, and Port fields are not
displayed.
Logging type
• Remote: the system log is sent to the remote host specified
in the Server field.
• Local and remote: the system log is stored in the router's
memory (and displayed on the Log tab) and sent to the
remote host specified in the Server field.
Select a type of messages and alerts/notifications to be stored locally
Local logging level
in the router's memory. The field is available, when the Local or
Local and remote value is selected from the Logging type
drop-down list.
Page 63 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Control Description
Select a type of messages and alerts/notifications to be sent to the
remote host specified in the Server field. The field is available,
Remote logging level
when the Remote or Local and remote value is selected from
the Logging type drop-down list.
From the drop-down list, select the IP value to specify an IP address
Server address type
of a host from the local or global network, or the URL value to
specify a URL address of a remote server.
Configuring via Web-based Interface
Server
The IP or URL address of the host from the local or global network,
to which the system log will be sent.
A port of the host specified in the Server field. By default, the
Port
value 514 is specified.
After specifying the needed parameters, click the Change button.
To disable logging of the system events, deselect the Logging checkbox and click the Change
button.
On the Log tab, the events specified in the Local logging level list are displayed.
Figure 53. The System / System log page. The Log tab.
To view the latest system events, click the Refresh button.
To save the system log to your PC, click the Export button and follow the dialog box appeared.
Page 64 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Firmware Upgrade
On the System / Firmware upgrade page, you can upgrade the firmware of the router.
Figure 54. The System / Firmware upgrade page.
The current version of the router's firmware is displayed in the Firmware version field on the
Start page. If you need to install a newer version of the firmware, follow the next steps:
Attention! Do not turn off the router before the firmware upgrade is completed. This may
!
cause the device breakdown.
1. Download a new version of the firmware from www.dlink.ru.
2. Click the Choose/Browse2 button on the System / Firmware upgrade page to locate
the new firmware file.
3. Click the Update button to upgrade the firmware of the router.
4. Wait until the router is rebooted (about one and a half or two minutes).
5. Log into the web-based interface using the login (admin) and the current password.
6. Select the Factory line in the top-page menu displayed when the mouse pointer is over the
System caption.
7. Wait until the router is rebooted. Log into the web-based interface, using the default IP
address, login and password (192.168.1.1, admin, admin).
2 The name of the button depends upon the web browser that you use.
Page 65 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Abbreviations and Acronyms
CHAPTER 5. ABBREVIATIONS AND ACRONYMS
ARP
Address Resolution Protocol
DDNS Dynamic Domain Name System
DDoS
Distributed Denial of Service
DHCP Dynamic Host Configuration Protocol
DMZ
DeMilitarized Zone
DNS Domain Name System
GMT
Greenwich Mean Time
IGMP Internet Group Management Protocol
IP
Internet Protocol
IPoA Internet Protocol over ATM
IPoE
Internet Protocol over Ethernet
LAN Local Area Network
LCC
Logical Link Control
LCP Link Control Protocol
MAC
Media Access Control
MTU Maximum Transmission Unit
NAT
Network Address Translation
PBC Push Button Configuration
PIN
Personal Identification Number
PPPoA Point-to-Point Protocol over ATM
PPPoE
Point-to-point protocol over Ethernet
PSK Pre-shared key
QoS
Quality of Service
RTS Request To Send
TKIP
Temporal Key Integrity Protocol
UPnP Universal Plug and Play
URL
Uniform Resource Locator
Page 66 of 67
DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Abbreviations and Acronyms
VC
Virtual Circuit
VCI Virtual Circuit Identifier
VLAN
Virtual Local Area Network
VPI Virtual Path Identifier
WAN
Wide Area Network
Page 67 of 67
Loading...
