Version 17.0 | 05/03/2013
User Manual
Wireless N Home Router
DIR-615
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
17.00 May 20, 2013 • Initial Release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7
are registered trademarks of the Microsoft Corporation. All other company or product names mentioned herein are trademarks
or registered trademarks of their respective companies.
Copyright © 2013 D-Link Corporation
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
iD-Link DIR-615 User Manual
Table of Contents
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Features ............................................................................................3
Hardware Overview ..................................................................... 4
Connections ...........................................................................4
LEDs ........................................................................................... 5
Installation ......................................................................... 6
Before you Begin ...........................................................................6
Wireless Installation Considerations ......................................7
Connect to Cable/DSL/Satellite Modem .............................. 8
Getting Started .............................................................................. 9
Conguration ...................................................................10
Web-based Conguration Utility ..........................................10
Internet Connection Setup Wizard ...............................11
Manual Conguration .......................................................16
Dynamic (Cable) .............................................................16
Static IP Address .............................................................17
PPPoE (DSL) ......................................................................18
PPTP ....................................................................................19
L2TP ....................................................................................20
DS-Lite DHCPv6 ..............................................................21
Wireless Settings .................................................................22
Manual Wireless Network Setup ..............................23
Network Settings ................................................................25
DHCP Server Settings ...................................................26
DHCP Reservation .........................................................27
Virtual Server ........................................................................28
Virtual Servers List ..............................................................29
Application Rules ................................................................30
Port Forwarding ..................................................................31
QoS Engine............................................................................32
Network Filters .....................................................................33
Access Control .....................................................................34
Access Control Wizard ..................................................34
Website Filters ......................................................................37
Inbound Filters.....................................................................38
Firewall Settings ..................................................................39
Advanced Wireless Settings ............................................40
Wi-Fi Protected Setup .......................................................41
Advanced Network Settings ...........................................42
IPv6 ..........................................................................................43
Auto Detection ...............................................................43
Static IPv6 .........................................................................45
DHCP Autoconguration ............................................46
PPPoE .................................................................................47
IPv6 in IPv4 Tunnel ........................................................49
IPv6 to IPv4 (6to4) ..........................................................51
6rd .......................................................................................52
iiD-Link DIR-615 User Manual
Table of Contents
Local Connectivity Only...............................................54
Administrator Settings ......................................................55
Time Settings .......................................................................56
SysLog .....................................................................................57
Email Settings ......................................................................58
System Settings ...................................................................59
Update Firmware ................................................................60
DDNS .......................................................................................61
System Check .......................................................................62
Schedules ..............................................................................63
Device Information ............................................................64
Log ...........................................................................................66
Statistics .................................................................................67
Internet Sessions .................................................................68
Wireless ..................................................................................69
Routing Table .......................................................................70
IPv6 ..........................................................................................71
Windows Vista® ....................................................................89
Congure WPA/WPA2 ...................................................90
Windows® XP ........................................................................92
Congure WPA-PSK .......................................................93
Troubleshooting .............................................................. 95
Wireless Basics .................................................................99
Tips ........................................................................................ 101
Wireless Modes ......................................................................... 102
Networking Basics .........................................................103
Check your MAC and IP address .........................................103
Statically Assign an IP address ............................................ 104
Technical Specications ................................................105
Support ..................................................................................72
Wireless Security .............................................................73
What is WPA? ................................................................................73
Wireless Network Setup Wizard ............................................74
Add Wireless Device with WPS Wizard ................................77
Congure WPA-Personal (PSK) ...............................................78
Congure WPA-Enterprise (RADIUS) ....................................79
Connect to a Wireless Network .............................................80
Windows® 8 ...........................................................................80
WPA/WPA2 .......................................................................80
Windows® 7 ...........................................................................82
Congure WPS ................................................................85
iiiD-Link DIR-615 User Manual
Section 1 - Product Overview
DIR-615 Wireless N Home Router
Ethernet Cable
Power Adapter
Product Overview
Package Contents
User Manual on CD
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage rating than the one included with the DIR-615 will cause
damage and void the warranty for this product.
1D-Link DIR-615 User Manual
Section 1 - Product Overview
System Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n/g wireless clients
• 10/100 Ethernet
®
• Windows
, Macintosh, or Linux-based
operating system
• An installed Ethernet adapter
• Internet Explorer 6 or higher
• Chrome 2.0 or higher
• Firefox 3.0 or higher
• Safari 3.0 or higher
®
Windows
Java installed. Visit
Users: Make sure you have the latest version of
ww.java.com to download the latest
version.
®
• Windows
Windows
XP (Service Pack 3), Vista® or
®
7/8
• An installed Ethernet adapter
• CD-ROM drive
2D-Link DIR-615 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DIR-615 provides a wireless connection at up to 300Mbps* with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and VOIP calling.
• Compatible with 802.11g Devices - The DIR-615 is still fully compatible with the IEEE 802.11g standard, so it
can connect with existing 802.11g PCI, USB and cardbus adapters.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features including which help to protect your network from unauthorized access and malicious
attacks.
• Content Filtering - Easily applied content and access filtering based on MAC address, URL, and/or domain name.
Features
• Filter Scheduling - Set your own schedules, allowing you to control when your filters and access controls are
activated.
• Secure Multiple/Concurrent Sessions - The DIR-615 can pass through VPN sessions. It supports multiple and
concurrent IPSec and PPTP sessions, so users behind the DIR-615 can securely access corporate networks.
• User-friendly Setup Wizard - The easy-to-use web-based user interface includes a setup wizard which will walk
you through the steps to set up your wireless router, access the Internet, and enable wireless security.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate.
Environmental conditions may adversely affect wireless signal range.
3D-Link DIR-615 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
2 3 41
1 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and hubs.
2 Internet Port
3 Power Receptor Receptor for the supplied power adapter.
4 Reset Pressing the Reset button restores the router to its original factory default settings.
Connect your DSL, cable modem or other Internet connection here to provide Internet connectivity to
the router.
4D-Link DIR-615 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
2 3 41
1 Power LED
2 Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission.
3 WAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission.
4 Local Network LEDs
A solid green light indicates a proper connection to the power supply. The light will blink green during the
WPS process. The light will be solid orange during boot up.
A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during
data transmission.
5D-Link DIR-615 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in an attic or garage.
Before you Begin
• Please configure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the
router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to the
Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to
change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoet, Broadjump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
• When running the Setup Wizard from the included CD, make sure the computer you are running the CD from
is connected to the Internet, or the wizard will not work. If you have disconnected any hardware, re-connect
your computer back to the modem and make sure you are online.
6D-Link DIR-615 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. However, keep in mind that the number, thickness, and location of walls, ceilings, or
other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your usage area. You can optimize wireless range and signal strength
by following these basic guidelines:
Keep the number of walls and ceilings between the router and other network devices to a minimum - each
wall or ceiling can reduce your network’s range by up to 30 meters (98 feet). Position your devices so that
the number of walls or ceilings in the signal’s path is minimized.
Be aware of the direct line between network devices. A wall that is 0.5 meters thick (1.5 feet) appears to
be almost 1 meter (3 feet) thick at a 45-degree angle. At a 2-degree angle it appears over 14 meters (42
feet) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
Building materials make a difference. A solid metal door or aluminum studs may have a detrimental effect
on range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(fish tanks), mirrors, file cabinets, brick, and concrete can degrade your wireless signal.
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate
RF noise.
If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your
2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even
if the phone is not in use.
7D-Link DIR-615 User Manual
Section 2 - Installation
Connect to Cable/DSL/Satellite Modem
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter.
Shut down your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and plug
it into the Internet port on the router.
4. Plug the Ethernet cable that came with your router into one of the four LAN ports on the router. Plug
the other end into the Ethernet port on your computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to a power outlet. Wait about 30 seconds for the router
to boot.
7. Turn on your computer.
8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your
computer is plugged into) should be lit. If not, make sure your computer, modem, and router are powered
on and verify the cable connections are correct.
9. Skip to “Configuration” on page 10 to configure your router.
8D-Link DIR-615 User Manual
Section 2 - Installation
Getting Started
The DIR-615 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the setup wizard to guide you
quickly through the installation process. Insert the wizard CD in the CD-ROM drive. The step-by-step instructions that follow
are shown in Windows® XP. The steps and screens are similar for the other Windows operating systems.
If the CD autorun function does not automatically start on your computer, go to Start > Run. In the run box type
“D:\DWizard.exe” (where D: represents the drive letter of your CD-ROM drive).You can also use your operating system’s file
explorer to navigate to your CD drive and locate the “DWizard” file.
When the screen below appears, click Start.
Note: It is recommended that you make a record of your SSID and security key, and login password, on the provided CD
holder.
9D-Link DIR-615 User Manual
Section 3 - Conguration
Configuration
This section will show you how to configure your new D-Link wireless router using the web-based configuration utility.
Web-based Configuration Utility
To access the configuration utility, open a web-browser such as Internet Explorer
and enter the IP address of the router (192.168.0.1).
You may also connect using the NetBIOS name in the address bar (http://
dlinkrouter.local.).
Select Admin from the drop-down menu and then enter your password. Leave
the password blank by default. If graphical authentication has been enabled, type
in the graphical authentication code (if you cannot read it, click Regenerate). The
graphical authentication will be disabled by default.
If you get a Page Cannot be Displayed error, please refer to “Troubleshooting” on
page 95 for assistance.
10D-Link DIR-615 User Manual
Section 3 - Conguration
Internet Connection Setup Wizard
Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection Setup
Wizard button to quickly configure your router using the setup wizard.
If you want to enter your settings without running the wizard, click Manual Internet Configuration Wizard and skip to page 16.
11D-Link DIR-615 User Manual
Section 3 - Conguration
Click Next to continue.
Create a new password and then click Next to continue. You will
need this password to access the web-based configuration utility.
Select your time zone from the drop-down menu and then click
Next to continue.
12D-Link DIR-615 User Manual
Section 3 - Conguration
Select the type of Internet connection you use and then click
Next to continue.
If you selected Dynamic, you may need to enter the MAC address
of the computer that was last connected directly to your modem.
If you are currently using that computer, click Clone Your PC’s
MAC Address.
The host name is optional but may be required by some ISPs.
The default host name is the device name of the router and may
be changed.
Under DNS Settings, you may need to enter the primary DNS
server address provided to you by your ISP. Click Next to continue.
13D-Link DIR-615 User Manual
Section 3 - Conguration
If you selected PPPoE, enter your PPPoE username and password.
Click Next to continue.
Note: Make sure to remove any PPPoE software from your
computer. The software is no longer needed and will not work
through a router.
If you selected PPTP, select whether you require a Dynamic IP or
Static IP connection. If you selected Static, enter the IP address,
subnet mask, gateway IP address, and server IP address provided
to you by your ISP. Next, enter your PPTP username and password.
Under DNS Settings, you may need to enter the primary DNS
server address provided to you by your ISP.
Click Next to continue.
14D-Link DIR-615 User Manual
Section 3 - Conguration
If you selected L2TP, select whether you require a Dynamic IP or
Static IP connection. If you selected Static, enter the IP address,
subnet mask, gateway IP address, and server IP address provided
to you by your ISP. Next, enter your PPTP username and password.
Under DNS Settings, you may need to enter the primary DNS
server address provided to you by your ISP.
Click Next to continue.
The setup is now complete. Click the Connect to save your
settings. Please allow 1-2 minutes to connect.
15D-Link DIR-615 User Manual
Section 3 - Conguration
Manual Configuration
Dynamic (Cable)
If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to select your
Internet type and enter the correct configuration parameters.
Select your Internet connection type using the “My Internet Connection is” dropdown menu.
At any stage, you can click on the Save Settings button to accept the changes
made, or click on the Don’t Save Settings button to discard the changes made.
My Internet
Connection:
Host Name:
Use
Unicasting:
Primary/
Secondary
DNS Server:
MTU:
MAC
Address:
Select Dynamic IP (DHCP) to obtain IP address information automatically
from your ISP. Select this option if your ISP does not give you any IP numbers
to use. This option is commonly used for cable modem services.
The host name is optional but may be required by some ISPs. Leave blank
if you are not sure.
Check the box if you are having problems obtaining an IP address from
your ISP.
Enter the primary and secondary DNS server IP addresses assigned by your
ISP. These addresses are usually obtained automatically from your ISP. Leave
at 0.0.0.0 if you did not specifically receive these from your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal
performance with your specific ISP. 1500 is the default MTU.
The default MAC address is set to the Internet port’s physical interface MAC
address on the broadband router. It is not recommended that you change
the default MAC address unless required by your ISP. You can use the Clone
Your PC’s MAC Address button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
16D-Link DIR-615 User Manual
Section 3 - Conguration
Static IP Address
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP
address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the fields
must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The router will not accept an IP address
if it is not in this format.
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address:
Enter the IP address assigned by your ISP.
Enter the subnet mask assigned by your ISP.
Enter the gateway assigned by your ISP.
The primary DNS server information will be supplied by your ISP
(Internet Service Provider.)
The secondary DNS server information will be supplied by your ISP
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1500 is the default MTU.
The default MAC address is set to the Internet port’s physical interface
MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP. You can
use the Clone Your PC’s MAC Address button to replace the Internet
port’s MAC address with the MAC address of your Ethernet card.
17D-Link DIR-615 User Manual
Section 3 - Conguration
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password. This option is typically used for DSL services. Make sure to remove any PPPoE software from your
computer. The software is no longer needed and will not work through a router.
My Internet
Connection:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection
Mode:
Maximum Idle
Time:
DNS Addresses:
Select PPPoE (Username/Password) from the drop-down menu.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next
box.
Enter the ISP service name (optional).
Select either Always-on, On-Demand, or Manual. You can also select
a schedule for connection.
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, set your reconnect
mode to Always-on.
Enter the primary and secondary DNS server addresses (static PPPoE
only).
MTU:
MAC Address:
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1492 is the default MTU.
The default MAC address is set to the Internet port’s physical interface
MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP. You can
use the Clone Your PC’s MAC Address button to replace the Internet
port’s MAC address with the MAC address of your Ethernet card.
18D-Link DIR-615 User Manual
Section 3 - Conguration
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway:
PPTP Server IP:
Username:
Password:
Reconnect Mode:
Maximum Idle
Time:
DNS Servers:
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPTP only).
Enter the primary and secondary DNS server addresses (Static PPTP only).
Enter the gateway IP Address provided by your ISP.
Enter the server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual. You can also select
a schedule for connection.
Enter a maximum idle time during which the Internet connection is
maintained during inactivity. To disable this feature, set your reconnect
mode to Always-on.
The DNS server information will be supplied by your ISP (Internet Service
Provider).
MTU:
MAC Address:
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1400 is the default MTU.
The default MAC address is set to the Internet port’s physical interface
MAC address on the broadband router. It is not recommended that you
change the default MAC address unless required by your ISP. You can
use the Clone Your PC’s MAC Address button to replace the Internet
port’s MAC address with the MAC address of your Ethernet card.
19D-Link DIR-615 User Manual
Section 3 - Conguration
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway:
L2TP Server IP:
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the subnet mask supplied by your ISP (Static only).
Enter the gateway IP address provided by your ISP.
Enter the server IP provided by your ISP (optional).
Enter your L2TP username.
Enter your L2TP password and then retype the password in the next
box.
Select either Always-on, On-Demand, or Manual. You can also select
a schedule for connection.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, set your
reconnect mode to Always-on.
Enter the primary and secondary DNS server addresses (Static L2TP
only).
MTU:
Clone MAC
Address:
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specific ISP. 1400 is the default MTU.
The default MAC address is set to the Internet port’s physical interface
MAC address on the broadband router. It is not recommended that
you change the default MAC address unless required by your ISP.
You can use the Clone Your PC’s MAC Address button to replace the
Internet port’s MAC address with the MAC address of your Ethernet
card.
20D-Link DIR-615 User Manual
Section 3 - Conguration
DS-Lite DHCPv6
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:
DS-Lite
Conguration:
AFTR IPv6
Address:
B4 IPv4 Address:
WAN IPv6
Address:
IPv6 WAN Default
Gateway
Select the DS-Lite DHCPv6 option to let the router allocate the
AFTR IPv6 address automatically. Select the Manual Conguration
to enter the AFTR IPv6 address in manually.
After selecting the manual conguration option above, the user
can enter the AFTR IPv6 address used here.
Enter the B4 IPv4 address value used here.
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN default gateway address will be
displayed here.
21D-Link DIR-615 User Manual
Section 3 - Conguration
Wireless Settings
If you want to configure the wireless settings on your router using the wizard, click
Wireless Network Setup Wizard and refer to “Wireless Network Setup Wizard” on
page 74.
Click Add Wireless Device with WPS if you want to add a wireless device using Wi-Fi
Protected Setup (WPS) and refer to “Add Wireless Device with WPS Wizard” on page 77.
If you want to manually configure the wireless settings on your router click Manual
Wireless Network Setup and refer to the next page.
22D-Link DIR-615 User Manual
Section 3 - Conguration
Manual Wireless Network Setup
Enable Wireless:
Wireless
Network Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless
Channel:
Check the box to enable the wireless function. If you do not want to use
wireless, uncheck the box to disable all wireless functions. Click Add
New to create your own time schedule to enable the wireless function.
Service Set Identifier (SSID) is the name of your wireless network. Create
a name using up to 32 characters. The SSID is case-sensitive.
Select one of the following:
802.11b Only - Select if all of your wireless clients are 802.11b.
802.11g Only - Select if all of your wireless clients are 802.11g.
802.11n Only - Select only if all of your wireless clients are 802.11n.
Mixed 802.11g and 802.11b - Select if you are using both 802.11b
and 802.11g wireless clients.
Mixed 802.11n and 802.11g - Select if you are using a mix of 802.11n
and 802.11g wireless clients.
Mixed 802.11n, 802.11b, and 802.11g - Select if you are using a mix
of 802.11n, 11g, and 11b wireless clients.
The Auto Channel Scan setting can be selected to allow the DIR-615
to choose the channel with the least amount of interference.
Indicates the channel setting for the DIR-615. By default the channel
is set to 6. The channel can be changed to fit the channel setting for
an existing wireless network or to customize the wireless network. If
you enable Auto Channel Scan, this option will be greyed out.
Transmission
Rate:
Channel Width:
Select the transmission rate. It is strongly suggested to select Best
(Auto) for best performance.
Select the channel width:
Auto 20/40 - Select if you are using both 802.11n and non-802.11n
wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients. This
is the default setting.
23D-Link DIR-615 User Manual
Section 3 - Conguration
Visibility Status:
Wireless Security
Mode:
Select Invisible if you do not want the SSID of your wireless network
to be broadcast by the DIR-615. If Invisible is selected, the SSID of
the DIR-615 will not be seen by site survey utilities, so you will have
to manually enter the SSID of your DIR-615 in order to connect to it.
Select the type of wireless security encryption that you want to use for
your wireless network. For more information regarding how to set up
wireless security, please refer to “Wireless Security” on page 73
24D-Link DIR-615 User Manual
Section 3 - Conguration
Network Settings
This section will allow you to change the local network settings of the router and to configure the DHCP settings.
IP Address:
Subnet Mask:
Local Domain:
Enable DNS Relay:
Enter the IP address of the router. The default IP address is 192.168.0.1.
Note: If you change the IP address, once you click Apply, you will
need to enter the new IP address in your browser in order to access
the configuration utility.
Enter the subnet mask. The default subnet mask is 255.255.255.0.
Enter the domain name (optional).
Uncheck the box to transfer the DNS server information from your
ISP to your computers. If checked, your computers will use the router
for a DNS server.
25D-Link DIR-615 User Manual
Section 3 - Conguration
DHCP Server Settings
The DIR-615 has a built-in Dynamic Host Control Protocol (DHCP) server. The DHCP server will automatically assign an IP
address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/
IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the TCP/IP
settings provided by the DIR-615. The DHCP server will automatically allocate an unused IP address from the IP address pool
to the requesting computer. You must specify the starting and ending address of the IP address pool.
Enable DHCP
Server:
DHCP IP
Address Range:
Lease Time:
Always
Broadcast:
Check this box to enable the DHCP server on your router. Uncheck to
disable this function.
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
Note: If you statically (manually) assign IP addresses to your computers
or devices, make sure the IP addresses are outside of this range or you
may experience an IP address conflict.
The length of time for the IP address lease. Enter the lease time in
minutes.
Enable this function to ensure compatibility with some DHCP clients.
26D-Link DIR-615 User Manual
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router
will assign the IP address only to that computer or device.
Note: This IP address must be within the DHCP IP address range.
Enable:
Computer
Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
Number of
Dynamic DHCP
Clients:
Revoke:
Check this box to enable the reservation.
Enter the computer name or select from the drop-down menu and
click <<.
Enter the IP address you want to assign to the computer or device. This
IP address must be within the DHCP IP address range.
Enter the MAC address of the computer or device.
Click this button to copy the MAC address of the computer you are
currently using into the MAC address field.
Click Save to save your entry. You must click Save Settings at the top
to activate your reservations.
This section displays the number of dynamic DHCP clients currently
connected, and lists details of each client in the table below,
Click Revoke to cancel the lease for a specific LAN device and free an
entry in the lease table. Do this only if the device no longer needs the
leased IP address, because, for example, it has been removed from the
network.
Note: The revoke option will not disconnect a PC with a current network session from the network; you would need to use MAC
address filter to do that. Revoke will only free up a DHCP address for the very next requester. If the previous owner is still available,
those two devices may both receive an IP address conflict error, or the second device may still not receive an IP address; in that case,
you may still need to extend the DHCP IP address range to address the issue, which is located in the DHCP server section.
The reserve option converts this dynamic IP allocation into a DHCP reservation and adds the corresponding entry to the DHCP
reservations list.
27D-Link DIR-615 User Manual
Section 3 - Conguration
Virtual Server
The DIR-615 can be configured as a virtual server so that remote users
accessing web or FTP services via the public IP address can be automatically
redirected to local servers in the LAN (Local Area Network).
The DIR-615 firewall feature filters out unrecognized packets to protect
your LAN network so all computers networked with the DIR-615 are
invisible to the outside world. If you wish, you can make some of the
LAN computers accessible from the Internet by enabling Virtual Server.
Depending on the requested service, the DIR-615 redirects the external
service request to the appropriate server within the LAN network.
The DIR-615 is also capable of port-redirection, meaning incoming traffic
to a particular port may be redirected to a different port on the server
computer.
On this page, each virtual service that is created will be listed at the bottom
of the screen in the virtual servers list. There are pre-defined virtual services
already in the table. You may use them by enabling them and assigning
the server IP to use that particular virtual service.
If you are unsure of which port to open, check your application’s help file,
FAQ, or technical support site. For a list of ports for common applications,
please visit your local D-Link support website.
28D-Link DIR-615 User Manual
Section 3 - Conguration
Virtual Servers List
This will allow you to open a single port for access by specified clients. If you have multiple clients on your network that require
an open port, you will need to create a Virtual Server rule for each client.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Inbound Filter:
Schedule:
Enter a name for the rule or select an application from the drop-down
menu. Select an application and click << to populate the fields.
Enter the IP address of the computer on your local network that you
want to allow the incoming service to. If your computer is receiving an
IP address automatically from the router (DHCP), you computer will be
listed in the Computer Name drop-down menu. Select your computer
and click <<.
Enter the port that you want to open next to Private Port and Public Port.
The private and public ports are usually the same. The public port is the
port seen from the Internet side, and the private port is the port being
used by the application on the computer within your local network.
Select TCP, UDP, Both or Other from the drop-down menu.
Select Allow All (most common) or a created inbound filter. You may
create your own inbound filters in the Advanced > Inbound Filter page.
The schedule of time when the virtual server rule will be enabled. The
schedule may be set to Always, which will allow the particular service
to always be enabled. You can create your own times in the Tools >
Schedules section.
29D-Link DIR-615 User Manual
Section 3 - Conguration
Application Rules
Some applications, such as Internet gaming, video conferencing, and Internet telephony require multiple connections. These
applications have difficulties working through NAT (Network Address Translation). Application rules allow some of these
applications to work with the DIR-615. If you need to run applications that require multiple connections, specify the port
normally associated with an application in the Trigger Port field, select the protocol type as TCP or UDP, then enter the firewall
(public) ports associated with the trigger port to open them for inbound traffic.
Name:
Trigger:
Traffic Type:
Firewall:
Traffic Type:
Schedule:
Enter a name for the rule. You may select a pre-defined application from
the drop-down menu and click <<.
This is the port used to trigger the application. It can be either a single
port or a range of ports. Separate ports with a comma, and specify a
range with a dash. Example: 24,1009,3000-4000
Select the protocol of the trigger port (TCP, UDP, or Both).
This is the port number on the Internet side that will be used to access
the application. You may define a single port or a range of ports.
Separate ports with a comma, and specify a range with a dash. Example:
24,1009,3000-4000
Select the protocol of the firewall port (TCP, UDP, or Any).
The schedule of time when the application rule will be enabled. The
schedule may be set to Always, which will allow the particular service
to always be enabled. You can create your own schedules in the Tools
> Schedules section.
30D-Link DIR-615 User Manual
Section 3 - Conguration
Port Forwarding
This page will allow you to open a single port or a range of ports. Check the box to the left of each rule to activate it.
Name:
IP Address:
TCP/UDP:
Schedule:
Enter a name for the rule or select an application from the drop-down
menu. Select an application and click << to populate the fields.
Enter the IP address of the computer on your local network that you
want to allow the incoming service to. If your computer is receiving
an IP address automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down menu. Select your
computer and click <<.
Enter the TCP and/or UDP port or ports that you want to open. You can
enter a single port or a range of ports. Separate ports with a comma,
and specify a range with a dash. Example: 24,1009,3000-4000
The schedule of time when the port forwarding rule will be enabled.
The schedule may be set to Always, which will allow the particular
service to always be enabled. You can create your own times in the
Tools > Schedules section.
31D-Link DIR-615 User Manual
Section 3 - Conguration
QoS Engine
The QoS Engine option helps improve your online performance by prioritizing applications. By default the QoS Engine settings
are disabled and application priority is not classified automatically.
Enable QoS
Engine:
Automatic Uplink
Speed:
Measured Uplink
Speed:
Manual Uplink
Speed:
This option is disabled by default. Enable this option for better
performance and experience with online games and other interactive
applications, such as VoIP.
This option is enabled by default when the QoS engine option is
enabled. This option will allow your router to automatically determine
the uplink speed of your Internet connection.
This displays the detected uplink speed.
The speed at which data can be transferred from the router to your ISP.
This is determined by your ISP. ISPs usually list speeds as a download/
upload pair. For example, 1.5 Mbps/284 Kbps. Using this example, you
would enter 284. Alternatively you can test your uplink speed with a
service such as www.dslreports.com.
32D-Link DIR-615 User Manual
Section 3 - Conguration
Network Filters
Use MAC (Media Access Control) filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from
accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are
currently connected to the broadband router.
Configure MAC
Filtering:
MAC Address:
DHCP Client:
Schedule:
Select Turn MAC Filtering Off, Allow MAC addresses listed below, or
Deny MAC addresses listed below from the drop-down menu.
Enter the MAC address you would like to filter.
To find the MAC address on a computer, please refer to “Networking
Basics” on page 103.
Select a DHCP client from the drop-down menu and click << to copy
that MAC Address.
Select the schedule which will dictate when the filtering rules will be
effective. Click on the New Schedule button to begin the Schedule
Wizard to and create a new schedule.
33D-Link DIR-615 User Manual
Section 3 - Conguration
Access Control
The Access Control section allows you to control access in and out of your network. Use this feature as a parental control to
only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P
utilities or games.
Add Policy:
Click Next to continue with the wizard.
Check the Enable Access Control check box and click the Add Policy
button to start the Access Control Wizard. All current policies will be
displayed in the policy table. To edit a policy, click on the Edit icon. To
delete the policy, click on the Delete icon.

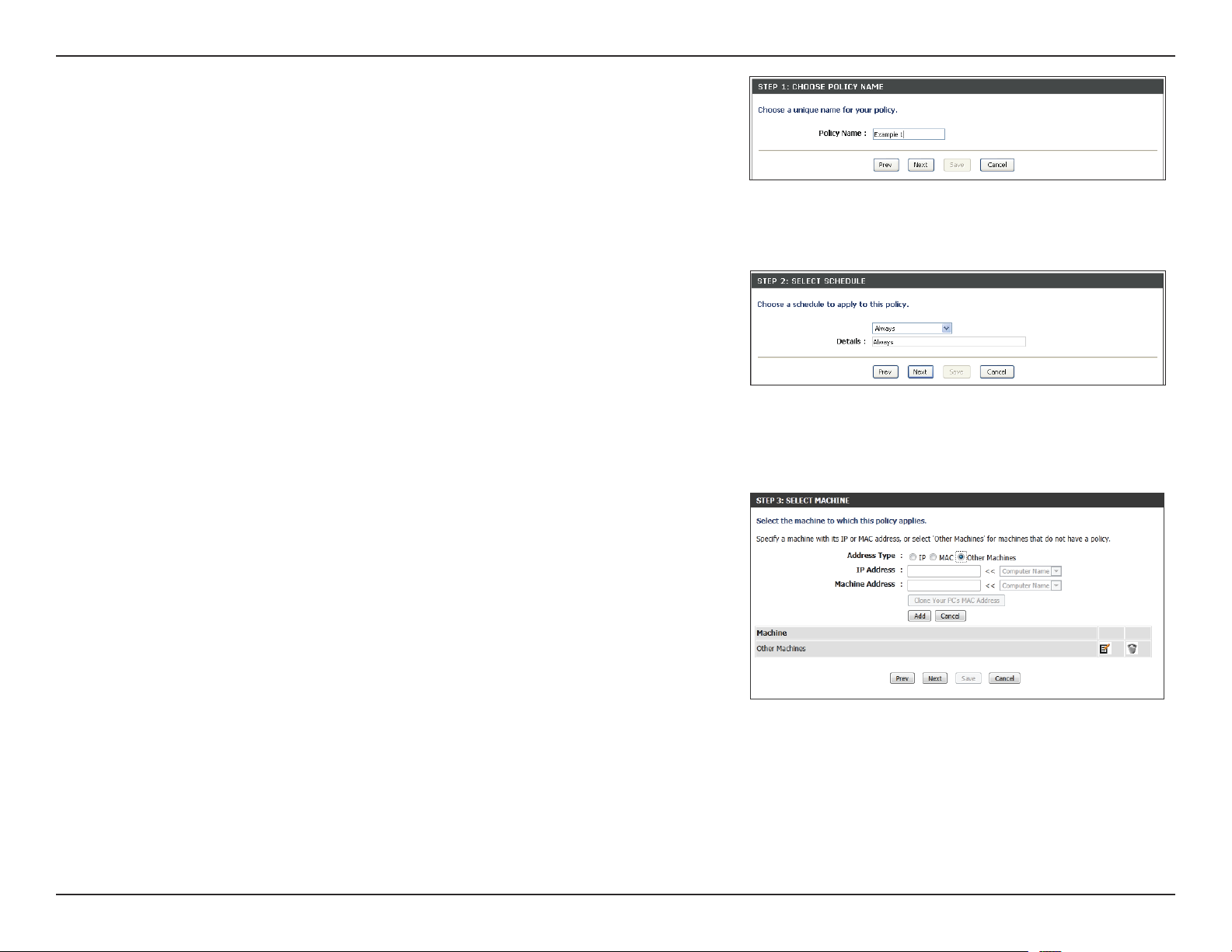

Access Control Wizard
34D-Link DIR-615 User Manual
Section 3 - Conguration
Enter a name for the policy and then click Next to continue.
Select a schedule from the drop-down menu and then click Next to continue. You can
create new schedules in the Tools > Schedules section.
Enter the following information and then click Next to continue.
• Address Type - Select IP address, MAC address, or other machines.
• IP Address - Enter the IP address of the computer you want to apply the rule to.
35D-Link DIR-615 User Manual
Section 3 - Conguration
Select the filtering method and then click Next to continue.
Enter the rule:
Enable - Check to enable the rule.
Name - Enter a name for your rule.
Dest IP Start - Enter the starting IP address.
Dest IP End - Enter the ending IP address.
Protocol - Select the protocol.
Dest Port Start - Enter the starting port number.
Dest Port End - Enter the ending port number.
To enable web logging, click Enable.
Click Save to save the access control rule.
36D-Link DIR-615 User Manual
Section 3 - Conguration
Website Filters
Website Filters are used to allow you to set up a list of allowed web sites that can be used by multiple users through the network.
To use this feature, select to Allow or Deny, enter the domain or website and click Add, and then click Save Settings. You
must create a policy and select Apply Web Filter under the Access Control settings in order for website filters to work. Please
refer to “Access Control” on page 34 for more information.
Configure
Website Filter
Below:
Clear the list
below:
Website URL/
Domain:
Select Deny or Allow computers access to only these sites.
Click to delete all entries in the list.
Enter the keywords or URLs that you want to allow or deny.
37D-Link DIR-615 User Manual
Section 3 - Conguration
Inbound Filters
The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
configure inbound data filtering rules that control data based on an IP address range. Inbound filters can be used with virtual
server, port forwarding, or remote administration features.
Name:
Action:
Enable:
Source IP Start:
Source IP End:
Save:
Inbound Filter
Rules List:
Enter a name for the inbound filter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify
an IP range.
Enter the ending IP address. Enter 255.255.255.255 if you do not want
to specify an IP range.
Click the Save button to apply your settings. You must click Save
Settings at the top to save the settings.
This section will list any rules that are created. You may click the Edit icon
to change the settings or enable/disable the rule, or click the Delete
icon to remove the rule.
38D-Link DIR-615 User Manual
Section 3 - Conguration
Firewall Settings
A firewall protects your network from the outside world. The DIR-615 offers a firewall type functionality. The Stateful Packet
Inspection (SPI) feature helps prevent malicious attacks. Sometimes you may want a computer exposed to the outside world
for certain types of applications. If you choose to expose a computer, you can enable the Demilitarized Zone (DMZ). This option
will expose the chosen computer completely to the outside world.
Enable SPI:
Enable Anti-Spoof
Checking:
Enable DMZ Host:
IP Address:
SPI (Stateful Packet Inspection, also known as dynamic packet filtering)
helps to prevent cyber attacks by tracking the state of packets traveling
across the network. It validates that the traffic passing through the
session conforms to the protocol.
Enable this option to provide protection from certain kinds of
“spoofing” attacks.
If an application has trouble working from behind the router, you can
expose one computer to the Internet and run the application on that
computer. Check the Enable DMZ box to place a computer in the DMZ.
Note: Placing a computer in the DMZ may expose that computer to
a variety of security risks. Use of this option is only recommended for
experienced users who understand the associated risks.
Specify the IP address of the computer on the LAN that you want to
have unrestricted Internet communication. If this computer obtains
its IP address automatically using DHCP, be sure to make a static
reservation on the System > Network Settings page so that the IP
address of the DMZ machine does not change.
39D-Link DIR-615 User Manual
Section 3 - Conguration
Advanced Wireless Settings
This section allows you to adjust the advanced settings of your wireless network. It is not recommended that you make changes
in this section unless you are familiar with these settings, or you have been instructed to do so.
Transmit
Power:
WLAN
Partition:
WMM Enable:
HT 40/20
Coexistence:
Set the transmit power of the antennas.
Enabling this feature prevents wireless clients from communicating
with each other over the wireless network. Clients will still be able
to communicate with the router and access the Internet, however
communications with other connected wireless clients will be blocked.
WMM is QoS for your wireless network. This can help to improve the
quality of video and voice applications for your wireless clients.
Enable this feature to force the use of the 40 MHz band even in heavily
congested areas. Enabling this feature may reduce transmission speeds
when there are a number of other wireless N devices operating within
the same vicinity. When disabled, the DIR-615 will drop back to the
slower 20 MHz when heavy congestion is detected on the 40 MHz band.
40D-Link DIR-615 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) allows you to easily and securely add compatible wireless devices to your network. WPS uses two
methods to add devices, Push Button Configuration (PBC) and PIN configuration. PBC allows configuration by pressing a WPS
button on the router and the new device, and the PIN method provides a PIN code which must be entered on the new device
or client in order to connect.
Enable:
Wi-Fi Protected
Setup:
Lock WPS-PIN
Setup:
PIN:
Add Wireless
Station:
Check this box to enable devices to be added using the WPS
method.
Displays the current status of the WPS mode.
Check this box to block configuration using the WPS-PIN method.
If this option is selected, devices can still be added using the WPSPBC method.
Displays the current PIN code for adding devices to your network.
Click the Reset PIN to Default button to return the PIN code to its
default setting. Click the Generate New PIN button to generate
a new PIN number. These settings will be saved once the Save
Settings button has been clicked.
Click the Connect your Wireless Device button to be taken
through the steps of adding a new device. For more information
on adding devices using WPS, please refer to “Configure WPS” on
page 85.
41D-Link DIR-615 User Manual
Section 3 - Conguration
Advanced Network Settings
This section allows you to adjust the advanced settings of your wired network. It is not recommended that you make changes
in this section unless you are familiar with these settings, or you have been instructed to do so.
UPnP Settings:
WAN Ping:
WAN Port Speed:
IPV4 Multicast
Streams:
IPV6 Multicast
Streams:
To use the Universal Plug and Play (UPnP
UPnP provides compatibility with networking equipment, software
and peripherals.
Unchecking the box will not allow the DIR-615 to respond to pings.
Blocking the ping may provide some extra security from hackers. Check
the box to allow the Internet port to be “pinged”.
You may set the port speed of the Internet port to 10 Mbps, 100 Mbps,
or auto. Some older cable or DSL modems may require you to set the
port speed to 10 Mbps.
Check the box to allow multicast traffic to pass through the router
from the Internet over IPV4 routes.
Check the box to allow multicast traffic to pass through the router
from the Internet over IPV6 routes.
™
) feature, click on Enabled.
42D-Link DIR-615 User Manual
Section 3 - Conguration
IPv6
This section allows you to set up an IPv6 connection. There are several connection types to choose from: Auto Detection,
Static IPv6, Autoconfiguration (SLAAC/DHCPv6), PPPoE, IPv6 in IPv4 Tunnel, 6to4, 6rd, and Link-local. If you are unsure of your
connection method, or are missing any of the information required in any of the steps in this section, please contact your IPv6
Internet Service Provider.
At any time during the IPv6 setup, you can click the Save Settings button to save your current configuration, or click the Don’t
Save Settings button to discard any changes.
Auto Detection
The DIR-615 is able to automatically detect your IPv6 connection type and acquire the relevant settings from your ISP. You
should only populate the other fields on this page if you are familiar with their functions, or you have been instructed to do
so by your ISP.
My IPv6
Connection Is:
IPv6 DNS
Settings:
Primary/
Secondary DNS
Address:
Enable DHCP-
PD:
LAN IPv6
Address:
Select Auto Detection to have the DIR-615 automatically detect your
IPv6 connection. Once selected, you can click Save Settings to save
the configuration. If the auto detection is successful, the Internet LED
on the front of your router will be lit green.
Note: If you have a PPPoE account which only allows an IPv6
connection, you cannot use the auto detection feature and should
select PPPoE and set up the connection manually.
Select either Obtain IPv6 DNS Servers Automatically or Use the
following IPv6 DNS Servers.
If you did not choose to obtain DNS servers automatically, enter the
primary and secondary DNS server addresses.
Check this box to enable DHCP-PD services.
Enter the LAN (local) IPv6 address for the router.
43D-Link DIR-615 User Manual
Section 3 - Conguration
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Displays the router’s LAN link-local address.
Check to enable the automatic IPv6 address assignment feature.
Check this box to automatically enable DHCP-PD services.
Choose either Stateful DHCPv6, SLAAC + RDNSS, or SLAAC +
Stateless DHCPv6 from the drop-down menu.
Enter the IPv6 address lifetime (in minutes).
44D-Link DIR-615 User Manual
Section 3 - Conguration
Static IPv6
My IPv6
Connection Is:
Use Link-Local
Address:
Subnet Prefix
Length:
IPv6 Default
Gateway:
Primary/
Secondary IPv6
DNS Servers:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Select Static IPv6 from the drop-down menu.
Check the box and enter the address settings supplied by your Internet
provider (ISP).
Enter a subnet prefix length.
Enter the default gateway for your IPv6 connection.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Check to enable the autoconfiguration feature.
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Choose either Stateful DHCPv6, SLAAC + RDNSS or SLAAC +
Stateless DHCPv6 from the drop-down menu.
Enter the IPv6 address lifetime (in minutes).
45D-Link DIR-615 User Manual
Section 3 - Conguration
DHCP Autoconfiguration
My IPv6
Connection Is:
IPv6 DNS Settings:
Primary/
Secondary DNS
Address:
Enable DHCP-PD:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Select Autoconfiguration (SLAAC/DHCPv6) from the drop-down
menu.
Select either Obtain IPv6 DNS Servers Automatically or Use the
following IPv6 DNS Servers.
If you did not choose to obtain DNS servers automatically, enter the
primary and secondary DNS server addresses.
Check this box to enable DHCP-PD services.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Check to enable the automatic IPv6 address assignment feature.
Check this box to automatically enable DHCP-PD services.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
46D-Link DIR-615 User Manual
Section 3 - Conguration
PPPoE
My IPv6
Connection
Is:
PPPoE
Session:
Address
Mode:
IP Address:
Username:
Password:
Service
Name:
Reconnect
mode:
Maximum
Idle Time:
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet provider.
Select Static if your ISP assigned you an IP address, subnet mask, gateway,
and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is
maintained during inactivity.
MTU:
IPv6 DNS
Settings:
Primary/
Secondary
DNS Address:
Enable
DHCP-D:
LAN IPv6
Address:
Maximum Transmission Unit - you may need to change the MTU for optimal
performance with your specific ISP. 1492 is the default MTU.
Select either Obtain IPv6 DNS Servers Automatically or Use the
following IPv6 DNS Servers.
Enter the primary and secondary DNS server addresses.
Check this box to enable DHCP prefix delegation for each LAN on the
network.
Enter the LAN (local) IPv6 address for the router.
47D-Link DIR-615 User Manual
Section 3 - Conguration
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
IPv6 Address
Lifetime:
Displays the router’s LAN link-local address.
Check to enable the automatic IPv6 address assignment feature.
Check this box to enable automatic configuration of the DHCP prefix
delegation for each LAN on the network.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
48D-Link DIR-615 User Manual
Section 3 - Conguration
IPv6 in IPv4 Tunnel
My IPv6
Connection Is:
Remote IPv4
Address:
Remote IPv6
Address:
Local IPv4
Address:
Local IPv6
Address:
Subnet Prefix
Length:
IPv6 DNS
Settings:
Primary/
Secondary DNS
Address:
Select IPv6 in IPv4 Tunnel from the drop-down menu.
Enter the IPv4 remote address you will use.
Enter the IPv6 remote address you will use.
Enter the IPv4 local address you will use.
Enter the IPv6 local address you will use.
Enter the subnet prefix length given to you by your tunnel broker
Select either Obtain IPv6 DNS Servers Automatically or Use the
following IPv6 DNS Servers.
Enter the primary and secondary DNS server addresses.
Enable
DHCP-D:
LAN IPv6
Address:
LAN IPv6 LinkLocal Address:
Enable
Automatic IPv6
Address
Assignment:
Check this box to enable DHCP prefix delegation for each LAN.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Check to enable the automatic IPv6 address assignment feature.
49D-Link DIR-615 User Manual
Section 3 - Conguration
Enable Automatic
DHCP-PD in LAN:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Check this box to enable automatic configuration of the DHCP prefix
delegation for each LAN on the network.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the router advertisement lifetime (in minutes).
50D-Link DIR-615 User Manual
Section 3 - Conguration
IPv6 to IPv4 (6to4)
My IPv6
Connection Is:
6to4 Address:
6to4 Relay:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Select 6to4 from the drop-down menu.
Enter the IPv6 settings supplied by your ISP.
Enter the IPv6 relay supplied by your ISP.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Check to enable the automatic IPv6 address assignment feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
51D-Link DIR-615 User Manual
Section 3 - Conguration
6rd
My IPv6
Connection Is:
Enable Hub and
Spoke Mode:
6rd Configuration:
6rd IPv6 Prefix:
IPv4 Address:
Mask Length:
Assigned IPv6
Prefix:
6rd Border Relay
IPv4 Address:
Primary/
Secondary DNS
Address:
Select 6rd from the drop-down menu.
Check this box if you want to minimize the number of routes to the
destination by using a hub and spoke method of networking.
Choose the 6rd DHCPv4 Option to automatically discover and
populate the data values, or Manual Configuration to enter the
settings yourself.
Enter the 6rd IPv6 prefix settings supplied by your ISP.
Your IPv4 address will appear here.
Enter the desired IPv4 mask length.
When an IPv6 prefix is assigned, it will appear here.
Enter the 6rd border relay IPv4 address settings supplied by your ISP.
Enter the primary and secondary DNS server addresses.
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN link-local address.
Check to enable the automatic IPv6 address assignment feature.
52D-Link DIR-615 User Manual
Section 3 - Conguration
Autoconfiguration
Type:
Router
Advertisement
Lifetime:
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 address lifetime (in minutes).
53D-Link DIR-615 User Manual
Section 3 - Conguration
Local Connectivity Only
My IPv6
Connection Is:
LAN IPv6 Address
Settings:
Select Link-Local Only from the drop-down menu.
Displays the IPv6 address of the router.
54D-Link DIR-615 User Manual
Section 3 - Conguration
Administrator Settings
This page will allow you to change the Administrator and User passwords. You can also enable remote management. There are
two accounts that can access the management interface through the web browser. The accounts are admin and user. Admin
has read/write access while user has read-only access. User can only view the settings but cannot make any changes. Only the
Admin account has the ability to change both admin and user account passwords.
Admin Password:
Gateway Name:
Enable Graphical
Authentication:
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Inbound Filter:
Enter a new password for the administrator login name. The
administrator can make changes to all settings.
Enter a name for the DIR-615 router.
Enables a challenge-response test to require users to type letters or
numbers from a distorted image displayed on the screen to prevent
online hackers and unauthorized users from using automated
methods to gain access to your router’s network settings.
Check to enable HTTPS to connect to the router securely.
Remote management allows the DIR-615 to be configured from
the Internet via a web browser. A username and password is still
required to access the web-based management interface. In general,
only a member of your network can browse the built-in web pages
to perform administrator tasks. This feature enables you to perform
administrator tasks from the remote (Internet) host.
The port number used to access the DIR-615.
Example: http://x.x.x.x:8080 where x.x.x.x is the Internet IP address
of the DIR-615 and 8080 is the port used for the web management
interface. If you have enabled HTTPS Server and checked Use
HTTPS, you must enter https:// as part of the URL to access the
router remotely.
55D-Link DIR-615 User Manual
Section 3 - Conguration
Time Settings
The Time Configuration option allows you to configure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in and set the time server. Daylight saving can also be configured to
automatically adjust the time when needed.
Time Zone:
Daylight
Saving:
Enable NTP
Server:
NTP Server
Used:
Manual:
Select the time zone from the drop-down menu.
To select daylight saving time manually, select enabled or disabled, and
enter a start date and an end date for daylight saving time.
Network Time Protocol (NTP) synchronizes computer clock times in a
network of computers. Check this box to use a NTP server. This will only
connect to a server on the Internet, not a local server.
Enter the NTP server or select one from the drop-down menu.
To manually input the time, enter the values in these fields for the year,
month, day, hour, minute, and second and then click Set Time. You can
also click Sync Your Computer’s Time Settings.
56D-Link DIR-615 User Manual
Section 3 - Conguration
SysLog
The DIR-615 keeps a running log of events and activities occurring on the router. You may send these logs to a SysLog server
on your network.
Enable Logging
to SysLog Server:
SysLog Server IP
Address:
Check this box to send the router logs to a SysLog Server.
The address of the SysLog server that will be used to send the logs.
You may also select your computer from the drop-down menu (only if
receiving an IP address from the router via DHCP).
57D-Link DIR-615 User Manual
Section 3 - Conguration
Email Settings
The Email feature can be used to send the system log files, router alert messages, and firmware update notification to your
email address.
Enable Email
Notification:
From Email
Address:
To Email Address:
Email Subject:
SMTP Server
Address:
Enable
Authentication:
Account Name:
Password:
On Log Full:
On Schedule:
When this option is enabled, router activity logs are emailed to a
designated email address.
This email address will appear as the sender when you receive a log file
or firmware upgrade notification via e-mail.
Enter the email address where you want the email sent.
Enter the text you want to appear in the subject line of emails sent.
Enter the SMTP server address for sending email.
Check this box if your SMTP server requires authentication.
Enter your account for sending email (if required).
Enter the password associated with the account. Re-type the password
associated with the account (if required).
When this option is selected, logs will be sent via email when the log
is full.
Selecting this option will send the logs via email according to schedule.
Schedule:
Detail:
This option is enabled when On Schedule is selected. You can select
a schedule from the list of defined schedules. To create a schedule, go
to Tools > Schedules.
Displays the details of the schedule you have selected.
58D-Link DIR-615 User Manual
Section 3 - Conguration
System Settings
This section allows you to save, load, or restore your router’s system settings
Save Settings
to Local Hard
Drive:
Load Settings
from Local
Hard Drive:
Restore
to Factory
Default
Settings:
Reboot
Device:
Clear
Language
Pack:
Use this option to save the current router configuration settings to a
file on the hard disk of the computer you are using. First, click the Save
button. You will then see a file download dialog in your web browser,
where you can select a location and file name for the settings file.
Use this option to load previously saved router configuration
settings. First, use the Browse control to find a previously saved file of
configuration settings. Then, click the Load button to transfer those
settings to the router.
This option will restore all configuration settings back to the settings that
were in effect at the time the router was shipped from the factory. Any
settings that have not been saved will be lost, including any rules that
you have created. If you want to save the current router configuration
settings, use the Save button above.
Click to reboot the router.
Clicking on this button will clear any installed language packs and return
the system language to its factory default.
59D-Link DIR-615 User Manual
Section 3 - Conguration
Update Firmware
You can upgrade the firmware of the router here. Make sure the firmware you want to use is on the local hard drive of the
computer. Click on Browse to locate the firmware file to be used for the update. Please check the D-Link support site for firmware
updates at http://support.dlink.com. You can download firmware upgrades to your hard drive from the D-Link support site.
Firmaware
Information:
Firmware
Upgrade:
Language Pack
Upgrade:
Click on Check Now to check if there is an updated version of the
firmware. If new firmware is found, download the required files to your
hard drive.
After you have downloaded the new firmware, click Browse to locate
the firmware update on your hard drive. Click Upload to complete the
firmware upgrade.
If you have downloaded a language pack for your router. Click on Browse
to locate the language pack on your computer’s hard drive. Once located,
click on Upload to upload the language pack to your router.
60D-Link DIR-615 User Manual
Section 3 - Conguration
DDNS
The DDNS feature allows you to host a server (web, FTP, game server) using a domain name that you have purchased (www.
purchasedname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic
(changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to your server
no matter what your IP address is.
DDNS:
Server Address:
Host Name:
Username or Key:
Password or Key:
DDNS Account
Testing:
Dynamic Domain Name System is a method of keeping a domain name
linked to a changing IP Address. Check the box to enable DDNS.
Choose your DDNS provider from the drop-down menu.
Enter the host name that you registered with your DDNS service provider.
Enter the username for your DDNS account.
Enter the password for your DDNS account.
Click this button to test your DDNS account settings.
61D-Link DIR-615 User Manual
Section 3 - Conguration
System Check
Ping Test:
IPv6 Ping Test:
Ping Results:
The ping test is used to send ping packets to test if a computer
is on the Internet. Enter the IP address that you wish to ping, and
click Ping.
To test and IPv6 address, enter an IPv6 address and click Ping
The results of your ping attempts will be displayed here.
62D-Link DIR-615 User Manual
Section 3 - Conguration
Schedules
The Schedules page allows you to create schedules which can be used to control various settings on the router, such as website
filters, application rules, and MAC filtering.
Name:
Days:
Time:
Save:
Schedule Rules
List:
Enter a name for your new schedule.
Select a day, a range of days, or All Week to include every day.
Check All Day - 24hrs or enter a start and end time for your schedule.
Click Save to save your schedule. You must click Save Settings at the
top for your schedules to go into effect.
The list of schedules will be listed here. Click the Edit icon to make
changes or click the Delete icon to remove the schedule.
63D-Link DIR-615 User Manual
Section 3 - Conguration
Device Information
This page displays the current information for the DIR-615. It will display the LAN, WAN (Internet), and wireless information.
If your Internet connection is set up for a dynamic IP address, then a Release button and a Renew button will be displayed.
Use Release to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect
to drop the PPPoE connection and use Connect to establish the PPPoE connection.
See the following page for more information.
64D-Link DIR-615 User Manual
Section 3 - Conguration
General:
WAN:
LAN:
Wireless LAN:
LAN Computers:
IGMP Multicast
Memberships:
Displays the router’s time and firmware version.
Displays the MAC address and the public IP settings for the router. You
can also choose to release and renew the IP settings.
Displays the MAC address and the private (local) IP settings for the
router.
Displays the wireless MAC address and your wireless settings such as
SSID and Channel.
Displays computers and devices that are connected to the router via
Ethernet and that are receiving an IP address assigned by the router
(DHCP).
Displays the multicast group IP address.
65D-Link DIR-615 User Manual
Section 3 - Conguration
Log
The router automatically logs (records) events of possible interest in the internal memory. If there isn’t enough internal memory
for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view
the router logs. You can define what types of events you want to view and the level of the events to view. This router also has
external Syslog server support so you can send the log files to a computer on your network that is running a Syslog utility.
What to View:
View Levels:
Apply Log
Settings:
Refresh:
Clear:
Email Now:
Save Log:
You can select the types of messages that you want to display from
the log. Firewall & Security, System, and Router Status messages can
be selected.
There are three levels of message importance: Informational, Warning,
and Critical. Select the levels that you want displayed in the log.
Will filter the log results so that only the selected options appear.
Updates the log details on the screen so it displays any recent activity.
Clears all of the log contents.
This option will send a copy of the router log to the e-mail address
configured in the Tools > Email Settings screen.
This option will save the router to a log file on your computer.
66D-Link DIR-615 User Manual
Section 3 - Conguration
Statistics
The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through the DIR-615 on both the
Internet and the LAN ports. The traffic counter will reset if the device is rebooted.
67D-Link DIR-615 User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a
conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer.
68D-Link DIR-615 User Manual
Section 3 - Conguration
Wireless
The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and
MAC address of the connected wireless clients.
69D-Link DIR-615 User Manual
Section 3 - Conguration
Routing Table
This page displays the routing details configured for your router.
70D-Link DIR-615 User Manual
Section 3 - Conguration
IPv6
This screen will display all of your IPv6 Internet and network connection details.
71D-Link DIR-615 User Manual
Section 3 - Conguration
Support
72D-Link DIR-615 User Manual
Section 4 - Security
Wireless Security
This section will show you the different levels of wireless security you can use to protect your network from unauthorized
access. The DIR-615 offers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK(Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent
Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and
uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specific MAC address, which is relatively simple to be sniffed out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password
between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key
entered on your wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more
secure public key encryption system to ensure that only authorized network users can access the network.
73D-Link DIR-615 User Manual
Section 4 - Security
Wireless Network Setup Wizard
To set up your wireless network and implement wireless security features, browse to the Setup page and then click the Wireless
Connection Setup Wizard button.
74D-Link DIR-615 User Manual
Section 4 - Security
Enter the SSID (Service Set Identifier). The SSID is the name of your wireless
network. Create a name using up to 32 characters. The SSID is case-sensitive.
Select Automatically assign a network key and click Next.
Once this screen appears, the setup is complete. You will be given a detailed
summary of your wireless security settings.
Click Save to continue.
75D-Link DIR-615 User Manual
Section 4 - Security
Enter the SSID (Service Set Identifier). The SSID is the name of your wireless
network. Create a name using up to 32 characters. The SSID is case-sensitive.
Select Manually assign a network key and click Next.
Select a wireless security password. It must be exactly 5 or 13 ASCII characters,
or be exactly 10 or 26 characters using 0-9 and A-F.
Click Next to continue.
Your setup is complete. You will be given a detailed summary of your wireless
security settings. Click Save to finish the wizard.
76D-Link DIR-615 User Manual
Section 4 - Security
Add Wireless Device with WPS Wizard
From the Setup > Wireless Settings screen, click Add Wireless Device with
WPS.
Select to add a wireless client using WPS (Wi-Fi Protected Setup). The
wizard will take you through the steps to add your devices using WPS.
If you select , a settings summary screen will appear. Use the
information displayed on this screen to connect your wireless client. Please
refer to your device’s user documentation if you require further information
on how to connect to a wireless network manually.
PIN: Select this option to use the PIN method. In order to use this method you
must know the wireless client’s 8 digit PIN and click Connect.
PBC: Select this option to use PBC (Push Button) method to add a wireless
client. Click Connect. Press the WPS button on your new device within 120
seconds to establish a connection. Note that this button may be a physical
button on the device’s exterior, or a software button within the device’s user
interface.
77D-Link DIR-615 User Manual
Section 4 - Security
Configure WPA-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based configuration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Setup and then
click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if you
have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES. If you have wireless
clients that use both types, use TKIP and AES.
5. Next to Group Key Update Interval, enter the amount of time before the
group key used for broadcast and multicast data is changed (3600 is default).
6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as
a pass-phrase in ASCII format at both ends of the wireless connection. The
pass-phrase must be between 8-63 characters.
7. Click Save Settings to save your settings. If you are configuring the router
with a wireless adapter, you will lose connectivity until you enable WPA-PSK
on your adapter and enter the same passphrase as you did on the router.
78D-Link DIR-615 User Manual
Section 4 - Security
Configure WPA-Enterprise (RADIUS)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based configuration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Setup and then
click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
Note: Wi-Fi Protected Setup must be disabled in order to select WPA-Enterprise.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if
you have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES. If you have wireless
clients that use both types, use TKIP and AES.
5. Next to Group Key Update Interval, enter the amount of time before the
group key used for broadcast and multicast data is changed (3600 is default).
6. Next to RADIUS Server IP Address enter the IP Address of your RADIUS
server.
7. Next to RADIUS Server Port, enter the port you are using with your RADIUS
server. 1812 is the default port.
8. Next to RADIUS Server Shared Secret, enter the security key.
9. Click Advanced to enter settings for a secondary RADIUS Server.
10. Click Apply Settings to save your settings.
79D-Link DIR-615 User Manual
Section 4 - Security
Connect to a Wireless Network
Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to the
time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network name.
80D-Link DIR-615 User Manual
Section 4 - Security
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at the point to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
81D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network

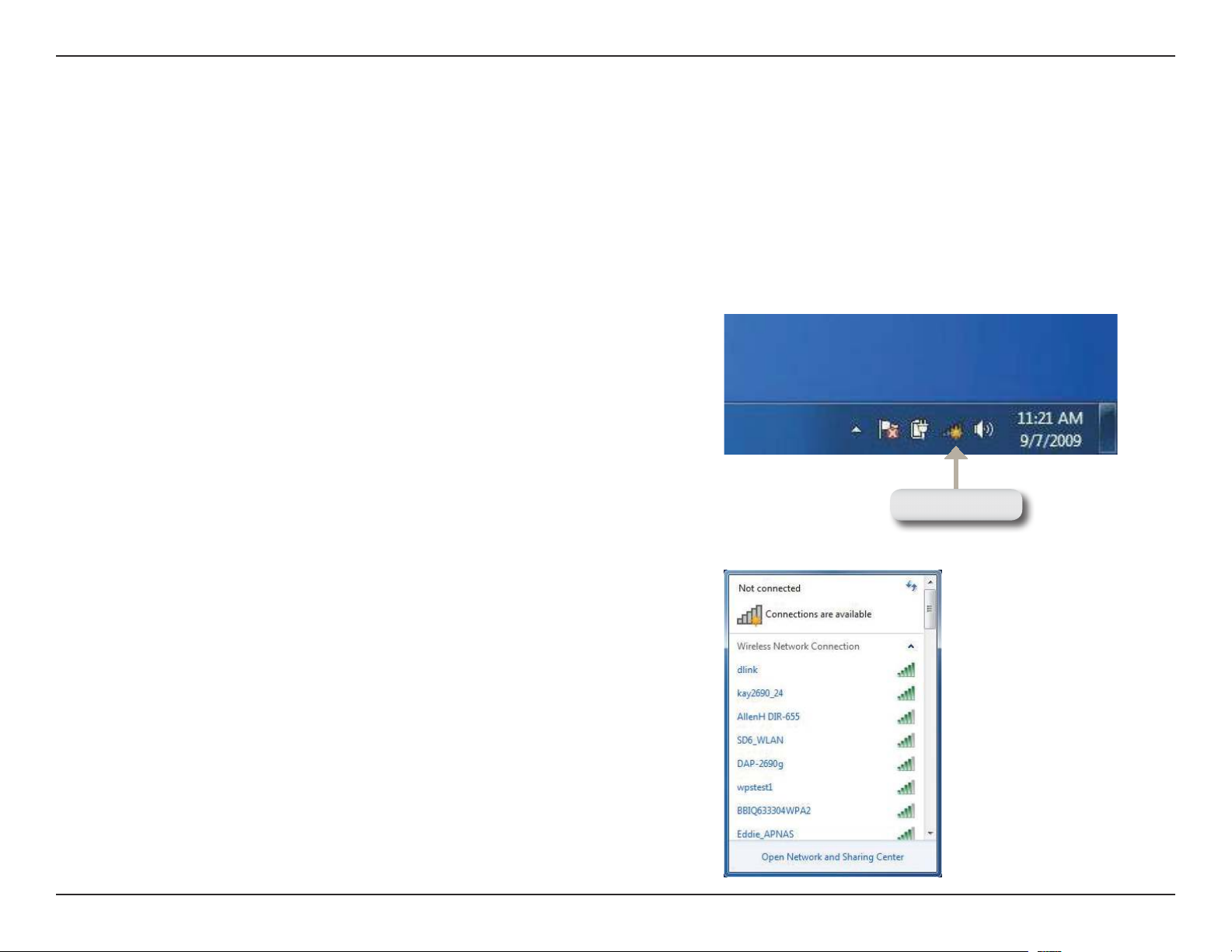

Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
82D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
3. Highlight the wireless network (SSID) you would like to connect
to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to “Networking Basics”
on page 103 for more information.
4. The following window appears while your computer tries to
connect to the router.
83D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your router
and click Connect. You can also connect by pushing the WPS button
on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct.
The key or passphrase must be exactly the same as on the wireless
router.
84D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
Configure WPS
The WPS feature of the DIR-615 can be configured using Windows® 7. Carry out the following steps to use Windows® 7 to
configure the WPS feature of the DIR-615:
1. Click the Start button and select Computer from the Start menu.
2. Click the Network option.
85D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
3. Double-click the DIR-615 router.
4. Input the WPS PIN number (displayed on router label or in the
Setup > Wireless Setup menu in the router’s web user interface)
and click Next.
86D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
5. Type a name to identify the network.
6. To configure advanced settings, click the icon.
Click Next to continue.
87D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
7. The following window appears while the router is being configured.
Wait for the configuration to complete.
8. The following window informs you that WPS on the DIR-615 has
been setup successfully.
Make a note of the security key as you may need to provide this
security key if adding another wireless device to the network in the
future.
9. Click Close to complete WPS setup.
88D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please
refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site
survey” option similar to the Windows Vista® utility as seen below.
If you receive the Wireless Networks Detected bubble, click on
the center of the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray
(lower-right corner next to the time). Select Connect to a network.
The utility will display any available wireless networks in your area.
Click on a network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
89D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
Configure WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Open the Windows Vista® Wireless Utility by right-clicking on
the wireless computer icon in your system tray (lower right corner
of screen). Select Connect to a network.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
90D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase that is on your router and
click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
91D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Configuration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility or Windows® 2000, please refer to the user manual of your wireless
adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows
XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click on
the center of the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray
(lower-right corner next to the time). Select View Available
Wireless Networks.
The utility will display any available wireless networks in your area.
Click on a network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
92D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
Configure WPA-PSK
It is recommended to enable WEP on your wireless router or access point before configuring your wireless adapter. If you are
joining an existing network, you will need to know the WEP key being used.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner of
screen). Select View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
93D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
WPA-PSK passphrase must be exactly the same as on the wireless router.
94D-Link DIR-615 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-615. Read the
following descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different
operating system, the screen shots on your computer may look different to the following examples.)
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet
or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer
must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6 or higher
• Firefox 5.0 or higher
• Safari 3 or higher
• Chrome 3.0 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a different
cable or connect to a different port on the device if possible. If the computer is turned off, the link light may not be on.
• Disable any Internet security software running on the computer. Software firewalls such as ZoneAlarm, BlackICE, Sygate,
Norton Personal Firewall, and Windows XP firewall may block access to the configuration pages. Check the help files included
with your firewall software for more information on disabling or configuring it.
95D-Link DIR-615 User Manual
Section 6 - Troubleshooting
• Configure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore
the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it again.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your the web management.
• If you still cannot access the configuration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the configuration. If you have multiple computers, try connecting using a different computer.
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is admin and leave the
password box empty.
96D-Link DIR-615 User Manual
Loading...
