D-Link DHP-348AV User Manual
2D-Link DHP-348AV User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2011 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 May 13, 2011 • Initial release
Preface
3D-Link DHP-348AV User Manual
Table of Contents
Preface ................................................................................ 2
Manual Revisions .......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview .............................................................. 4
Package Contents .........................................................................4
System Requirements ................................................................. 4
Introduction ...................................................................................5
Features ............................................................................................ 5
DHP-310AV Hardware Overview ............................................. 6
LEDs ........................................................................................... 6
Connection .............................................................................7
DHP-346AV Hardware Overview ............................................. 8
LEDs ........................................................................................... 8
Connection .............................................................................9
DHP-346AV Ethernet Port Trac Priority ...........................10

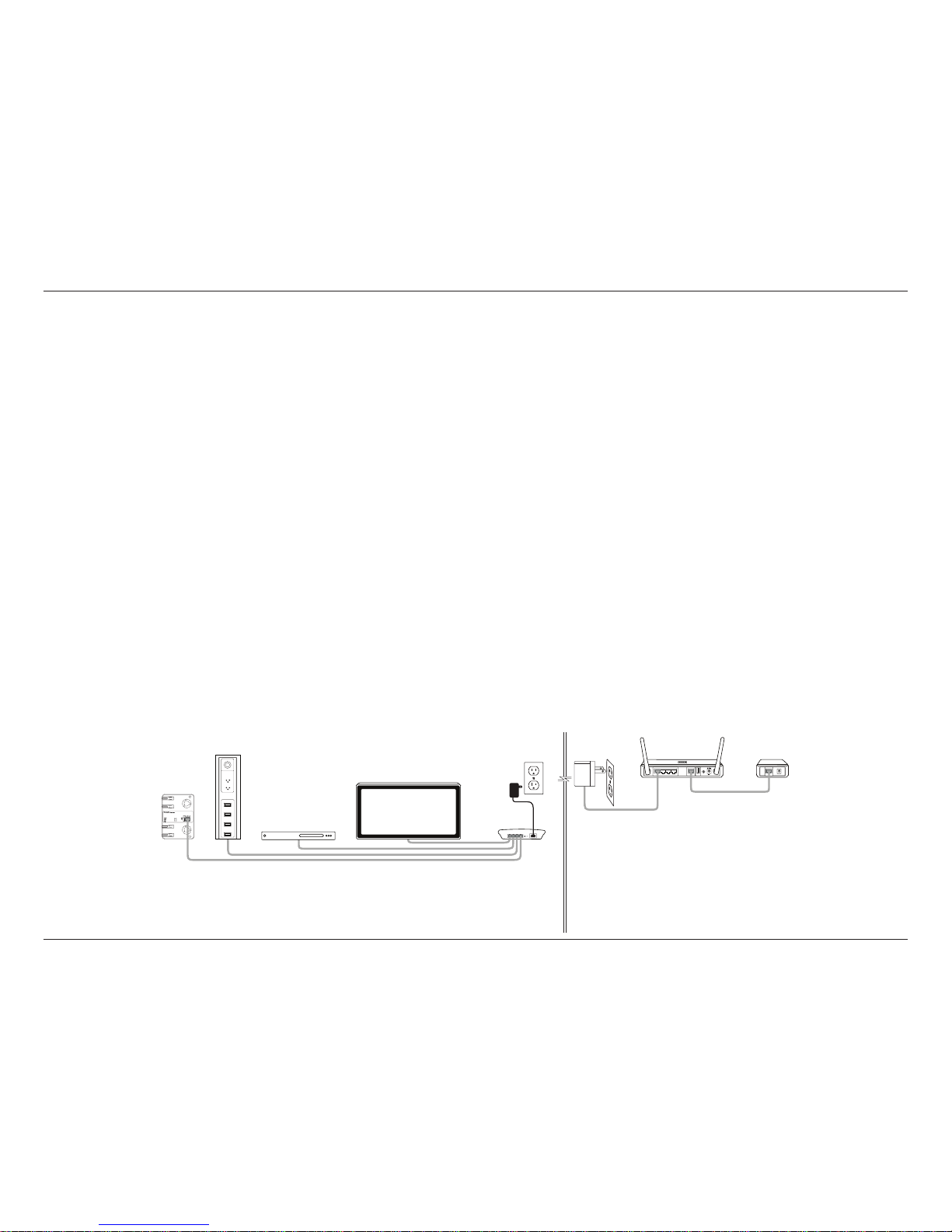

Hardware Installation .....................................................11

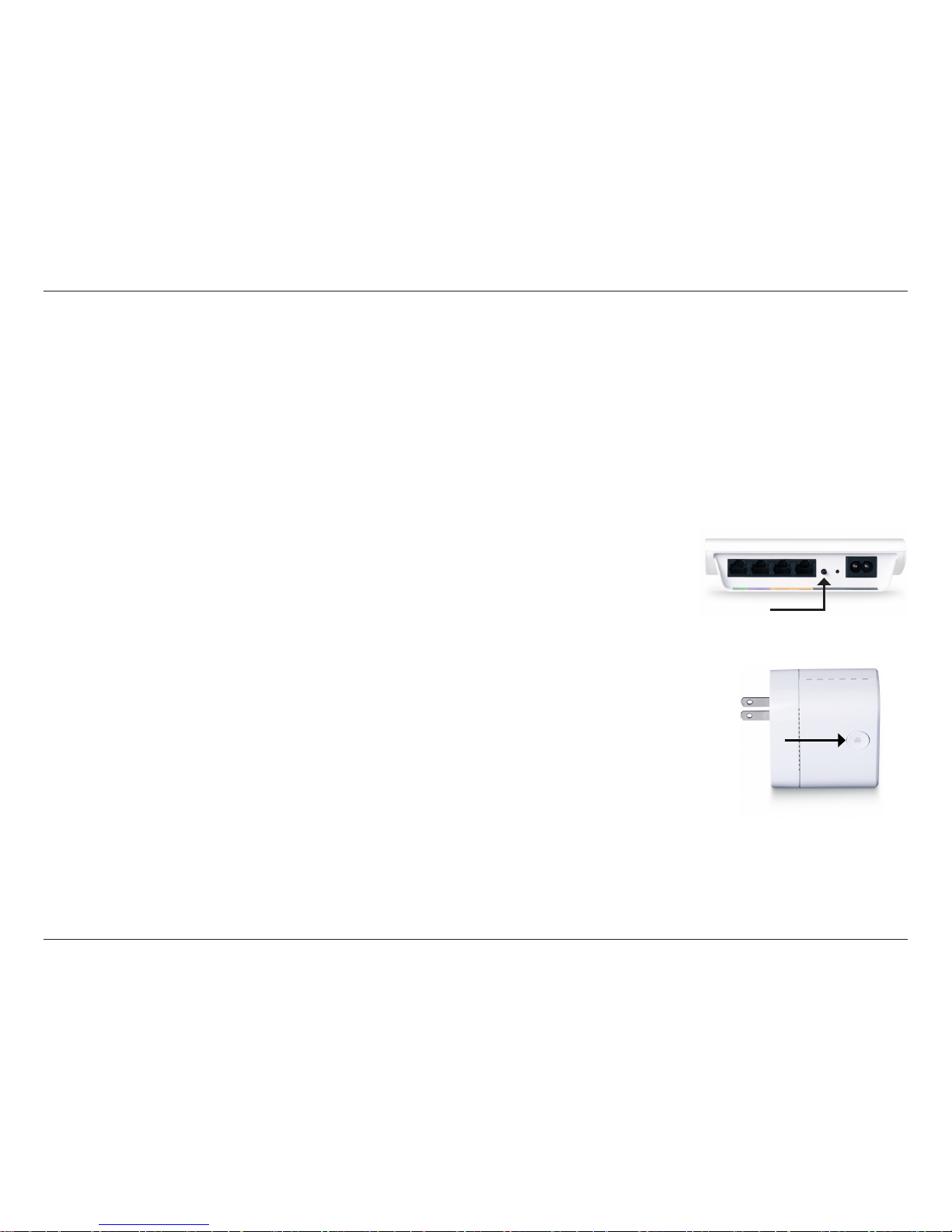

Push Button Security .......................................................13
Using the Setup Wizard ................................................... 14

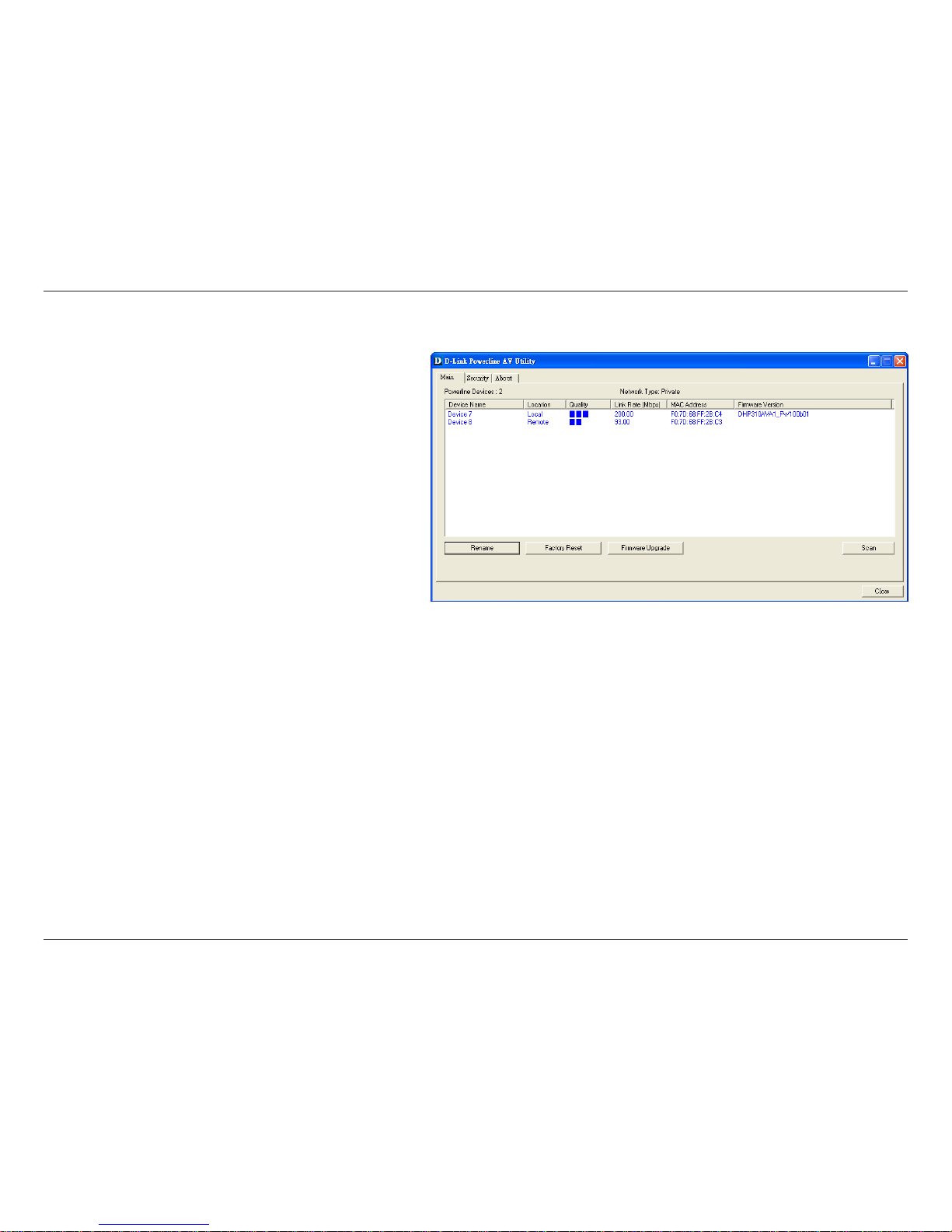

Conguration ...............................................................................15

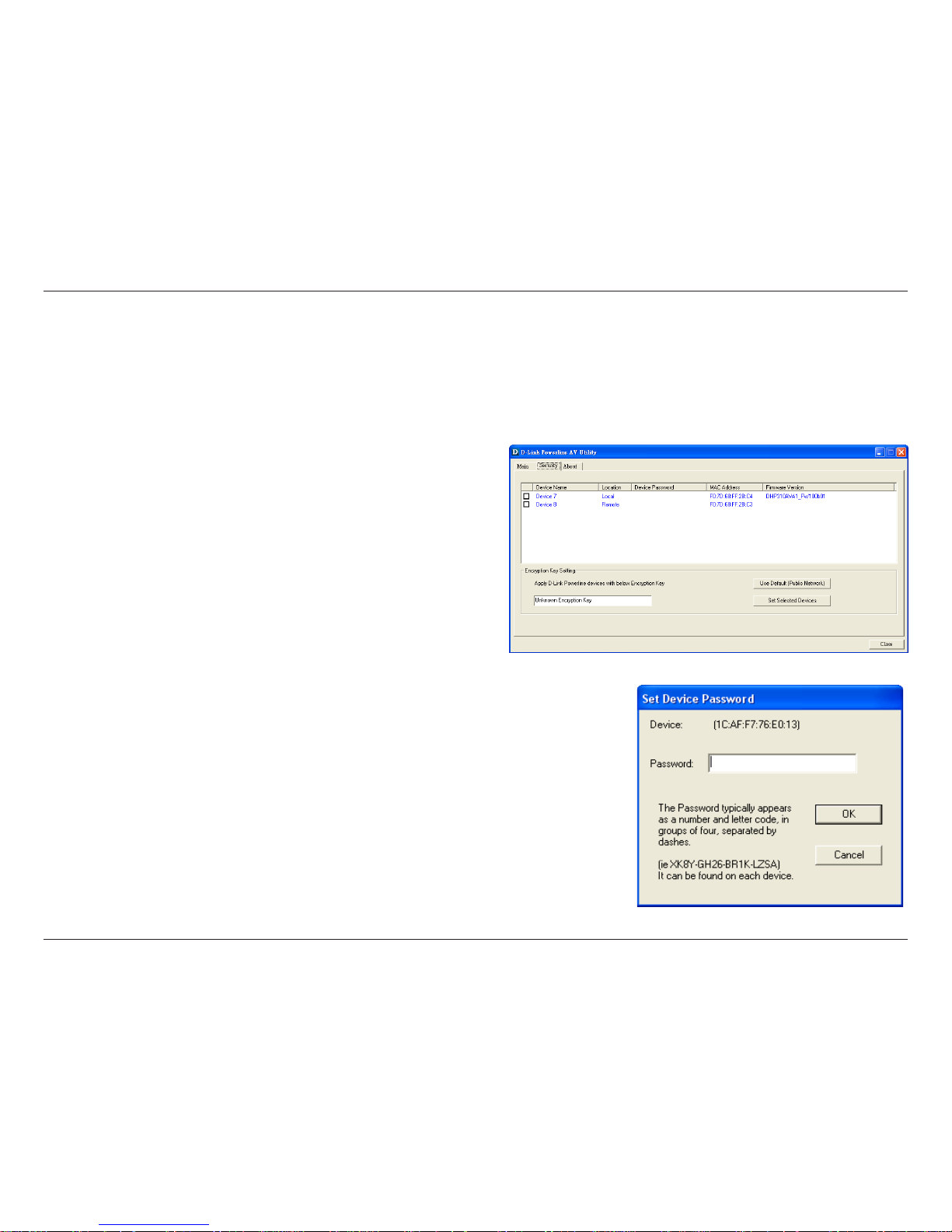

Security ..........................................................................................17
Troubleshooting ..............................................................19
DHP-346AV Technical Specications .............................20
DHP-310AV Technical Specications .............................21
Contacting Technical Support ........................................22
Warranty ...........................................................................23
Registration .....................................................................28
Table of Contents
4D-Link DHP-348AV User Manual
Section 1 - Product Overview
One D-Link DHP-310AV PowerLine AV Mini Adapter
One D-Link DHP-346AV PowerLine AV 4-Port Switch
Two CAT5 Ethernet Cables
CD-ROM with Software and User Manual
Power Cord
Quick Install Guide
System Requirements
Product Overview
Package Contents
Software Requirements*
• Windows® 7, Windows Vista®, XP (with Service Pack 3)
• PC with 233MHz Processor, 64MB Memory
• Ethernet Adapter (10/100Mbps)
Network Requirements
• Router/Gateway (If sharing an Internet connection)
• Ethernet device (such as a computer, game console, NAS device, media player, wireless access point, etc.)
• An available electrical outlet

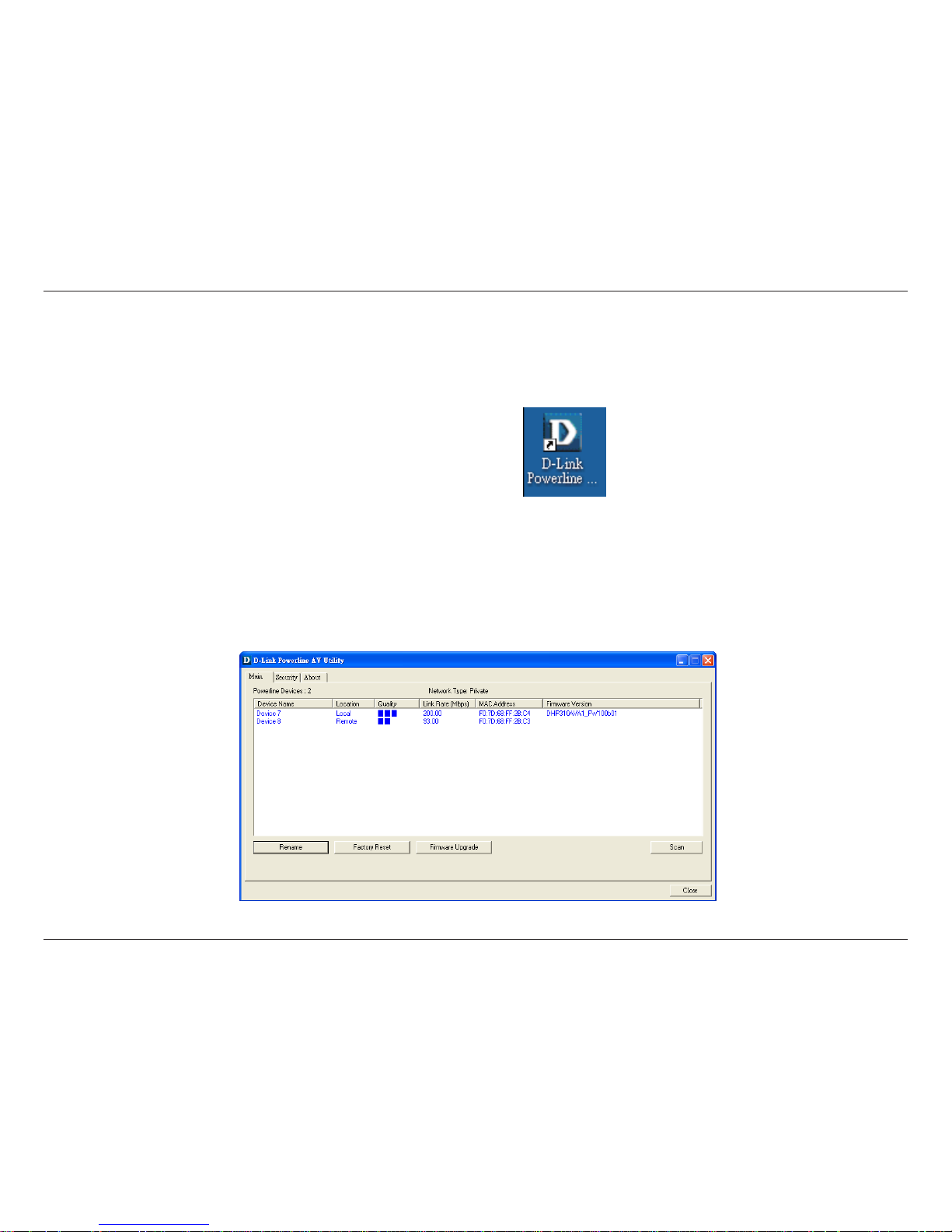

* The D-Link PowerLine AV Utility is optional but is required for rmware upgrades; and is used to manually congure your security/encryption settings,
reset your PowerLine adapter to default settings, and display information such as rmware version, security settings, and connection quality/speed.
5D-Link DHP-348AV User Manual
Section 1 - Product Overview
Introduction
Features
• Use your home’s electrical wiring by plugging into existing power outlets
• Speeds of up to 200Mbps*
• Four 10/100 Ethernet Ports (DHP-346AV)
• One 10/100 Ethernet Port (DHP-310AV)
• Plug & Play, Easy Installation
• QoS support helps prioritize Internet trac
• Supports 128-bit AES encryption for network security
• Push and secure encryption button
• Power Saving mode
• Compact Size (DHP-310AV)
• Port-based QoS to prioritize devices (DHP-346AV)
* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac
and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect
the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that
do not follow the HomePlug AV standard.
D-Link announces the PowerLine AV 4-Port Switch Mini Kit which uses the electrical wiring that’s already in your house to provide fast, reliable
speeds of up to 200Mbps* to any room in the house. Simply connect one adapter into an existing power outlet, connect it to your home network
router, and plug another adapter into any other room in your house to get instant shared network connections. With 4 Ports, you can connect more
devices per room and get blazing speeds in each room without tripping over tangled, messy wires. It’s cable management at its best.
6D-Link DHP-348AV User Manual
Section 1 - Product Overview
DHP-310AV Hardware Overview
LEDs
1
Power LED
• Solid - Indicates that the device is receiving electrical power.
• Blinking - Indicates that the device is setting itself up after reset or when
the security button was pressed or power saving mode enabled.
• O - The device is not receiving electrical power.
2
PowerLine LED
• Solid - The device is connected to a PowerLine network.
• Blinking - The device is transmitting data.
• O - The device has not found any other compatible PowerLine devices
using the same encryption key.
The color indicates the PowerLine link rate:
• Green - The PowerLine link rate is faster than 80 Mbps.
• Amber - The PowerLine link rate is between 50 Mbps and 80 Mbps.
• Red - The PowerLine link rate is less than 50 Mbps.
3
Ethernet LED
• Solid - The Ethernet port is linked but there is no data trac.
• Blinking - The device is transmitting data.
• O - There is no Ethernet connection.
1
1
3
2
7D-Link DHP-348AV User Manual
Section 1 - Product Overview
DHP-310AV Hardware Overview
Connection
1 Ethernet Port Connect the CAT5 Ethernet cable to the DHP-310AV Ethernet port.
2 Reset Button Press and hold the button for 1 second to reset to factory default.
3 Simple Connect Button Press to secure your network. Refer to page 11 for more information.
2
1
3
8D-Link DHP-348AV User Manual
Section 1 - Product Overview
DHP-346AV Hardware Overview
LEDs
1
Power LED
• Solid - Indicates that the device is receiving electrical power.
• Blinking - Indicates that the device is setting itself up after reset or security button
was pressed or power saving mode enabled.
• O - The device is not receiving electrical power.
2
PowerLine LED
• Solid - The device is connected to a PowerLine network.
• Blinking - The device is transmitting data.
• O - The device has not found any other compatible PowerLine devices using the
same encryption key.
The color indicates the PowerLine link rate:
• Green - The PowerLine link rate is faster than 80 Mbps.
• Amber - The PowerLine link rate is between 50 Mbps and 80 Mbps.
• Red - The PowerLine link rate is less than 50 Mbps.
3
LAN LEDs (1-4)
• Solid - The Ethernet port is linked but there is no data trac.
• Blinking - The device is transmitting data.
• O - There is no Ethernet connection.
1
2
3
9D-Link DHP-348AV User Manual
Section 1 - Product Overview

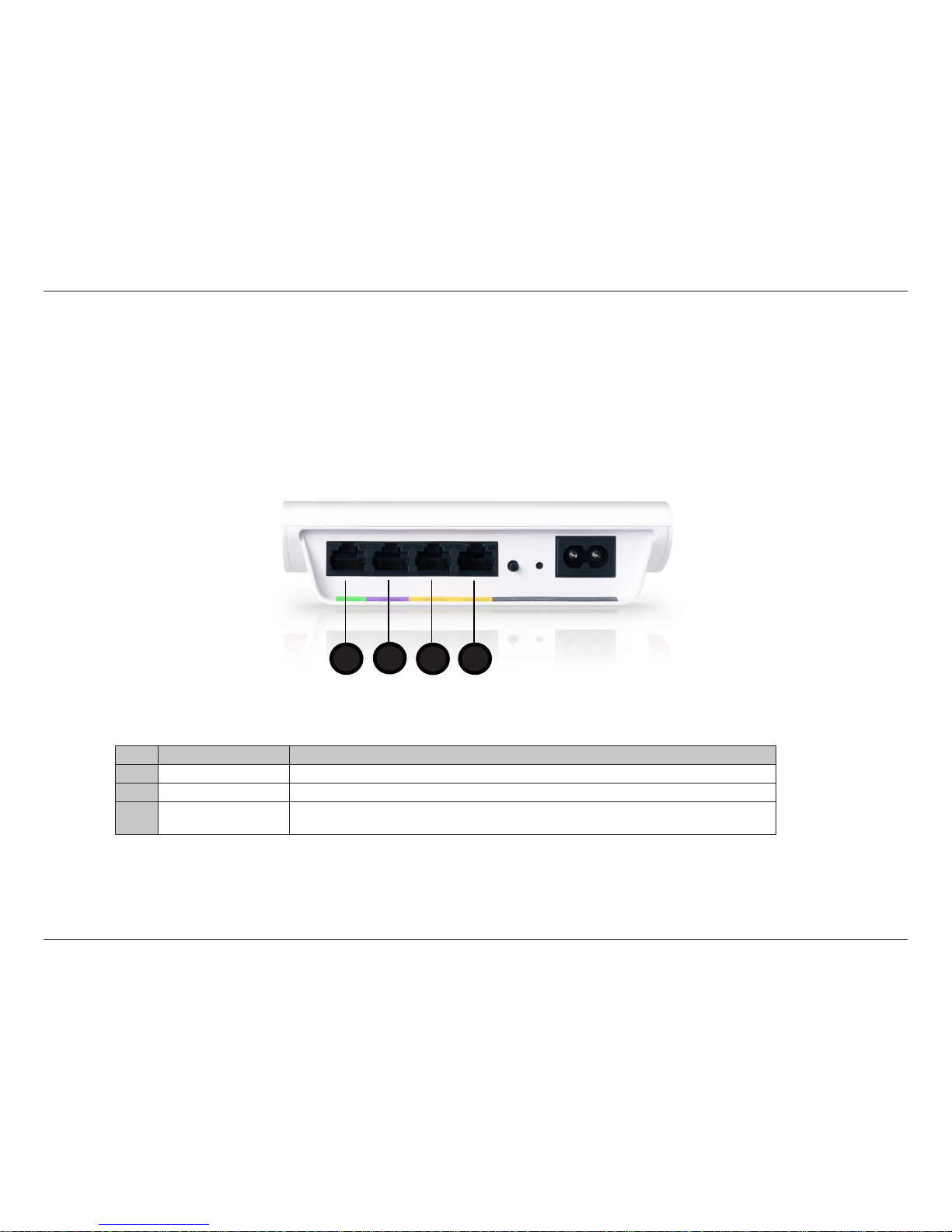

DHP-346AV Hardware Overview
Connection
1 Ethernet Ports (1-4) Connect the CAT5 Ethernet cable to the selected Ethernet port in accordance to priority.
2 Simple Connect Button Press to secure your network. Refer to page 11 for more information.
3 Reset Button Press and hold the button for 1 second to reset to factory default.
4 Power Receptor Receptor for the supplied power cord.
3
1
2
4
