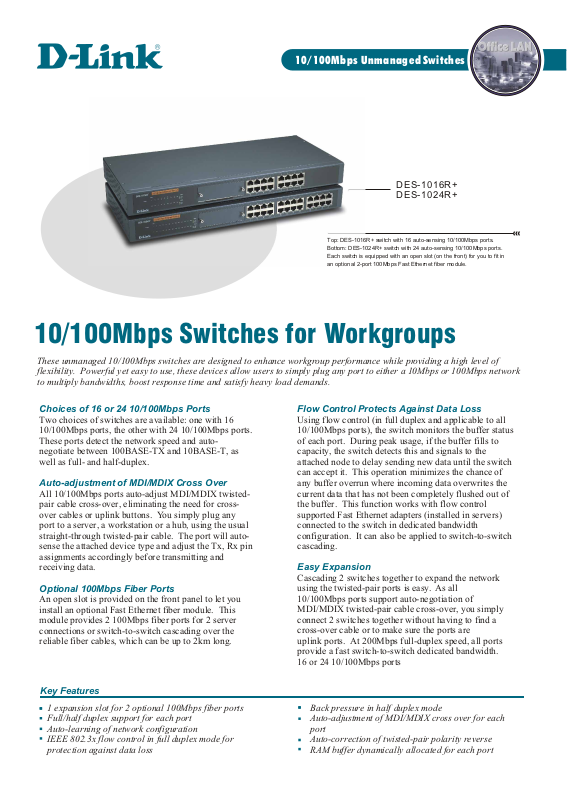

10/100Mbps Unmanaged Switches
DES-1016R+
DES-1024R+
Top: DES-1016R+ switch with 16 auto-sensing 10/100Mbps ports. Bottom: DES-1024R+ switch with 24 auto-sensing 10/100Mbps ports. Each switch is equipped with an open slot (on the front) for you to fit in an optional 2-port 100Mbps Fast Ethernet fiber module.
10/100Mbps Switches for Workgroups
These unmanaged 10/100Mbps switches are designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, these devices allow users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
Choices of 16 or 24 10/100Mbps Ports
Two choices of switches are available: one with 16 10/100Mbps ports, the other with 24 10/100Mbps ports. These ports detect the network speed and autonegotiate between 100BASE-TX and 10BASE-T, as well as fulland half-duplex.
Auto-adjustment of MDI/MDIX Cross Over
All 10/100Mbps ports auto-adjust MDI/MDIX twistedpair cable cross-over, eliminating the need for crossover cables or uplink buttons. You simply plug any port to a server, a workstation or a hub, using the usual straight-through twisted-pair cable. The port will autosense the attached device type and adjust the Tx, Rx pin assignments accordingly before transmitting and receiving data.
Optional 100Mbps Fiber Ports
An open slot is provided on the front panel to let you install an optional Fast Ethernet fiber module. This module provides 2 100Mbps fiber ports for 2 server connections or switch-to-switch cascading over the reliable fiber cables, which can be up to 2km long.
Key Features
Flow Control Protects Against Data Loss
Using flow control (in full duplex and applicable to all 10/100Mbps ports), the switch monitors the buffer status of each port. During peak usage, if the buffer fills to capacity, the switch detects this and signals to the attached node to delay sending new data until the switch can accept it. This operation minimizes the chance of any buffer overrun where incoming data overwrites the current data that has not been completely flushed out of the buffer. This function works with flow control supported Fast Ethernet adapters (installed in servers) connected to the switch in dedicated bandwidth configuration. It can also be applied to switch-to-switch cascading.
Easy Expansion
Cascading 2 switches together to expand the network using the twisted-pair ports is easy. As all 10/100Mbps ports support auto-negotiation of MDI/MDIX twisted-pair cable cross-over, you simply connect 2 switches together without having to find a cross-over cable or to make sure the ports are
uplink ports. At 200Mbps full-duplex speed, all ports provide a fast switch-to-switch dedicated bandwidth. 16 or 24 10/100Mbps ports
1 expansion slot for 2 optional 100Mbps fiber ports Full/half duplex support for each port Auto-learning of network configuration
IEEE 802.3x flow control in full duplex mode for protection against data loss
Back pressure in half duplex mode Auto-adjustment of MDI/MDIX cross over for each port
Auto-correction of twisted-pair polarity reverse RAM buffer dynamically allocated for each port
DES-1016R+/1024R+
Technical Specifications
General
Standards
-IEEE 802.3 10BASE-T Ethernet
-IEEE 802.3u 100BASE-TX Fast Ethernet
-IEEE 802.3u 100BASE-FX Fast Ethernet
-ANSI/IEEE 802.3 NWay auto-negotiation
-IEEE 802.3x Flow Control
Protocol
CSMA/CD
Data Transfer Rates
-Ethernet:
10Mbps (half duplex)
20Mbps (full duplex)
-Fast Ethernet:
100Mbps (half duplex)
200Mbps (full duplex)
Topology
Star
Network Cables
- 10BASE-T:
2-pair UTP Cat. 3, 4, 5 (100 m)
EIA/TIA-568 100-ohm STP (100 m)
- 100BASE-TX:
2-pair UTP Cat. 5 (100 m)
EIA/TIA-568 100-ohm STP (100 m) - 100BASE-FX:
Multi-mode (62.5/125 um or 50/125 um fiber cabling with SC
connector)
Number of Built-in Ports
-DES-1016R+: 10/100Mbps port x 16
-DES-1024R+: 10/100Mbps port x 24
-DES-102F: 100BASE-FX port x 2
Media Interface Exchange
Auto-negotiation of MDI-II/MDI-X for all 10/100Mbps ports
Twisted-pair Rx Reverse Polarity
Auto-correction
LED Report
Per device: - Power
Per 10/100Mbps port:
-100Mbps speeds
-Link/activity
Performance
Transmission Method
Store-and-forward
MAC Address Table
4K entries per device
Packet Filtering Rates
-Ethernet: 14,880 pps per port (half-duplex)
-Fast Ethernet: 148,810 pps per port (half-duplex)
Packet Forwarding Rates
-Ethernet: 14,880 pps per port (half-duplex)
-Fast Ethernet: 148,810 pps per port (half-duplex)
RAM Buffer
256KB per 8 ports
Flow Control
-IEEE 802.3x flow control per 10/100Mbps port in full Duplex
-Back pressure per 10/100Mbps port in half duplex
Physical & Environmental
AC Input
100 - 240 VAC, 50/60 Hz
Internal universal power supply
Power Consumption
10/100Mbps Unmanaged Switches
-DES-1016+: 39 watts (max.)
-DES-1024+: 39 watts (max.)
Ventilation
-DES-1016R+: 12V - 0.09A DC fan x 1
-DES-1024R+: 12V - 0.09A DC fan x 1
Operating Temperature
0 - 50 C (32 - 122 F)
Storage Temperature
-30 - 60 C (-22 - 140 F)
Humidity
5% - 95% non-condensing
Dimensions
441 x 207 x 44 mm
(17.4 x 8.15 x 1.732 inches)
19-inch rack-mount width, 1 U height
Weight
-DES-1016R+: 2.55 kg (5.62 lb.), 2.6kg (with DES-102F module)
-DES-1024R+: 2.65 kg (5.84 lb.), 2.7 kg (with DES-102F module)
Emission (EMI)
-FCC Class A
-CE Class A
-C-Tick
-VCCI Class A
-BSMI Class A
Safety
- UL (UL1950)
|
|
|
ICA |
|
|
|
|
|
|
|
|
|
N |
TI |
O |
|
|
|
|
|
|
|
U |
|
|
|
|
|
|
|
O |
M |
M |
|
N |
|
|
|
|
C |
|
|
|
C |
|||||
|
|
|
|
|
O |
||||
|
|
|
|
|
|
||||
L |
|
|
|
|
|
|
|
|
M |
|
|
|
|
|
|
|
|
M |
|
A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I |
|
E |
|
|
|
|
|
|
S |
||
R |
|
|
|
|
|
I |
S |
|
|
D |
|
|
|
O |
|
||||
|
|
E |
|
N |
|
|
|
||
|
|
|
F |
|
|
|
|
|
|
|
|
|
U |
S A |
|
|
|
|
|
geprufte Sicherheit
Ordering Information
Ethernet/Fast Ethernet Switches
DES-1016R+ 16 10/100Mbps ports
DES-1024R+ 24 10/100Mbps ports
Optional Module
DES-102F 2 100Mbps Fast Ethernet fiber ports (SC connectors)
Specifications subject to change without prior notice.
D-Link is a registered trademark of D- Link Corporation/D-Link System Inc. All other trademarks belong to their proprietors.
RECYCLABLE
Rev. 01 (Mar. 2001) Printed in Taiwan 7ES1016R+010
