Disclaimer
DisclaimerDisclaimer
Disclaimer
Thank you for purchasing this DJI product. Please visit the LIGHTBRIDGE page on www.dji.com regularly to
keep up with product information, technical updates and manual corrections. Information in this manual is
subject to change without notice in line with product upgrades and updates.
In using this product, you hereby agree to this disclaimer and signify that you have all points completely.
When assembling this product, follow all instructions carefully. The manufacturer and seller assume no
liability for any damage or injury arising from the use of this product.
DJI is a registered trademark of DJI Innovations. Names of product, brand, etc., appearing in this manual are
trademarks or registered trademarks of their respective owner companies. This product and manual are
copyrighted by DJI Innovations with all rights reserved. No part of this product or manual shall be
reproduced in any form without the prior written consent or authorization of DJI Innovations. No patent
liability is assumed with respect to the use of the product or information contained herein.
About
AboutAbout
About
Working in 2.4GHzfrequency band, anair unit and a ground unit compose the LIGHTBRIDGE, which
transmits video image, flight controller OSD and transmitter control signal. Having the characteristics of
small dimension, low power consumption and high sensitivity, the LIGHTBRIDGE can be widely applied
various fields for wireless communication. For aeromodelling activity, attach theair unit to the aircraft and
connect the ground unit to a monitor for displaying the video image, flight controller OSD information.
When the LIGHTBRIDGE transmitsthe video image and flight controller OSD information, the air unit is
working as transmitting equipment and the ground unit as receiving equipment. The air unit gets the video
image from a camera and OSD information from the flight controller, modulates and wirelessly transmits it to

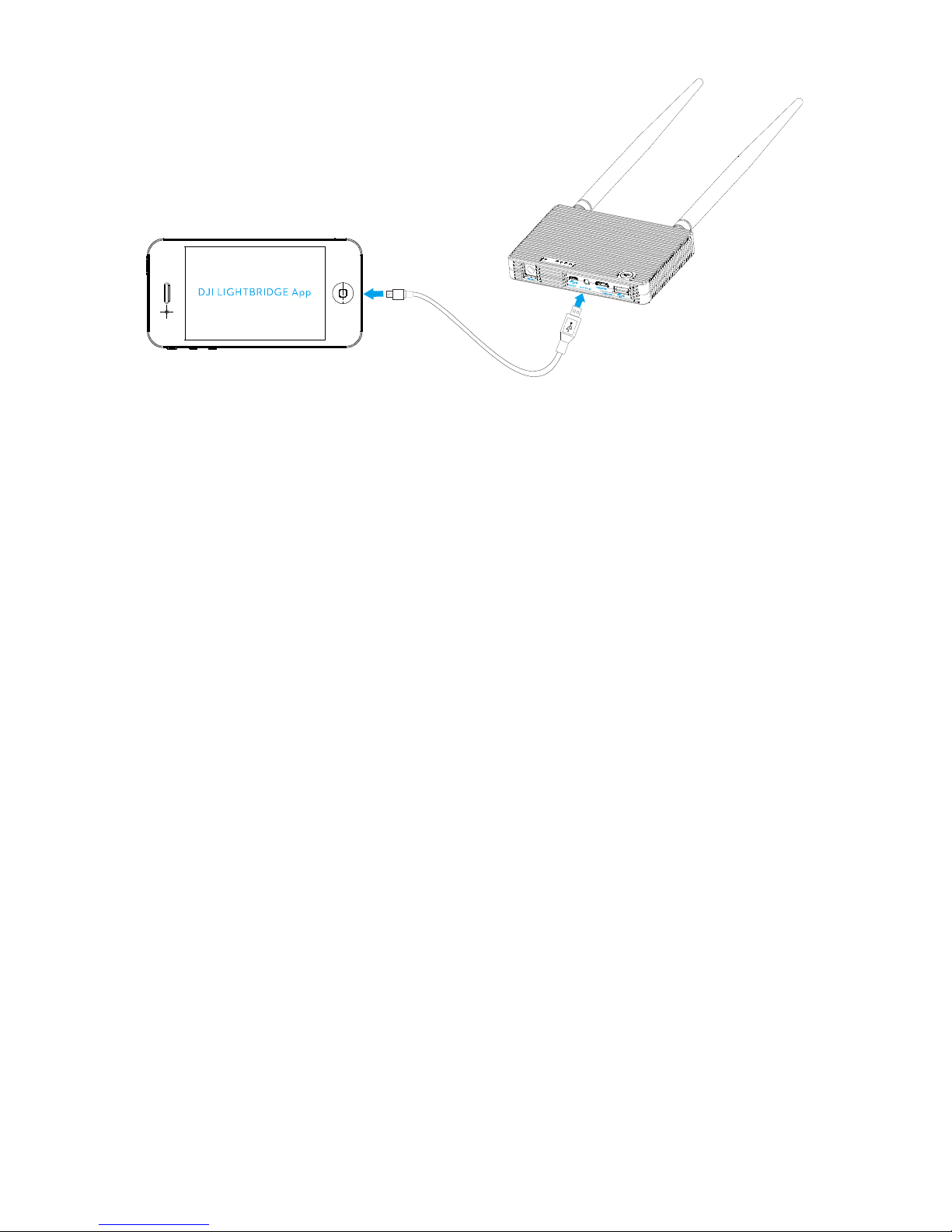

the ground unit. Theground unit receives the information, demodulates and sends it to display on a monitor

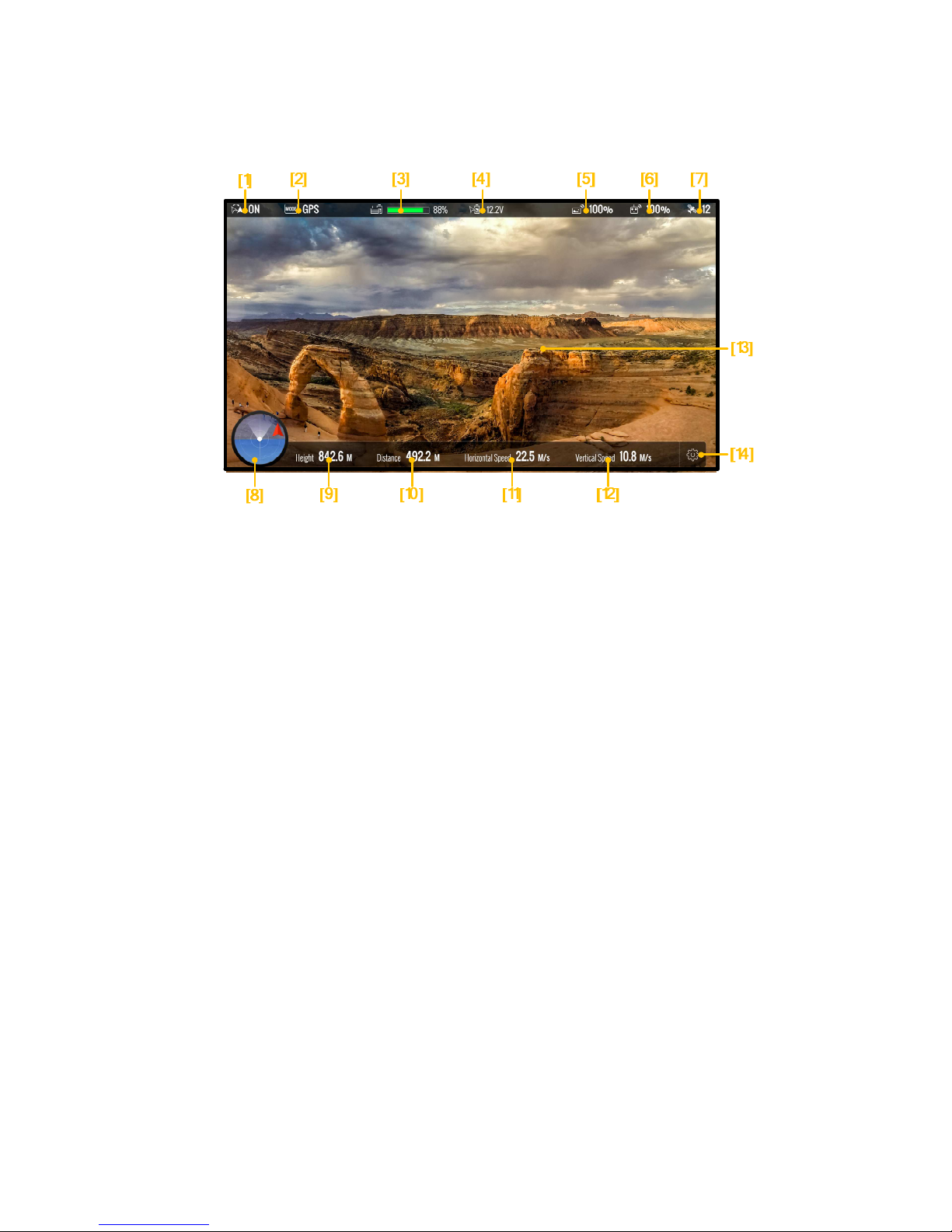

or a smart phone. To obtain a better experience, download the DJI LIGHTBRIDGE App via a smart phone for
displaying the video image and flight controller OSD information.
When the LIGHTBRIDGE transmitsthe transmitter control signal, the ground unit is working as transmitting
equipment connecting with transmitter and the air unitas receiving equipment built in a receiver.The ground
unit can connect to two transmitters for both aircraft and gimbal control. It should be used with the DJI flight
control system via the DBUS port connection since the built-in receiver can only support DJI DBUS protocol.
* For the 2.4GHz transmitter, it should be correctly connected to the ground unit, otherwise may lead to
malfunction due to interference.
3
Contents
ContentsContents
Contents
Disclaimer .................................................................................................................................................................................................... 2
About .............................................................................................................................................................................................................. 2
Contents ........................................................................................................................................................................................................ 3
In the Box ...................................................................................................................................................................................................... 4
Introduction ................................................................................................................................................................................................ 7
Air Unit ................................................................................................................................................................................................. 7
Ground Unit ........................................................................................................................................................................................ 8
Connection ................................................................................................................................................................................................. 12
Air unit Connection ....................................................................................................................................................................... 12
Ground Unit Connection ............................................................................................................................................................. 13
Install Antennas.............................................................................................................................................................................. 13
Usage ............................................................................................................................................................................................................ 18
Link ...................................................................................................................................................................................................... 18
Download DJI LIGHTBRIDGE App........................................................................................................................................... 18
Usage Procedure ............................................................................................................................................................................ 18
DJI LIGHTBRIDGE App Usage ................................................................................................................................................... 20
Specification .............................................................................................................................................................................................. 21
Appendix ..................................................................................................................................................................................................... 23
Re-link ................................................................................................................................................................................................ 23
Recharge Ground Unit.................................................................................................................................................................. 23
FCC and IC Statements .......................................................................................................................................................................... 24
4
In the Box
In the BoxIn the Box
In the Box
MMMModules
odulesodules
odules
Air
Air Air
Air
unit
unitunit
unit
××××
1111
Ground
GroundGround
Ground
unit
unitunit
unit
×1
×1×1
×1
Air
Air Air
Air
unit
unit unit
unit
antenna
antennaantenna
antenna
ssss
×2
×2×2
×2
Ground
Ground Ground
Ground
unit
unit unit
unit
antenna
antennaantenna
antenna
ssss
×2
×2×2
×2
Air
Air Air
Air un
unun
unit
itit
itcables
cablescables
cables
GIMBAL cable
GIMBAL cable GIMBAL cable
GIMBAL cable
×1
×1×1
×1
Connect the CAN
-
Bus connector to flight
control system for obtaining OSD
informationand the power connector to battery
for power supply. DVSB
connector
is reserved.
DBUS
DBUSDBUS
DBUS
cable
cable cable
cable
×1
×1×1
×1
Connect to
the flight control system
DBUS port
for
communication
.
AV
AVAV
AV
cable
cable cable
cable
×1
×1×1
×1
Connect to an a
nalog video signal
device.
HDMI
HDMIHDMI
HDMI
cable
cable cable
cable
×1
×1×1
×1
Connect to the HDMI port on the camera.
Micro
MicroMicro
Micro
----
USB
USBUSB
USB
cable
cable cable
cable
×1
×1×1
×1
Connect to a PC for firmware upgrade viathe
DJI Assistant Software.
Ground
Ground Ground
Ground unit
unitunit
unit cables
cablescables
cables

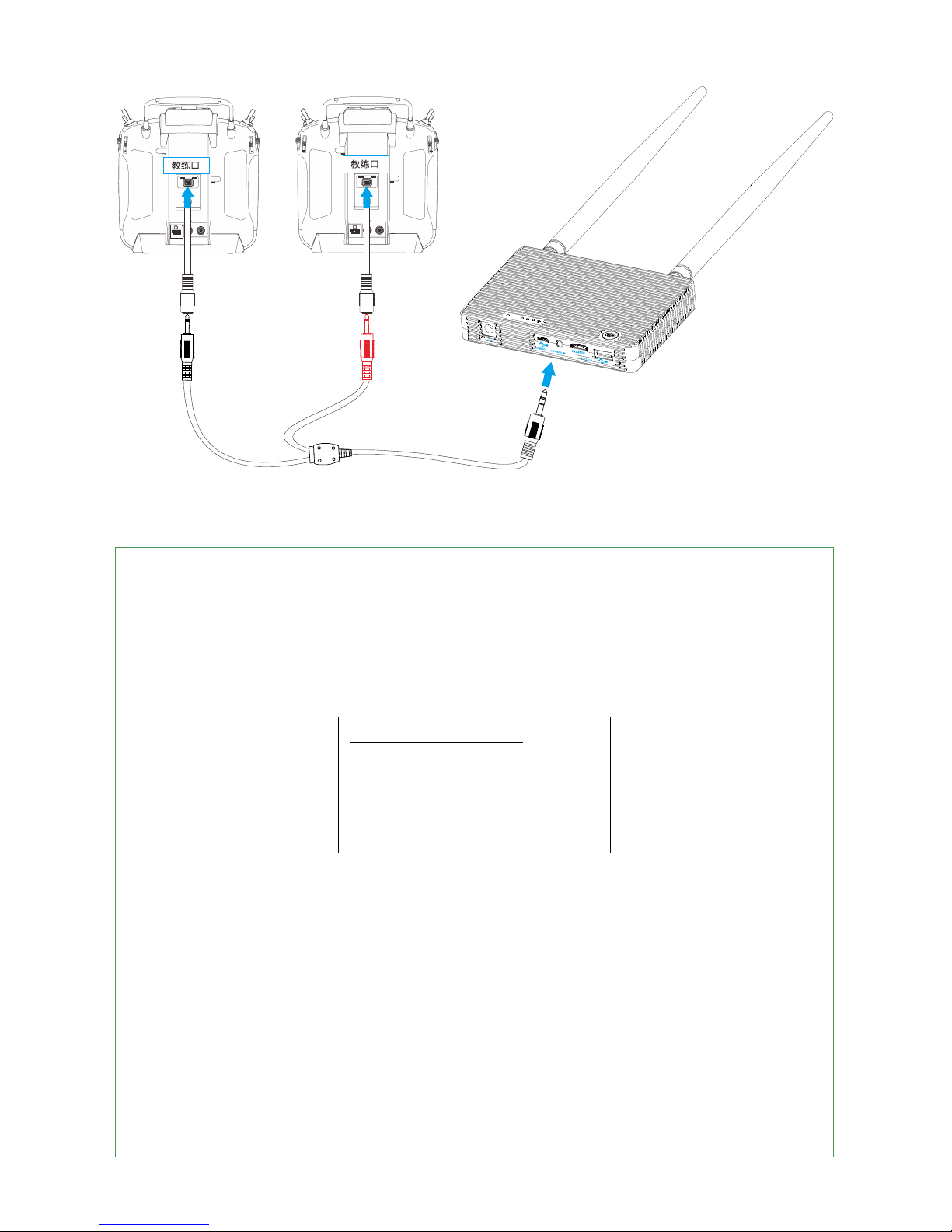

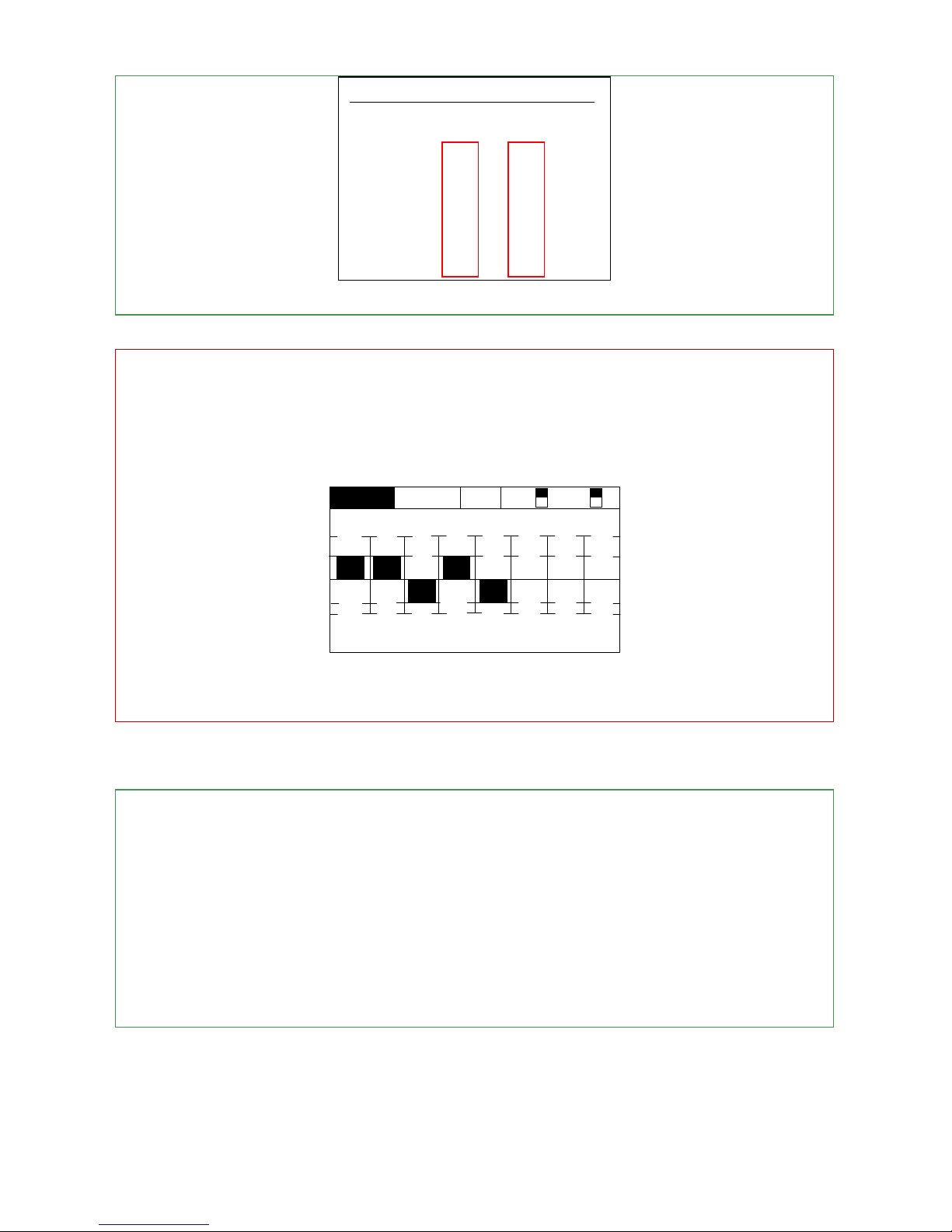

Transmitter cable
Transmitter cable Transmitter cable
Transmitter cable
×1
×1×1
×1
Connect to the t
raining
port cable, with the red
port for aircraft control and the black port for
gimbal control.
Training
TrainingTraining
Training
port cable with
port cable with port cable with
port cable with
rectangular head
rectangular headrectangular head
rectangular head
××××
1111
,
, ,
,
Training
TrainingTraining
Training
port cable with circle
port cable with circleport cable with circle
port cable with circle
Connect to the
transmitter
’
s t
raining
port.
5
head
headhead
head
××××
1111

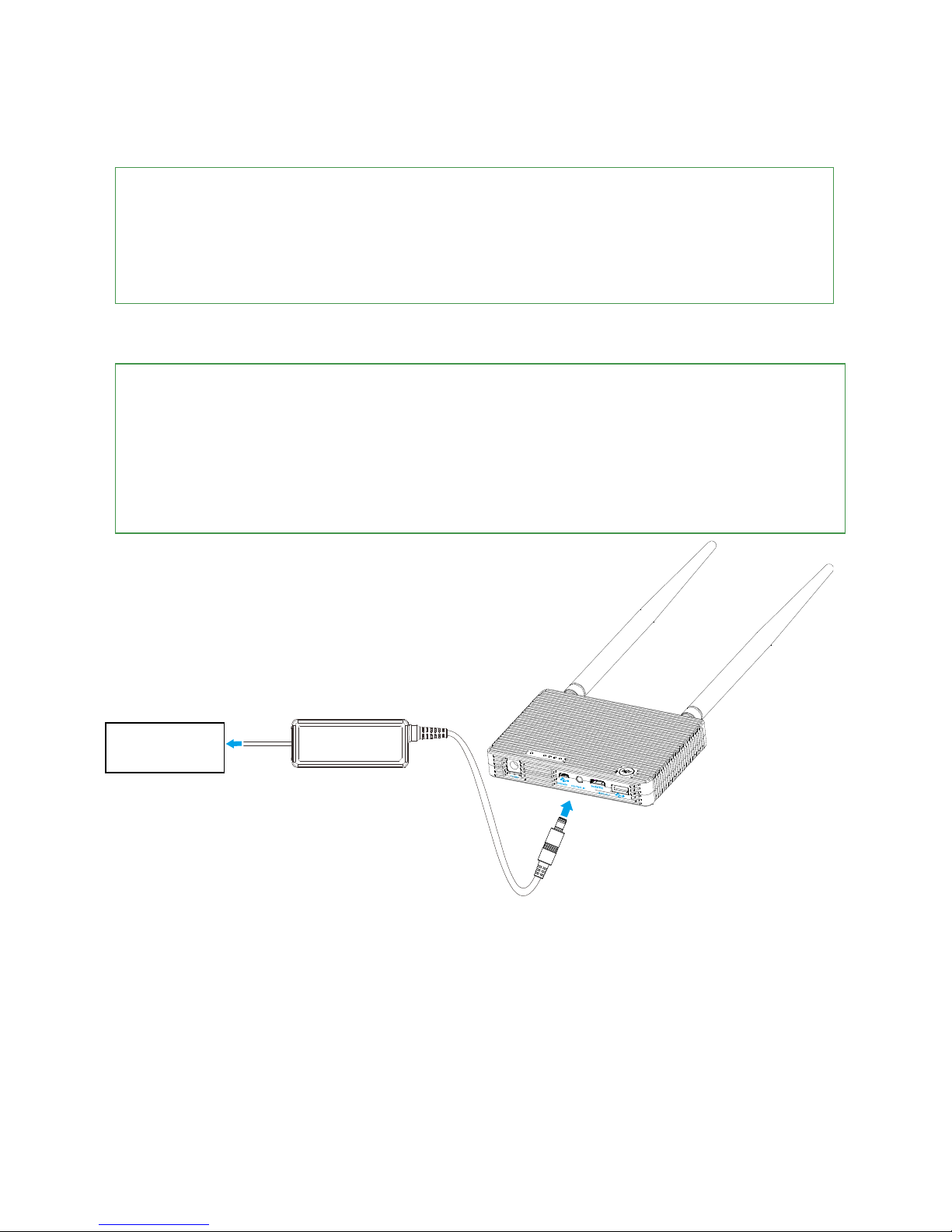

Charger
Charger Charger
Charger
×1
×1×1
×1
F
or charging the ground
unit.
Charger cable
Charger cable Charger cable
Charger cable
×1
×1×1
×1
Connect the charger to a wall socket. Choose an
appropriate adapter for the wall socket.
Battery charger cable
Battery charger cableBattery charger cable
Battery charger cable
×1
×1×1
×1
Connect to a battery (3S~6S) for charging the
ground
unit.
6
7
Introduction
IntroductionIntroduction
Introduction
Air
Air Air
Air Unit
UnitUnit
Unit
Front view
Front viewFront view
Front view
[1]
[1][1]
[1] GIMBAL PORT
GIMBAL PORTGIMBAL PORT
GIMBAL PORT
Port functions shown as below:
i. Power supply: (V+,V-) Connect to theon-board battery.
ii. CAN-Bus: (L,H)Connect to the flight control system CAN-Bus port for obtaining flight control
system OSD information.
iii. DVSB: (G-,+)For DJI high end gimbal DVSB video streaming input.
[2]
[2][2]
[2] DBUS
DBUSDBUS
DBUSport
portport
port
Built-in receiver interface should be connected to DJI flight control system’s DBUS port usually
locating at main controller labled X2.
[3]
[3][3]
[3] UPGRADE
UPGRADEUPGRADE
UPGRADE port
portport
port
Connect UPGRADE
UPGRADEUPGRADE
UPGRADE port to the USB port on a PC for firmware upgrade via theDJI Assistant Software.
[4]
[4][4]
[4] LINK
LINKLINK
LINK button
buttonbutton
button
Press the LINK
LINKLINK
LINK button to link the air unit with theand the ground unit.
[5]
[5][5]
[5] CONTROL
CONTROLCONTROL
CONTROL indicator
indicatorindicator
indicator

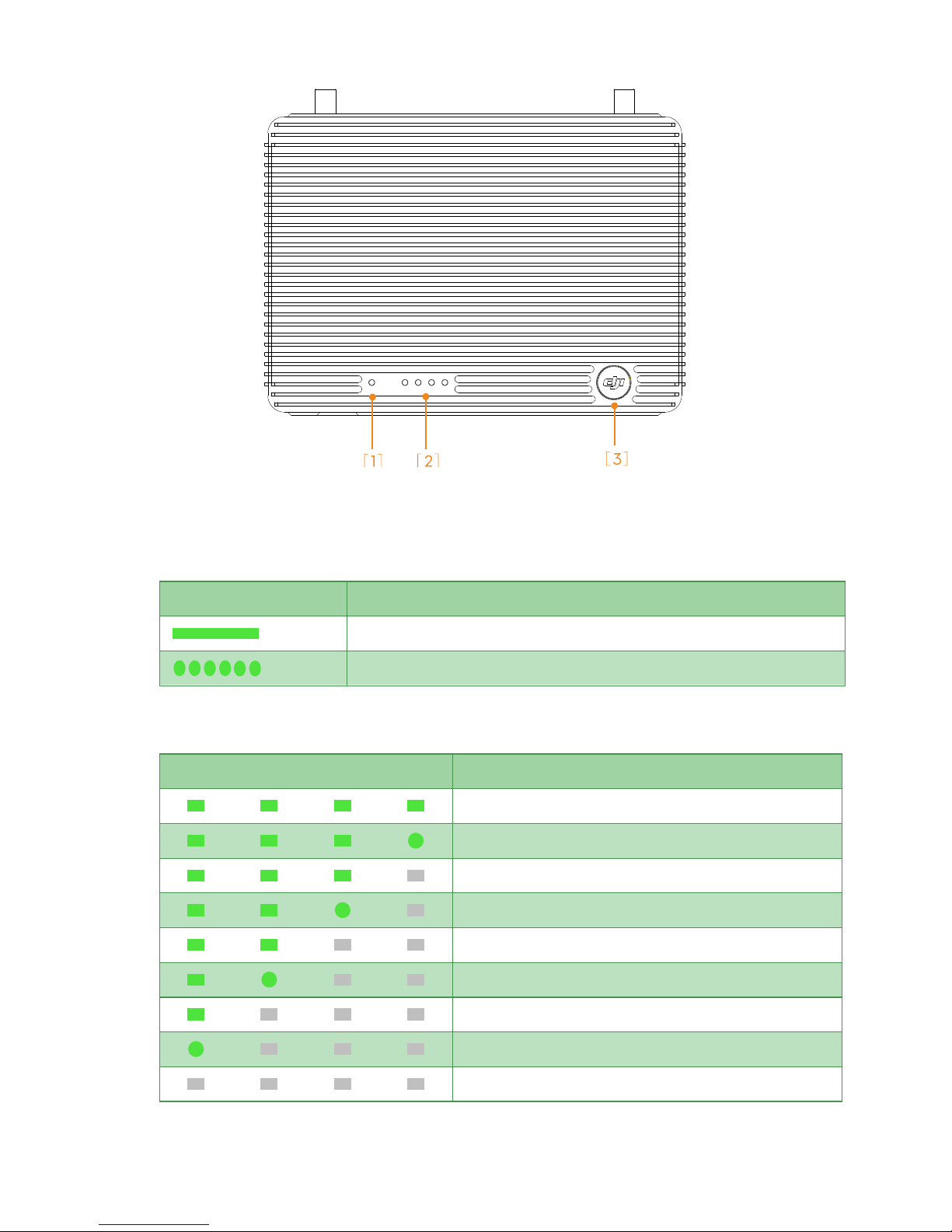

Transmitter link indicator is for display the communcationstatus between air and ground unit.
Indicator
IndicatorIndicator
Indicator
Description
DescriptionDescription
Description
Action
ActionAction
Action
No signal
Power on the
ground unit
, and check the
distance between
ground unit
and
air unit
.
Signal is detected
but not linked.
Link
ing is required.
Successfully
linked
. P
roper functioning
.
[6]
[6][6]
[6] VIDEO
VIDEOVIDEO
VIDEO indicator
indicatorindicator
indicator
Video indicator shows the transmission status of the vedio source.
[ ]
1
[ ]
2
[ ]
3
[ ]
4
[ ]
5
[ ]
6
8
Indicator
IndicatorIndicator
Indicator
Description
DescriptionDescription
Description
Instruction
InstructionInstruction
Instruction
AV/
HDMI signal is detected and p
roper
functioning
.
P
roper functioning
.
AV/
HDMI signal is detected but transmission
failed.
Power cycle
is required.
No
video source is detected.
Check camera
andconnection
status
.
Top view
Top viewTop view
Top view
[1]
[1][1]
[1] Ventilation Fan
To ensure the fan works properly, do not obstruct the ventilation fan outlet when installing.
SSSSide View
ide Viewide View
ide View
[1]
[1][1]
[1] HDMI
HDMIHDMI
HDMI IN
ININ
IN Port
PortPort
Port
Connects to the HDMI input device.
[2]
[2][2]
[2] AV
AVAV
AV Port
PortPort
Port
Connects to the analog video input device.
Tip: Select the appropriate port according to the video source format of the input device.

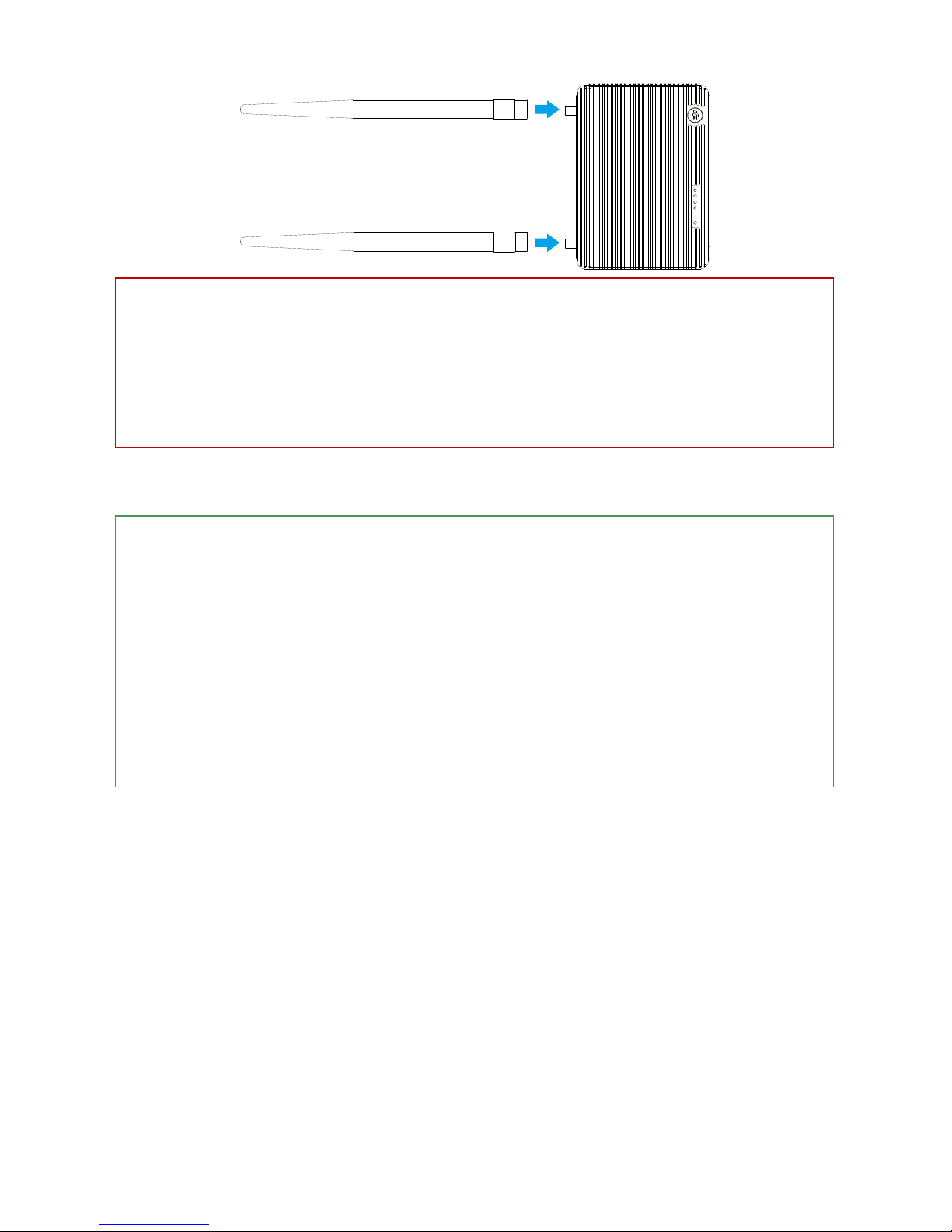

Ground Unit
Ground UnitGround Unit
Ground Unit

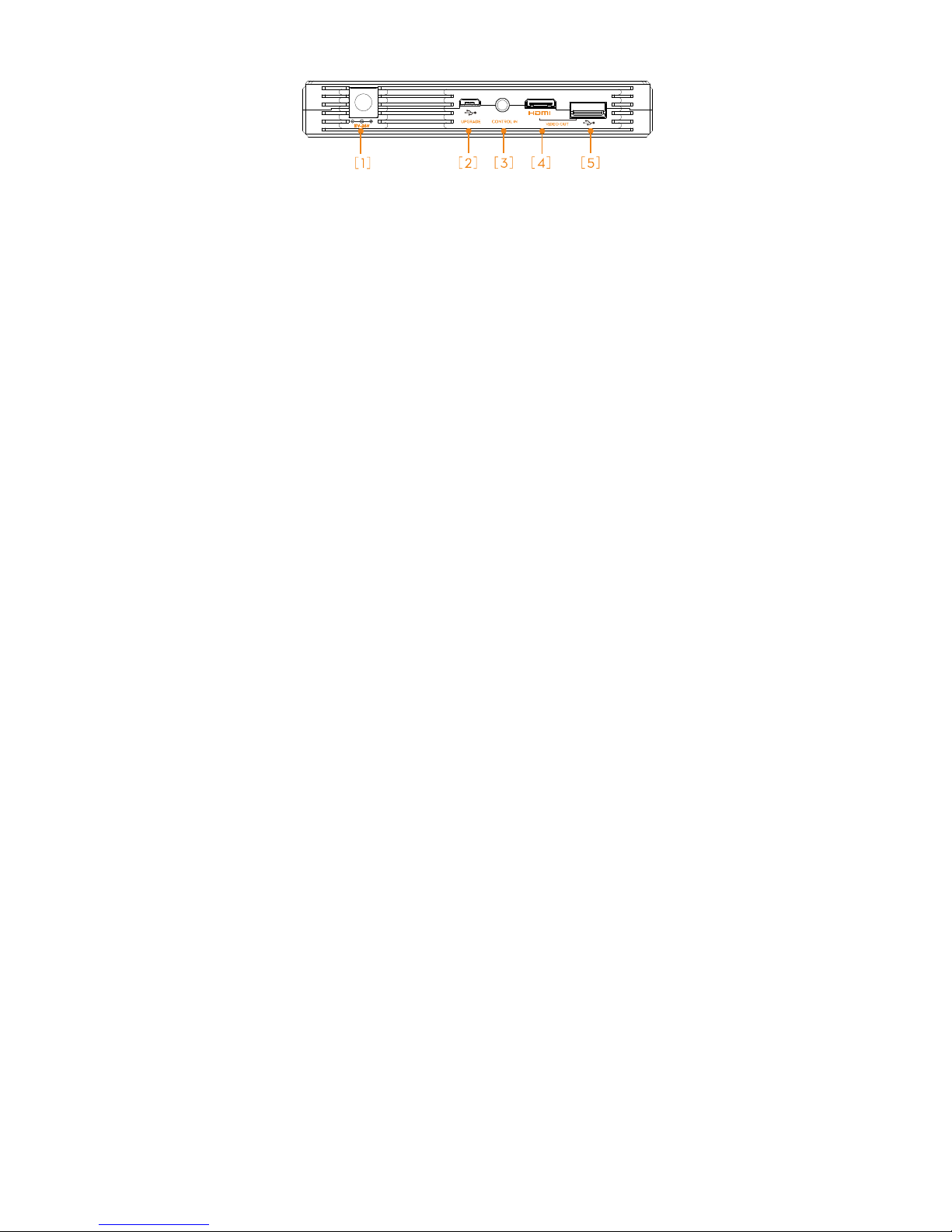

FFFFront View
ront Viewront View
ront View
[ ]
1
[ ]
1
[ ]
2
